Drafting of various geometries using Chamfer, Fillet tool in AutoCad

AIMS AND INTRODUCTION : DRAFTING OF VARIUOS GEOMETRIC USING CHAMFER , FILLET TOOLS IN AUTOCAD .

REQUIRMENT TOOLS : FILLET TOOLS , CIRCLE COMMAND , LINE COMMAND AND OTHER MODIFY TOOLS .

PROCEDURE :

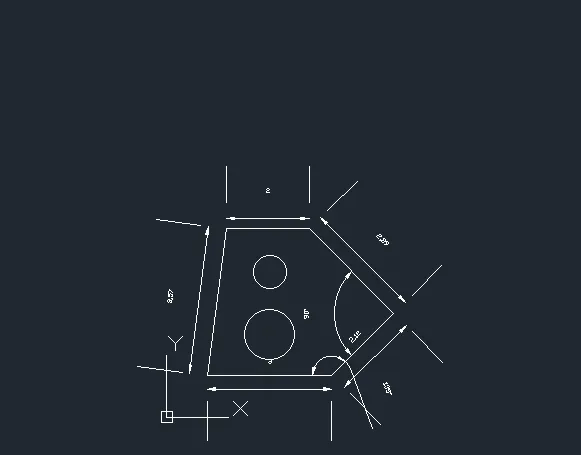

SKTECH 1:

• DECIMAL

• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 3,0 ENTER
• USE POLAR TRAKING WITH OPEN SNAP OBJECT AND SPECIFY NEXT POINT @2.12<45 ENTER
• SPECIFY NEXT POINT @2.83<90 ENTER
• SPECIFY NEXT POINT 2,0 ENTER
• SPECIFY NEXT POINT 0,-2.50 ENTER
• TYPE CIRCLE COMMAND WITH CENTER AND DIA OPTION ENTER
• DRAW CIRCLE WITH DIA 1.2 AT 2.50 DISTANCE ENTER
• DRAW CIRCLE WITH DIA 0.80 AT 1.5 DISTANCE ENTER

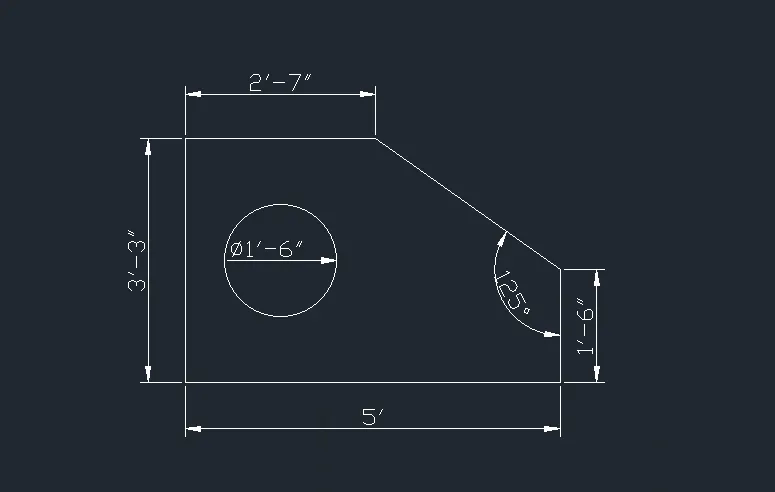

SKETCH 2 : ARCHITECTURAL

•
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 1,1 ENTER
• SPECIFY NEXT POINT 8'-0"
• SPECIFY NEXT POINT DOWN 2' ENTER
• OPEN POLAR TRACKING SPECIFY NEXT POINT 3'ENTER
• SPECIFY NEXT POINT @2'-6" < 90 ENTER
• SPECIFY NEXT POINT OTHER SIDE @2'-10" < 45 ENTER
• CLOSE ENTRE
• PRESS ESC .

SKTECH 3 ENGINEERING.

•

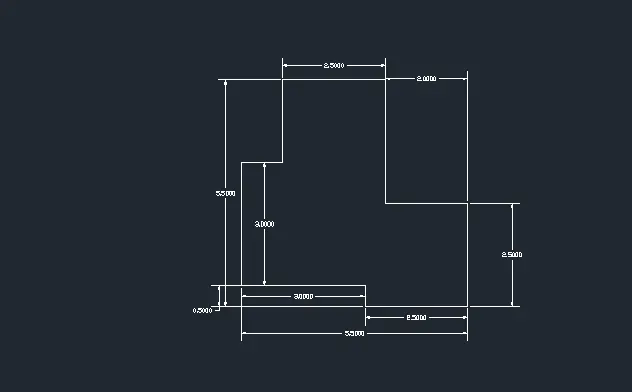

• SKTECH 4 :
•
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 3,0 ENTER
• SPECIFY NEXT POINT 0,0.5 ENTER
• SPECIFY NEXT POINT 2.5 ,0 ENTER
• SPECIFY NEXT POINT 0,2.5 ENTER
• SPECIFY NEXT POINT 2,0 ENTER
• SPECIFY NEXT POINT 2.5,0 ENTER
• SPPECIFY NEXT POINT 0,2 ENTER
• SPECIFY NEXT POINT 0,3.5 AT 3,0 LINE ENTER
• CLOSE ENTER

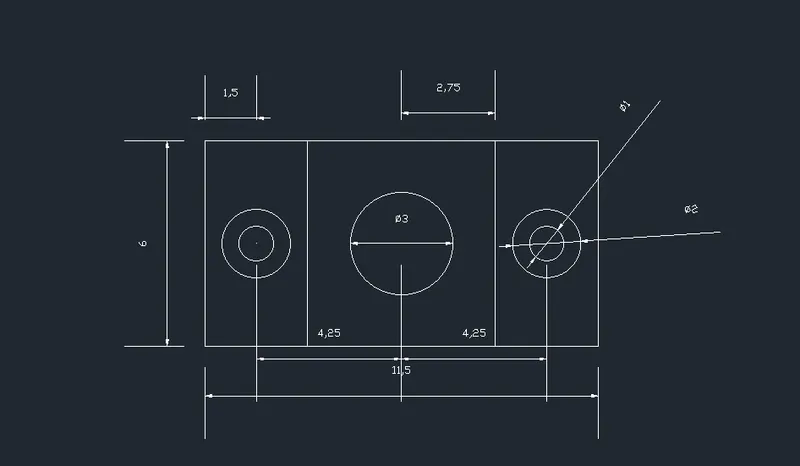

SKTECH 5

• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 11.5,0 ENTER
• SPECIFY NEXT POINT 0,6 ENTER
• SPECIFY NEXT POINT 11.5,0 ENTER
• SPECIFY NEXT POINT 0,6 ENTER
• TYPE CIRCLE COMMAND ENTER
• DRAW THE CIRCLE WITH DIA 2 AT SPECIFY POINT 1.5,3 ENTER BOTH SIDE .
• DRAW THE CIRCLE WITH FIA 1 SPECIFY POINT 1.5,3 ENTER BOTH SIDE .
• DRAW THE CIRCLE WITH DIA 3 ENTER
• PRESS ESC .

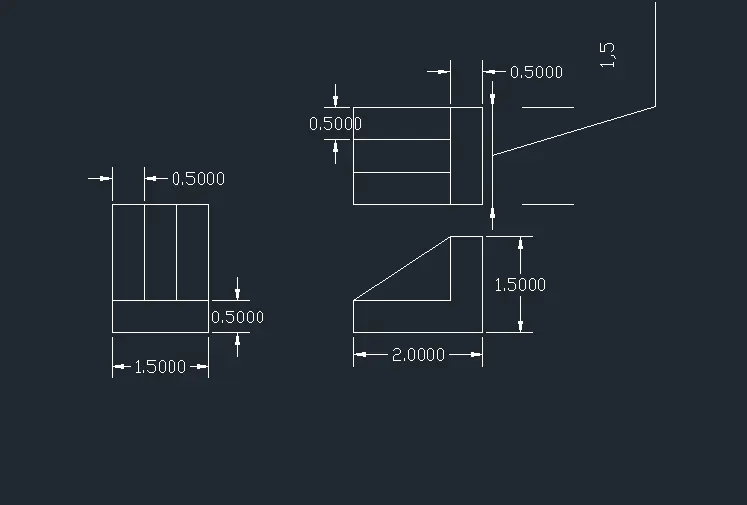

SKTECH 6:

• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 1.5 ENTER
• SPECIFY NEXT POINT 0.5 ENTER
• SPECIFY NEXT POINT 1.5 ,0 ENTER
• CLOSE ENTER
• LINE COMMAND ENTER
• SPECIFY FIRST POINT 1.5 ENTER
• USE OFFSET COMMAND ENTER
• DRAW THE THREE VERTICAL LINE AT 0.5 ENTER
• PRESS ESC
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 2,0 ENTER
• SPECIFY NEXT POINT 0,1.5 ENTER
• SPECIFY NEXT POINT 0,0.5 ENTER
• SPECIFY NEXT POINT 0,1 ENTER
• CLOSE ENTER
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 2,0 ENTER
• SPECIFY NEXT POINT 0,1.5 ENTER
• USE OFFSE COMMAND DRAW THREE HORIZONTEL LINE AT 0.5 ENTER
• PRESS ESC

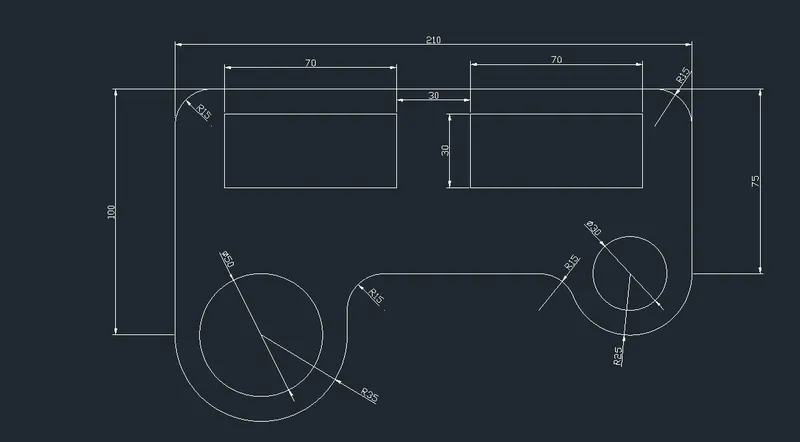

SKTECH 7 :

• TYPE LINE COMMAND ENTER
• DRAW THE LINE 0,100 ENTER
• TYPE ARC COMMAND ENTER
• DRAW THE ARC RADIUS 15 ENTER
• TYPE LINE COMMAND AND JOIN THE TWO POINT OF ARC
• TYPE LINE COMMAND ENTER
• BELOW 10 DISTANCE DRAW THE RECTANGULAR DIMENSION 70,30 ENTER
• TYPE CIRCLE COMMAND ENTER
• DRAW THE CIRECLE DIA 70 ENTER
• TYPE TRIM COMMAND ENTER
• TRIM THE UPPER PORTION OF DIA 70 CIRCLE ENTER
• TYPE CIRCLE COMMAND ENTER
• DRAW THE DIA 50 CIRCLE ENTER'
• TYPE TRIM COMMAND ENTER
• TRIM THE UPPER PORTION OF DIA 50 CIRCLE ENTER
• TYPE CIRCLE COMMAND ENTER
• DRAW THE DIA 50CIRCLE LEFT SIDE ENTER
• DRAW THE DIA 60 CIRCLE RIGHT SIDE ENTER
• TYPE LINE COMMAND ENTER
• SPECIFY THE POINT 0,70 ENTER
• CLOSE
• ESC

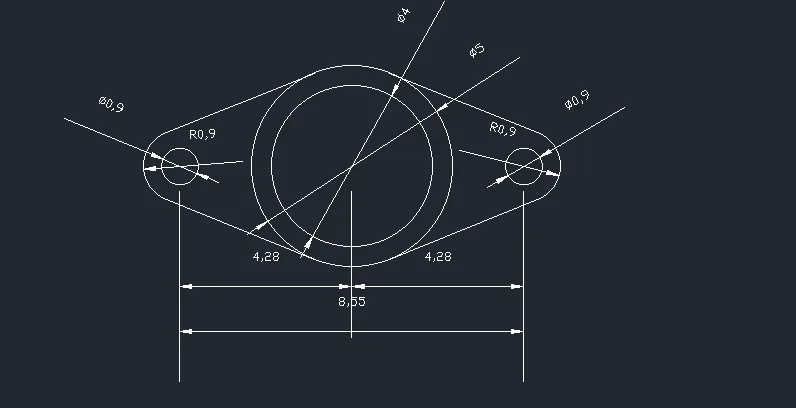

SKTECH 8 :

• TYPE CIRCLE COMMAND ENTER
• DRAW CIRCLE CENTRE , DIA OPTION USE DIA 5 ENTER
• DRAW CIRCLE DIA 4 ENTER
• DRAW CIRCLE AT 4.28 WITH CENTRE , RADIUS OPTION RADIUS 9 ENTER BOTH SIDE
• TAKE POLAR TARCKING USE TANGENT OPTION ENTER'
• DRAW TANGENT ON EXTERNAL CIRCLE RADIUS 0.9 BOTH SIDE ENTER

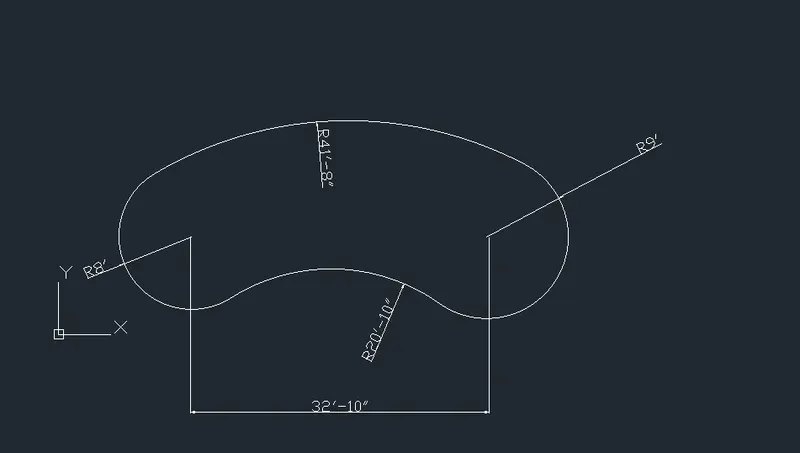

SKTECH 9:

• TYPE CIRCLE COMMAND ENTER
• DRAW THE FOUR CIRCLE RADIUS 8' AND RADIUS 41'-8" AND RADIUS 9' LAST CIRCLE RADIUS 20'-8" ENTER
• ALL CIRCLE ARE INTERSECT EACH OTHER
• USE TRIM COMMAND ENTER
• TRIM THE EXTRA PORTION OF CIRCLE
• ESC

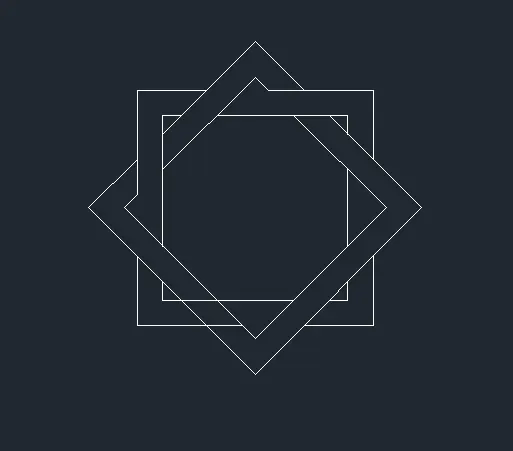

SKTECH 10:

• TYPE RECTANGULAR COMMAND ENTER
• GIVE DIMENSION 5,4 ENTER
• TYPE OFFSET COMMAND ENTER
• GIVE DISTANCE 1 ENTER
• TYPE COPY COMMAND ENTER
• COPY THE RECTANGULAR WITH ON POLAR TRACKING ENTER
• TYPE ROTATE CAMMAND ENTER
• GIVE ANGLE 45 DEGREE ENTER
• TYPE MOVE COMMAND ENTER
• MOVE THE COPY RECTANGULAR ON SOURCE RACTANGULAR ENTER
• USE TRIM COMMAND ENTER
• TRIM THE EXTRA PORTION
• ESC .

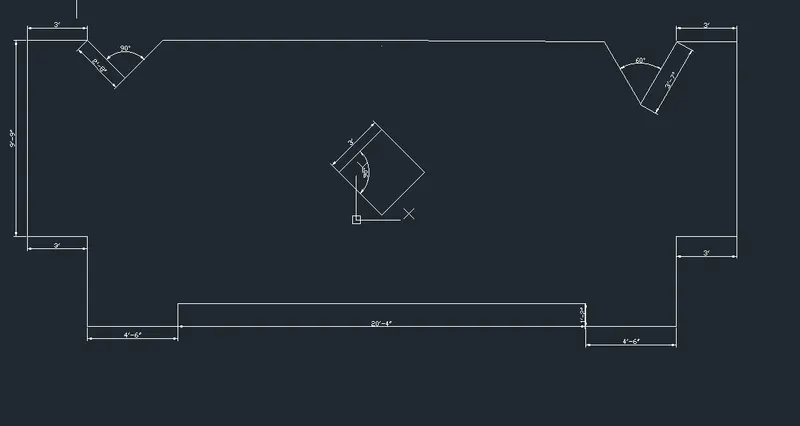

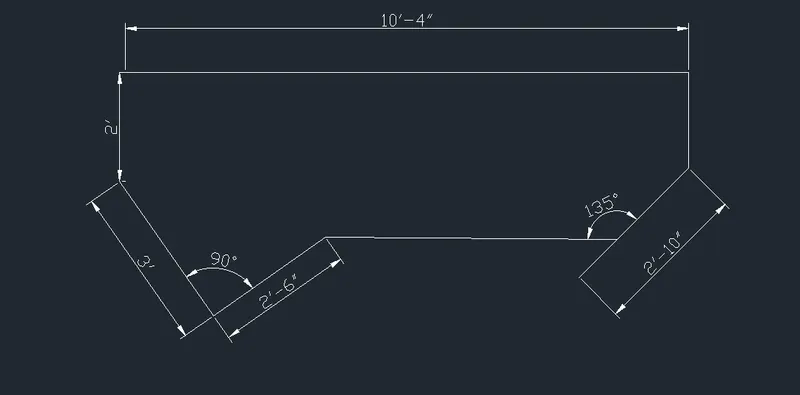

SKTECH 11.

• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 4'-6",0 ENTER
• SPECIFY NEXT POINT0, 1'-2" ENTER
• SPECIFY NEXT POINT 20'-4" ,0 ENTER
• SPECIFYNEXT POINT 0, 1'-2" ENTER
• SPECIFY NEXT POINT4'-6' ,0 ENTER
• SPECIFY NEXT POINT 0, 4'-6"ENTER
• SPECIFY NEXT POINT 3',0 ENTER
• SPECIFY NEXT POINT 9' ENTER
• SPICIFY NEXT POINT 3,0 ENTER
• SPECIFY NEXT POINT 3'-7" <60 ENTER
• SPECIFY NEXT POINT 2'-8" < 90 ENTER
• TYPE RECTANGULAR COMMAND ENTER
• DRAW THE DIMENSION 3',3' ENTER
• ESC

RESULT :

ALL THE SKTECH ARE CREAT BY DRAW TOOL , MODIFY TOOL IN AUTOCAD WITH THEIR GIVEN DIMENSION NEAT AND CLEAN .
