Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM : TO CREATE THE DRAWING USING RELATIVE COORDINATE METHOD IN AUTOCAD .

REQUIRMENT:

• USE : LINE COMMAND , OFFSET COMMAND , COPY COMMAND , ISOMETRIC PLANE LEFT, TOP, RIGHT .

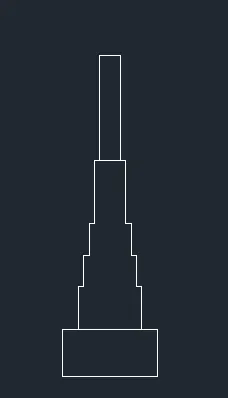

• DRAWING 1 : C.S OF LOAD BEARING WALL OVER SPREAD FOOTING

• PROCEDURE:
• TYPE LINE COMMAND
• SPECIFY FIRST POINT @0.9,0 ENTER
• SPECIFY NEXT POINT @0, 0.25 ENTER
• SPECIFY NEXT POINT @ 0.50, 0 ENTER
• SPECIFY NEXT POINT @ 0,0.40 ENTER
• SPECIFY NEXT POINT @.40,0 ENTER
• SPECIFY NEXT POINT @ 0,0.40 ENTER
• SPECIFY NEXT POINT @0,-0.15 ENTER
• SPECIFY NEXT POINT @ 1.15,0 ENTER
• SPECIFY NEXT POINT @0.30,0 ENTER
• SPECIFY NEXT POINT 3 TIME REPEAT @ 0,0.15 AND 0.30,0 ENTER
• SPECIFY NEXT POINT @ 1,0 ENTER
• SPECIFY NEXT POINT FROM VERTICAL 0.15 @ 0.30,0 AND USE COPY THIS ENTER
• SPECIFY NEXT POINT @0,0.60 ENTER
• SPECIFY NEXT POINT @ 1.15,0 ENTER
• PRESS ESC .

DRAWING 2: ISOLATED FOOTING .

• PROCEDURE :
• LINE COMMAND ENTER
• SPECIFY FIRST POINT @ 1,0
• SPECIFY SECONED POINT @ 0,0.15 ENTER
• SPECIFY NEXT POINT @0,0.15 ENTER
• SPECIFY NEXT POINT @ 0.38,0.25 ENTER
• SPECIFY NEXT POINT @ 0,1.60 ENTER
• SPECIFY NEXT POINT @ 0.04,0 ENTER
• SPECIFY NEXT POINT @ 0,-1.96 ENTER
• SPECIFY NEXT POINT @ 0.73,0 ENTER

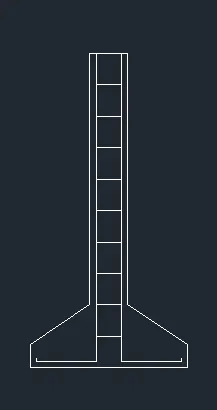

• USE OFFEST COMMAND AND DRAW THE 0.20 INTERWAL AND DRAW THE @ 0.73,0 LINE 9 TIMES ENTER
• PRESS ESC.

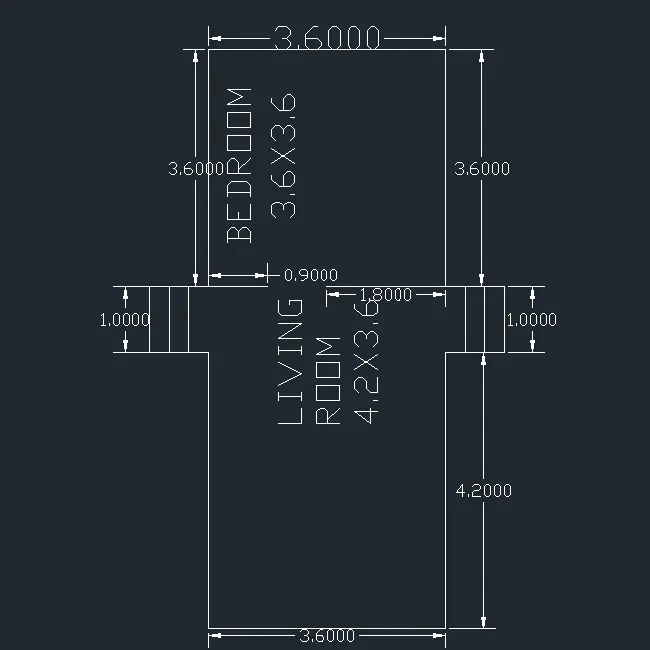

DRAWING 3 : TWO BED ROOM BUILDING :

• PROCEDURE :
• LINE COMMAND ENTER
• SPECIFY FIRST POINT @ 3.6,0
• SPECIFY NEXT POINT @ 0,3.6 ENTER
• SPECIFY NEXT POINT @0.9,0 ENTER
• SPECIFY NEXT POINT @ -0.9,0ENTER
• SPECIFY NEXT POINT @ 0,1 AND USE OFFSET COMMAND AND DRAW 2 TIME ENTER
• SPECIFY NEXT POINT @ 0,-4.2 ENTER
• SPECIFY NEXT POINT @ 3.6,0ENTER
• SPECIFY NEXT POINT @ 4.2,0 ENTER
• SPECIFY NEXT POINT @ 1,0 ENTER
• SPECIFY NEXT POINT @ 0,1 ENTER AND USE OFFSET COMMAND .
• SPECIFY NEXT POINT @-1.8,0 ENTER
• PRESS ESC .

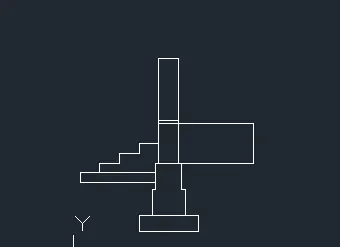

DRAWING 4: LOAD BEARING WALL SHOWING FOUNDATION DETAILS :

• PROCEDURE :
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT @0.90,0 ENTER
• SPECIFY NEXT POINT @ 0,0.45 ENTER
• SPECIFY NEXT POINT @ 0,0.60 ENTER
• SPECIFY NEXT POINT @0,0.40 ENTER
• SPECIFY NEXT POINT @0.50,0 ENTER
• SPECIFY NEXT POINT @ 0,0.30 ENTER
• SPECIFY NEXT POINT @ 0.40,0 ENTER
• SPECIFY NEXT POINT @ 0.0.60 ENTER
• SPECIFY NEXT POINT @ 0.30,0 ENTER
• SPECIFY NEXT POINT @ 0,1 ENTER
• PRESS ESC .
• REPEAT ALL POINT NEXT SIDE ENTER
• PRESS ESC .

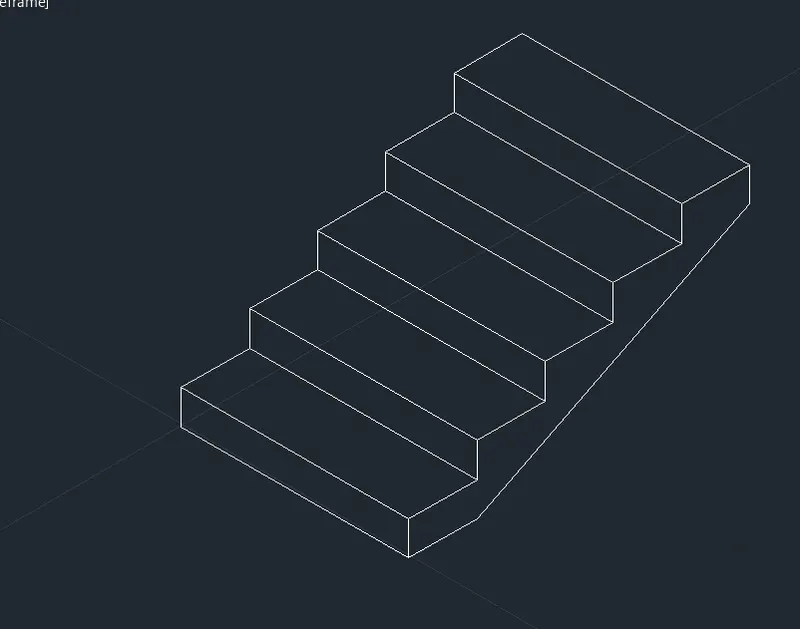

DRAWING 5: ISOMETRIC VEIW OF STEP .

PROCEDURE :

• USE ISOMETRIC PLANE LEFT
• USE ISOMETRIC PLANE TOP
• USE ISOMETRIC PLANE RIGHT
• TYPE LINE COMMAND ENTER
• SPECIFIC FIRST POINT 1 WITH ISOMETRIC PLANE LEFT ENTER
• SPECIFIC NEXT POINT 0.15 WITH ISOMETRIC PLANE TOP ENTER
• SPECIFIC NEXT POINT 0.30 WITH ISOMETRIC PLANE RIGHT ENTER .
• ALL THESE PROCEDURE REPEAT 5 TIME ENTER
• USE ONLR DIRECT COORDINATE METHOD.

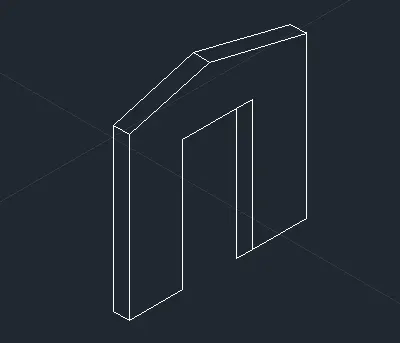

DRAWING : 6: ISOMETRIC VEIW OF GABBLE WALL

• USE ISOMETRIC PLANE TOP , ISOMETRIC PLANNE LEFT ,ISOMETRIC PLANE RIGHT .
• TYPE LINE COMMAND ENTER
• SPECIFY FIRST POINT 0.3 ENTER WITH ISOMETRIC PLANE LEFT
• SPECIFY NEXT POINT 2.42 ENTER WITH ISOMETRIC PLANE TOP
• SPECIFY NEXT POINT 0.3 ENTER WITH ISOMETRIC PLANE RIGHT
• SPECFY NEXT POINT 3 ENTER WITH ISOMETRIC PLANE TOP
• USE COPY COMMAND ENTER
• COPY 0.3 LINE AND PUT INCLINED LINE AND JOIN THE INCLINED LINE ENTER
• PRESS ESC .

RESULT : ALL SKETCH ARE DRAW WITH RELATIVE COORDINATE METHOD , DIRCT COORDINATE METHOD ( ISOMETRIC PLANE TOP ,LEFT, RIGHT ) IN AUTOCAD WITH LINE TOOL COMMAND .
