Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM: TO CREATING A HOUSING PLAN , SEATING PLAN , TOILET AND UTILITY ROOM USING AUTOCAD .

COMMAND USED:

• LINE COMMAND
• LAYERS
• TRIM
• DIMENSION
• OFFSET
• XLINE

PROCEDURE:

1 . SKTECH HOUSING PLAN LAYOUT.

STEP 1 .

1. IN THE COMMAND ( L) ENTER.
2. SPECIFY FIRST POINT (1,1) ENTER
3. SPECIFY NEXT POINT ( @ 12'-6" ,0" ) ENTER
4. SPECIFY NEXT POINT ( 0,6') ENTER.
5. SPECIFY NEXT POINT ( 12'-6" ,0") ENTER
6. SPECIFY NEXT POINT ( 0,6'-8" ,0 ) ENTER
7. SPECIFY NEXT POINT ( 6'-4" ,0') ENTER
8. SPECIFY NEXT POINT ( 0,4.5" ) ENTER
9. IN THE COMMAND PROMPT WRITE ( OFFSET ) .
10. IN THE COMMAND SELECT OBJECT .
11. SPECIFY OFFSET DISTANCE 4.5" ENTER
12. IN THE COMMAND WRITE ( TRIM ) .
13. TRIM THE UNWANTED OBJECT .

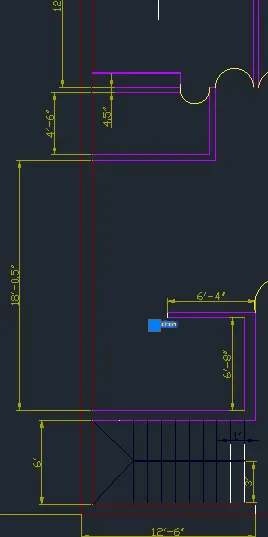

STEP 2.

1. IN THE COMMAND PROMPT WRITE ( L) ENTER.
2. IN THE COMMAND PROMPT SPECIFY FIRST POINT AS KITCHEN STARTING POINT .
3. SPECIFY NEXT POINT ( @ 0, 18'-0.5" ) ENTER
4. SPECIFY NEXT POINT ( @ 8'-3" ,0" ) ENTER .
5. SPECIFY NEXT POINT ( 0, 4'-6" ) ENTER
6. IN THE COMMAND PROMPT WRITE ( OFFSET ) ENTER.
7. SPECIFY OFFSET DSTANCE AS 4.5" ENTER
8. IN THE COMMAND PROMPT OFFSETING THE INTERIOR WALL OF TOILET .

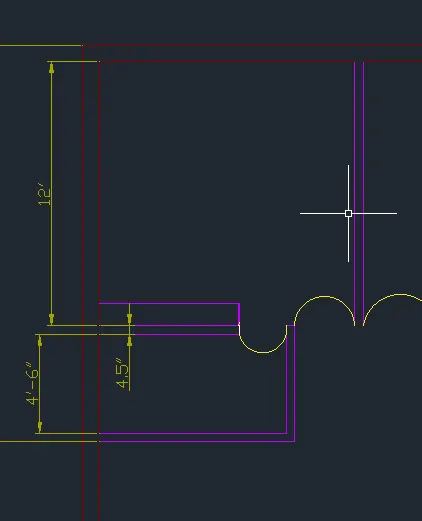

STEP 3.

1. IN THE COMMAND PROMPT WERITE ( L) ENTER
2. SPECIFY FIRST POINT AS THE POINT WE CREATED A BEDROOM .
3. SPECIFY NEXT POINT ( @ 11'-7.5",0" ) ENTER
4. SPECIFY NEXT POINT (0',12' ) ENTER
5. SPECIFY NEXT POINT ( @ 4.5",0 ) ENTER
6. SPECIFY NEXT POINT ( @0,12" ) ENTER
7. SPECIFY NEXT POINT ( @ 11'-6" ) ENTER
8. SPECIFY NEXT POINT ( 0',12') ENTER
9. SPECIFY NEXT POINT ( @ -8'-1.5" ) ENTER
10. SPECIFY NEXT POINT ( @0, 5'-7" ) ENTER
11. SPECIFY NEXT POINT ( @ 4.5",0) ENTER
12. SPECIFY NEXT POINT ( @0,5'-7" ) ENTER
13. IN THE COMMAND PROMPT WRITE ( OFFSET)
14. SPECIFY OFFSET DISTANCE AS 4.5" AS EXTERIOR WALL .
15. IN THE COMMAND PROMPT WRITE ( TRIM )
16. IN THE COMMAND PROMPT TRIMMING THE UNWANTED OBJECT.
17. SIMLARLY DO THE PROCEDURE FOR OTHER ROOM.

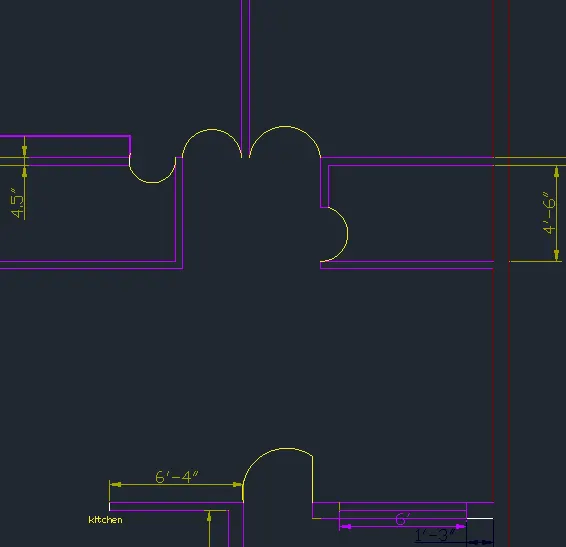

STEP 4.

DRAWING OF DOORS AND WINDOWS :

1. IN THE COMMAND PROMPT WRITE ( CIRCLE ) ENTER
2. SPECIFY FIRST POINT INTERIOR WALL OF BEDROOM.
3. IN THE COMMAND PROMPT WRITE ( CIRCLE ) ENTER
4. IN THE COMMAND PROMPT WRITE (TRIM ) ENTER
5. TRIMMING THE OBJECT AND CREATING THE DOORS .
6. SIMILARLY DO THIS FOR OTHER ROOMS DOORS.

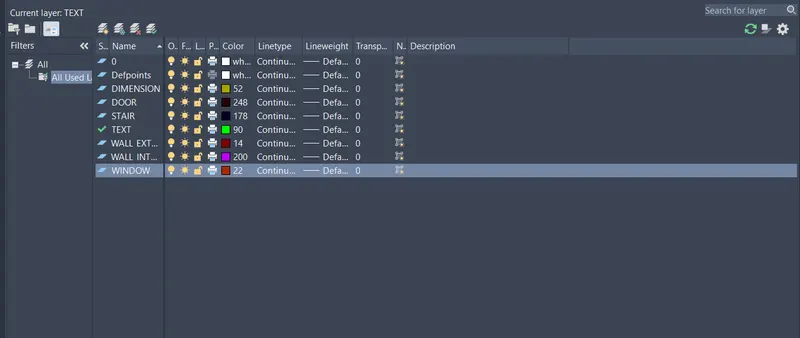

APPLYING LAYERS:

1. IN THE COMMAND PROMPT WRITE ( LAYER ) ENTER
2. IN THE LAYER BOX SPECIFY COMPONENT AND THEIR COLURS ,LINE TYPE ,LINE WEIGHT ETC .

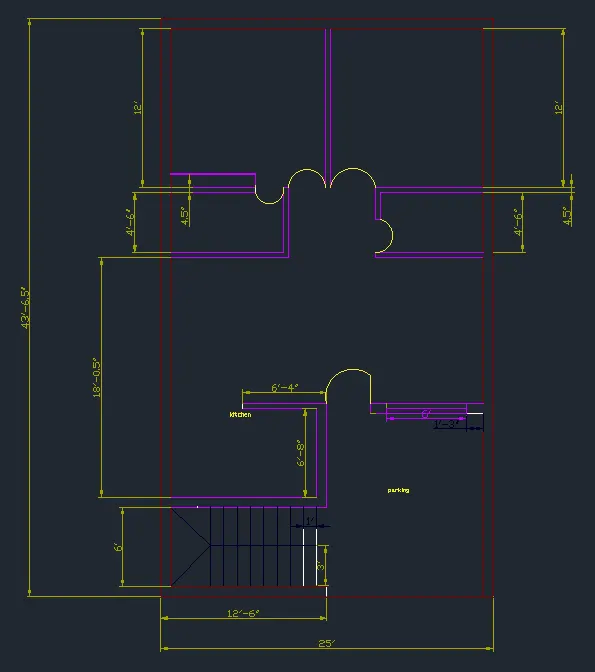

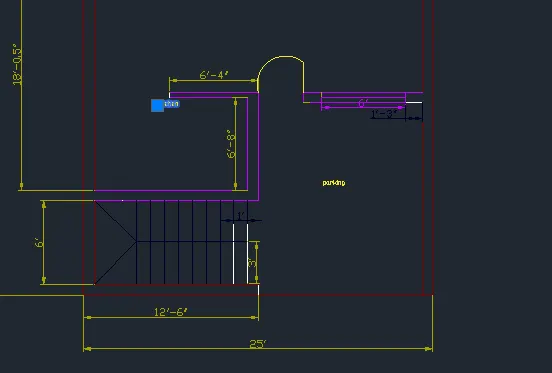

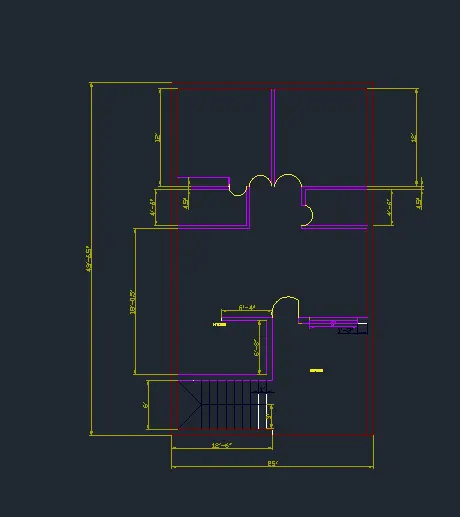

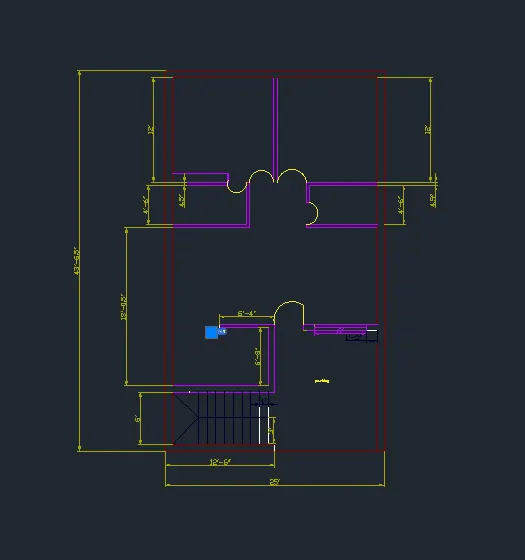

RESULT :

WE ARE DRAWING THE RESIDENCE PLAN WITH BEDROOM ,KITCHEN ,DINING ,PARKING ,STAIRCASE ,DOORS AND WINDOWS .

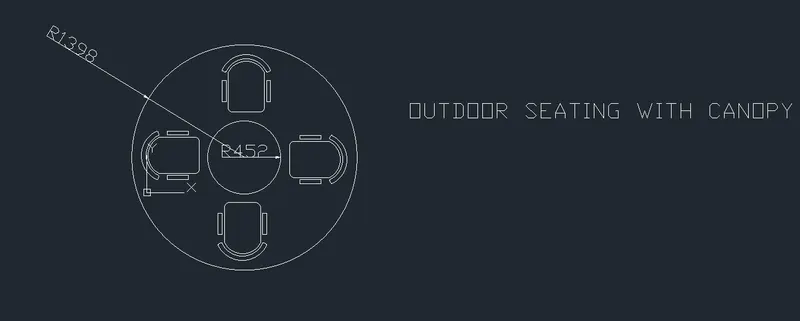

2. OUTDOOR SEATING WITH CANOPY DRAWING :

CANOPY DRAWING:

1. IN THE COMMAND PROMPT WRITE CIRCLE .
2. SPECIFY RADIUS AS 1398mm ENTER
3. IN THE COMMAND PROMPT WRITE CIRCLE .
4. SPECIFY RADIUS AS 452 mm ENTER.

CANOPY MAKING : ( ALL THE DIMENSION IS ASSUMED VALUE )

1. IN THE COMMAND PROMPT (L) ENTER
2. SPECIFY NEXT POINT ( @300,0)
3. IN THE COMMAND PROMPT WRITE LINE ENTER
4. DRAW THE VERTICAL LINE IN THE RIGHT AND LEFT SIDE OF HORZONTAL LINE .
5. IN THE COMMAND PROMPTE ( BLEND CURVE )
6. DRAW THE BLEND CURVE BY SELECTING HORIZONTAL AND VERTICAL LINE
7. IN THE COMMAND PROMPT WRITE ( MIRROR) ENTER
8. SELECT THE OBJECT AS WE CREATED AND MIRRORING IT .
9. DRAW ARC AND RECTANGLE AT THE NEARER OF WE CREATED OBJECT .

INSERT THE CANOPY INTO THE CIRCLE WITH THE MIDPOINT OF SMALLER AND LARGER CIRCLE WITH HELP OF " OSNAP" .

1. IN THE COMMAND PROMPT WRITE ARRAY .
2. SELECT THE CANOPY OBJECT ENTER
3. IN THE COMMAND PROMPT SELECT POLAT ARRAY ENTER
4. SELECT THE CENTER POINT AS CENTER OF THE SMALLER CIRCLE .
5. IN THE COMMAND PROMPT WRITE 4 OBJECT IN THE POLAR ARRAY OPTION.
6. COMPLETE THE DRAWING BY COMMANDING DIMRADIUS .

RESULT : DRAWING THE CANOPY USING AUTOCAD WITH ASSUMED ALL DIMENSION .

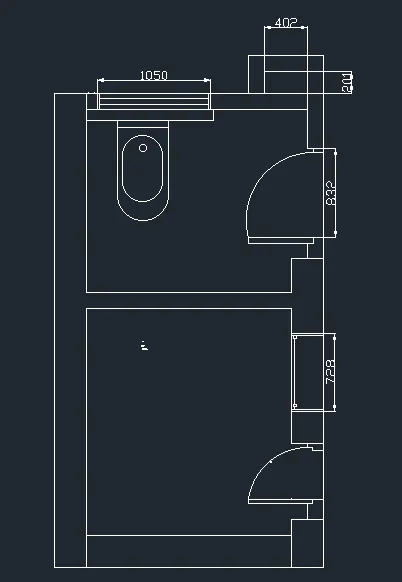

STEP 3: TOILET ROOM:

1. IN THE COMMAND PROMPT WRITE (L) ENTER.
2. SPECIFY FIRST POINT (1,1) ENTER
3. SPECIFY NEXT POINT AS ( @ 1900,0) ENTER
4. SPECIFY NEXT POINT AS ( @ 0,2100) ENTER
5. IN THE COMMAND PROMPT WRITE (OFFSET)
6. SPECIFY OFFSET DISTANCE AS 300mm .
7. IN THE COMMAND PROMPT WRITE ( L) ENTER.
8. SPECIFY FIRST POINT AS (@1900,0) ENTER
9. SPECIFY NEXT POINT ( @0,2100) ENTER
10. IN THE COMMAND PROMPT WRITE OFFSET
11. SPECIFY OFFSET DISTANCE AS 300mm ENTER

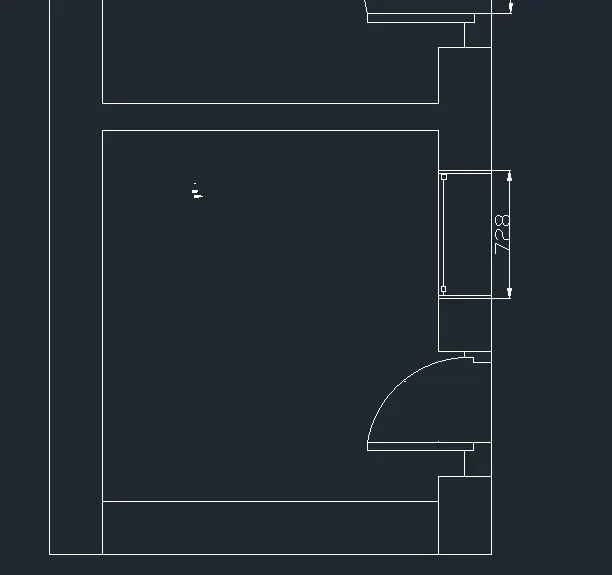

DRAWING DOORS AND WINDOWS :

COMPLETE THE DOOR AS THE WIDTH OF THE DOOR IS 832 AND 828 ( IN MM) RESPECTIVELY.

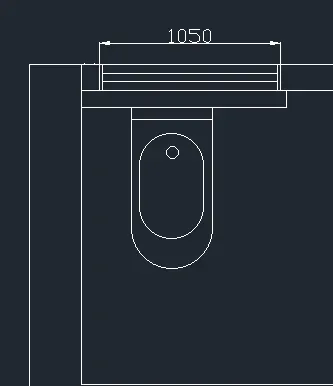

DRAWING THE TOILET COMPONENTS USING THE LINE AND BLEND CURVE COMMANDS ALL THE DIMENSION ARE ASSUMED VALUES.

RESULT :

DRAWING THE TOILET AND UTILITY ROOM USING AUTOCAD WITH ASSUMED ALL DIMENSION .
