Door Arm Rest Week 8 Challenge

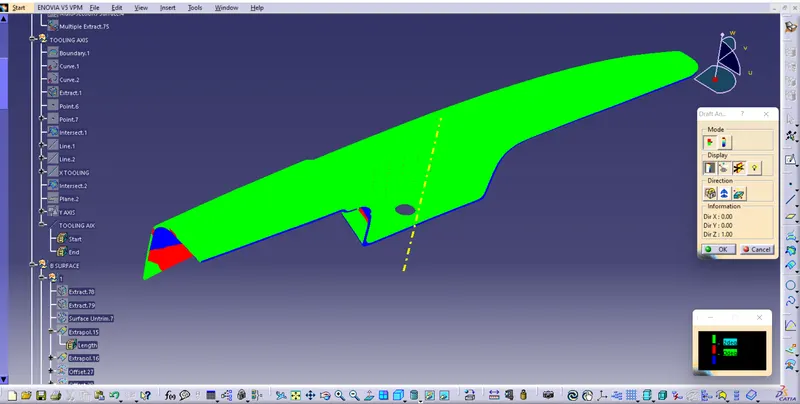

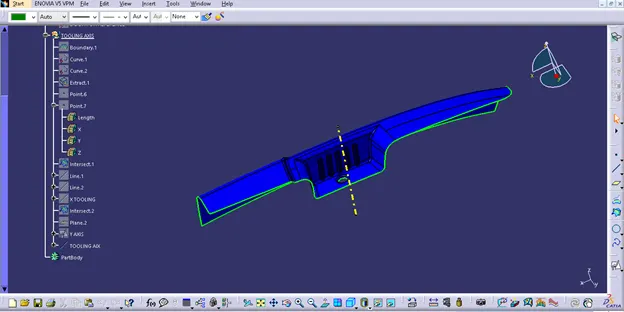

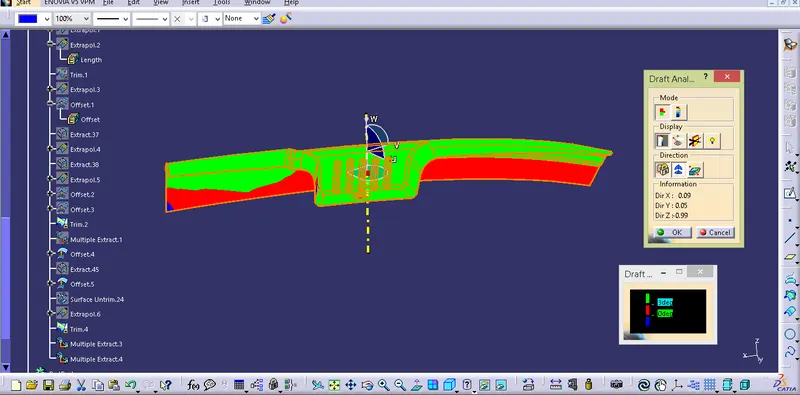

Tooling direction was created based of ZX and ZY plane and the green color indicates the surface are projected 3° from the tool axis as shown In Figure

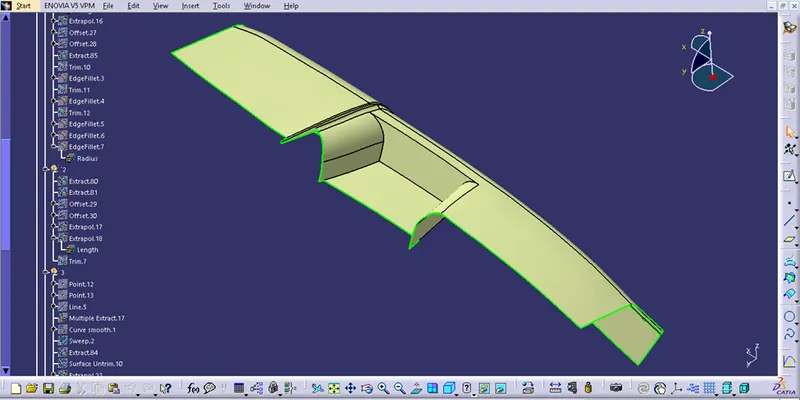

B- Surface are formed by untrimming, extrapolate, sweep, offset and trim command of various portion from A- surface and the B Surface are shown in Figure

To make class C, a sweep command is used once the surface is trim from the sweep surface that is called as a class C.

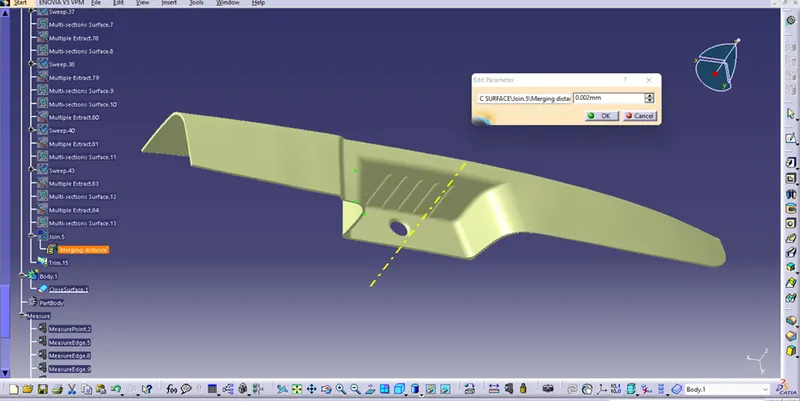

Check with closed body as shown in Figure

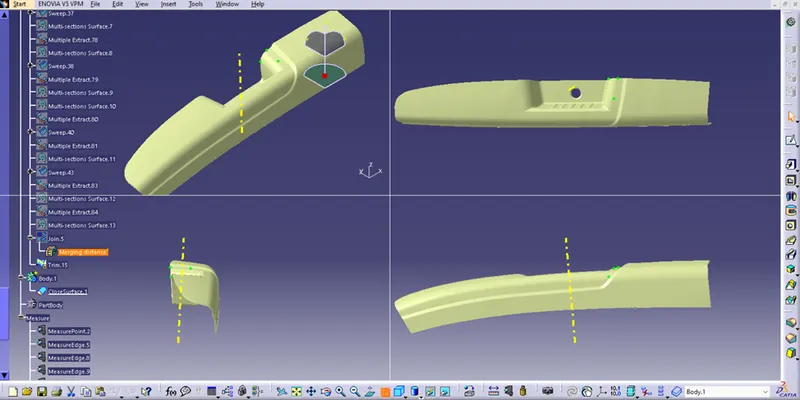

Different view as shown in Figure
