Door Arm Rest Week 8 Challenge

MM.Dinesh Kumar5 Jan 2022

AIM:

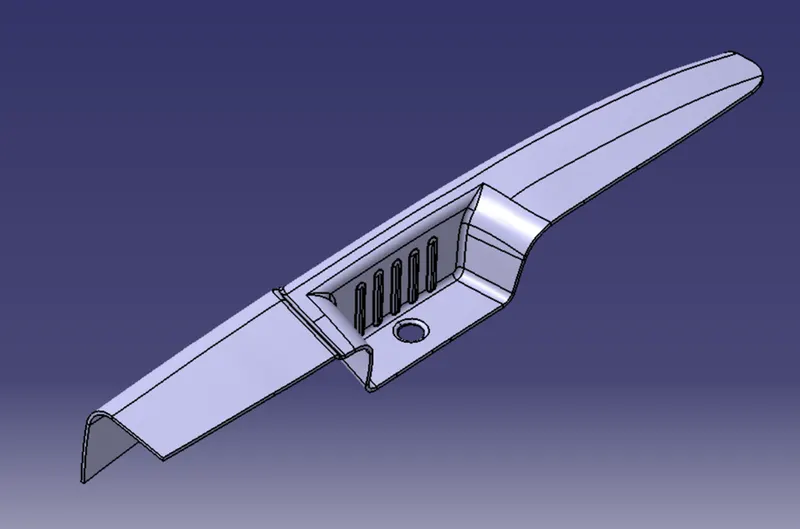

To create door arm rest with the given class A surface and perform draft analysis on it by creating tooling axes.

CLASS A SURFACE:

It is the outermost surface of the component with high accuracy and precision. It has aesthetic value and cannot be modified without authorization.

CLASS B SURFACE:

It is the inner surface of the component which we get after thickening it. The engineering features are attached to it.

CLASS C SURFACE:

It is the surface which joins the class A and class B surfaces along the boundaries.

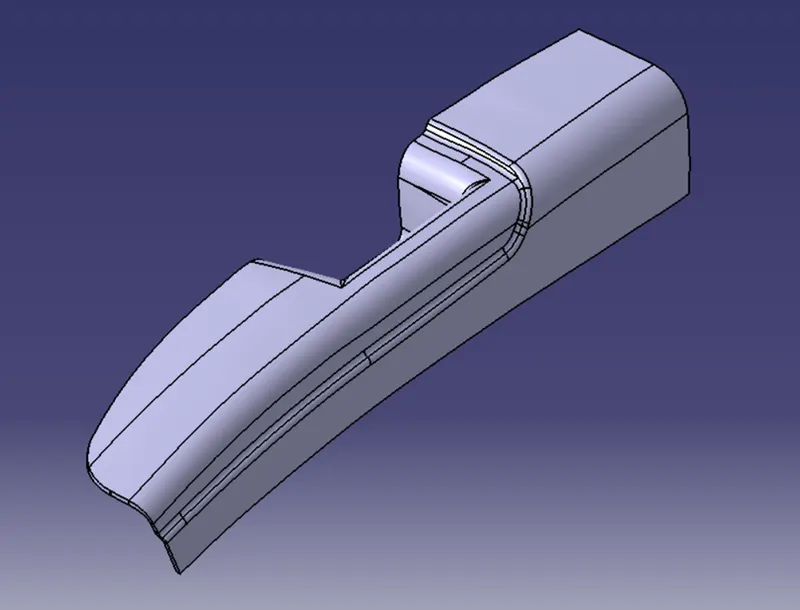

DOOR ARM REST DESIGN:

MAIN TOOLING AXIS:

Step 1: Check the boundary of the class A surface and ensure there is no gap in between the surface.

Step 2: Create an axis system on the class A surface by creating a point on it.

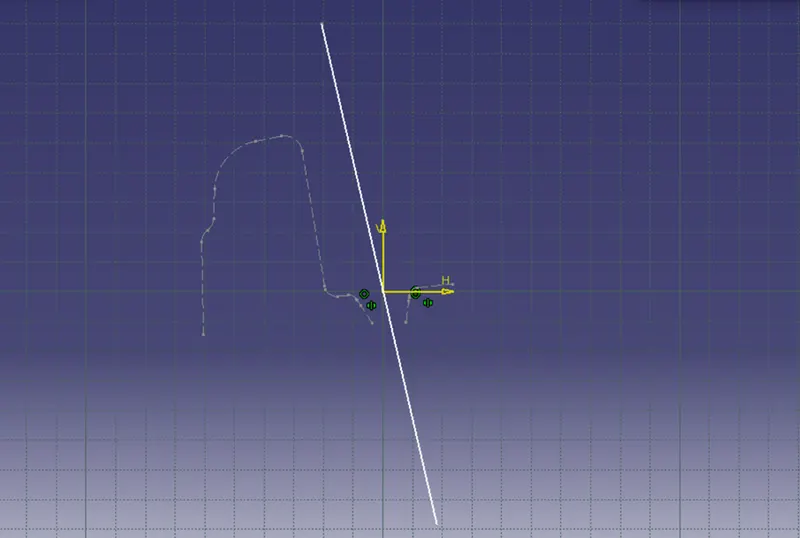

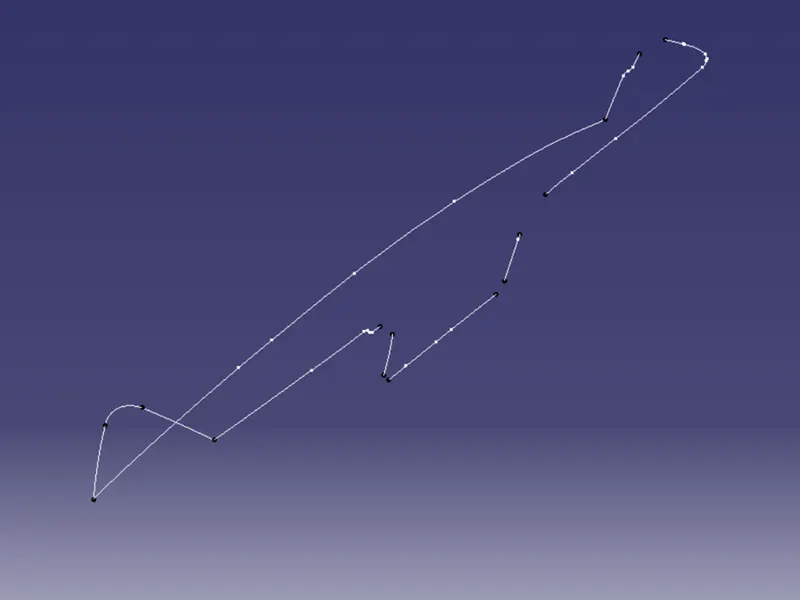

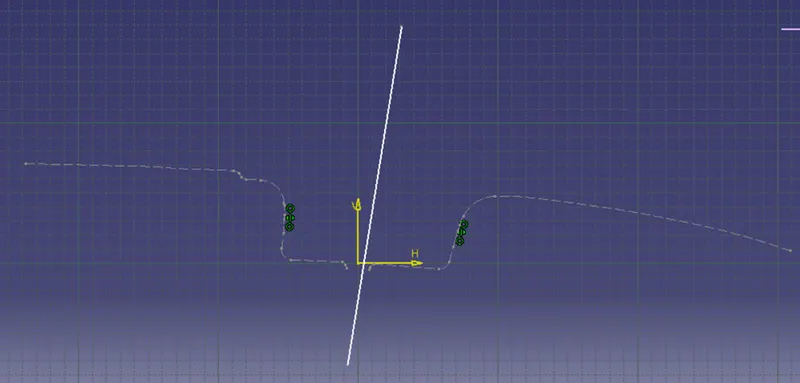

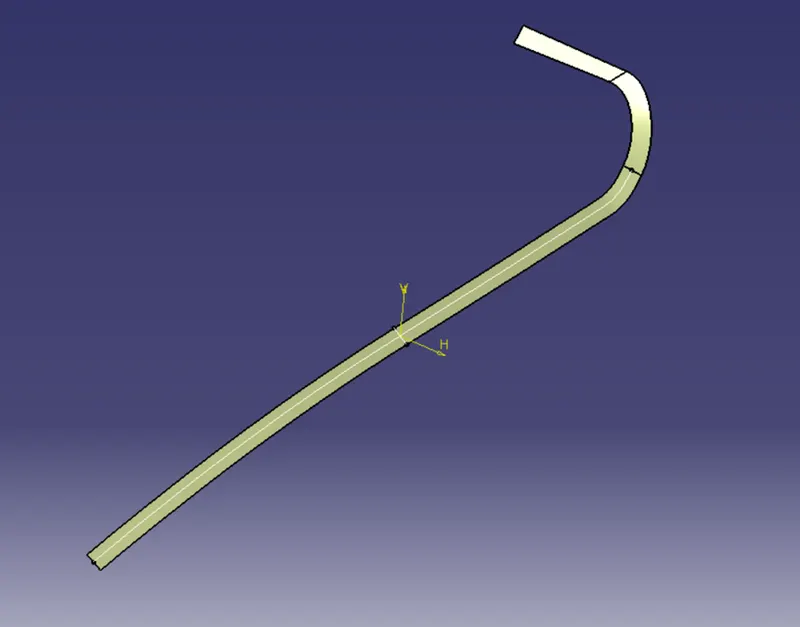

Step 3: Draw a sketch by intersecting class A surface with XZ plane and create tooling axis clearing along Y direction by bisecting method.

Step 4: Similarly, draw a sketch by intersecting class A surface with YZ plane and create tooling axis clearing along X direction by bisecting method.

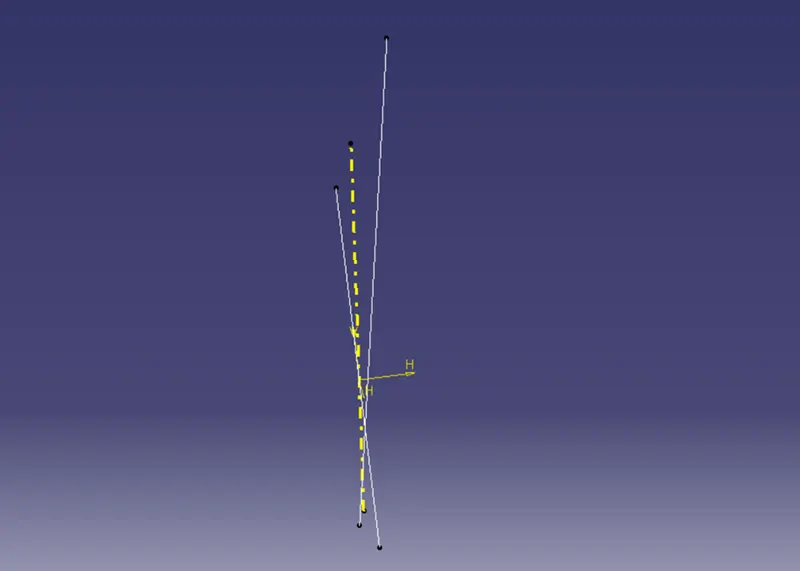

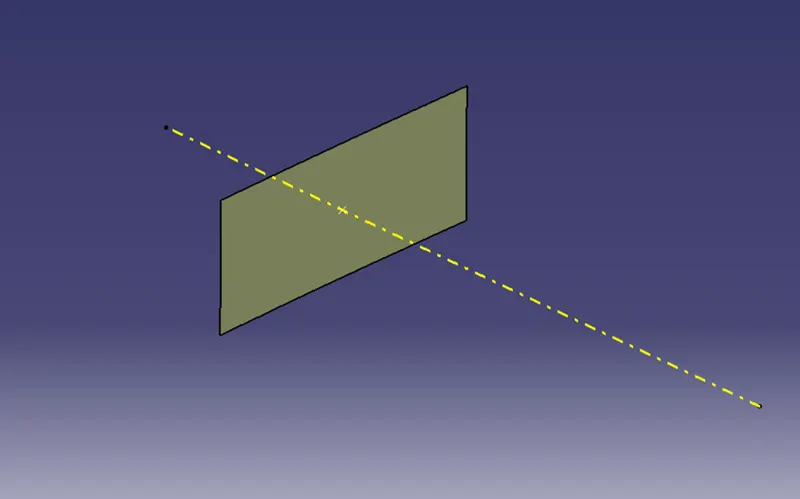

Step 5: Finally, create the tooling axis by bisecting the above two axes. This is the mail tooling axis.

DRAFT ANALYSIS ON CLASS A SURFACE ALONG MAIN TOOLING AXIS:

Step 1: Change the view to customized view and enable the material in shading option.

Step 2: Insert the feature draft analysis.

Step 3: Click the compass icon and place the compass along the tooling direction.

Step 4: Lock the draft direction and select the component to draft.

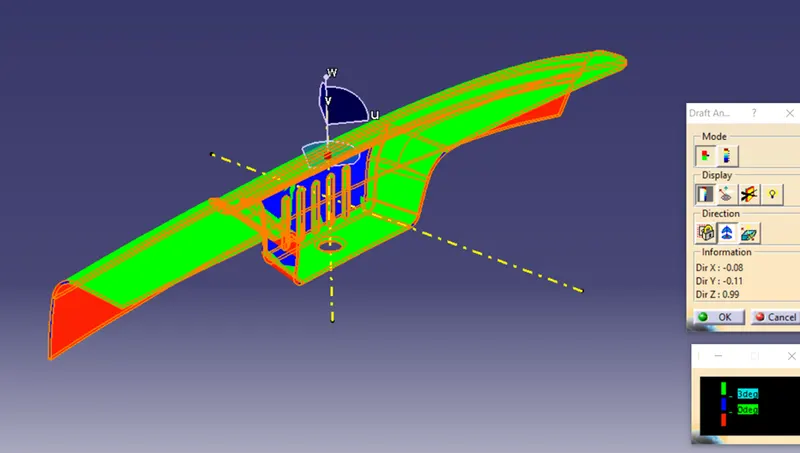

Step 5: Enable the color scale and change the draft value as required. Here 3 degree is given as draft angle.

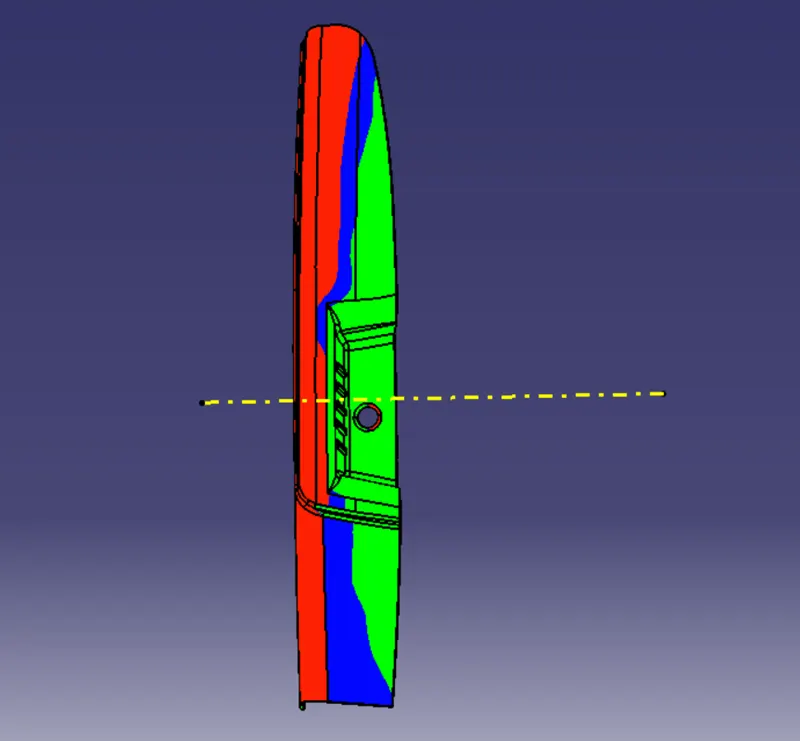

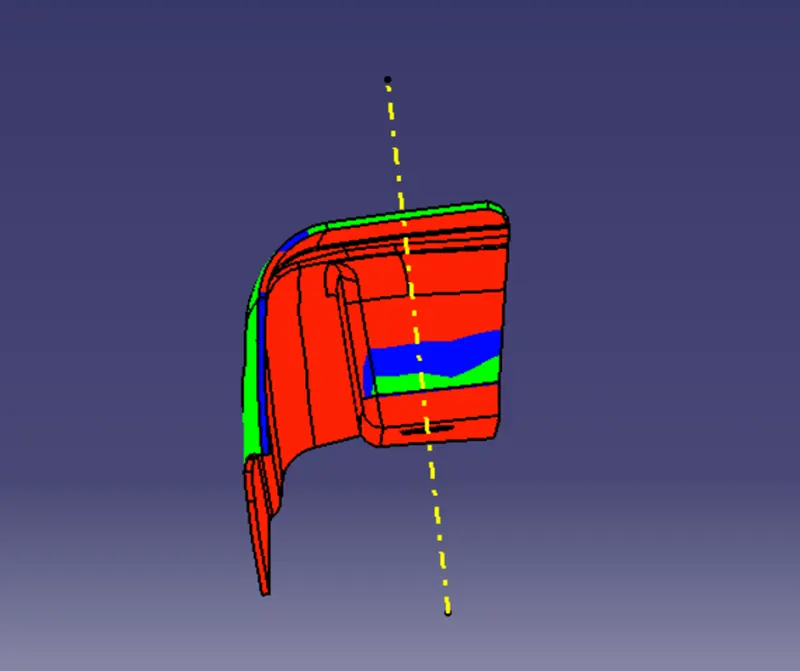

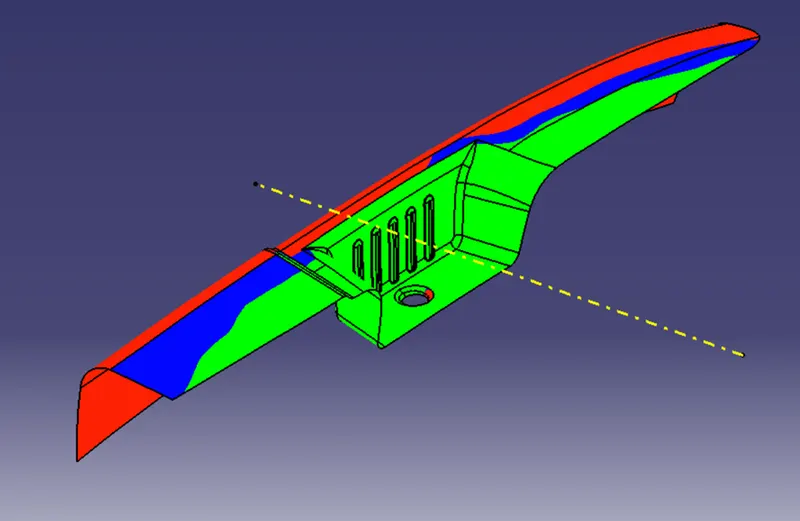

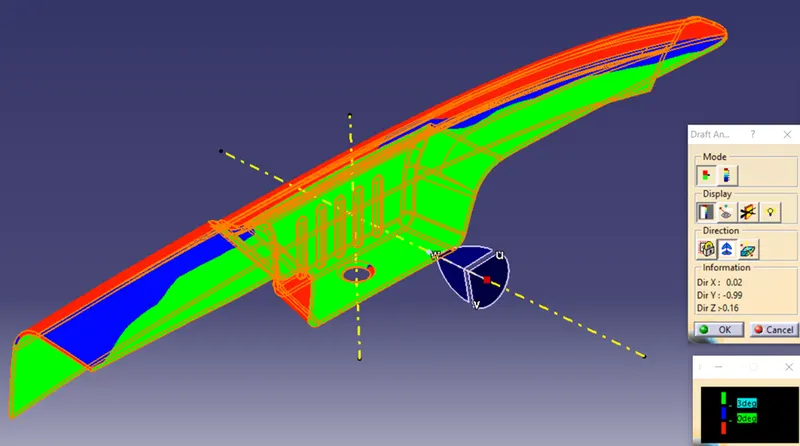

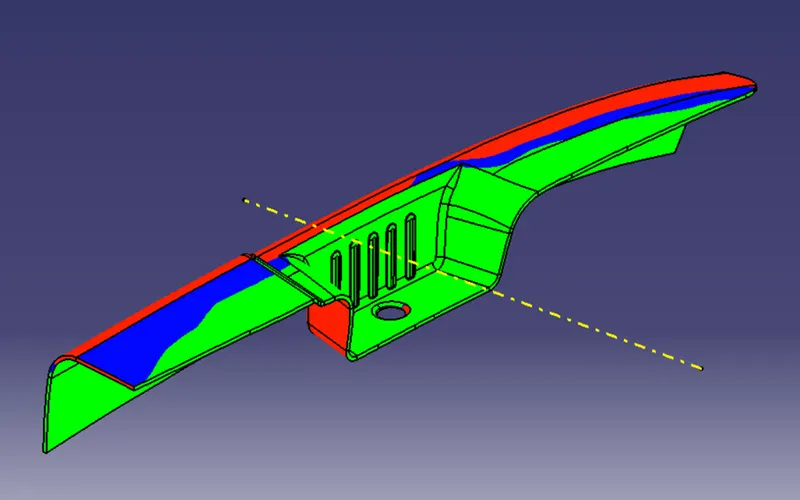

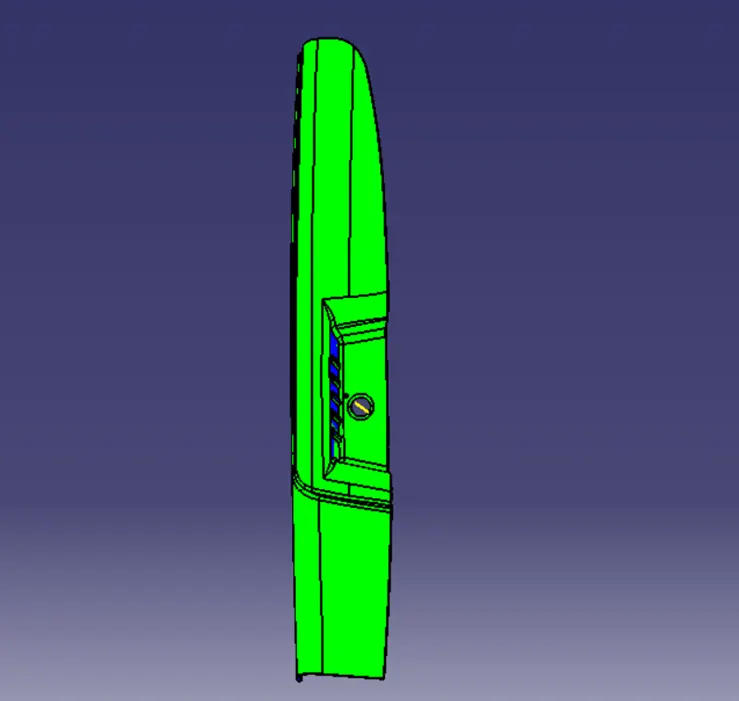

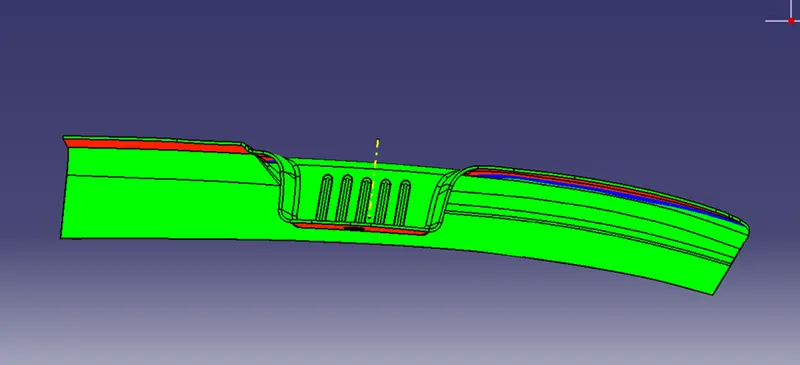

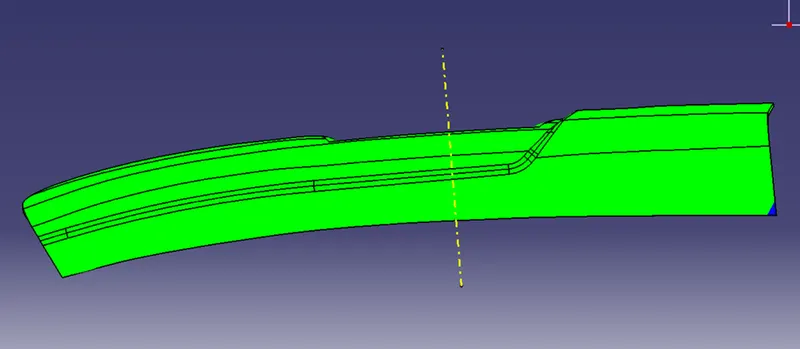

Step 6: The green color indicates that the surface is more than 3 degree from the tooling direction. The blue color indicates that the surface is 0 to 3 degree from tooling direction. Red color indicates that the surface is less than 0 degree from tooling direction which indicates the negative draft.

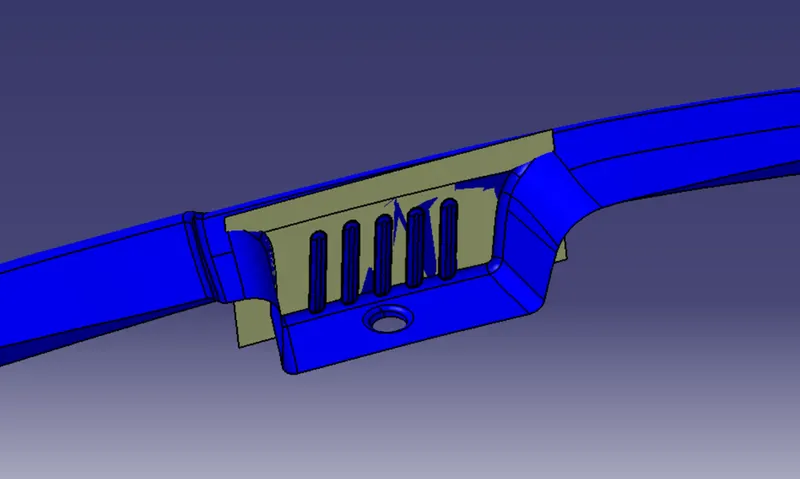

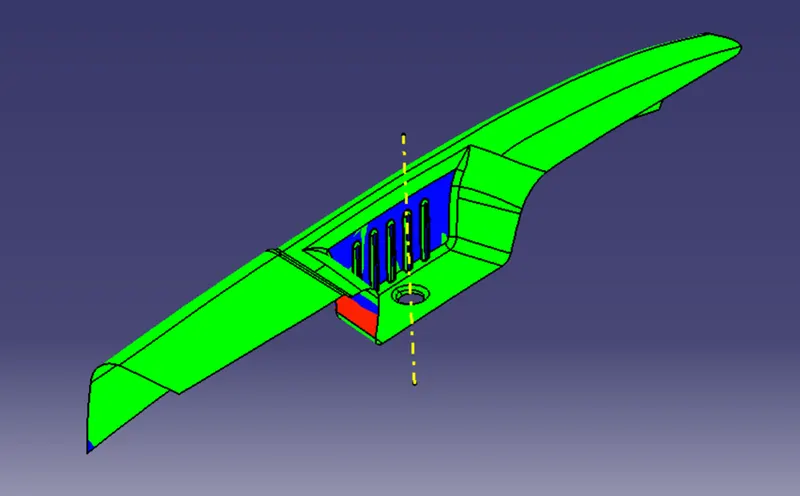

Here some portions of the bin are not cleared with the main tooling axis. So we have to use a side core to make this portion. Hence a tooling axis is created for the side core.

SIDE CORE TOOLING AXIS:

Step 1: Extract the surface having the ribs and untrim it.

Step 2: A point is created in the middle of this surface and a perpendicular line is drawn through this point. This line is the side core tooling axis.

DRAFT ANALYSIS ON CLASS A SURFACE ALONG SIDE CORE TOOLING AXIS:

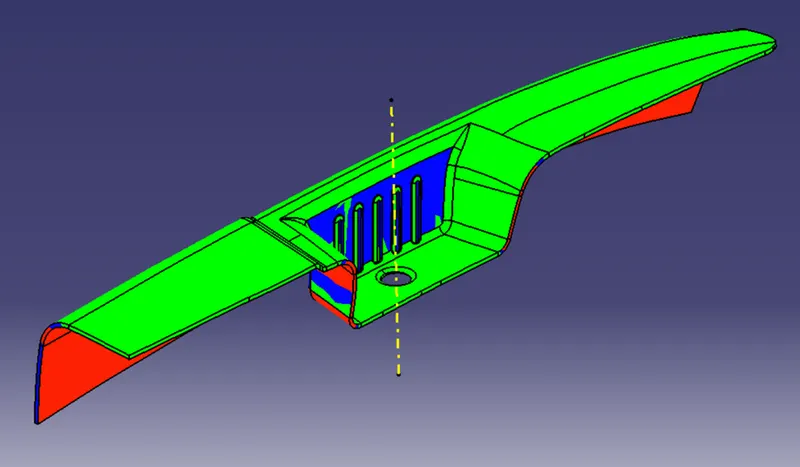

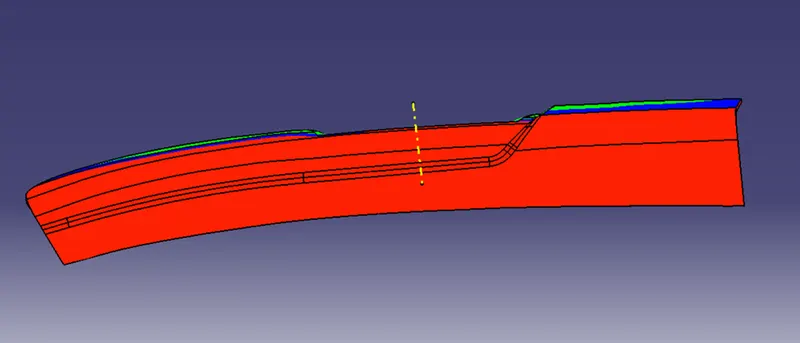

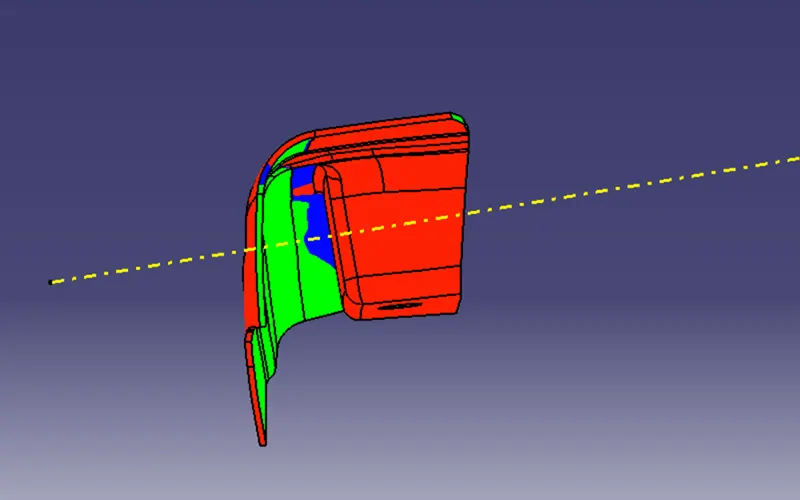

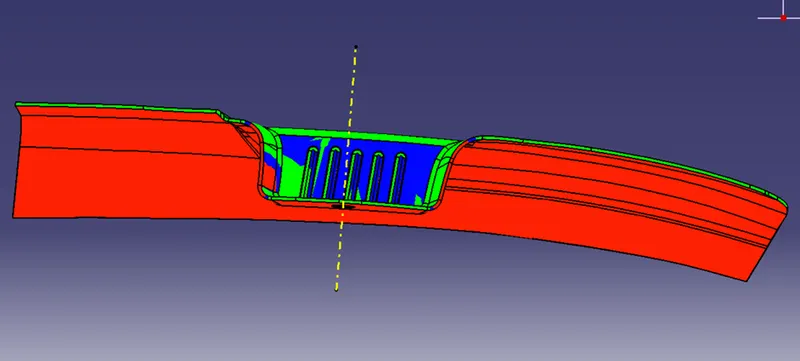

Draft analysis is performed on class A surface along the side core tooling axis by following the steps mentioned above.

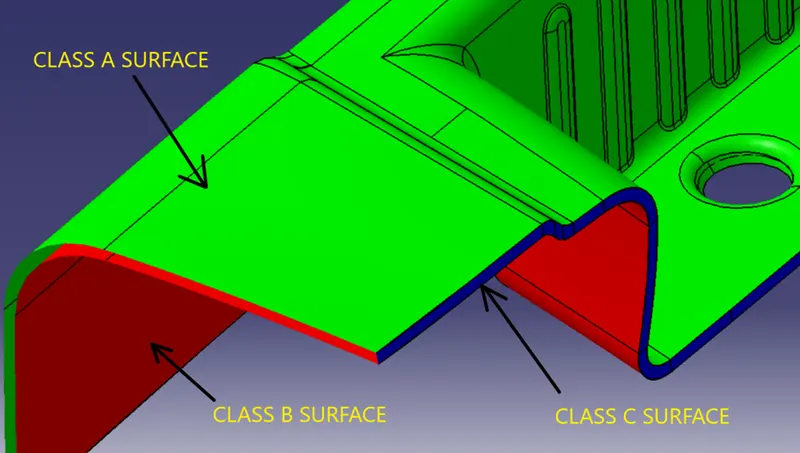

CLASS B SURFACE:

Step 1: Extract the individual surfaces from the class A surface.

Step 2: Untrim the extracted surfaces and extrapolate them as required.

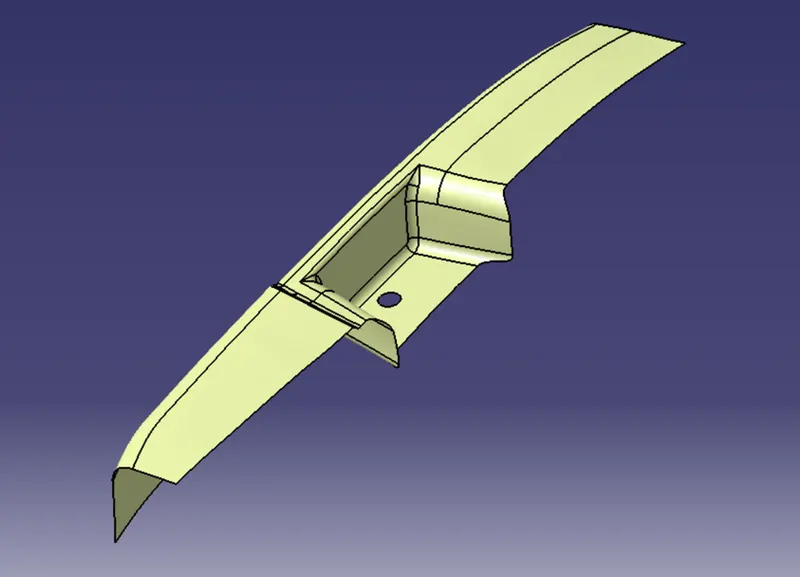

Step 3: Offset the extrapolated surfaces inwards to get the thickness (2.5mm) of the component.

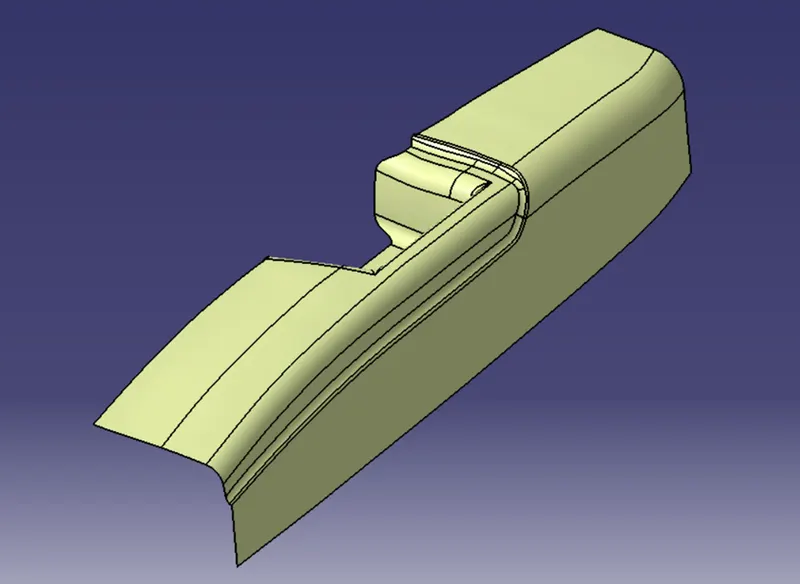

Step 4: Trim the offset surfaces and give fillets as required to get the class B surface with equal wall thickness.

CLASS C SURFACE:

Step 1: Extract the boundaries for the class A surface.

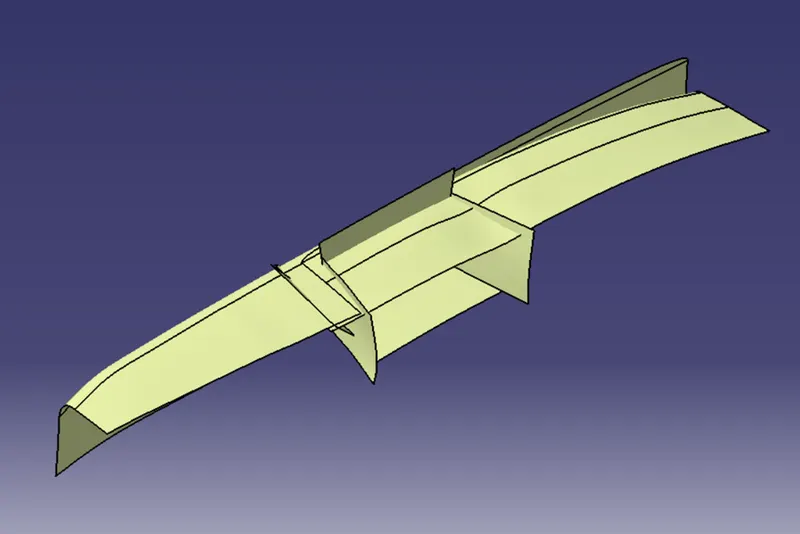

Step 2: Sweep the boundaries along the tooling direction with required draft angle or normal to the surface as required.

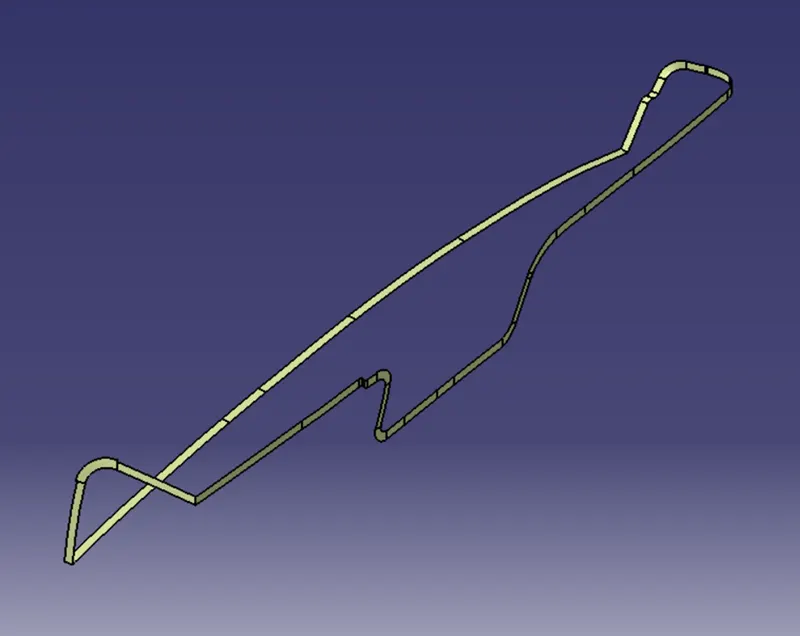

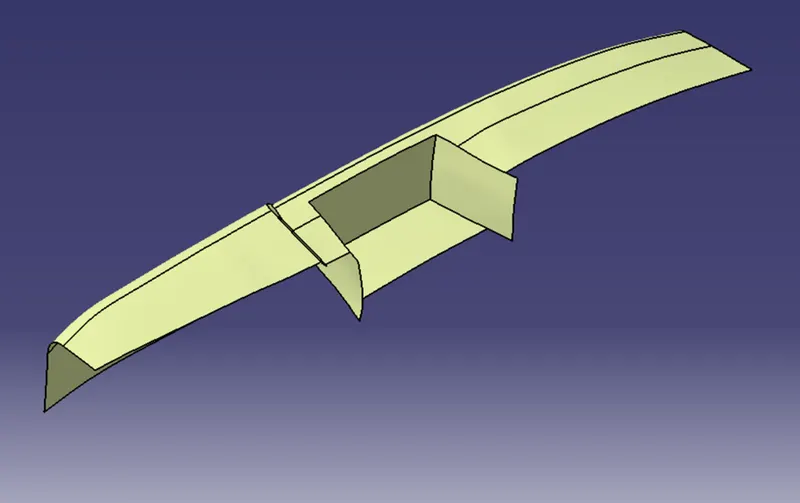

Step 3: Then extrapolate the edges and trim them and join them to get the class C surface.

FINAL TRIM:

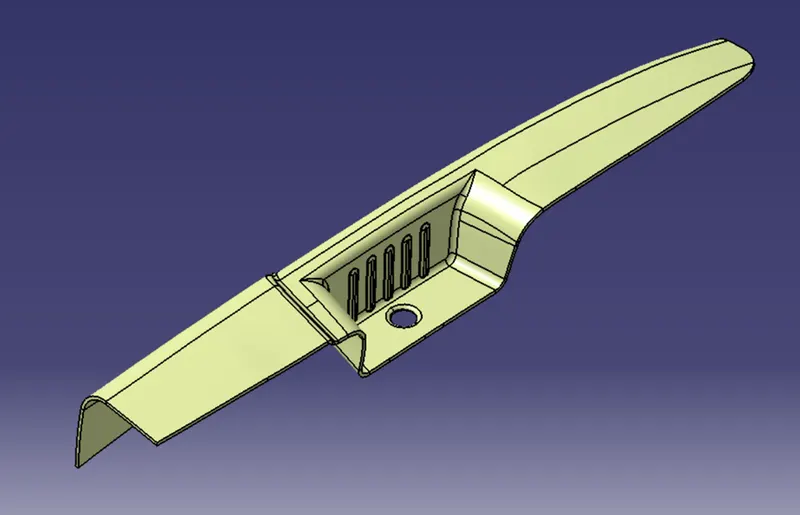

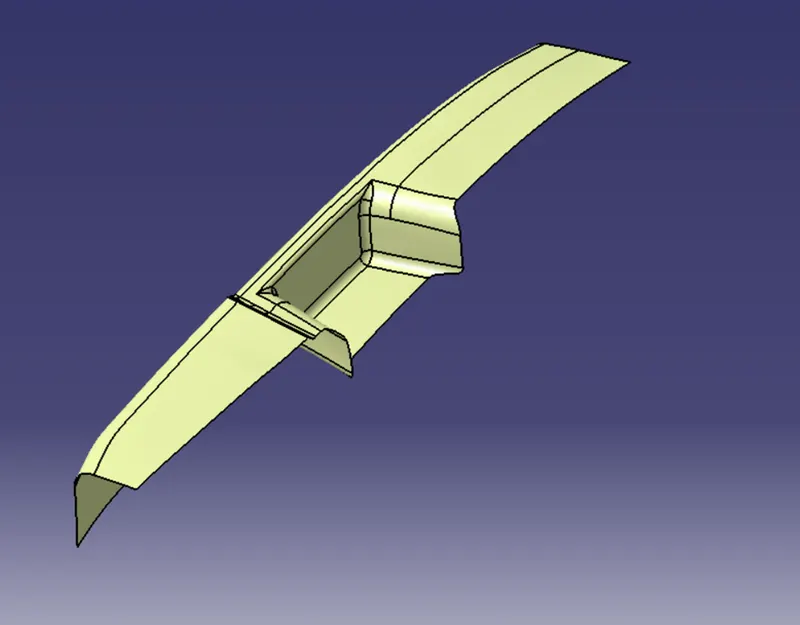

Finally trim class A, class B and class C surfaces to get the door arm rest surface and use closed surface feature to create a solid component. Then, perform draft analysis along the main and side core tooling axes on the component.
