Door Arm Rest Week 8 Challenge
- Extract the sub elements of the class A arm rest from the total door
- the substracted element will be the arm rest of the class A and create the tooling axis
- offset the A class for 2.5mm for the b class element
- sweep the surface and join the A,B and C classes to thicken the component

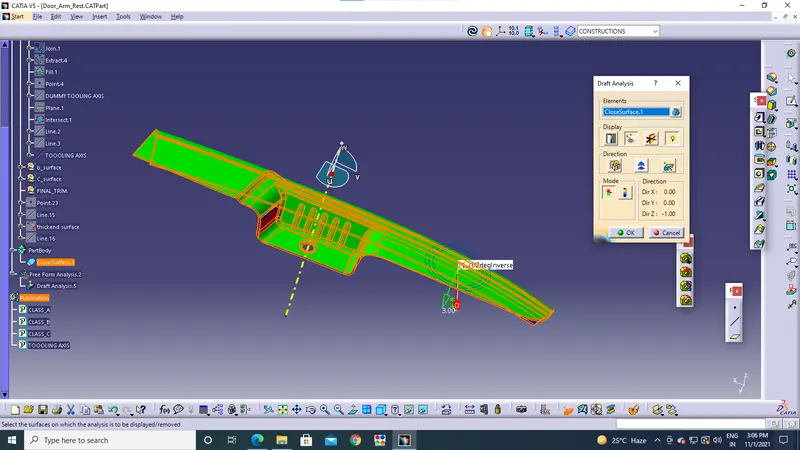

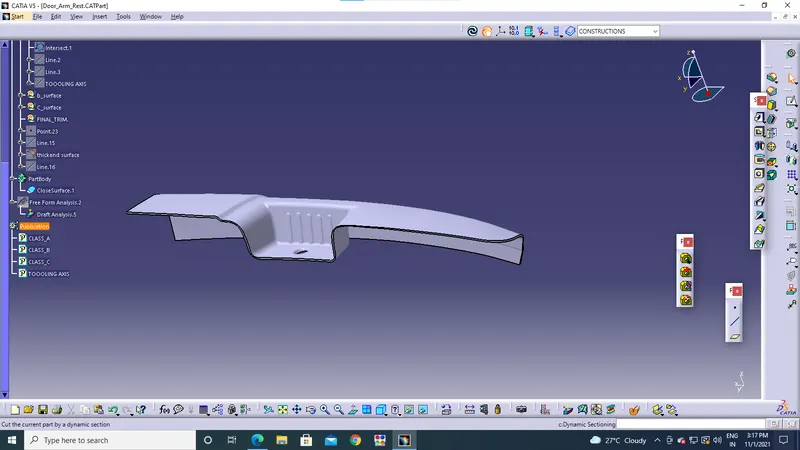

- make it a closed body and give the draft analysis
