Door Arm Rest Week 8 Challenge

Draft Analysis:

This method enables us to detect if the part we drafted will easily removed during manufacturing and it meets the standard values of draft angle for molding process. This analysis is performed based on color ranges with different colors and draft direction at any point.

Draft analysis of class-A surface:

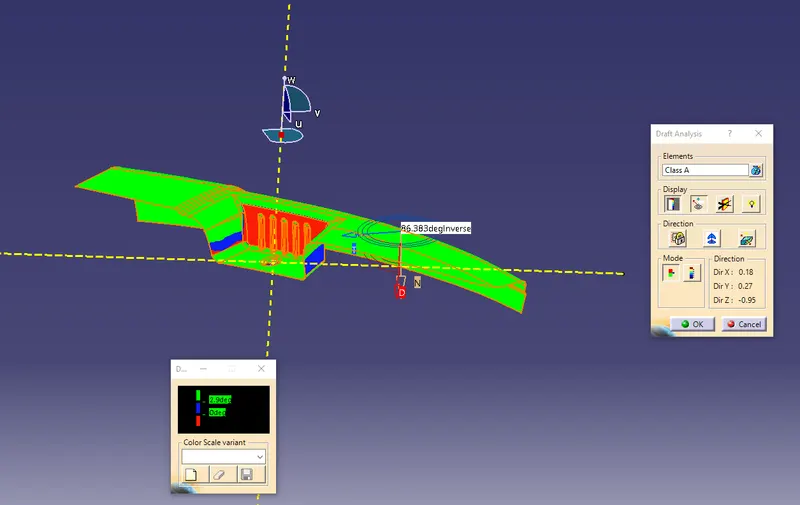

Through main tooling axis:

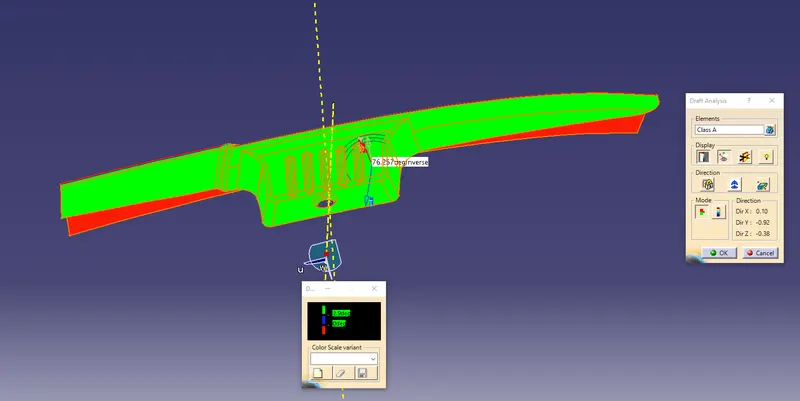

Through side core axis:

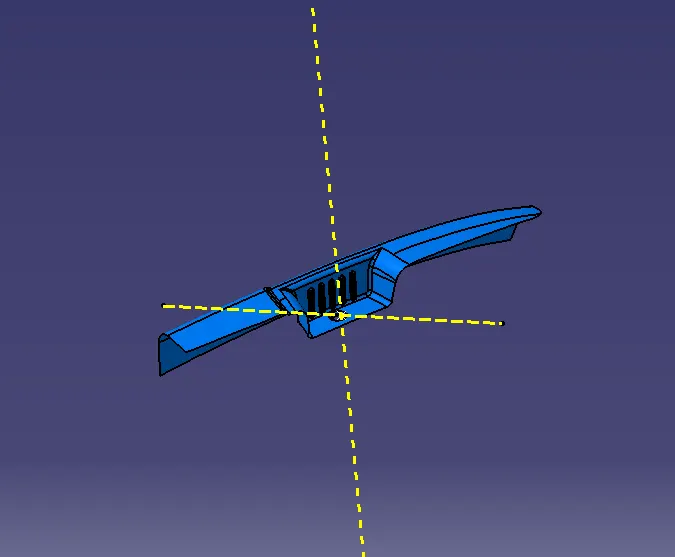

Tooling Axis:

We use tooling axis as direct to feed or inject the molten material into closed core and cavity portion without damging of tool.I t is created with different method (i)Bisecting method (ii)Creating sketch and intersecting with axis. More ofetn bisecting method is used to create axis.

It's applications are :

(i) It is used in draft analysis to analyse the part by locking the compass along with it.

(ii)It is used as direction to create class C surface in sweep command.

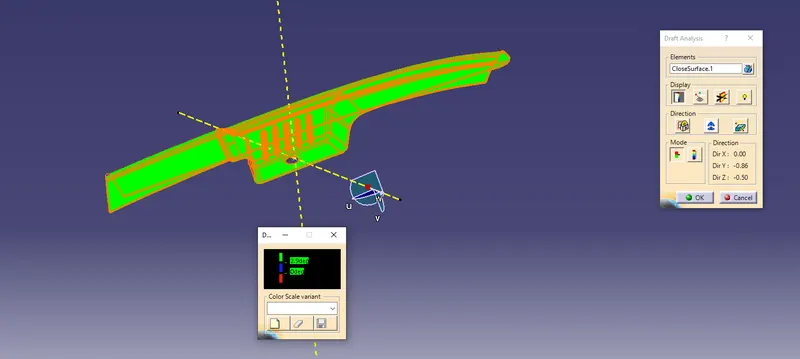

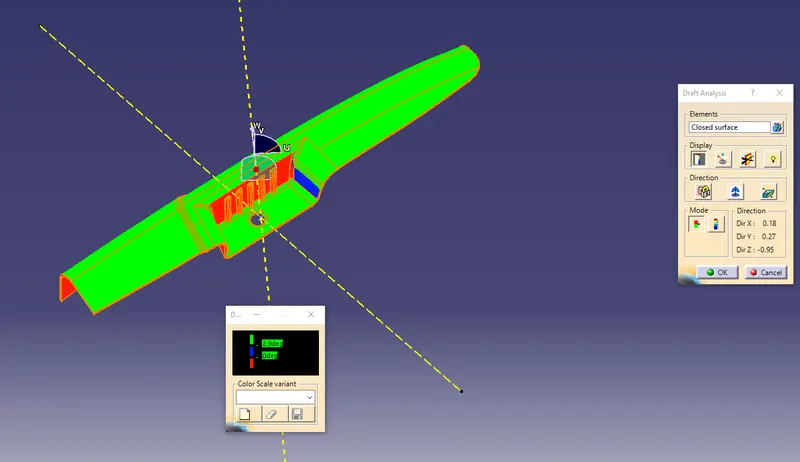

Draft analysis for solid body :

Through side core axis:

Through main tooling axis:

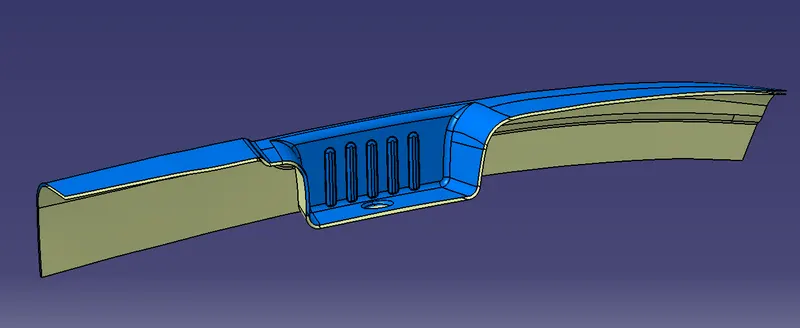

Class-B surface:

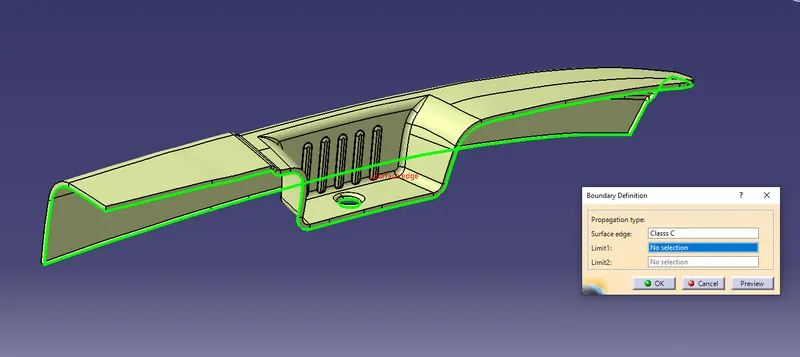

Class-C surface:

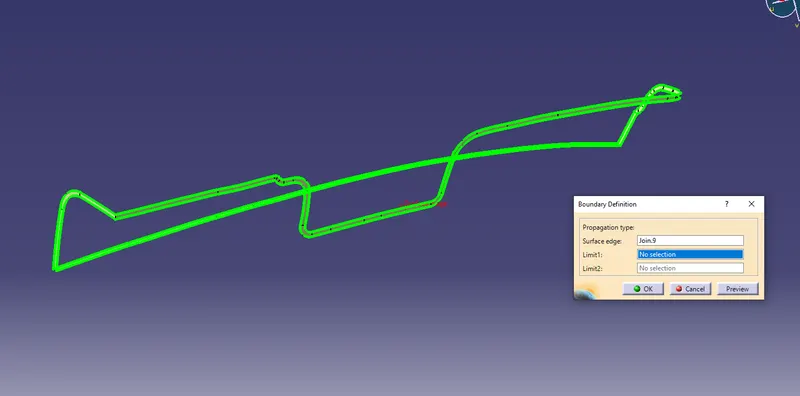

Class A-C surface join:

Views:

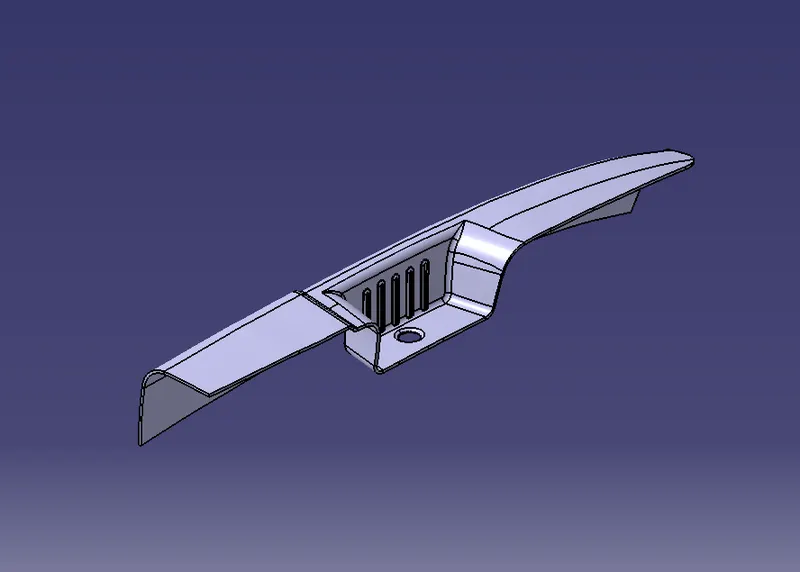

Isometric view:

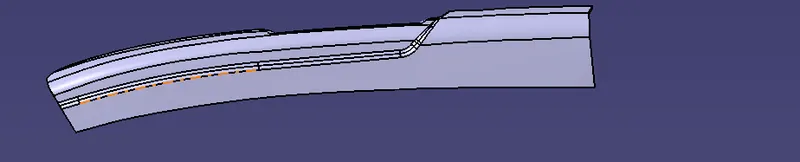

Front view:

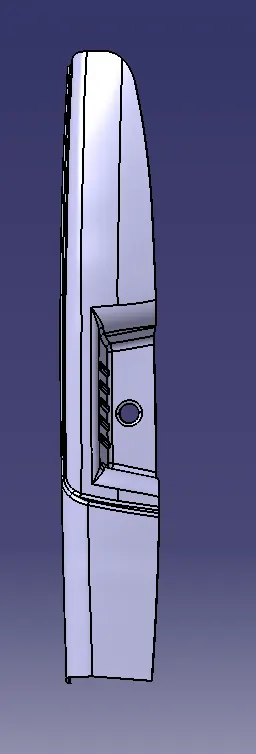

Top view:

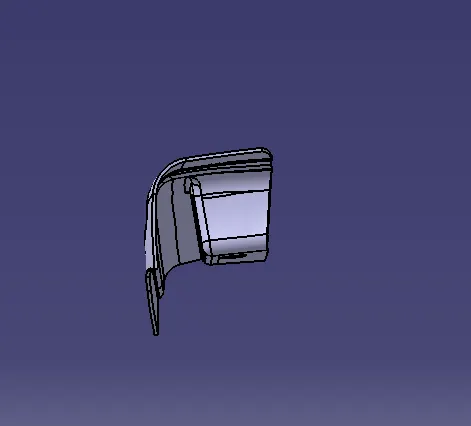

Side view:
