Door Arm Rest Week 8 Challenge

AIM:

TO CREATE A DOOR ARMREST WITH THE 2.5mm THICKNESS.

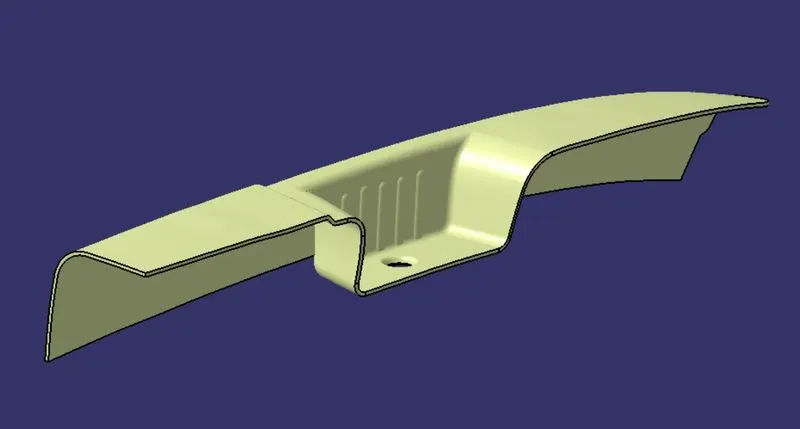

CLASS A SURFACE:

Joining all the surfaces and the merging distance should be 0.001mm.

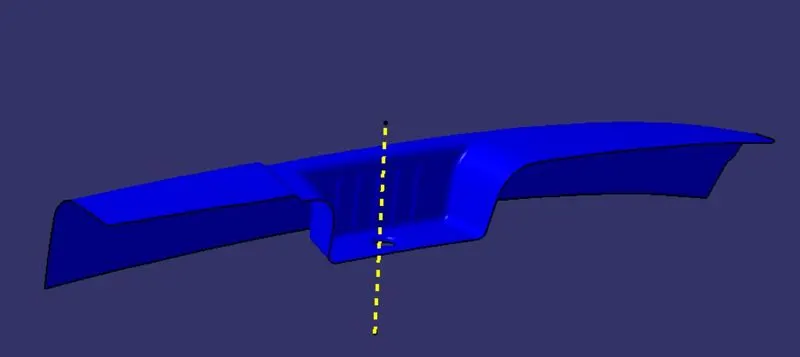

TOOLING AXIS:

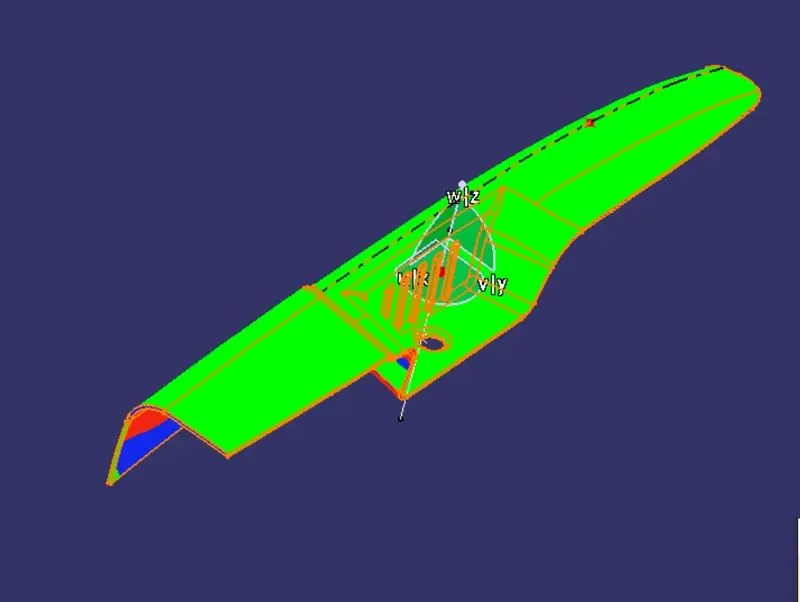

Creating a tooling axis in Z-direction.at first creating a point and give point-direction in Z-direction.we can check wheather the tooling direction is correct or not by using DRAFT DIRECTION.DRAFT DIRECTION should pass by the 3deg and it will be shown in green color.if its shown green in color the tooling axis is correct.

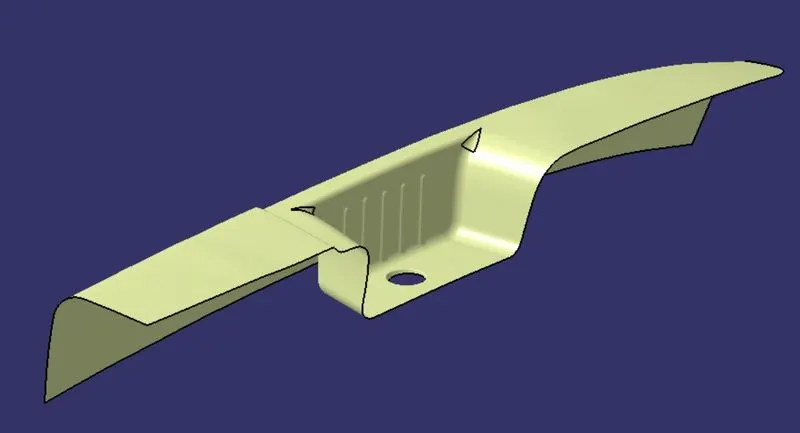

CLASS B SURFACE:

Now,off-set the class A surface by 2.5mm by the inside direction to create a claass B surface is created.but, in two points are getting gap.the gap are filled by using multi section surface.by joing all of these the class B surface is created.

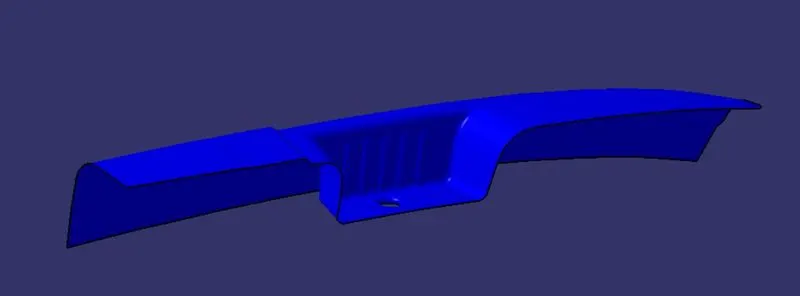

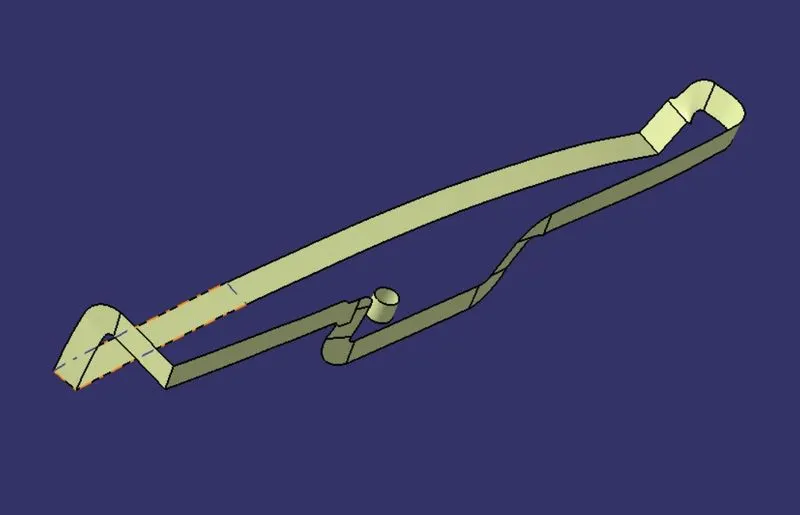

CLASS C SURFACE:

Now,creating a class C surface with the hellp of class A surface.which means sweeping the classs A surface with the reference surface (at 90 deg) and the class c is created.and joing the class A andd class C surace for the triming.

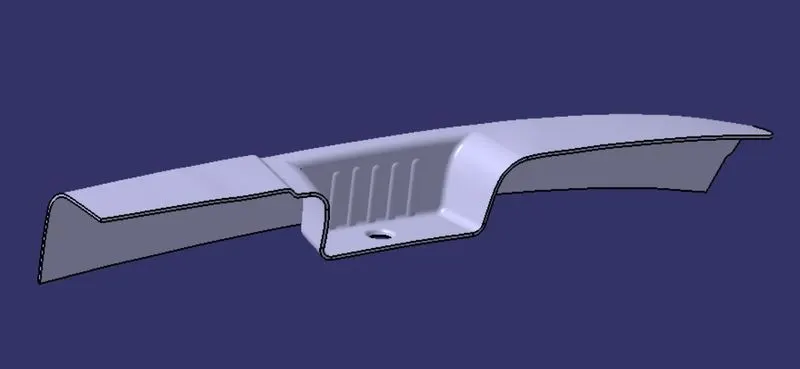

FINAL TRIM:

This is the final trim of class A, class B and class C surface trimed by the thickness of 2.5mm.

CLOSE BODY:

DRAFT ANALYSIS:
