Development of Traffic Jam Assistant Activation Status Feature for Vehicle Instrument Panel Display

Aim:

To develop a Simulink model as per the given requirements.

Procedure:

1. Configure the model config settings as per requirements

2. Create the SLDD for the signals, Build the Simulink Model per the requirements and map the requirements in the requirement editor.

3. Perform model advisor check and generate the code.

Note: Please find the relevant documents in the zip file.

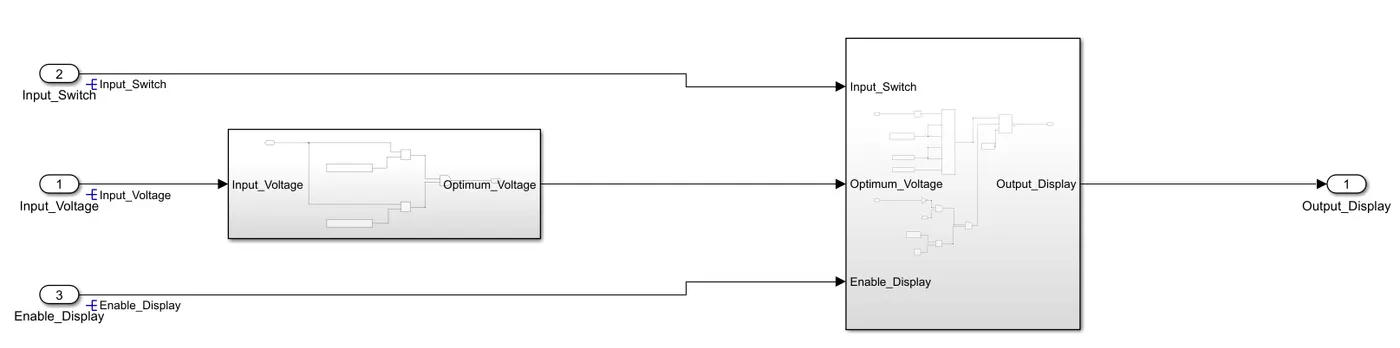

Model:

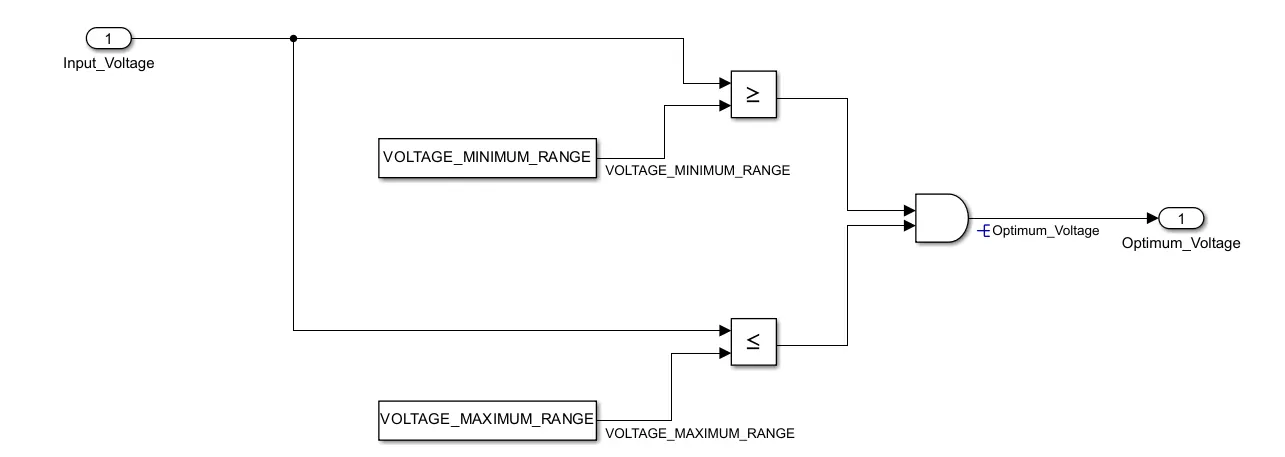

Requirement 1:

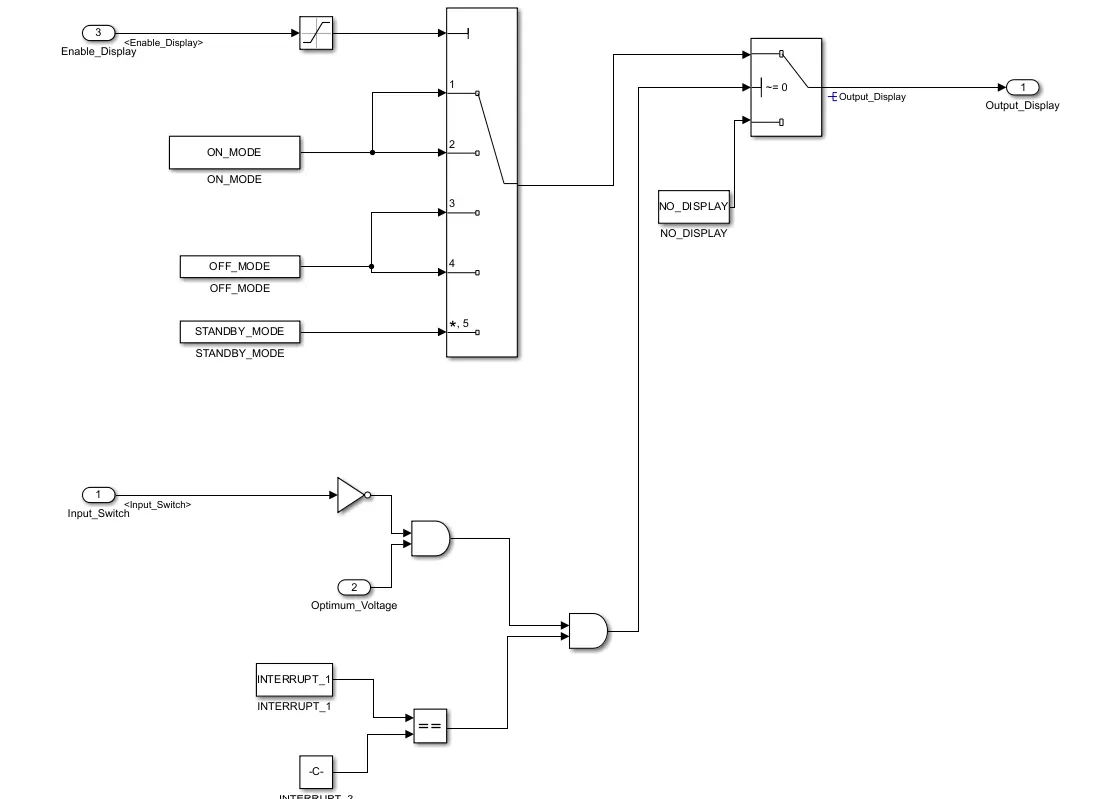

Requirement 2:

Result:

Thus the Simulink model is built as per the requirements and works as intended.
