Design of backdoor
BACK DOOR
AIM:
To design the back door of the carr and make the inner panel for the back door and also design the necessary
re-enforcements.
SOFTWARE: NX 12.0
INTRODUCTION:

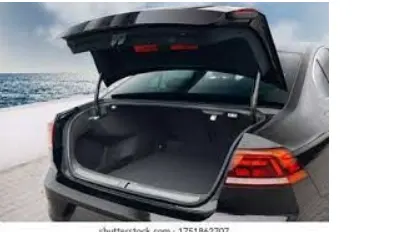

The trunk (North American English) or boot (British English) of a car is the vehicle's main storage or cargo compartment, often a hatch at the rear of the vehicle. It is also called a tailgate.These doors can be operated manually or electric powered. In most of the luxury cars door is electrically operated. Ii involves a very major role during rear crash cases. so our design must be obey crash requirements. the institute of highway saftey analyse the diffrent accidents and they set a test to rate our car. so these rating depends uopn the design of the trunk and material used, flenges, embosses, type of joining of inner panel and outer panel etc.
Car Trunk Images, Stock Photos & Vectors | Shutterstock
Types of doors based on working position,
Top Mounted Door
Side mounted Door
Bottom Door
152 Ambulance Door Open Photos and Premium High Res Pictures - Getty ImagesFord Ranger pickup dimensions, capacity, payload, volume, towing | Parkers
Design of backdoor : Skill-Lync
the back door is operated by two types of comodities
1.electrically operated
2.gas stay powered
the main purpose of these mechanisims is to open the back door without heavy efforts, because the backdoor have different parts and the weight of the back door is high, so we are not able to open the back door manually, so we introduced these two types comodities. and these also decides the premium of the car, mostly the electrically operated used in premium cars.

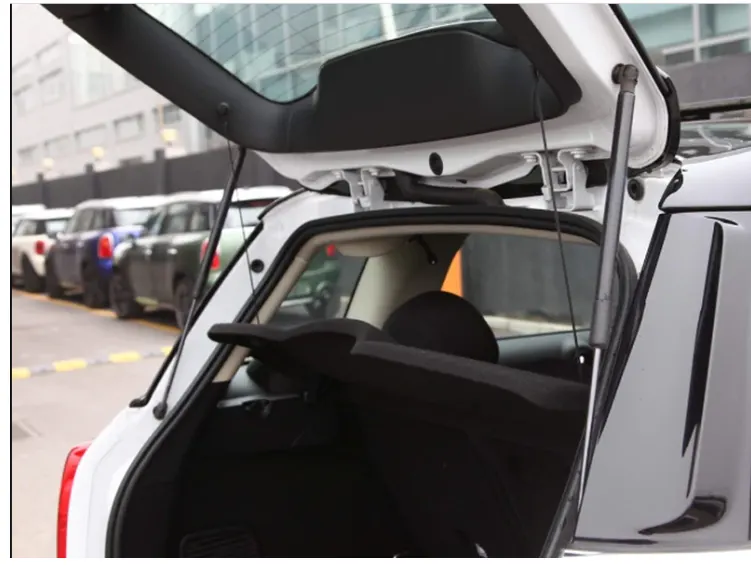

1.gas stay powered
2.electrically operated
Electric tailgate for HYUNDAI Santa fe car intelligent remote control power operated tail gate opening closing rear door lifting|Trunk Lids & Parts| - AliExpress

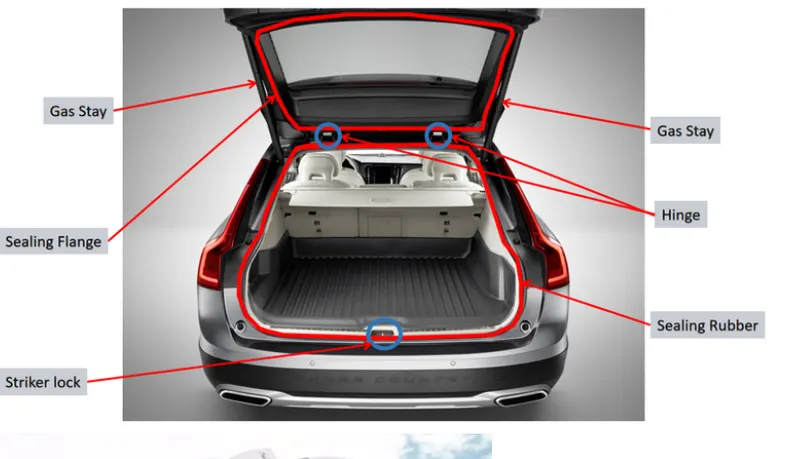

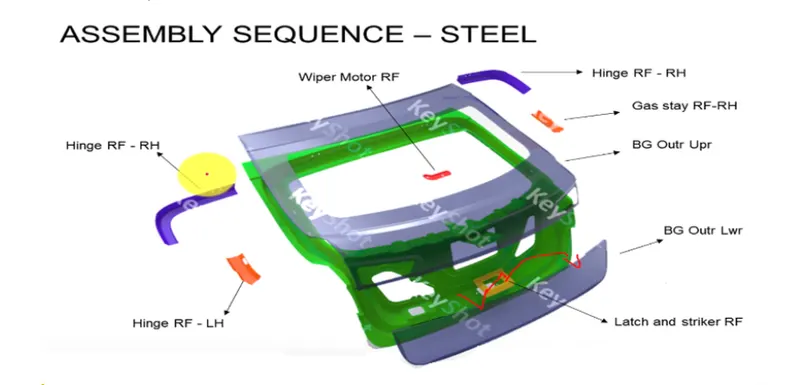

Back Door Assembly:
Inner panel
outer panel
hinge and its reinforcement
wiper motor reinforcement
latch & stricker and its reinforcement
gas stay reinforcement

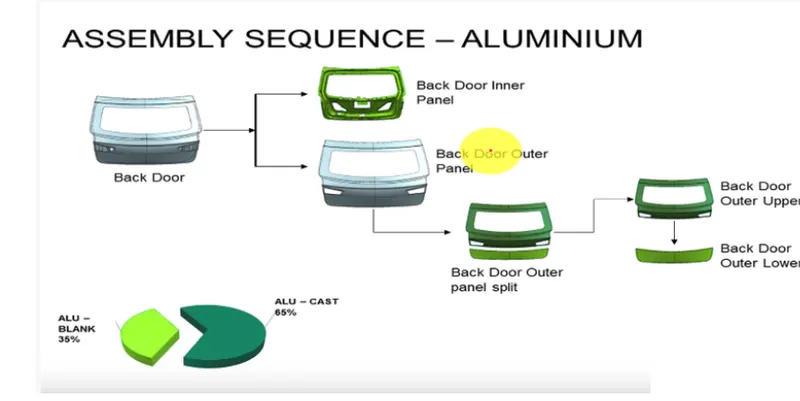

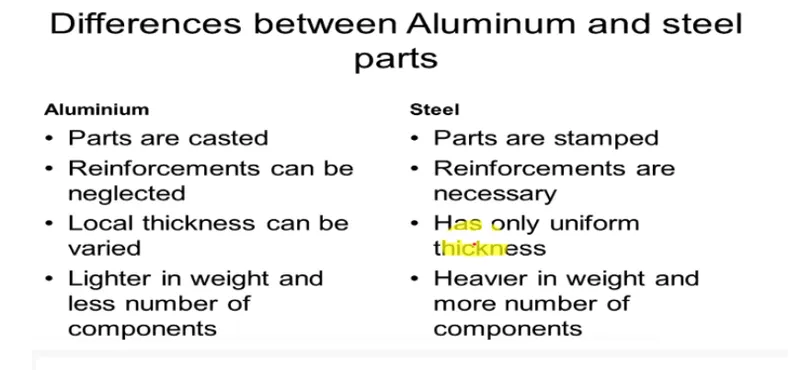

the major problem in back door is material selection. mostly in past days steel is used, but it makes a very problems the steel parts have heavy weight,so it reduces the fuel economy, insted of steel presently in high end cars aluminium is used, the main objective of aluminium it have less desnser material and its sutaible for complex shapes, and it also gives the thcikness locally because it it done cating, in case of steel we used deep drawing operation. there are some of the advatanges and disadvantages are there
.
so by using of aluminium we can reduce the number of parts and assembly involvement. and it is castly material.
Back Door Challenge : Skill-Lync
these are the certain tests are done in back door,not only back door all components must pass these tests but different components have different test because of the functionaly.
Different types of Sheetmetal operations are done in the Back Door
Deep Drawing:
The metal deep drawing process is an effective method of manufacturing of cups, cans and other similar deep drawing products. The deep drawings having two main categories.
First- stage drawing: The blank shape of metal is placed on the die and contact with the punch. When the metal specimen is flat piece of sheet metal used in forming and finish the product. Initially the punch moves in downward direction. The outer rim of blank is subjected to pure radial drawing (drawing toward in vertical axes) between die and blank metal. The metal become a bend and sliding over die and also stretched between die and punch. The metal in vicinity of punch head and contact with it bend and slide over radii and stretch over punch head.
Redrawing: The components drawn from first stage again it is redrawn convert into more depth to form a cup shape in the die and punch. The second stage of drawing is called as redrawing.
Deep | Metal Work | Metal Fabrication

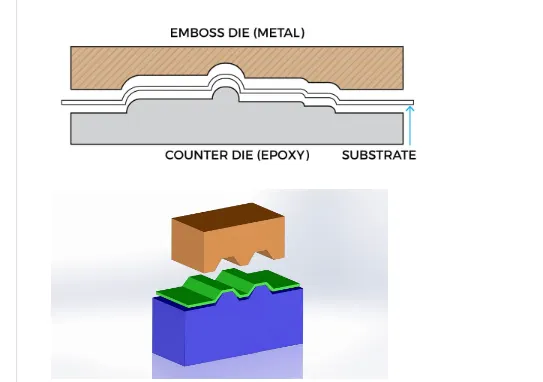

Embossing:
Embossing is a metal forming process for producing raised or sunken designs or relief in sheet materials by means of matched male and female roller dies, theoretically with no change in metal thickness or by-passing sheet or a strip of metal between rolls of the desired pattern. Metal sheet is drawn through the male and female roller dies producing a pattern or design on the metal sheet. Depending on the roller dies used, different patterns can be produced on the metal sheet.
Materials commonly used in the metal embossing process include:
Aluminum alloys
Steel alloys
Zinc
Copper
Galvanized steel
Brass
Cold rolled steel
The Graphic Designer's Guide to Embossing - ZevenDesignEmbossing Process Animation | Sheet Metal - YouTube
Hemming:
Hemming is a forming operation in which the edges of the sheet are folded or folded over another part in order to achieve a tight fit. Normally hemming operations are used to connect parts together, to improve the appearance of a part and to reinforce part edges.
In car part production, hemming is used in assembly as a secondary operation after deep drawing, trimming and flanging operations to join two sheet metal parts (outer and inner) together. Typical parts for this type of assembly are hoods, doors, trunk lids and fenders.
There are various types of hemming operations:
Conventional die hemming: In conventional die hemming, the flange is folded over the entire length with a hemming tool.
Roll hemming: In roll hemming, the hemming roller is guided by an industrial robot to form the flange.
Conventional die hemming Roll hemming
Open Hem: A Hem has a full round feature and a return flange. In open hem bend angle is equal to 180 degrees.
Tear drop Hem: In tear drop hem the bend angle is greater than 180 degrees.
Closed Hem: Hems without any inside radius are called as closed hem. Closed hems are not recommended if the hem geometry is to be painted or if the material used is SST or Aluminium.
Roller hemming process | Download Scientific DiagramPress brake basics: Bending across the hem
Blanking:
Blanking is a cutting operation of a flat metal sheet and the article punched out is known as blank. Blank is the required product of the operation and the metal left behind is considered as a waste.
Punching:
It is similar to blanking only the main difference is that, the hole is the required product and the material punched out from the hole is considered as a waste.
enter image description hereenter image description hereWhat is the difference between piercing and blanking in sheet metal? - Quora
inputs for designing of backdoor:
Outer Panel - 0.75 mm
Inner Panel - 0.75 mm
Reinforcements - 1.5 mm
class a surface:

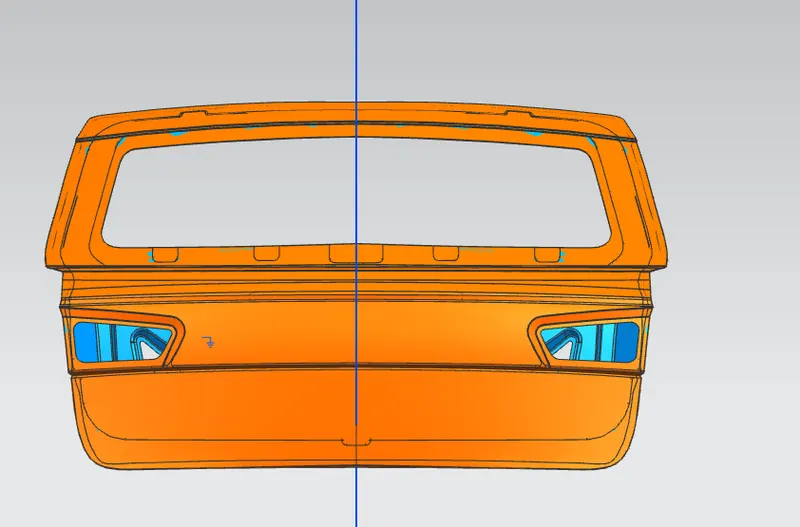

backdoor outer upper and lower class a surface has to be repaired according to the smoothness. After repairing the surfaces, the door is divided into two parts as Door Outer Upper and Doo Lower Panel.

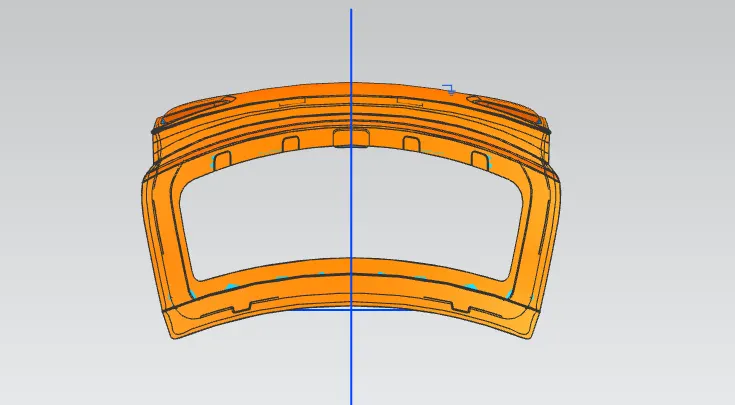

First, we need to create the Tooling direction for the Deep drawing operation. It shows that all the operations like embossing is done by considering this vector direction and it will help in manufacturing the part,
After that we have to create Sealing Flange by offsetting the outer panel to the specific distance.

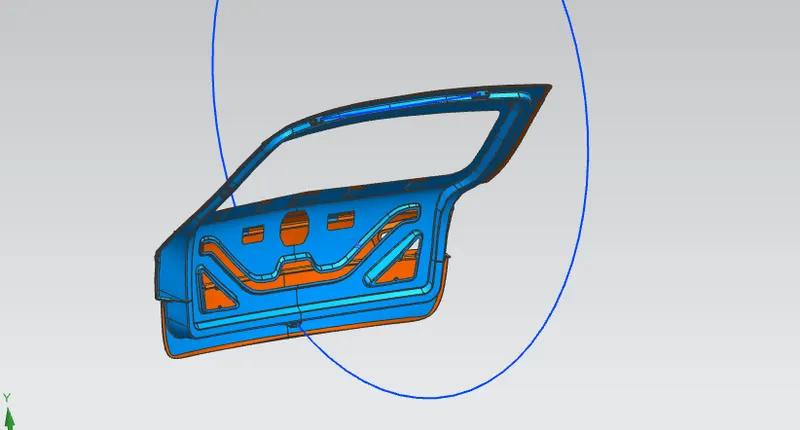

Then we will be creating the Back door inner panel flange by offsetting the outer surface at a distance considering the sheet thickness and thickening direction.
Then created the connecting flange to join the inner panel and sealing flange.
Then for the windshield panel mounting, windshield panel is created and joined with sealing flange.

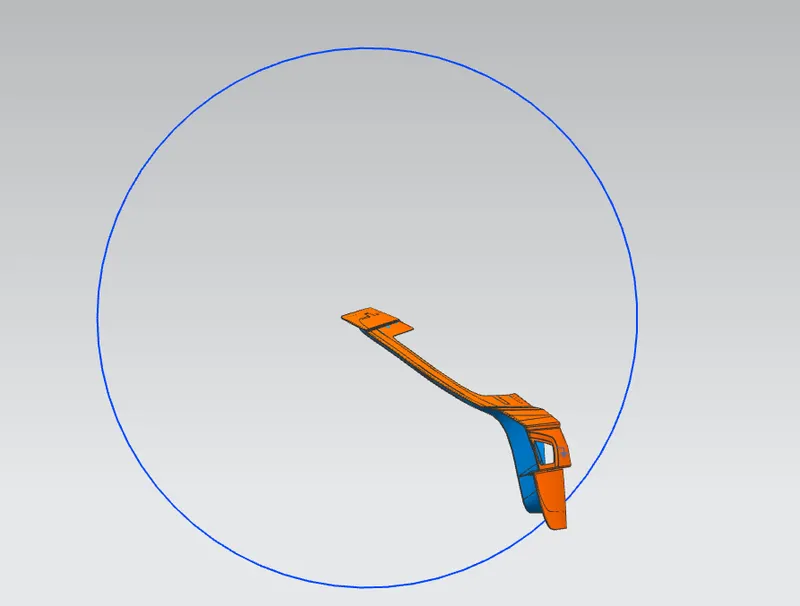

Now to assemble the back door with the vehicle Hinges are used to open and close the door. For that to increase the local area strength we have to design the emboss and provide the appropriate reinforcements to withstand the load acting upon i
CONCLUSION

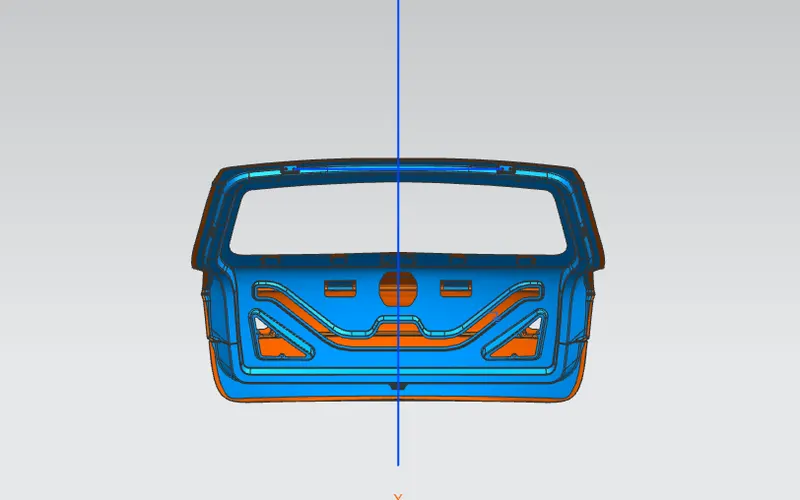

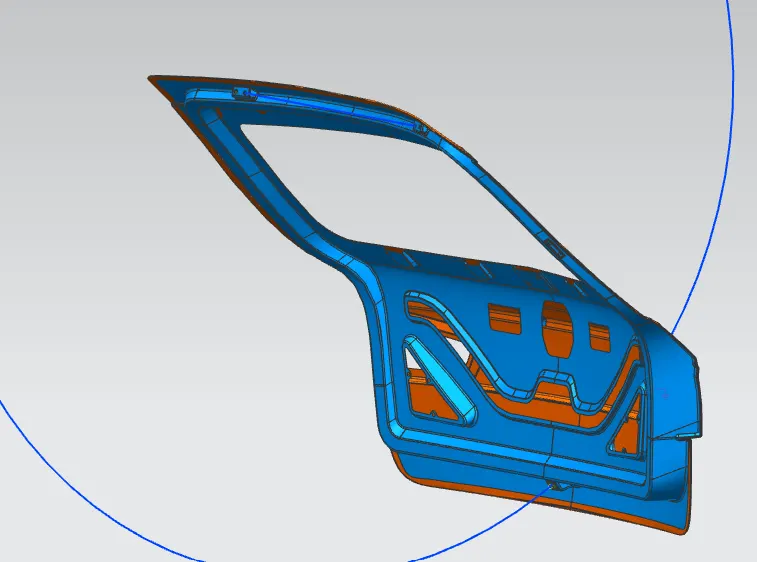

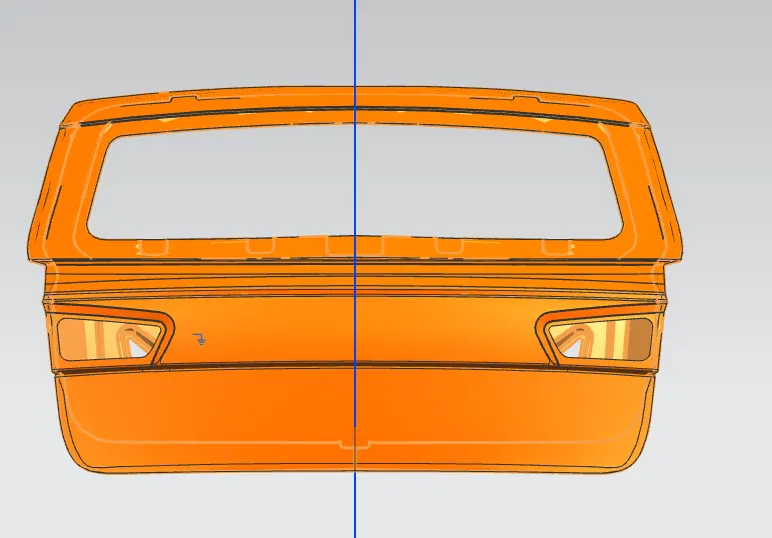

The back door outer and inner panel were designed with the help of the styling surface along the tooling direction.and
Draft analysis was performed on the inner panel and All the reinforcements were designed and placed at appropriate positions.
