Design of backdoor

Back door or Tail gate:

Back door is an important design component used in automotive vehicle. Since, it provides protection and covering for the back

Side of the vehicle.

Design characteristics of the back door play a very important role In terms of safety and luggage storage capacity of the vehicle.

More thinner the back door design, more will be the luggage area storage, whereas, more thicker the back door design,

Less will be the luggage area storage.

Back door assembly consist of:

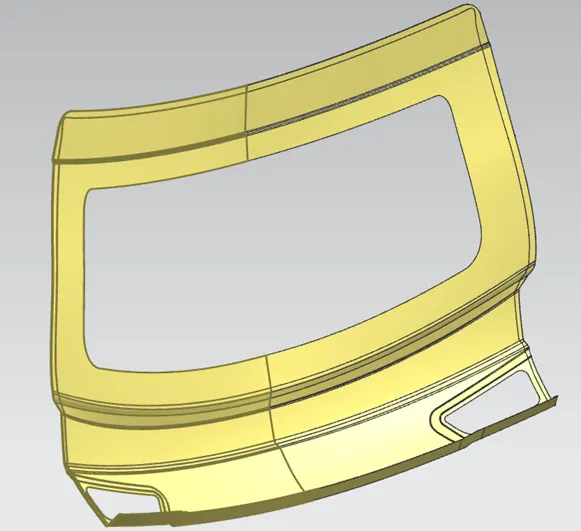

• Back door outer upper panel

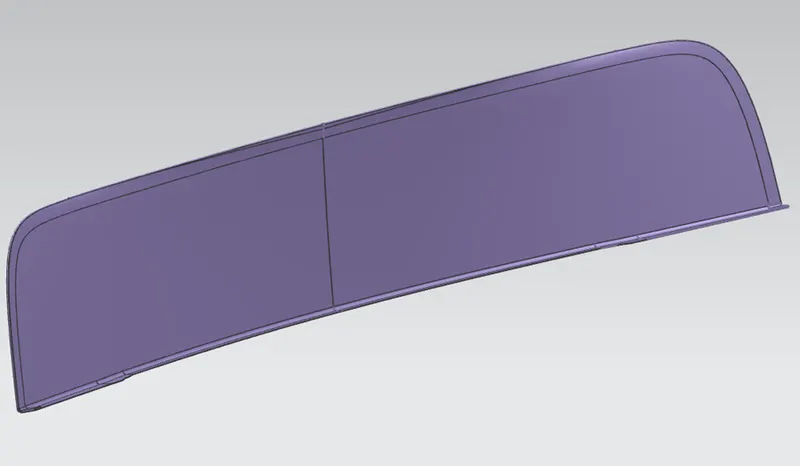

• Back door outer lower panel
• Back door inner panel
• Latch and sticker reinforcement
• Gas stay reinforcement LH and RH
• Viper motor reinforcement
• Hinge reinforcement LH and RH

Material selection for back door:

Sl.No	Steel	Aluminium
1	Parts are stamped	Parts are casted
2	Reinforcement is necessary	Reinforcement can be neglected
3	Has only uniform thickness	Local thickness can be varied
4	Heavier in weight and a greater number of components	Lighter in weight and less no. of components

• From above comparison advantages are clear that most of the car components are made with

aluminium for reduction of weight.

• Thickness will be from 0.65 to 0.75mm

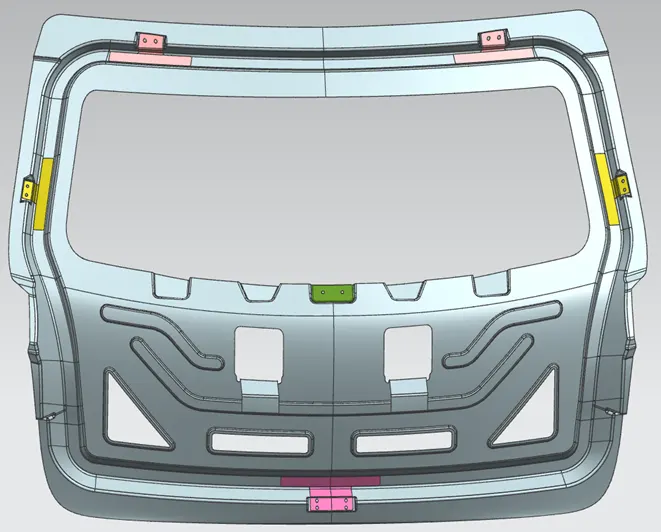

Back door inner panel with Reinforcement

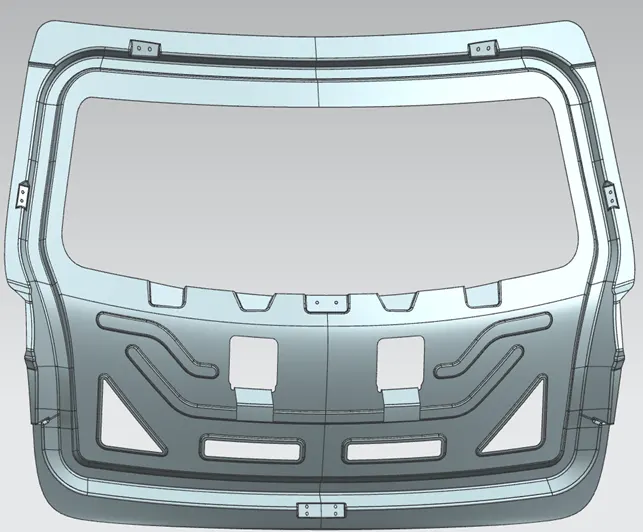

Back door inner panel

• Back door outer upper panel

• Back door outer lower panel

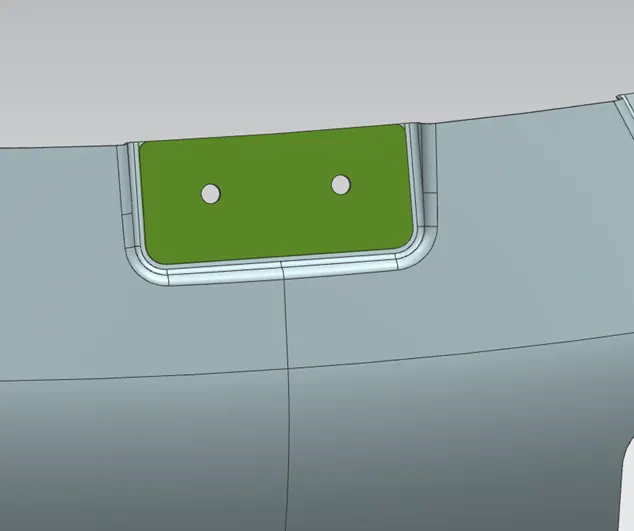

• Latch and sticker reinforcement

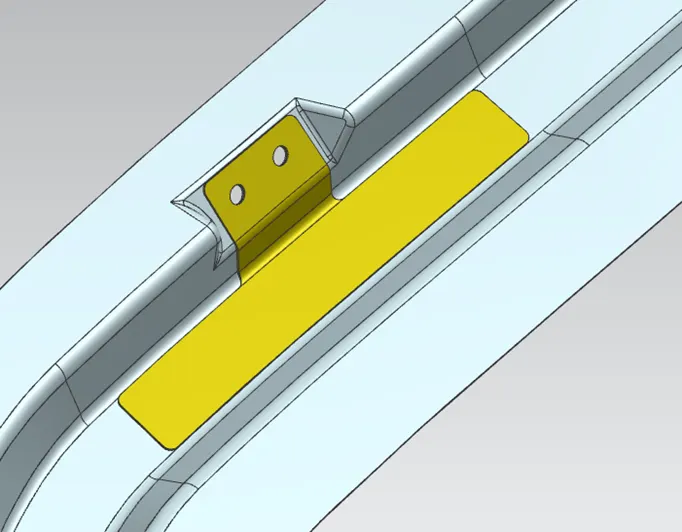

• Gas stay reinforcement

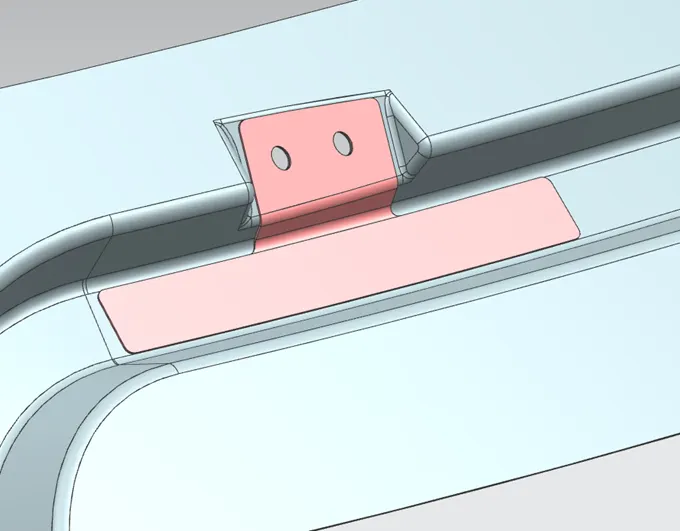

• Viper motor reinforcement

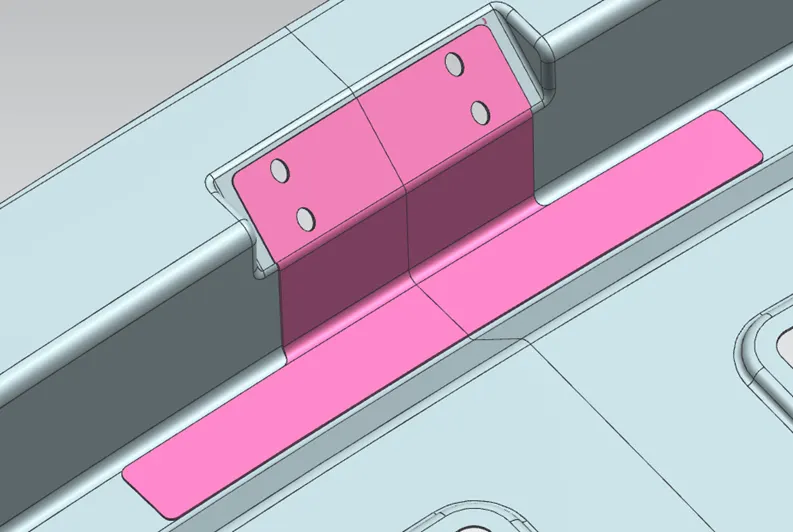

• Hinge reinforcement
