Design of backdoor

1. Outer Panel.

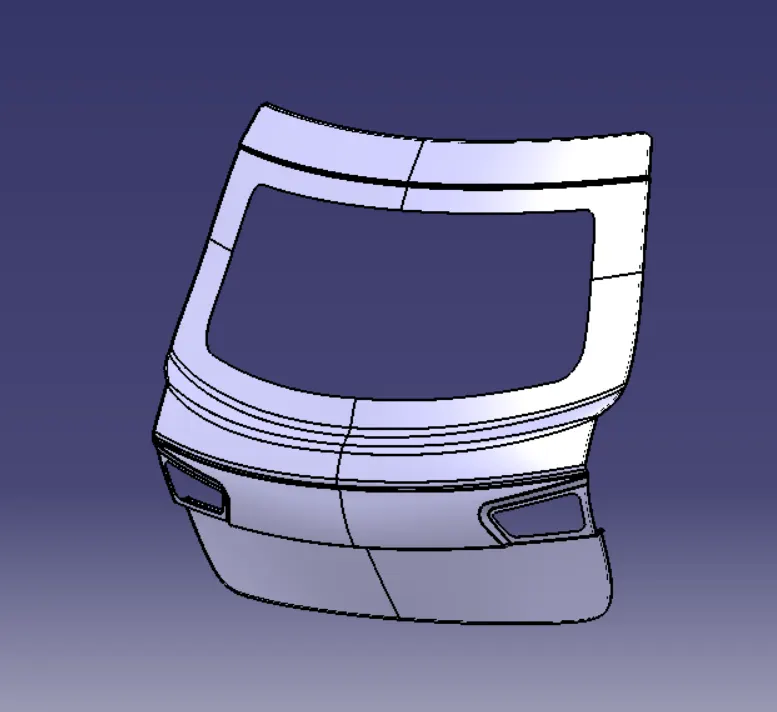

• 1. The above class A styling surface is an input for designing the backdoor panel.
• 2. Outer Panel Proper connectivity.
•

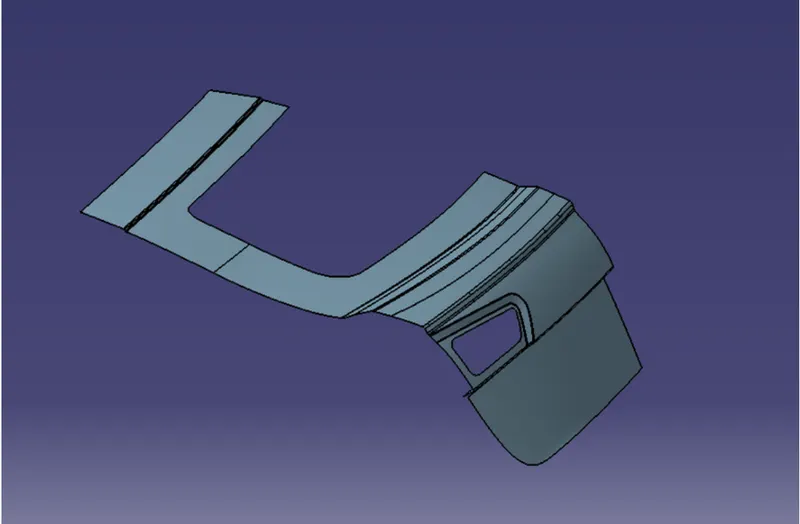

• 1. The styling surface for the upper panel needs to be checked to have the proper connectivity with no gaps between them.

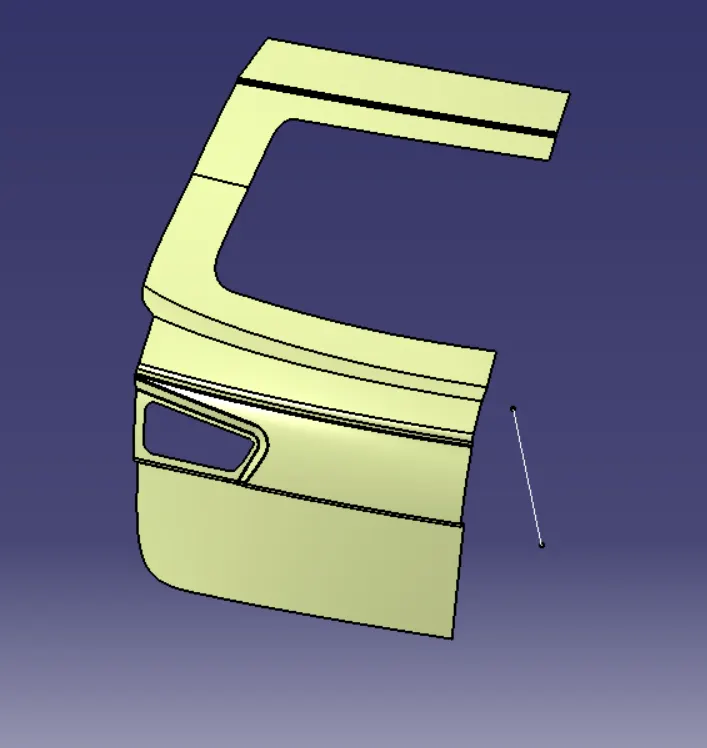

• 3. symmetry to get the other side of the panel.
•
• 1. use the connect curve to draw the curve for the hemming.

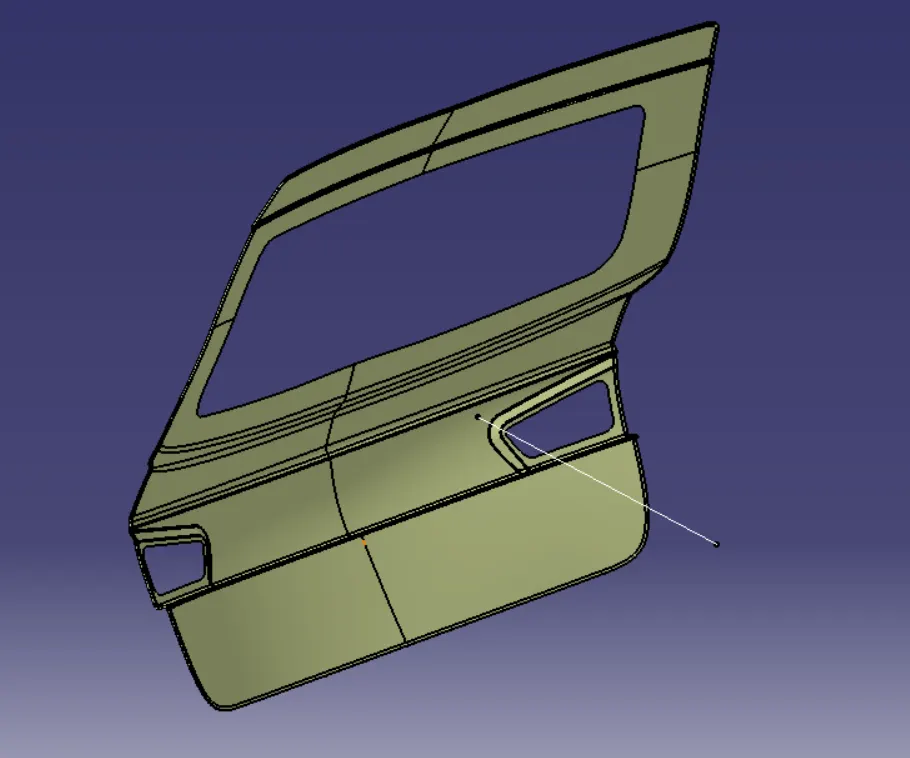

• 2. All the surfaces are then joined avoiding any gaps followed by using symmetry to get the other side of the panel.

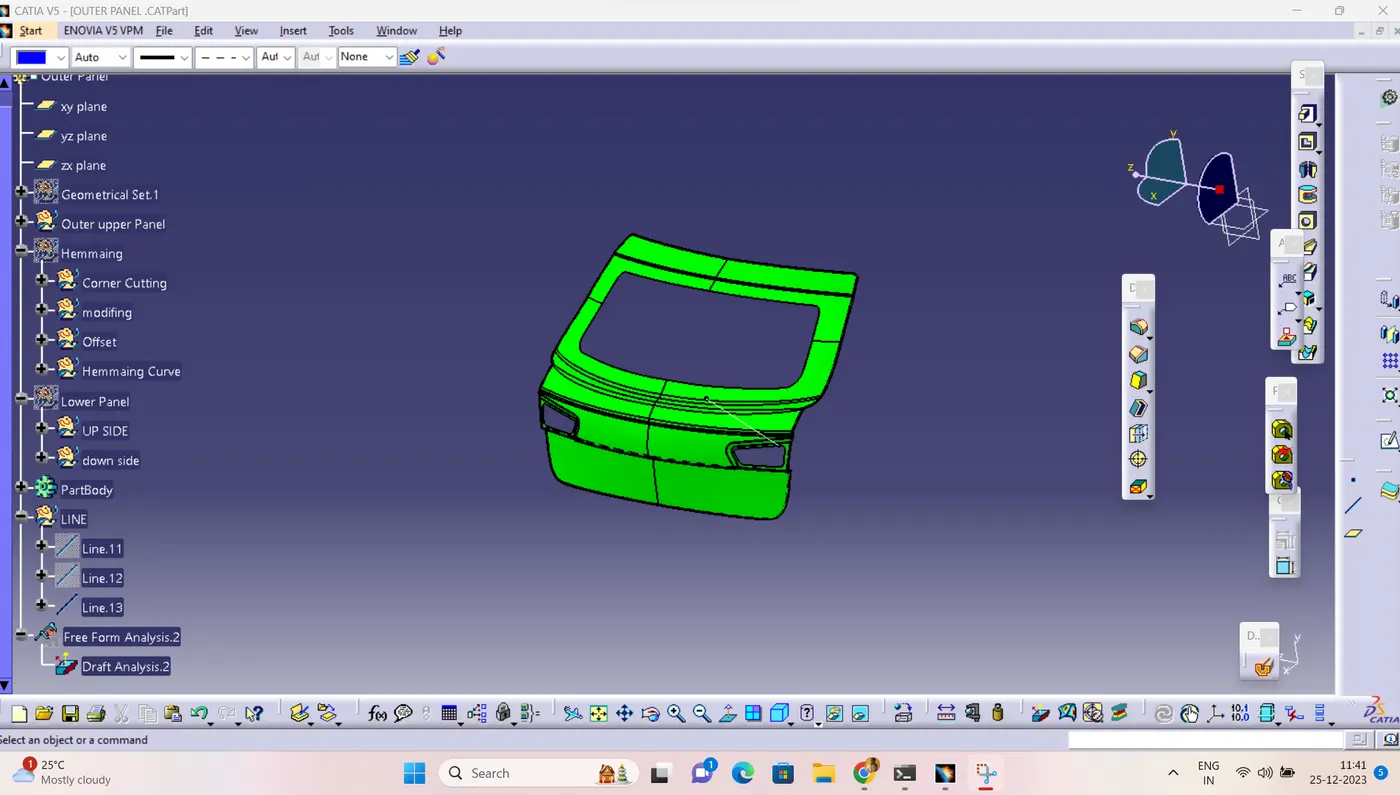

4. Outer Panel with Thickness & Draft Analysis.

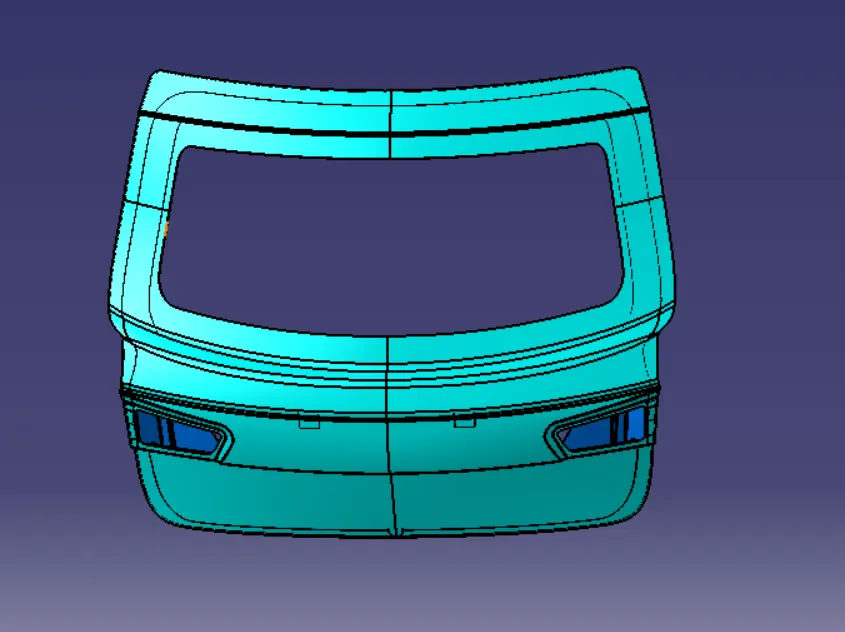

1. Outer Panel Upper Panel & Lower Panel with Thickness 0.75 done.

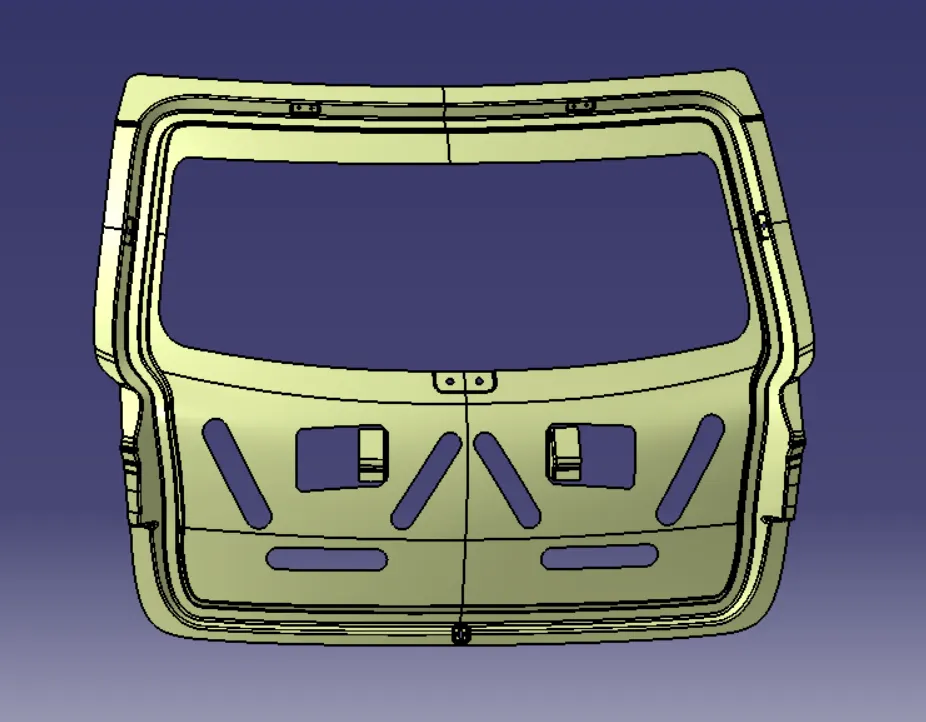

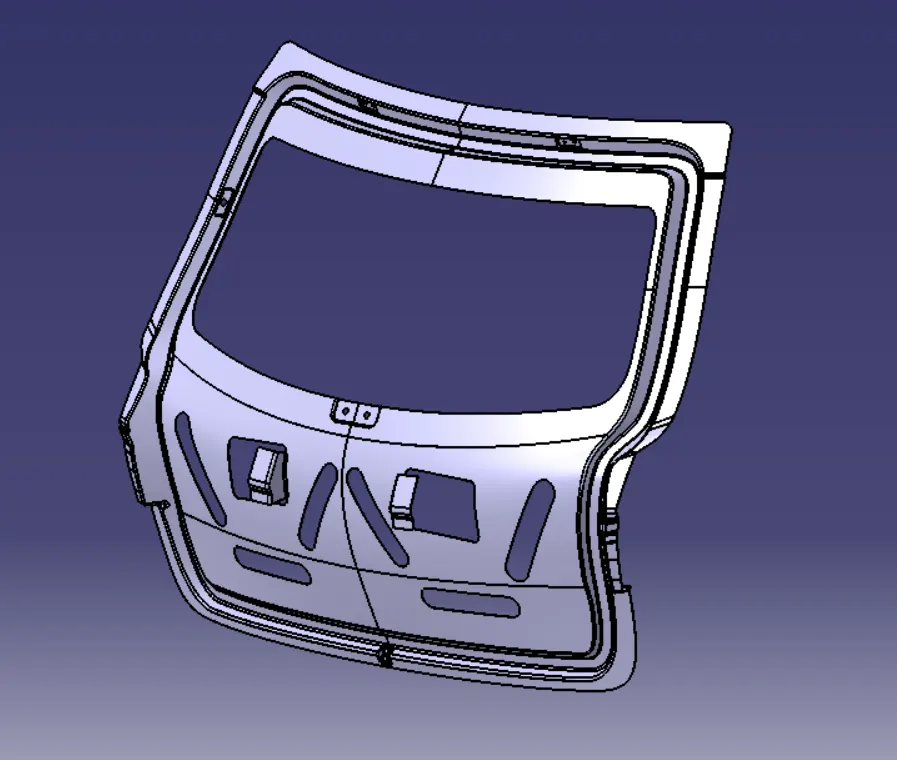

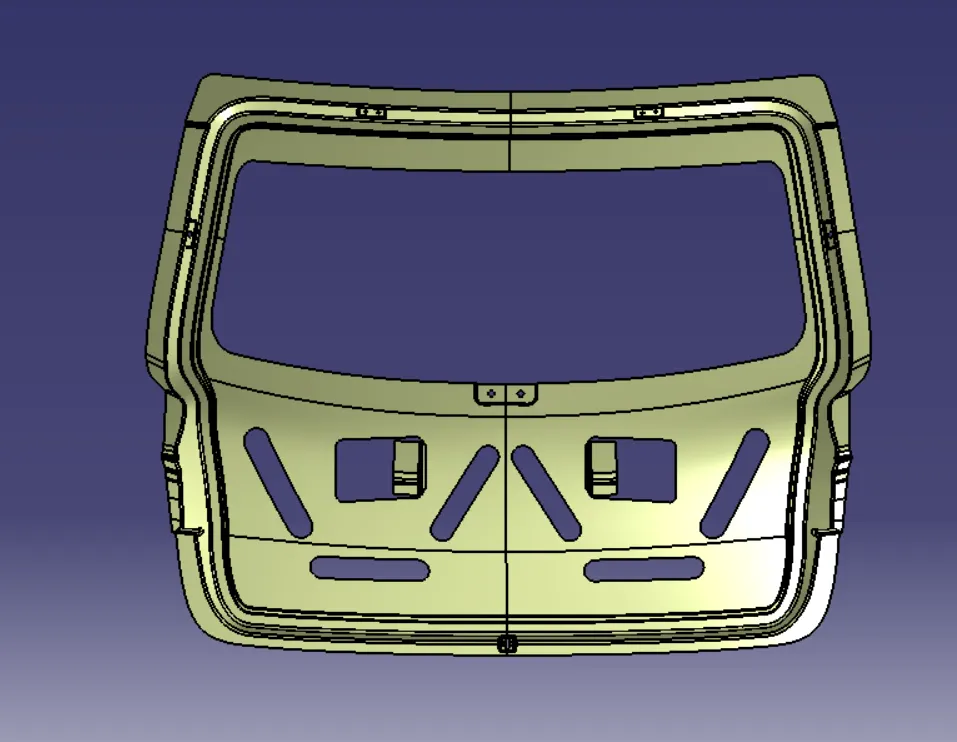

5.Inner Panel without Thickness.

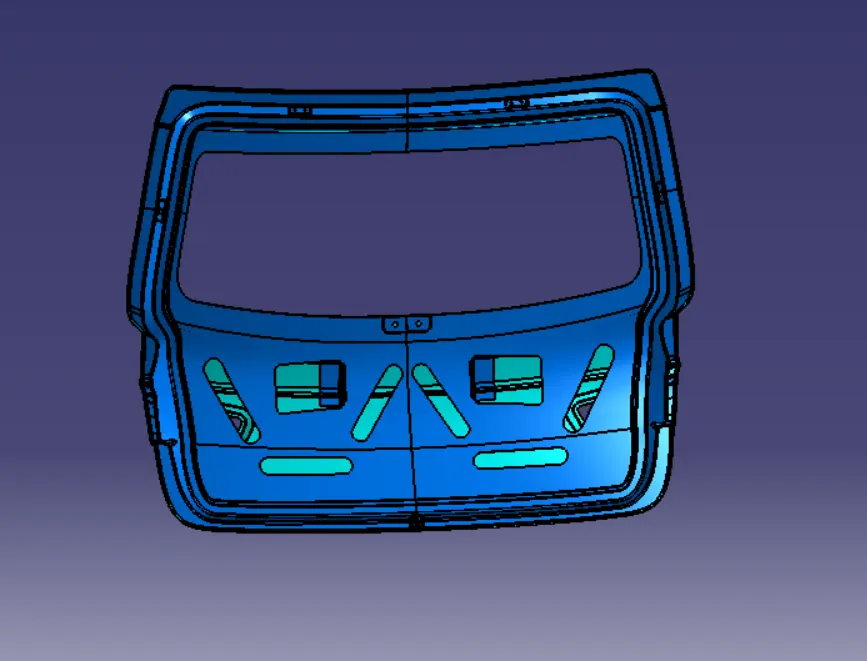

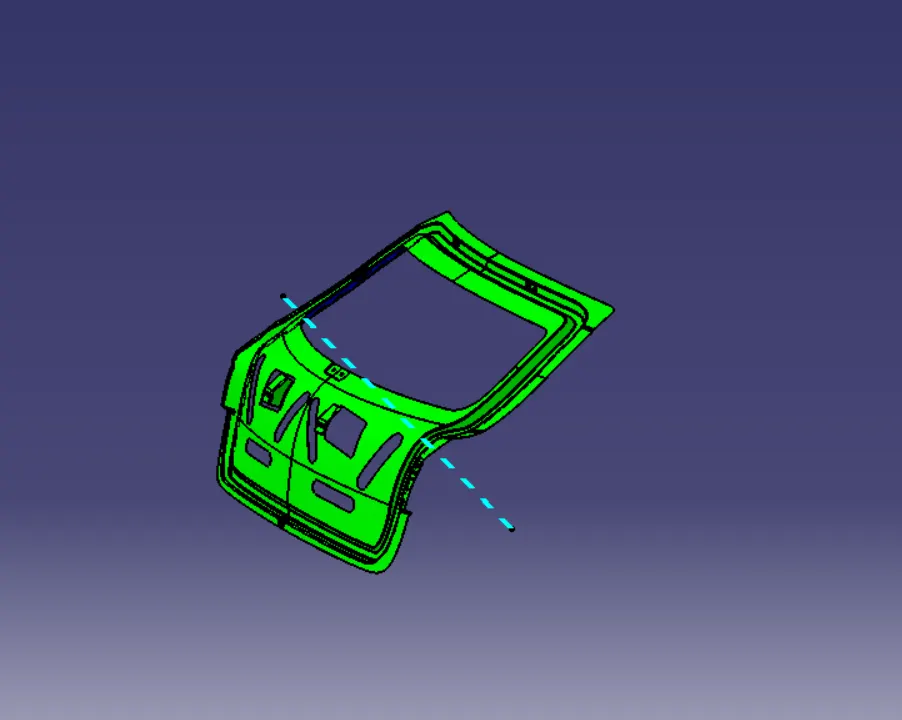

6. Inner Panel With Thickness and Draft Analysis.

7. Hinges & Gas Stay BKT

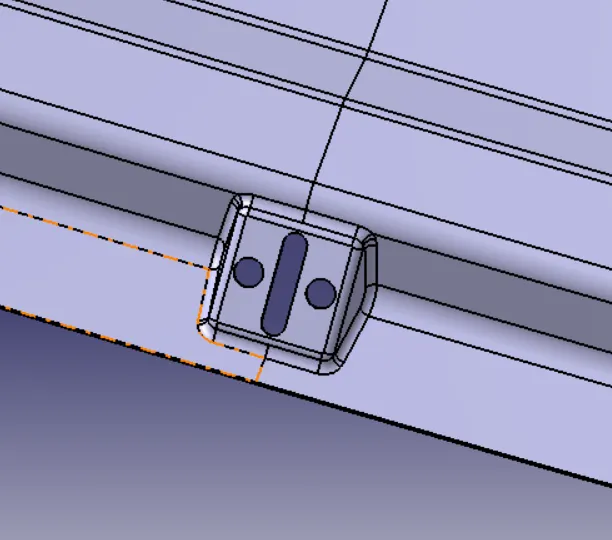

8. Latch

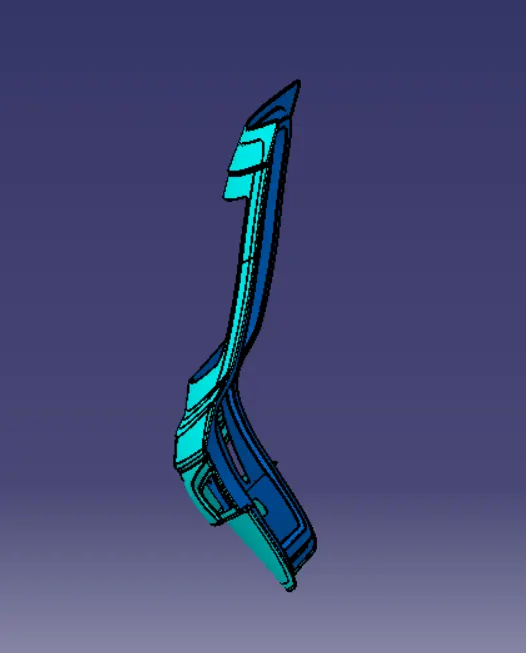

9. Back Door Assy
