Design of backdoor
Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses

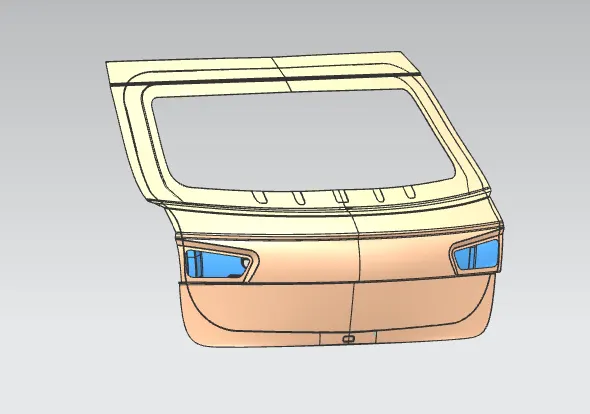

WITH REFERENCE TO THE GIVEN INPUT THE BACK DOOR OUTER PANEL IS SEWED AND IMPROVED
Now according to the requirement theinner panel and other reinforcements will be designes.
commands used
Trim sheet
offset in curve
curve on surface
emboss
face blend
edge blend
thicken
mirror
sew
Bridge curve
Law extension
through mesh curve

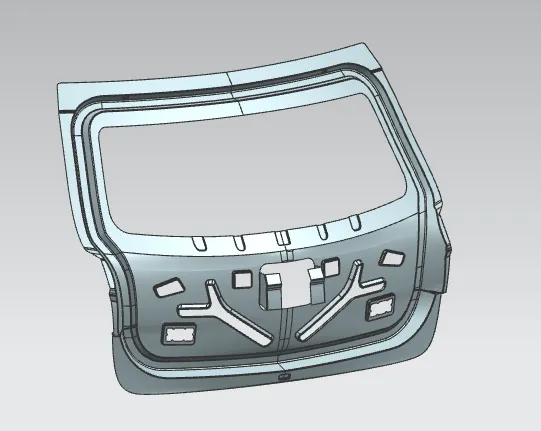

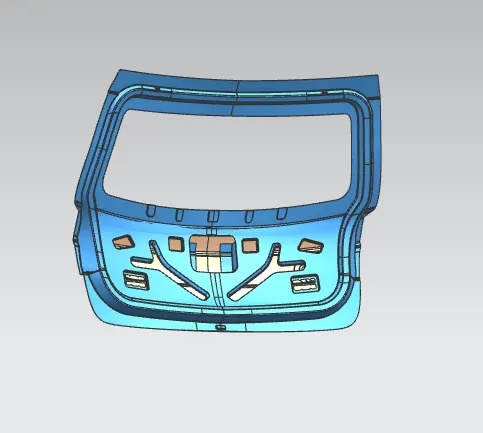

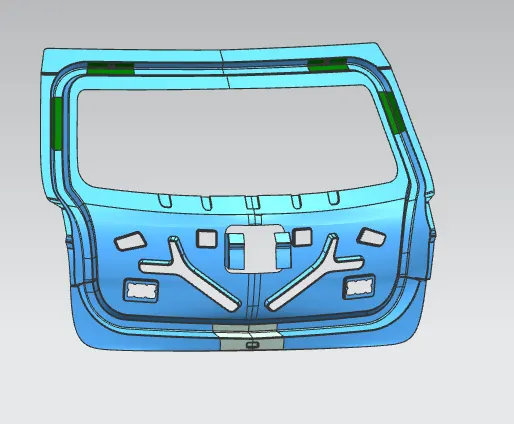

the inner panel is constructed with emboss and hinge emboss striker emboss are designed

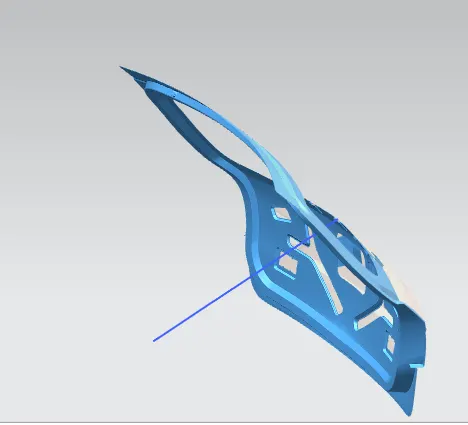

The too ling axis is created

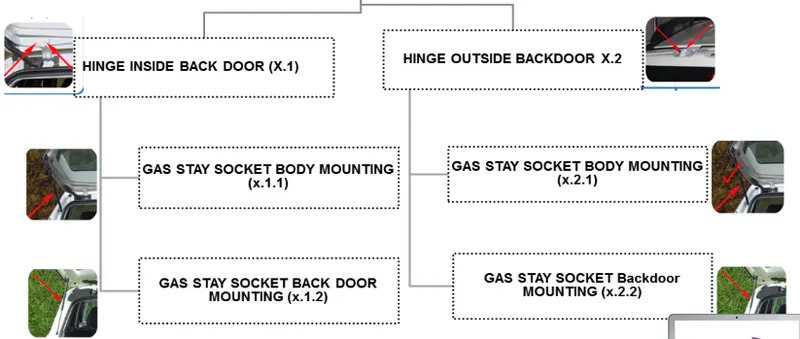

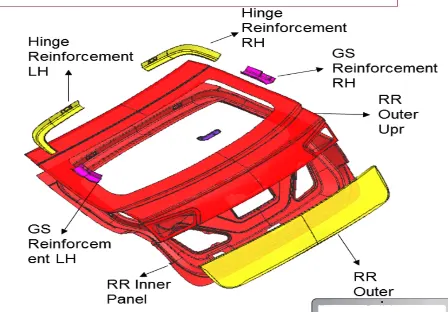

The reinforcements for hinge gas stay and striker are done.

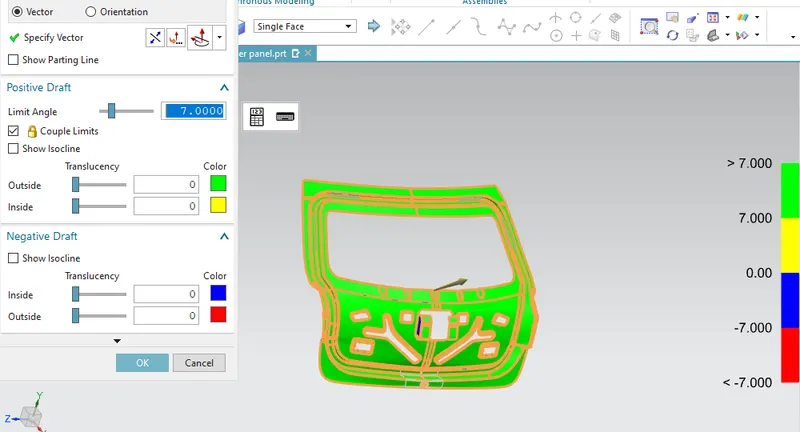

Deaft analysis is done along the tooling axis at 7 degree all faces are cleared

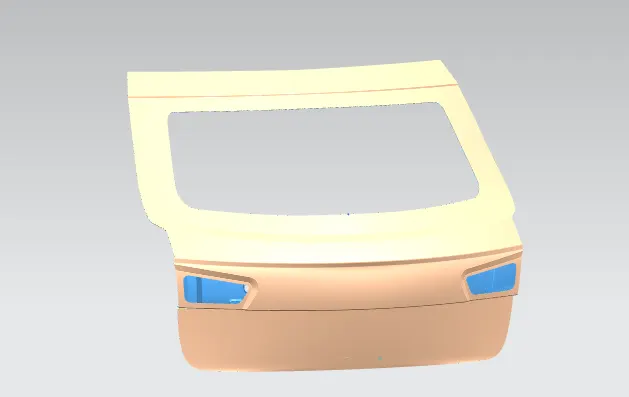

thus the back door outer panel is designed with its components
