#Objective: To Design and develop the backdoor of the car using the skin data as the reference in NX12.

#Introduction: The Backdoor, trunk, or boot of a car is the vehicle's main storage or cargo compartment, often a hatch at the rear of the vehicle. It is also called a tailgate.

The Backdoor consists of the following components:

1. Outer panels(Upper and lower)
2. Inner panel
3. Hinge reinforcements
4. Gas Stay Reinforcements
5. Wiper motor Reinforcement
6. Striker lock reinforcement

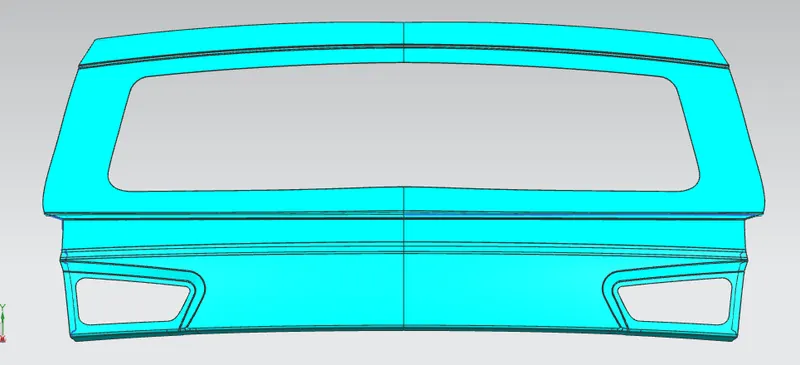

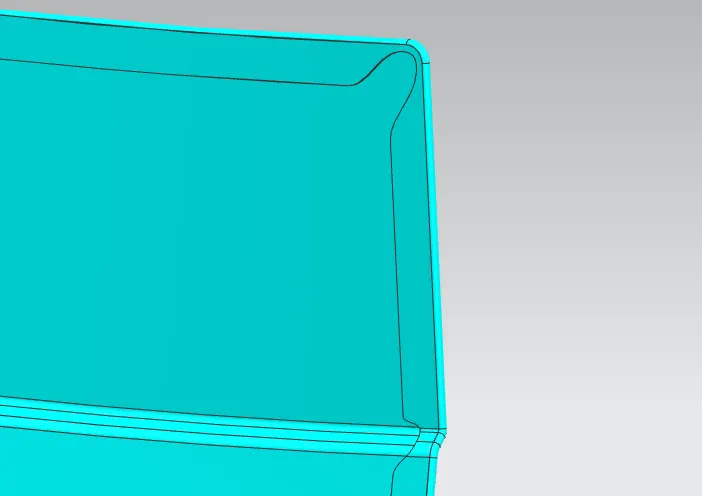

# Outer Upper panel

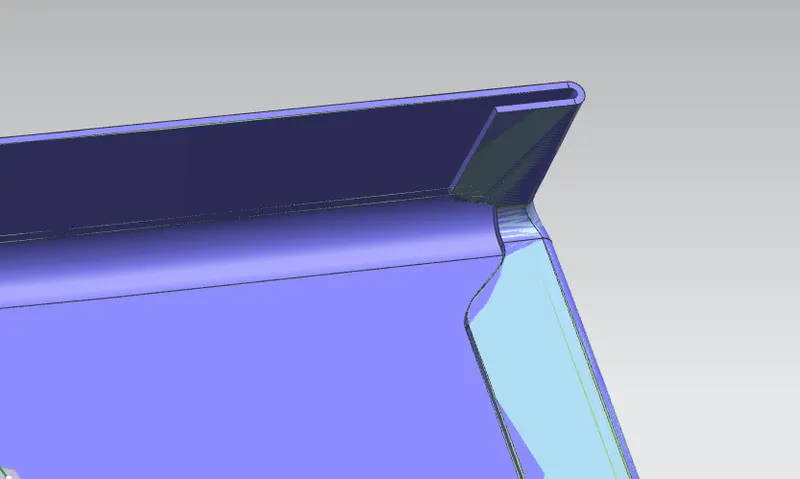

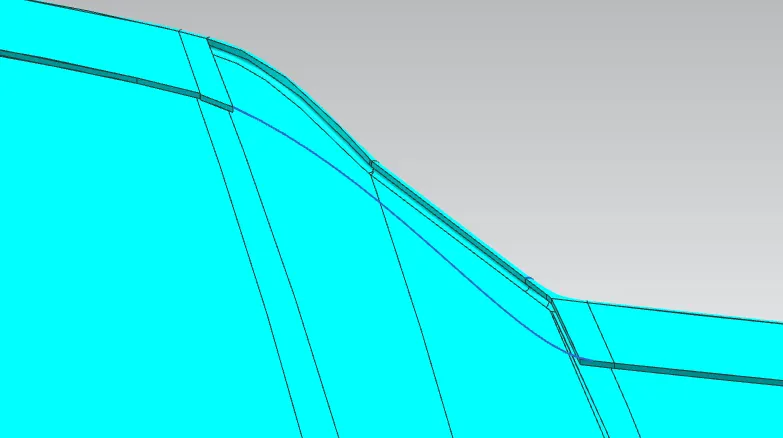

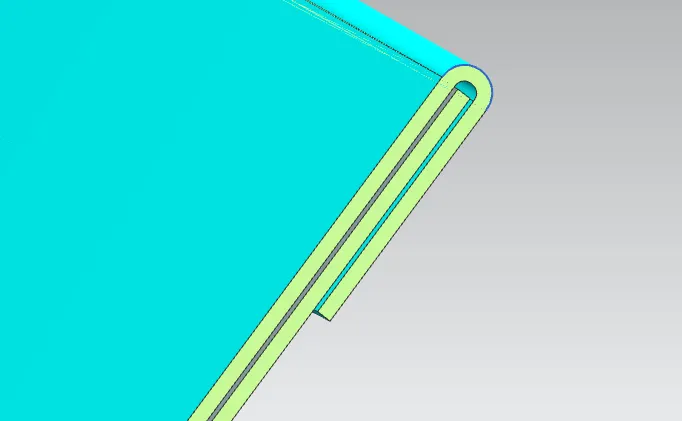

# Hemming and Hemming Reliefs

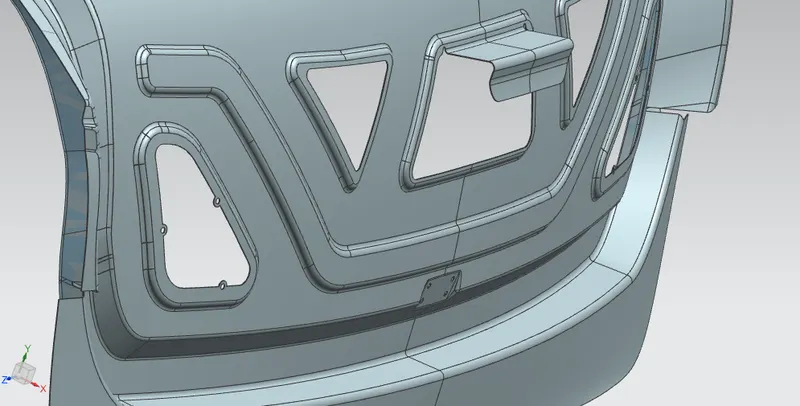

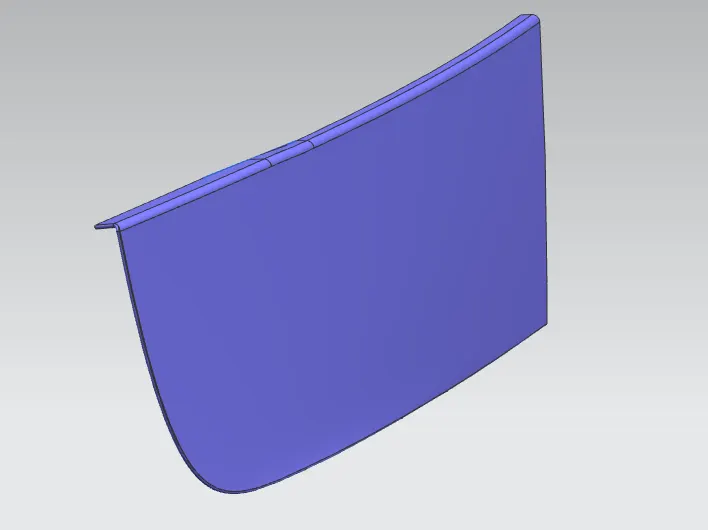

#Outer Lower panel

#Inner panel

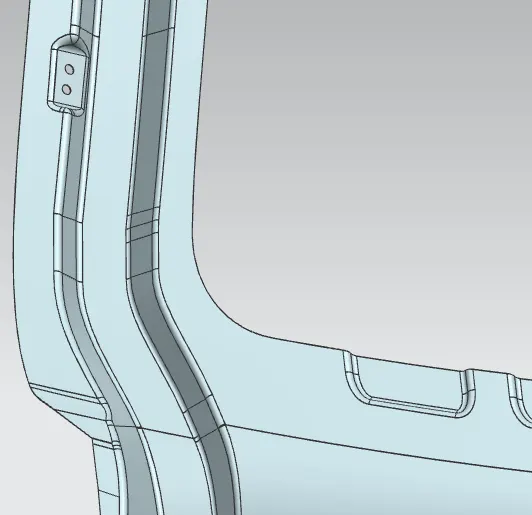

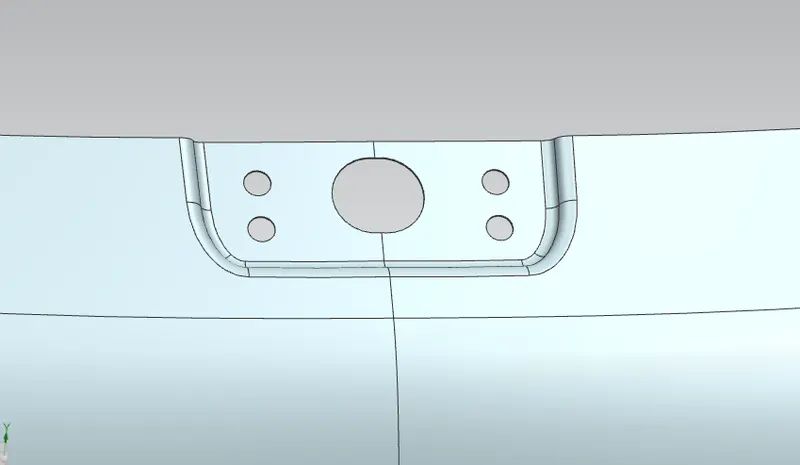

# Hinge Emboss

#Gas stay Emboss

#Wiper motor Emboss

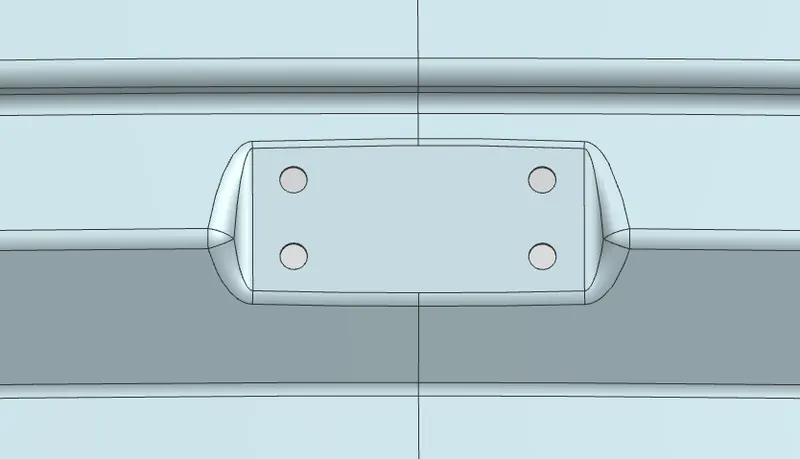

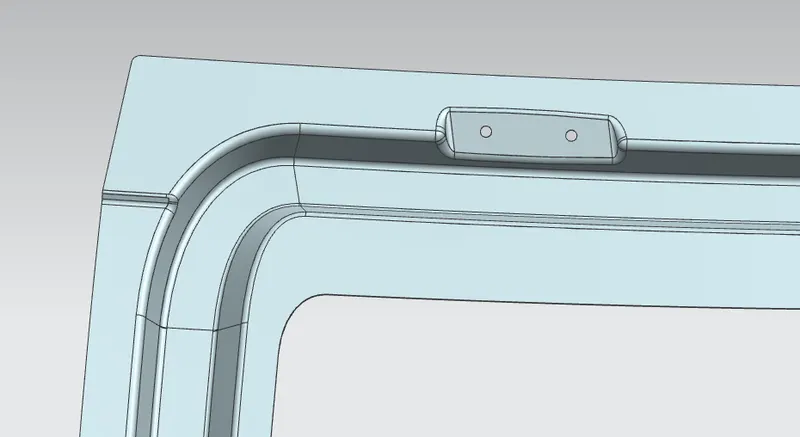

# Striker lock Emboss

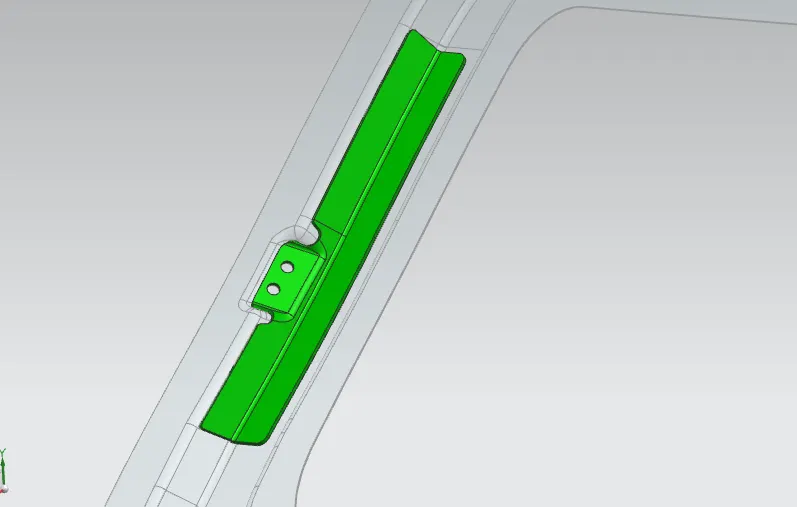

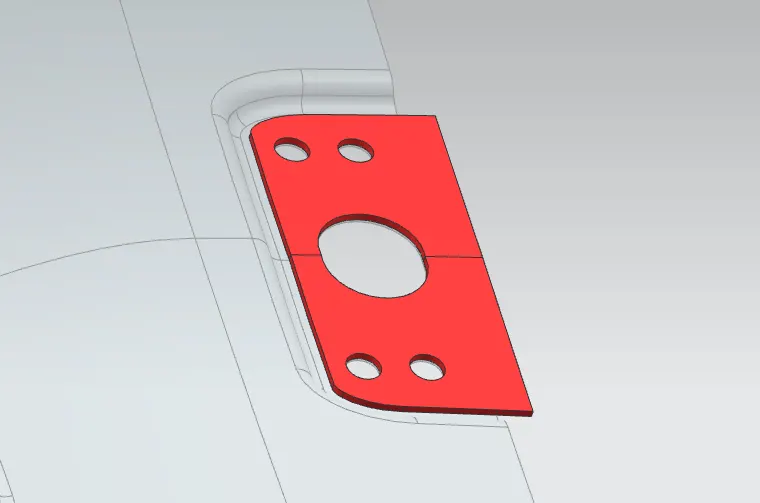

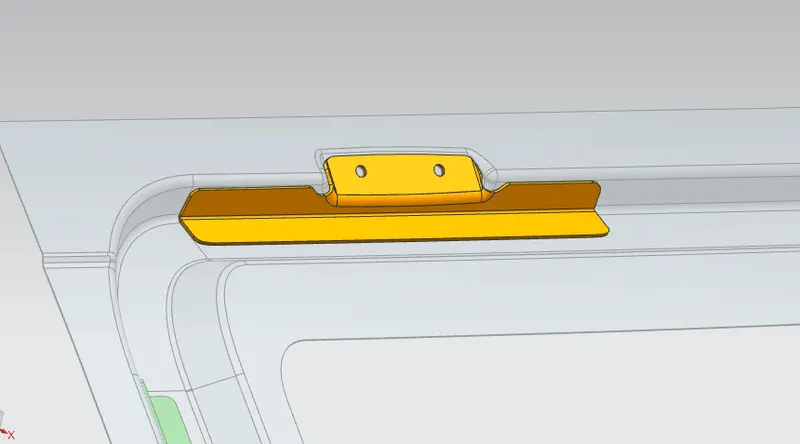

# Hinge Reinforcement

# Gas Stay Reinforcement

# Wiper Motor Reinforcement

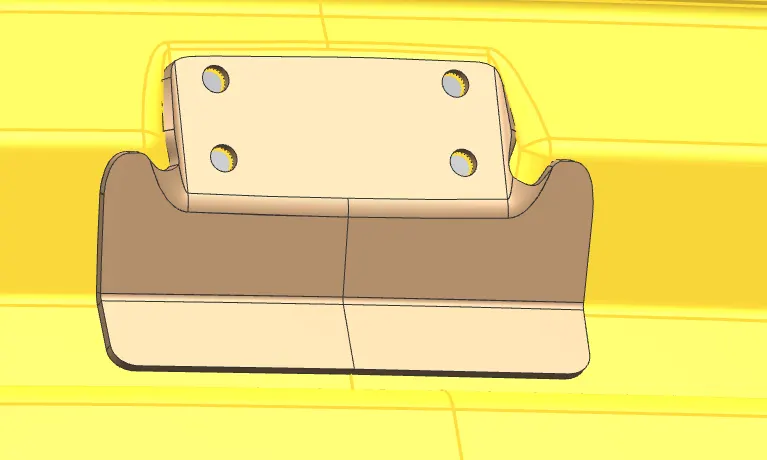

# Striker lock Reinforcement

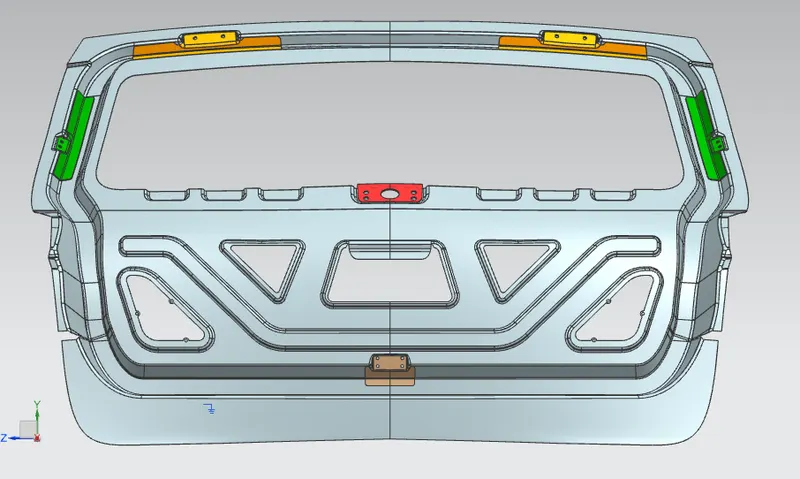

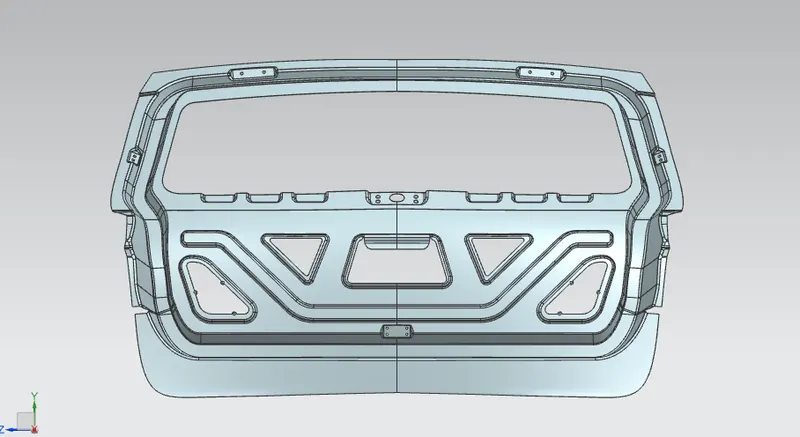

# All Reinforcements mounted on Inner panel

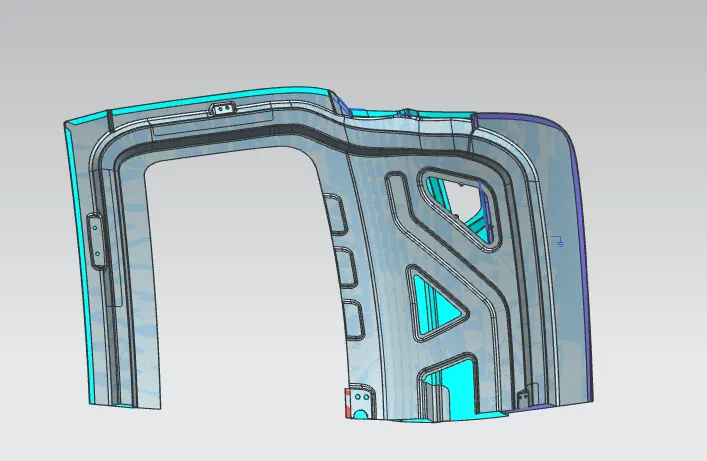

# Complete Assembly(Section View)

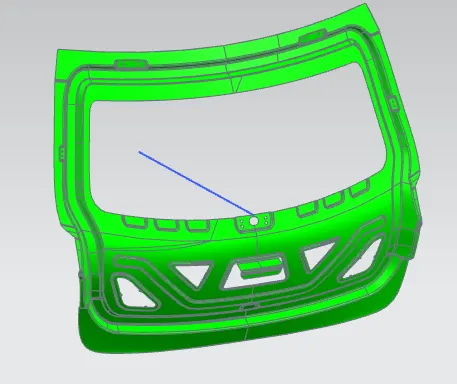

# Draft Analysis Using Tooling direction

#Result: Hence the Backdoor Design was completed with minor issues. The design qualified in the draft analysis. I have attached the compressed file of the Car backdoor design.

#Issue: While Hemming process, I came across a situation where a particular section was creating a hindrance in the thickening of the outer upper panel. So Had to trim that section off to complete the thickening process.
