Design of backdoor

PROJECT OBJECTIVE:

To design a back door car using sheet metal design nx cad and analysis using same cad.And also learn to car back door desing methodologies.

Back door design:

Introduction:

A Door is a hinged part which is used for entry and exit of the vehicles. Backdoor are one of the type of door of the vehicle which are located next to the passanger seat which provides access to the luggage compartment. In the most of the cars, these back door are operated with the help of gas stay which in turn reduces the effort required to lift the door.

Some luxuary cars have powerd backdoor which in turn is driven by an electric motor. This kind of system is also called a powered trunk lid system hatchback or station wagons are sold as 3 doors or 5 doors models. In this case, the rear hatch is classified as door this is because it enters the passenger compartment. The naming is mainly used in Europe countries. In case of safety, the backdoor designed should meet the safety requirement of the rear collision.

Functions of the Backdoor:

• It protects the occupants and luggage from getting damaged.
• It houses assembly of tail lamps, wiper motor and other components.
• It houses windshield glass which helps in rear visibility.
• Parking sensors, rear view camera are mounted on it.

Types of Backdoor based on working positions:

The door or opening of a cargo area may be hinged at the top, side & bottom. If the door hinged in the bottom it is called as a tailgate.

1.Top mounted

2.Side mounted doors

3.Bottom type

1.Top mounted:

This type of back doors is used in a station wagon, pickup trunk and some of the spot utility vehicles. Today's modern cars use top mounted tailgating system which are both powered and also gas stay supported. These top mounted tailgates provide greater rear visibility compared to side mounted or backdoor which have center pillars in it.

2.Side mounted door:

As the name signifies the side mounted doors are the one which is used in the van type MPVs, SUVs, pickup truck vehicles. These side mounted doors or barn doors are a lot easier compare to top mounted doors. These doors are generally smaller in size and can be easily accessed. These doors are more convenient for the goods handlers for long pipe and lengthy components where one door is kept open. These door also save accidental head impacts. It is a lot easier to load and unload items in the side mounted doors

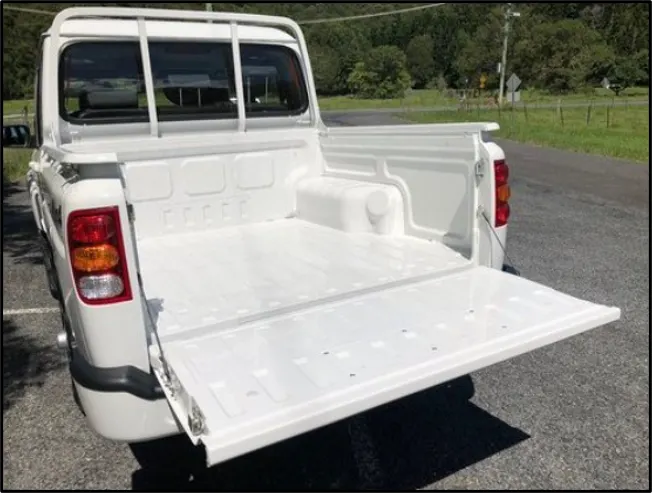

3.Bottom type:

This bottom type type backdoor system are used in the car type such as car, pickup truck and some luxuary SUVs. These are the most convenient type of back door in which the bottom split is used as a support or even as a table for the tour going people.

Types based on Working Mechanism:

1.Gas Stays type.

2.Powered Lift system.

1.Gas Stay type:

Gas Stay type backdoor is an ideal and most commonly used tailgate mechanism from lower segment car to luxury car segment. The ideal components of tailgate consist of a hinge, door, gas stay and some rubber beadings for sealing of door.

2.Powered Lift System:

Power trunk lift system is another sophisticated way of trunk or liftgate opening mechanism which is to automatically open and close of the trunk and release of the latch by the touch of a bottom. Powered trunk Lift system consists of a power latch, anti pinch switch, PTG assly, PTG main switch. When the switch is pressed in the compartment or outside the power latch releases the latch and the entire backdoor is opened. The anti pinch switch is located in order to avoid accidental hand insertion during the operation of the door.

Materials Selection:

The selection of material plays a major role in determining the overall weight of the back door. The common materials used are Steel & Aluminum. The density of Steel is higher than Aluminum thus adding more weight to the door. The material used in the manufacturing of the backdoor depends upon the budget of the car, most low cost vehicles use steel as it is cheaper compared to Aluminium

Manufacturing methods:

Recently, there have been two approaches to reducing automobile weight. One is by using material lighter than steel and the other is by redesigning the steel structure.

Light weight steel can be achieved by improving the performance of the structure or adopting by improving the performance of the structure or adopting new manufacturing techniques. One of the efforts is the ULSAB (Ultra Light Steel Auto Body) concept.

The Different panels or regions are as follows:

1.Inner Panel.

2.Outer Upper Panel.

3.Outer Lower Panel.

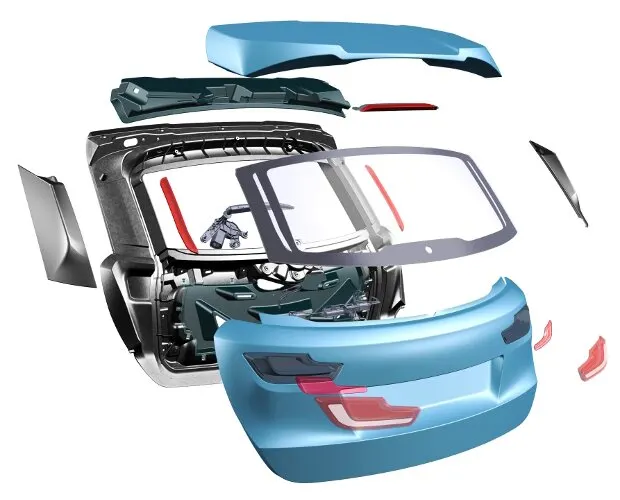

Backdoor Assembly:

1.Inner Panel

2.Outer Panel

3.Hinge Reniforcement LH & RH.

4.Gas Stay Reniforcement LH & RH.

5.Wiper Motor Reniforcement.

6.Latch and Striker Reniforcement.

we using "top down design" approach.

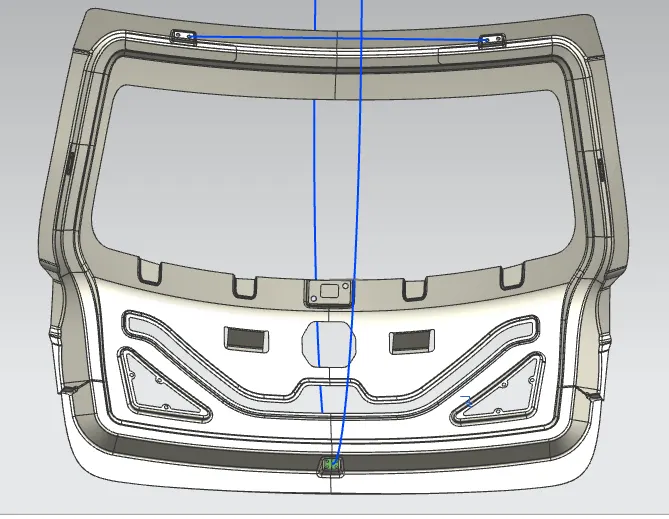

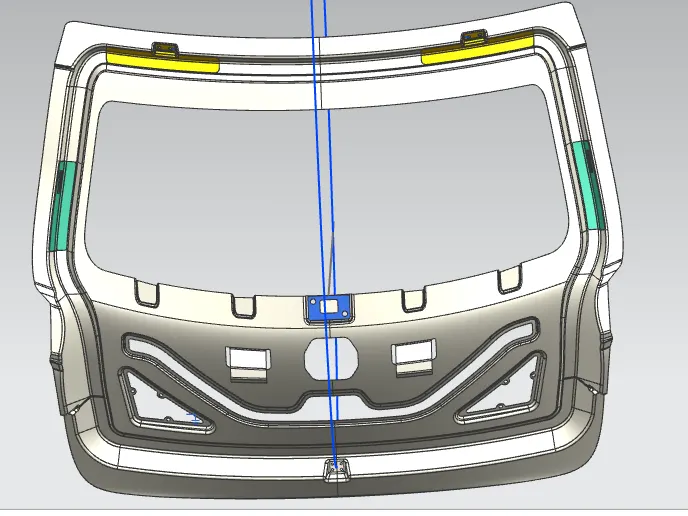

1.Inner Panel:

The inner Panel is a component which is used for strengthening the door and it is one of the most important components on which all accessories are mounted like hinges, glass guide channel, mounted trim, latch etc.., The possible method is the integration method. In the integration method, the part is stamped out of a single blank. This reduces the number of tools needed the assembly cost and eliminates any fit ability problem.

before thicking,

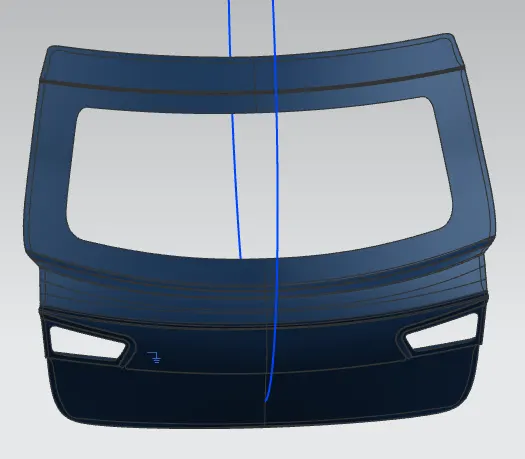

2.Outer panel:

The Outer panel of the back door is similar to other BIW components where it is the aesthetic part of a vehicle. The coating provided is of multi stage which has the property of scratch resistance, rush prevention and smooth and attractive finishes. The Outer panel also has the provisions for the tail lamp, rear fog lamp and also has the provision for lisence plate mountings. Most of the hatch back cars have the provision for wiper motor.

before thicking,

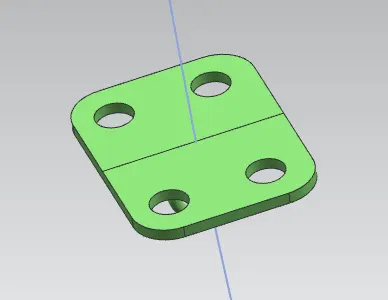

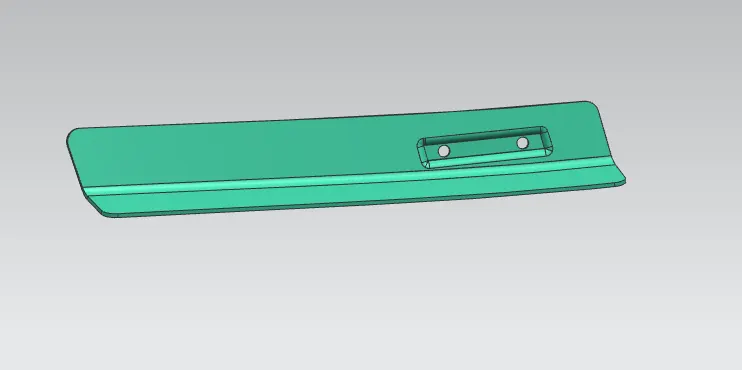

3.Hinge Reinforcement LH & RH :

Hinges support the weight of the whole backdoor. Hence a reinforcement are provided here too. Emboss is designed such that the hinges should operated freely. The electrical wiring looms are through the holes along the periphery to keep them hidden.

,

4.Gas stay Reinforcement LH & RH:

An angled or Diabolic emboss is provided for the gas stay mounts. The angle makes it easy to be machined and stamped. It is reniforcement with a thicker sheet.

before thicking,

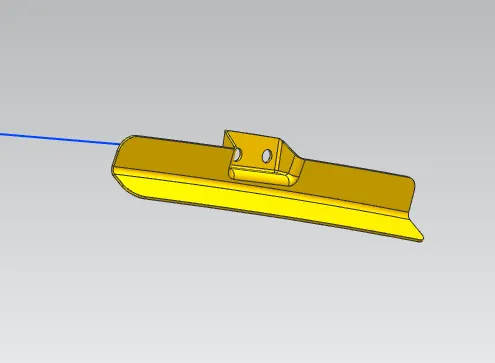

5.Wiper motor Reniforcement:

A dedicated space near the window is left for wiper motor assembly. A cavity is placed in the middle of the panel for the necessary components in the assembly as well as other accessories.

before thicking,

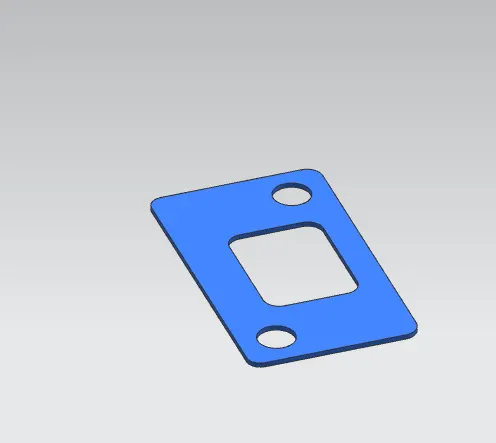

6.Latch and strikere Reniforcement:

At the bottom of the latch and striker assembly. Generally a key operated or automatic remotely controllable locking mechanism is used to keep the door closed and open.

before thicking,

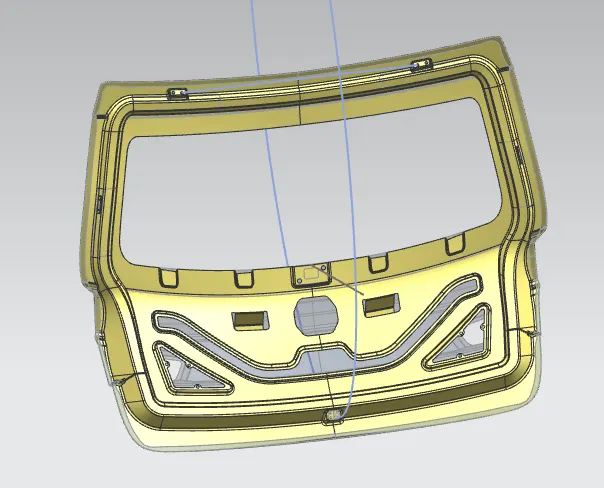

THICKEN COMPONENT:

thickness=0.75mm.

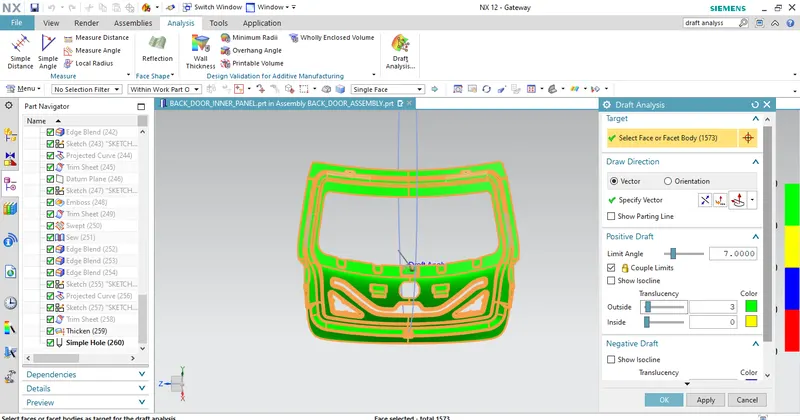

DRAFT ANALYSIS:

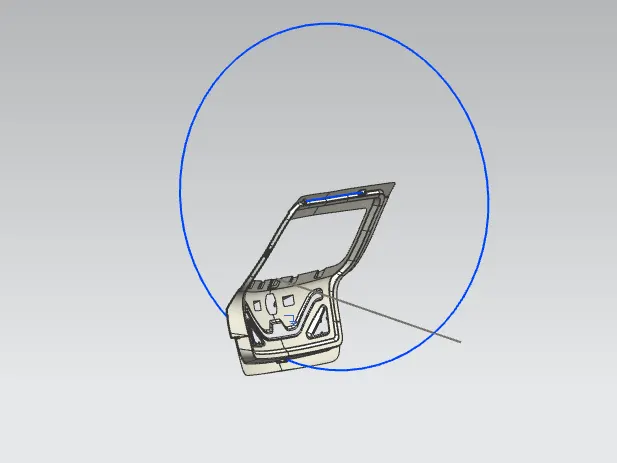

Positioning of Latch & striker/ Latch Trajectory:

Backdoor is the swinging part which rotates about hinge axis. The position and orientation of latch striker is important for proper opening and closing of the backdoor. The positioning is done by sketching a circle with center as the axis of the hinge which passes through the striker at appropriate position with respect to inner panel.

CONCLUSION:

• The back door outer and inner panel were designed with the help of the styling surface along the tooling direction.
• Draft analysis was performed on the inner panel and All the reinforcements were designed and placed at appropriate positions.
