Design of backdoor
Aim :
To develop the car Backdoor(Tail gate) with the reference of given skin data as per engineering standared by using NX12
What is back door of a car?
A door which is located at the rear side of a car which gives access for the boot space to store luggage, spare wheel etc.
These doors can be operated manually or electric powered. In most of the luxury cars door is electrically operated.
Types of Back Door :
- Top Mounted
- Side Mounted
- Bootom Mounted
Design Consideration :
- Visibility Criteria
- Latch and Stricker Position
- Hing Position
- Gas Stay Position
- Space Avalibility
- Drain Holes
- Hemming and Relief area's
Components of Back Door :
The Components of Back Door as follows,

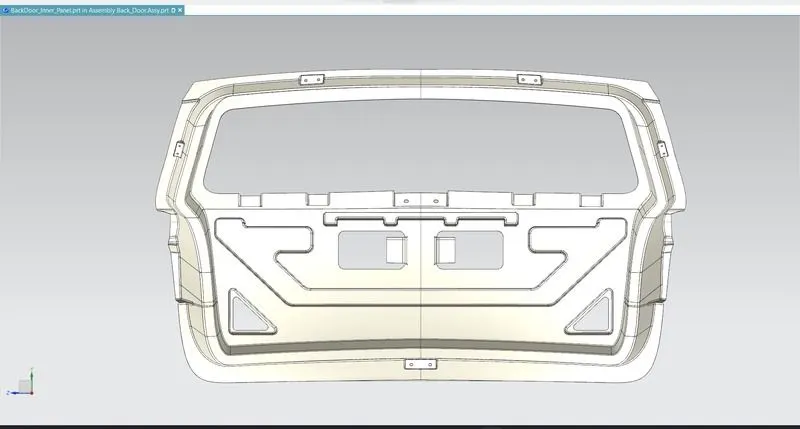

- Inner Panel

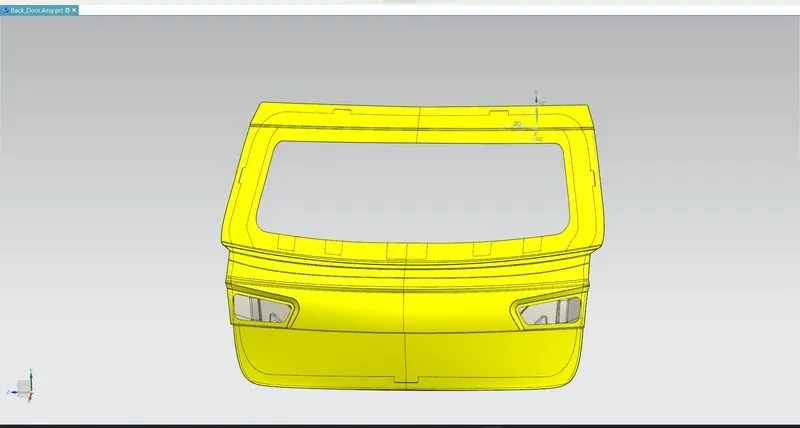

- Outer Panel

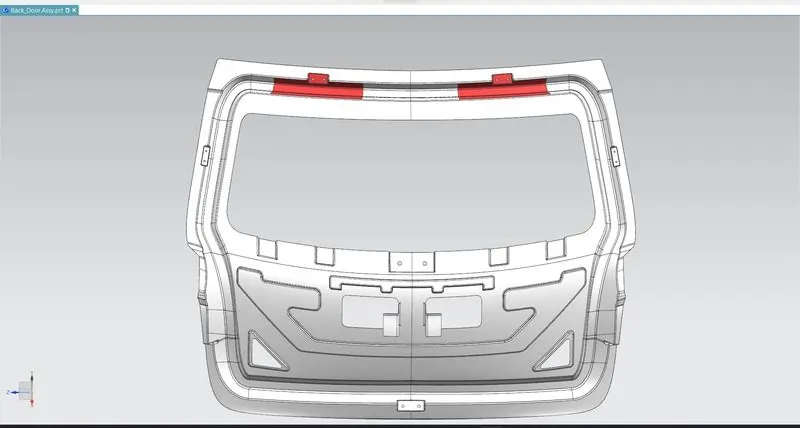

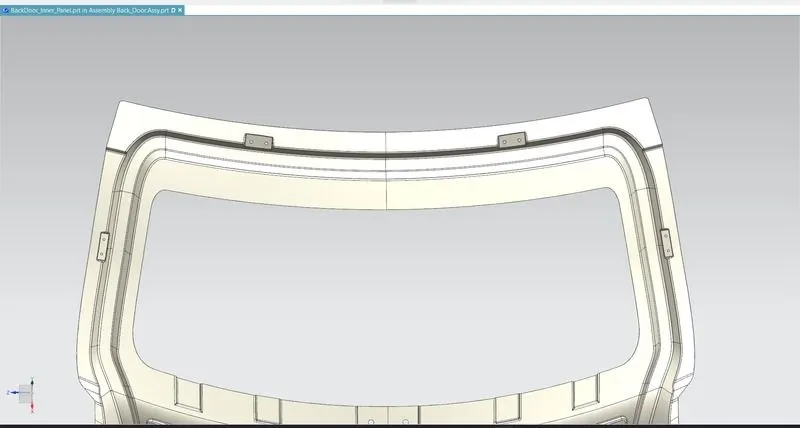

- Hing Reinforcement

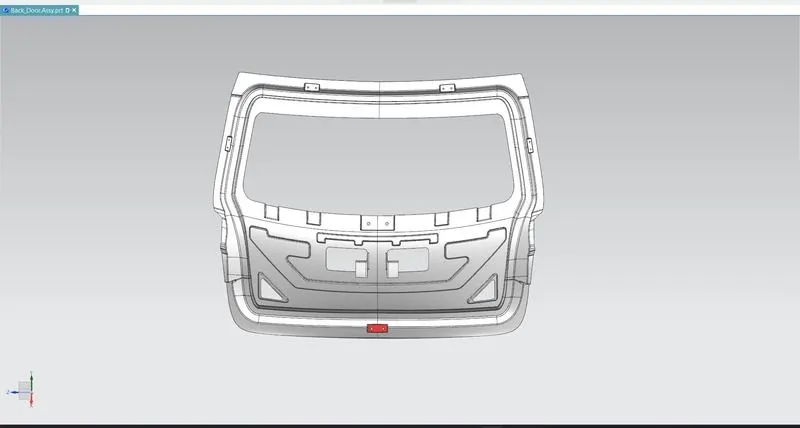

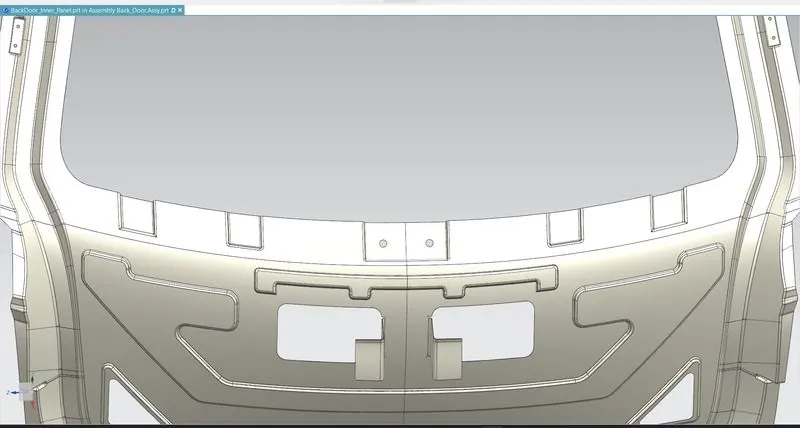

- Latch and Stricker Reinforcement

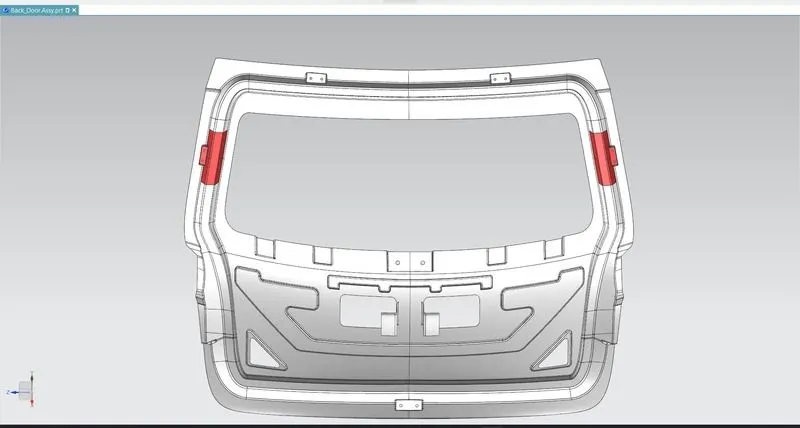

- Gas stay Reinforcement

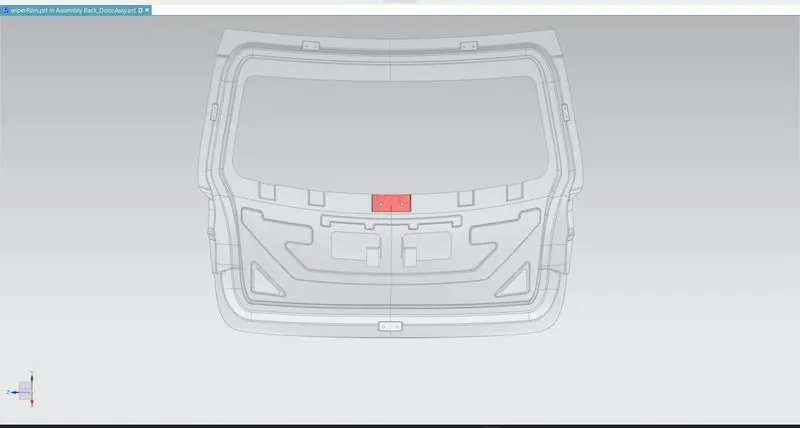

- Wiper motor Reinforcemen
