Design of backdoor

TITLE :- BACK DOOR DESIGN

The back door of a car is also commonly known as the trunk or the tailgate. It is a hinged door located at the rear of the car that provides access to the storage compartment. The main function of the back door is to allow the driver or passengers to easily load and unload items from the car's trunk.

There are different types of back doors for cars, and the type of back door that a car has depends on the model and design of the vehicle. Some of the most common types of back doors for cars include:

1. Top mounted.

2. Side mounted.

3. Bottom mounted.

The materials used for manufacturing back doors for cars vary depending on the type of door and the car manufacturer. Some of the most common materials used for manufacturing back doors include:

1. Steel: Steel is a durable and sturdy material that is commonly used for manufacturing back doors for cars.

2. Aluminum: Aluminum is a lightweight and corrosion-resistant material that is often used for manufacturing back doors for cars.

3. Composite materials: Composite materials, such as carbon fiber, are also used for manufacturing back doors for high-performance cars, as they are lightweight and strong.

The manufacturing techniques used for back doors for cars also vary depending on the type of material used. For example, if the back door is made of steel, the manufacturing process may involve stamping, welding

Components to be designed:

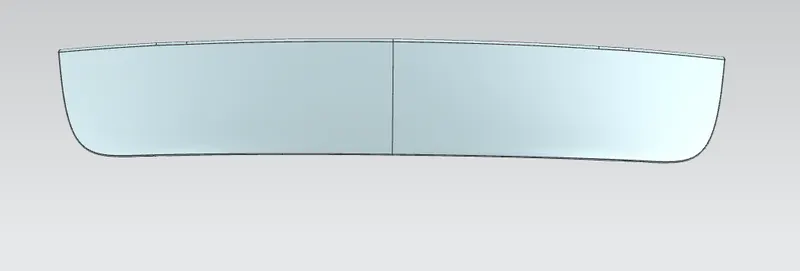

1) Outer panel:-

The outer panel of a back door is the visible surface that is on the outside of the door. It is the part of the door that is visible when the door is closed and provides protection for the inner components of the door, such as the latch mechanism and the storage compartment.It is wrapped around the inner panel through hemming process.

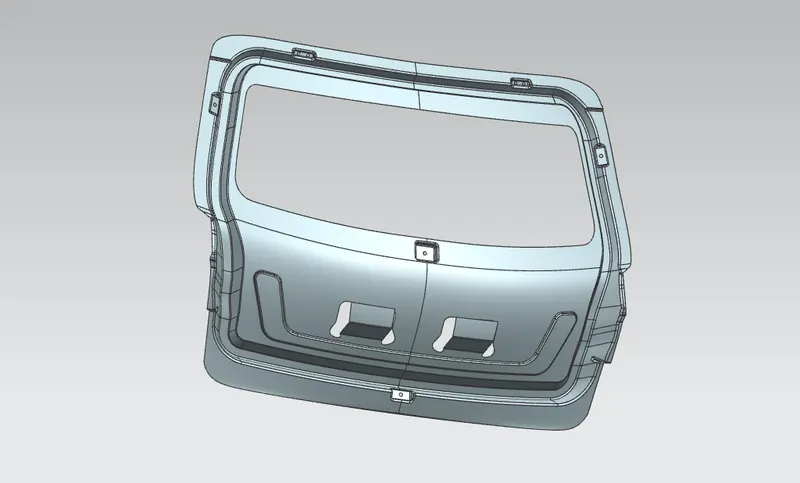

Inner pannel:-

The inner panel of a back door is the surface that is on the inside of the door. It is the part of the door that is not visible when the door is closed and provides support for the outer panel of the door.

TOOLING DIRECTION:

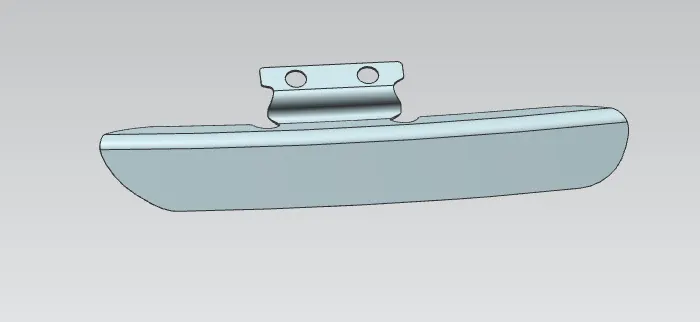

HINGE REINFORCEMENT:-

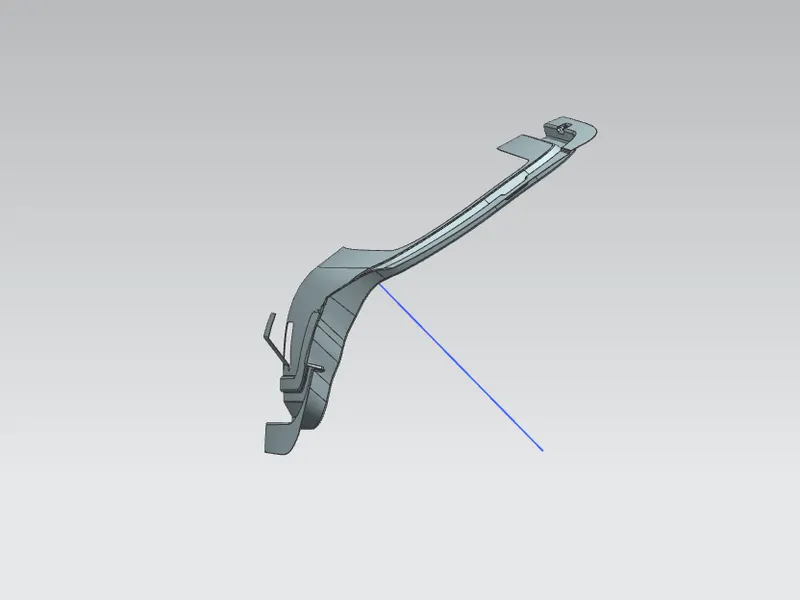

Hinge reinforcement: The hinge reinforcement is a structural component that is used to reinforce the area around the hinges of the back door. It helps to distribute the weight of the door evenly and prevent stress from being concentrated in one area. This reinforcement is often made of steel or another strong material and is integrated into the inner panel of the door.

Gas relief reinforcement: The gas relief reinforcement is a component that is used to reinforce the area around the gas lift struts that support the back door. This reinforcement is designed to prevent the back door from flexing or warping under the weight of the gas struts. The reinforcement is often made of steel or another strong material and is integrated into the inner panel of the door.

Wiper motor reinforcement: The wiper motor reinforcement is a structural component that is used to reinforce the area around the wiper motor in the back door. This reinforcement is designed to prevent stress and vibration from damaging the wiper motor over time. The reinforcement is often made of steel or another strong material and is integrated into the inner panel of the door.

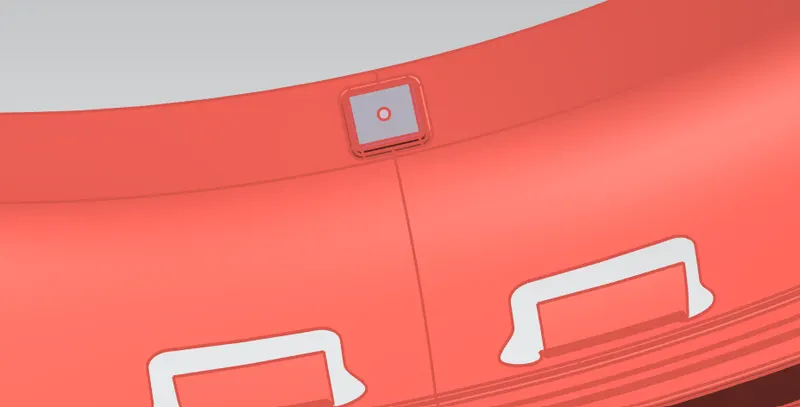

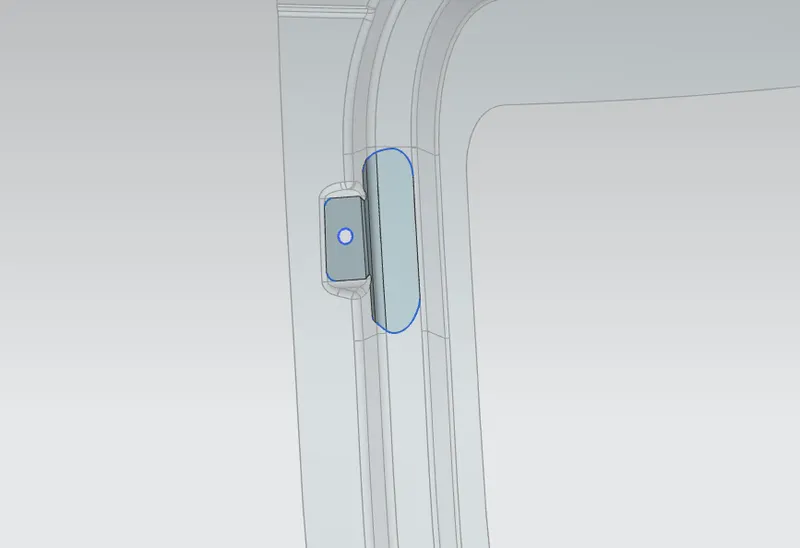

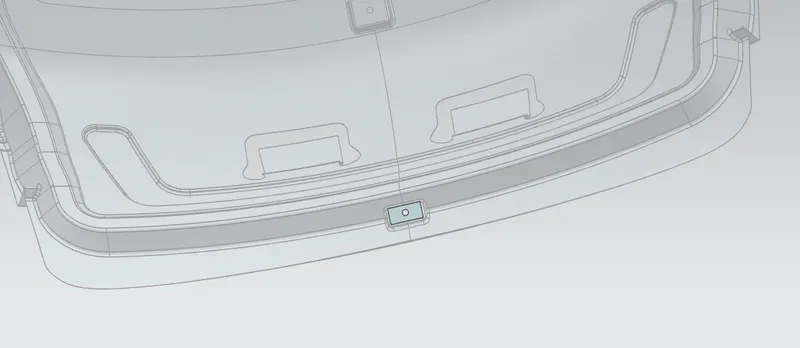

Latchand stricker reinforcement : The latch reinforcement is a component that is used to reinforce the area around the latch mechanism in the back door. This reinforcement is designed to prevent stress and damage to the latch mechanism, which could cause the door to not close properly. The striker reinforcement is a structural component that is used to reinforce the area around the striker plate in the back door.

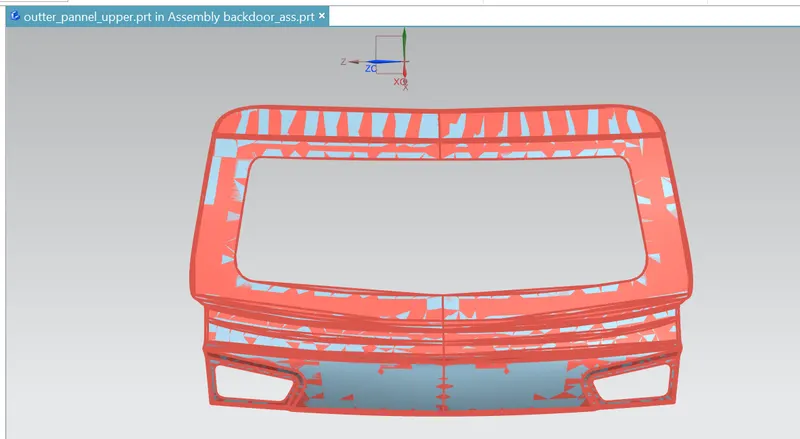

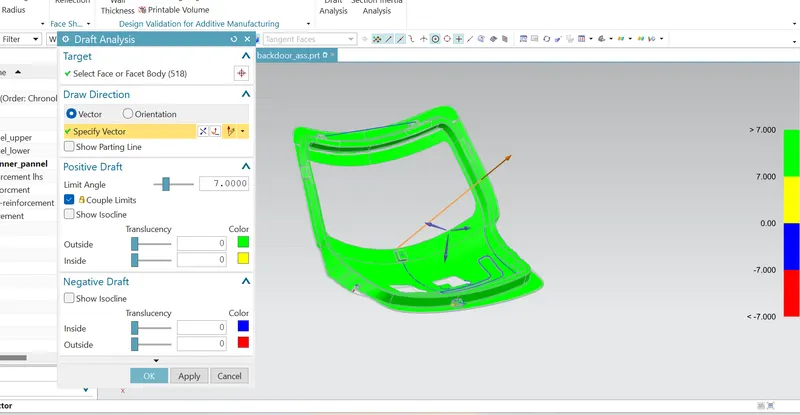

DRAFT ANALYSIS:-
