Design of backdoor

Aim: To design back door of car using given outer class 'A' surface in Siemens NX.

Back Door Assembly:

1. Inner panel
2. outer panel
3. hinge and its reinforcement
4. wiper motor reinforcement
5. latch & stricker and its reinforcement

Functions of the Backdoor:

• It protects the occupants and luggage from getting damaged.
• It houses assembly of tail lamps, wiper motor and other components.
• It serves as entry and exit point for luggage/passengers.
• It houses windshield glass which helps in rear visibility.
• Parking sensors, rear view camera are mounted on it.

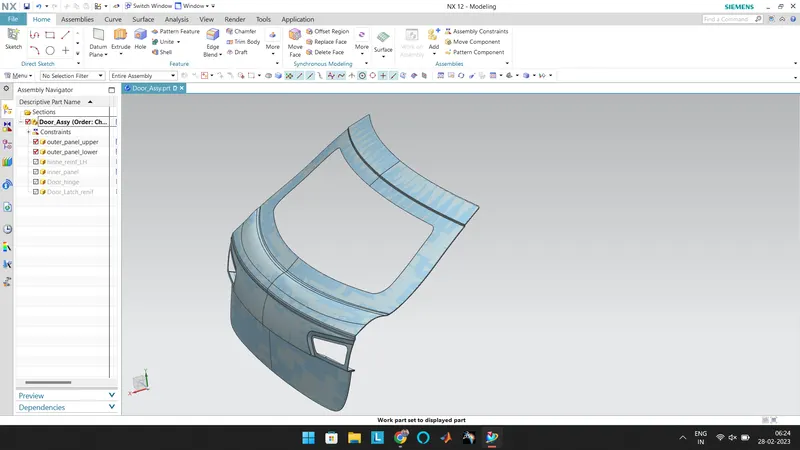

Outer panel

It is the outer styling skin surface of the back door. It is provided with multistage coatings which has property of scratch resistance, rust prevention etc. It is wrapped around the inner panel through hemming process.

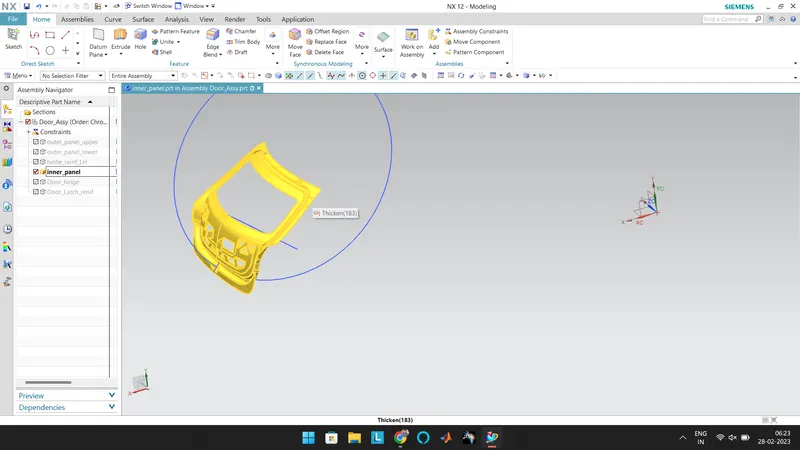

Inner Panel

The inner panel is one of the most important components of backdoor assembly. It provides strength and helps in dissipation of forces outside the part with the help of embosses made on it. It helps in mounting of accessories like hinges, wiper motor, gas stay, latch & striker etc.

The inner panel is produced by either casting or through Deep drawing process.

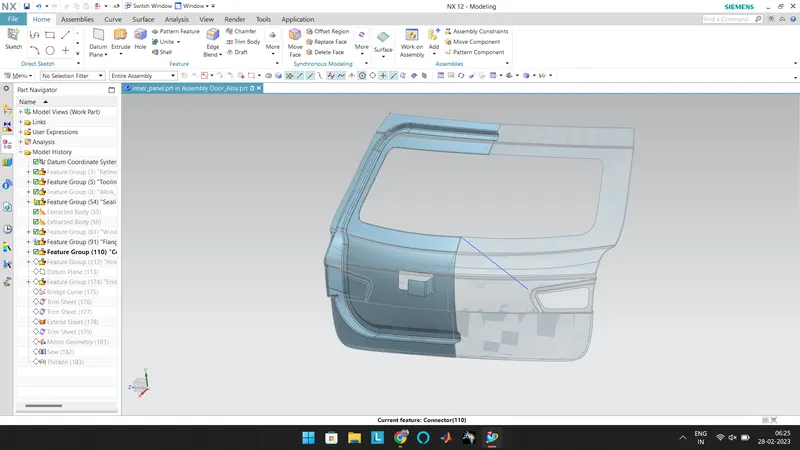

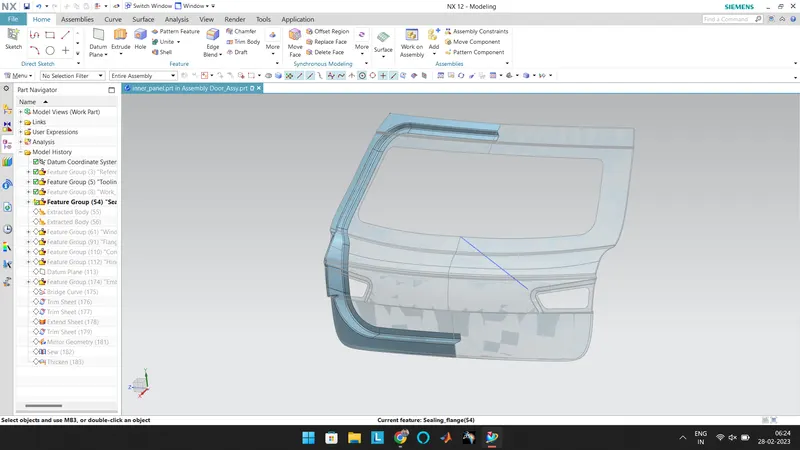

Sealing Flange: It is that section of the inner panel which enables the backdoor to sit over the rear body side of the car. Its design is important as it decides how a backdoor is mounted on the rear body side of the car and also restricts any external matter to enter inside the vehicle.

Mastic Sealants: As we know the outer panel gives the aesthetic look to the vehicle, so we can’t use bolting or spot welding or any other joining technique which damages the aesthetic looks of the panel. Thus mastic sealants are used for joining the Inner panel elements with outer panel. A maximum gap of 5mm is to be maintained in between parts where mastics are to be applied.

Embosses: It is provided to give extra strength to sheet metal panel and to help dissipate forces/energy towards a specific direction. Here embosses (Y/V emboss) are designed in such a way so as to direct them towards the outer end of the backdoor as shown in the image.

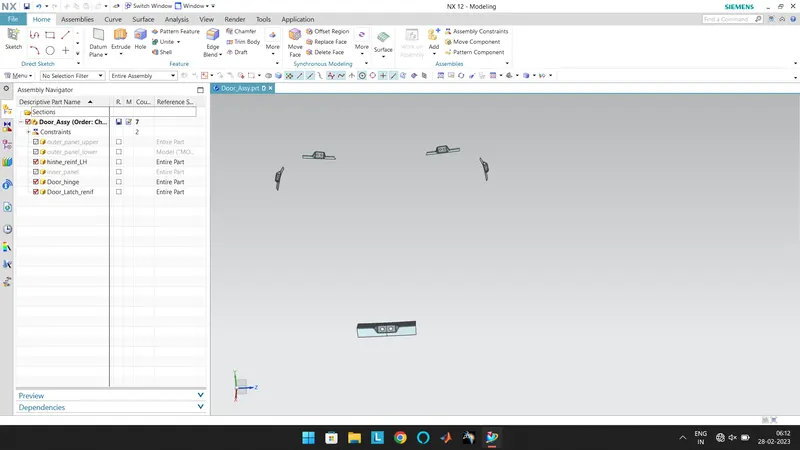

Reinforcements

Reinforcements are generally placed to increase the strength of the panel in localized areas which is relatively small compared to sheet metal parts for absorbing loads imposed thereon and dissipating such loads throughout the panel assembly to help maintain rigidity of the panel assembly. The reinforcements are usually 1-1.5mm thick as opposed to 0.75mm thick panel used in this part.

• Hinge reinforcements

Hinge is a pivot mechanism which supports the total weight of the backdoor. So reinforcements are added for strength and rigidity.

• Gas stay reinforcements

Gas stay is used to lift the backdoor automatically and is used to support the backdoor in its open position. It can be of Two types Semi-automated and fully automated.

• Latch and Striker reinforcement

In the bottom part of the panel emboss is created for placemnet of latch and striker assembly. There is over slamming and abusing while opening and closing of the door, thus arising the need for reinforcement to be placed.

In my design I have not created renif for rear wipermotor, as i have not considered the usage of rear wiper.

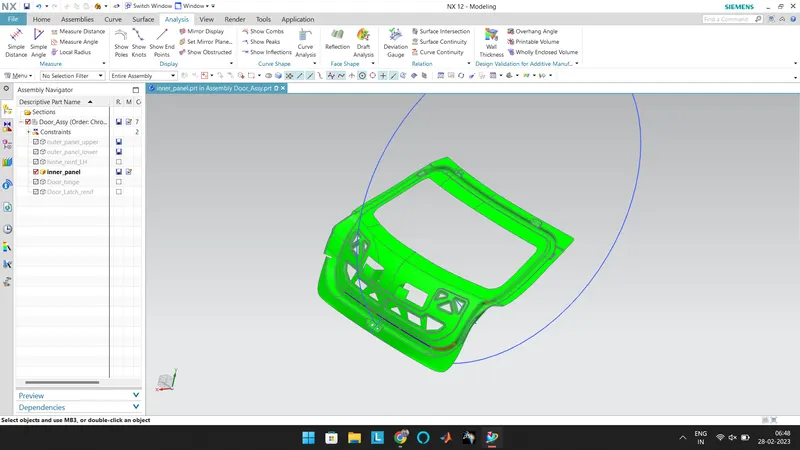

Positioning of Latch & striker/ Latch Trajectory:

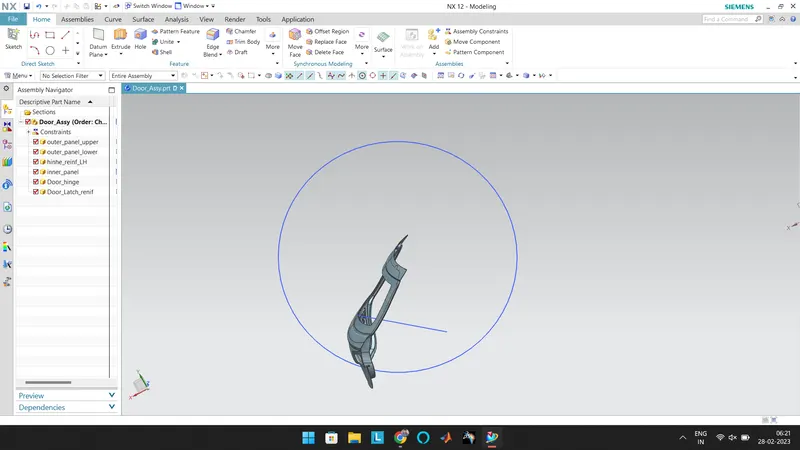

Backdoor is the swinging part which rotates about hinge axis. The position and orientation of latch striker is important for proper opening and closing of the backdoor. The positioning is done by sketching a circle with center as the axis of the hinge which passes through the striker at appropriate position with respect to inner panel.

Design considerations

• Rear visibility
• Boot space & accessibility
• Sealing Flange
• Support structures like hinges and gas stays.
• Mounts for wiper motor, tail lamps and other wiring loops
• Rear crash regulations
• Joining techniques such as hemming, spot welding etc.
• Gap and flush requirements

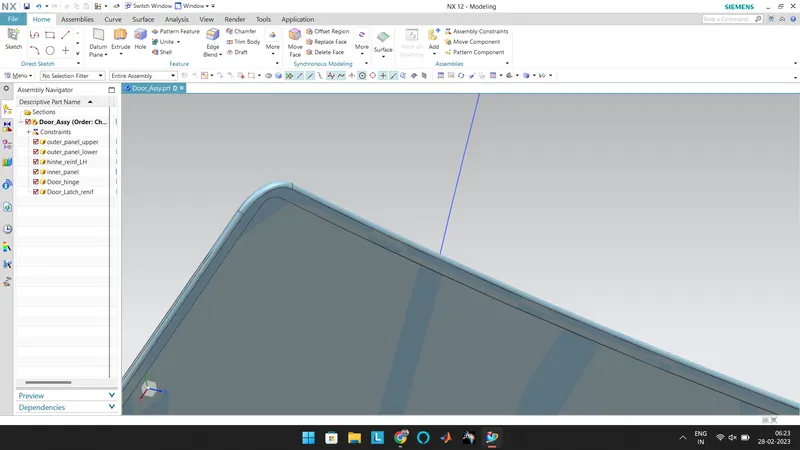

Hemming: Hemming is a forming operation in which the edges of the sheet are folded over another part in order to achieve a tight fit. Usually hemming operations are used to connect parts together, to improve the appearance of a part and to reinforce part edges. In car part production, hemming is used in assembly as a secondary operation after deep drawing, trimming and flanging operations to join two sheet metal parts (outer and inner) together.

Corner Relief: During hemming process multiple rollers are used which causes vibrations and stress concentrations at the some locations due to which design intent of the panel shouldn’t be changed (i.e the panel should spring back to original formation after roller is removed). But most of the time that is not the case at corners so to avoid that situtaion reliefs are provided at corners

Draft analysis

Every part which is manufactured from press tool or other forming tools require some positive draft on the faces which are parallel to the tooling direction. If we don’t give draft (Zero Draft) or give negative drafts on these faces it will stick to the mould surface and when the mould is in motion it will destroy surface thus reducing its surface finish.

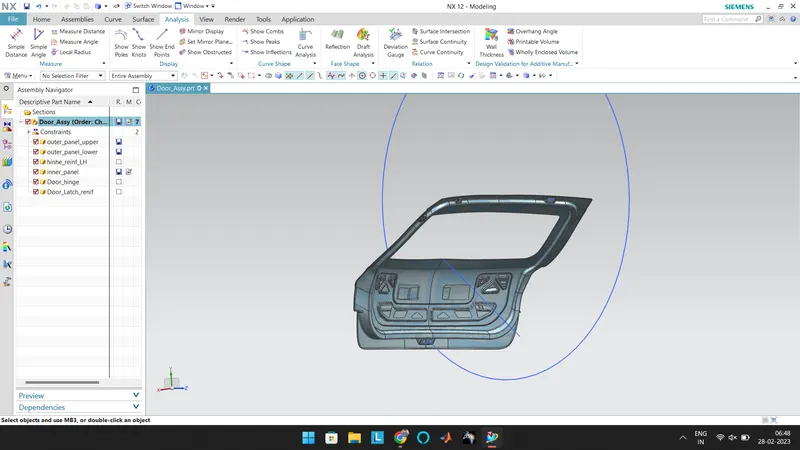

Assembly:
