Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
Q.1
AIM

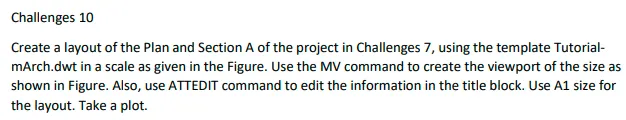

To create a layout of the plan and section A of the project in challenges 7
Procedure
- In command prompt type units>mm>decimal
- In command prompt type limit max >100,100
- In command prompt type limit >0,0

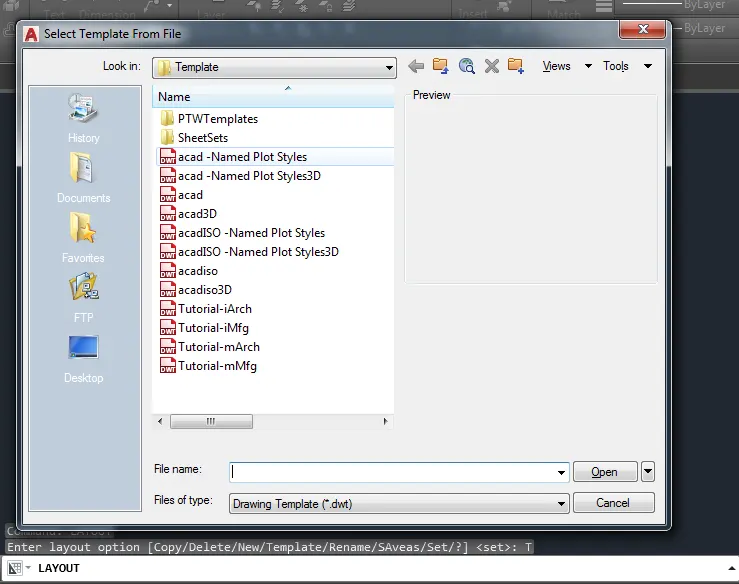

- In command prompt type layout > template>Tutorial m.arch
- In command prompt type Ms to specify the centre of plot
- In command prompt type Mv to add the view
- In command prompt type ctrl + P to plot it

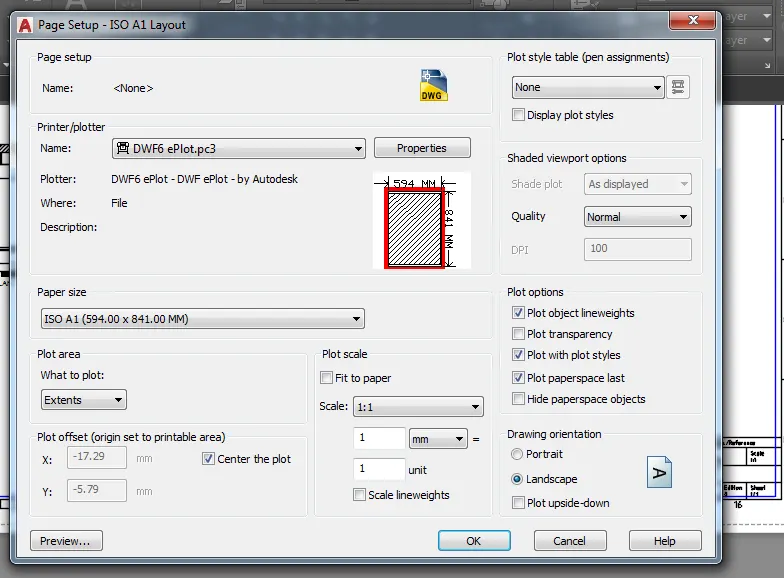

- In command prompt type pagesetup

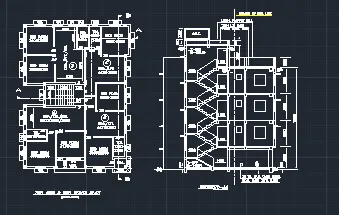

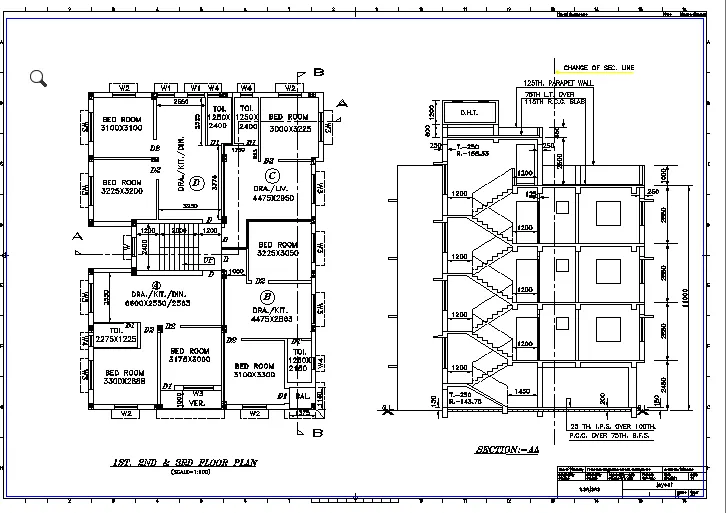

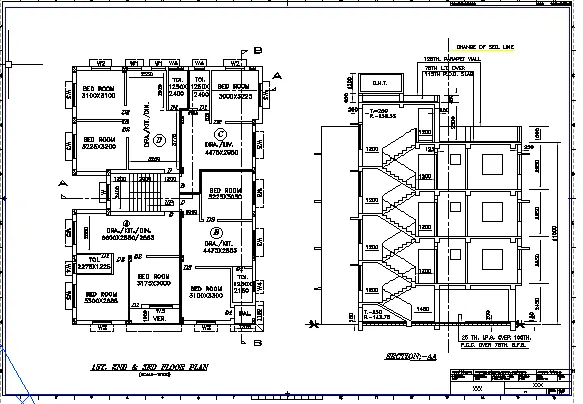

Final Result
Q.2
AIM
To create layout of the kitchen drawn in Challenge 9 as shown in figure. Use A4 page for the layout and take a plot
Procedure
- In command prompt type ps and ms to adjust the view

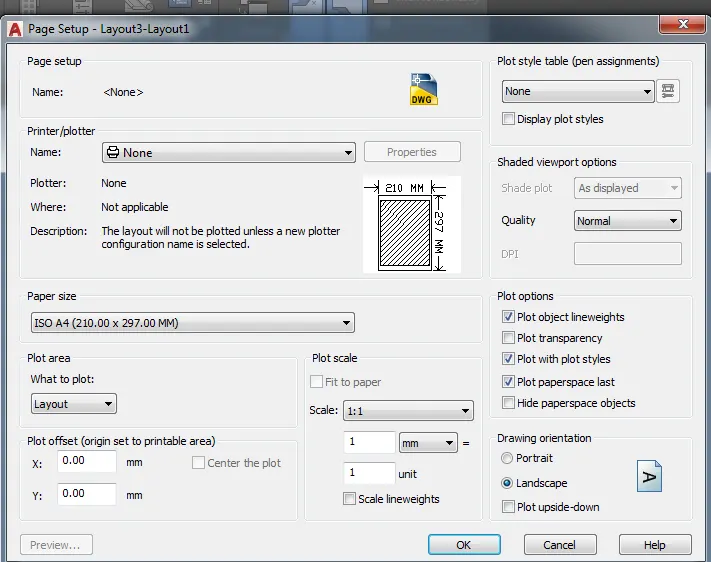

- In command prompt type pagesetup to take size A4

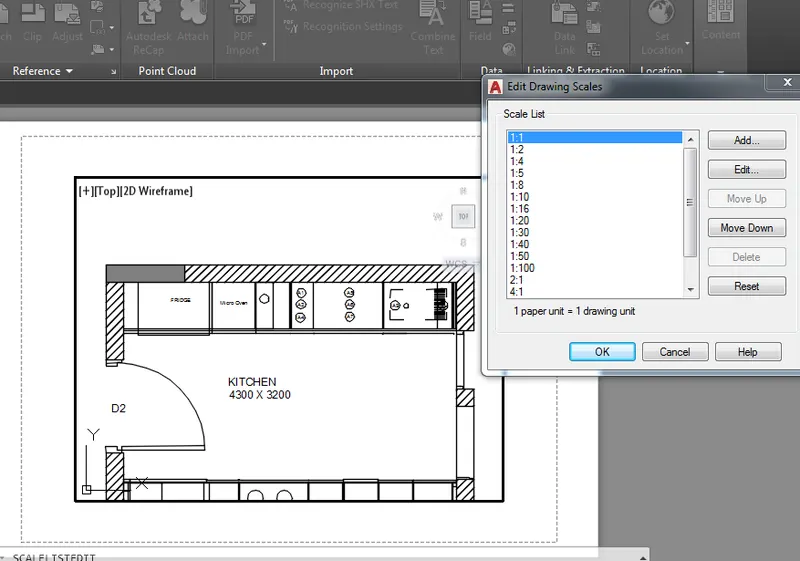

- Now in scale option arrow select the view

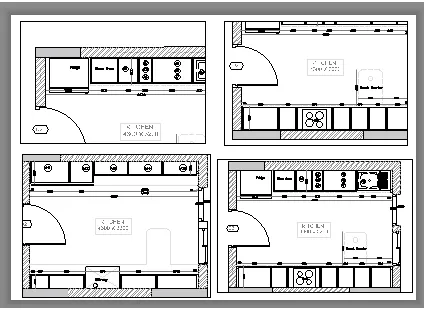

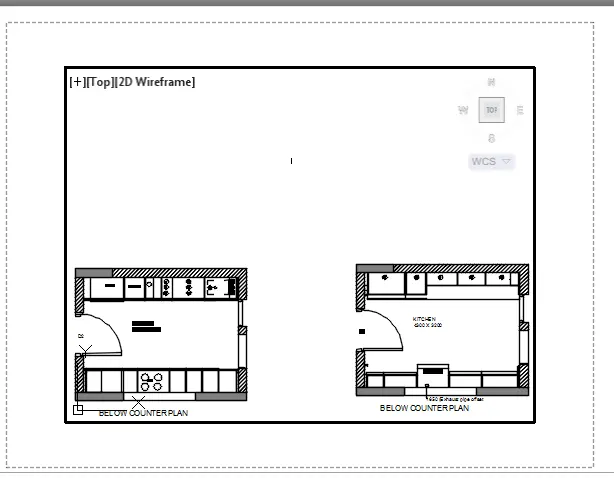

Final Result
Q.3
AIM
To create layout of the section in challenge 9
Procedure
- Open the autocad file challenge 9
- Now go to layout
- In command promt type MV
- Change the scale accordingly scale
- In command prompt using Ms and Ps to adjust the view

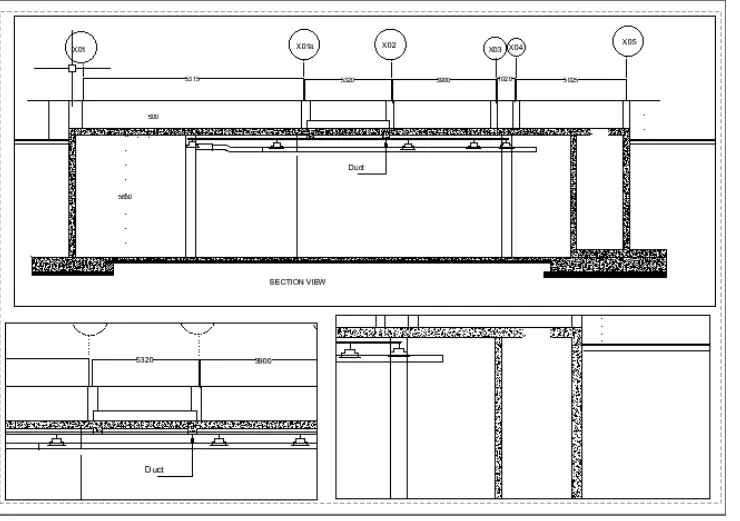

Final result
