Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

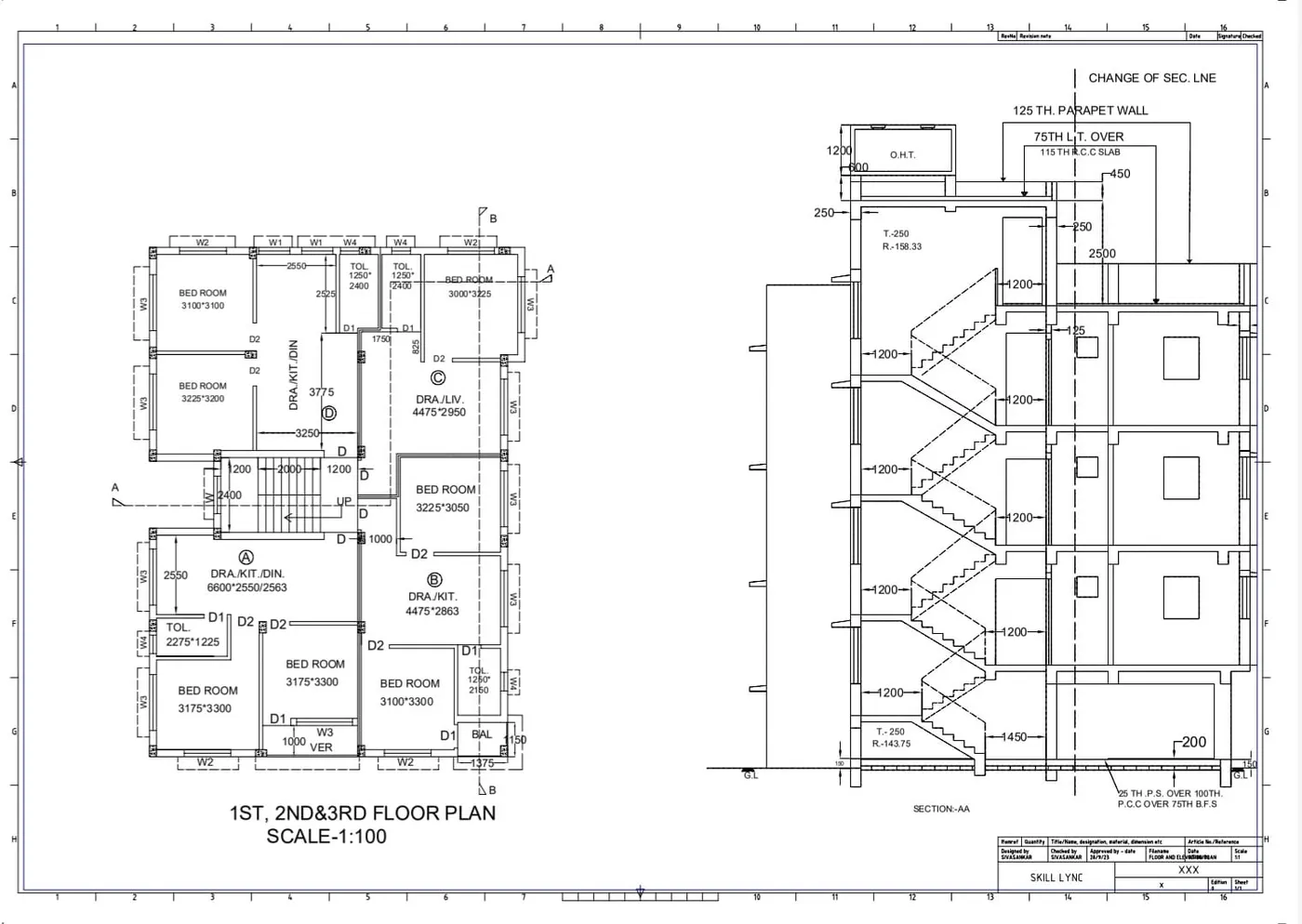

AIM: Create a layout of the plan ans section A of the project in challenge 7,using the template Tutorial-march.

INTRODUCTION: Create a layout of the plan and section A of the project in challenge 7, using the tempalate tutorial-March.dwt in a scale as given in the figure. use the MV command to create the view port of the size as shown in the figure. Also, use the ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

PROCEDURE:

1. First,select the drawings of the plan and elevation,
2. Going to template choose new pic up the template M arch click ok,
3. After that using ATTEDIT the title, sheet no,date and name all are changed by using attedit automatically,
4. After that created each view for both plan and elevation as giong to view command, created the model views,
5. Next going to viewports choose the vertical 2 view ports as per requirment,
6. In the first view port selected the view of the plan and make that scale 1:50 by clickin the middleof it,
7. Same as 1st do the second and elevation pasted by using the view panel set the view in 1:50 scale by selecting the middle node,
8. After that click on the page set up choose name type as paln, elevation chooses the type of pages as A1 chosen the window to apply the layout click on te preview ok,
9. Save the file with the name as plan and elevation final layout.



RESULT:

     Created a layout of the plan and section A of the project in challenges 7, using the template Tutorial-March.dwt in a scale as given in the figure. Also used the ATTEDIT  command to edit the information in the title block.Use A1 size for the layout.Take a plot.

2)

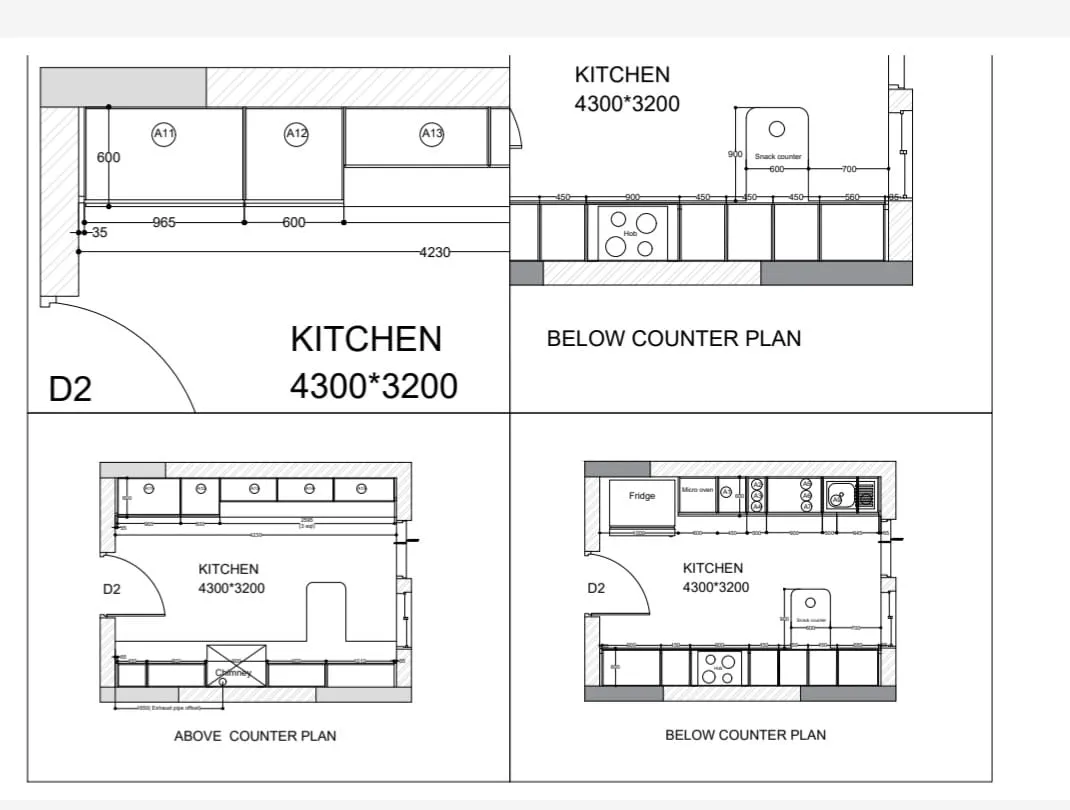

AIM: Create a layout of the kitchen drawn in challenge 9 as shown in figure.

INTRODUCTION:

Create a layout of the kitchen drawn in challenge 9 as shown in figure.use the scale as shown in the figure. Use A4 size page for the layout. Take a plot.

PROCEDURE:

1. Open  the kitchen drawing file,
2. Created the views as per show in the challenge, like by clicking view to create a model view like for close up of the above counter plan as well as below counter plan,
3. Next, go to the template and rename it to the kitchen,
4. Next, go to view port or mview command choose the 4 viewports that are fitted by using the fit optin,
5. Later that using the ms command going to the first viewport pasted the first view of the above counter -plan by going to the view tab selecting the above counter plan view,
6. Below that view port by using view choose the below kitchen layout platform,
7. Top 3 view port by using view choose the below kitchen layout platform,
8. Last viewport entire kitchen plot form of above kitchen paltform pasted,
9. click on the plot go to a page set up choose the pdf and selected the page af A4 with 11inch*8inch,
10. Click on the plot to save the file ok.



RESULT:

Created a layout of kitchen drawn in challenge 9 as shown in figure.

 3)

AIM: Create a layout of the section created in challenge 10

INTRODUCTION:

Create a layout of the section created in challenge 10

Use the scale as mentioned in the figure.Use the mv command to create multiple view ports.Take a plot.

PROCEDURE:

1. Opened the file of industrial elevation file,
2. Going to viewports chose the 3 plots as we required,
3. First, create the views in a model like going  to view click model create the man hole view as duct view another one is a full view of entire drawing,
4. Next go to the template rename it by clicking right as industrial elevation,
5. After that using MS- command- click on the first viewport and go to views chosen for the entire view on set current and apply ok,
6. By clicking viewport center the scale is adjusted to 1:100,
7. After that going to the second viewport choose the manhole from set current,
8. Set the scale of viewport drawing by clicking center node as 1:30,
9. Same as the 2nd viewport 3rd viewport also imported from the view tab and arranged the svale as 1:30,
10. After using the PS-command paper set by using the pan command,
11. By right clicking on the template going to the set up selecting the name or giving the new name as industrial final layout,
12. Choose the paper as A4 choose the window and applied the layout clico ok
13. Save the files as an  industrial layout.



 RESULT:

  Created a layout of the section created in challenge 10

  Used the scale as mentioned in the figure.Used MV command and create multiple viewports.Take a plot.
