Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

INTRODUCTION:-

A drawing template file is a drawing file that has been saved with a . dwt file extension, and it specifies the styles, settings, and layouts in a drawing, including title blocks. The default drawing template files are provided as samples.
Efficiency is also gained through template files because there is no need to set up your file. Apart from titleblocks, a good template will also contain page setups. A page setup is made up of the settings needed for a drawing to be properly printed from AutoCAD.
COMMANDS USED:-
Viewport
Layout
Multiple View
Model Space
Paper Space
Scale
Xref
Lock
Pan
Plot
Those are briefly elborated below:-
VIEWPORT:- Viewports allow you to create different views of the objects in your model space and display them on the printed page from different angles and at different scales.
LAYOUT:- A layout is a 2D working environment for creating drawing sheets. The area within a layout is called paper space, where you can add a title block, display scaled views of model space within layout viewports, and create tables, schedules, notes, and dimensions for your drawing.
MULTIPLE VIEW:- Use the command "MV" multiple view- select object option and click on the rectangle, then the drawing will be displayed in the viewport. Similarly do it for the second rectangle. Command "MS" for model space and click on the viewport we need to set the drawing.
MODLE SPACE:- When you start a drawing session, your initial working area is called model space. Model space is an area in which you create two-dimensional and three-dimensional entities based on either the World Coordinate System (WCS) or a user coordinate system (UCS). You view and work in model space while using the Model tab.
PAPER SPACE:- In the layout viewports, you scale the model space views relative to paper space. One unit in paper space represents the actual distance on a sheet of paper, either in millimeters or inches, depending on how you configure your page setup.
SCALE:- Enlarges or reduces selected objects, keeping the proportions of the object the same after scaling. To scale an object, specify a base point and a scale factor.
XREFS:- In AutoCAD, xref is a shortened term for “external references”. As the name indicates, the xref feature allows you to attach external references to your drawing. External references can be in the format of other drawings, PDFs, images, point cloud data, and so on.
LOCK:- To create a layout viewport that fills the screen, choose Fit. To lock the viewport scale and view in model space when panning or zooming in the layout viewport, choose Lock.
PAN:- Pan: Hold down the mouse wheel as you move the mouse around your drawing. Zoom in: Roll the mouse wheel forward (i.e., toward your computer). Zoom out: Roll the mouse wheel backward (i.e., toward you).
PLOT:- From the Ribbon Output tab > Plot panel, click the Plot button. Command line: To start the Plot tool from the command line, type “PLOT” and press [Enter]. From the Page Setup list, select your newly created page setup and click OK to plot using the selected settings.

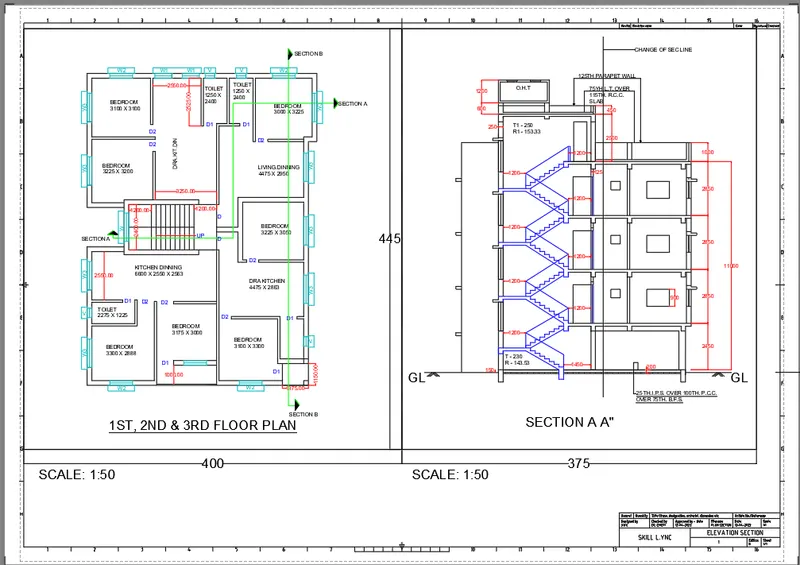

1.Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use the ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot

Aim: To create the layout of the plan and section A of the project in challenge 7 as shown in the figure above in AutoCAD

Introduction: The layout is created in Auto CAD by using the template Tutorial-mArch.dwt in a scale as given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

Procedure:

step-1: Open AutoCAD

step-2: Open challenge 7 file

step-3: Go to Layout

step-4: Enter "Layout" to create a new layout tab

step-5: Enter the "MV" command

step-6: Select "Template"

step-7: Open a new dialogue box

step-8: Select Tutorial-mArch template.

step-9: Enter "Pagesetup" in the command line

step-10: Select Layout and click modify

step-11: Select ISO A1

step-12: Select OK

step-13: Go to the Layout tab

step-14: Enter the "REC" command

step-15: Plot Rectangle in paper space

step-16: Rectangle size 400 X 445

step-17: Another Rectangle with a dimension of 375 X 445

step-18: Enter "MV"

step-19: Select "Object"

step-20: Select the Rectangle object we drawn

step-21: Then we have a drawing from a model

step-22: Enter "MS" model space

step-23: Select 1:50 scale

step-24: Enter the "PAN" command to pan the drawing and fit it into the model space

step-25: Go to another model space

step-26: Select 1:50 scale

step-27: Pan section - A from a model

step-28: Enter "PS"

step-29: Enter "DIMLIN" to mention the linear dimension of the rectangle

step-30: Enter "DT" to annotate the scale

step-31: Enter "ATTEDIT" in the command line

step-32: Edit the Attributes in the paper space

step-33: Click OK

step-33: Go to the Print option

step-34: Select required properties and go to preview

step-35: Take a Screenshot and attach it here.

Result: We create the layout as per shown in figure by using AutoCAD.

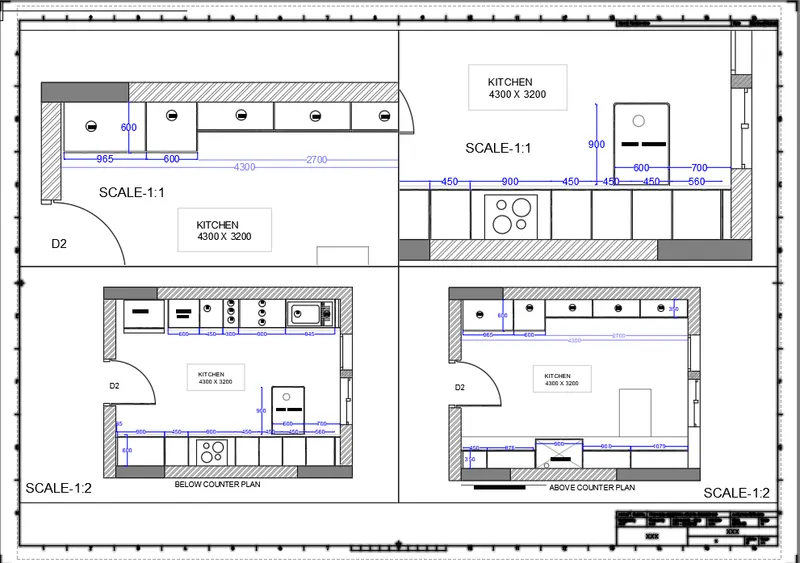

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use an A4 Size page for the layout. Take a plot.

Aim: To create the layout of the kitchen of the project in challenge 9 as shown in the figure above in AutoCAD

Introduction: The layout is created in Auto CAD by using the scale given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

Procedure:

step-1: Open AutoCAD

step-2: Open challenge 9 file

step-3: Go to Layout

step-4: Enter "Layout" to create a new layout tab

step-5: Enter "Pagesetup" in the command line

step-6: Select Layout and click modify

step-7: Select A4

step-8: Click OK

step-9: Enter "REC" command to create a rectangle to plot the model into paper space

step-10: Enter Four rectangle

step-11: Click OK

step-12: Enter "MV"

step-13: Select "Object"

step-14: Select all the objects in the Paper space

step-15: Now we have drawing in layout

step-16: Enter "MS"

step-17: Select 1:2 scale

step-18: Pan the kitchen drawing

step-19: Plot the drawing as shown in figure

step-20: Click another model space

step-21: Select 1:2 scale

step-22: Pan the kitchen drawing

step-23: Plot the drawing as shown in figure

step-24: Click another model space

step-25: Select 1:1 scale

step-26: Pan the kitchen drawing

step-27: Plot the drawing as shown in figure

step-28: Click another model space

step-29: Select 1:1 scale

step-30: Pan the kitchen drawing

step-31: Plot the drawing as shown in the figure

step-32: Enter "DT" to annotate the scale

step-33: Go to the Print option

step-34: Select required properties and go to preview

step-35: Take a Screenshot and attach it here.

Result:We create the layout as per shown in the figure by using AutoCAD.


AIM_3:-

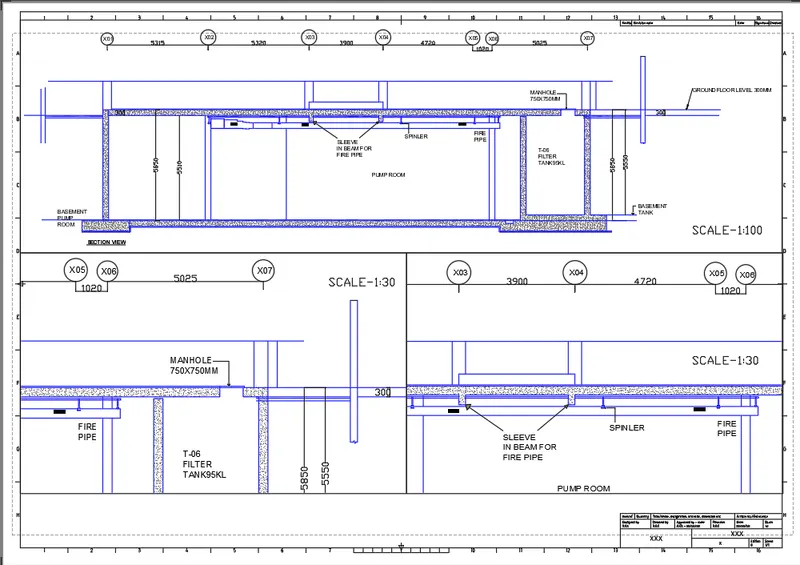

Create layout of the section of industrial building ,creating viewport by MV command (Multiview port) and scale 1:30 and 1:100 is given,to take a plot of the layout.
PROCEDURE:-
In this challenge, I have opted to work on the existing sheet that is Challenge_9. In which I haven't created any layers.
I have created the figure as given and then appilied layers.
Now, in the command prompt type V to create the model view of the section.

Then provide the view name and choose the boundary option.
Click on model view and then click New button.
Now, click ok. Then another Tab is displayed that is view manager.
Again click on ok.
Hence, model view is created.
Now, go to layout option and select new and type the name of the layout as Section.
For creating the Industrial Building Layout. Take the layout tab and Rename the tab as industrial section.
Right click on the tab and select page set up manager option.Click on new - give a name, page setup dialogue box appears.
Click on Modify.Give the paper size as A3 in page setup dialogue box. Make it current, the layout paper size changes to A3.
Use "MV" command and create 3 viewports accordingly.
Use Command "MS" for the model space, click on the first viewport .Set the scale to 1:100 from the bottom toolbar or right click and properties, from there also we can change the scale.
By pan command fit the drawing inside the viewport.By text command write the text as SCALE1:100 with a text height of 6 and lock the viewport.
Again, Go to model view, and create views for the next two viewports.
Command "VIEW" -view manager dialogue box appears -create new-give name as manhole view -select define window and select the view we need to create, press enter. Similarly create view for sprinkler named as sprinkler view.
Now go to the layout industrial section and command "MS " and click on the left model space.
Now use command "view" -select the manhole view- and click on set current.
Then the view will be displayed on the model spaceSelect the scale to 1:30 from the bottom toolbar.
By multiline text give the text as SCALE 1:30 with a text height of 6.Lock the viewport from the bottom toolbar lock symbol.
Type "MS" and click on the third viewport.Use command "VIEW" and select the sprinkler view and make it current.
Select the scale to 1:30 from the bottom toolbar .By multiline text insert the text as SCALE1: 30 with a text height of 6.Lock the viewport.
Take a plot of the viewport.Enter the command "PLOT".The dialogue box appears, select paper size as A3, what to plot as layout .Give pen assignments as monochrome.

RESULT:-Layout of the section of industrial building is created,viewport is created by MV command and scale 1:30 and 1:100 is given. Plot of the layout is taken.
