Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
Creation of multiple viewpoints, scalling the drawing , and setting in tamplate in Autocad

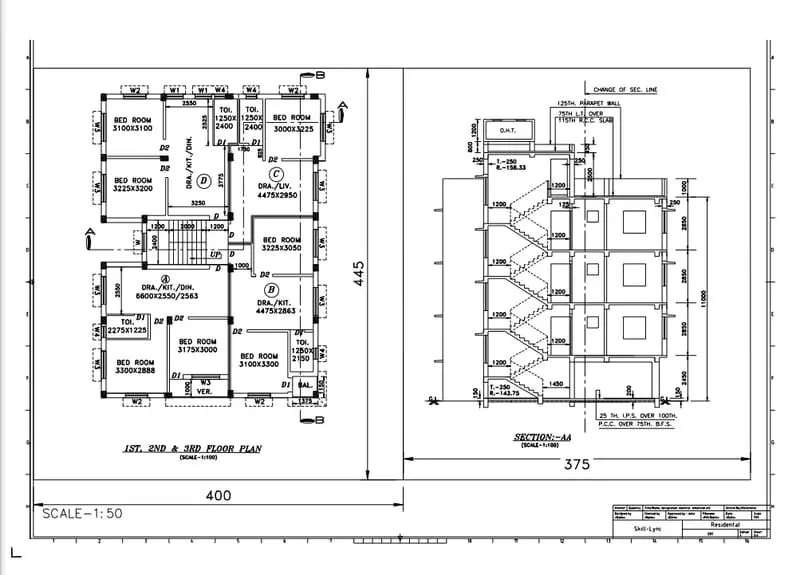

1.Create a layout of the plan section a of the project in challenges 7, using the template Tutorial - mArch.dwt in a scale as given in the figure . Also use ATTEDIT command to edit the imformation in the title block. use A1 size for the layout. Take a plot.
AIM:
To create the layout of the plan and section A of the project in challenge 7 using the template Tutorial -mArch.dwt
INRODUCTION:
A layout template is a layout imported from a DWG or DWT file. The program has sample layout templates to use when we design a new layout environment.
When you create a layout based on a template, the page setup and paper space object , including any view point object ,are used inn the new layout . no model space objects are imported.
The layout templates are identified with a.dwt file extension .however ,a layout template or layout from any drawing or drawing template can be imported into the current drawing.
COMMANDS USED:
1.Units
2.Limits
3.Xref
4.Laout
5.ATTEDIT
6.Multiple view ports
7.Model space
8.Paper space
9.Print
PROCEDURE:
Step1:

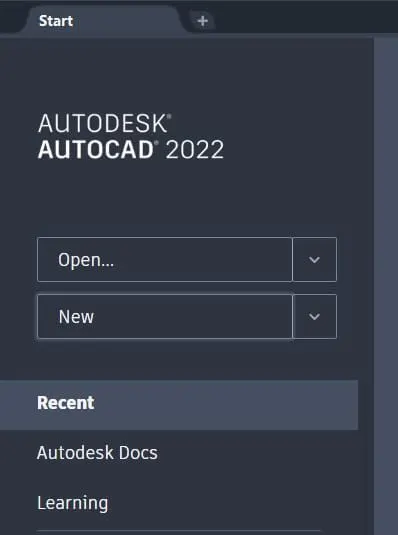

1.Open the autocad software from the desktop
2.On the homepage of the autocad ,click on new drawing
Step2:

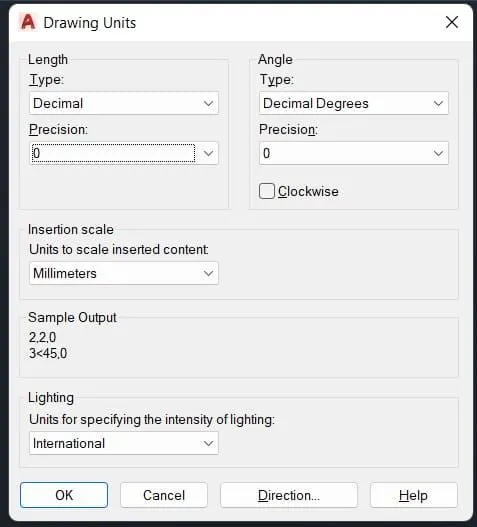

1.Type UN and set the units as decimal and precision as 0.0
2. Set the units as milimetres in the intersection scale
3. Type limits in the command box and set the lower limits as0,0 and upper limit as 10000,10000
4. Type Z enter for zoom enter and a enter for zoom all
Step3:

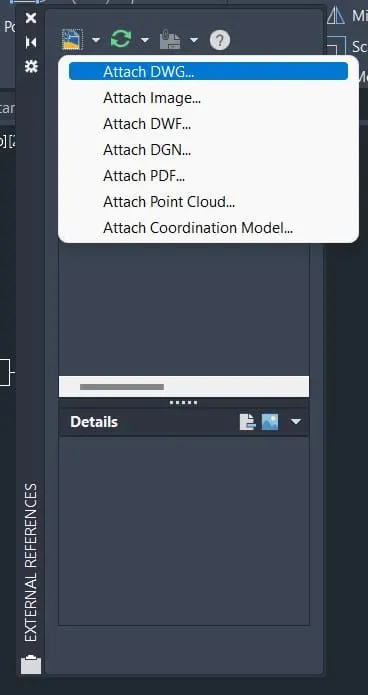

1. Go to external referance by typing text in the command box
2. Then attach the dwg file of the challenge 7 that we created erlier
Step4:

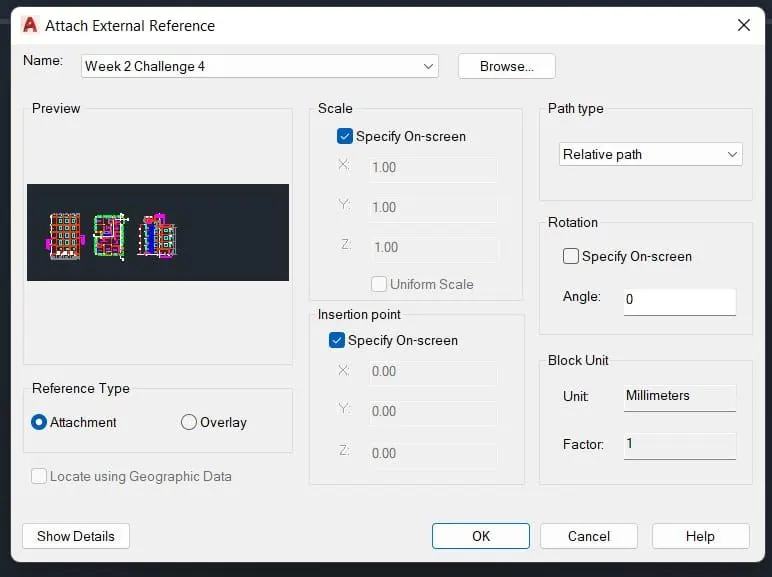

1.Select the dwg file and set the reference type as an attachment
2.Specify the scale as on the screen and intersection point as on the screen
3.Then click ok to the load the challenge 7 drawing into the screen
Step5:

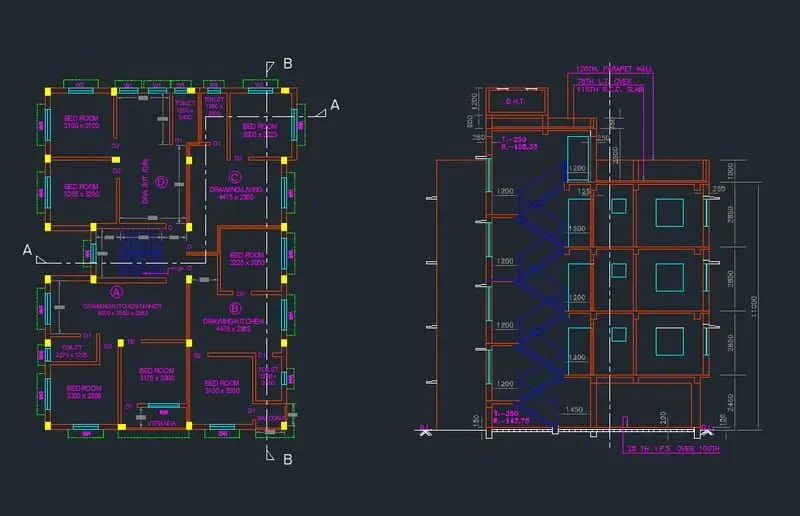

1.After attaching the drawing , select the drawing and left -click attachhed drawing

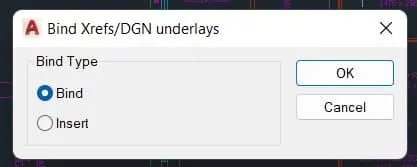

2.Then select bind type as bing and press ok
Step6:

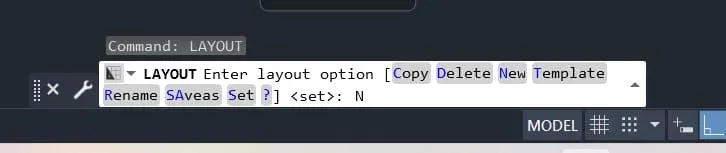

1.Type layout in the command box to open the new layout
2.Type New in the command box rename it as plan and section
Step7:

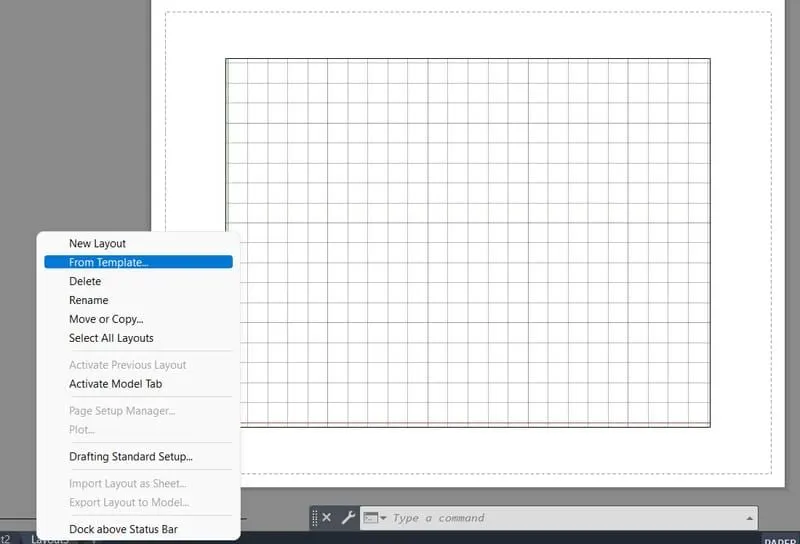

1.Right -click on the plan and section layout from the layout tab
2.Select the option called from the template optioon
Step8:

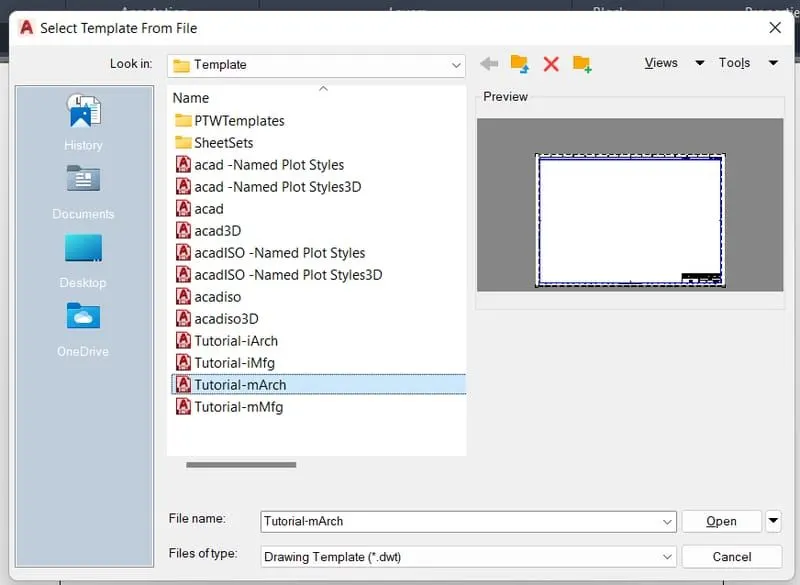

1.Select the template file to load into the drawing
2. Select the templates file as Tutorial -mArch.dwt
3.Then click open to load the template into the layout
Step9:
1.After loading the layout template into the drawing , now we have to change the attributes

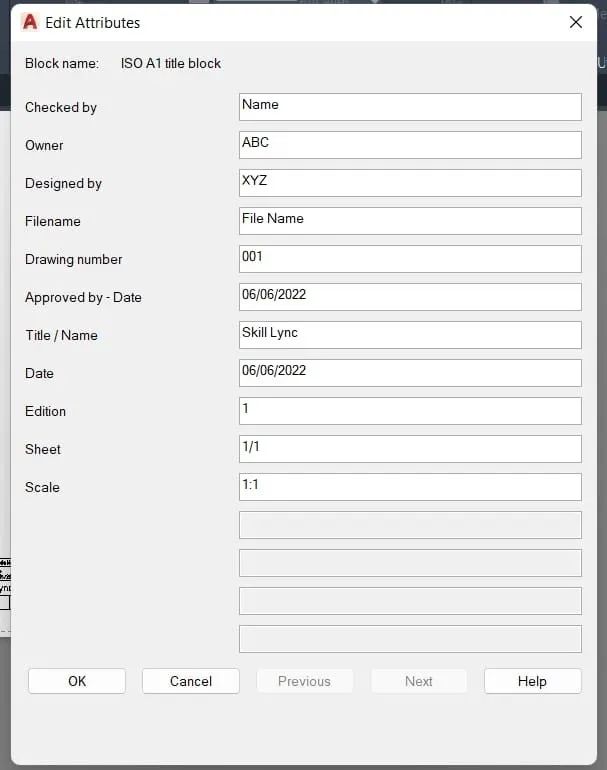

2.Type ATTEDIT in the command box to open the edit attrbutes dialog box

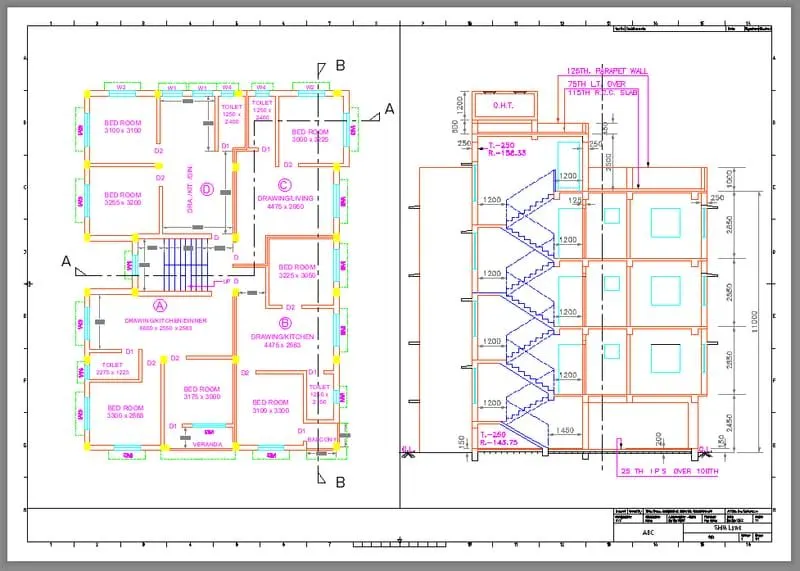

3.Rename the titleblock as shown in the figure below
4. After completing changes in the edit attributes, click on on to make changes
Step 10:
1.Open the viewport dialog box by typing MV in the commad box

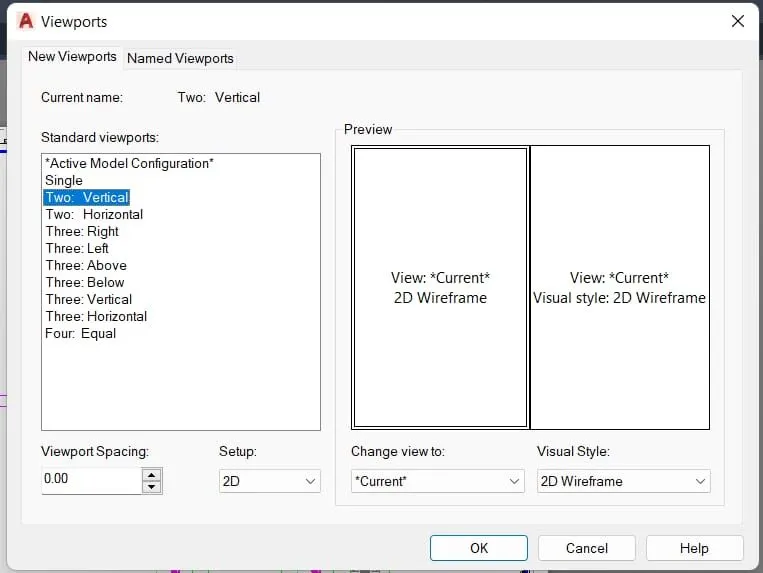

2.Select the viewports type as two vertical as shown in the figure below
3.Adjust the viewports spacing according to the requirment.
Step11:
1.After create the multiple viewports,now we have to adjust the zooming and scaling
2.Type MS in the command box to switch the model into model space
3.Adjust the visibility of the plan and section using the pan tool
4.Adjust the scalling as per the given requirement.
step12:

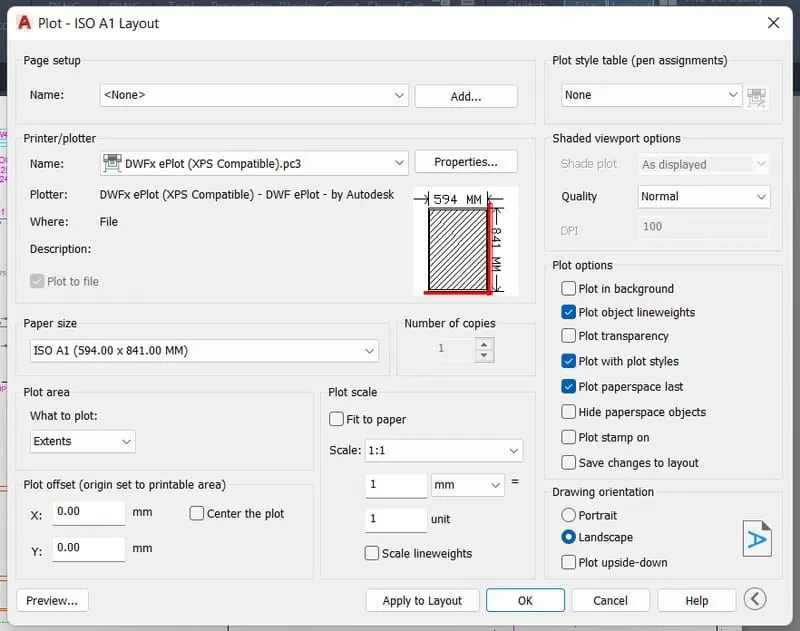

1.Now type plot in the command box to open the plot and print dialogbox
2.Select the plot type as DWfx plot .pc3 and paper size as ISO A1
3. Select the plot area as extends and scale as 1:1 as per the given requirment
Step13:
1.Then click on preview to see the preview of the layout

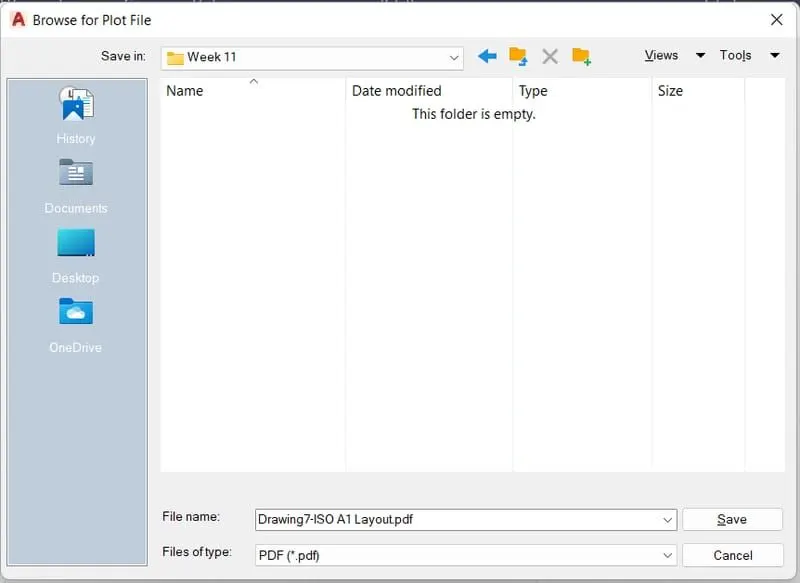

2.After setting have been made , click on ok to print or save it to the local folder
Result:

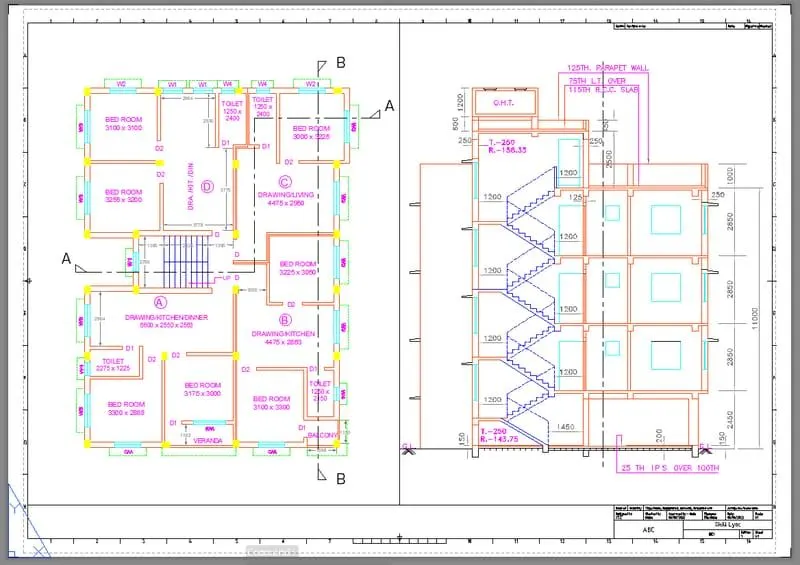

The layout ofthe plan and setion -A has been printed or plotted successfully using the viewports and Tutorial-mArch-dwt template

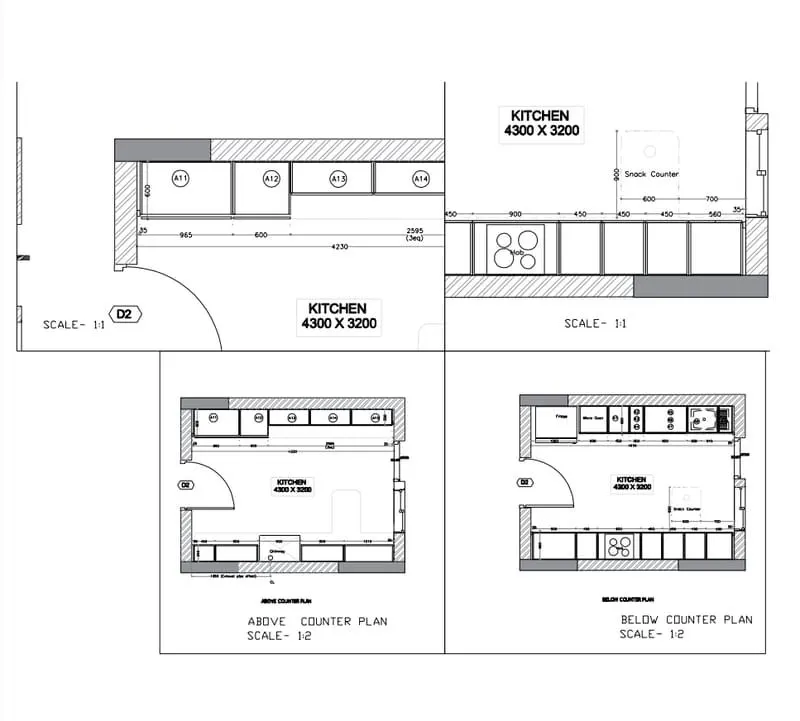

2.Create a layout of the kitchen drawn in challenge 9 as shown in figure. use the scale as shown in the figure . use an A4 size page for the layout.take a plot.
Aim:
To create the layout if then kitchen drawn in challenge 9 using the appropriate scale and A4 size page
INTRODUCTION:
A layout template is a layout imported from a dwg or dwt file .the program has sample layout templates to use when we design a new layout environment.
The kitchen layout is the shape that is made by the arrangement of the countertop,major appliances, and storage area . the layout and floor plan create the kitchens primery work triangle,which is the path that you make when moving from the refrigerator to the sink,to the range when preparing a meal
COMMANDS USED:
1.Viewports
2.Multiple view
3.Model space
4.Paper space
5.Pan
6.Print
PROCEDURE:
Step 1:
1.Open the autocad application from the desktop
2.On the autocad homepage , click on open drawing
3.Open the the kitche layout drawing that we created in the challenhe 9
Step2:

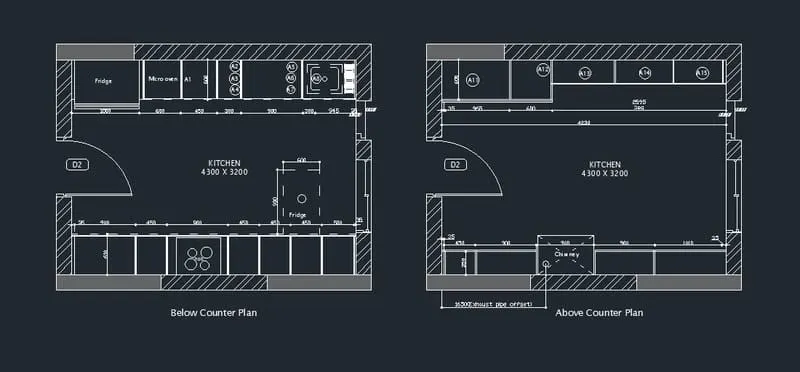

1.Now we have to create the various views of the kitchen layout from the view tab

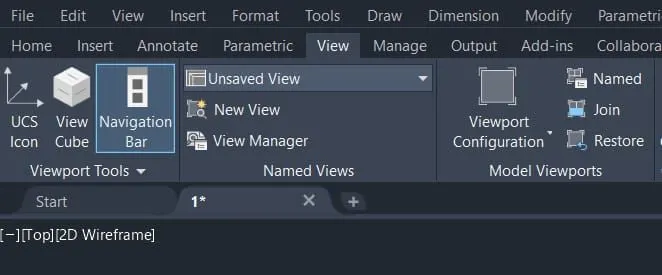

2.Go to the view tab and select the option called new view
step 3:

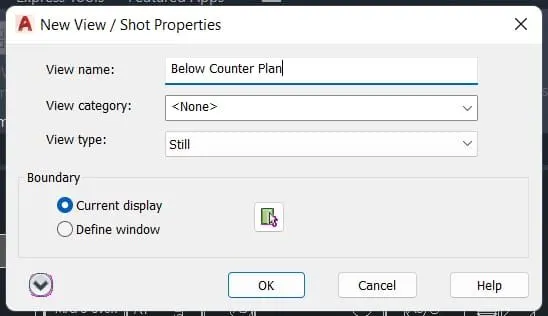

1. After clicking on the new view option , a new view dialog box will appear
2.Create the view name below the counter plan boundary as the current display
3.After making changes,click on ok and then close the dialog box
4.Similarly create the other views of the kitchen layout using the view tab
Step4:

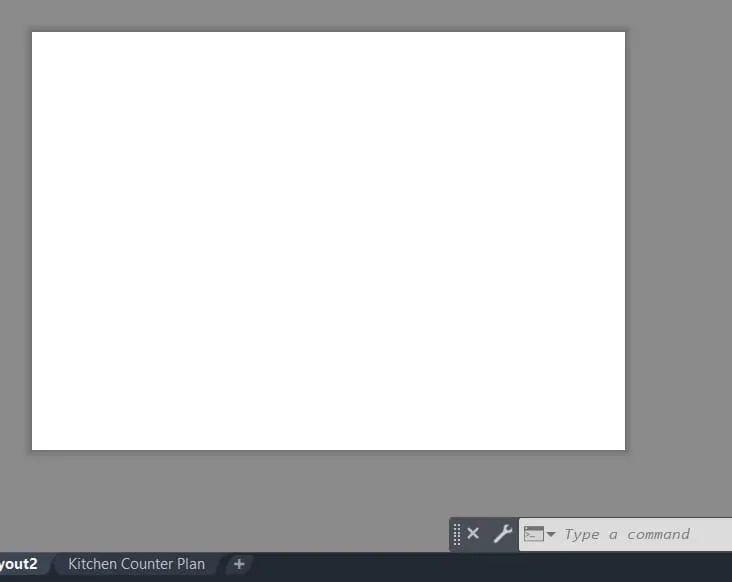

1.Type layout in the command box to open the new layout

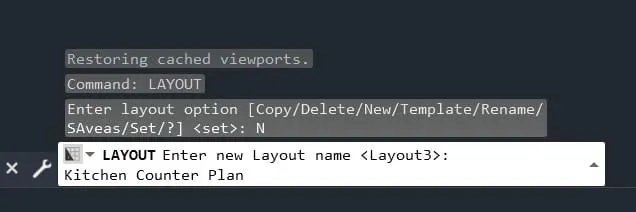

2.Type new in the command box and rename it as kitchen counter-plan
3.After making changes,a new layout will appear on the screen
Step 5:
1.Open the viewports dialog box by typing MV in the command box

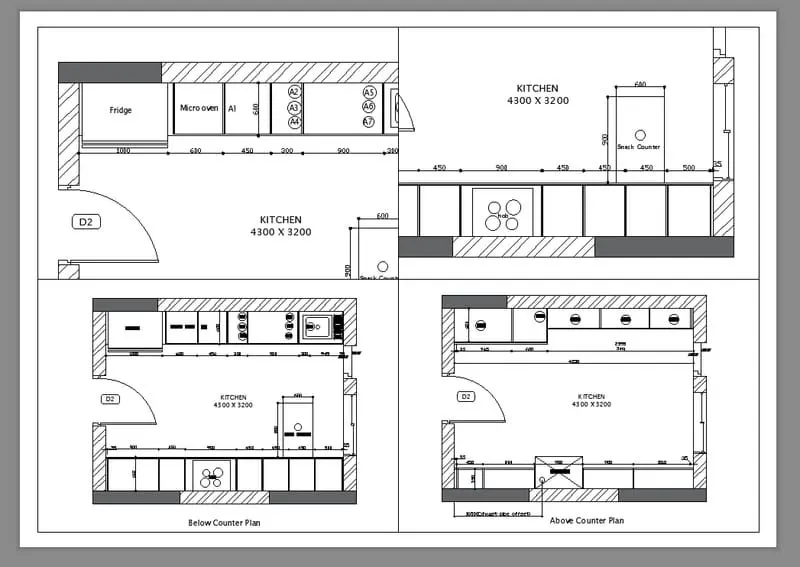

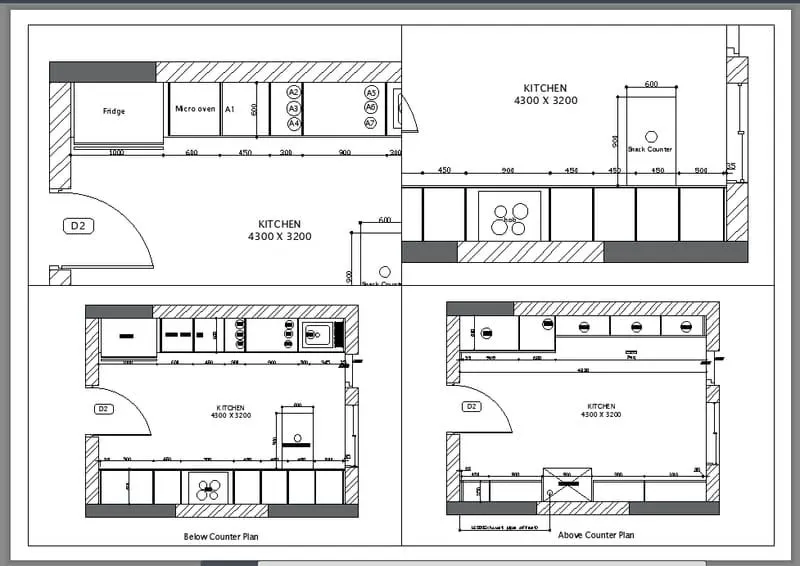

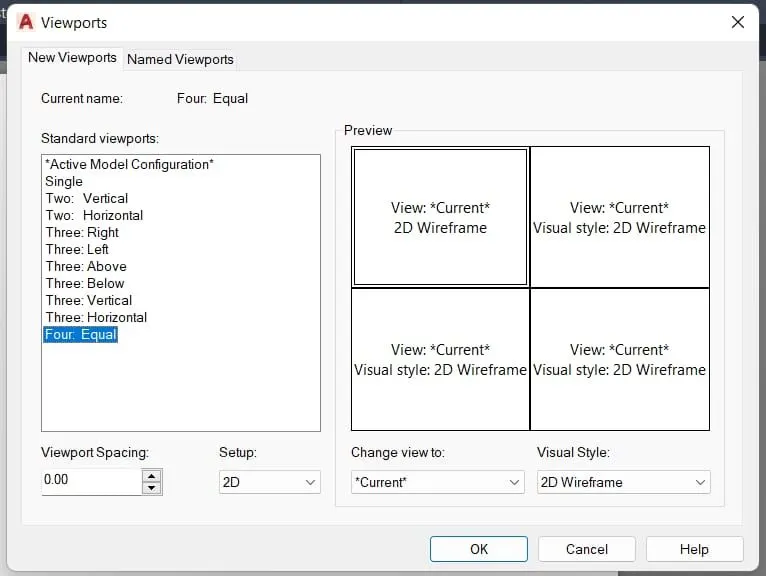

2.Select the viewports type as four ;Equal as shown in the figure below
3.Adjust the viewports spacing according to the requirement.
Step 6:
1.After creating the multiple viewports,now we have to adjust the zooming and scalling
2.Type MS in the command box to switch the mode into model space
3.Adjust the visibility of the plan and section using the pan tool
4.Adjust the scaling to 1:1 and 1:2 as per the given requirement.
step 7:

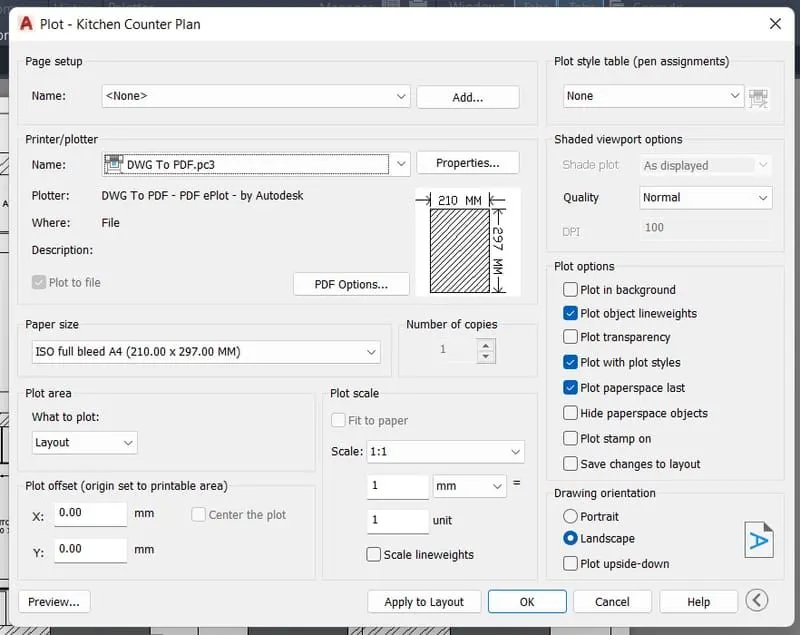

1.Now type plot inn the command box to open the plot and a print dialog box

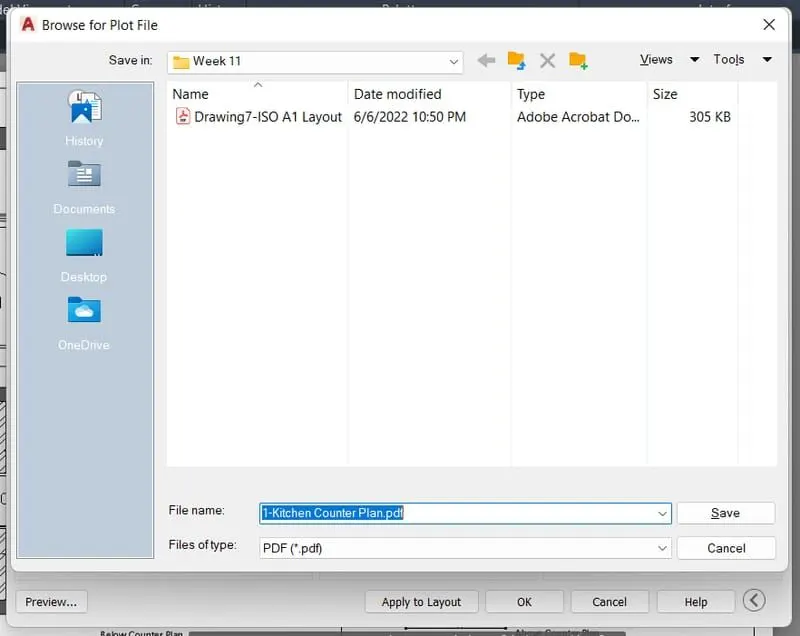

2.Select the plot type as DWG to PDF.pc3 and paper size as ISO A1
3.Select the plot area as extents and scale as 1:1 and 1:2 per the given requirment
Step 8:
1.Then click on preview to see the preview of the layout
2.After settings have been made , click on ok to print or save it to the local folder
Result:
The diffrent views of the kitchen layout have been plotted and printed successfully with four equal viewports using appropriate scaleing and an A4 sheet

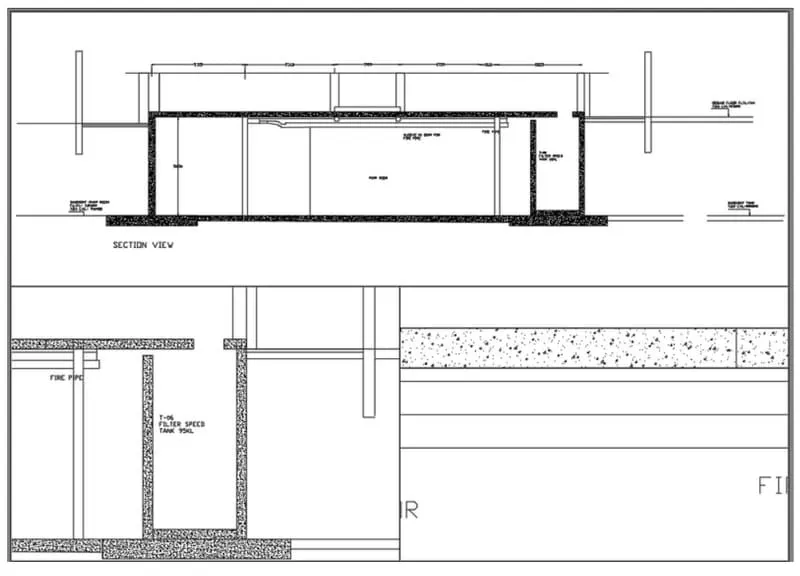

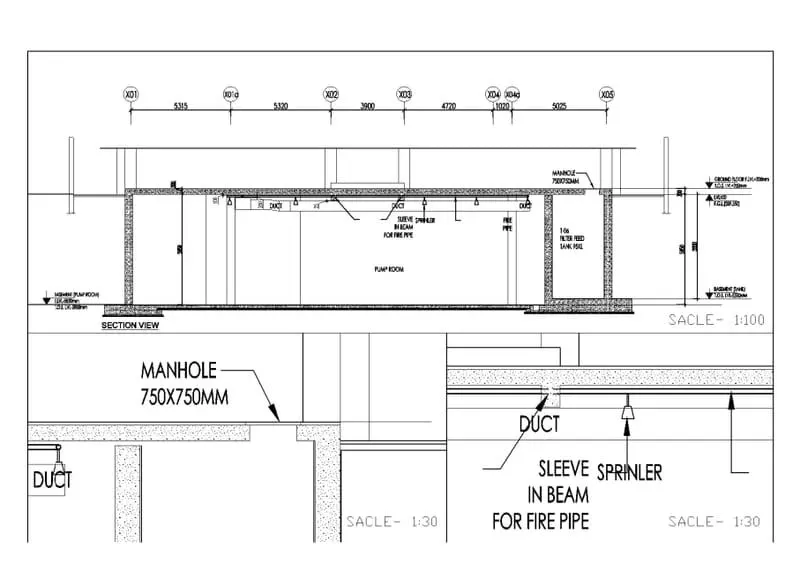

3.Create a layout of the section created in challenges 9.
use the scale as mentioned in the figure.
use the mv command to create multiple viewports. Take a plot.
Aim:
To craete the layout of the section created in challenge 9 using appropriate scalling and multiple viewports
INTRODUCTION:
A section view provides architects and contractors another way of understanding how construction will stand up , as it reveals details of the consturction of walls and the thickness and height of beams and other supports.
while a floor plan allows for a view of how the walls stand about each other , a section shows where the wall meets the floor and the distance that separates one floor from another.
Finally, section provide a better understanding of how a buildings spaces will accommodate its future occupants and whether, for example, the ceiling will feel like it looms or soars overhead
COMMANDS USED:
1.Viewports
2.Multiple views
3.Model space
4.Paper space
5.pan
6.Print
PROCEDURE:
step 1:
1.Open the autocad application from the desktop
2.On the autocad homepage,click on opeb drawing

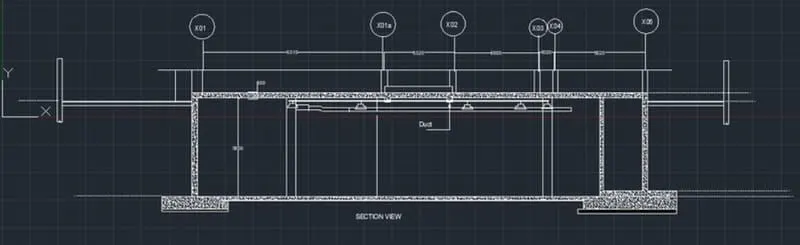

3.Open the sectiion drawing of the industrial plan that we created in the challenge 9
Step 2:
1.now we have to create the various of the kitchen layout from the view tab
2.Go to the view tab and select the option called new view
Step 3:

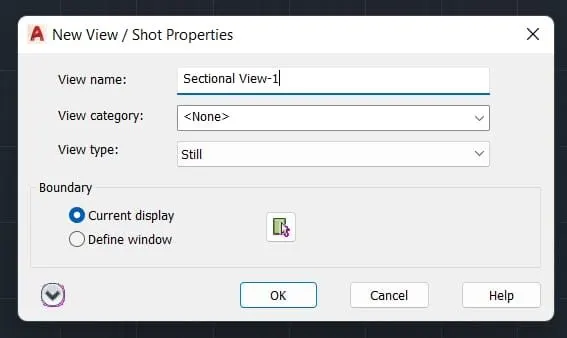

1.After clicking on the new view option ,a new view dialog box will appear

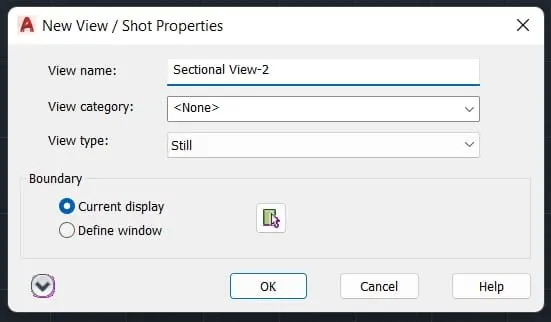

2.Create the view name as sectional view-1 and boundary as current display
3.After making changes, click on ok and then close the dialog box
4.Similarly create another view as sectional view-2 using the view tab
Step 4

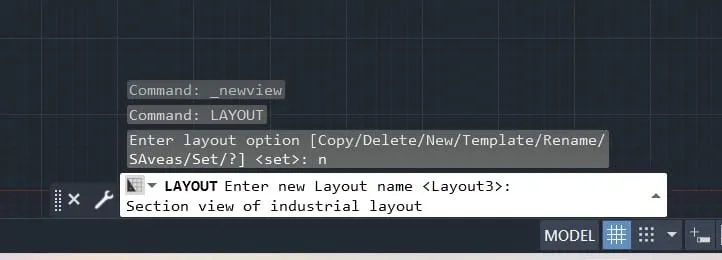

1.Type layout in the command box to open the new layout
2.Type new in the command box and rename it as section view of industrial layout

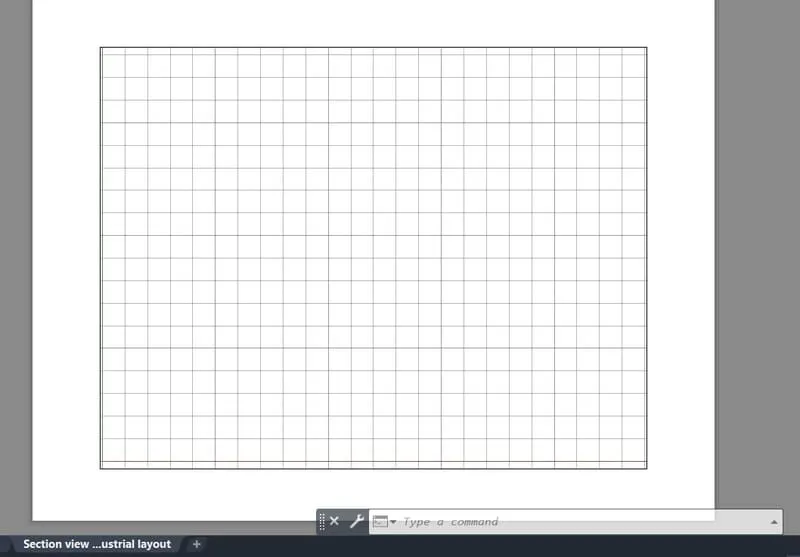

3.After making changes,anew layout will appear on the screen
step 5:
1.Open the viewports dialog box bytyping MV in the command box
2.Select the viewports type as four:equal as shown in the figure below
3. Adjust the viewports spacing according to go the requirement.
Step 6:
1.After creating the multiple viewports, now we have to adjust the zooming and scaling
2.Type MS in the command box to switch the mode into model space
3.Adjust the visibility of the plan and section using the pan tool
4.Adjust the scalling to 1:30 as per the given requirement.
Step 7

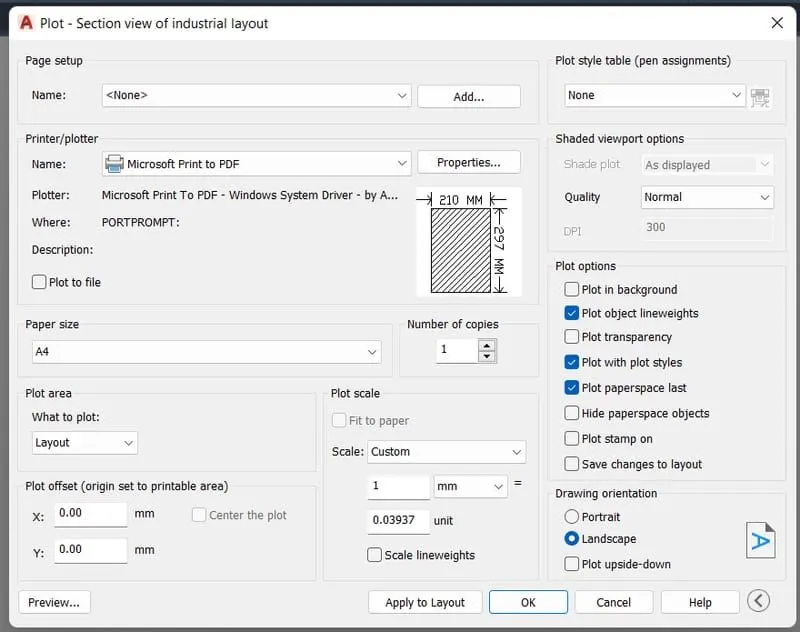

1.Now type plot in the command box to open the plot and a print dialog box

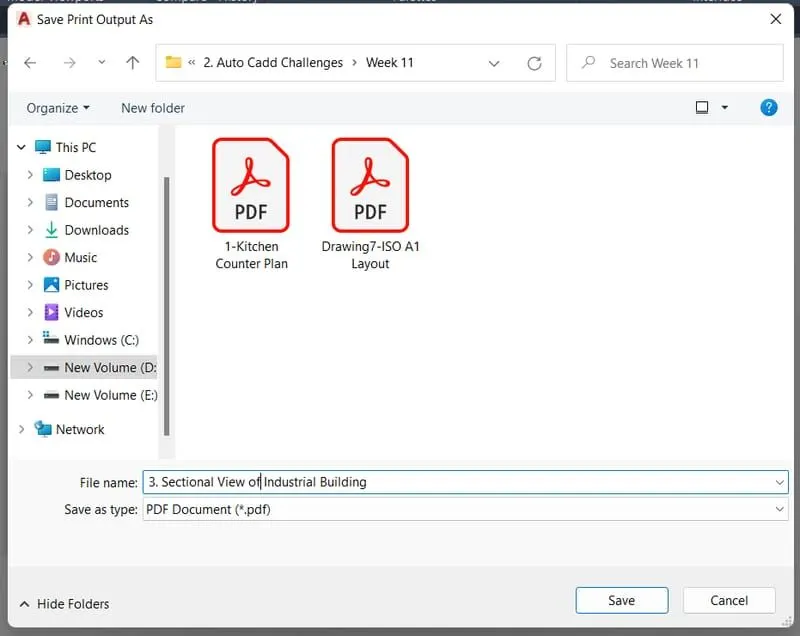

2.Select the plot type as microsoft print to PDF and paper size like A4
3.Select the plot area as extends and scale as 1:30 as per the given requirement
Step 8:
1.Then click on preview to see the preview of the layout
2.After settings have been made, click on ok to print or save it to the local folder
Result:
The Different views of the sectional industrial building have been plotted successfully using multiple viewports and appropriate scale
