Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM:

1. To create layout of plan and section, creating viewports, editing attributes and taking a plot.
2. To create a kitchen layout in A4 sheet and take a plot
3. To create Multiview ports for industrial section drawing, scaling it and taking a plot.

COMMANDS USED:

• View
• Layout.
• Multiple View.
• Model Space.
• Paper Space.
• Scale.
• Xref.
• Lock.
• Pan.
• Plot.

PROCEDURE:

1).

Aim:

1. To create layout of plan and section using Template mArch.dwt.To create viewport using MV command of size 400x445 and 375x445 and setting the scale (1:50)
2. Editing Attributes in the template.Take a plot using A1 size.

Procedure:

• Open the drawing ,click on the layout tab right click and create a new layout.
• Rename the layout tab as plan and section.
• Delete the current viewport displayed in the layout.
• To create the template use command "LAYOUT" select template.dwt selct m.arch from dialogue box and select ISO A1 layout.
• Type "MS" for the activation of model space.

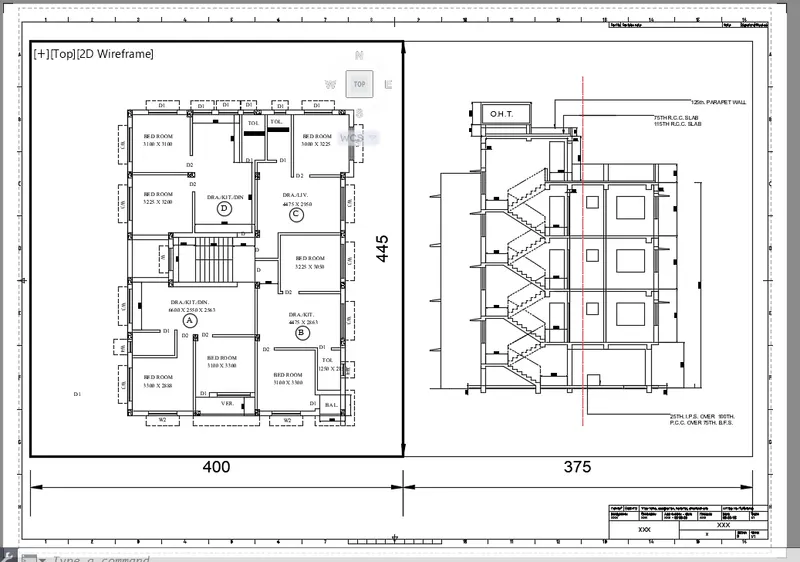

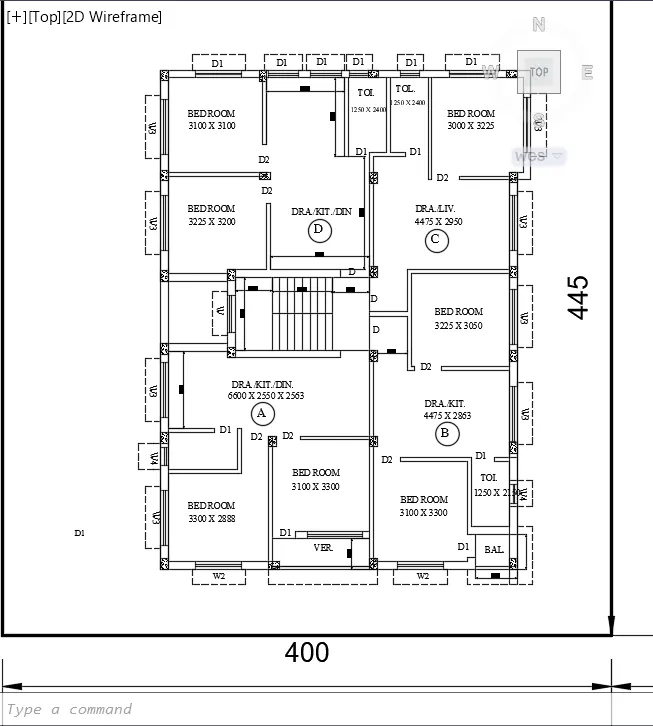

• To create viewport draw a rectangle of size 400X455 and 375X445 for creating the viewport.
• Use the command "MV" multiple view select object option and click on the rectangle,then the drawing will be displayed in the viewport.
• Similarly do it for the second rectangle.
• Command"MS" for model space and click on the viewport we need to set the drawing.
• Click on the first viewport and zoom in the drawing for the plan and give a scale of 1:50 and lock the viewport so that further zooming will not change the scale.

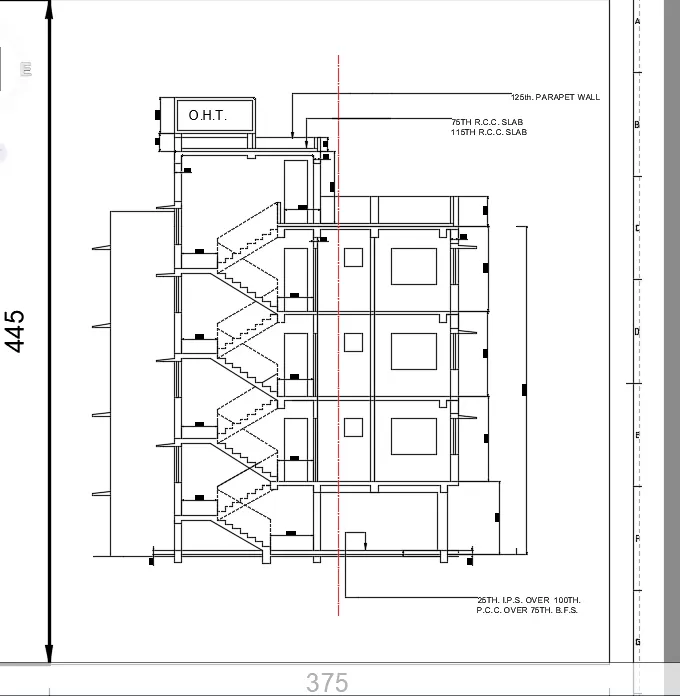

• Similarly do it in second viewport in the section view and making a scale of 1:50 and lock.
• Mark the dimension in the paper space by "dimlinear" command.
• Go to attributes in the template.
• Go to paper space and click on the template which is a block.
• Click on attributes and edit the attributes-double click the attribute text and the attribute dialogue box appears.
• Enter the text by multiline text in paper space with text height 20.
• Taking the plot using A1 sheet.

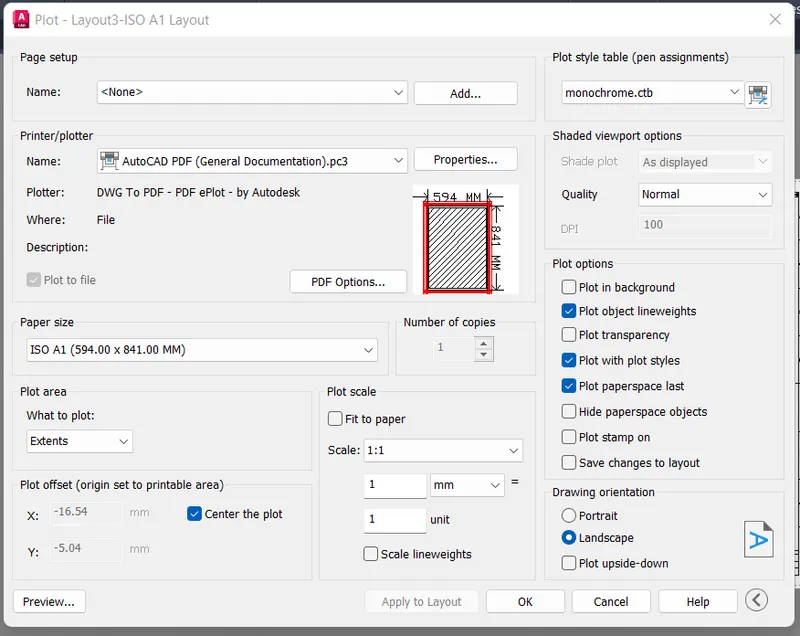

• Use command "PLOT" the dialogue appears.
• Give name as "DWG to PDF".
• Select the paper size as ISO A1(594X841mm).
• Select what to plt as layout and give scale as 1:1 with orientation as landscape.
• Select the pen as "Monochrome" so that the print will be in lack.

Result:

2).

Aim:

To take different view of kitchen for layout in model space,create the layout with four viewports, with A4 sheet,create a plot.

Procedure:

• Take different views for the layout in modal space.
• Open the drawing and use command "VIEW" to create new views.
• The view manager dialogue box appears. Click on model and click on new to create new view.

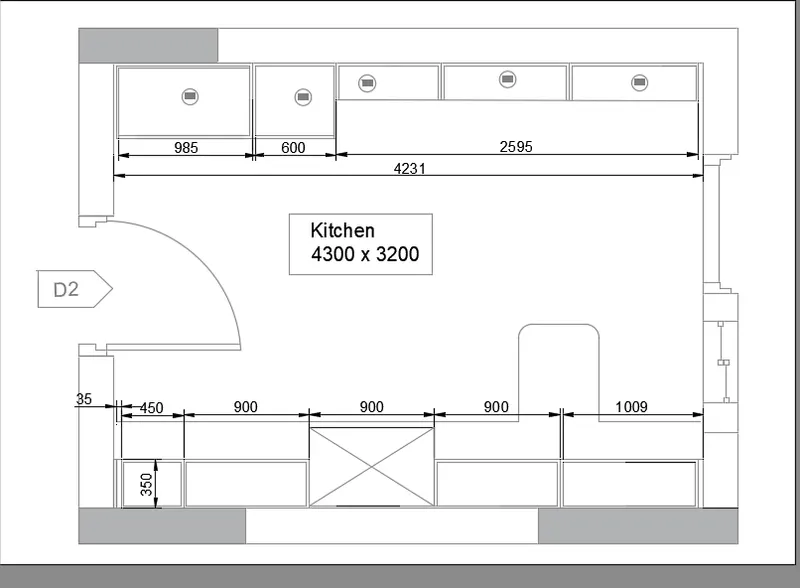

• Another dialogue box of new appears,give the view name as "above counter plan" select the boundary as define window and select it using the window selection from the drawing.
• Click on OK and the viw with name above counter plan and the selected drawing will be created.
• Similarly create views for below counter plan,hob and 11 to A14 cabinets.

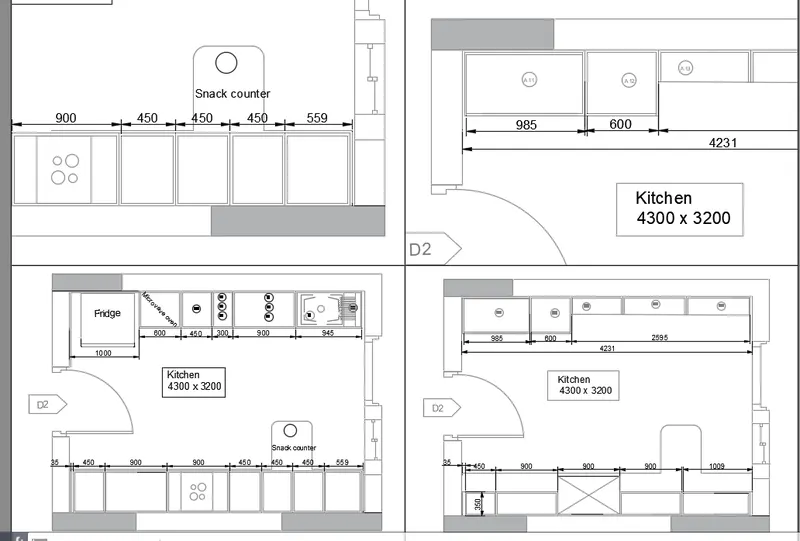

• Create the layout with four viewports with A4 sheet.
• Open the layout tab,rename the layout as kitchen layout.
• Delete the existing viewport.
• With"MV" command create 4 viewports by making the window.
• Type command"VIEW"in the layout tab,select the required view and click on the viewport where it has to be displayed and lock each viewport.

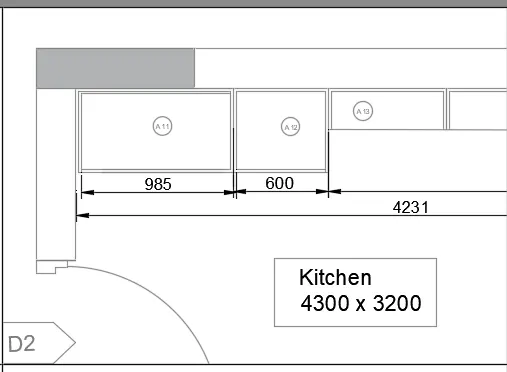

• Select the A11 to A14 cabinet view in the first viewport,zoom and pan to fit in the viewport.
• Go to paper space,with text command type SCALE 1:1.
• Enter command "MS" click on the second viewport.

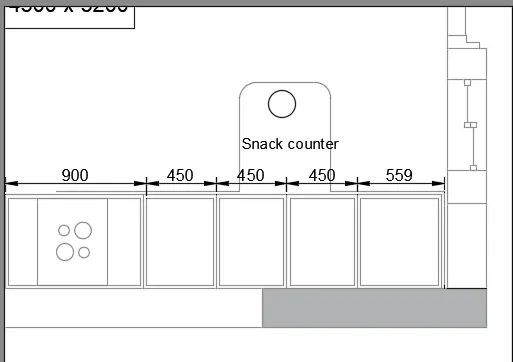

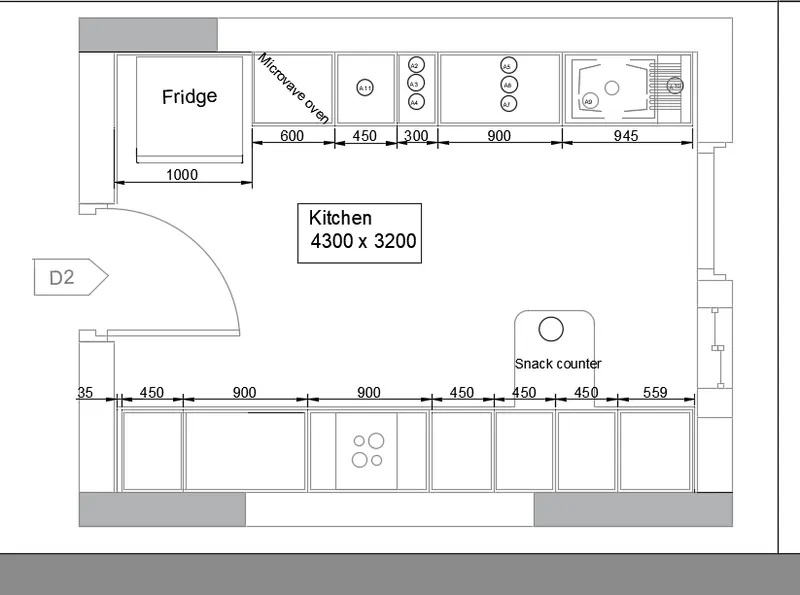

• Enter the command "VIEW" and select the view name snack counter.
• Zoom and pan the viewport to make the view fir in the viewport.
• Lock the viewport.
• Go to paper space and with command"T" enter the text sxale 1:1.
• Similarly in model space click on third viewport.
• Enter the view above counter plan.
• Zoom and pan the viewport,so that the drawing fit in it.
• Lock the viewport.
• Go to paper space and with command"T" enter the text as ABOVE COUNTER PLAN and SCALE 1:2 with text height 150.
• Similarly do it for the BELOW COUNTER PLAN and SCALE 1:2 wit text height 150.

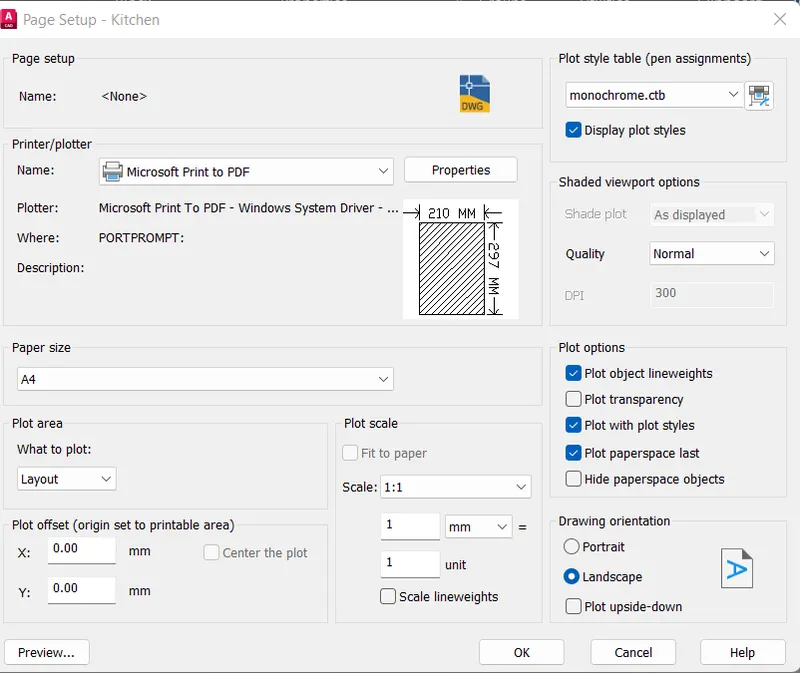

• Now create the plot using plot command.
• Select paper size as A$ and name given as A4,printer name and print to pdf.
• Select what to plot as layout and select pen assignment as monochrome.
• Select ok to convert to pdf.

Result:

3).

Aim:

Create layout of the section of industrial building ,creating viewport by MV command(Multiview port) and scale 1:30 and 1:100 is given,to take a plot of the layout.

Procedure:

• Open the drawing of section of industrial buidling.
• Take the layout tab.
• Rename the tab as industrial section.

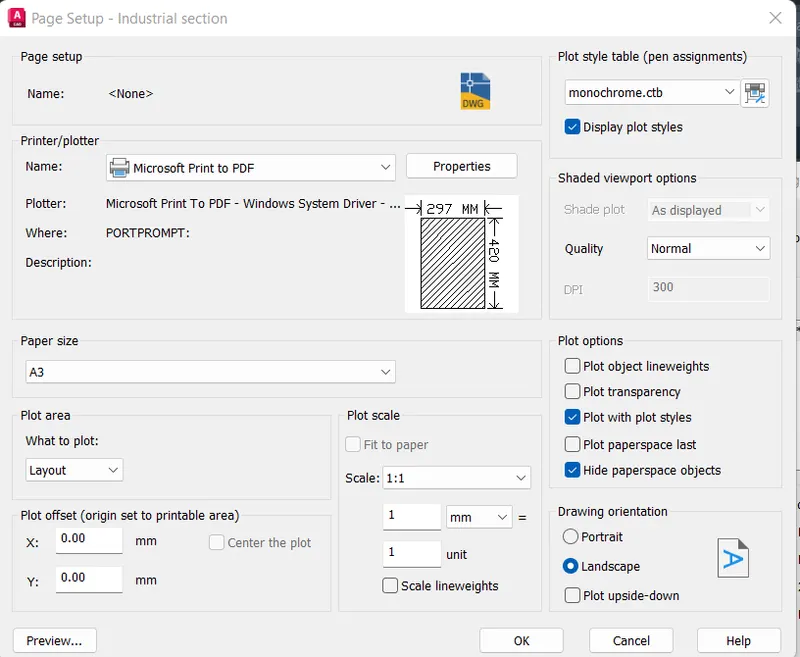

• Right click on the tab and select pageset up manager option.
• Click on new-give a name,page setup dialogue appears.
• Give the paper size as A3 in page setup.
• Make it current,the layout paper size changes to A3.

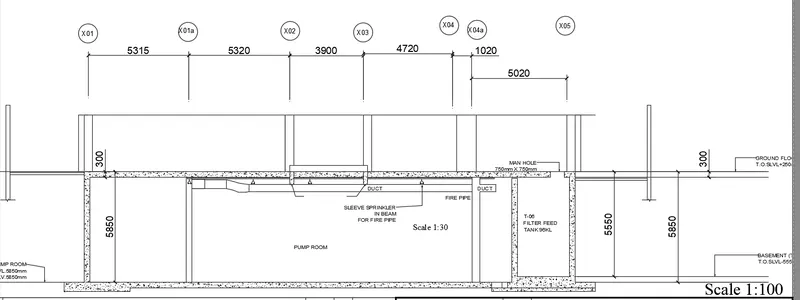

• Create the viewport by MV command and giving a scale of 1:100 and 1:30.

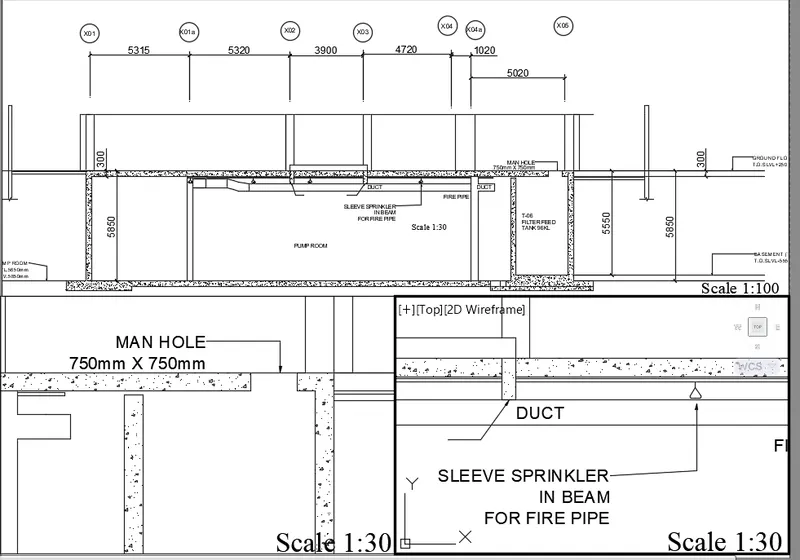

• Use "MV" command and create 3 viewports accordingly.
• Use command "MS" for model space and click on first viewport.
• Set the scale to 1:100 from the bottom toolbar or right click and properties and from there we can change the scale.
• By Pan command fit the drawing inside the viewport.
• By text command write the text as SCALE 1:100 with a text height of 50 and lock the viewport.
• Go to model view and create the views for the next two viewports.
• Create views for sprinkler and as sprinkler view.
• Now go to thr layout industrial section and command"ms" and click on the left model space.

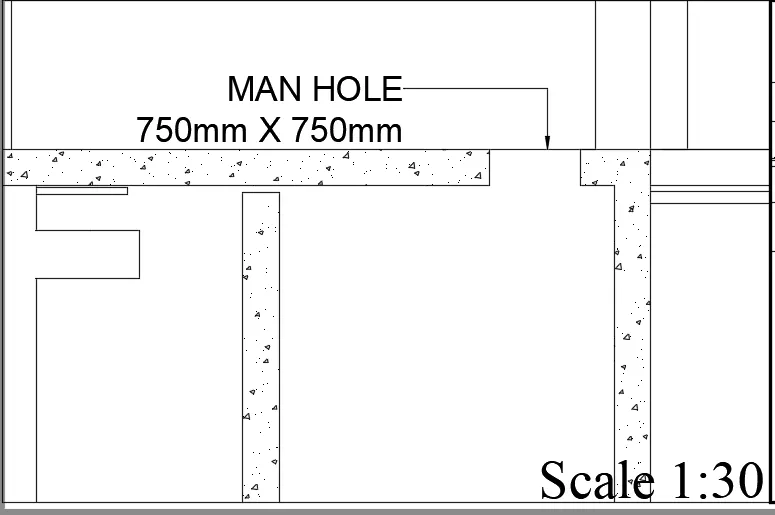

• Now use the command "view" select the manhole view and click on set current.
• Then the view will be displayed on the model space.
• Select teh scale to 1:30 from bottom toolbar.
• By multiline text give the text scale as 1:30 with text height og 150
• Lock the viewport from the bottom toolbar lock symbol.
• Type "MS" click on third viewport.

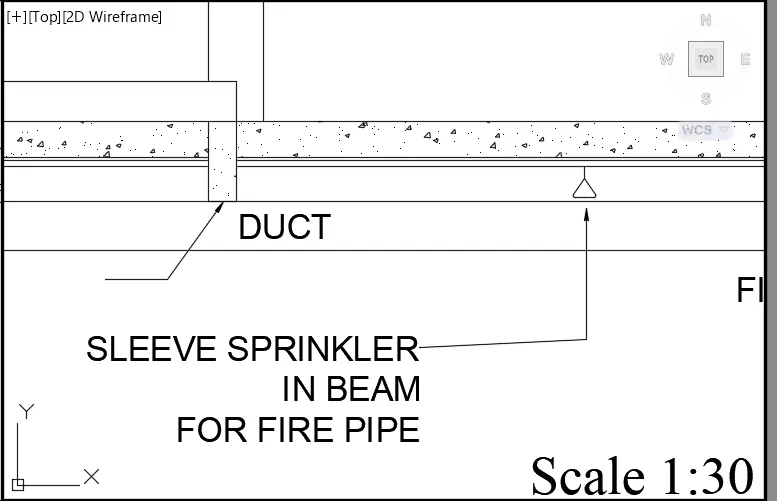

• Use command "VIEW" and select the sprinkler view and make it current.
• Select the scale to 1:30 from the bottom toolbar.
• By multiline text insert the text as Scale 1:30 with text height 150.
• Lock the viewport.
• Take a plot of the viewport.
• Enter the command"PLOT".
• The dialogue box appears and select paper size as A3.
• Give pen assignments as monochrome.
• Click on preview option to see the preview and apply to layout.

Result:
