Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM:-

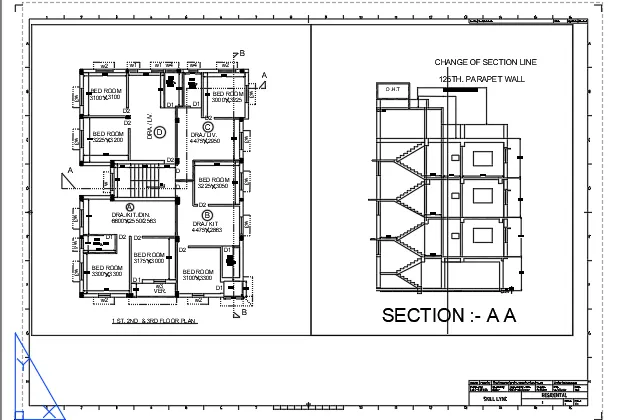

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

1.Create a plan and section than first page setap A4

2.use the mv comand and ms commnd and ps command are used

3.Than used the rename command and change the layout name floor plan

4.than use the template command and take the tem plate

5.Attedit command used in the change the name of desing and titel name and date owner name

6.go to the page save the pdf take the cotrl+ p then set the A4 seet

RESULT:-

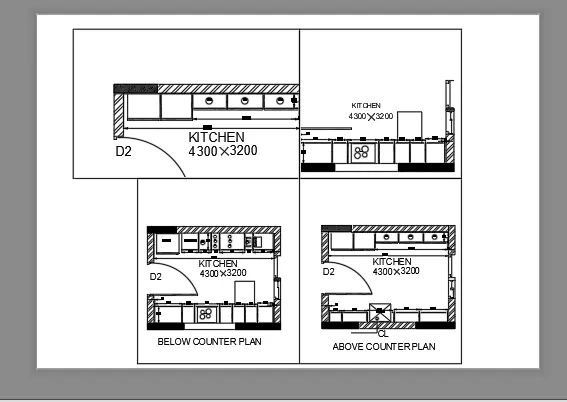

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

1.Create a plan and section than first page setap A4

2.use the mv comand and ms commnd and ps command are used

3.Than used the rename command and change the layout name floor plan

4.than use the template command and take the tem plate

RESULT:-

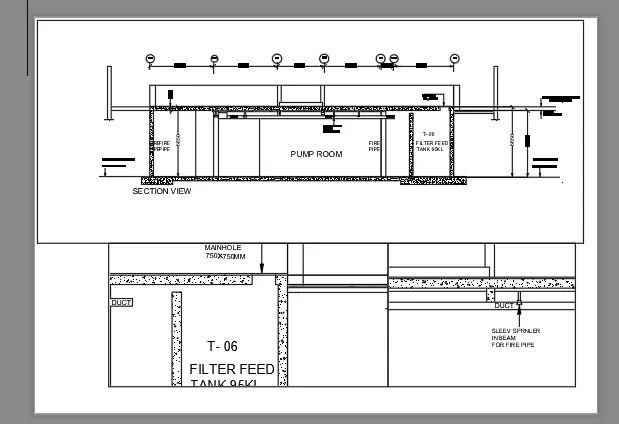

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

1.Create a plan and section than first page setap A4

2.use the mv comand and ms commnd and ps command are used

3.Than used the rename command and change the layout name floor plan

4.than use the template command and take the tem plate

RESULT:-
