Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
- Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
Aim:
To create the layout of the plan and section a of the project in challenge 7 using template tutorial- mArch.dwt
Introduction:
Layo template is a layout imported from the DWG or DWT file. The program has sample layout templates to use when we design a new layout environment.
The layout templates are identified with a.dwt file extension. However a layout template or layout from any drawing or drawing template can be imported into the current drawing.
Command used:
- Units
- Limit
- Xref
- Layout
- Attedit
- Multiple viewport
- Model space
- Paper space
Procedure:
- Open the autocads software and click on new drawing
- Type UN and set the units as decimal and precision as 0.0
- Select the units as millimetres in the insertion scale
- Type limits in the command box and set the lower limit as 0,0and upper limits 10000, 10000
- Type Z for zoom and A enter for zoom all
Step 1:

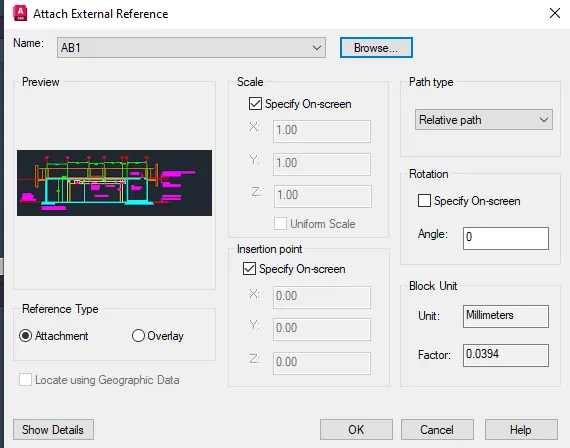

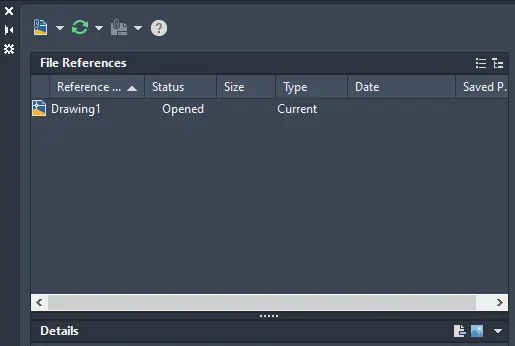

- Go to external reference by typing Xref in the command box
- Then attach DWG file of the challenge 7 that we created earlier
Step 2:

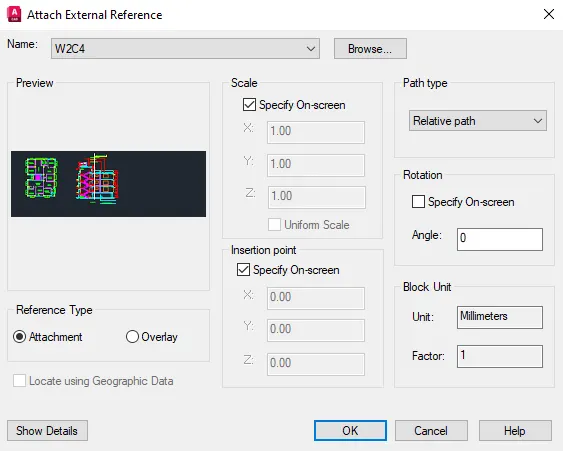

- Select DWG file and select the reference type as an attachment
- Specify the scale on the screen and insertion point as on the screen

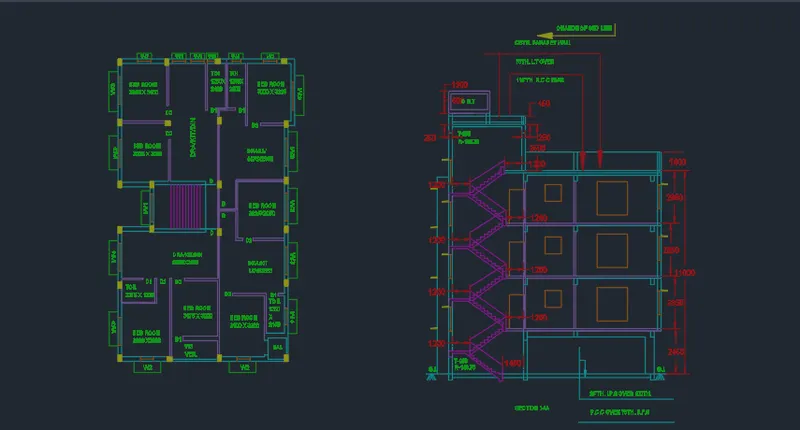

- Then click okay to load the challenge 7 drawing into the screen
Step 3:
- After attaching the drawing select the drawing and left click attached drawing
- Then select the bind type as bind and press okay
Step 4:
- Type the layout in the command box to open the new layout
- Type new Hindi command box and tree name it as plan and section
Step 5:
- Right click on the plan and section layout for the layout tab
- Select the option called from the template option

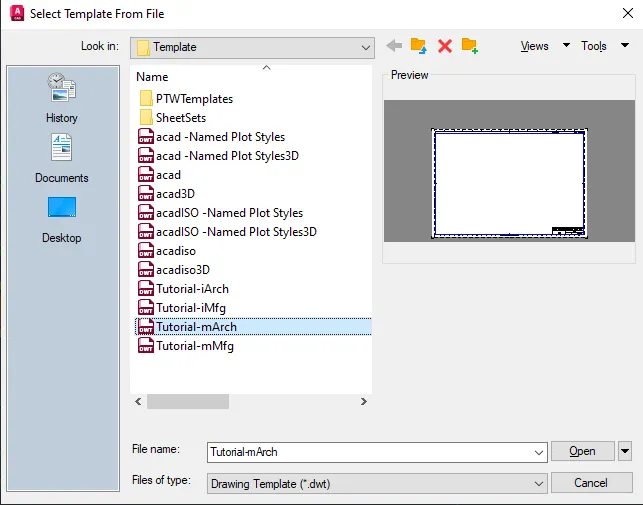

- Select the template file to load into the drawing
- Select the template file as tutorial-mArch.dwt
- Then click ok to load the template into the layout
Step 6:
- After loading the load layout template into the drawing now we have to change the attributes

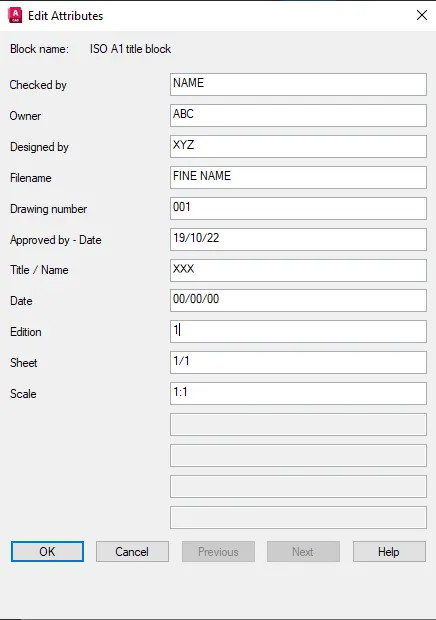

- Type ATTEDIT Hindi command box to open the edit attribute dialogue box

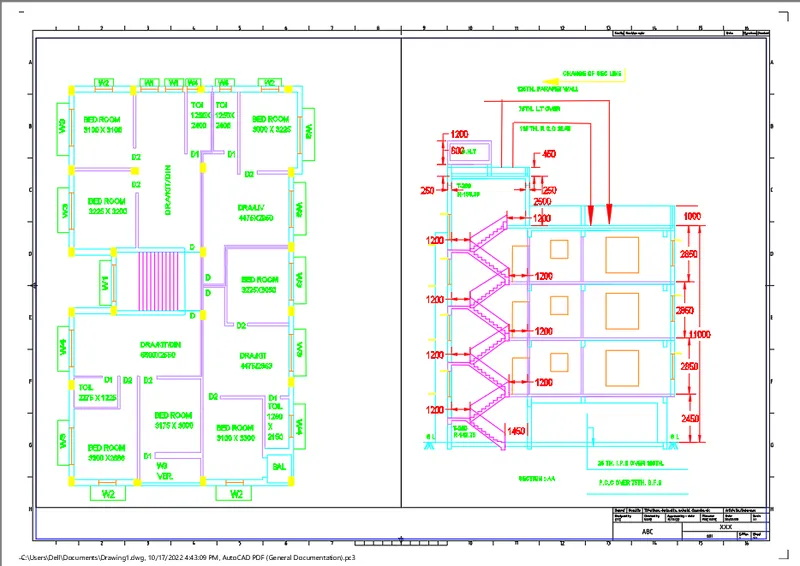

- Renamed the title block as shown in the figure below
- After completing changes in the attributes quick on the ok to make changes
Step 7:

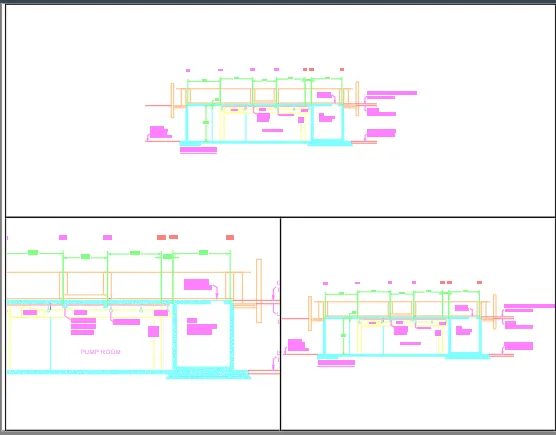

- Open the free view port dialogue box by typing MV in the command box

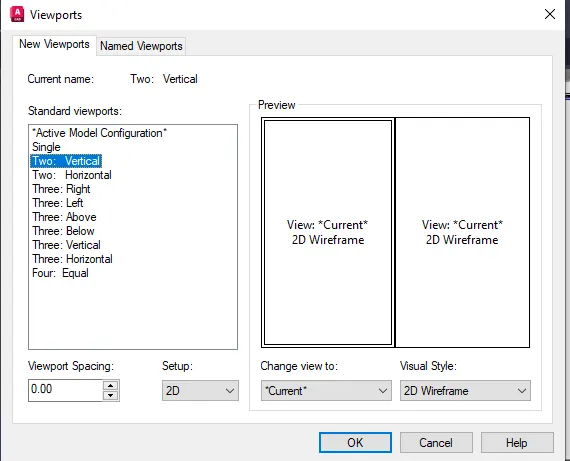

- Select the view port as Two:Vertical as shown in figure below
- Adjustive board spacing according to the requirement
Step 8:

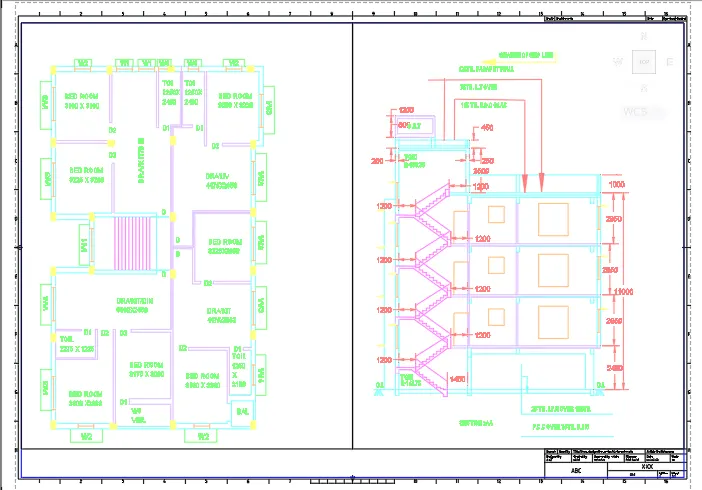

- After creating the multiple view ports now we have for justice roaming and scaling
- Type MS in the command box to switch the mode into the model space
- Adjust the visibility of the plan and selecting using the pan tool
- Adjust is scaling as per the given requirement
Step 9:

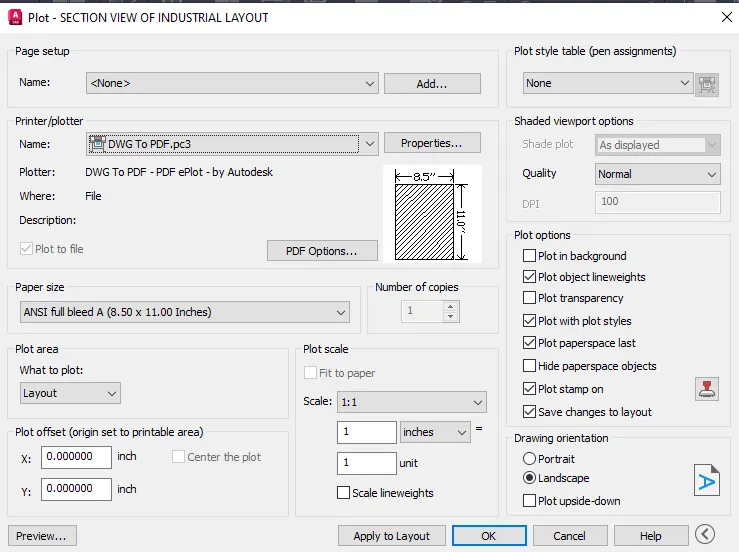

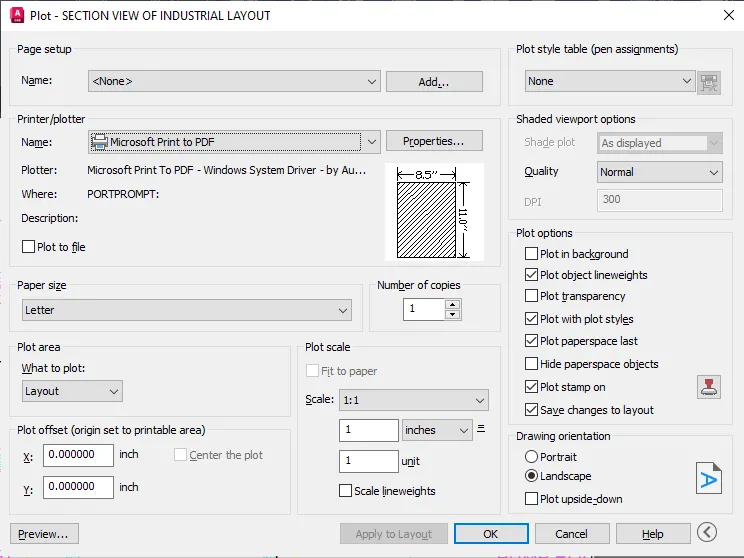

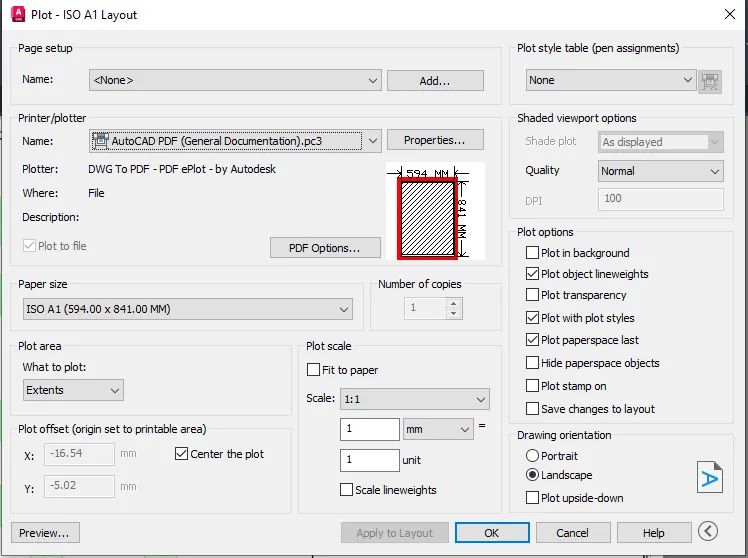

- Now type plot in the command box to open the plot and print dialogue box
- Select the plot type and paper size as shown below
- Select the plot area and extend the scale as one 1:1 as per given requirement
Step 10:
- Click on the preview to see the preview of the layout

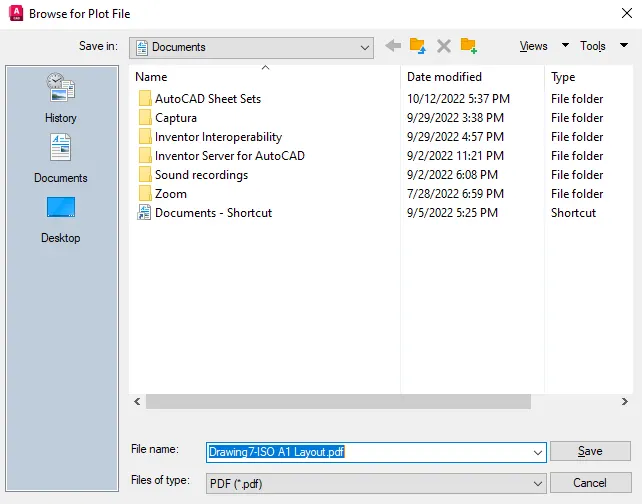

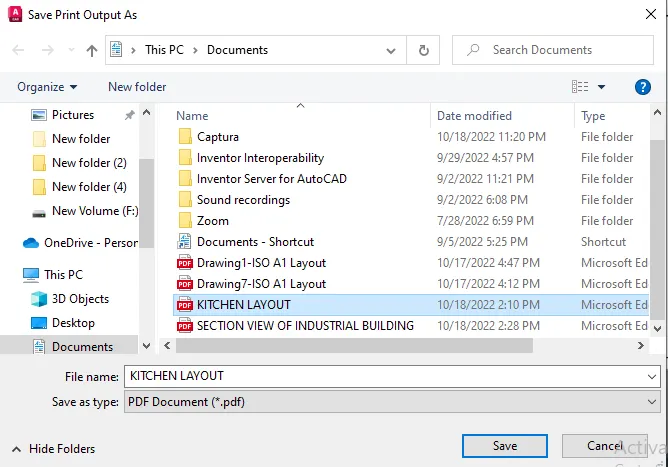

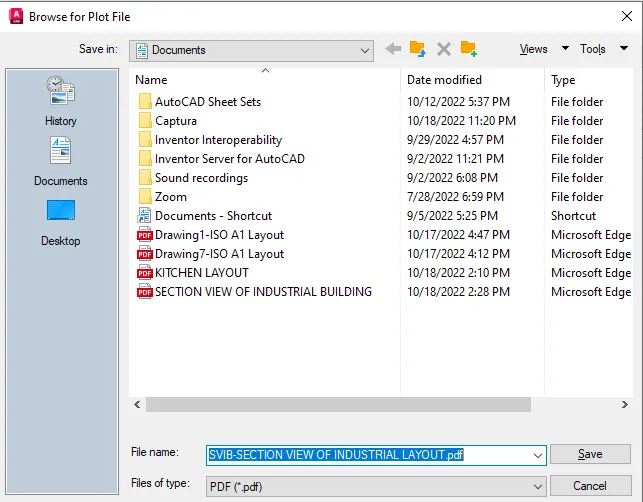

- After settling have been mode click on the okay to print or save to the local folder
Result:

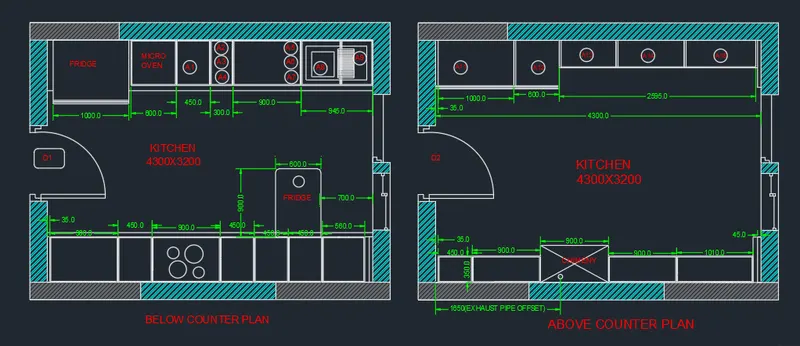

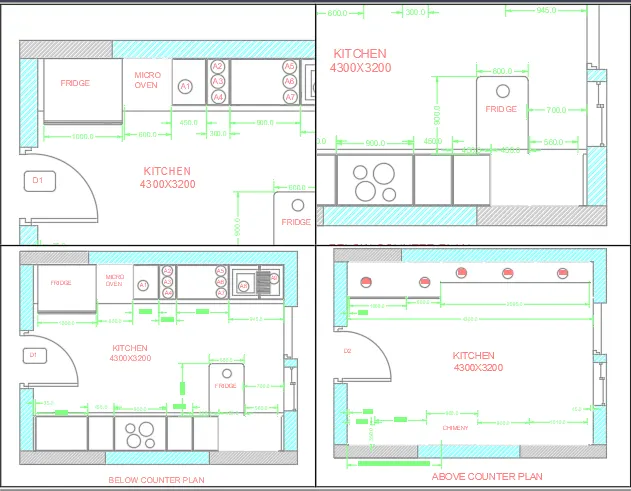

- Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
Aim:
To create the layout of the kitchen drawn in the challenge 9 by using the appropriate scale and A4 size paper
Introduction:
Two create template is a layout imported from the dwg or dwp file. The program has sample layout templates to use when we design a new layout environment.
Command used:
- Viewports
- Multiple views
- Model space
- Paper space
- Pan
Procedure:
- Open the autocads software and click on new drawing
- Type UN and set the units as decimal and precision as 0.0
- Select the units as millimetres in the insertion scale
- Type limits in the command box and set the lower limit as 0,0and upper limits 10000, 10000
- Type Z for zoom and A enter for zoom all
Step 1:

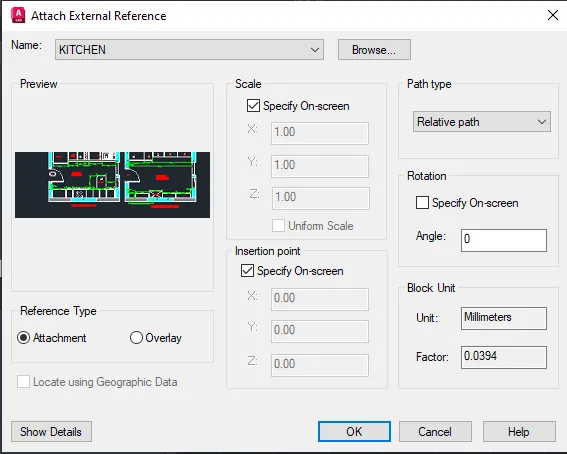

- Go to external reference by typing Xref in the command box
- Then attach DWG file of the challenge 9 that we created earlier
Step 2:
- Select DWG file and select the reference type as an attachment
- Specify the scale on the screen and insertion point as on the screen
- Then click okay to load the challenge 9 drawing into the screen
Step 3:
- After attaching the drawing select the drawing and left click attached drawing
- Then select the bind type as bind and press okay
Step 4:

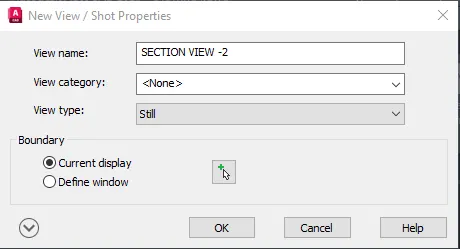

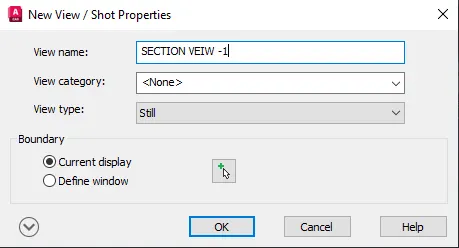

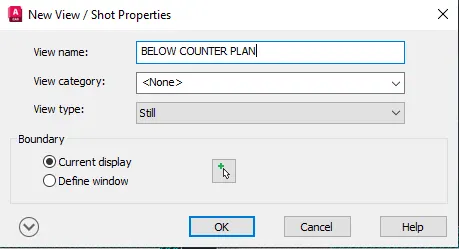

- After clicking on the New View option, a New view dialog box will appear
- Create the view name Below the counter plan and Boundary as the Current display
- After making changes, click on ok and then close the dialog box
- Similarly Create the other views of the kitchen layout using the view tab
Step5:
- Type the layout in the command box to open the new layout
- Type new Hindi command box and tree name it as plan and section
Step 6:
- Open the free view port dialogue box by typing MV in the command box

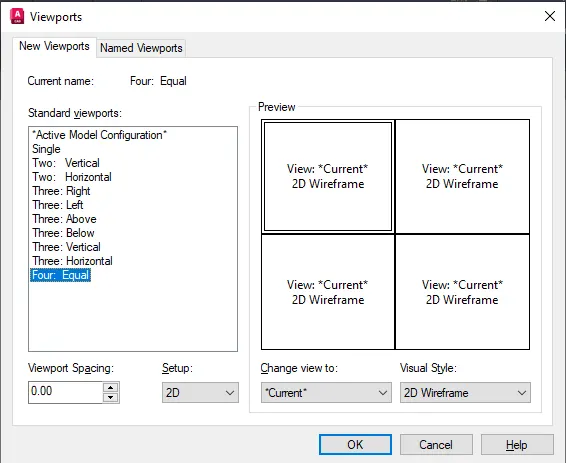

- Select the view port as Four:Equal as shown in figure below
- Adjustive board spacing according to the requirement
Step 7:
- After creating the multiple view ports now we have for justice roaming and scaling
- Type MS in the command box to switch the mode into the model space
- Adjust the visibility of the plan and selecting using the pan tool
- Adjust is scaling as per the given requirement
Step 9:
- Now type plot in the command box to open the plot and print dialogue box
- Select the plot type and paper size as shown below
- Select the plot area and extend the scale as one 1:1 as per given requirement
Step 10:
- Click on the preview to see the preview of the layout
- After settling have been mode click on the okay to print or save to the local folder
Result:

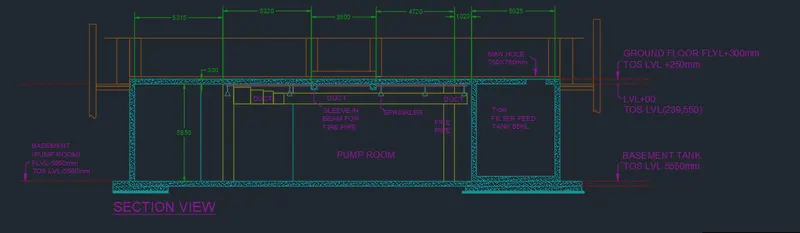

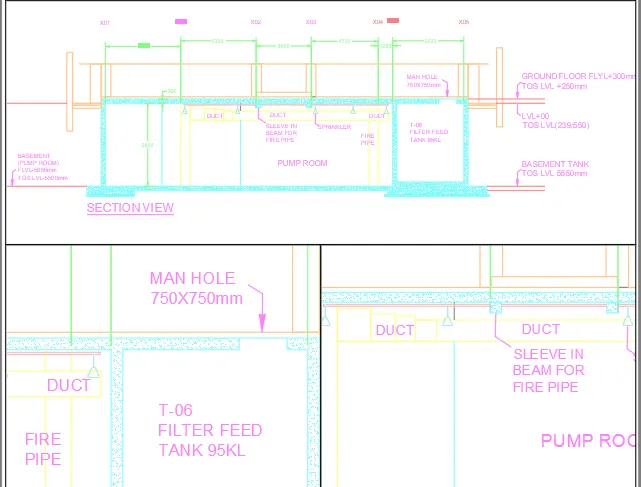

- Create a layout of the section created in Challenges 9.Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.
Aim:
To create the layout of the section created in the challenge 9 using appropriate scaling and multiple viewports
Introduction:
Section you provides architects and contractor another way of understanding how construction wheels stand up as it reveals details of the construction of walls and the thickness and height of beams and other sports. While a floor plan allows for a view of how to wall stand about each others a section shows where the wall meets the floor and the distance that separates one floor from the another.
Command used:
- Viewports
- Multiple views
- Model space
- Paper space
- Pan
Procedure:
- Open the autocads software and click on new drawing
- Type UN and set the units as decimal and precision as 0.0
- Select the units as millimetres in the insertion scale
- Type limits in the command box and set the lower limit as 0,0and upper limits 10000, 10000
- Type Z for zoom and A enter for zoom all
Step 1:
- Go to external reference by typing Xref in the command box
- Then attach DWG file of the challenge 9 that we created earlier
Step 2:
- Select DWG file and select the reference type as an attachment
- Specify the scale on the screen and insertion point as on the screen
- Then click okay to load the challenge 9 drawing into the screen
Step 3:
- After attaching the drawing select the drawing and left click attached drawing
- Then select the bind type as bind and press okay
Step 4:
- After clicking on the New View option, a New view dialog box will appear
- Create the view name Below the counter plan and Boundary as the Current display
- After making changes, click on ok and then close the dialog box
- Similarly Create the other views of the kitchen layout using the view tab
Step5:
- Type the layout in the command box to open the new layout
- Type new Hindi command box and tree name it as plan and section
Step 6:

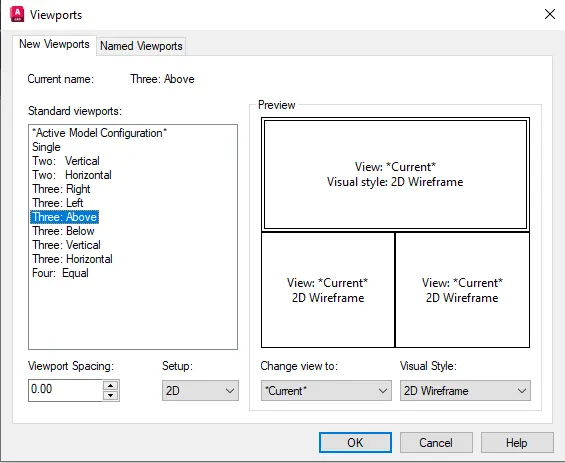

- Open the free view port dialogue box by typing MV in the command box
- Select the view port as Four:Equal as shown in figure below
- Adjustive board spacing according to the requirement
Step 7:
- After creating the multiple view ports now we have for justice roaming and scaling
- Type MS in the command box to switch the mode into the model space
- Adjust the visibility of the plan and selecting using the pan tool
- Adjust is scaling as per the given requirement
Step 9:
- Now type plot in the command box to open the plot and print dialogue box
- Select the plot type and paper size as shown below
- Select the plot area and extend the scale as one 1:1 as per given requirement
Step 10:
- Click on the preview to see the preview of the layout
- After settling have been mode click on the okay to print or save to the local folder
