Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
1Q:

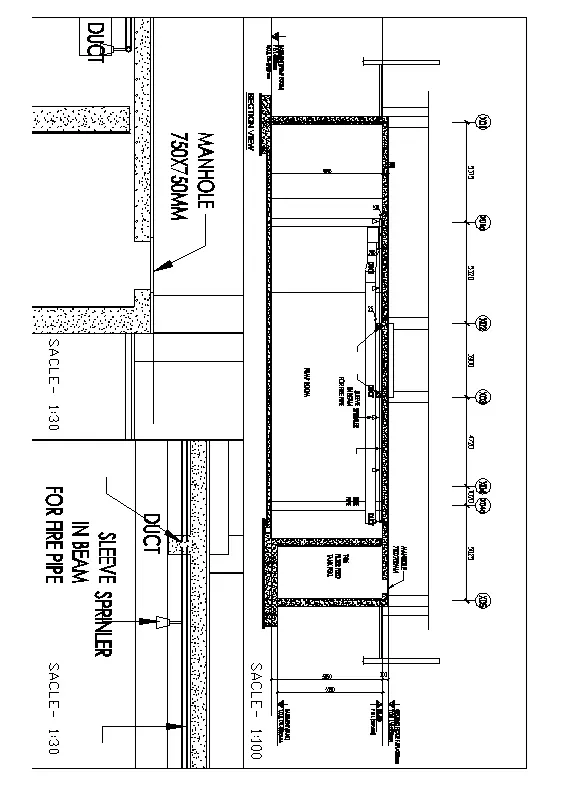

AIM:Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
PROCEDURE:A new LAYOUT is created on the layout by using the LAYOUT command and chose TEMPLETE option as mArch.dwt.

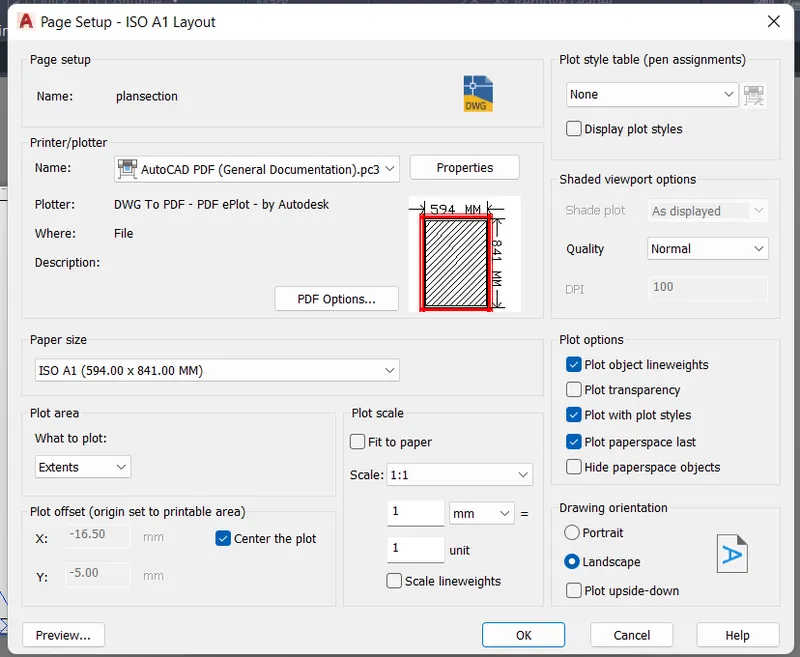

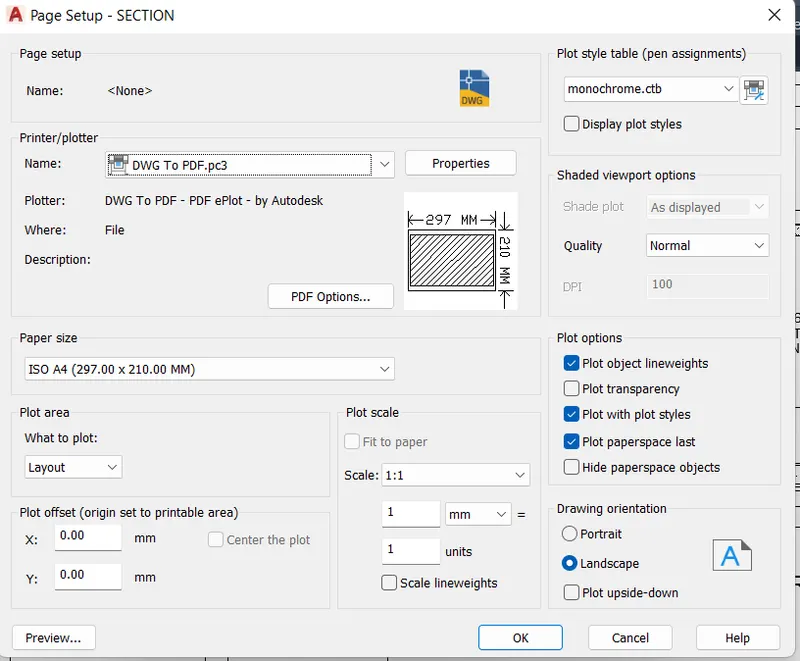

Now in the LAYOUT right click and chose the PAGE SETUP MANAGER as shown in below.

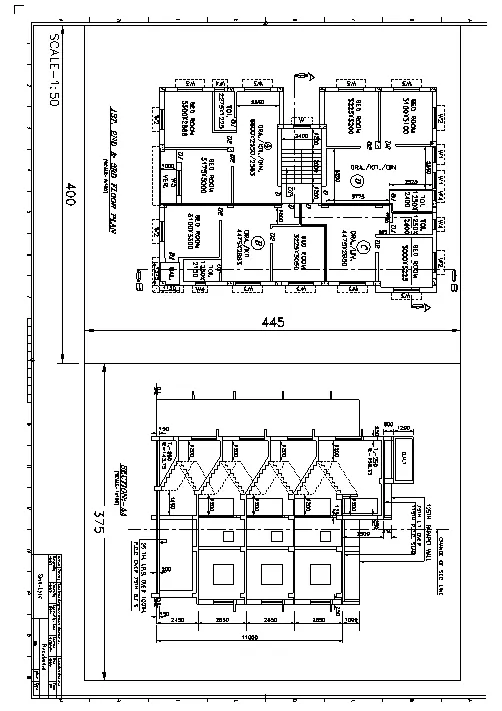

Now click MV and select object as these rectangles and in this way two model spaces was created
Type v in command bar to open the view manager.
Select the required models plan and section and apply it in both the rectangles.
Now using the properties set the SCALE as shown.
By using the MS command MSPACE adjust the plan.
After setting the plan use the PS command PSPACE go back to the page.
Type ATTEDIT to open the edit attributes dialogue box and apply the required comments and click ok.

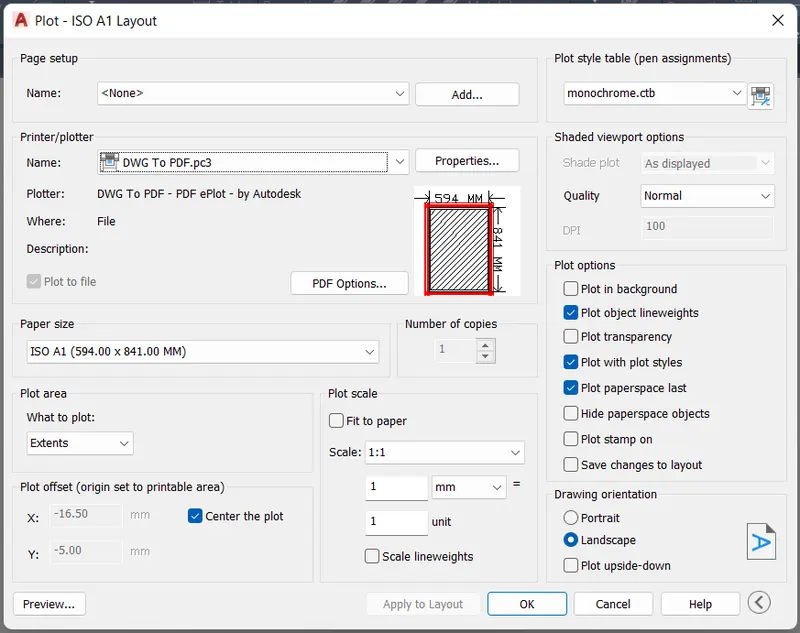

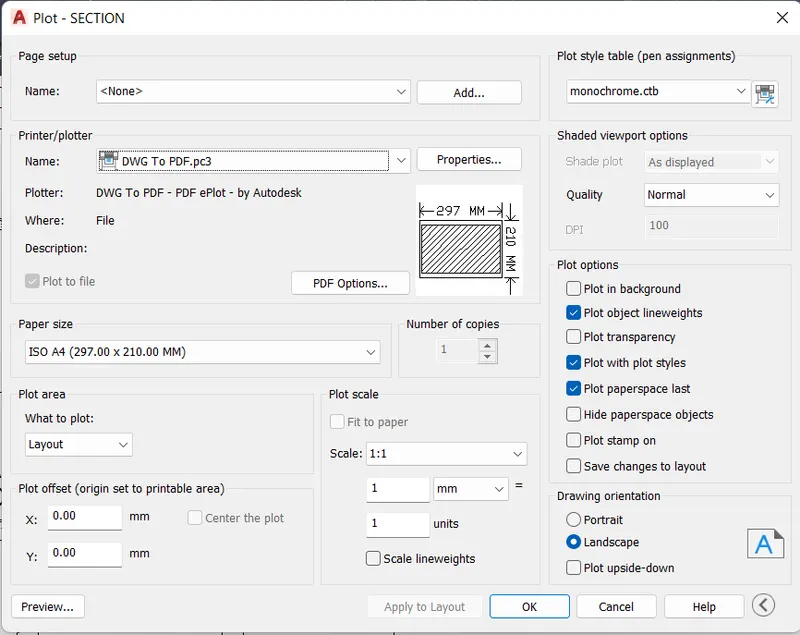

Type PLOT to open the page setup manager the following settings was applied and click the preview option at bottom.
RESULT:Created a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure.Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.completed to take a plot.
2Q:

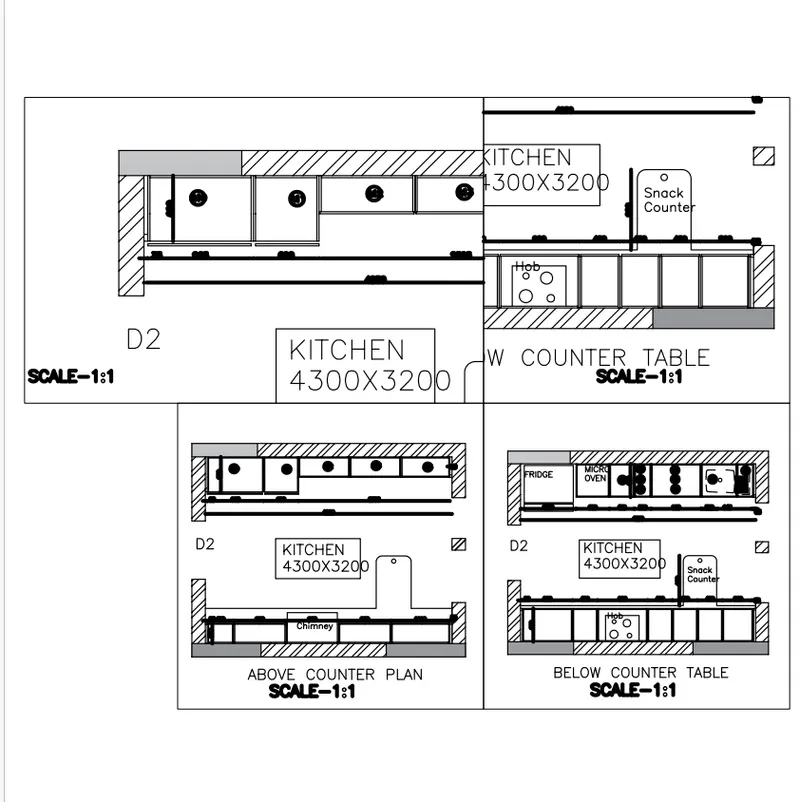

AIM: Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot
PROCEDURE:A new LAYOUT is created on the layout .

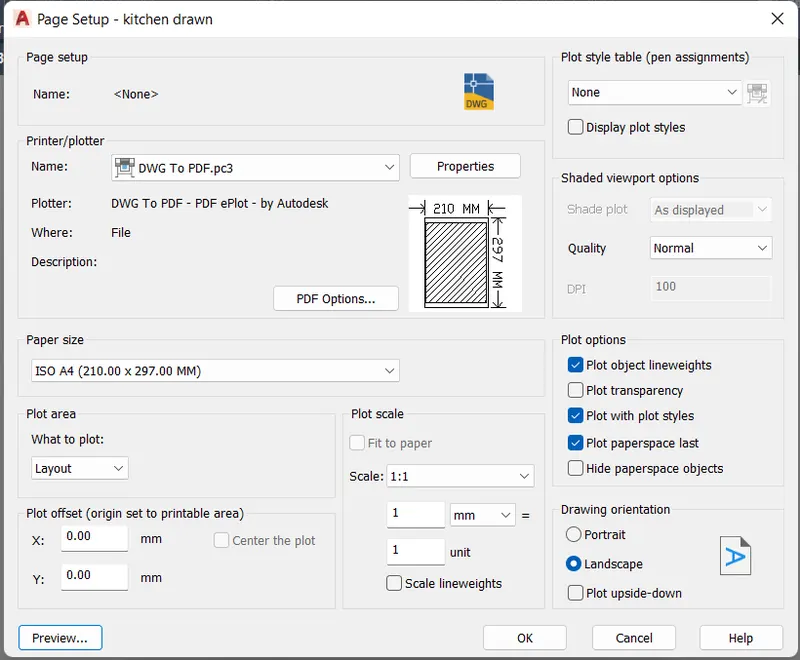

Now in the LAYOUT right click and chose the PAGE SETUP MANAGER as shown in below.

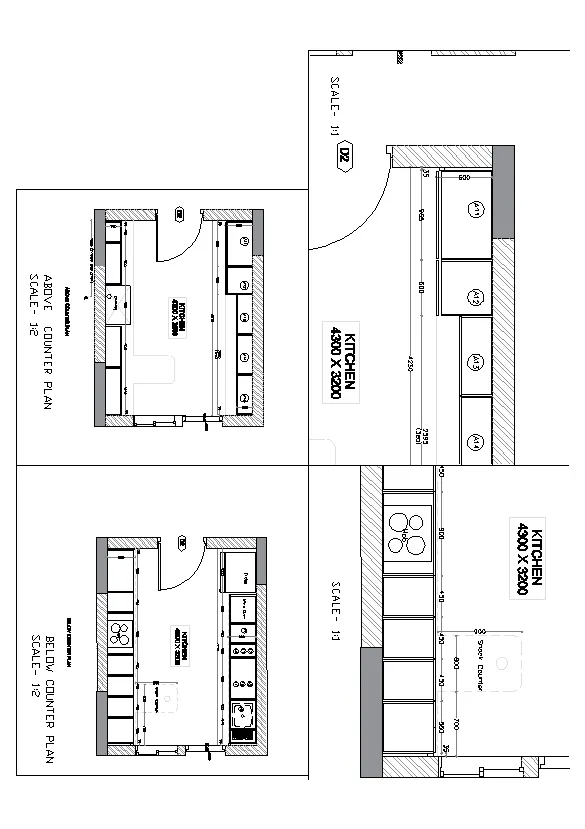

Now click MV and select object as these rectangles and in this way FOUR model spaces was created
Type v in command bar to open the view manager.
Select the required models plan and section and apply it in both the rectangles.
Now using the properties set the SCALE as shown.
By using the MS command MSPACE adjust the plan.
After setting the plan use the PS command PSPACE go back to the page.

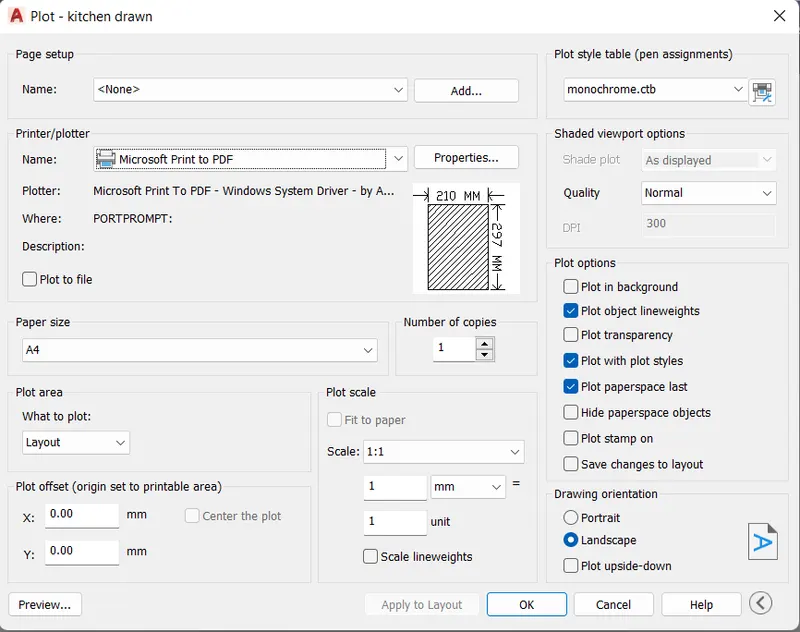

Type PLOT to open the page setup manager the following settings was applied and click the preview option at bottom.
RESULT:Created a layout of the Kitchen drawn in Challenge 9 as shown in Figure Used A4 Size page for the layout. commpleted to take a plot.
3Q:

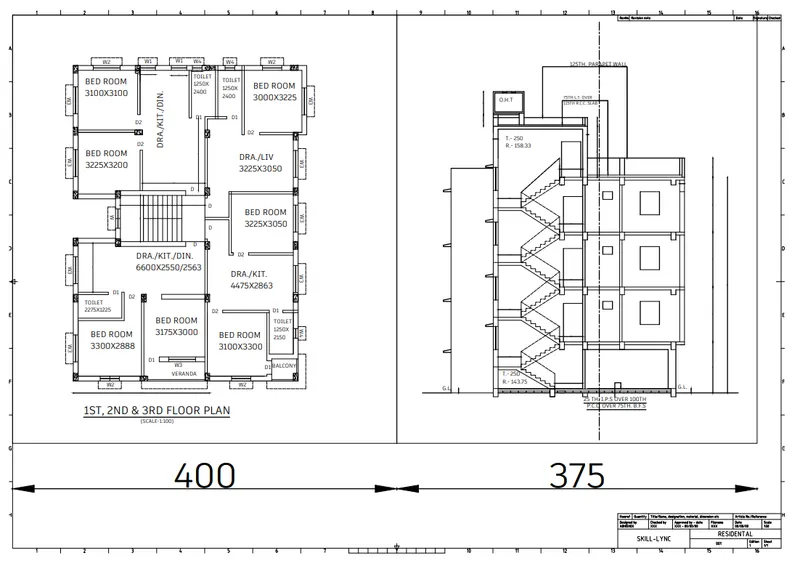

AIM:Create a layout of the section created in Challenges 9.
Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.
PROCEDURE:
A new LAYOUT is created on the layout .
Now in the LAYOUT right click and chose the PAGE SETUP MANAGER as shown in below.
Now click MV and select object as these rectangles and in this way THREE model spaces was created
Type v in command bar to open the view manager.
Select the required models plan and section and apply it in both the rectangles.
Now using the properties set the SCALE as shown.
By using the MS command MSPACE adjust the plan.
After setting the plan use the PS command PSPACE go back to the page.
Type PLOT to open the page setup manager the following settings was applied and click the preview option at bottom.
RESULT: Created a layout of the section created in Challenges 9 and Use MV command create multiple viewports completed to taken a plot.
