Challenge

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

HHimali Ramteke10 Aug 2022
AUTOCAD
  • PROBLEM :1
  • AIM :

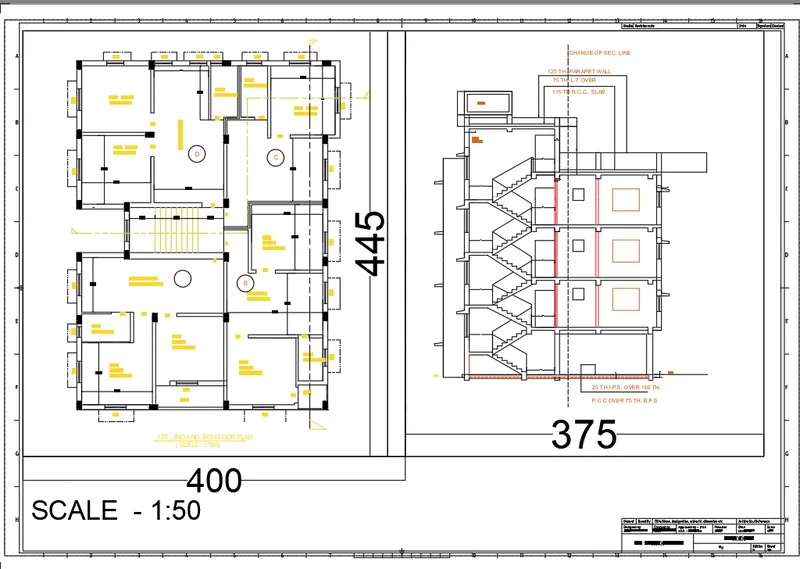

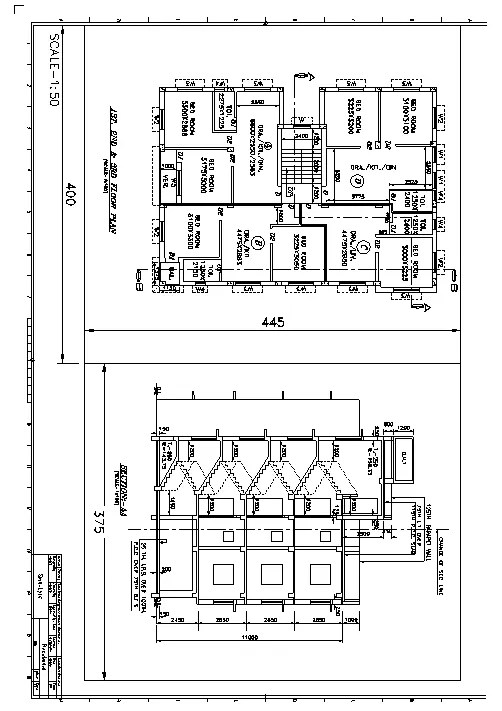

  • Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

  •

  • PROCEDURE :
  • click on autocad application
  • type the QNEW command
  • select setting METRIC
  • click on ADVANCED SETUP
  • unit : DECIMAL precision 0
  • angle : DECIMAL DEGREE
  • angle measure : EAST
  • then ,
  • angle direction : COUNTER CLOCKWISE
  • PRESS : NEXT
  • set area :
  • length : 100
  • width : 100
  • press : Finished
  • command : UN (for units )
  • set DECIMAL precision 00
  • unit : mm
  • press : enter
  • command : Z (for zoom )
  • type a for all
  • press : ENTER
  • THE PLAN IS ALRADY DRAWN IN CHALLENGE NO 7
  • THE FILE IS ALRADY SAVED IN AUTOCAD 2021 SOFTWARE
  • COMMAND USED TO DRAW THE PLAN GIVEN BELOW :
  • START : QSTART
  • UNITS : UN
  • LIMETS : LIMMAX
  • ZOOM : Z
  • OFSET : O
  • LINE : L
  • RECTANGLE : REC
  • TRIAM : TR
  • DIMENSION : DIMLIN , DIMCONTINUE
  • TEXT : MTEXT
  • command : QOPEN
  • select the file
  • press : enter

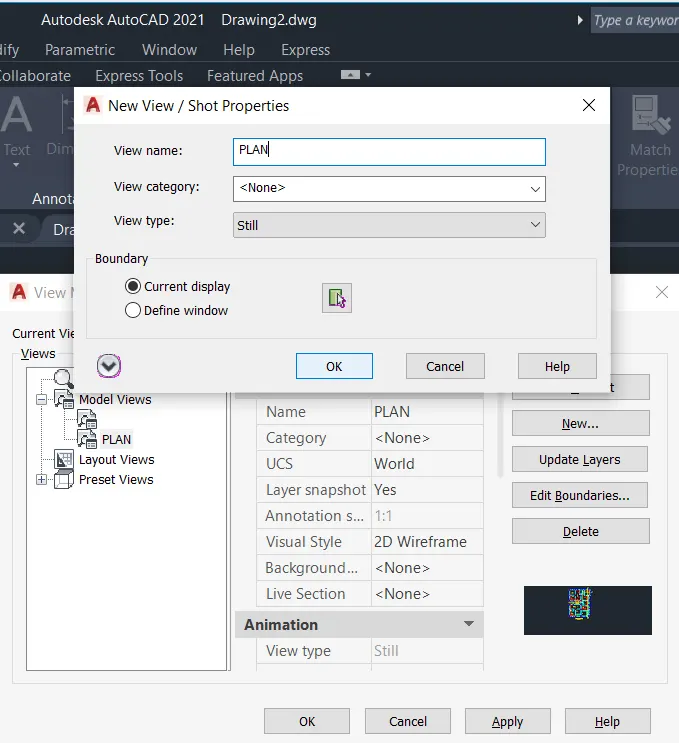

  • command : V (for view )
  • then give the name o view as PLAN
  • select the window
  • press : enter
  •
  • again ,
  • command : V (for view )
  • give the view name as a SECTION AA
  • Select the window
  • press : enter
  • command : LAYOUT
  • type N (for new )
  • give the name of layout as a PLAN
  • press : enter
  • right click over PLAN layout

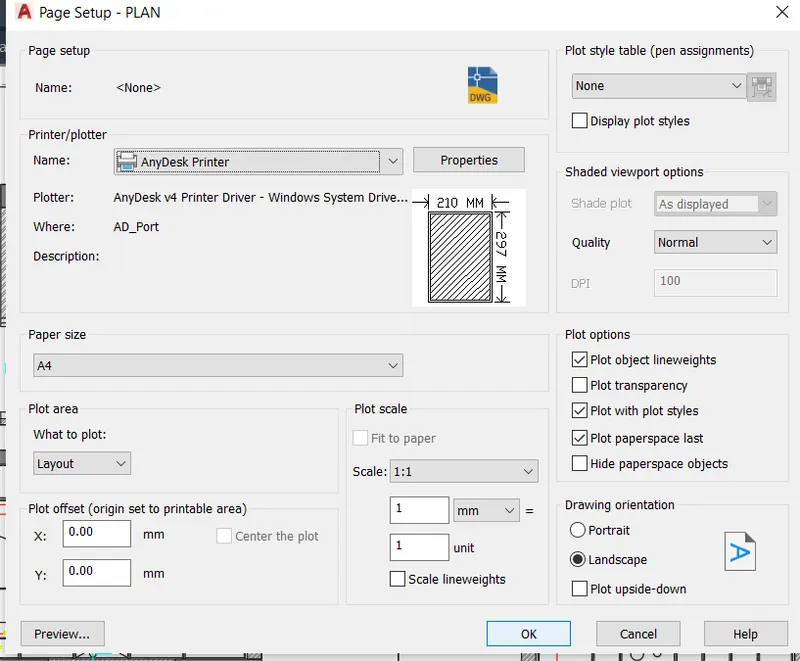

  • click on page setup manager
  • then , click on modify
  • select the name of printer as a
  • DWG TO PDF . pc3
  • then  click on paper size
  • give the paper size as a
  • ISO A1 (841.00 X 594.00 MM )
  • Press : OK
  • again right click oven layout name as a PLAN

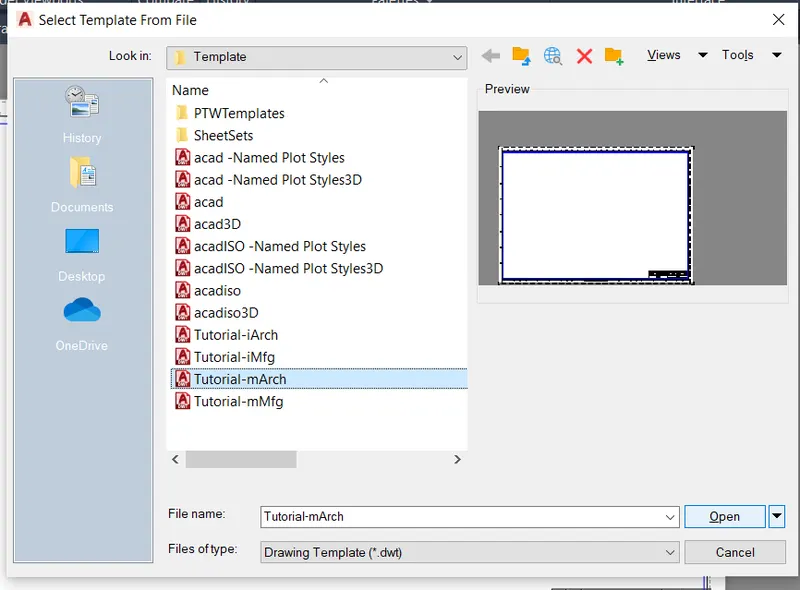

  • click on TEMPLETS
  • select the templets name as Tutorial-mArch
  • press  : ok
  •

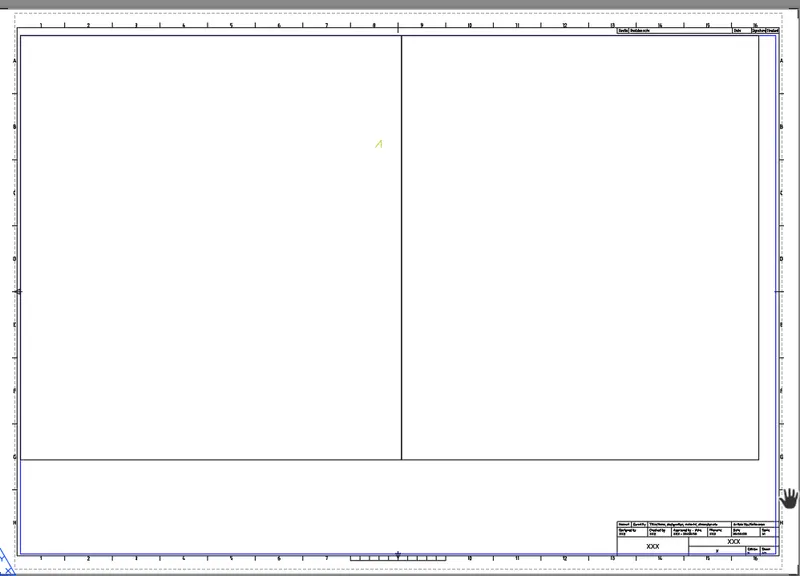

  • command : REC (for rectangle )
  • select the start point
  • click on DIMENSION
  • Length : 400
  • width : 445
  • again ,
  • coomand : REC (for rectangle )
  • give the start point
  • click on DIMENSION
  • length : 375
  • width : 445
  • press : ENTER
  •
  • Take a command
  • command : MS and
  • command : MV
  • select the first rectangle
  • press : enter
  • command : V (for view )
  • click on PLAN Viewport  set it current
  • press : OK
  • again
  • command : V (for view )
  • select the view port as SECTION AA
  • Set it current
  • select the scale 1: 50
  • press : enter
  • command : PAN
  • alrady MS command is active
  • select the pan command and pan the object in proper way in both two viewport
  • then ,
  • select the both viewport
  • go to the properties
  • and locked it
  • command : PS
  • press : enter
  • Right click over layout
  • page setup manager
  • click on MODIFY
  • click on the plot style table
  • slect the monochrome.ctb
  • click on display plot style
  • then click on ok
  • command : ATTEDIT
  • press  : enetr
  • select the object as a templet
  • and edit attributes
  • press : enter
  • Command  : DIMLIN
  • Give the dimension
  • command : MTEXT
  • write the requried text
  • press : ENETR
  • RESULTS :
  • COMMAND USED :
  • START : QNEW
  • UNITS : UN
  • LIMETS : LIMMAX
  • ZOOM : Z
  • MV
  • PS
  • VIEW : V
  • ATTEDIT
  • RECTANGLE : REC
  • DIMENSION DMLIN
  • TEXT : MTEXT
  •
  • PROBLEM NO : 2
  • AIM :
  •  Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
  •
  • PROCEDURE :
  • click on autocad application
  • type the QNEW command
  • select setting METRIC
  • click on ADVANCED SETUP
  • unit : DECIMAL precision 0
  • angle : DECIMAL DEGREE
  • angle measure : EAST
  • then ,
  • angle direction : COUNTER CLOCKWISE
  • PRESS : NEXT
  • set area :
  • length : 100
  • width : 100
  • press : Finished
  • command : UN (for units )
  • set DECIMAL precision 00
  • unit : mm
  • press : enter
  • command : Z (for zoom )
  • type a for all
  • press : ENTER
  • PROCEDURE OF VIEWPORT
  • command : QPEN
  • selct the file
  • and open it
  • command : layout
  • give the name of layout as a KITCHEN LAYOUT
  • press : ENTER
  • right click over kitchen layout
  • click on PAGE SETUP
  • CLICK ON MODIFY
  • give the printer name
  • also give the size of paper
  • all shown below
  •
  • command : LAYOUT
  • TYPE 4
  • PRESS : enter

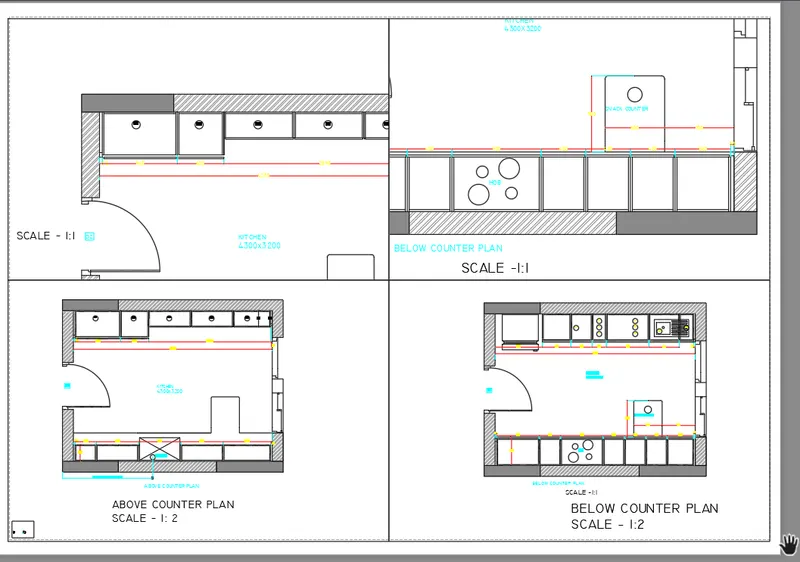

  • the sheet is divided in 4 parts
  • press : enetr
  • command : v (for view )
  • give the view name as ABOVE KITCHEN LAYOUT
  • select the widow
  • click on Ok
  • again command : V (FOR VIEW )
  • give the name of view as BELOW KITCHEN LAYOUT
  • press : ENTER
  • go to the layout
  • command : MV
  • click on first rectangle
  • command : MS
  • by using zoom  and pan command placed plan in rectangle
  • then click on another rectangle
  • placed the object in proper way
  • in this way placed all object
  • then , select the all view port
  • to to the properties
  • and locked it
  • command : MTEXT
  • and write the text
  • press : enter

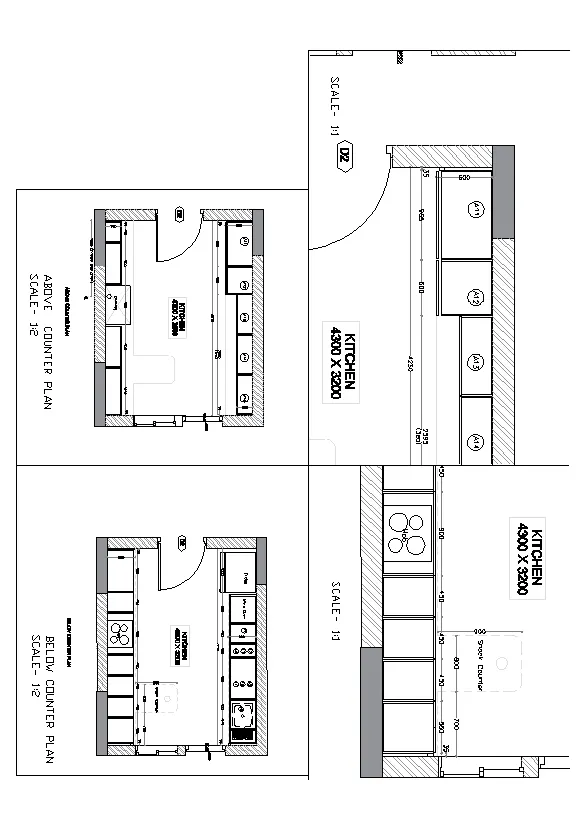

  • RESULTS :
  • COMMAND USED
  • VIEW : V
  • PEGESETUP
  • MS
  • PS
  • TEXT : MTEXT
  •
  • PROBLEM : 3
  • AIM :

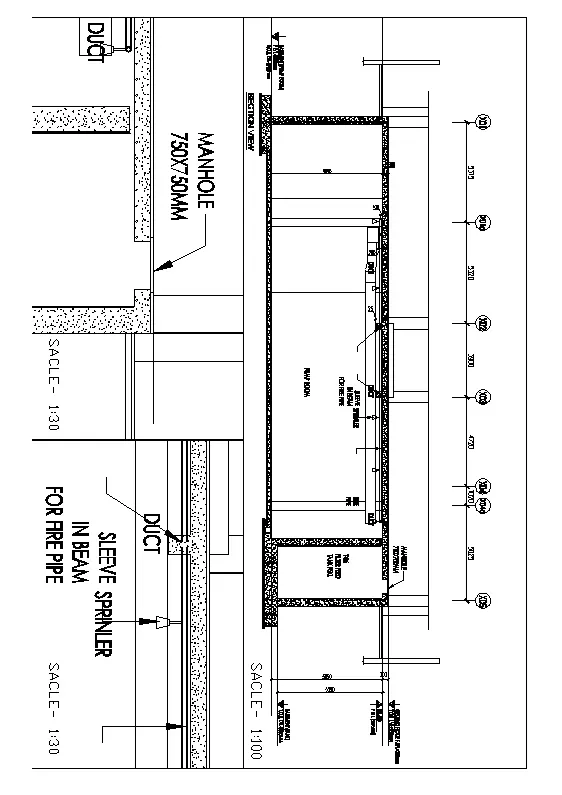

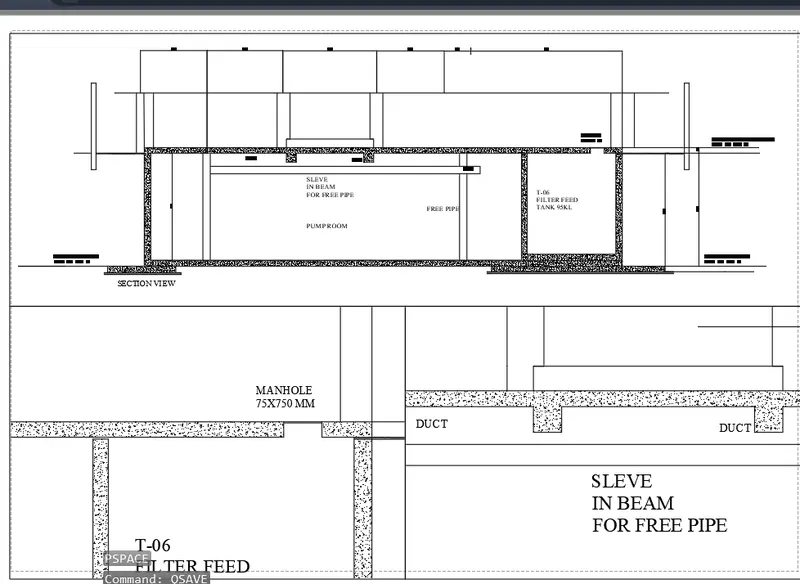

  • . Create a layout of the section created in Challenges 9.

    Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

  •
  • PROCEDURE :
  • click on autocad application
  • type the QNEW command
  • select setting METRIC
  • click on ADVANCED SETUP
  • unit : DECIMAL precision 0
  • angle : DECIMAL DEGREE
  • angle measure : EAST
  • then ,
  • angle direction : COUNTER CLOCKWISE
  • PRESS : NEXT
  • set area :
  • length : 100
  • width : 100
  • press : Finished
  • command : UN (for units )
  • set DECIMAL precision 00
  • unit : mm
  • press : enter
  • command : Z (for zoom )
  • type a for all
  • press : ENTER
  • PROCEDURE OF VIEW PORT
  • THE PLAN IS ALRADY DRAWN IN CHALLENGE NO 9
  • AND FILE IS ALRADY SAVED IN AUTOCAD SOFTWARE
  • command : QNEW
  • select the file
  • and open it
  • command : layout
  • type N (for new )
  • give the name of layout is industial building
  • press : enter
  • right click on layout
  • click on page setup
  • give the name of printer
  • also select the page type as shown below
  •

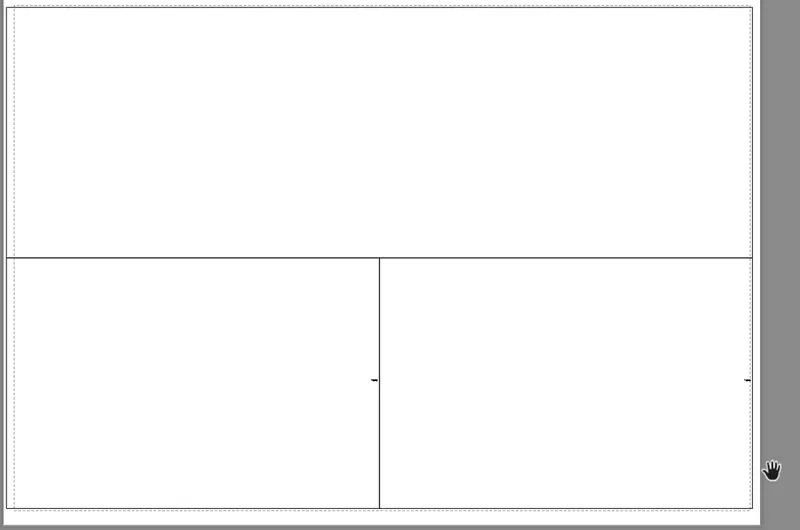

  • command : MV
  • type 3
  • then type A (for above )
  • press : enter
  •
  • command : v  (for view )
  • click on NEW
  • give the view port name as ABOVE THE KITCHEN LAYOUT
  • PRESS : ok
  • again this process
  • give the name as BELOW THE KITCHEN LAYOUT
  • PRESS : OK
  • go to the layout
  • command : MV
  • select the rectangle
  • command : MS
  • place the object by using zoom and pan command
  • again click on another rectangle
  • and placed the object
  • again third rectangle
  • and placed the object in proper way
  • command : PS
  • PRESS : ENTER
  • Select the all view port
  • go to the properties
  • and locked it
  • press : ENTER
  • RESULTS :
  • COMMAND USED :
  • VIEW : V
  • OPEN : QOPEN
  • PAGE SETUP
  • PAN : P
  • ZOOM : Z
