Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

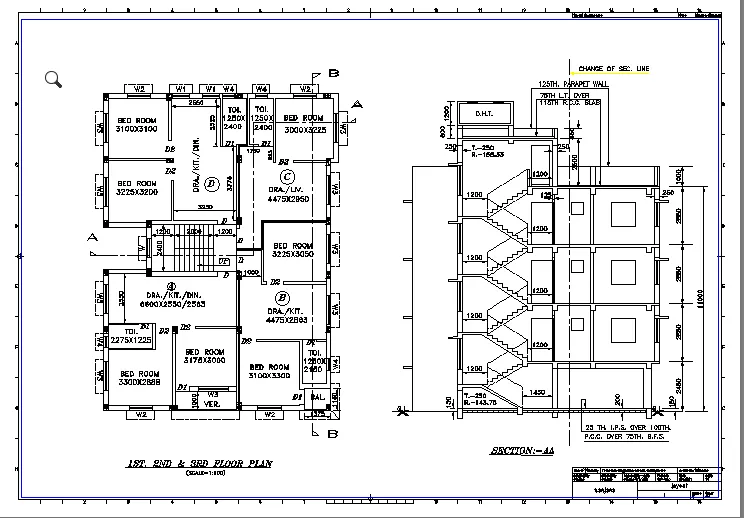

1.Create a layout of the plan and section a of the project in challenges 7,using the template tutorial-
mArch.dwt in a scale as given in the figure .use the MV command to create the viewport of the size as shown in figure. Also ,use ATTEDIT Command to edit the information in the title block.use A1 size for the layout .take a plot.
AIM:
To create a layout of the plan and section A of the project in the challenges in 7.
PROCEDURE:
- In the command prompt type units >mm>decimal
- In the command prompt type limax >100,100
- In the command prompt type limits>0,0
- In the command prompt type layout >template >tutorial arch.m
- In the command prompt type Ms to specify the centre of the plot

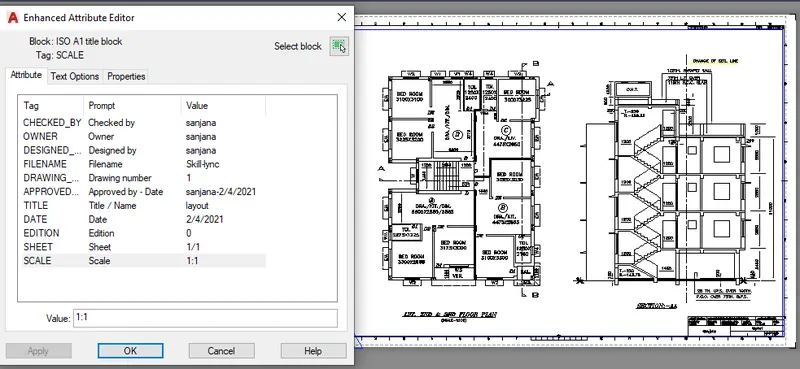

- Then click on the title box to edit the title
- In the command prompt type Mv to add the view
- In the command pprompt type ctrl+p to plot it

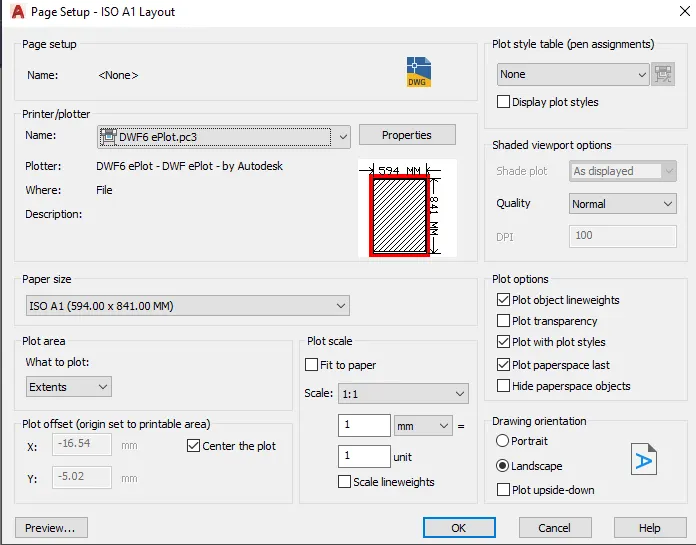

- In the command prompt type pagesetup

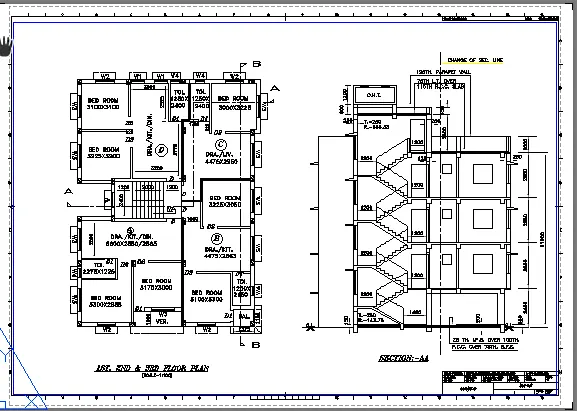

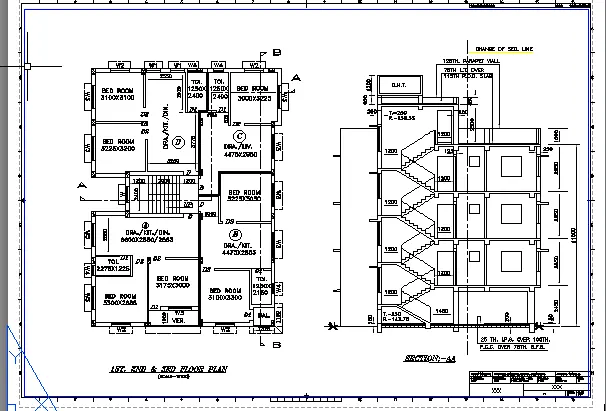

FINAL RESULT :
2.Create a layout of the kitchen drawn in the challenge 9 as shown in figure. use the scale as show in the
figure.use A4 size page for the layout.take a plot.
AIM:
To create layout of the kitchen draw in the callenge 9 as shown in the figure. use the scale as shown in the figure. use A4 size page for the layout.take a plot
PROCEDURE:
- In the command prompt type ps and ms to adjust the view

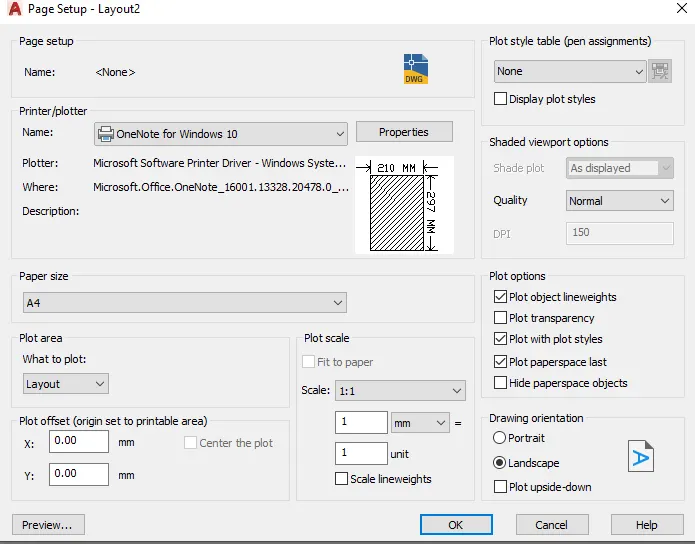

- In the command prompt type pagesetup to make the size to A4 change
- Click on the arrow mark to change the view
FINAL RESULT:

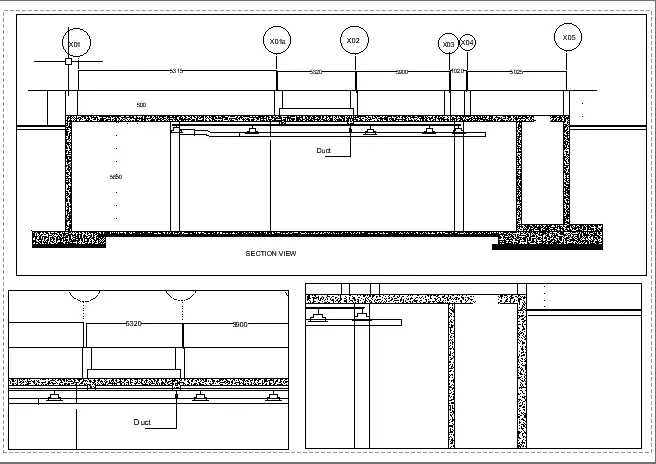

3.Create a layout of the section created in challenges 9. use scale as mentioned in the figure. use Mv command create mutiple viewports. Take a plot.
AIM:
To create layout of the section created in challenges 9
PROCEDURE:
- Open the file in which challenge 9 is created
- Go to layout in the command prompt type MV

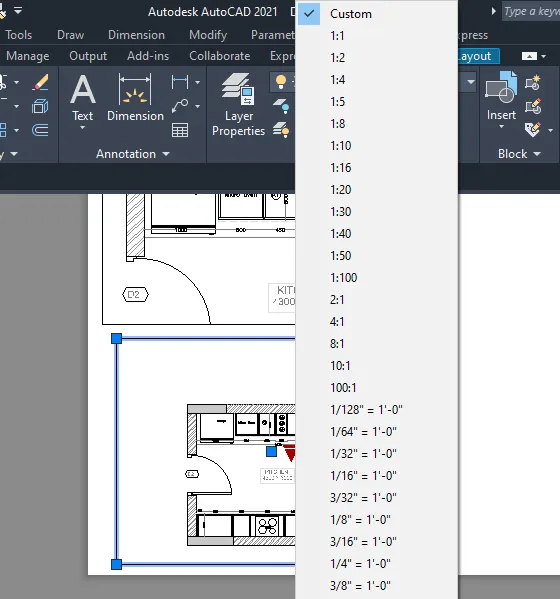

- Change the scale accordingly scale
- In the command prompt type using MS and ps adjust the view accordingly.
RESULT:
