Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM:-

create a layout of the plan of project created in the challange 7 using the template m.arch.dwt in a scale given in the figure use of attedit command to change the details of the tilte blocks.

Procedure-:

Open Autocad file of the Challange 7 i have completed

Command Layout than template selection

As. prescribed M.arch dwt selected and than open

erase the default viewport

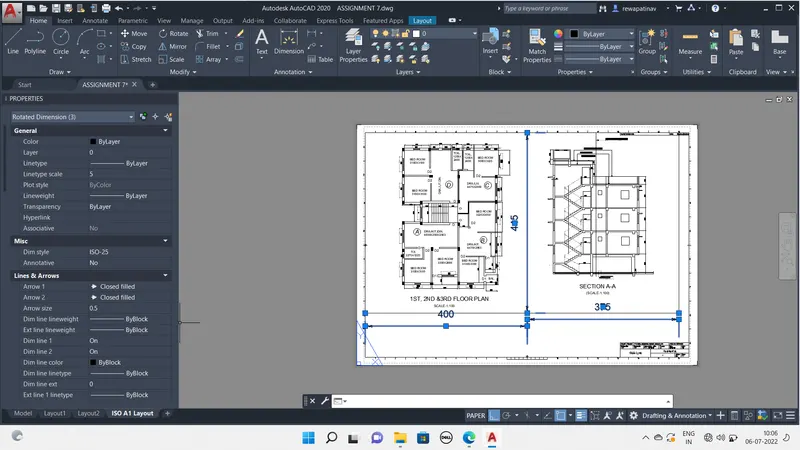

Command MV and drawn two viewport of size 400x445

Than Second as 375x445

Command MS than Set the scale in annotion is 1:100e

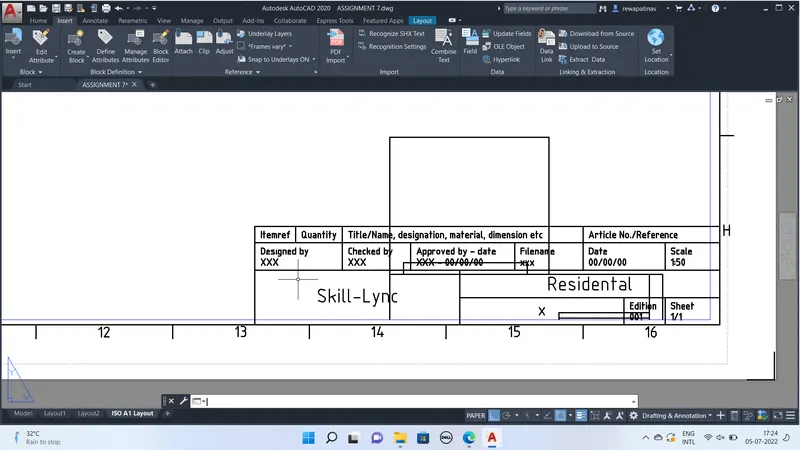

ATTREDIT

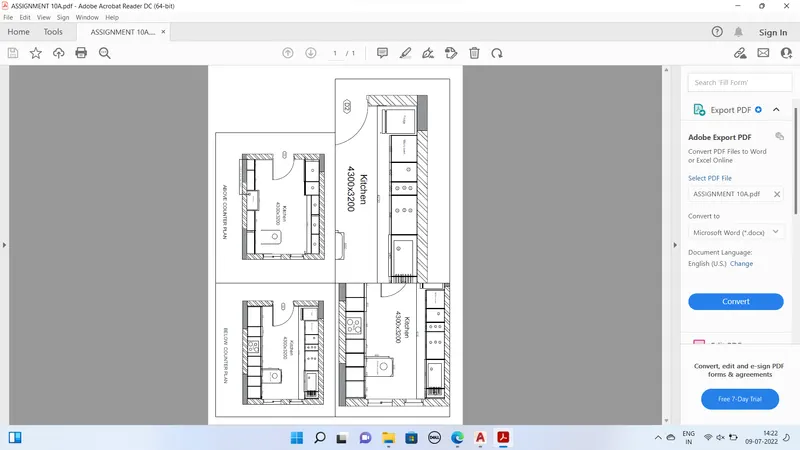

AIM-: Create the layout of Kichen drawnn in challange 9 using the viewport of 4nos

Created Four equal viewport using viewport command and selection on the dialouge box opened

Than Paper space PS than viewport of bottom is resized as per the suitability

MS to set up the views as per the scale given and plot the paper of A4 Size

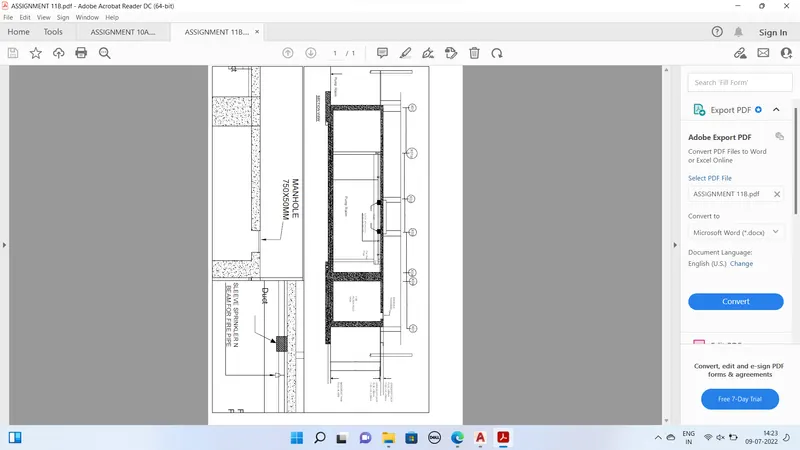

PDF file of plotted drawing is attached
