Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

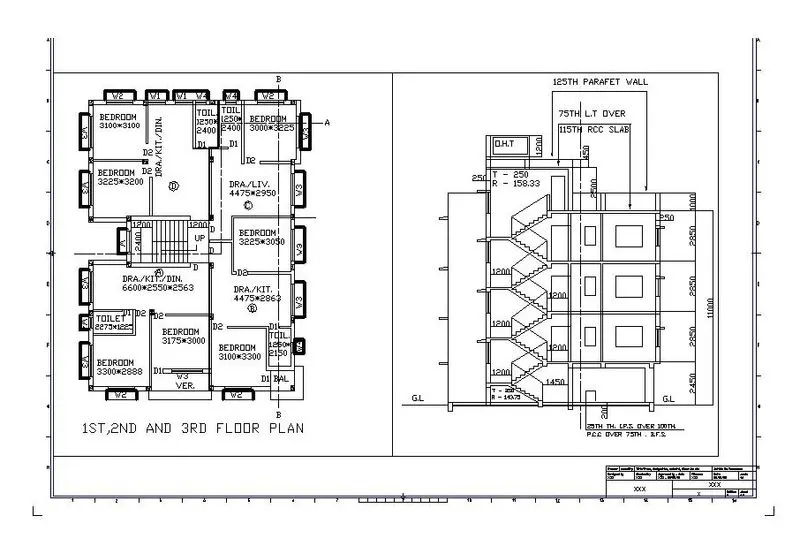

AIM - TO CREATE LAYOUT OF PLAN AND SECTION OF THE PROJECT IN CHALLENGE 7 AND CREATE THE LAYOUT USING THE M-ARCH TEMPLATE USING THE GIVEN DIMENSIONS AND PROPER SCALE.
COMMAND USED -
- View
- Layout
- Multiple view
- Model space
- Paper space
- Scale
- Xref
- Lock
- Pan
- plot
Procedure -
- Open the drawing of plan and section which is already drawn in the challenge no. 7.
- In the left corner of the autocad there is the tab named model.In the right side of the model tab there is a tab named layout
- Left click on the layout and create new layout from the option FROM TEMPLATE and select M arch template select ISO A1 layout.
- Then open the new layout created.
- Rename the layout as plan and section.
- Now enter command page setup manager.
- A new window of page setup will be opened.
- Modify the layout.
- Select printer as DWG to PDF.
- Select the paper size as A1.And click OK.
- Now enter the command as MS in the command box and draw rectangles of 440*445 and another of 375*445.
- Now enter the command MV and select both the rectangles.
- Set the scale as 1:50 for the drawing.
RESULT -

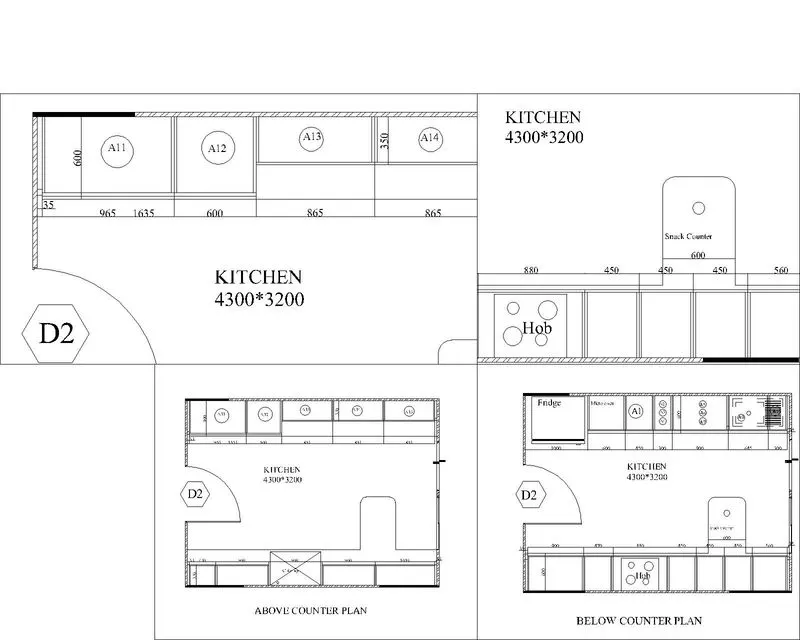

- AIM - TO CREATE A KITCHEN LAYOUT DRAWN IN CHALLENGE 9.
- PROCEDURE -
- Open the drawing of kitchen which is already drawn in the challenge no. 9.
- In the left corner of the autocad there is the tab named model.In the right side of the model tab there is a tab named layout
- Left click on the layout and create new layout.
- Then open the new layout created.
- Rename the layout as kitchen layout.
- Now enter command page setup manager.
- A new window of page setup will be opened.
- Modify the layout.
- Select printer as DWG to PDF.
- Select the paper size as A4.And click OK.
- Now enter the command as MS in the command box and draw rectangles of 170*97,115*97,115*98 and 115*98.
- Using the MS command zoom the views as desired of below and above the counter plan.
RESULT -

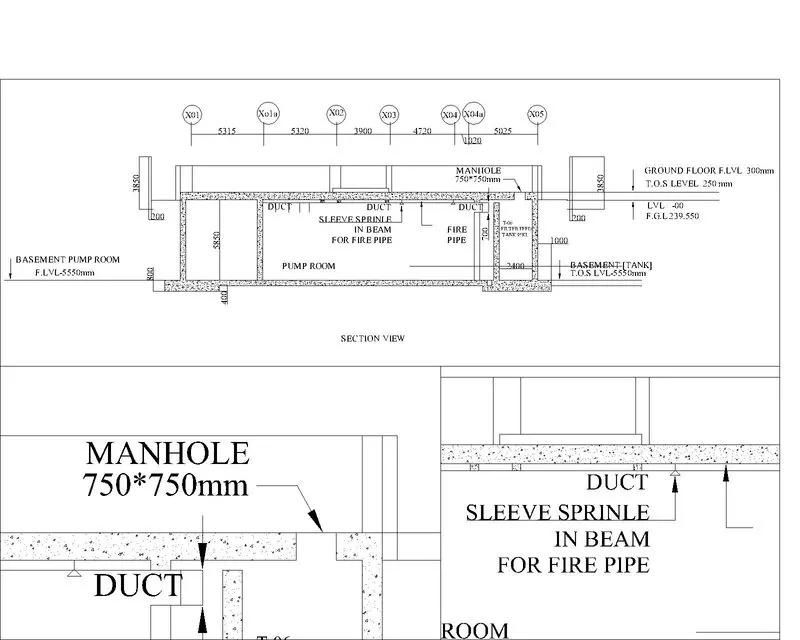

- AIM - TO CREATE A LAYOUT OF SECTION CREATED IN CHALLENGE 9 AND CREATING MULTIPLE VIEWPORTS.
- PROCEDURE -
- Open the drawing of Industrial section which is already drawn in the challenge no. 9.
- In the left corner of the autocad there is the tab named model.In the right side of the model tab there is a tab named layout
- Left click on the layout and create new layout.
- Then open the new layout created.
- Rename the layout as section layout.
- Now enter command page setup manager.
- A new window of page setup will be opened.
- Modify the layout.
- Select printer as DWG to PDF.
- Select the paper size as A4.And click OK.
- Now enter the command as MS in the command box and draw rectangles of 275*101,155*97 and 120*97.
- Using the MS command zoom the views as desired of below and above the counter plan.
RESULT -
