Creation of geometries by Coordinate system methods using AutoCad

SSushma Priya14 Sept 2021

P-1:

AIM: To draw P-1 using autocad

PROCEDURE:

  1. ABSOLUTE COORDINATE SYSTEM:
    1. Goto App option
    2. Select Imperial
    3. Command : Line
    4. LINE specify first point :2,1
    5. LINE specify next point or undo : 2,7
    6. LINE specify next point or close undo : 8,7
    7. LINE specify next point or close undo : 8,6
    8. LINE specify next point or close undo : 3,6
    9. LINE specify next point or close undo : 3,2
    10. LINE specify next point or close undo : 8,2
    11. LINE specify next point or close undo : 8,1
    12. And then close
  2. RECTANGULAR COORDNATE SYSTEM RELATIVE:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : @0,6
    4. LINE specify next point or close undo : @6,0
    5. LINE specify next point or close undo : @0,-1
    6. LINE specify next point or close undo : @-5,0
    7. LINE specify next point or close undo : @0,-2
    8. LINE specify next point or close undo : @5,0
    9. LINE specify next point or close undo : @0,-1
    10. And then close
  3. RELATIVE POLAR COORDINATES SYSTEM:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : @6<90
    4. LINE specify next point or close undo : @6<0
    5. LINE specify next point or close undo : @1<270
    6. LINE specify next point or close undo : @5<180
    7. LINE specify next point or close undo : @4<270
    8. LINE specify next point or close undo : @5<0
    9. LINE specify next point or close undo : @1<270
    10. And then close
  4. DIRECT DISTANCE ENTRY:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : position the cursor in the upward direction and enter 6
    4. LINE specify next point or close undo : position the cursor in the right hand side direction(RHS) and enter 6
    5. LINE specify next point or close undo : position the cursor In the downward direction and enter 1
    6. LINE specify next point or close undo : position the cursor in the left hand side(LHS) direction and enter 5
    7. LINE specify next point or close undo : position the cursor in the downward direction and enter 4
    8. LINE specify next point or close undo : position the cursor in the RHS direction and enter 5
    9. LINE specify next point or close undo : position the cursor in the downward direction and enter 1
    10. LINE specify next point or close undo : position the cursor in the LHS direction and enter 6

RESULT:

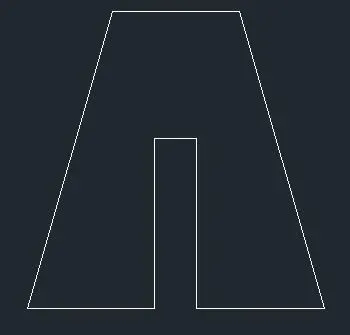

P-2:

AIM: To draw P-2 using autocad

PROCEDURE:

  1. ABSOLUTE COORDINATE SYSTEM:
    1. Goto App option
    2. Select Imperial
    3. Command : Line
    4. LINE specify first point :2,1
    5. LINE specify next point or undo : 4,8
    6. LINE specify next point or close undo : 7,8
    7. LINE specify next point or close undo : 9,1
    8. LINE specify next point or close undo : 6,1
    9. LINE specify next point or close undo : 6,5
    10. LINE specify next point or close undo : 5,5
    11. LINE specify next point or close undo : 5,1
    12. And then close
  2. RECTANGULAR COORDNATE SYSTEM RELATIVE:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : @2,7
    4. LINE specify next point or close undo : @3,0
    5. LINE specify next point or close undo : @2,-7
    6. LINE specify next point or close undo : @-3,0
    7. LINE specify next point or close undo : @0,4
    8. LINE specify next point or close undo : @-1,0
    9. LINE specify next point or close undo : @0,-4
    10. And then close
  3. RELATIVE POLAR COORDINATES SYSTEM:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : @8.06<60.28
    4. LINE specify next point or close undo : @3<0
    5. LINE specify next point or close undo : @8.06<119.72
    6. LINE specify next point or close undo : @3<180
    7. LINE specify next point or close undo : @4<90
    8. LINE specify next point or close undo : @1<180
    9. LINE specify next point or close undo : @4<270
    10. And then close
  4. DIRECT DISTANCE ENTRY:
    1. Command : Line
    2. LINE specify first point :2,1
    3. LINE specify next point or undo : position the cursor at angle 60.280 and enter 8.06
    4. LINE specify next point or close undo : position the right hand side direction(RHS) and enter 3
    5. LINE specify next point or close undo : position the cursor at angle 299.72and enter 8.06
    6. LINE specify next point or close undo : position the cursor in the left hand side(LHS) direction and enter 3
    7. LINE specify next point or close undo : position the cursor in the upward direction and enter 4
    8. LINE specify next point or close undo : position the cursor in the LHS direction and enter 1
    9. LINE specify next point or close undo : position the cursor in the downward direction and enter 4
    10. LINE specify next point or close undo : position the cursor in the LHS directon and enter 3

RESULT:

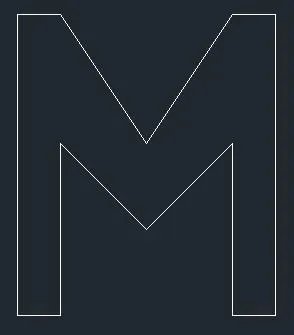

P-4:

AIM: To draw p-4 using autocad

PROCEDURE:

ABSOLUTE COORDINATE SYSTEM:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 2,1
  • LINE specify next point or undo : 2,8
  • LINE specify next point or close undo : 3,8
  • LINE specify next point or close undo : 5,5
  • LINE specify next point or close undo : 7,8
  • LINE specify next point or close undo : 8,8
  • LINE specify next point or close undo : 8,1
  • LINE specify next point or close undo : 7,1
  • LINE specify next point or close undo : 7,5
  • LINE specify next point or close undo : 5,3
  • LINE specify next point or close undo : 3,5
  • LINE specify next point or close undo : 3,1
  • And then click close

RESULT:



P-5:

AIM: To draw p-5 using autocad

PROCEDURE:

DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 2,1
  • LINE specify next point or undo : position the cursor in the upward direction and enter 8
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 7
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 8
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 4
  • LINE specify next point or close undo : position the cursor in the upward direction ad enter 1
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 3
  • LINE specify next point or close undo : position the cursor in the upward direction and enter 6
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 5
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 7
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 1

RESULT:



P-7:

AIM: To draw p-7 using autocad

PROCEDURE:

DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 2,1
  • LINE specify next point or undo : position the cursor in the upward direction and enter 6
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 8
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 6
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 8
  • Command : Line
  • LINE specify first point : 3,2
  • LINE specify next point or undo : position the cursor in the upward direction and enter 3
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 3
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2
  • Command : Line
  • LINE specify first point : 6,2
  • LINE specify next point or undo : position the cursor in the upward direction and enter 3
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 2
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 3
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2

RESULT:

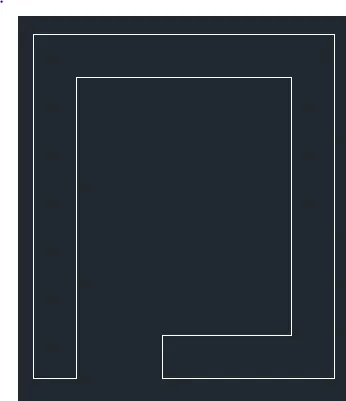

P-8:

AIM: To draw p-8 using autocad

PROCEDURE:

DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 0,0
  • LINE specify next point or undo : position the cursor In the upward direction and enter 2
  • LINE specify next point or close undo : position the cursor In the RHS direction and enter 4
  • LINE specify next point or close undo : position the cursor In the upward direction and enter 4
  • LINE specify next point or close undo : position the cursor In the LHS direction and enter 3
  • LINE specify next point or close undo : position the cursor In the upward direction and enter 2
  • LINE specify next point or close undo : position the cursor In the RHS direction and enter 8
  • LINE specify next point or close undo : position the cursor In the downward direction and enter 2
  • LINE specify next point or close undo : position the cursor In the LHS direction and enter 3
  • LINE specify next point or close undo : position the cursor In the downward direction and enter 4
  • LINE specify next point or close undo : position the cursor In the RHS direction and enter 4
  • LINE specify next point or close undo : position the cursor In the downward direction and enter 2
  • LINE specify next point or close undo : position the cursor In the LHS direction and enter 10

RESULT:

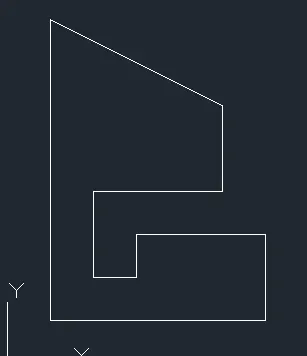

P-8:

AIM: To draw p-8 using autocad

PROCEDURE:

ABSOLUTE COORDINATES SYSTEM:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 1,1
  • LINE specify next point or undo : 1,8
  • LINE specify next point or close undo : 5,6
  • LINE specify next point or close undo : 5,4
  • LINE specify next point or close undo : 2,4
  • LINE specify next point or close undo : 2,2
  • LINE specify next point or close undo : 3,2
  • LINE specify next point or close undo : 3,3
  • LINE specify next point or close undo : 6,3
  • LINE specify next point or close undo : 6,1
  • Click close

RESULT:

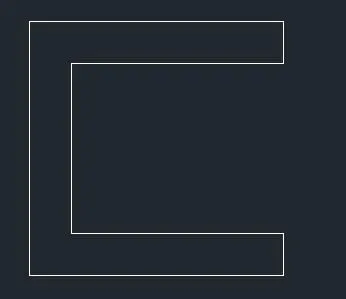

P-10:

AIM: To draw p-10 using autocad

PROCEDURE:

DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 1,1
  • LINE specify next point or undo : position the cursor in the upward direction and enter 7
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 5
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 4
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 3
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 3
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2
  • Command : Line
  • LINE specify first point : 2,5
  • LINE specify next point or undo : position the cursor in the upward direction and enter 2
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 3
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 2
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 3

RESULT:

PROFILE WOOD:

AIM: To draw profile wood using autocad

PROCEDURE:

DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 0,0
  • LINE specify next point or undo : position the cursor in the upward direction and enter 1
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 2
  • LINE specify next point or close undo : position the cursor in the upward direction and enter 5
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2
  • LINE specify next point or close undo : position the cursor at an angle of 30.9640 and enter 5.831
  • LINE specify next point or close undo : position the cursor at an angle of 118.0720 and enter 5.831
  • LINE specify next point or close undo : position the cursor at an angle of 120.964 and enter 1
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 2
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 4
  • LINE specify next point or close undo : position the cursor in the RHS direction and enter 2
  • LINE specify next point or close undo : position the cursor in the downward direction and enter 1
  • LINE specify next point or close undo : position the cursor in the LHS direction and enter 10

RESULT:

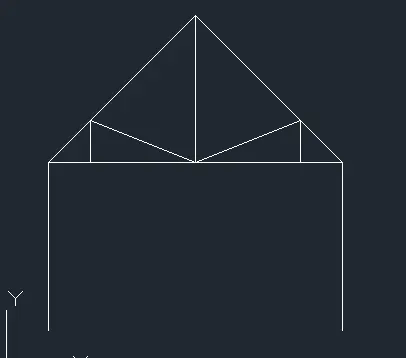

QUEEN POST TRUSS:

AIM: To draw queen post truss using autocad

PROCEDURE:

ABSOLUTE COORDINATE SYSTEM:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 1,1
  • LINE specify next point or undo : 1,5
  • LINE specify next point or close undo : 4.5,8.5
  • LINE specify next point or close undo : 8,5
  • LINE specify next point or close undo : 4.5,5
  • Click close
  • Command : Line
  • LINE specify first point : 7,5
  • LINE specify next point or undo : 7,6
  • LINE specify next point or close undo : 4.5,5
  • LINE specify next point or close undo : 2,6
  • LINE specify next point or close undo : 2,5
  • And click close
  • Command : Line
  • LINE specify first point : 1,5
  • LINE specify next point or undo : 8,5
  • LINE specify next point or close undo : 8,1
  • And click close

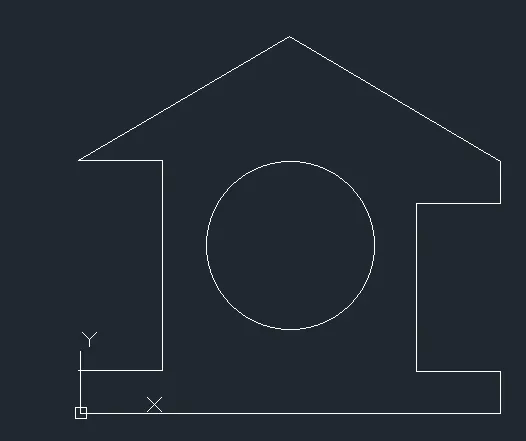

RESULT:

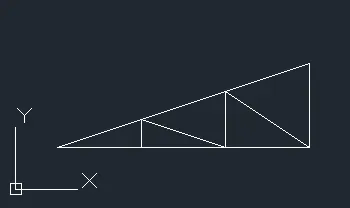

MONO PITCH:

AIM: To draw mono pitch using autocad

PROCEDURE:

ABSOLUTE COORDINATE SYSTEM AND DIRECT DISTANCE ENTRY:

  • Goto App option
  • Select New
  • Select Imperial
  • Command : Line
  • LINE specify first point : 1,1
  • LINE specify next point or undo : position the cursor in the RHS direction and enter 6
  • LINE specify next point or close undo : position the cursor towards 1,1 point and click close
  • Command : line
  • LINE specify first point : 3,1
  • LINE specify next point or undo : position the cursor in the upward direction and enter 0.667
  • LINE specify next point or close undo : 5,1
  • LINE specify next point or close undo : position the cursor in the upward direction and enter 1.333
  • LINE specify next point or close undo : 7,1
  • LINE specify next point or close undo : position the cursor towards upward and click close

RESULT:
