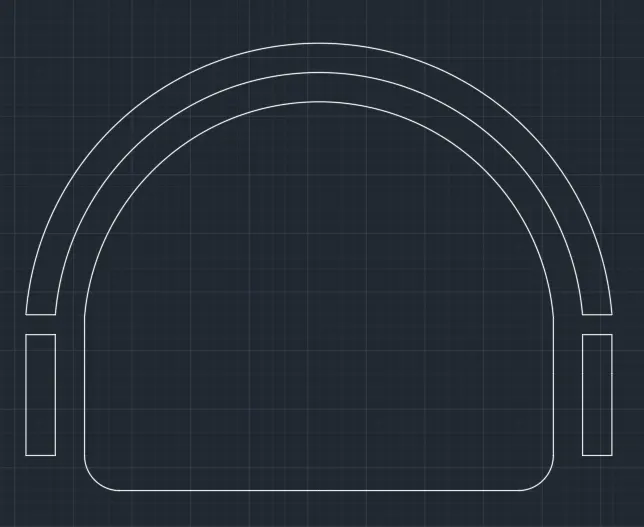

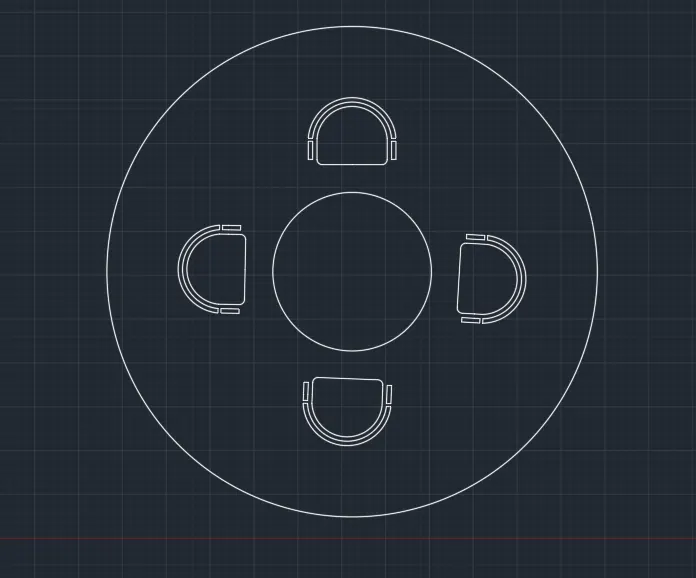

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

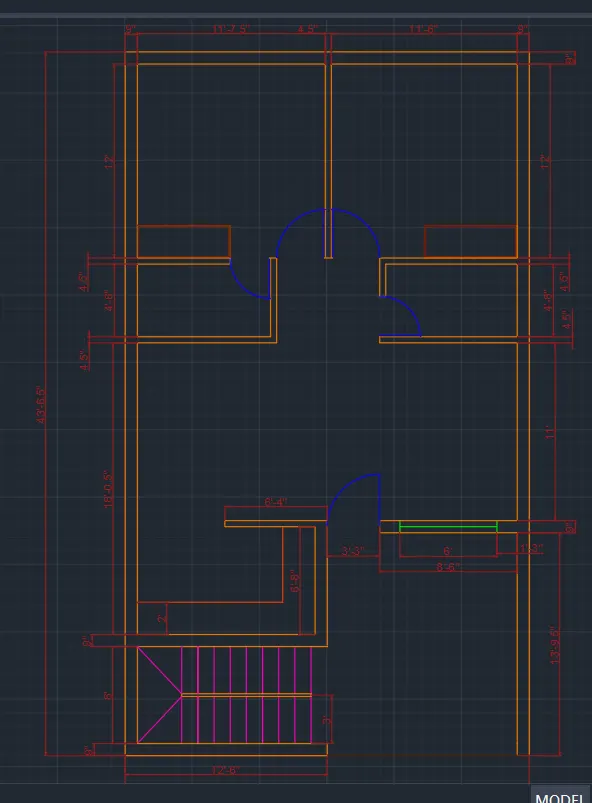

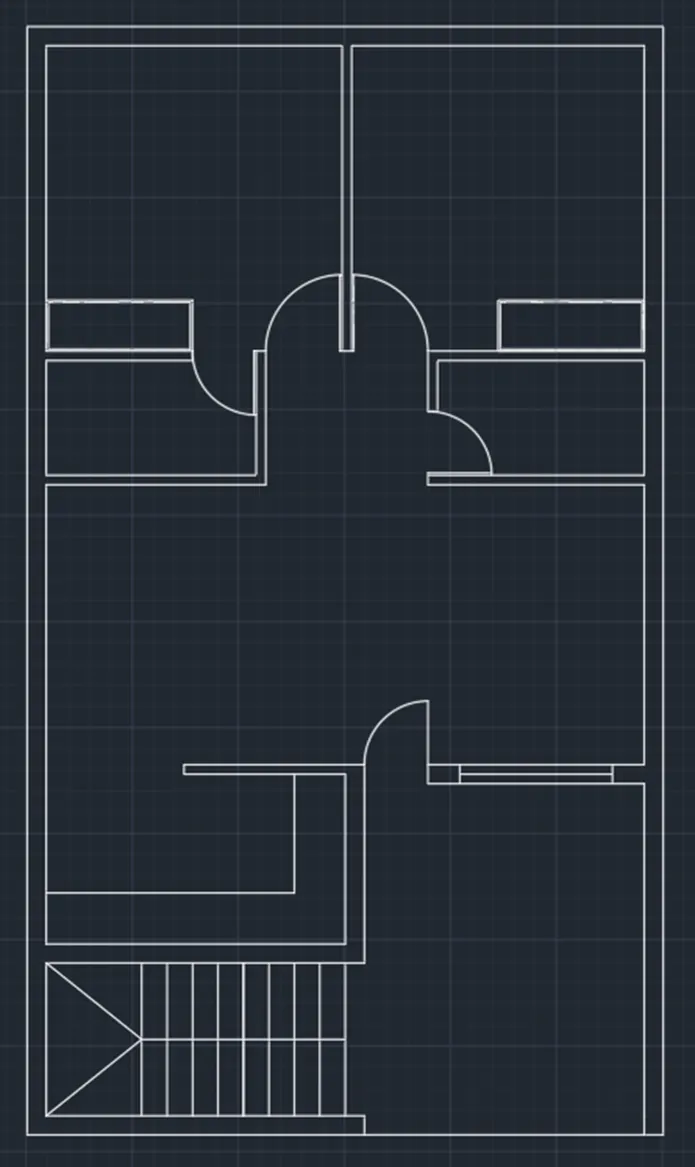

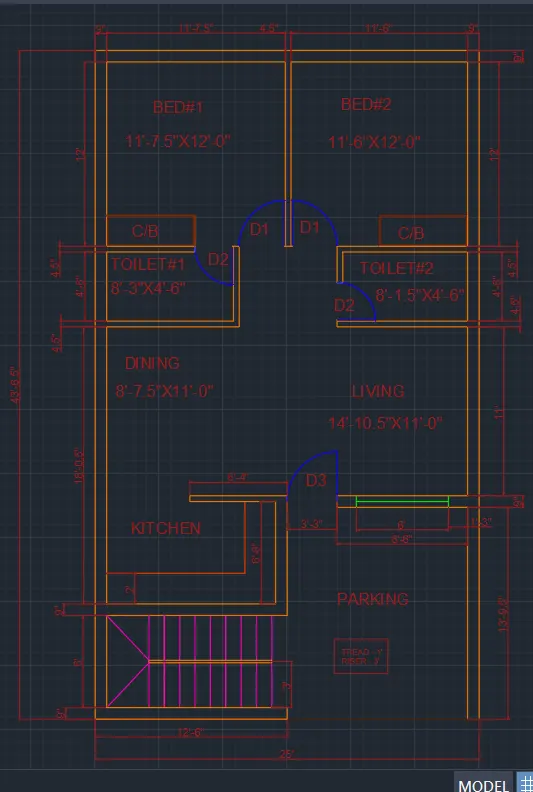

RESIDENCE PLAN:

AIM: To draw the residence plan using autocad

PROCEDURE:

To draw the exterior wall:

• Command : units
• Select the type to Engineering option ,precision to 0’.00’ and Insertion to inches
• Command : limmax
• Enter the value 100’,100’
• Command : zoom ,and enter ‘e’
• Command : limits
• Enter the value : 70’,70’
• Command : zoom ,and enter ‘e’

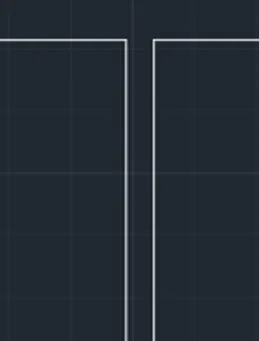

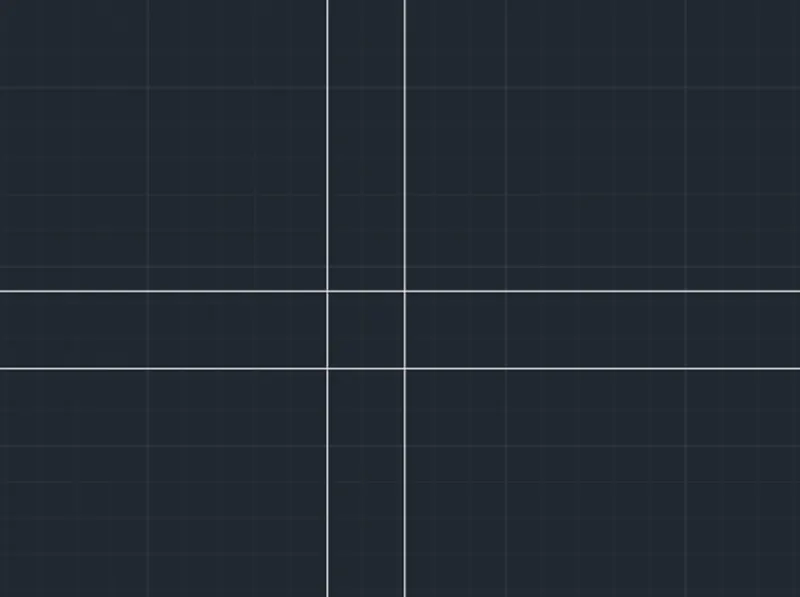

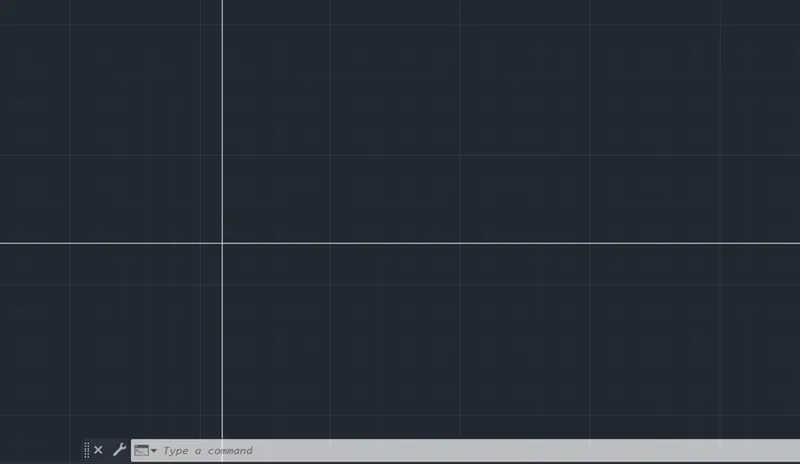

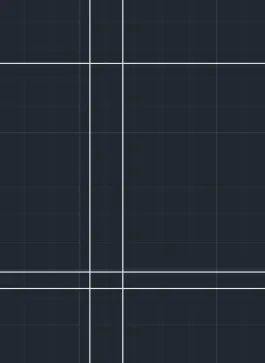

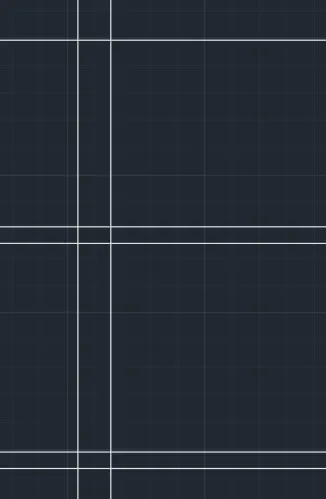

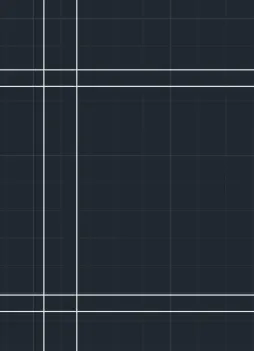

• Command : Xline
• Select option to vertical and click on the screen
• Command : Xline
• Select option to horizontal and click on the screen
•

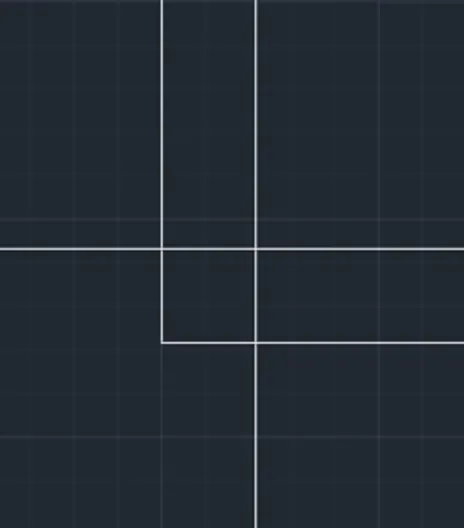

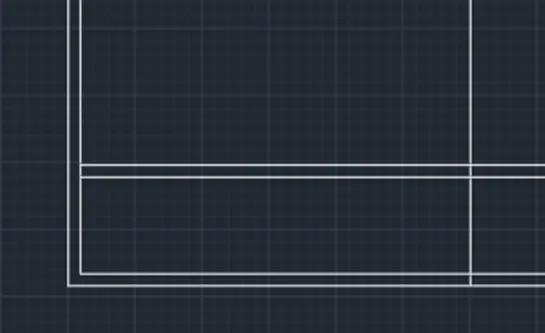

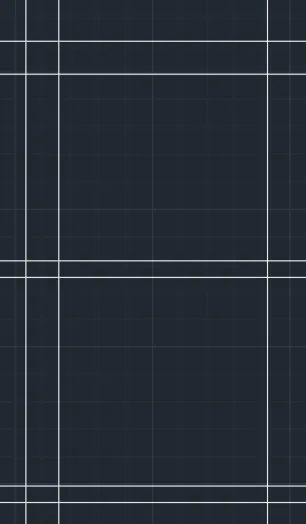

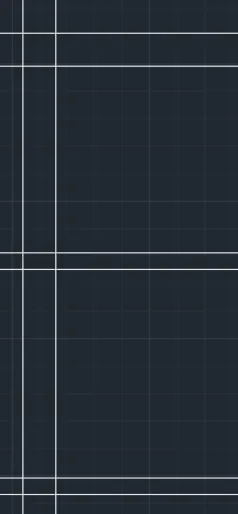

• It appears like this

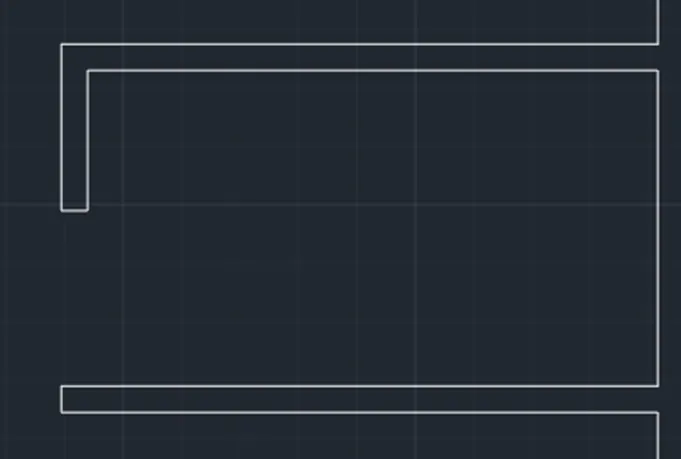

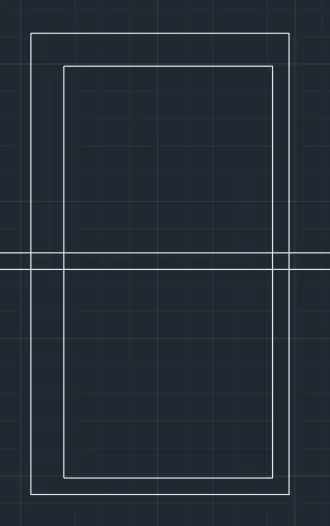

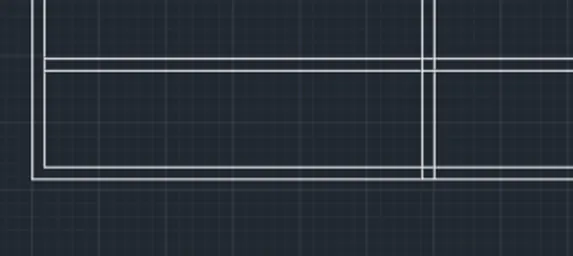

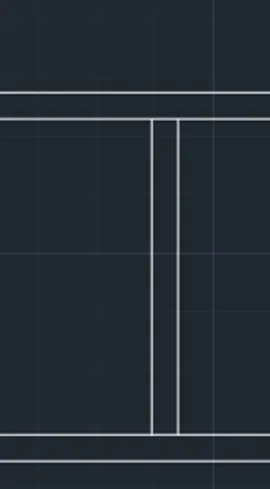

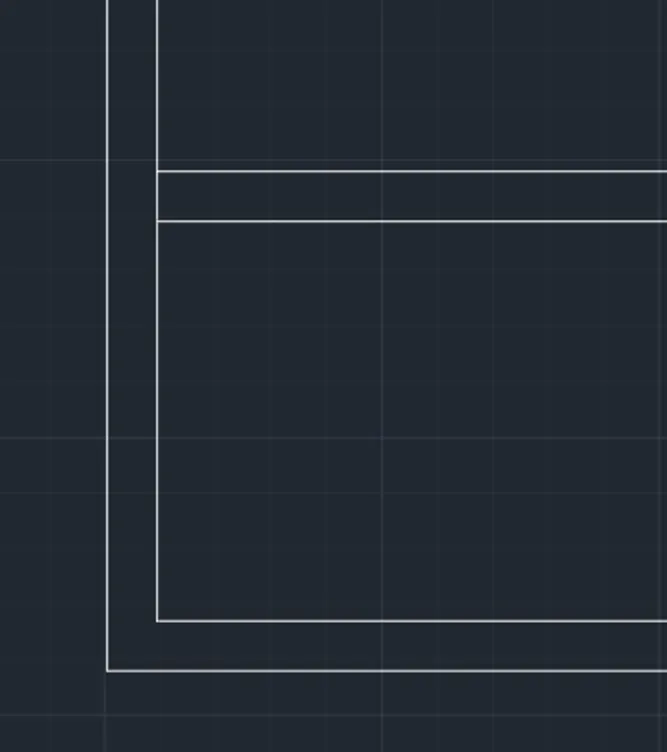

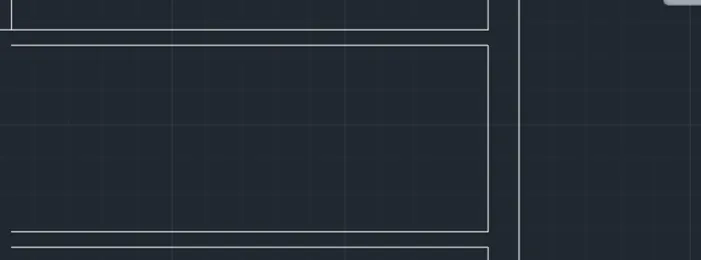

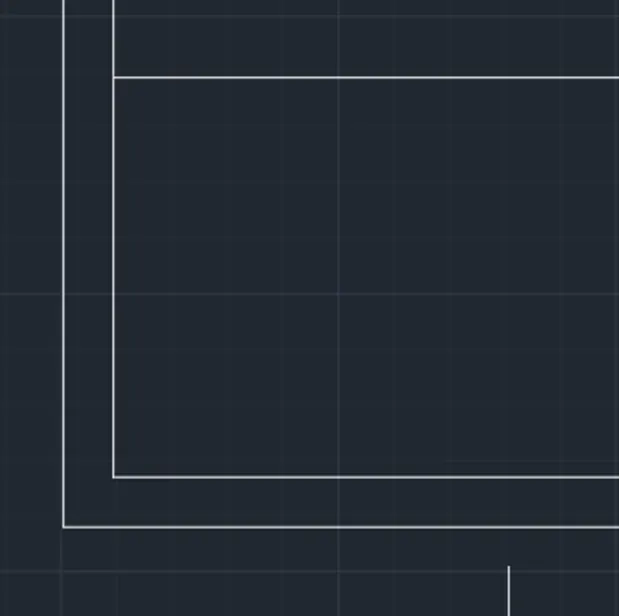

• Command : offset
• Enter the distance : 9”(as the thickness of the exterior wall is 9”)
• Select the object: click on the horizontal line and click on the downside of the line
• Command : offset
• Enter the distance : 9”(as the thickness of the exterior wall is 9”)
• Select the object: click on the vertcal line and click on the left side of the line
•

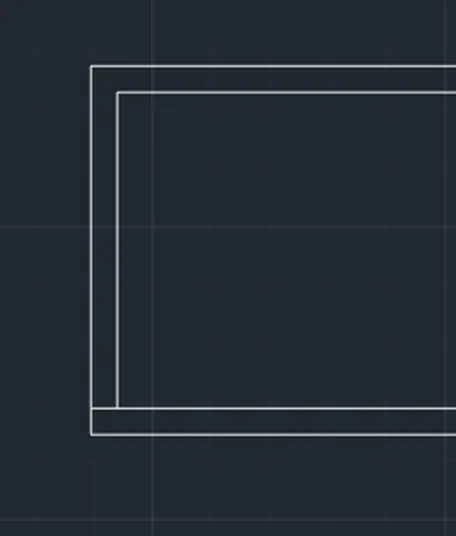

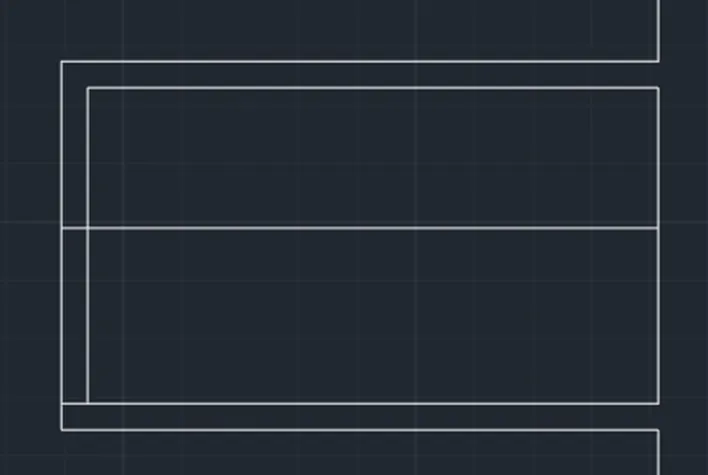

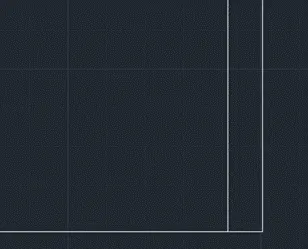

• Command : Fillet
• select the horizontal and vertical line and press enter
•
• Again command : Fillet
• Select the horizontal and vertical lines
•

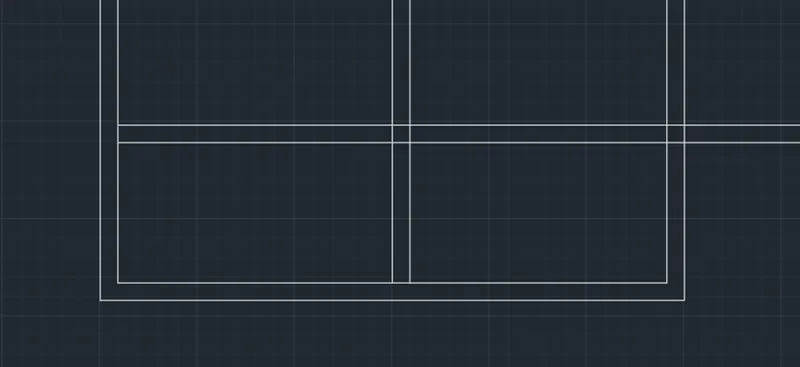

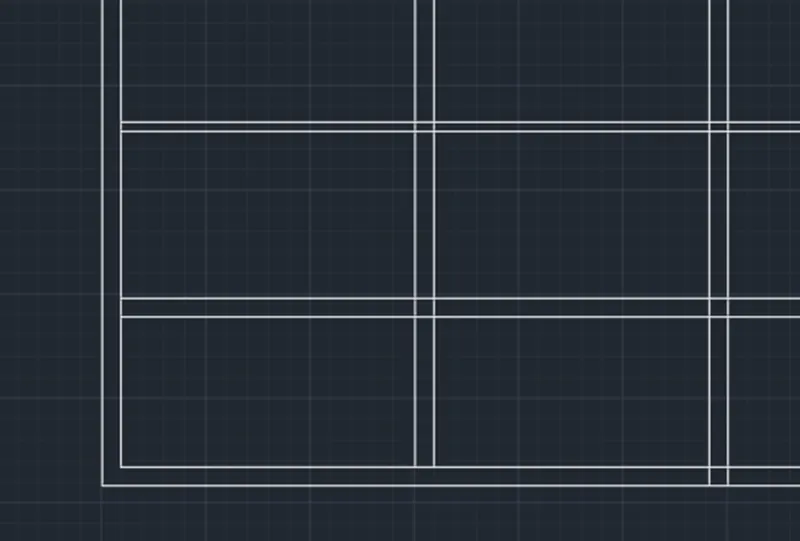

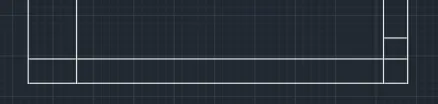

• Command : offset
• Enter the distance : 6’
• Select the objects : select inside horizontal line and click on the top side of the line
•
•
• Command : offset
• Enter the distance : 25’(the total length of the plan is 25’)
• select the object : click the exterior vertical line
• click on the right side of that line
•
• Command : offset
• Enter the distance : 9”
• Select the objects : select the previously drawn vertical line
• Click on the left side of the line and press enter
•

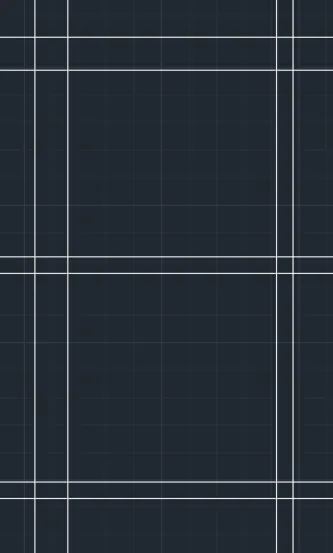

• Command : offset
• Enter the distance :12’6”
• Select the objects : select the outer vertical line
• Click on the right side of that line and press enter
•
• Command : offset
• Enter the distance : 9”
• Select the previously drawn vertical line
• Click on the left side of that line and press enter
•
• Command : offset
• Enter the distance : 6’8”(the breadth of the kitchen is 6’8”)
• Select the inside drawn horizontal line
• Click on the top of that line and press enter
•
• Command : offset
• Enter the distance : 4.5”(the thickness of the interior wall is 4.5”)
• Select the previously drawn horizontal line
• Click on the top of that line and press enter
•
• Command : offset
• Enter the distance : 43’6.5”(the total breadth of the plan is 43’6.5”)
• Select the objects : select the outer most horizontal line
• And click on the top of that line and press enter
•
• Command : offset
• Enter the distance : 9”
• Click on the previously drawn horizontal line
• Click on the down side of that line and press enter
•

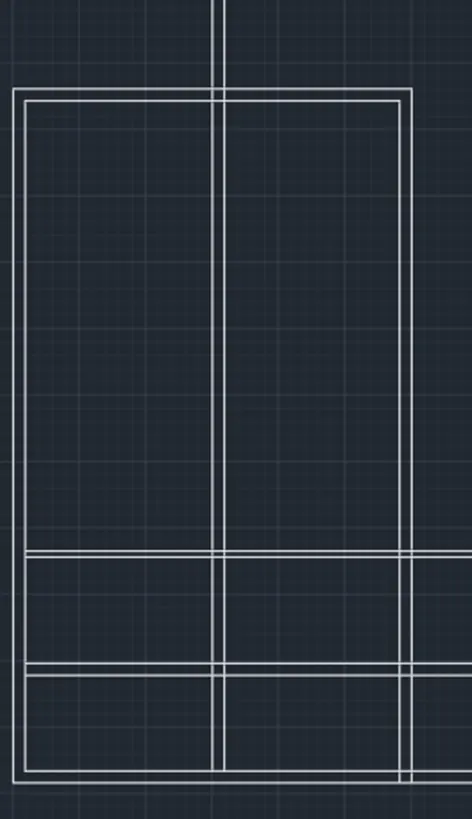

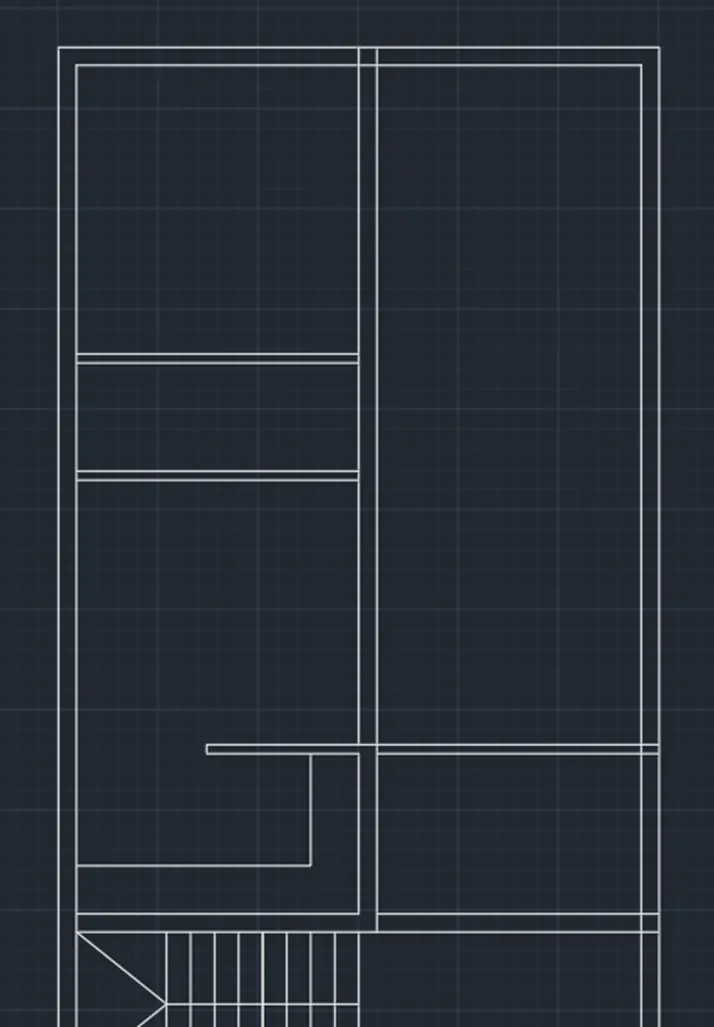

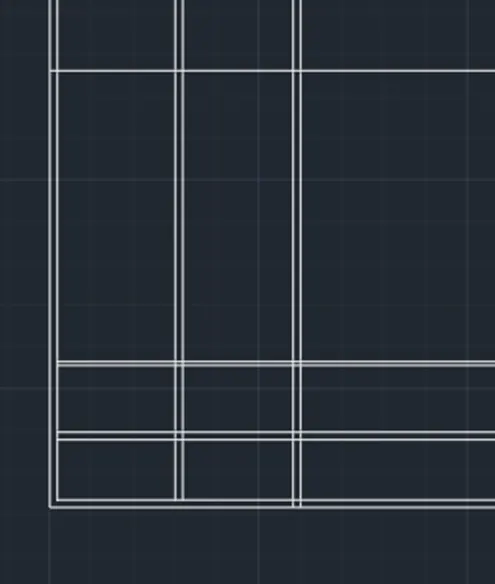

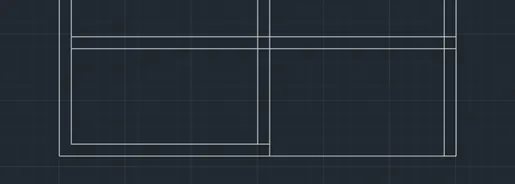

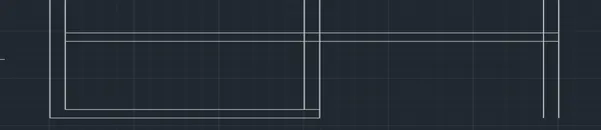

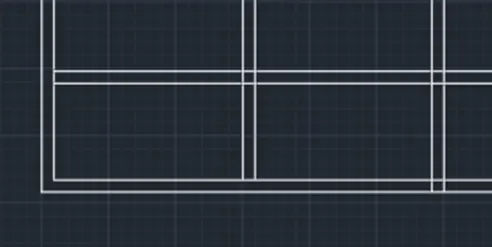

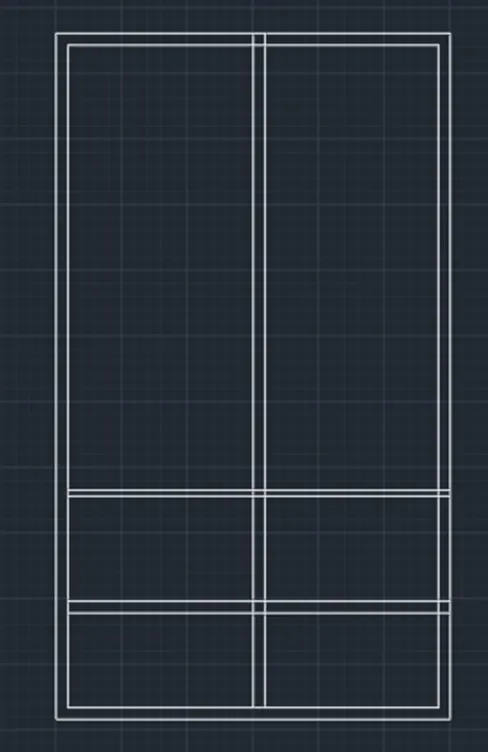

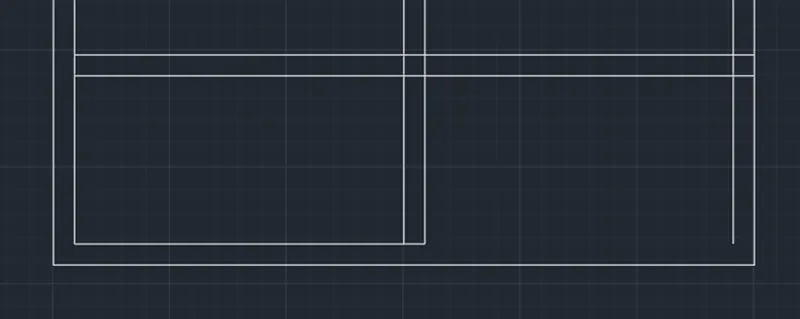

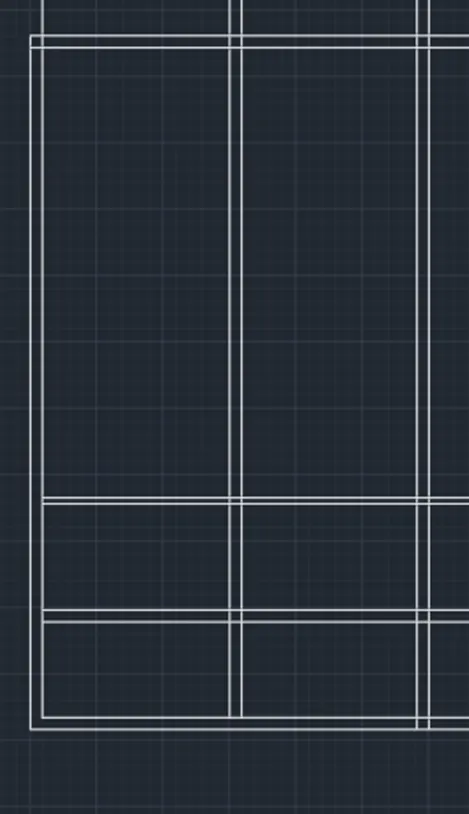

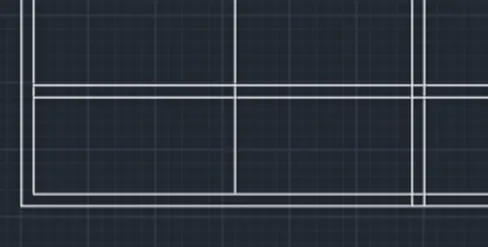

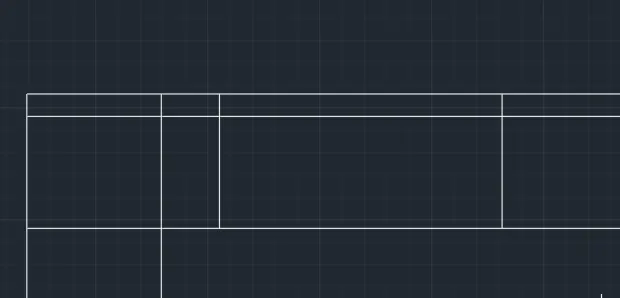

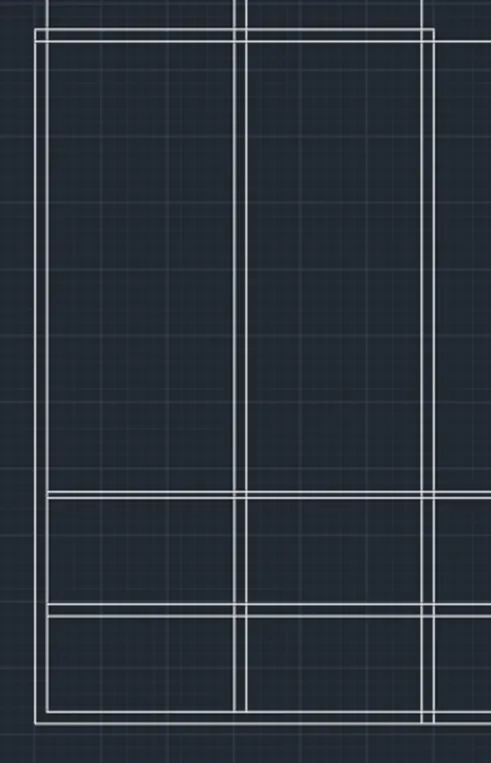

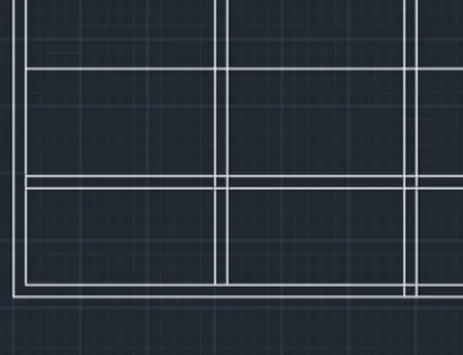

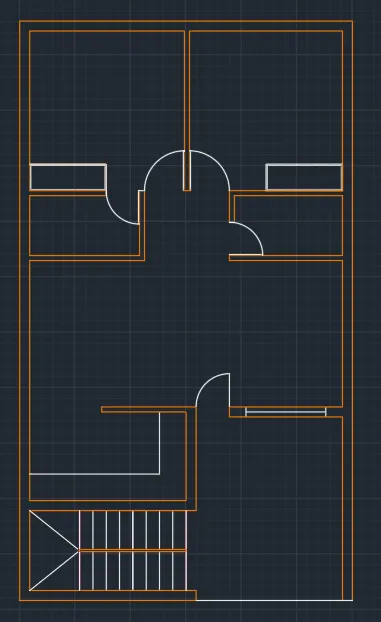

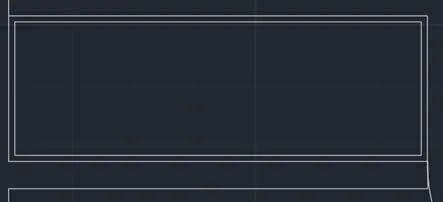

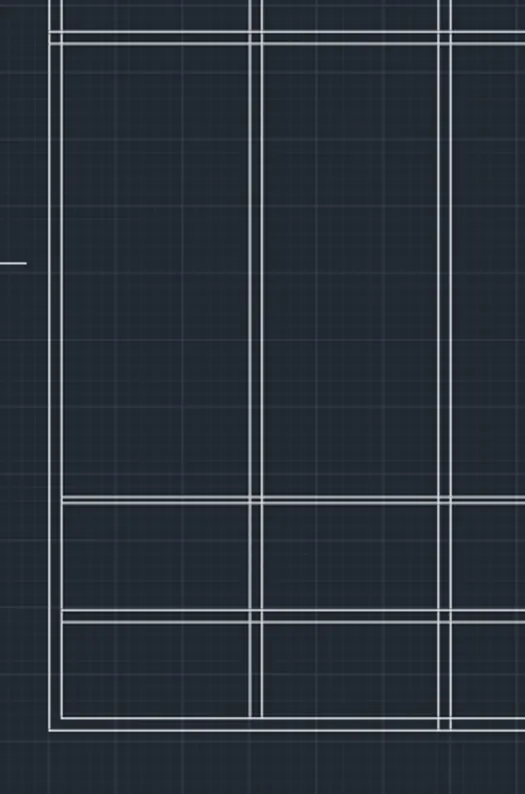

• Now this the total layout of the plan
• And trim the extra lines outside this line
• Command : fillet
• Select the objects : select the vertical and horizontal line
•
• Command : fillet
• Select the objects : select the top right corner ‘s horizontal line and vertical line
•
• Command : fillet
• Select the objects : select the respective horizontal and vertical lines on either side
•
• At the bottom also do the same filleting
•
• Now trim the remaining unwanted lines outside the layout
• Command : trim
• Select objects : select the lines outside the layout
•

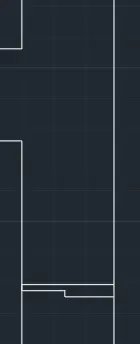

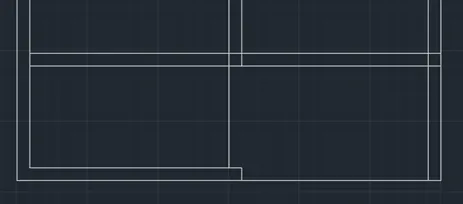

• Remove the bottom horizontal line in the parking
• Command : trim
• Select the objects : click the inside horizontal line in the bottom of the parking
•
• Command : line
• Select the first point : select the unclosed vertical line in the parking
• Keep ortho on and move the cursor in the downward direction and click on the intersecting point of that LINE with the bottom horizontal line
•

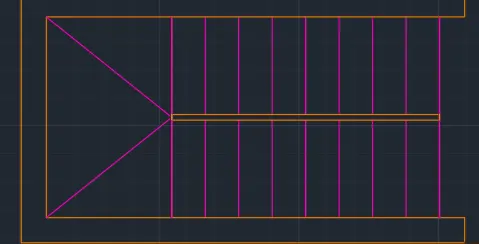

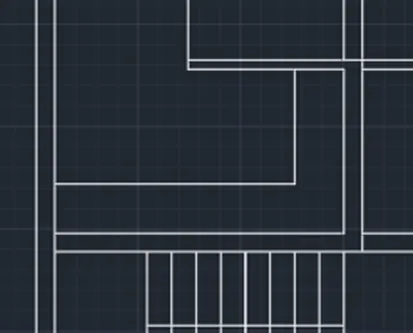

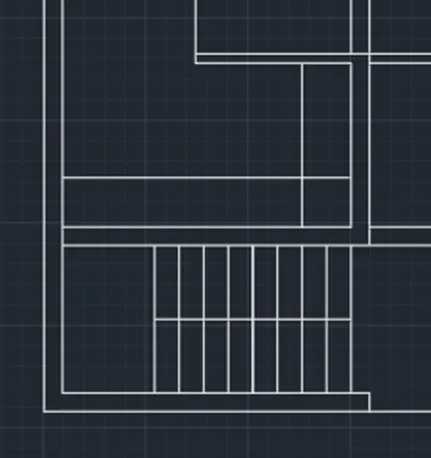

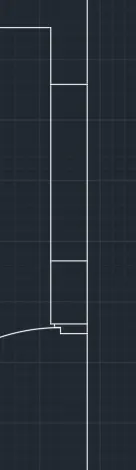

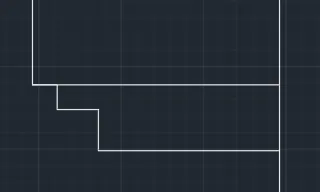

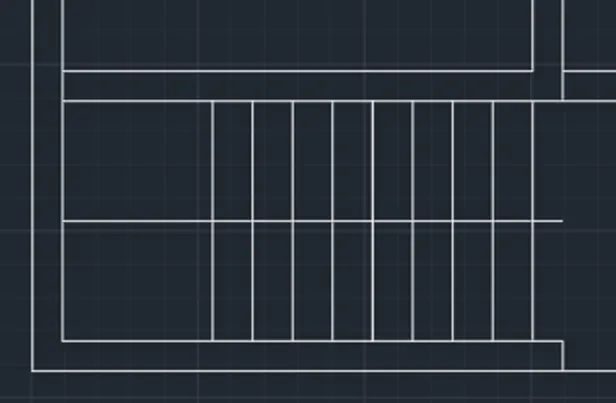

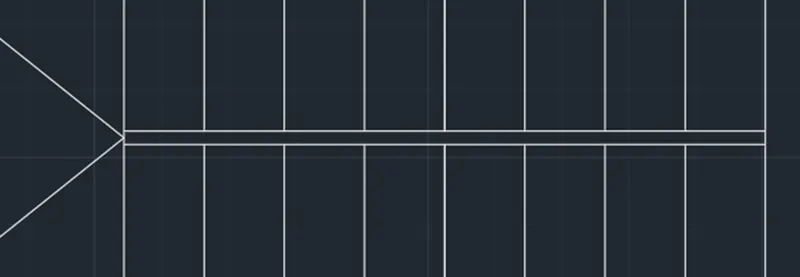

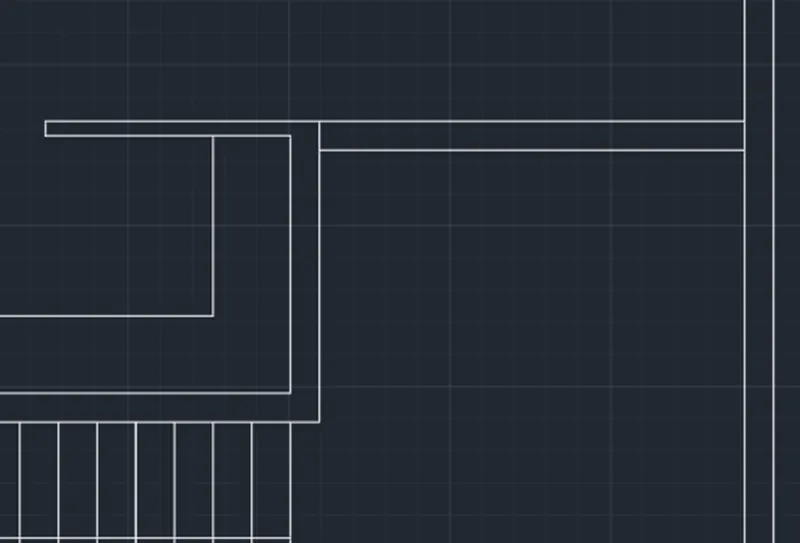

To draw the stairs:

• Command : fillet
• Select the objects : select the horizontal and verticals lines in the stair case space
•
• Command :line
• Enter the first point : click on the end point of the stair case
• Enter the second point : click on the end point of outside vertical line of the parking
•
• Command : trim
• Select the objects : select the vertical at the beginning of the stair case
• Click on it and press enter
•
• Command: trim
• Select the objects : select the vertical and horizontal line of the kitchen wall above the stair case
• Click on it and press enter
•

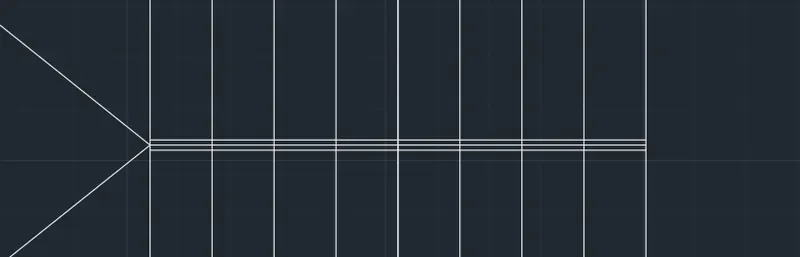

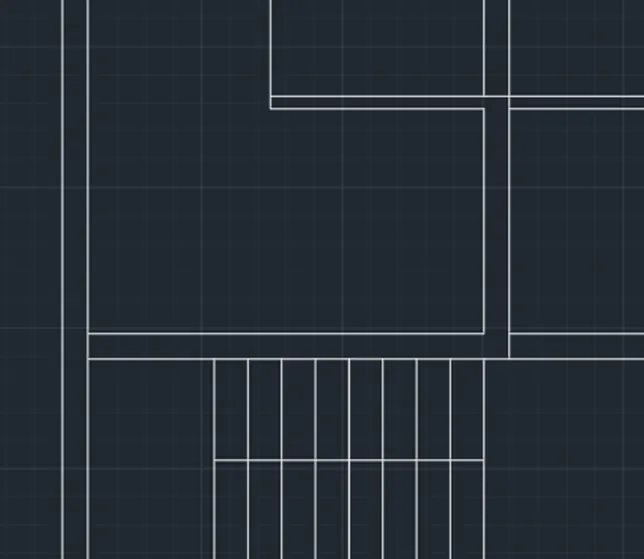

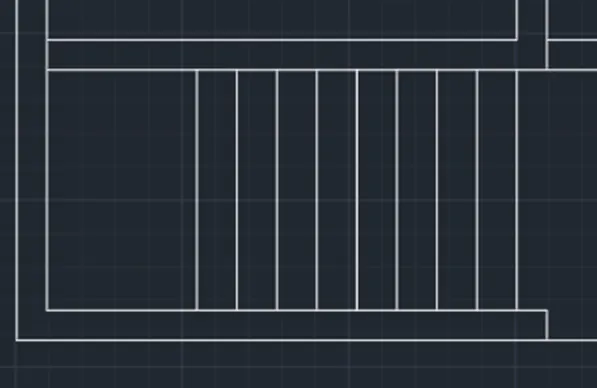

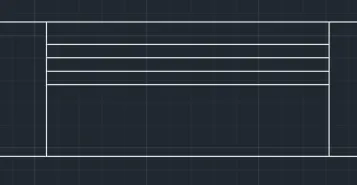

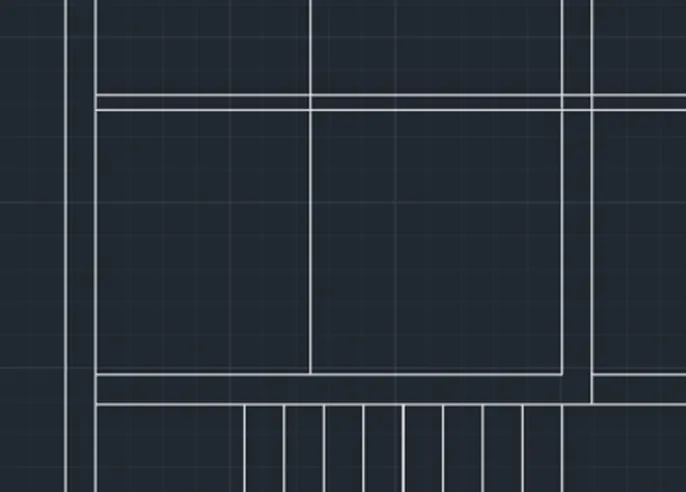

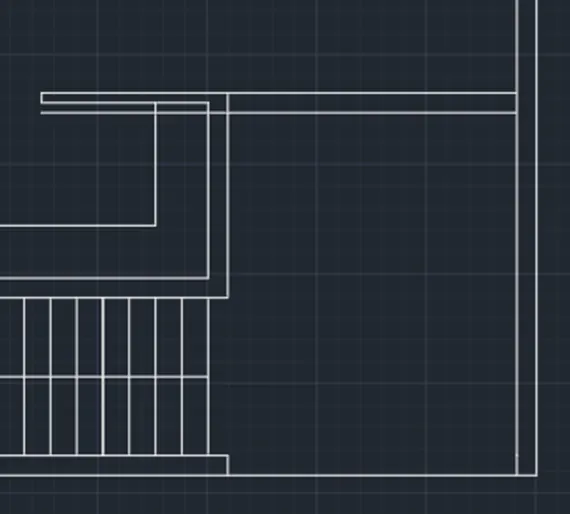

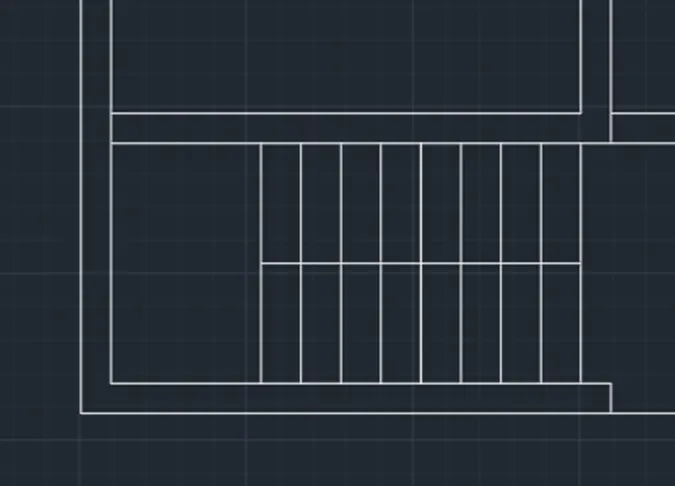

• Command : offset
• Enter the distance : 1’(the read distance is 1’)
• Select the objects : select the vertical line of 6” length which is in the beginning of the stair case
• Select MULTIPE option and enter number : 8
• And then click in the left side of that line and press enter
•
• Command : offset
• Enter the distance : 3’
• Select the objects : select the vertical line at the bottom of the staircase
•
• Command : trim
• Select the objects : select the railing which is extra
• Click on it and press enter
•

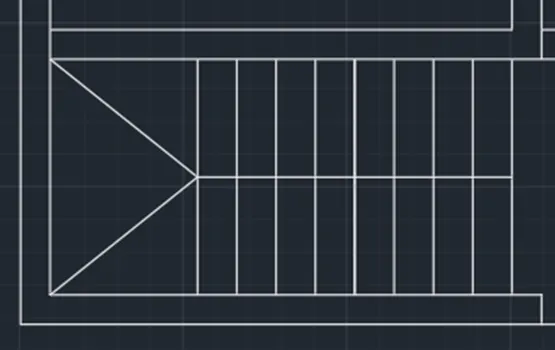

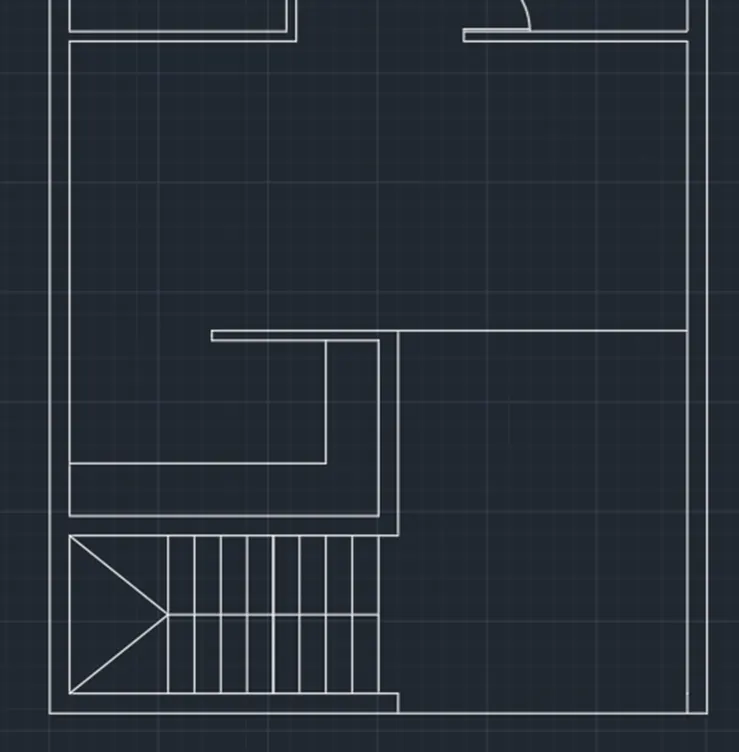

• To draw the steps at the landing
• Command :line
• Enter the first point : click on the starting point of the railing
• Enter the second point : click on the top left corner of the landing
• Command : line
• Enter the first point : click on the starting point of the railing
• Enter the second point : click on the bottom left corner of the landing
•

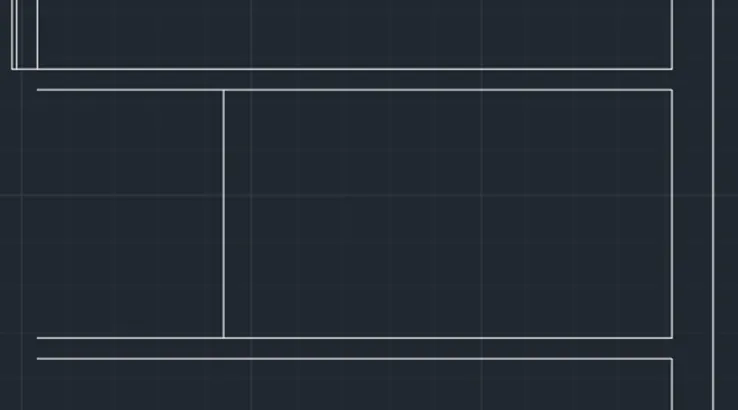

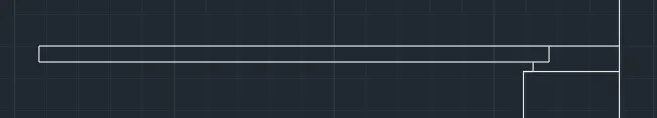

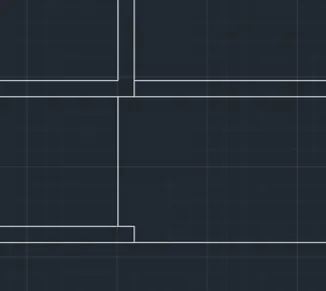

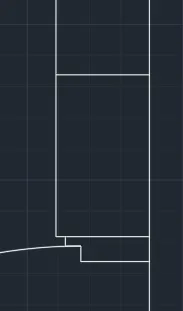

To draw kitchen :

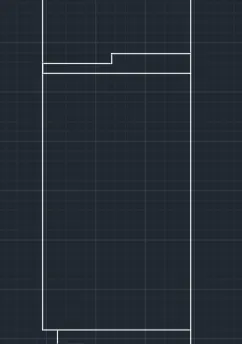

• To draw the entrance of the kitchen
• Command : offset
• Enter the distance : 6’4”(the wall at the entrance of the kitchen is 6’4”)
• Select the vertical line
• Click on the left side of that line and press enter
•
• Command : trim
• Select the objects : select the vertical line and horizontal lines inside the kitchen
• And press enter
•

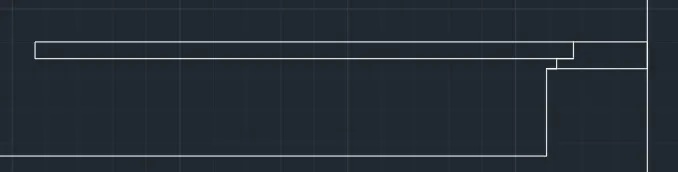

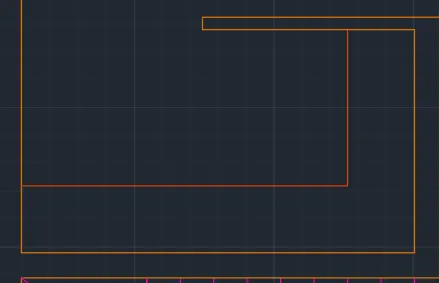

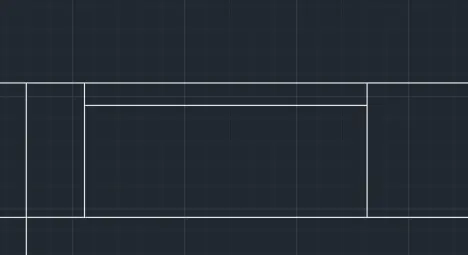

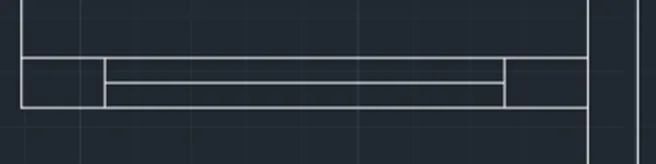

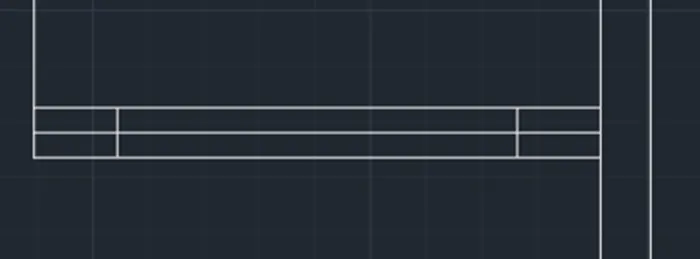

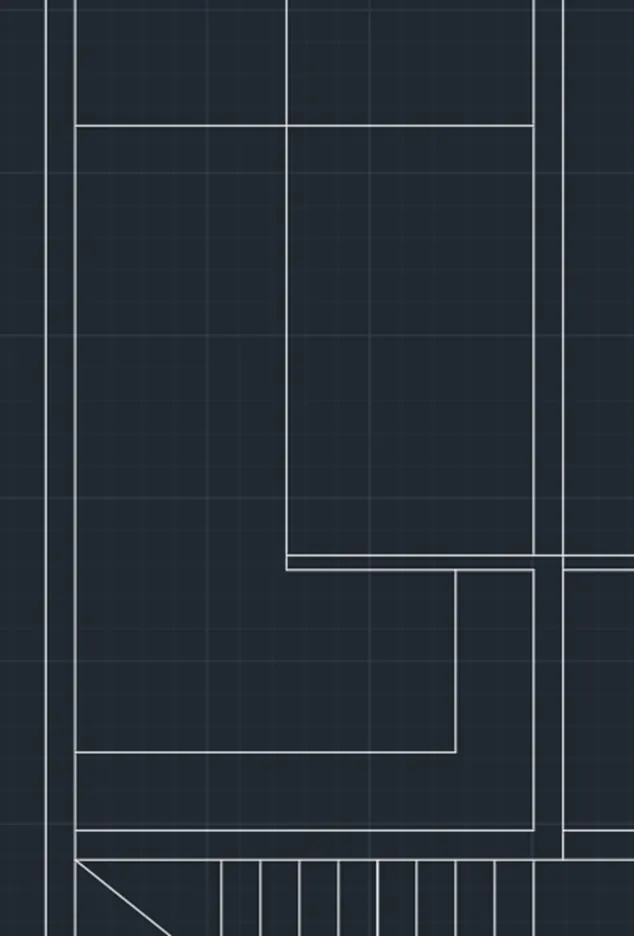

• To draw slab in the kitchen
• Command : offset
• Enter the distance : 2’
• Select the horizontal line and vertical line of the kitchen walls
• Click on them and press enter
•
• Command : trim
• Select the objects : select the lines inside the slab
• And press enter
•
• To draw the steps at the landing
• Command :line
• Enter the first point : click on the starting point of the railing
• Enter the second point : click on the top left corner of the landing
• Command : line
• Enter the first point : click on the starting point of the railing
• Enter the second point : click on the bottom left corner of the landing
•

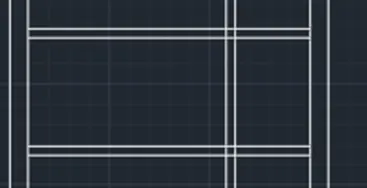

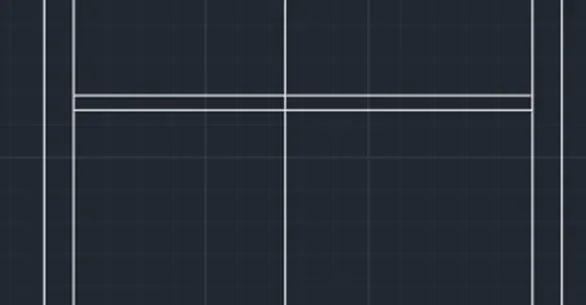

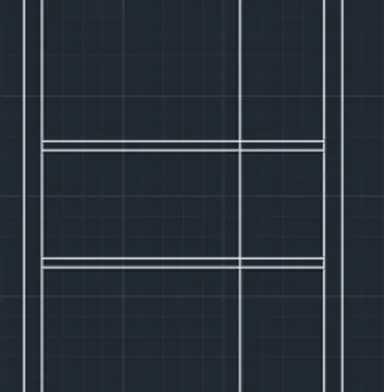

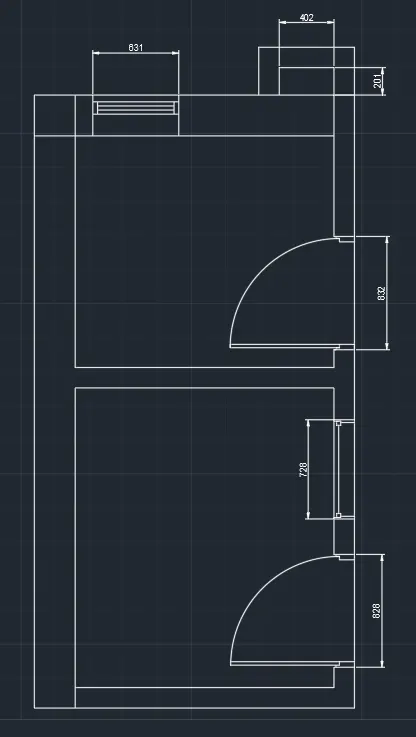

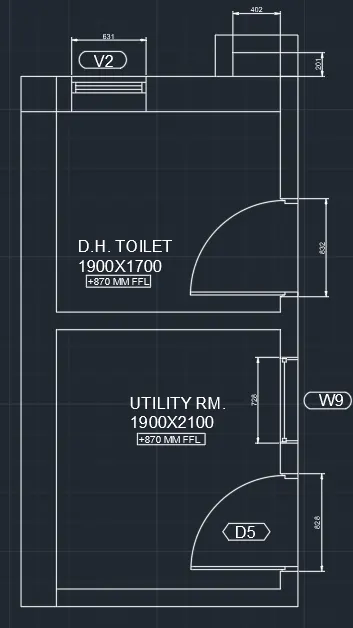

To draw the toilet :

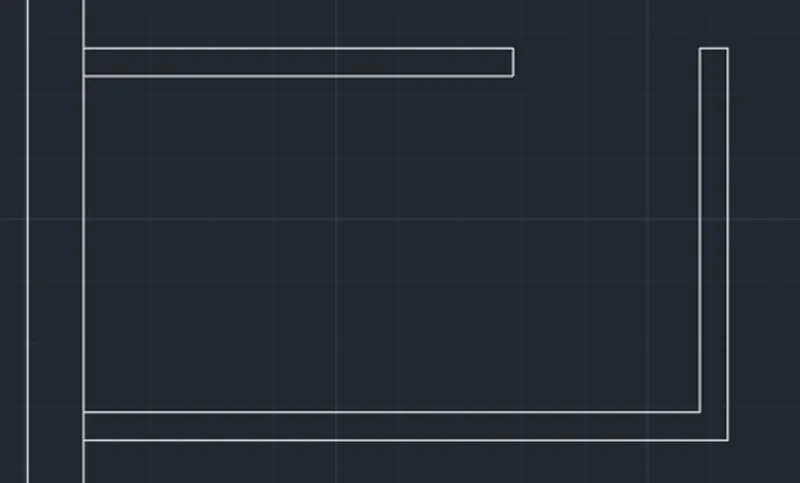

• Command : offset
• Enter the distance :18’0.5”
• Select the objects : click on the horizontal line of the kitchen wall
•
• Command : offset
• Enter the distance :9”(the interior wall thickness is 9”)
• Select the previously drawn horizontal line
• Click on the top side of that line and press enter
•
• Command : offset
• Enter the distance : 4’6”(the breadth of the toilet is 4’6”)
• Click on the previously drawn horizontal line of the toilet wall
• And press enter
•
• Command : offset
• Enter the distance : 4.5”
• Select the objects : select the previously drawn horizontal line
• Click on the top side of that line and press enter
•
• Command : trim
• Select the objects : select the vertical line of the kitchen entrance
• Click on them and press enter
•
• Command : offset
• Enter the offset distance : 8’3”(the length of the toilet is 8’3”)
• Select the vertical line of the toilet wall
• Click on the right side of that wall and press enter
•
• Command : offset
• Enter the distance :4.5”
• Select the objects : select the previously drawn vertical line
• Click on the right side of that line and press enter
•
• Command : trim
• Select the objects : select the all parts of the previously drawn vertical line that is intersecting all the remaining part of the plan
•
• Command : offset
• Enter the offset distance : 2’6”(the width of door of the toilet is 2’6”)
• Select the objects : select the vertical line of toilet interior wall
• Click on the left side of that line and press enter
•
• And trim the vertical line outside the toilet
• Command : trim
• Select the objects : select the door space and trim it
• Click on the door lines and press enter
•

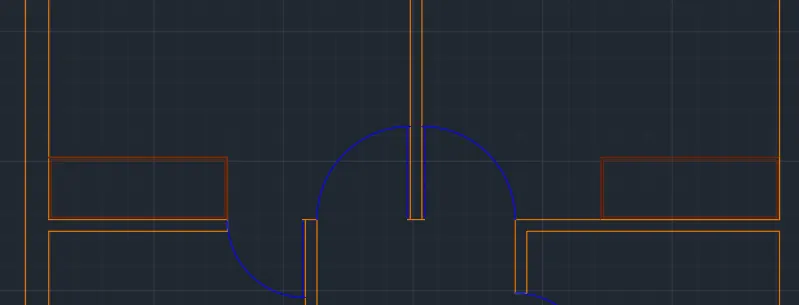

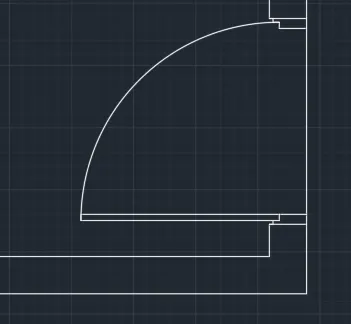

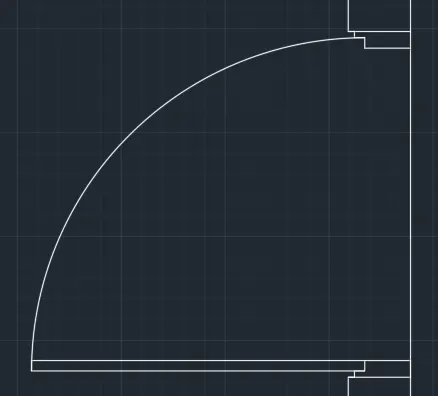

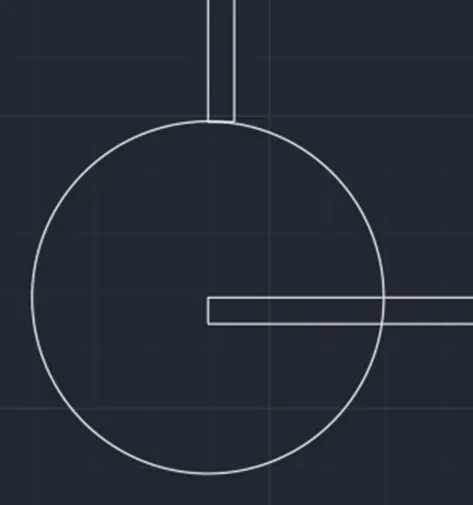

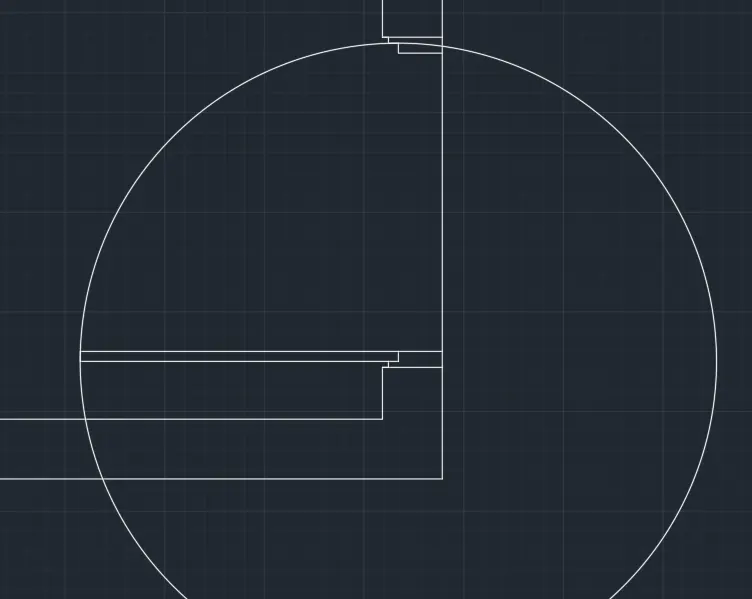

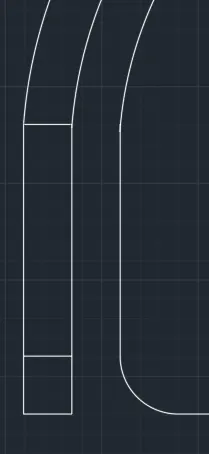

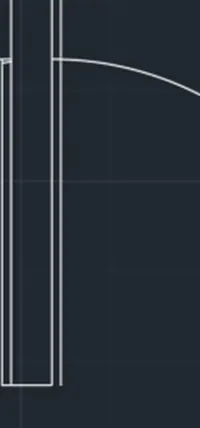

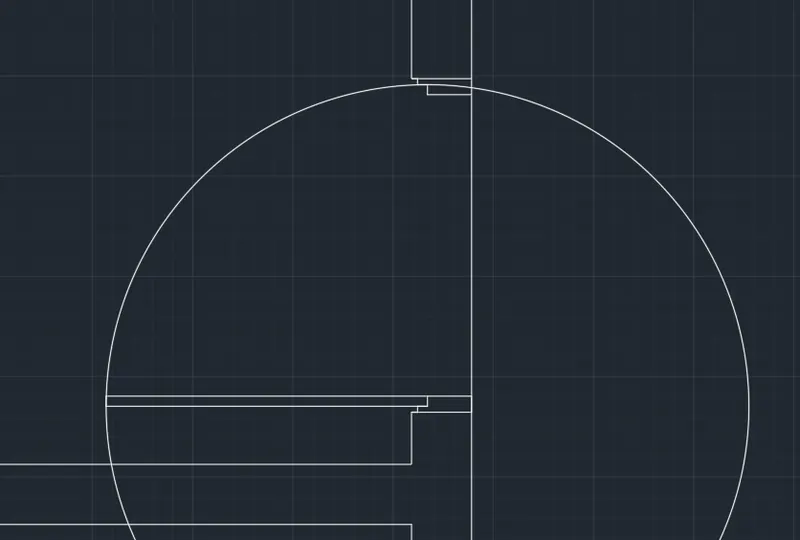

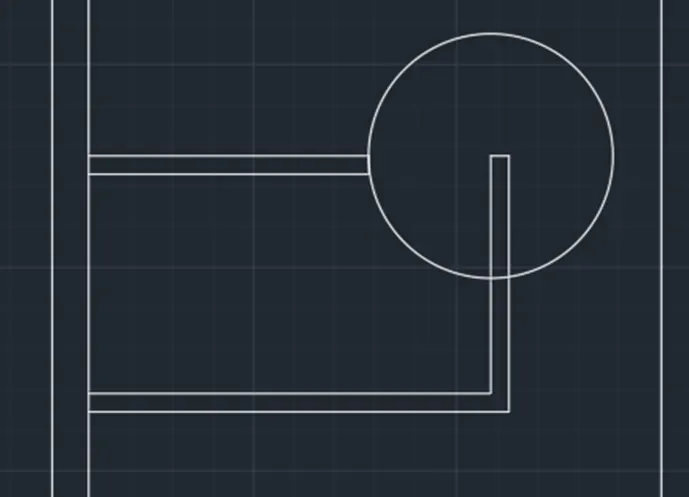

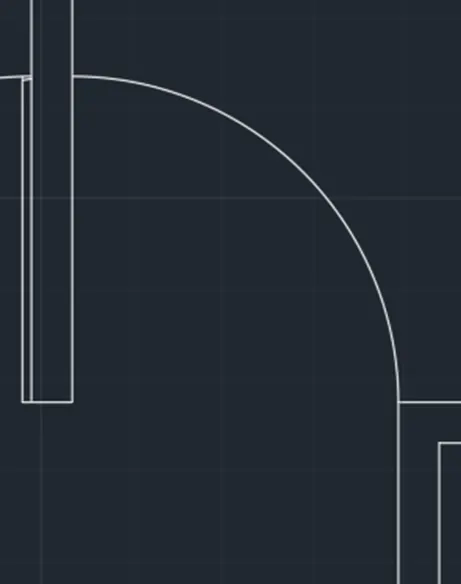

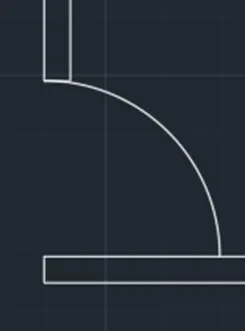

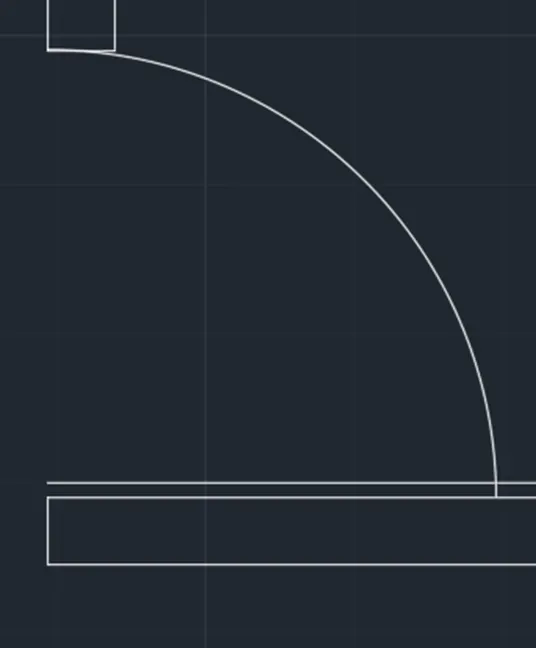

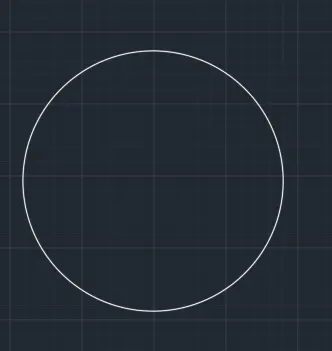

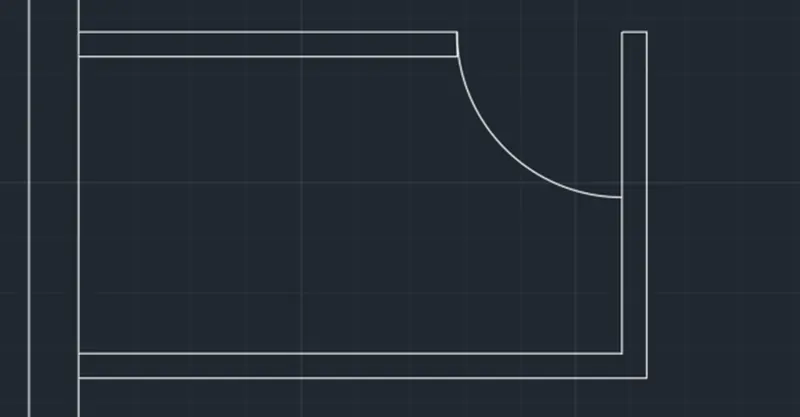

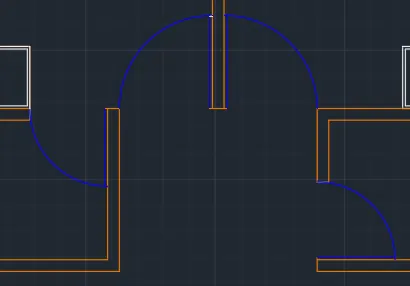

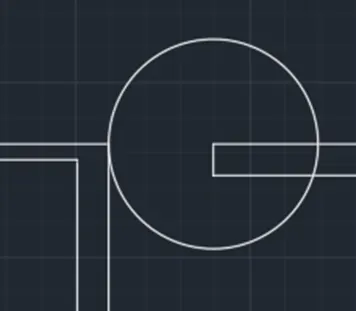

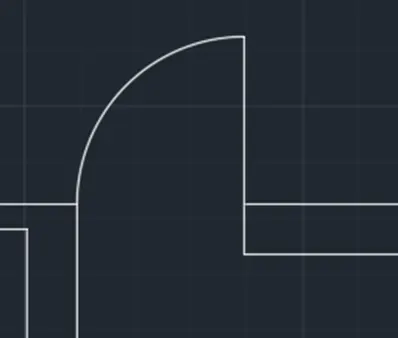

• Command : circle
• Enter center point of the circle : click on the starting point of the door
• Enter the radius : click on the width of the point
• And press enter
•
• Now trim the extra part of the door
• Command : trim
• Select the objects : select the part outside the toilet
• And press enter
•

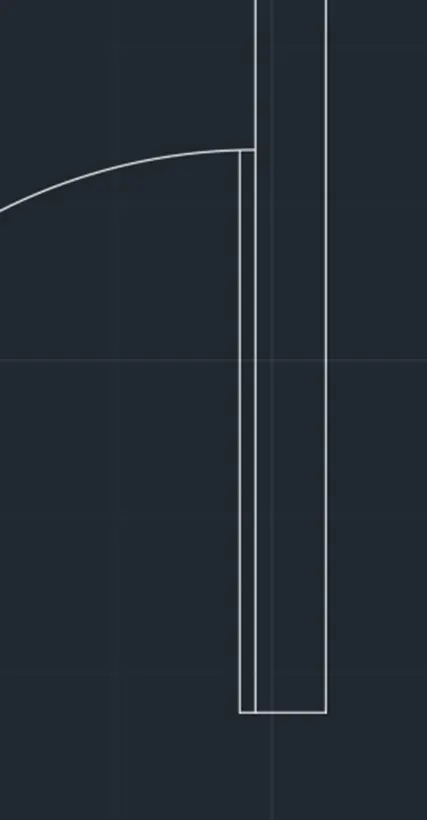

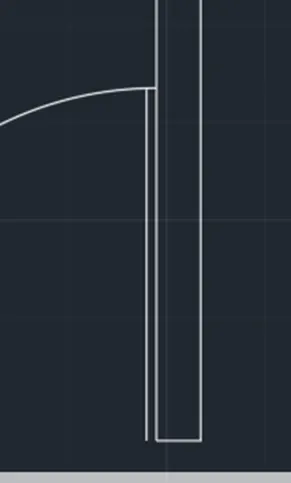

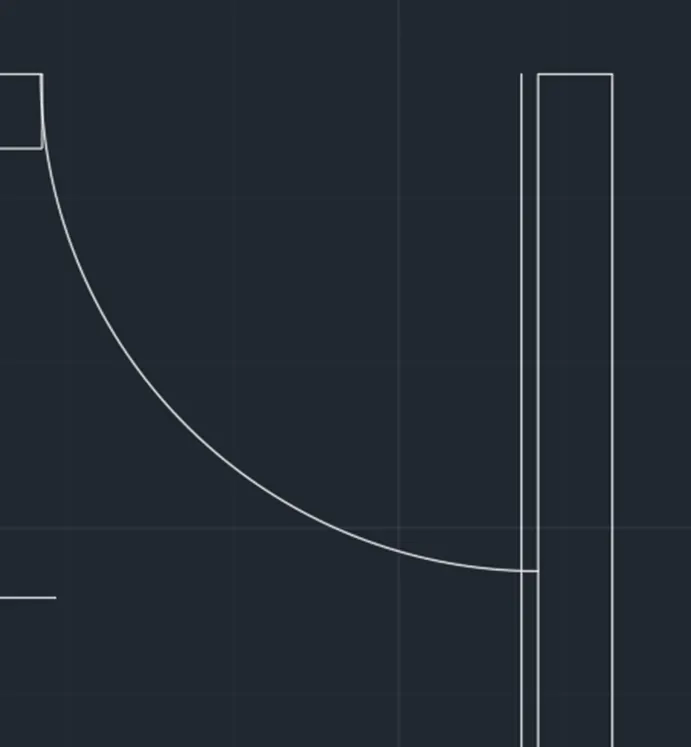

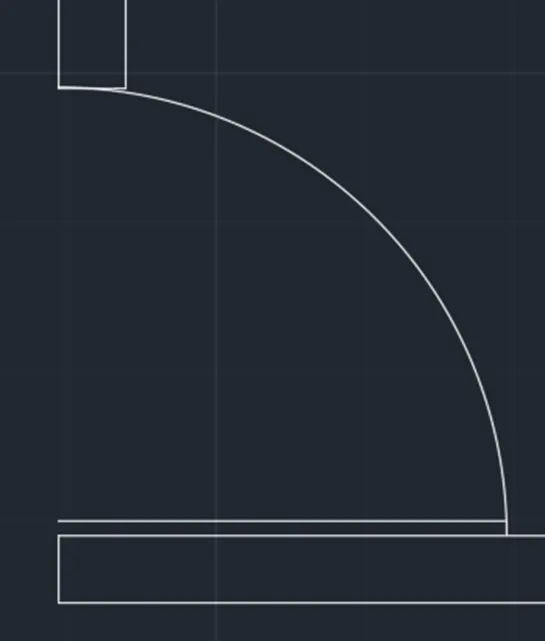

• Command : offset
• Enter the distance : 1”(let us assume the thickness of the door as 1”)
• Select the objects : select the vertical line of the wall at the door
• Click on the left side of the that line and press enter
•
• Now trim the vertical line drawn which is at the outside of the door
• Command : trim
• Select the objects : select the vertical line outside the door
• Click on the line and press enter
•
• command : extend
• select the horizontal line at the end of the door wall
•
• Command : trim
• Select the objects : select the vertical line in the middle of plan
• Click on them and press enter
•

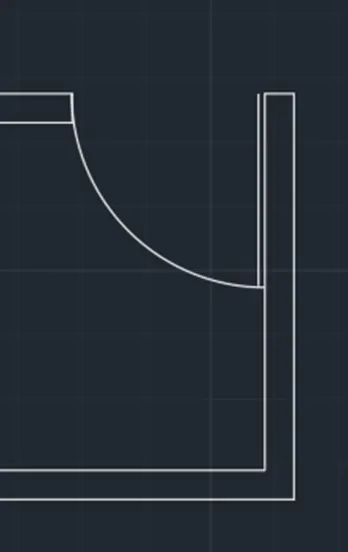

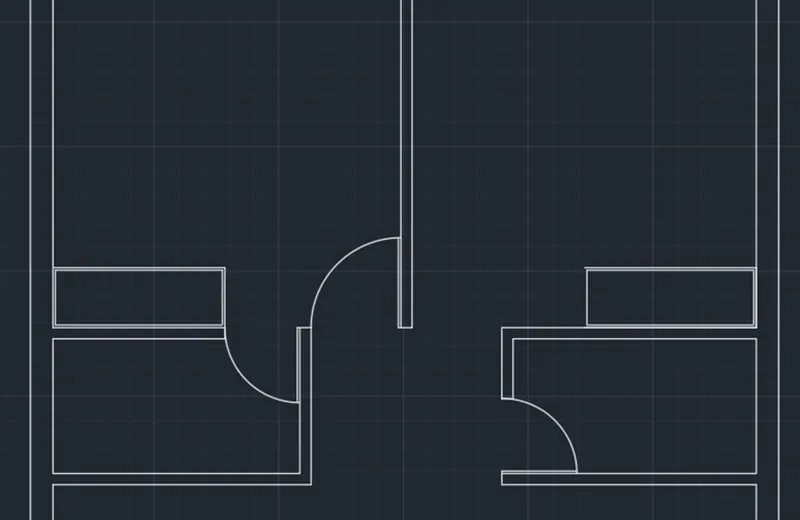

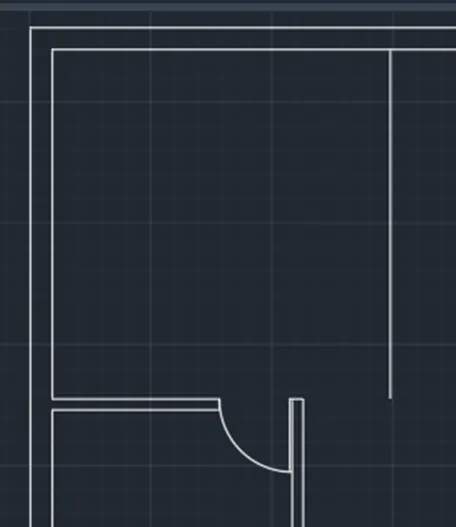

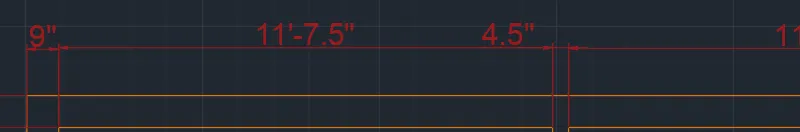

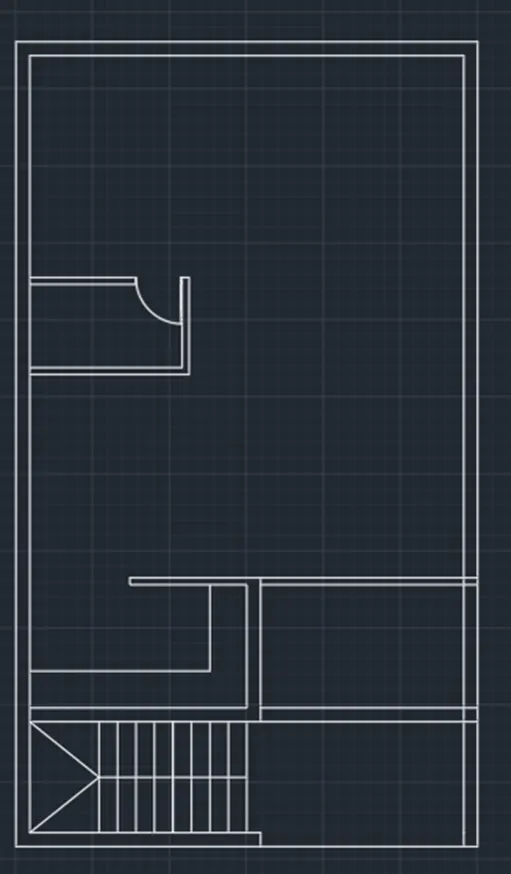

To draw the bedroom 1:

• Command : offset
• enter the offset distance :11’7.5”(the length of the bedroom 1 is 11’7.5”)
• select the object : the vertical line of the exterior line
• click on the right side of that line and press enter
•
• Command : offset
• Enter the offset distance : 4.5”(the thickness of the interior wall is 4.5”)
• Select the objects : select the previously drawn vertical line
• Click on the right side of that line and press enter
•
• Command : trim
• Select the objects : click the vertical lines inside the wall
• Click on them and press enter
•
• Command : line
• Enter the first point : select the one end point of the wall of the bedroom
• Enter the second point : click the other end point of the wall
• And press enter
•

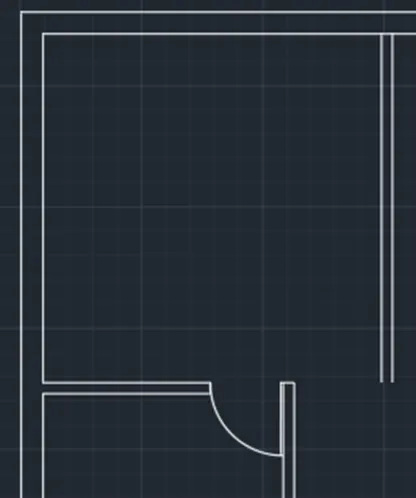

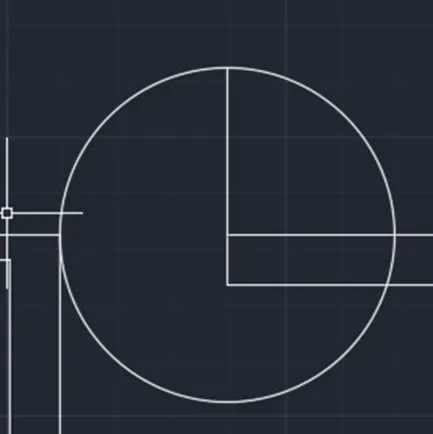

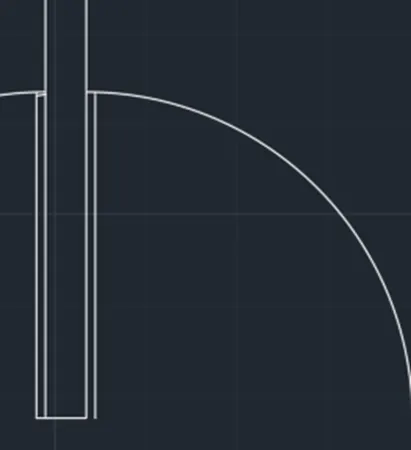

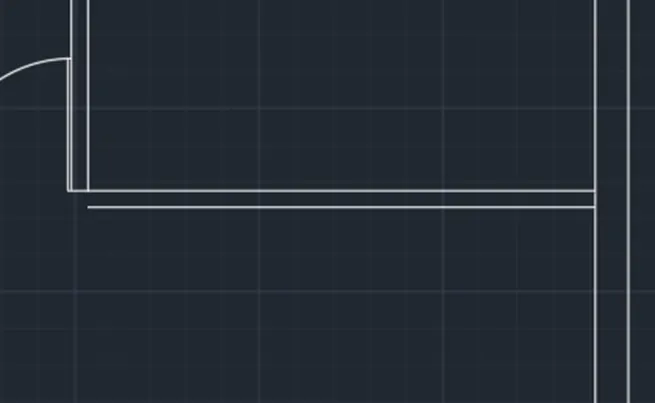

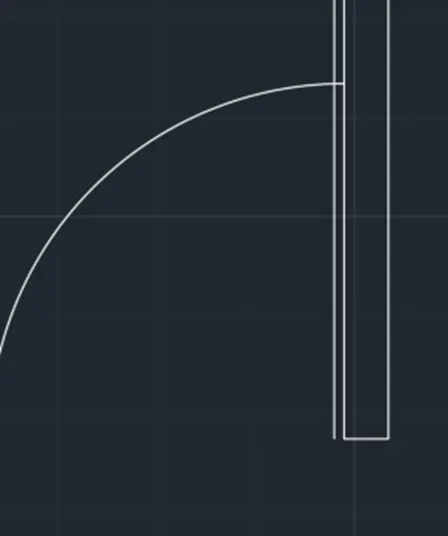

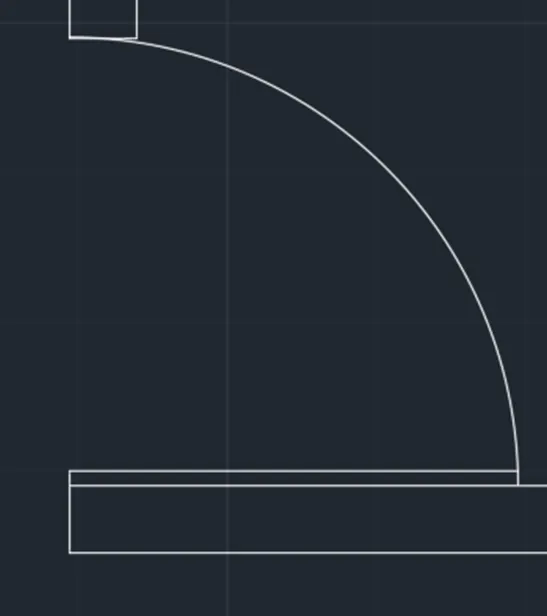

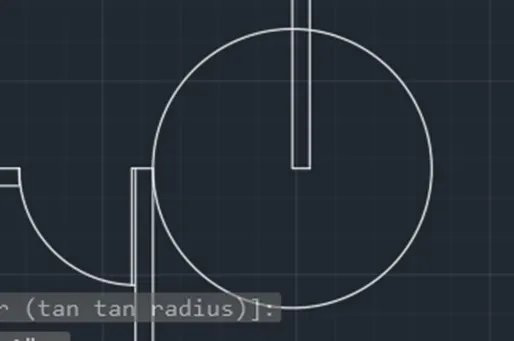

• Command : circle
• Enter the center of the circle: click on the end point of the vertical wall of the bedroom
• Enter the radius : move the cursor to the another point of the entrance of the bedroom
• And click on that point
•
• Now trim the outside circle of the bedroom
• Command : trim
• Select the objects : select the circle outside of the bedroom
•
• Command : offset
• Enter the offset distance : 1”(assume the thickness of the door as 1”)
• Select the vertical wall of the bedroom near the door
• And press enter
•
• Command : trim
• Select the objects : select the vertical offset drawn previously which the line outside the door
• And press enter
•
• Now close the door item
• Command : extend
• Select the line : select the horizontal line at end of the wall beside the door
• And press enter
•

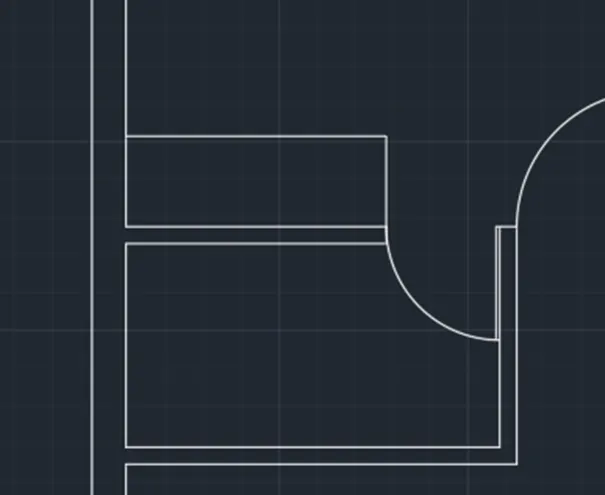

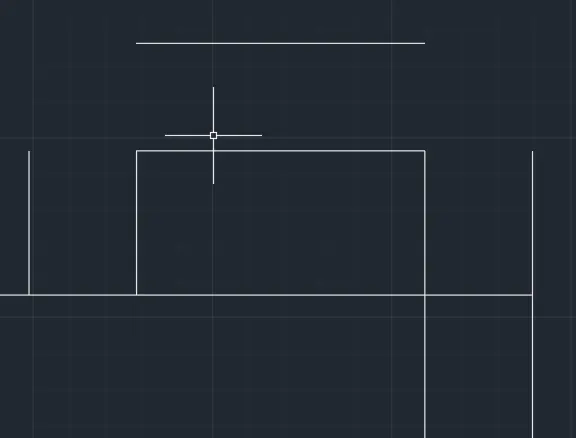

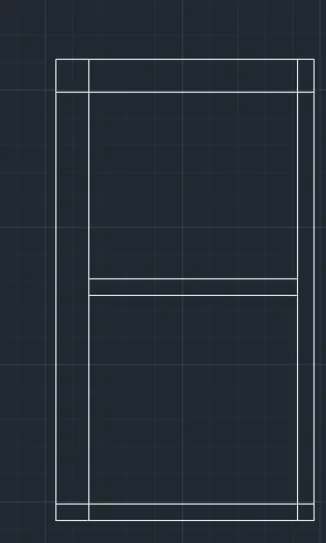

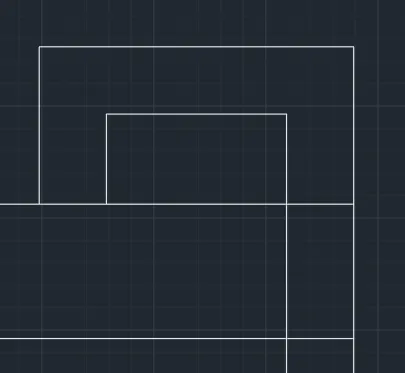

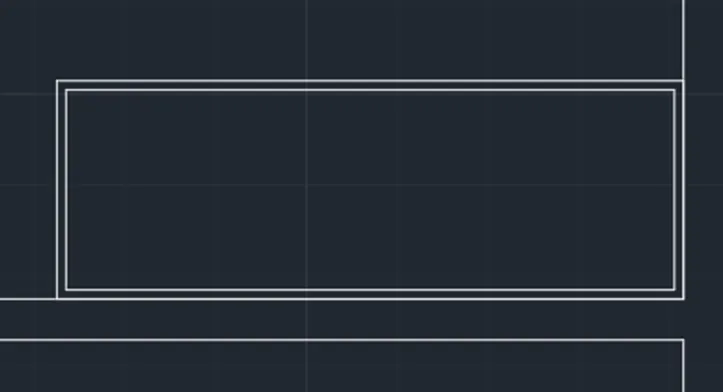

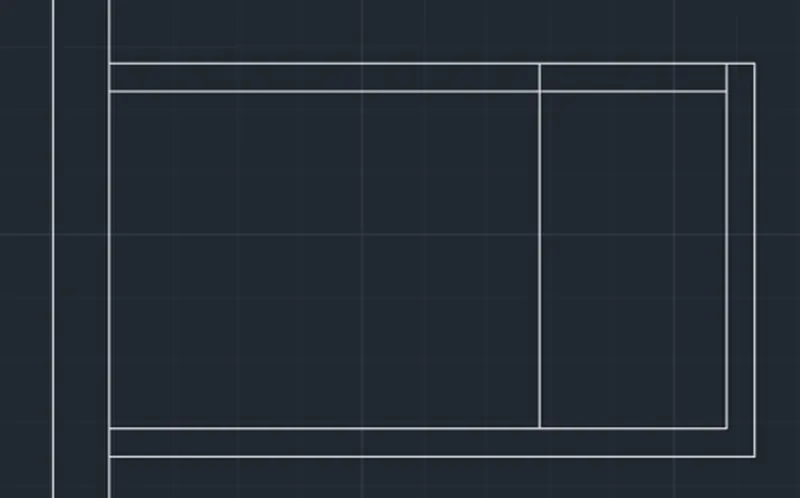

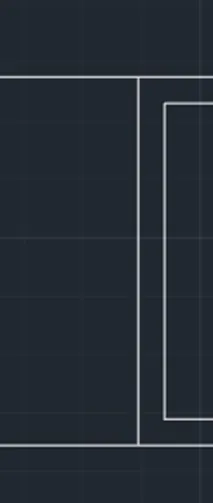

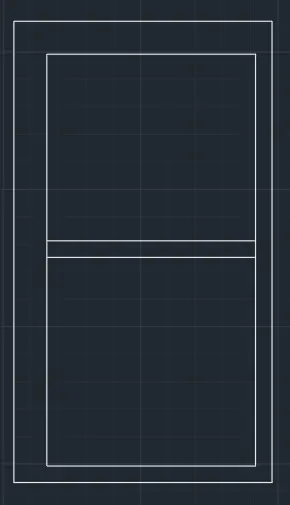

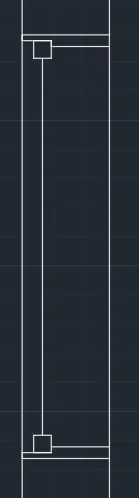

To draw the cupboard in the bed room 1:

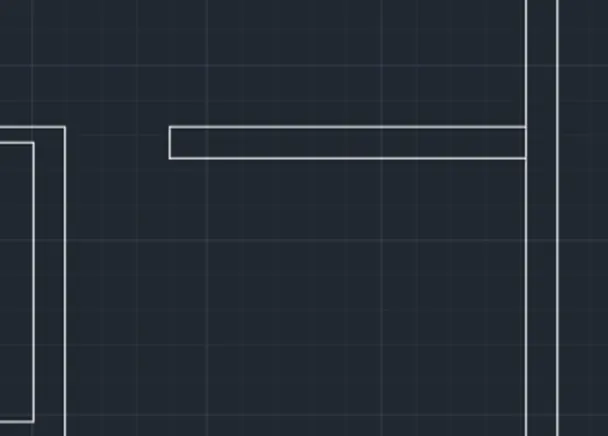

• Command : line
• Enter the the first point : select the end point of the interior horizontal wall of the bedroom
• Enter the second point : keep ortho on and keep the cursor in the 90degree angle and enter 2’(assume the width of the cupboard as 2’)
• Enter the next point : keep the cursor in the 180 degree angle and click on the exterior wall of the bedroom
•

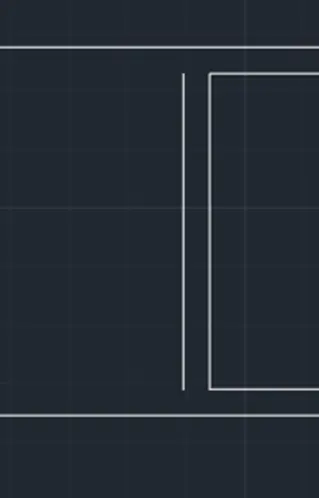

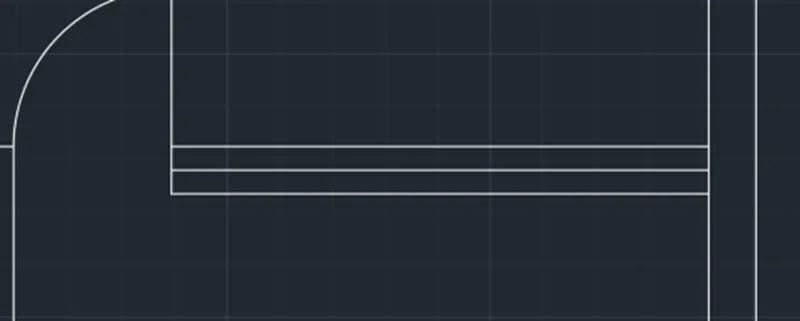

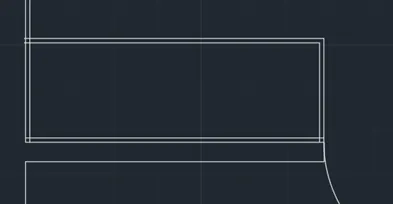

• Command : offset
• Enter the offset distance :1”(assume the thickness of the cupboard id 1”)
• Select the objects : click on the all four sides of the cupboard
• Click on the inside of the cupboard and press enter
•
• Now trim the lines outside the cupboard
• Command : trim
• Select the objects : select the all lines outside the cupboard which are unnecessary
•

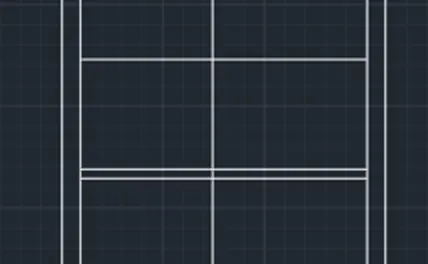

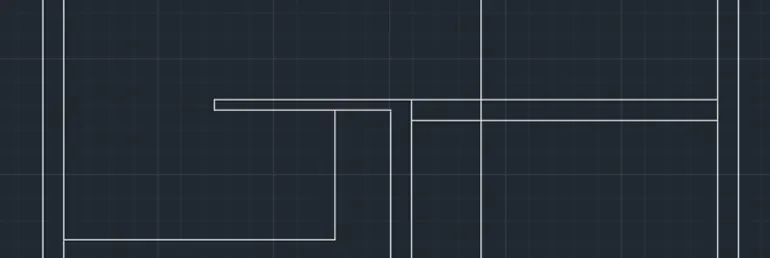

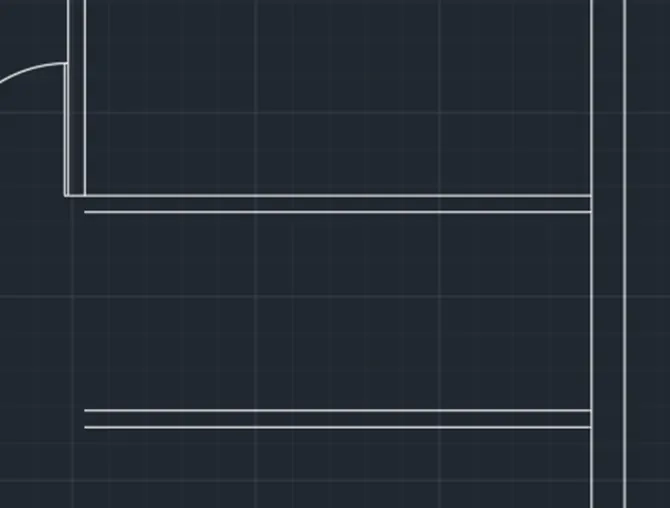

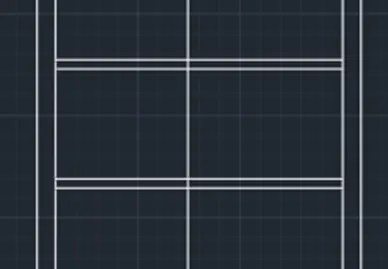

To draw bedroom 2 and toilet 2:

• Command : offset
• Enter the offset distance : 12’(the width of the bedroom 2 is 12’)
• Select the objects : select the horizontal line of the exterior wall inside the bedroom
• Click the down side of that line and press enter
• Command : offset
• Enter the offset distance : 4.5”(the thickness of the interior wall is 4.5”)
• Select the objects : select the previously drawn horizontal line
• Click on the down side of that line and press enter
•
• Command : offset
• Enter the distance : 4’6”(the width of the toilet 2 is 4’6”)
• Select the previously drawn horizontal line and press enter
•
• Now trim the edges of the walls
• Command : trim
• Select the objects : select the lines inside the walls
• Click on them and press enter
•
• Command : offset
• Enter the distance : 8’1.5”(the length of the toilet 2 is 8’1.5”)
• Select the objects : select the vertical of the exterior wall of the toilet 2
• Click on the left side of that line and press enter
•
• Command : offset
• Enter the offset distance : 4.5”(the thickness of the interior wall is 4.5”)
• Select the objects : select the previously drawn vertical line
• Click on the left side of that line and press enter
•
• Now trim the vertical lines outside the toilet which are unnecessary
• Command : trim
• Select the objects : select the vertical lines outside the toilet
• Click on them and press enter
•
• Now extend the that vertical alone to intersect both the horizontal lines
• Command : extend
• Click on the vertical line to the top and again to the bottom
•
• Now trim both the horizontal lines outside the toilet
• Command : trim
• Select the objects : select those two horizontal lines
• Click on them and press enter
•
• Now extend the horizontal line
• Command : extend
• Select the objects : select the bottom horizontal line of the toilet wall
• Click on it and press enter
•
• Command : offset
• Enter the distance : 2’6”(the width of the D1 is 2’6”)
• Select the objects : select the extended horizontal line
• Click on the top side of that line and press enter
•
• Now trim the door space
• Command : trim
• Select the objects : select the vertical lines in the door space
• Click on them and press enter
•
• Command : circle
• Enter the center point of the circle : select the end point of the horizontal line of the bottom of the toilet interior wall
• Enter the radius of the circle : click on the mid point of the other wall edge of the toilet
•
• Now trim the circle part which is outside of the toilet
• Command : trim
• Select the objects : select the circle outside the toilet
•
• Command : offset
• Enter the distance : 1”
• Click on the horizontal line of the interiors wall of the toilet beside the door
•
• Command : trim
• Select the objects : select the horizontal line drawn previously which is outside the door
•
• Command : extend
• Select the objects : select the vertical line of the edge of the wall and press enter
•
• Command : copy
• Select the objects : select the cupboard in the bedroom 1
• Select the basepoint : select any point of the cupboard
• Select the other point : select the point in the bedroom2 at the point where to place the cupboard and click on the point
•
• Command :line
• Enter the first point : click on top of the cupboard
• Enter second point: click on the bottom edge of the cupboard
•

To draw the door of the bedroom 2:

• command :circle
• enter the center of the circle : select the vertical wall edge point of the bedroom
• enter the radius : drag the mouse to the edge horizontal line of the wall of the bedroom
•
• Command : trim
• Select the objects : select the circle outside of the bedroom
• And press enter
•
• Command : offset
• Enter the distance : 1”(assume the thickness of the door as 1”)
• Select the objects : select the vertical line of the bedroom beside the door
• Click on the right side of that line and press enter
•
• Command : trim
• Select the objects : select the the previously drawn vertical line which is outside the door
• Click on it and press enter
•
• Command : extend
• Select the objects : select the horizontal line at the edge of the vertical line
• Select it and press enter
•

To draw the parking :

• Command : trim
• Select the objects : select the vertical lines inside the parking which are unnecessary
• Click on them and press enter
•
• Command : offset
• Enter the distance : 9”(the thickness of the exterior wall is 9”)
• Select the objects : select the horizontal line of the bottom wall of the living room
• Click on the bottom side of that line and press enter
•
• Command : trim
• Select the horizontal line drawn previously which is outside the parking
• Click on it and press enter
•
• Command : offset
• Enter the distance : 8’6”(the length of the parking wall from the door is 8’6”)
• Select the objects : select the vertical line of the exterior wall of the parking
• Click on the left side of that line and press enter
•
• Command : trim
• Select the vertical line drawn previously which is outside the exterior wall
•

To draw the door of the living room:

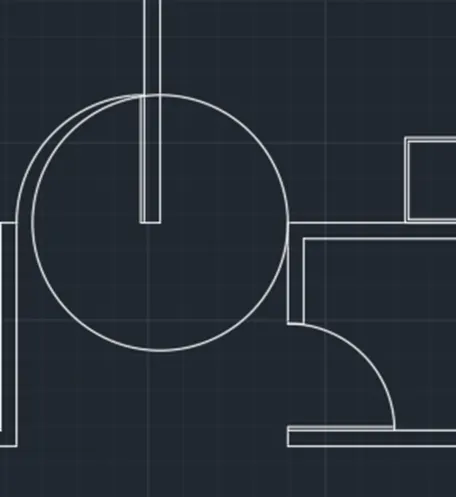

• Command : circle
• Enter the center of the circle : click on the edge horizontal wall of the living room at the entrance
• Enter the radius: drag the cursor to the other end of that entrance and the edge of that vertical wall
•
• Command : line
• Enter the first point : click on the center of the circle
• Enter the next point : move the cursor towards upward dirction and on the intersecting point of the circle with this line
•
• Command : trim
• Select the objects : select the circle outside the door
•

To draw the window in the living room:

• Command : offset
• Enter the distance :4.5”(the half value of the thickness of the exterior wall of the living room)
• Select the object : select the horizontal line of the exterior wall of the living room
• Click on the down side of that line and press enter
•
• Command : offset
• Enter the distance : 1’3”
• Select the objects :select the horizontal line of the edge of the exterior wall of the living room
• Command : offset
• Enter the distance : 6”(the length of the window is 6”)
• Select the objects :select the previously drawn vertical line
• Click on the right side of that line and press enter
•
• Command : trim
• Select the objects : select the vertical line outside the window which is not necessary
•
• Command : trim
• Select the objects : select the unnecessary lines in the exterior walls

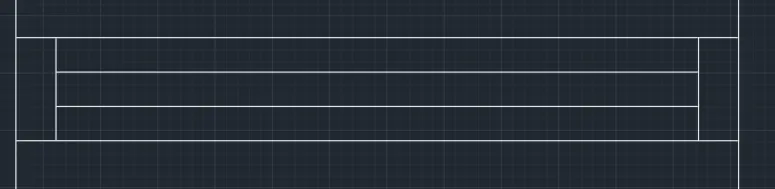

• command : offset
• enter the distance : 1"(assume the tickness of hand rail in the stair case as 1")
• select the objects :select hand rail in the stair case
• click on the either side of the hand rail and click on the screen
•
• command : trim
• select the objects : select the lines inside the hand rail object
•

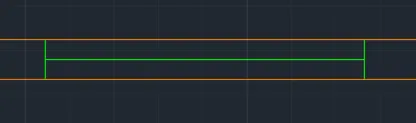

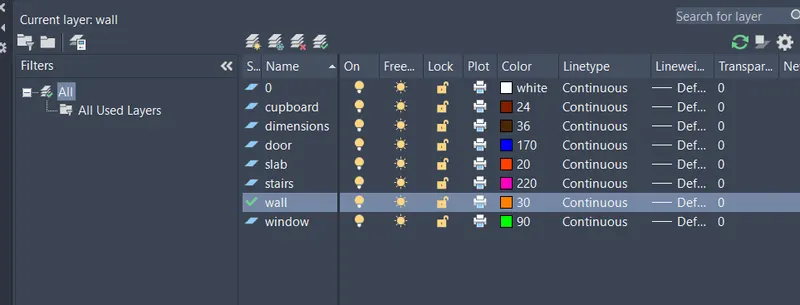

• To create layers:

  • select layer properties from the Ribbon bar
  • select new layer tool
  • enter the layer name : wall ;colour : 30 from index color
  • Create each layer with required name and color
  •

  Implementing layers to the plan :

  • 1.wall layer:
    • select the walls in the plan
    • goto the layer drop down
    • select wall layer
    • the selected objects in the plan changes to wall layer
    •
  • 2.Stair case layer:
    • select the steps
    • goto layer drop down
    • select stairs layer
    •
  • 3.slab layer:

    • select kitchen slab object
    • goto layer drop down
    • select slab layer
    •
  • 4.parking exterior wall :
    • select the exterior wall of the parking
    • goto layer drop down
    • select dimensions layer(both are given the same layer color)
    •
  • 5.window layer :
    • select the window object in the living room
    • goto layer drop down
    • select window layer
    •
  • 6.door layer :
    • select the door objects in the plan
    • goto layer drop down
    • select door layer
    •
    •
  • 7.cupboard layer :
    • select the cupboards in the both the bedrooms
    • goto layer drop down
    • select the cupboard layer
    •
• To draw the dimensions :

  • command : D
  • Dimension style manager dialogue box appears
  • select Modify option
  • select primary units tab
  • select unit format : Engineering
  • select precision : 0'.0"
  • and press ok
  • command : dimlinear
  • select the two points between which the dimension is to be drawn
  •
  •

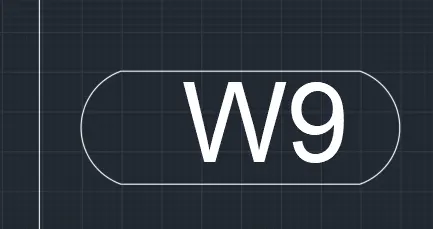

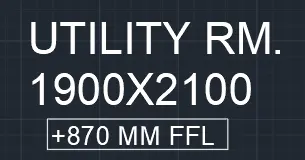

• To write texts:
  • command : text
  • select the start point of text : select the point to start point to start the text
  • enter the text height : 9"
  • now enter the text
  •
  • in this at all the points enter the text
  • command : text
  • select the start point of text : select the point to start point to start the text
  • enter the text height : 4.5"
  • now enter the text

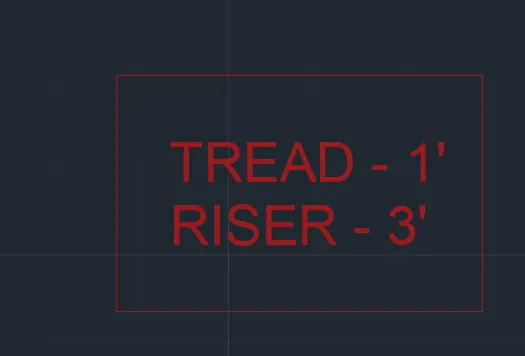

  • command : rectang
  • enter the starting point : click on the corner of the text and drag the cursor to the opposite corner and click on it
  •

RESULT:

2.OUTDOOR SEATING WITH CANOPY:

AIM: To draw the outdoor seating with canopy using autocad

PROCEDURE :

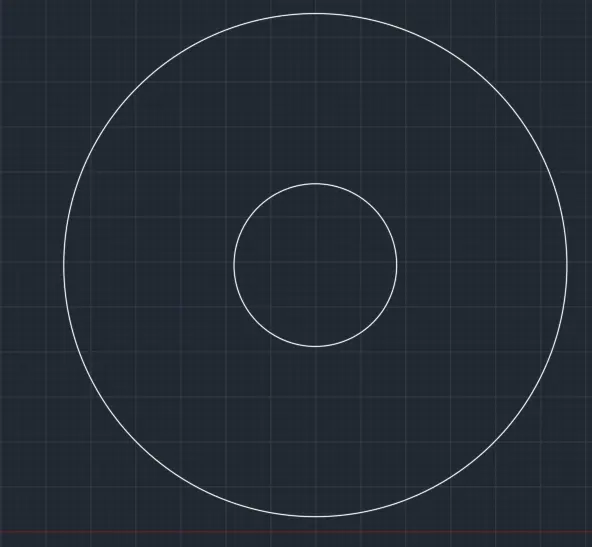

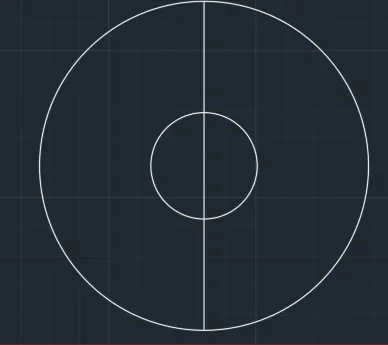

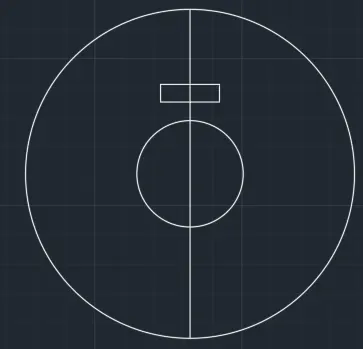

To draw the canopy :

• command : circle
• enter the radius : 452(the radius of the inside circle is 452)
•
• command : circle
• enter the radius : 1398(the radius of the circle is 1398)
•

To draw the seating :

• command : line
• enter the first point : click on the point on the top of the outer circle perpendicular to the center of the circle
• enter the second point : click on the opposite of that point on the outer circle
•

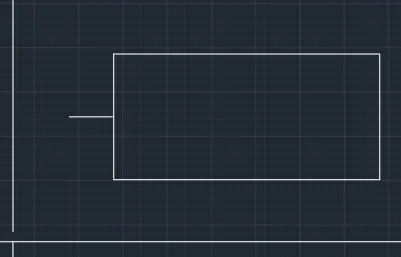

• command : line
• specify first point : click on the vertical line at same small distance from the inner circle
• specify next point : @250,0
• specify next point : @0,150
• specify next point : @-500,0
• specify next point :@0,-150
• specify next point : click on the initial point of line started
•

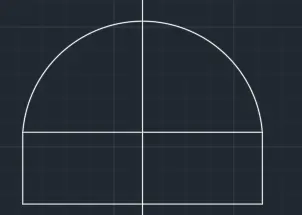

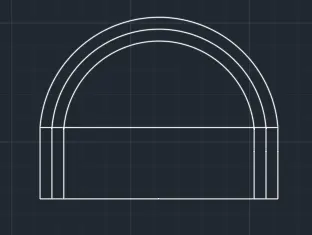

• command : arc
• select : 3 point option
• select the first point : click on the top corner of the rectangle
• select the second point : click on the vertical drawn inside the circle at some ditance
• select the third point : click on the other corner of the rectangle
•
• command : trim
• select the objects : select the vertical line inside the circle

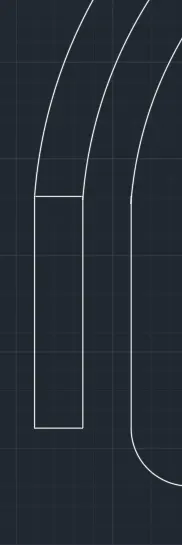

• command : offset

• enter the distance : 25
• select the objects : select the two vertical edges the rectangle and the arc
• click inside of them and click on the screen
• do it for 2 times
•
• command : trim
• select the objects : select the horizontal lines in the miidle offset part
•

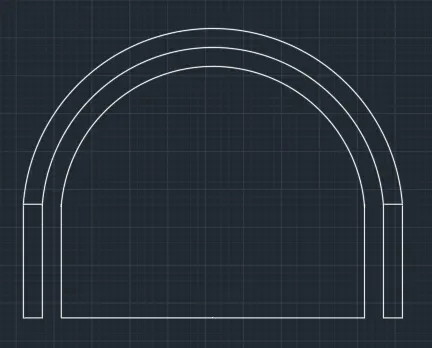

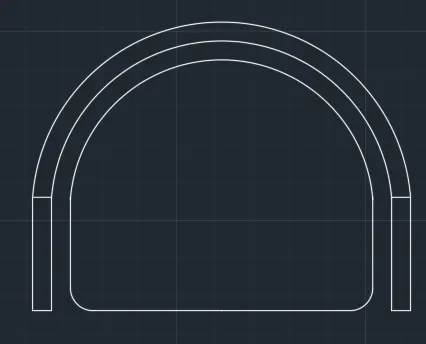

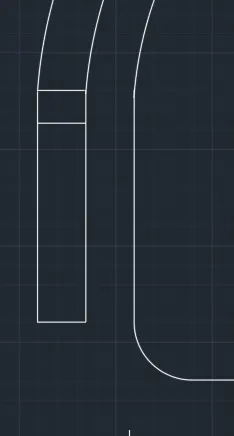

• command : fillet
• select radius option
• enter the radius : 30
• select the objects : select the vertical line and adjacent horizontal line
•
• command : copy
• select the object : select the bottom horizontal line of the hand
• select any base point and copy it to the level of the fillet edge and click on it
•
• now trim the bottom part
•
• command : copy
• select the same line and select any base point
• and click the other base point just below the top horizontal line
•
• now trim the middle part of the two copied lines
•
• now do the same process on the other side
• now draw the remaining 3 objects
• select array drop down in ribbon bar
• select array path option
• select the path object : select the inner circle
• and Associate option from the right side ribbon and press enter
•
• move the arrow mark in clock wise direction
• move the arrow till only 3 objects obtaining
• and click on the arrow
• the final output is shown in the result

RESULT:

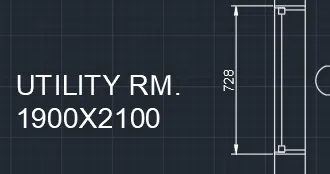

3.PART PLAN FOR THE TOILERS AND UTILITIES ROOM:

AIM: To draw part plan toilers and utilities room

PROCEDURE:

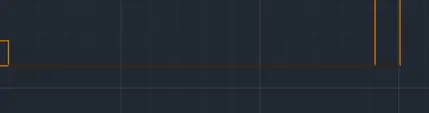

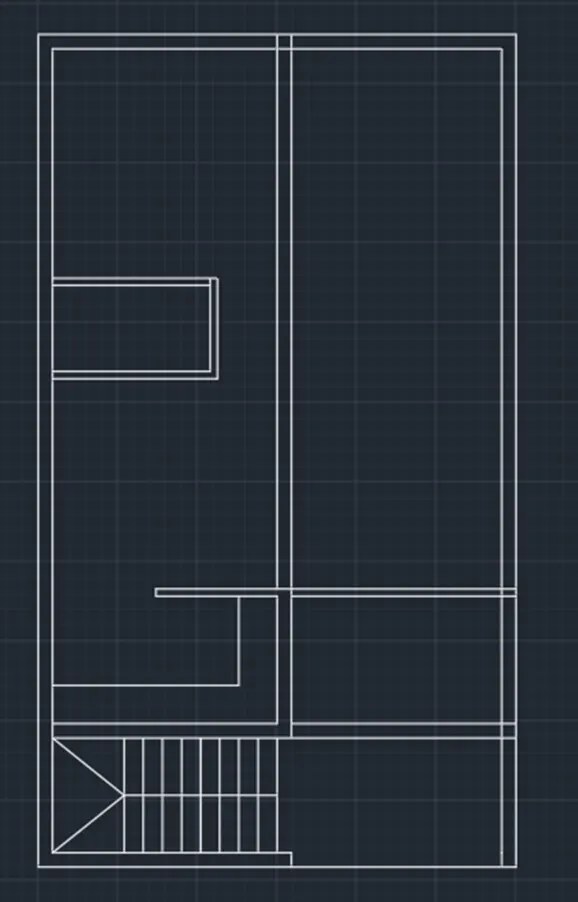

• To draw the exterior and interior:
• Command : unitsSelect the type to Decimal option ,precision to 0.0
• and Insertion to millimeters
• Command : limmax
• Enter the value 10000,10000
• Command : zoom ,and enter ‘e’
• Command : limits
• Enter the value : 100,100
• Command : zoom ,and enter 'All'
• Command : Xline
• Select option to vertical and click on the screen
• Command : XlineSelect option to horizontal and click on the screen
• command : offset
• enter the distance : 150(the thickness of the bottom horizontal wall of the utilities room is 150)
• click on the upside of that line and press enter
• command : offset
• enter the distance :300(the thickness of the left side vertical wall is 150)
• click on the right side of that line and press enter
•
• command : offset
• enter the distance :2100(the width of the utility room is 2100)
• click on the upside of the inside horizontal line and click on the screen
•
• command:offset
• enter the distance : 150(thickness of the divide wall is 150)
• click on the upside of the previously drawn horizontal line and click on the screen
•
• command : offset
• enter the distance : 1700(the thickness of the toilet room is 1700)
• click on the previously drawn horizontal line and click on the upside of that line and click in the screen
•
• command : offset
• enter the distance : 300(the thickness of the exterior horizontal wall is 300)
• select the objects : select the previously drawn horizontal line
• click on the upsisde of it and press enter
•
• command : offset
• enter the distance : 1900(the length of the rooms is 1900)
• select the objects : select the vertical line
• click on the right side of the line and press enter
•
• command : offset
• enter the distance : 150
• select the object : select the previously drawn vertical line
• click on the right side of that line and click on the screen
•
• command : fiilet
• click on the respective horizontal and vertical lines in the corners of the drawn closed figure
•
• command : trim
• select the objects : select the horizontal lines inside the walls and outside the walls
•

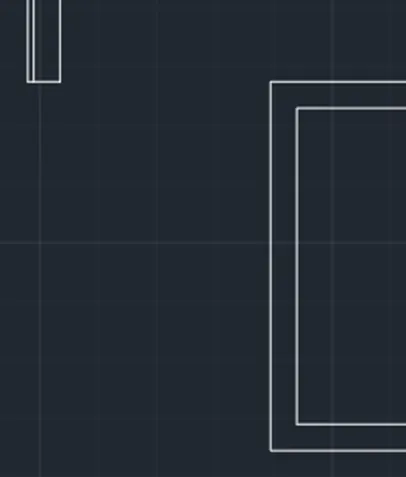

To draw shower:

• command : extend
• select the objects :select the horizontal and vertical lines inside of the walls at the corners
•
• command : line
• enter the first point : select the inside point of the top right corner of the plan
• enter the second point : @0,201
• enter next point: @-402,0
• enter the next point : keep the cursor in the downward direction and enter 201
•
• command :offset
• enter the distance :150
• select the objects : select the 3 sides of the rectangle drawn
•
• command : fillet
• select the objects : select the adjacent sides of the unjoined lines
•

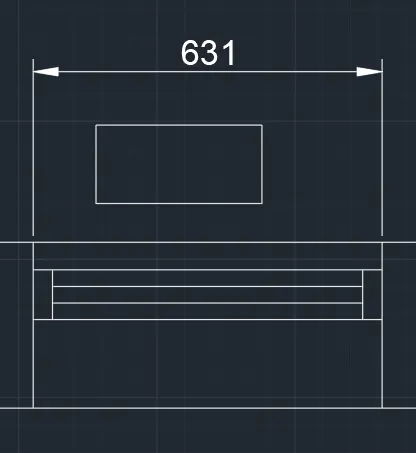

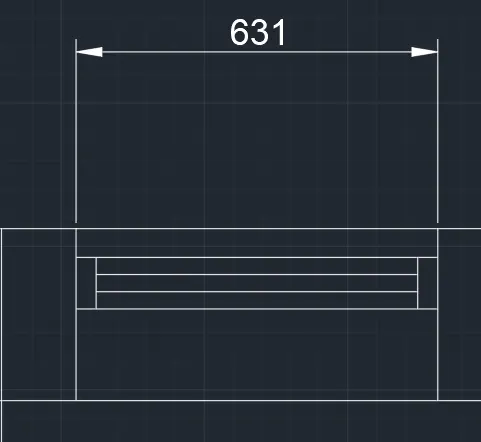

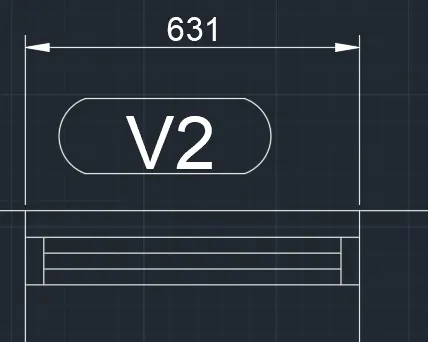

To draw v2:

• command : offset
• enter the offset distance : 130(assume the diastance between left vertical wall to the v2)
• click on the inside vertical wall line and in the right side of it
•
• command : offset
• enter the distance : 631(the length of the v2 )
• select the objects : select the previuosly drawn vertical line
• click on the right side of that line
•
• command : trim
• select the objects : click on the vertical lines outside the wall
•
• command : offset
• enter the distance : 50
• select the objects : select the outer horizontal line of the of the wall
•
• command : trim
• select the objects : select the horizontal line outside the v2
•

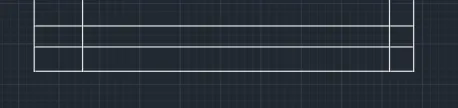

• command : offset
• enter the distance : 30(assume the distance between the glazing as 30)
• select the vertical line which is trimmed and click on the down side of the line
• draw 3 lines below that line
•
• command : offset
• enter the distance : 35(assume the of the glazing edge as 35)
• select the objects : select the vertical line of the v2
•
• command : trim
• select the objects : select the vertical lines outside the v2 and aslo the 2 horizontal glazings which are inside the glazing edge
•

To draw door in the toilet :

• command: extend
• select the objects : select the right side end point of the divide wall and click on it
•
• command : offset
• enter the distance: 130(assume the distance between the the divide wall to the door of the toilet as 130)
• click on the topside of that line of the divide wall and click on the screen
•
• command : trim
• select the objects : select the unnecessary lines as shown in the below figure
•
• command : offset
• enter the distance : 832
• select the objects : select the previously drawn horizontal line
• click on the topside of that line and click on the screen
•
• command : trim
• select the objects : select the vertical line inside the wall
•
• assuming all the dimensions of door to the limit of given width of the door 832

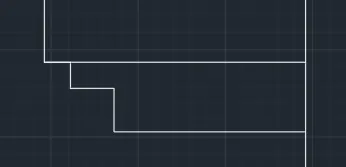

• command :line
• enter the first point : click on the edge of the inside door wall
• enter the second point : @15,0
• enter the next point : @0,15
• enter the next point : @25,0
• enter the next point : @0,25
• enter the next point :click the point on thr exteiror wall line
•
• on the opposite of that door edge we need to draw the same
• command :line
• enter the first point : click on the edge of the inside door wall
• enter the second point : @15,0
• enter the next point : @0,-15
• enter the next point : @25,0
• enter the next point : @0,-25
• enter the next point :click the point on thr exteiror wall line
•
• let us assume the thickness of the door is 25 and the length of the door is 802(832-15-15)
• enter command : line
• enter the first point : click on the down side edge of the door
• enter the second point : @-802,0
• enter the next point : @0,-25
• enter the next point : click on the end point of the door
•
• command : circle
• enter the center point of the circle : click on the hinge point of the door
• enter the radius : drag the cursor so that the circle touches the other hinge point and click on that point
•
• command : trim
• select the objects : select the circle part which outside the door
•

To draw the DOOR OF THE UTILITY ROOM:

• command : offset
• enter the offset distance : 130( assume the distance of door from the exterior wall is 130)
• select the exterior wall line and click on the topside of that line
•
• command : trim
• select the objects : click on the horizontal line outside the vertical wall of the room
•
• command : offset
• enter the distance : 828(the length of the door space is 828)
• click on the previusly drawn horizontal line and click on the top side of that line
•
• command : trim
• select the objects : select the vertical line shown below
•
• and trim the vertical and horizontal line inside the wall
•

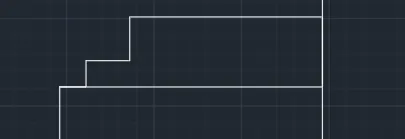

• command : line
• specify the first point : click on the inside edge of the vertical wall
• enter next point : @15,0
• enter next point : @0,15
• enter next point : @25,0
• enter next point : @0,25
• enter next point : click on the end point of the vertical wall
•
• in the same way create on the opposite end of the door
• command : line
• specify the first point : select the inside edge of the opposite door end
• enter the next point : @15,0
• enter the next point : @0,-15
• enter the next point : @25,0
• enter the next point :@0,-25
• enter the next point : click on the point on the vertical wall to close the figure
•
• command : line
• specify the first point : click on the starting point of the door
• enter the next point : @-798,0(the length of the door is 828-15-15)
• enter the next point : @0,-25
• enter the next point : click on the endpoint of the door hinge
•
• command : circle
• enter the center of the circle : click on the end point of the door side hinge
• enter the radius : drag the cursor to opposite hinge point and click on it
• command : trim
• select the objects : click circle outside of the door
•

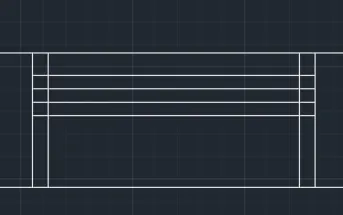

To draw the WINDOW OF THE UTILITY ROOM:

• command : offset
• enter the distance : 260(let us assume the distance between the door and the window is 260)
• select the door wall at the end of the door
• click on the topside of that line
•
• command : offset
• enter the distance : 728(the length of the window space is 728)
• select the objects : click on the previously drawn horizontal line and click on the top of that line
•
• command : line
• specify the first point : click on the down side end of the window hinge
• enter the second point : @0,10
• enter the next point : @50,0
• enter the next point : @0,10
• enter the next point : click on the vertical wall line to complete the figure
•
• on the opposite hinge of the window draw the hinge with same dimensions
• command : line
• specify the first point : click on the end point of the window space
• enter the next point : @0,-10
• enter the next point :@50,0
• enter the next point :@0,-10
• enter the next point : click on the end point of the vertical wall to close the figure
•
• command : line
• enter the first point : click on the point on the hinge at the end of the thinner part
• enter the next point : @30,0
• enter the next point : @0,-30
• enter the next point :@0,-30
• enter the next point : click on the end point of the hinge to close the figure
•
• and in the opposite hinge we need to draw the same square
• command : copy
• select the objects : select the square objects
• select the basepoint : select corner point of that object
• select the other basepoint : click on the opposite hinge at the point which fits the object
•
• command : fillet
• select the objects : select the unjoined lines and click it
•
• comand : line
• specify the first point : as ortho is on click on the mid point of one of the squares drawn at the hinges
• specify the next point : click on the mid point of the square edge of other side
•
• command : trim
• select the objects : select the unnecessary lines inside the walls

To specify dimensions :

• command : d
• dimension style dialog box opens
• select Modify option
• select Units tab
• select units to decimal and precision to 0.0
• and the open Fit tab
• increase the size of the dimensions scale to 18
• command : Dimlinear
• click on the ends of the v9
•
• in the same way draw dimensions for mentined objects
•

To draw the TEXT:

• Command : rectang
• enter the first corner point : click on the corner point nearer to the v9 to draw the object for writing the text
• enter the opposite corner point : drag the cursor to the opposite within the dimline
•

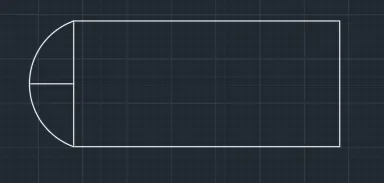

• command : line
• enter the first point : click on the mid point of the left edge of the rectangle
• enter the second point : @-100,0(assuming )
•
• select the arc opiton drop down
• select 3 point option
• specify the first point : click on the top end point of the left edge
• specify the second end point : click on the end point of the horizontal drawn
• specify the third point : click on the other end point of the left edge of the rectangle
•
• command : trim
• select the objects : select the horizontal line and the left edge of the rectangle
•

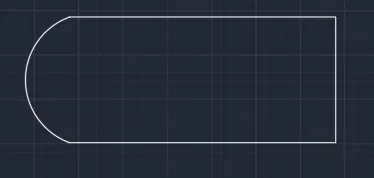

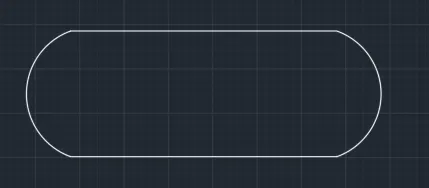

• now draw the same arc in the opposite side
• select Mirror option from the ribbon bar
• select the objects : select the arc drawn
• select the point on mirror line : select the midpoint of the rectangle edge
• click on the point at which the arc fits the rectangle
•
• command : trim
• select the objects : select the right edge of the rectangle
•

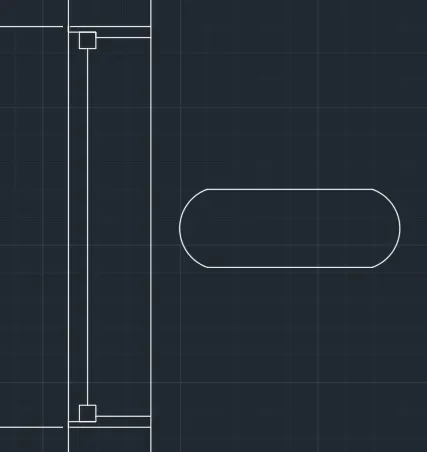

• command : copy
• select the objects : select the object drawn previuosly
• select the base point : select any point of the object
• select 2nd base point : drag the object beside the window and click on any point
•

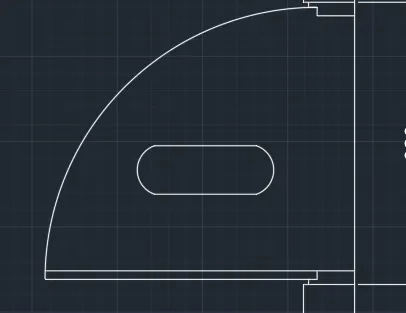

• copy the same object inside the door of the utility room
•

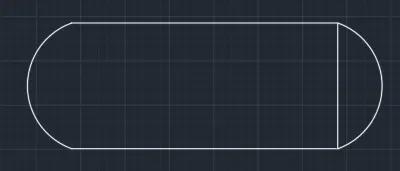

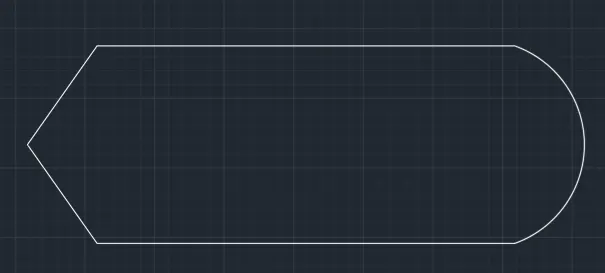

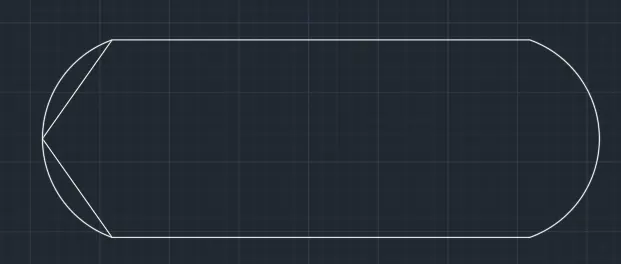

• command : line
• enter the first point : select the left end point of the arc
• enter the next point : click on the mid point of the arc
• enter the next point : click on the other end point of the arc
•
• command : trim
• select the objects : select the arc on the left of the object
•

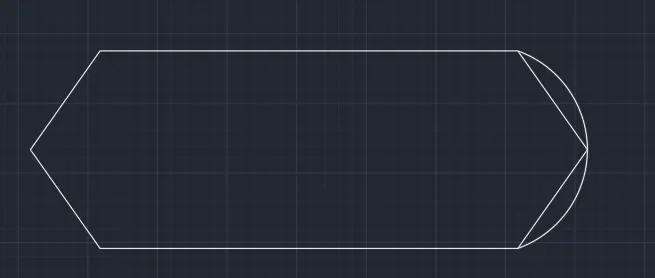

• now in the same way draw the lines on the other of the rectangle

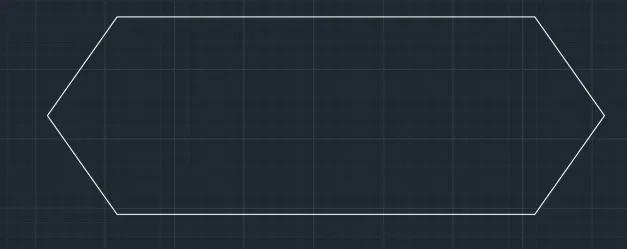

• command : line
• enter the first point : select the right end point of the arc
• enter the next point : click on the mid point of the arc
• enter the next point : click on the other end point of the arc
•
• command : trim
• select the objects : select the arc on the right of the object
•
• command : text
• select the start point : select the point nearer to the point of the v2 inside the object drawn for text in the toilet room
• text height : 100
• rotate angle :0
• write the text : V2
•
• To draw text inside the toilet room , click on the starting point inside the room
• enter the text : D.H. TOILET and then press enter
• enter the text : 1900X1700
•
• Below line of this text should be of smaller size
• .so press esc
• command : TEXT
• select the start point : select the point down side of the text
• text height : 50
• rotate angle :0
• enter text : +870 MM FFL
•
• To draw the text inside the utility room
• command : text
• enter the start point : select the point near the window
• text height : 100
• enter the text : UTILITY RM. and press enter
• enter the text : 1900X2100
•
• Below line should be of smaller text .so press esc
• command : TEXT
• select the start point : select the point down side of the text
• text height : 50
• rotate angle :0
• enter text : +870 MM FFL
•
• to draw the rectangle around the smaller text
• command : rectang
• enter the first corner point : select the point from the starting point of the smaller text
• enter the opposite corner point : drag the rectangle to fit the text and click on the point
•
•
• To draw the text w9 and D5,
• command : text
• enter the start point : select the point inside the object drawn near the window
• text height : 100
• enter the text : W9
•
• click the point inside the object drawn near the door
• enter the text : D5
•

RESULT:
