Creation of geometries by Coordinate system methods using AutoCad

TTejas Garje16 Mar 2022

Q)

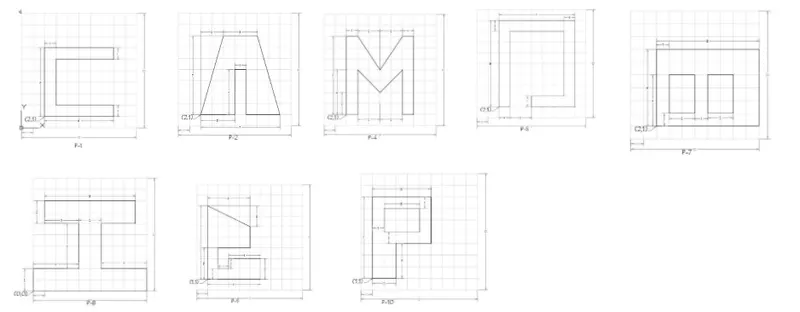

A} Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool. Please read the drawings and find out the missing dimensions before working on the sketches.

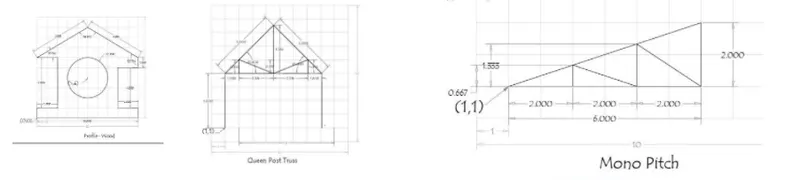

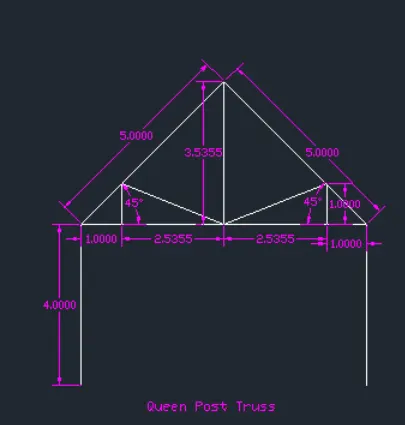

B} Civil Related problems - Draw the given profiles and trusses using any coordinate system.

-> Draw the given drawings using the co-ordinate systems in AutoCAD and details are given below.

AIM -

  1. Create the geometrics from P1 to P8 using all the coordinates system methods and we need to use line tool and find the missing dimesions.

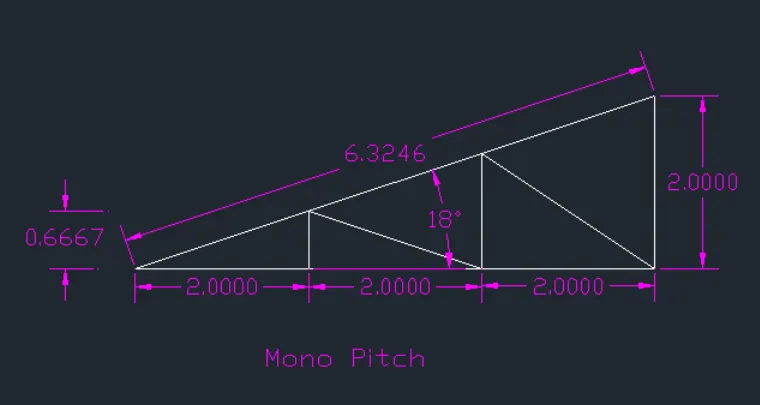

  2. Civil Related problems - Draw the given profiles and trusses using any coordinate system.

INTRODUCTION -

Before going to the drawing we should know about the coordinates systems. In Autocad there are two coordinate systems: Cartesian and Polar. To these coordinate systems the absolute and relative coordinates of Autocad as are applicable. Also coordinates in AutoCAD can be set by mouse, input the values of coordinates in the command line and enter coordinates using dynamic input.

There are three types of co-ordinate systems -

  1. Absolute coordinate systems
    • Relative coordinate systems
    • Relative rectangular coordinates
  2. Relative polar coordinates
  3. Direct distance entry

Commands used -

  1. Line command
  2. Dimlinear command
  3. Text command
  4. Circle command

PROCEDURE -

A} Create the geometries from P1 to P8 using all the coordinates system methods and we need to use line tool, and find the missing dimensions.

P-1 Drawing -

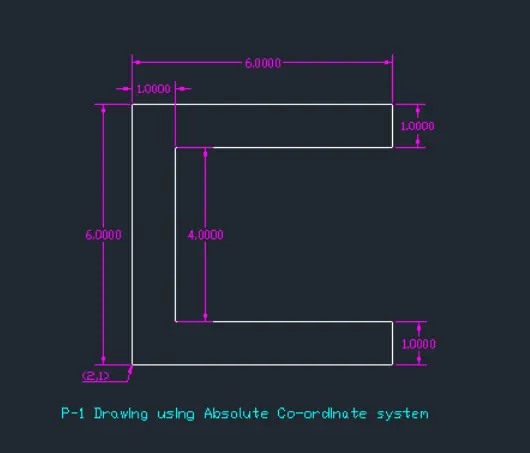

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (2,7) in the command box.
  3. Type the next coordinate of point-3 (8,7) in the command box.
  4. Type the next coordinate of point-4 (8,6) in the command box.
  5. Type the next coordinate of point-5 (3,6) in the command box.
  6. Type the next coordinate of point-6 (3,2) in the command box.
  7. Type the next coordinate of point-7 (8,2) in the command box.
  8. Type the next coordinate of point-8 (8,1) in the command box.
  9. Enter or click close command in command box.

Result -

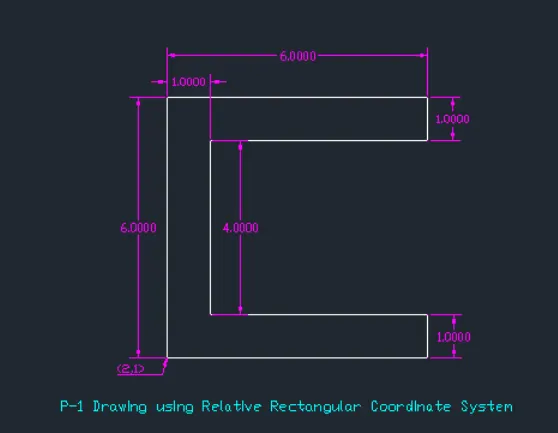

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@0,6) in the command box.
  3. Type the next coordinate of point-3 (@6,0) in the command box.
  4. Type the next coordinate of point-4 (@0,-1) in the command box.
  5. Type the next coordinate of point-5 (@-5,0) in the command box.
  6. Type the next coordinate of point-6 (@0,-4) in the command box.
  7. Type the next coordinate of point-7 (@5,0) in the command box.
  8. Type the next coordinate of point-8 (@0,-1) in the command box.
  9. Enter or click close command in command box.

Result -

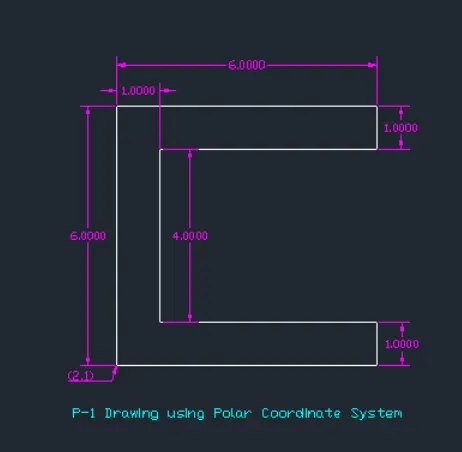

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@6<90) in the command box.
  3. Type the next coordinate of point-3 (@6<0) in the command box.
  4. Type the next coordinate of point-4 (@1<270) in the command box.
  5. Type the next coordinate of point-5 (@5<180) in the command box.
  6. Type the next coordinate of point-6 (@4<270) in the command box.
  7. Type the next coordinate of point-7 (@5<0) in the command box.
  8. Type the next coordinate of point-8 (@1<270) in the command box.
  9. Enter or click close command in command box.

Result -

P-2 Drawing -

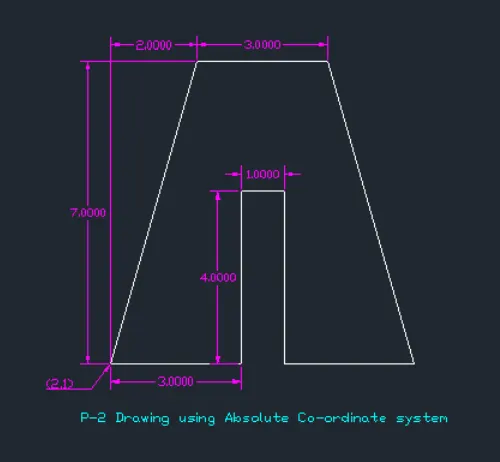

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (5,1) in the command box.
  3. Type the next coordinate of point-3 (5,5) in the command box.
  4. Type the next coordinate of point-4 (6,5) in the command box.
  5. Type the next coordinate of point-5 (6,1) in the command box.
  6. Type the next coordinate of point-6 (9,1) in the command box.
  7. Type the next coordinate of point-7 (7,8) in the command box.
  8. Type the next coordinate of point-8 (4,8) in the command box.
  9. Enter or click close command in command box.

Result -

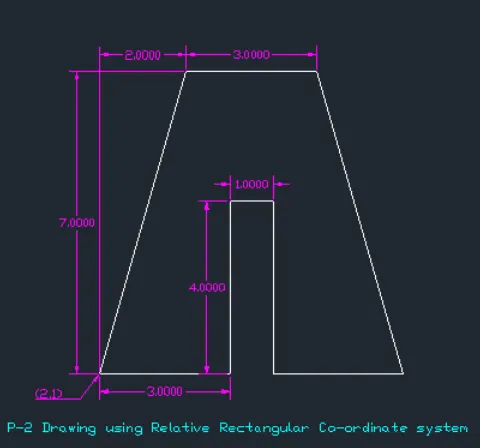

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@3,0) in the command box.
  3. Type the next coordinate of point-3 (@0,4) in the command box.
  4. Type the next coordinate of point-4 (@1,0) in the command box.
  5. Type the next coordinate of point-5 (@0,-4) in the command box.
  6. Type the next coordinate of point-6 (@3,0) in the command box.
  7. Type the next coordinate of point-7 (@-2,7) in the command box.
  8. Type the next coordinate of point-8 (@-3,0) in the command box.
  9. Enter or click close command in command box.

Result -

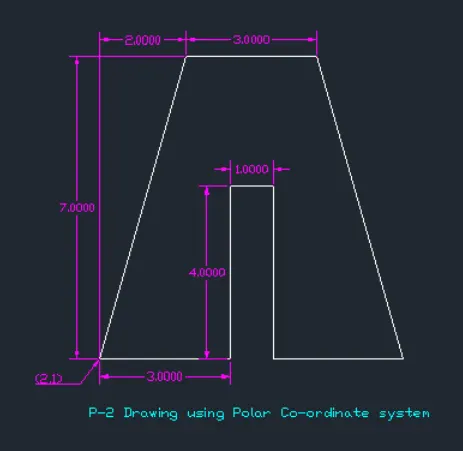

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@3<0) in the command box.
  3. Type the next coordinate of point-3 (@4<90) in the command box.
  4. Type the next coordinate of point-4 (@1<0) in the command box.
  5. Type the next coordinate of point-5 (@4<270) in the command box.
  6. Type the next coordinate of point-6 (@3<0) in the command box.
  7. Type the next coordinate of point-7 (@7.28<105.95) in the command box.
  8. Type the next coordinate of point-8 (@3<180) in the command box.
  9. Type the next coordinate of point-9 (@7.28<254.058) in the command box.
  10. Enter or click close command in command box.

Result -

P-4 Drawing -

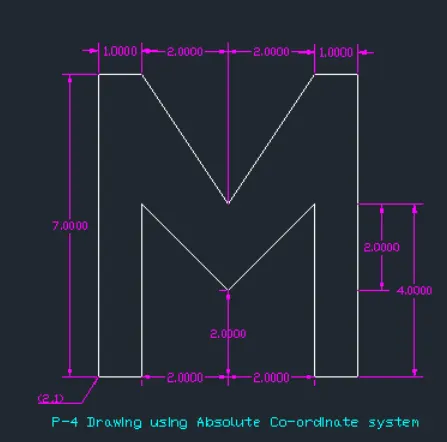

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (2,8) in the command box.
  3. Type the next coordinate of point-3 (3,8) in the command box.
  4. Type the next coordinate of point-4 (5,5) in the command box.
  5. Type the next coordinate of point-5 (7,8) in the command box.
  6. Type the next coordinate of point-6 (8,8) in the command box.
  7. Type the next coordinate of point-7 (8,1) in the command box.
  8. Type the next coordinate of point-8 (7,1) in the command box.
  9. Type the next coordinate of point-9 (7,5) in the command box.
  10. Type the next coordinate of point-10 (5,3) in the command box.
  11. Type the next coordinate of point-11 (3,5) in the command box.
  12. Type the next coordinate of point-12 (3,1) in the command box.
  13. Enter or click close command in command box.

Result -

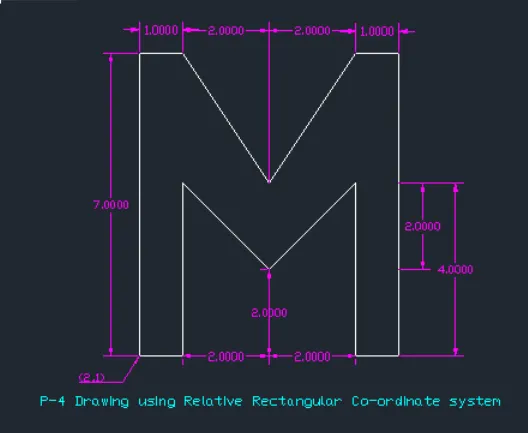

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@0,7) in the command box.
  3. Type the next coordinate of point-3 (@1,0) in the command box.
  4. Type the next coordinate of point-4 (@2,-3) in the command box.
  5. Type the next coordinate of point-5 (@2,3) in the command box.
  6. Type the next coordinate of point-6 (@1,0) in the command box.
  7. Type the next coordinate of point-7 (@0,-7) in the command box.
  8. Type the next coordinate of point-8 (@-1,0) in the command box.
  9. Type the next coordinate of point-9 (@0,4) in the command box.
  10. Type the next coordinate of point-10 (@-2,-2) in the command box.
  11. Type the next coordinate of point-11 (@-2,2) in the command box.
  12. Type the next coordinate of point-12 (@0,-4) in the command box.
  13. Enter or click close command in command box.

Result -

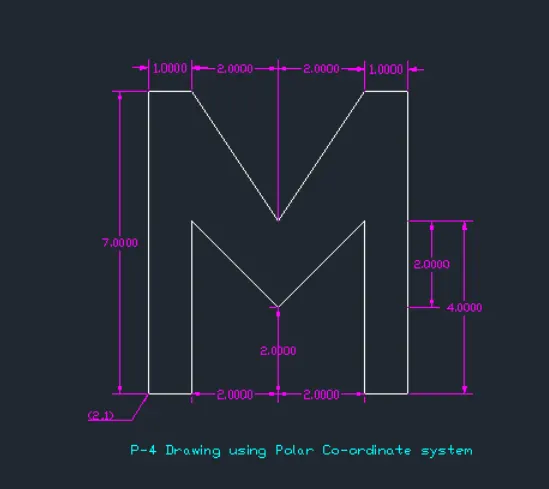

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@7<90) in the command box.
  3. Type the next coordinate of point-3 (@1<0) in the command box.
  4. Type the next coordinate of point-4 (@3.6056<304) in the command box.
  5. Type the next coordinate of point-5 (@3.6056<56) in the command box.
  6. Type the next coordinate of point-6 (@1<0) in the command box.
  7. Type the next coordinate of point-7 (@7<270) in the command box.
  8. Type the next coordinate of point-8 (@1<180) in the command box.
  9. Type the next coordinate of point-9 (@4<90) in the command box.
  10. Type the next coordinate of point-10 (@2.8284<225) in the command box.
  11. Type the next coordinate of point-11 (@2.8284<315) in the command box.
  12. Type the next coordinate of point-12 (@4<270) in the command box.
  13. Enter or click close command in command box.

Result -

P-5 Drawing -

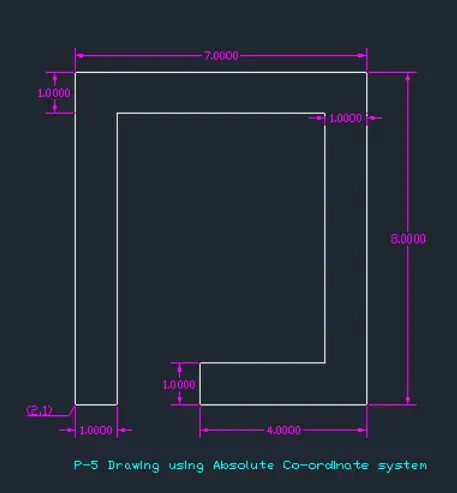

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (2,9) in the command box.
  3. Type the next coordinate of point-3 (9,9) in the command box.
  4. Type the next coordinate of point-4 (9,1) in the command box.
  5. Type the next coordinate of point-5 (5,1) in the command box.
  6. Type the next coordinate of point-6 (5,2) in the command box.
  7. Type the next coordinate of point-7 (8,2) in the command box.
  8. Type the next coordinate of point-8 (8,8) in the command box.
  9. Type the next coordinate of point-9 (3,8) in the command box.
  10. Type the next coordinate of point-10 (3,1) in the command box.
  11. Enter or click close command in command box.

Result -

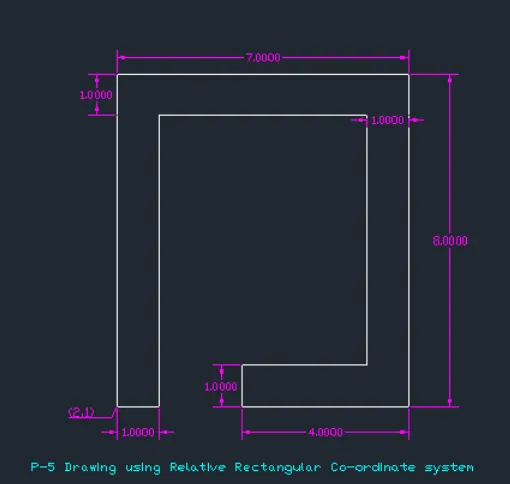

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@0,8) in the command box.
  3. Type the next coordinate of point-3 (@7,0) in the command box.
  4. Type the next coordinate of point-4 (@0,-8) in the command box.
  5. Type the next coordinate of point-5 (@-4,0) in the command box.
  6. Type the next coordinate of point-6 (@0,1) in the command box.
  7. Type the next coordinate of point-7 (@3,0) in the command box.
  8. Type the next coordinate of point-8 (@0,6) in the command box.
  9. Type the next coordinate of point-9 (@-5,0) in the command box.
  10. Type the next coordinate of point-10 (@0,-7) in the command box.
  11. Enter or click close command in command box.

Result -

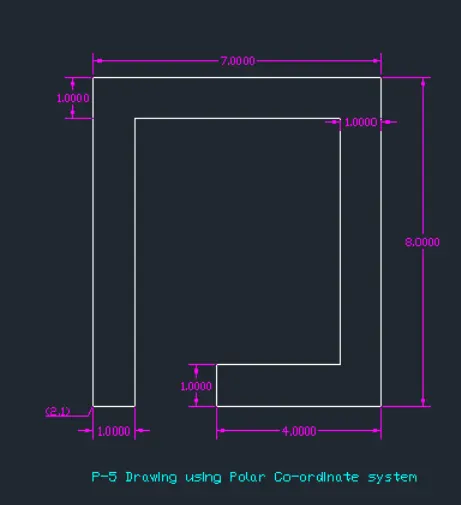

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@8<90) in the command box.
  3. Type the next coordinate of point-3 (@7<0) in the command box.
  4. Type the next coordinate of point-4 (@8<270) in the command box.
  5. Type the next coordinate of point-5 (@4<180) in the command box.
  6. Type the next coordinate of point-6 (@1<90) in the command box.
  7. Type the next coordinate of point-7 (@3<0) in the command box.
  8. Type the next coordinate of point-8 (@6<90) in the command box.
  9. Type the next coordinate of point-9 (@5<180) in the command box.
  10. Type the next coordinate of point-10 (@7<270) in the command box.
  11. Enter or click close command in command box.

Result -

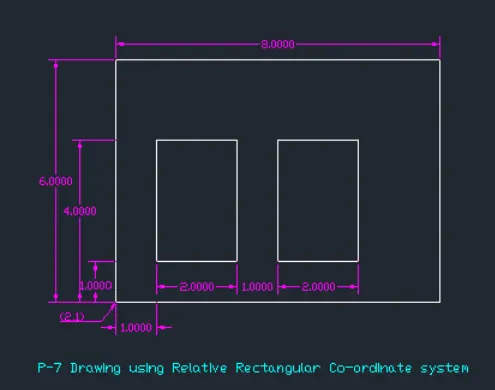

P-7 Drawing -

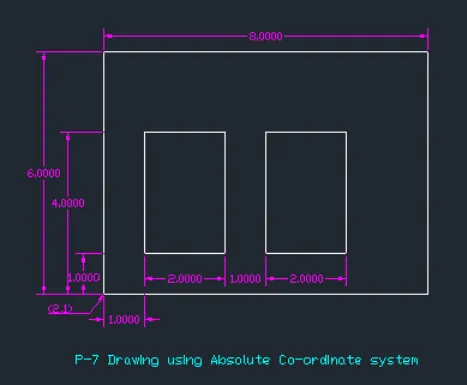

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (2,7) in the command box.
  3. Type the next coordinate of point-3 (10.,7) in the command box.
  4. Type the next coordinate of point-4 (10,1) in the command box.
  5. Enter or click close command in command box.
  6. Type the command 'L' for line and give the coordinates for Point-5 as (3,2).
  7. Type the next coordinate of point-6 (3,5) in the command box.
  8. Type the next coordinate of point-7 (5,5) in the command box.
  9. Type the next coordinate of point-8 (5,2) in the command box.
  10. Enter or click close command in command box.
  11. Type the command 'L' for line and give the coordinates for Point-9 as (6,2).
  12. Type the next coordinate of point-10 (6,5) in the command box.
  13. Type the next coordinate of point-11 (8,5) in the command box.
  14. Type the next coordinate of point-12 (8,2) in the command box.
  15. Enter or click close command in command box.

Result -

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@0,7) in the command box.
  3. Type the next coordinate of point-3 (@8,0) in the command box.
  4. Type the next coordinate of point-4 (@0,-7) in the command box.
  5. Enter or click close command in command box.
  6. Type the command 'L' for line and give the coordinates for Point-5 as (3,2).
  7. Type the next coordinate of point-6 (@0,3) in the command box.
  8. Type the next coordinate of point-7 (@2,0) in the command box.
  9. Type the next coordinate of point-8 (@0,-3) in the command box.
  10. Enter or click close command in command box.
  11. Type the command 'L' for line and give the coordinates for Point-9 as (6,2).
  12. Type the next coordinate of point-10 (@0,3) in the command box.
  13. Type the next coordinate of point-11 (@2,0) in the command box.
  14. Type the next coordinate of point-12 (@0,-3) in the command box.
  15. Enter or click close command in command box.

Result -

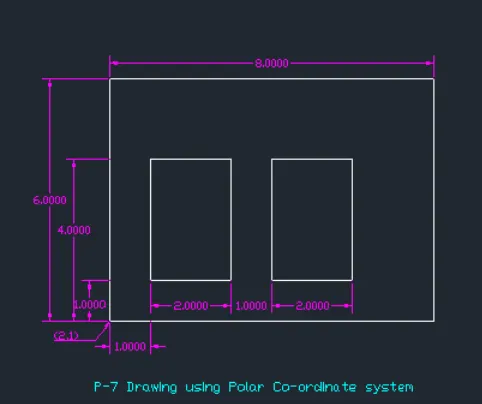

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (2,1).
  2. Type the next coordinate of point-2 (@6<90) in the command box.
  3. Type the next coordinate of point-3 (@8<0) in the command box.
  4. Type the next coordinate of point-4 (@6<270) in the command box.
  5. Enter or click close command in command box.
  6. Type the command 'L' for line and give the coordinates for Point-5 as (3,2).
  7. Type the next coordinate of point-6 (@3<90) in the command box.
  8. Type the next coordinate of point-7 (@2<0) in the command box.
  9. Type the next coordinate of point-8 (@3,270) in the command box.
  10. Enter or click close command in command box.
  11. Type the command 'L' for line and give the coordinates for Point-9 as (6,2).
  12. Type the next coordinate of point-10 (@3<90) in the command box.
  13. Type the next coordinate of point-11 (@2<0) in the command box.
  14. Type the next coordinate of point-12 (@3<270) in the command box.
  15. Enter or click close command in command box.

Result -

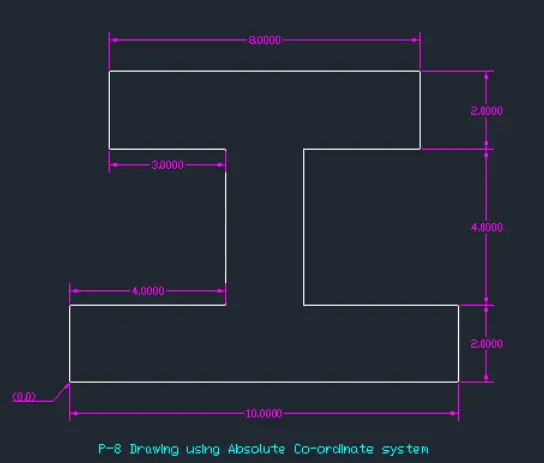

P-8 Drawing -

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (0,0).
  2. Type the next coordinate of point-2 (0,2) in the command box.
  3. Type the next coordinate of point-3 (4,2) in the command box.
  4. Type the next coordinate of point-4 (4,6) in the command box.
  5. Type the next coordinate of point-5 (1,6) in the command box.
  6. Type the next coordinate of point-6 (1,8) in the command box.
  7. Type the next coordinate of point-7 (9,8) in the command box.
  8. Type the next coordinate of point-8 (9,6) in the command box.
  9. Type the next coordinate of point-8 (6,6) in the command box.
  10. Type the next coordinate of point-8 (6,2) in the command box.
  11. Type the next coordinate of point-8 (10,2) in the command box.
  12. Type the next coordinate of point-8 (10,0) in the command box.
  13. Enter or click close command in command box.

Result -

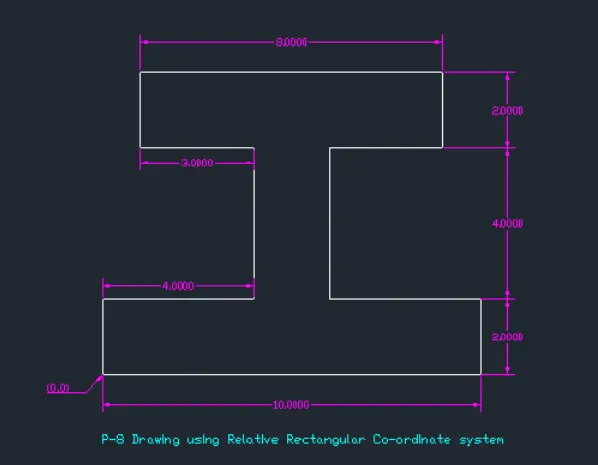

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (0,0).
  2. Type the next coordinate of point-2 (@0,2) in the command box.
  3. Type the next coordinate of point-3 (@4,0) in the command box.
  4. Type the next coordinate of point-4 (@0,4) in the command box.
  5. Type the next coordinate of point-5 (@-3,0) in the command box.
  6. Type the next coordinate of point-6 (@0,2) in the command box.
  7. Type the next coordinate of point-7 (@8,0) in the command box.
  8. Type the next coordinate of point-8 (@0,-2) in the command box.
  9. Type the next coordinate of point-9 (@-3,0) in the command box.
  10. Type the next coordinate of point-10 (@0,-4) in the command box.
  11. Type the next coordinate of point-11 (@4,0) in the command box.
  12. Type the next coordinate of point-12(@0,-2) in the command box.
  13. Enter or click close command in command box.

Result -

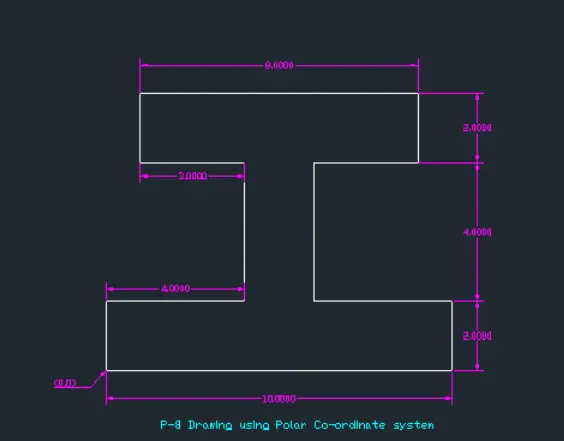

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (0,0).
  2. Type the next coordinate of point-2 (@2<90) in the command box.
  3. Type the next coordinate of point-3 (@4<0) in the command box.
  4. Type the next coordinate of point-4 (@4<90) in the command box.
  5. Type the next coordinate of point-5 (@3<180) in the command box.
  6. Type the next coordinate of point-6 (@2<90) in the command box.
  7. Type the next coordinate of point-7 (@8<0) in the command box.
  8. Type the next coordinate of point-8 (@2<270) in the command box.
  9. Type the next coordinate of point-9 (@3<180) in the command box.
  10. Type the next coordinate of point-10 (@4<270) in the command box.
  11. Type the next coordinate of point-11 (@4<0) in the command box.
  12. Type the next coordinate of point-12 (@2<270) in the command box.
  13. Enter or click close command in command box.

Result -

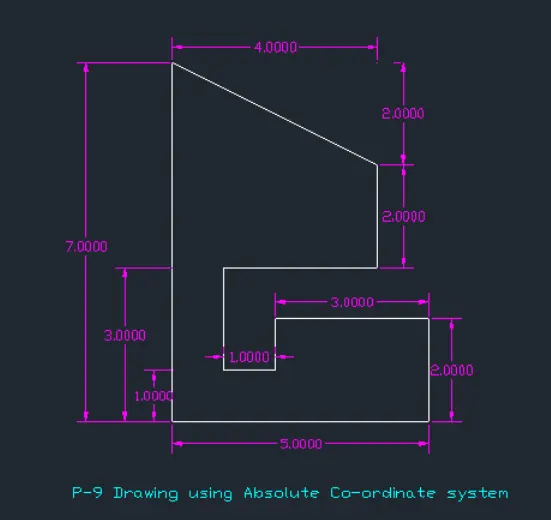

P-9 Drawing -

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (1,8) in the command box.
  3. Type the next coordinate of point-3 (5,6) in the command box.
  4. Type the next coordinate of point-4 (5,4) in the command box.
  5. Type the next coordinate of point-5 (2,4) in the command box.
  6. Type the next coordinate of point-6 (2,2) in the command box.
  7. Type the next coordinate of point-7 (3,2) in the command box.
  8. Type the next coordinate of point-8 (3,3) in the command box.
  9. Type the next coordinate of point-9 (6,3) in the command box.
  10. Type the next coordinate of point-10 (6,1) in the command box.
  11. Enter or click close command in command box.

Result -

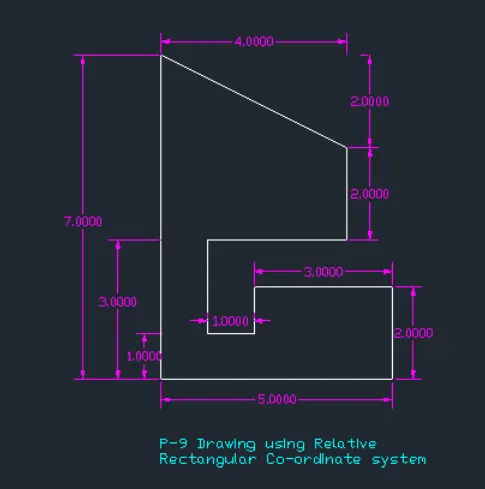

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (@0,7) in the command box.
  3. Type the next coordinate of point-3 (@4,-2) in the command box.
  4. Type the next coordinate of point-4 (@0,-2) in the command box.
  5. Type the next coordinate of point-5 (@-3,0) in the command box.
  6. Type the next coordinate of point-6 (@0,-2) in the command box.
  7. Type the next coordinate of point-7 (@1,0) in the command box.
  8. Type the next coordinate of point-8 (@0,1) in the command box.
  9. Type the next coordinate of point-9 (@3,0) in the command box.
  10. Type the next coordinate of point-10 (@0,-2) in the command box.
  11. Enter or click close command in command box.

Result -

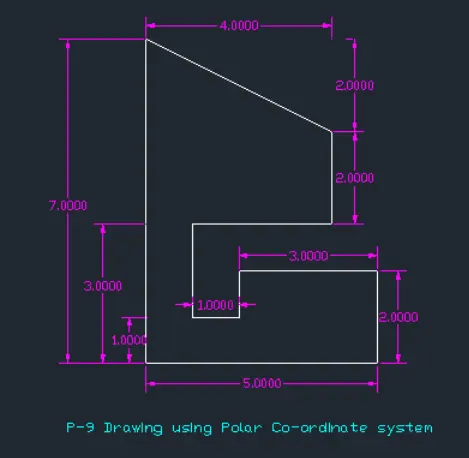

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (@7<90) in the command box.
  3. Type the next coordinate of point-3 (@4.4721<333) in the command box.
  4. Type the next coordinate of point-4 (@2<270) in the command box.
  5. Type the next coordinate of point-5 (@3<180) in the command box.
  6. Type the next coordinate of point-6 (@2<270) in the command box.
  7. Type the next coordinate of point-7 (@1<0) in the command box.
  8. Type the next coordinate of point-8 (@1<90) in the command box.
  9. Type the next coordinate of point-9 (@3<0) in the command box.
  10. Type the next coordinate of point-10 (@2<270) in the command box.
  11. Enter or click close command in command box.

Result -

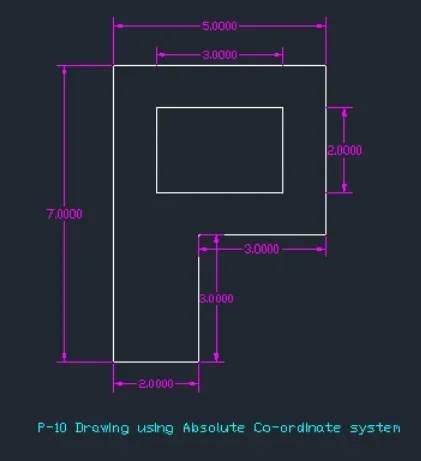

P-10 Drawing -

Absolute Coordinate System -

In this system the distances are calculated from origin.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (1,8) in the command box.
  3. Type the next coordinate of point-3 (6,8) in the command box.
  4. Type the next coordinate of point-4 (6,4) in the command box.
  5. Type the next coordinate of point-5 (3,4) in the command box.
  6. Type the next coordinate of point-6 (3,1) in the command box.
  7. Enter or click close command in command box.
  8. Type the command 'L' for line and give the coordinates for Point-7 as (2,5).
  9. Type the next coordinate of point-8 (2,7) in the command box.
  10. Type the next coordinate of point-9 (5,7) in the command box.
  11. Type the next coordinate of point-10 (5,5) in the command box.
  12. Enter or click close command in command box.

Result -

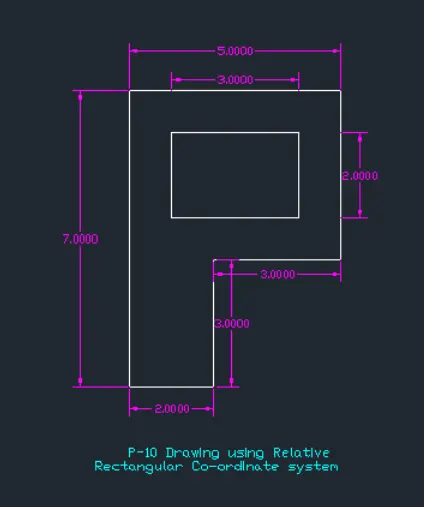

Relative Rectangular Coordinate System -

In this system the co-ordinates are measure from the previous point.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (@0,7) in the command box.
  3. Type the next coordinate of point-3 (@5,0) in the command box.
  4. Type the next coordinate of point-4 (@0,-4) in the command box.
  5. Type the next coordinate of point-5 (@-3,0) in the command box.
  6. Type the next coordinate of point-6 (@0,-3) in the command box.
  7. Enter or click close command in command box.
  8. Type the command 'L' for line and give the coordinates for Point-7 as (2,5).
  9. Type the next coordinate of point-8 (@0,2) in the command box.
  10. Type the next coordinate of point-9 (@3,0) in the command box.
  11. Type the next coordinate of point-9 (@0,-2) in the command box.
  12. Enter or click close command in command box.

Result -

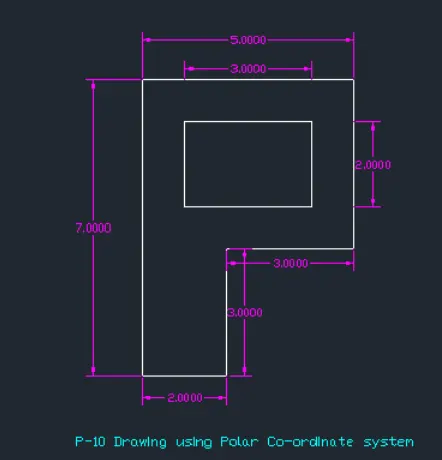

Polar Coordinate System -

In this system the co-ordinates and angles are given with respect to given x-axis.

Process -

  1. Type the command 'L' for line and give the coordinates for Point-1 as (1,1).
  2. Type the next coordinate of point-2 (@7<90) in the command box.
  3. Type the next coordinate of point-3 (@5<0) in the command box.
  4. Type the next coordinate of point-4 (@4<270) in the command box.
  5. Type the next coordinate of point-5 (@3<180) in the command box.
  6. Type the next coordinate of point-6 (@3<270) in the command box.
  7. Enter or click close command in command box.
  8. Type the command 'L' for line and give the coordinates for Point-7 as (2,5).
  9. Type the next coordinate of point-8 (@2<90) in the command box.
  10. Type the next coordinate of point-9 (@3<0) in the command box.
  11. Type the next coordinate of point-10 (@2<270) in the command box.
  12. Enter or click close command in command box.

Result -

B} Civil Related Problems - Draw he profile and the trusses using any coordinate system methods. The dimensions are there for references.

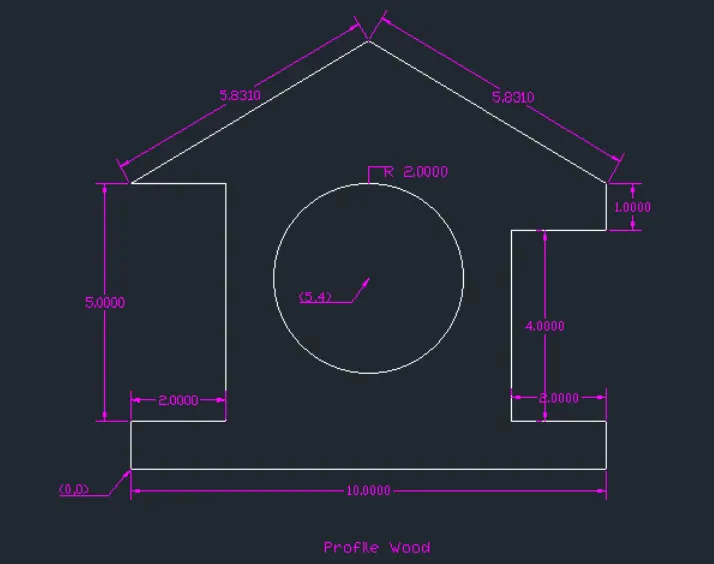

1) Pofile Wood -

2) Queen Post Truss -

3) Mono Pitch -

RESULT -

  • The geometries are clearely mentioned in all the drawings and missing dimesions are also mentioned.
  • Using all the coordinate systems all the drawings are clearely drawn from given drawings.
  • The profile and trusses are drawn successfully by using the absolute coordinate system method.
Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
