Creation of geometries by Coordinate system methods using AutoCad

AIM:

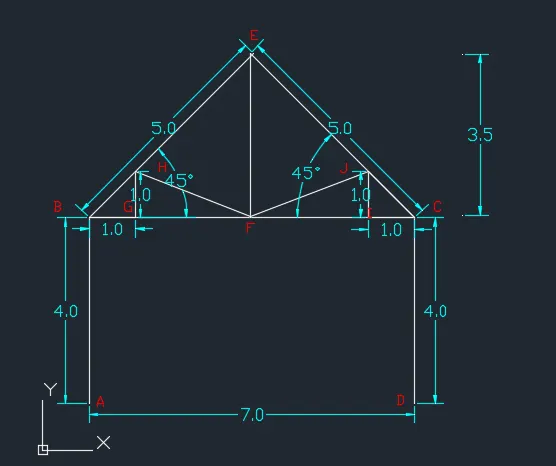

To create the given geomwtries and trusses in AUTOCAD, using the different co-ordinates system method and the line and circle drawing tools

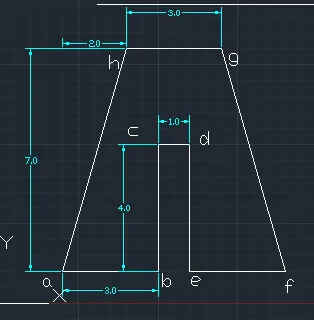

Geometries P-1 and P-2 drawn by using all coordinate system, and each of the remaing geometries are drawn using any one of the coordinate system or the ditect distance entry method.

INTRODUCTION:

Coordinate system: Coordinate system is a system wherw numbers are used to deternime the unique position of points and/or other geometric elements

The various coordinate systems are:

1. Absolute coordinate system: In this system all points are established at some distance in X & Y- axis from a common origin

2. Relative coordinate system : In this systen location of a relative coordinate is defined by its distance from a reference point. In AutoCAD,when using this syatem the first point of the drawing/geometry is always absolute, i.e, it is established with respect to origin(0,0) and then all the successive positions are established with rwspect to their preceding point. This system is further classified as-

• Relative rectangular coordinate system: It is a coordinate system that specifies each point by a pair of numerical coordinate in the X-axis and Y-axis. In this system the points succeeding the first distance(length) and angle of a particular point with respect to its previous point.
• Relative polar coordinate: This system specifies the distance and angle of a paticular point with respect to its previous point.In relativr polar coordinate syatem,points are established by typing '@distance<angle'{enter} in the command box

3. Direct distancr entry method: It is another popular method used for drawing diffrent shapes/geometries in AutoCAD. Direct distance entry method enables the user to draw an object by simply poninting thr cursor in the desired direction and entering the required diatance in command bar

PROCEDURE:

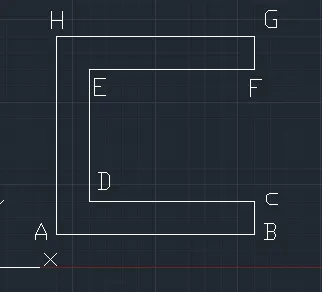

P1:

Starting AutoCAD software:

• Go to START MENU, ,select AutoCAD 2022.
• Click on the START DRAWING
• In command line type in: STARTUP[ENTER]
• Enter new value of startup:1
• Go to Application menu and select New
• in the 'Create New Drawing' dialog box, we select the 'Imprerial system in the START from Scratch option
• Next we select the decimal units system from Advance setup option
• Set the limits by entering LIMITS in the command tab, The lower-left corner is specified as (0,0): and upper -right corner is (100,100).
• zoom all enter in command bar

A. Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as (8,1) in the command bar
4. Specify the next coordinate point 3 as (8,2) in the command bar
5. Specify the next coordinate point 4 as (3,2) in the command bar
6. Specify the next coordinate point 5 as (3,6) in the command bar
7. Specify the next coordinate point 6 as (8,6) in the command bar
8. Specify the next coordinate point 7 as (8,7) in the command bar
9. Specify the next coordinate point 8 as (2,7) in the command bar
10. Click 'Close or C enter' in command bar

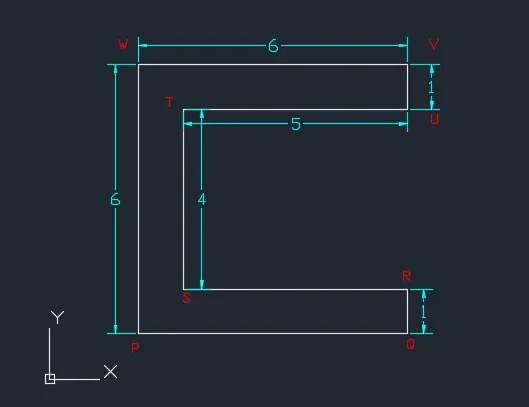

RESULT:

B. Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as @(6,0) in the command bar
4. Specify the next coordinate point 3 as @(0,1) in the command bar
5. Specify the next coordinate point 4 as @(-5,0) in the command bar
6. Specify the next coordinate point 5 as @(0,4) in the command bar
7. Specify the next coordinate point 6 as @(5,0) in the command bar
8. Specify the next coordinate point 7 as @(0,1) in the command bar
9. Specify the next coordinate point 8 as @(-6,0) in the command bar
10. Click 'Close or C enter' in command bar

C. Using Relative Polar Coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as @(6<0) in the command bar
4. Specify the next coordinate point 3 as @(1<90) in the command bar
5. Specify the next coordinate point 4 as @(5<180) in the command bar
6. Specify the next coordinate point 5 as @(4<90) in the command bar
7. Specify the next coordinate point 6 as @(5<0) in the command bar
8. Specify the next coordinate point 7 as @(1<90) in the command bar
9. Specify the next coordinate point 8 as @(6<180) in the command bar
10. Click 'Close or C enter' in command bar

D. Using Direct Distance Method:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1)in the command bar
3. Specify the next coordinate point 2 as 6 in the command bar towards +ve x-axis
4. Specify the next coordinate point 3 as 1 in the command bar towards +ve y-axis
5. Specify the next coordinate point 4 as 5 in the command bar towars -ve x-axis
6. Specify the next coordinate point 5 as 4 in the command bar toward +ve y-axis
7. Specify the next coordinate point 6 as 5 in the command bar towards +ve x-axis
8. Specify the next coordinate point 7 as 1 in the command bar towards +ve y-axis
9. Specify the next coordinate point 8 as 6 in the command bar towards -ve x-axis
10. Click 'Close or C enter' in command bar

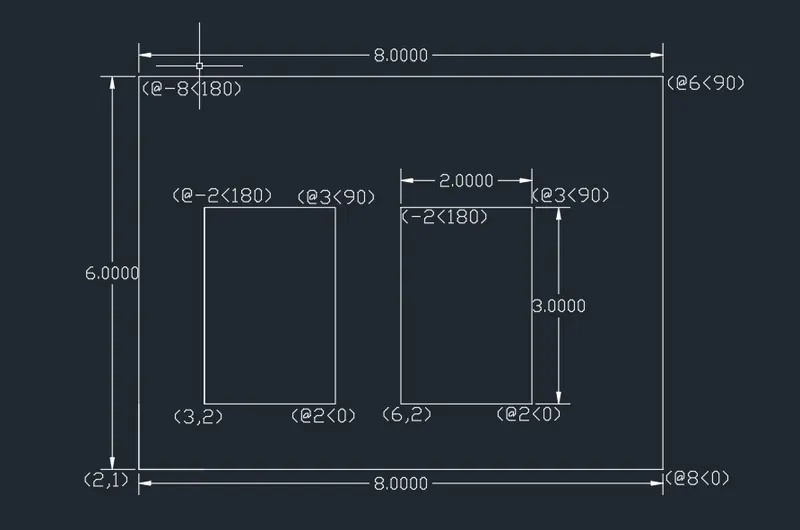

RESULT:

P2:

Starting AutoCAD software:

• Go to START MENU, ,select AutoCAD 2022.
• Click on the START DRAWING
• In command line type in: STARTUP[ENTER]
• Enter new value of startup:1
• Go to Application menu and select New
• in the 'Create New Drawing' dialog box, we select the 'Imprerial system in the START from Scratch option
• Next we select the decimal units system from Advance setup option
• Set the limits by entering LIMITS in the command tab, The lower-left corner is specified as (0,0): and upper -right corner is (100,100).
• zoom all enter in command bar

A. Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as (5,1) in the command bar
4. Specify the next coordinate point 3 as (5,5) in the command bar
5. Specify the next coordinate point 4 as (6,5) in the command bar
6. Specify the next coordinate point 5 as (6,1) in the command bar
7. Specify the next coordinate point 6 as (9,1) in the command bar
8. Specify the next coordinate point 7 as (7,8) in the command bar
9. Specify the next coordinate point 8 as (4,8) in the command bar
10. Click 'Close or C enter' in command bar

B. Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as @(2,1) in the command bar
3. Specify the next coordinate point 2 as @(3,0) in the command bar
4. Specify the next coordinate point 3 as @(0,4) in the command bar
5. Specify the next coordinate point 4 as @(1,0) in the command bar
6. Specify the next coordinate point 5 as @(0,-4) in the command bar
7. Specify the next coordinate point 6 as @(3,0) in the command bar
8. Specify the next coordinate point 7 as @(-2,7) in the command bar
9. Specify the next coordinate point 8 as @(-3,0) in the command bar
10. Click 'Close or C enter' in command bar

C. Using Relative Polar Coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as @(3<0) in the command bar
4. Specify the next coordinate point 3 as @(4<90) in the command bar
5. Specify the next coordinate point 4 as @(1<0) in the command bar
6. Specify the next coordinate point 5 as @(4<270) in the command bar
7. Specify the next coordinate point 6 as @(3<0) in the command bar
8. Specify the next coordinate point 7 as @(7<90) in the command bar
9. Specify the next coordinate point 8 as @(2<180) in the command bar
10. Click 'Close or C enter' in command bar

D. Using Direct Distance Method:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1)in the command bar
3. Specify the next coordinate point 2 as 3 in the command bar towards +ve x-axis
4. Specify the next coordinate point 3 as 4 in the command bar towards +ve y-axis
5. Specify the next coordinate point 4 as 1 in the command bar towars -ve x-axis
6. Specify the next coordinate point 5 as 4 in the command bar toward +ve y-axis
7. Specify the next coordinate point 6 as 3 in the command bar towards +ve x-axis
8. Specify the next coordinate point 7 as 7 in the command bar towards +ve y-axis
9. Specify the next coordinate point 8 as 2 in the command bar towards -ve x-axis
10. Click 'Close or C enter' in command bar

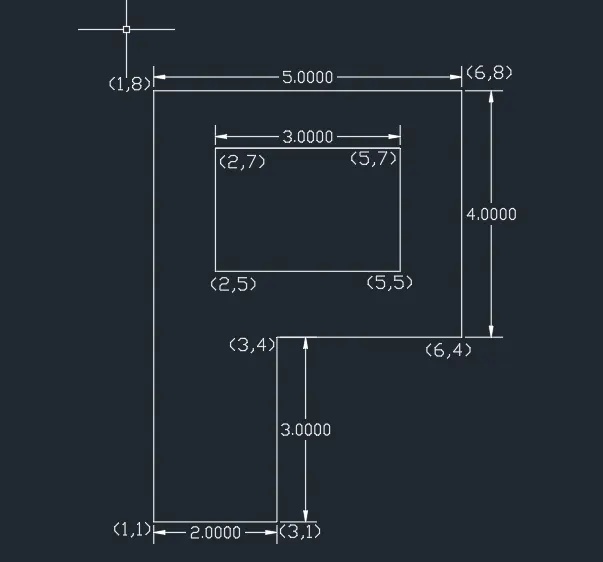

FINAL RESULT :

P3

Starting AutoCAD software:

• Go to START MENU, ,select AutoCAD 2022.
• Click on the START DRAWING
• In command line type in: STARTUP[ENTER]
• Enter new value of startup:1
• Go to Application menu and select New
• in the 'Create New Drawing' dialog box, we select the 'Imprerial system in the START from Scratch option
• Next we select the decimal units system from Advance setup option
• Set the limits by entering LIMITS in the command tab, The lower-left corner is specified as (0,0): and upper -right corner is (100,100).
• zoom all enter in command bar

A. Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as (3,4) in the command bar
4. Specify the next coordinate point 3 as (3,5) in the command bar
5. Specify the next coordinate point 4 as (5,3) in the command bar
6. Specify the next coordinate point 5 as (7,5) in the command bar
7. Specify the next coordinate point 6 as (7,7) in the command bar
8. Specify the next coordinate point 7 as (8,1) in the command bar
9. Specify the next coordinate point 8 as (8,8) in the command bar
10. Specify the next coordinate point 9 as (7,8) in the command bar
11. Specify the next coordinate point 10 as (5,5) in the command bar
12. Specify the next coordinate point 11 as (3,8) in the command bar
13. Specify the next coordinate point 12 as (2,8) in the command bar
14. Click 'Close or C enter' in command bar

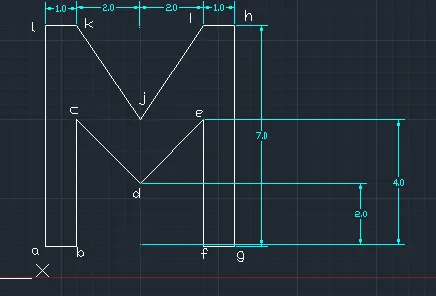

RESULT:

P4

Using Direct Distance Method:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1)in the command bar
3. Specify the next coordinate point 2 as 3 in the command bar towards +ve x-axis
4. Specify the next coordinate point 3 as 4 in the command bar towards +ve y-axis
5. Specify the next coordinate point 4 as 1 in the command bar towars -ve x-axis
6. Specify the next coordinate point 5 as 4 in the command bar toward +ve y-axis
7. Specify the next coordinate point 6 as 3 in the command bar towards +ve x-axis
8. Specify the next coordinate point 7 as 7 in the command bar towards +ve y-axis
9. Specify the next coordinate point 8 as 2 in the command bar towards -ve x-axis
10. Click 'Close or C enter' in command bar

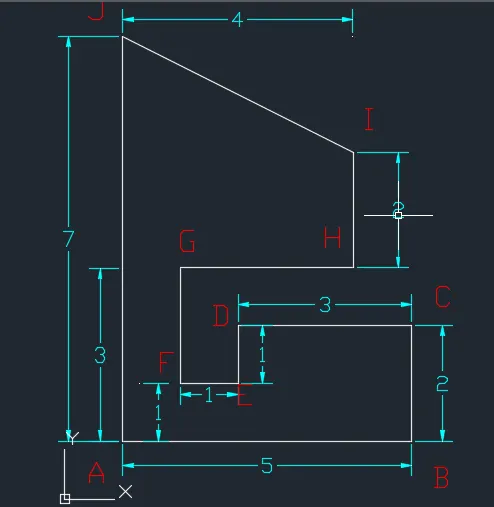

RESULT:

P5

Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as @(2,1) in the command bar
3. Specify the next coordinate point 2 as @(1,0) in the command bar
4. Specify the next coordinate point 3 as @(0,7) in the command bar
5. Specify the next coordinate point 4 as @(5,0) in the command bar
6. Specify the next coordinate point 5 as @(0,-6) in the command bar
7. Specify the next coordinate point 6 as @(-3,0) in the command bar
8. Specify the next coordinate point 7 as @(0,-1) in the command bar
9. Specify the next coordinate point 8 as @(4,0) in the command bar
10. Specify the next coordinate point 8 as @(0,8) in the command bar
11. Specify the next coordinate point 8 as @(-7,0) in the command bar
12. Click 'Close or C enter' in command bar

FINAL RESULT :

P6

Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as @(2,1) in the command bar
3. Specify the next coordinate point 2 as @(1,0) in the command bar
4. Specify the next coordinate point 3 as @(0,7) in the command bar
5. Specify the next coordinate point 4 as @(5,0) in the command bar
6. Specify the next coordinate point 5 as @(0,-6) in the command bar
7. Specify the next coordinate point 6 as @(-3,0) in the command bar
8. Specify the next coordinate point 7 as @(0,-1) in the command bar
9. Specify the next coordinate point 8 as @(4,0) in the command bar
10. Specify the next coordinate point 8 as @(0,8) in the command bar
11. Specify the next coordinate point 8 as @(-7,0) in the command bar
12. Click 'Close or C enter' in command bar

FINAL RESULT :

P7

Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (2,1) in the command bar
3. Specify the next coordinate point 2 as (10,1) in the command bar
4. Specify the next coordinate point 3 as (10,7) in the command bar
5. Specify the next coordinate point 4 as (2,7) in the command bar
6. Specify the next coordinate point 5 as (3,7) in the command bar
7. Specify the next coordinate point 6 as (5,2) in the command bar
8. Specify the next coordinate point 7 as (5,5) in the command bar
9. Specify the next coordinate point 8 as (3,5) in the command bar
10. Specify the next coordinate point 8 as (6,2) in the command bar
11. Specify the next coordinate point 8 as (8,5) in the command bar
12. Specify the next coordinate point 8 as (3,2) in the command bar
13. Specify the next coordinate point 8 as (6,5) in the command bar
14. Click 'Close or C enter' in command bar

FINAL RESULT :

P8

Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as @(0,0) in the command bar
3. Specify the next coordinate point 2 as @(10,0) in the command bar
4. Specify the next coordinate point 3 as @(0,2) in the command bar
5. Specify the next coordinate point 4 as @(-4,0) in the command bar
6. Specify the next coordinate point 5 as @(0,4) in the command bar
7. Specify the next coordinate point 6 as @(3,0) in the command bar
8. Specify the next coordinate point 7 as @(0,2) in the command bar
9. Specify the next coordinate point 8 as @(-8,0) in the command bar
10. Specify the next coordinate point 8 as @(0,-2) in the command bar
11. Specify the next coordinate point 8 as @(3,0) in the command bar
12. Specify the next coordinate point 8 as @(0,-4) in the command bar
13. Specify the next coordinate point 8 as @(-4,0) in the command bar
14. Click 'Close or C enter' in command bar

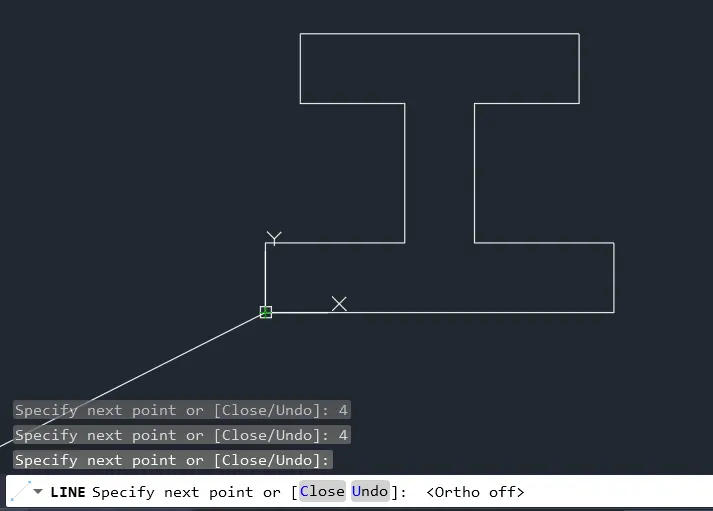

FINAL RESULT :

P9

Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (1,1) in the command bar
3. Specify the next coordinate point 2 as (6,1) in the command bar
4. Specify the next coordinate point 3 as (6,3) in the command bar
5. Specify the next coordinate point 4 as (6,3) in the command bar
6. Specify the next coordinate point 5 as (3,3) in the command bar
7. Specify the next coordinate point 6 as (2,2) in the command bar
8. Specify the next coordinate point 7 as (2,4) in the command bar
9. Specify the next coordinate point 8 as (3,5) in the command bar
10. Specify the next coordinate point 8 as (5,4) in the command bar
11. Specify the next coordinate point 8 as (5,6) in the command bar
12. Specify the next coordinate point 8 as (1,8) in the command bar
13. Click 'Close or C enter' in command bar

FINAL RESULT :

P10

Using Relative Polar Coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (1,1) in the command bar
3. Specify the next coordinate point 2 as @(2<0) in the command bar
4. Specify the next coordinate point 3 as @(3<90) in the command bar
5. Specify the next coordinate point 4 as @(3<0) in the command bar
6. Specify the next coordinate point 5 as @(4<90) in the command bar
7. Specify the next coordinate point 6 as @(5<180) in the command bar
8. Specify the next coordinate point 7 as @(3<90) in the command bar
9. Specify the next coordinate point 8 as @(2<90) in the command bar
10. Specify the next coordinate point 8 as @(3<180) in the command bar
11. Click 'Close or C enter' in command bar

FINAL RESULT :

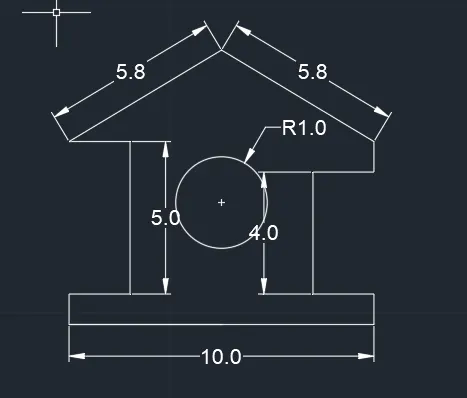

P11

Using Direct Distance Method:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (0,0)in the command bar
3. Specify the next coordinate point 2 as 10 in the command bar towards +ve x-axis
4. Specify the next coordinate point 3 as 1 in the command bar towards +ve y-axis
5. Specify the next coordinate point 4 as 2 in the command bar towars -ve x-axis
6. Specify the next coordinate point 5 as 4 in the command bar toward +ve y-axis
7. Specify the next coordinate point 6 as 2 in the command bar towards +ve x-axis
8. Specify the next coordinate point 7 as 831 in the command bar towards +ve y-axis
9. Specify the next coordinate point 8 as 5.831 in the command bar towards -ve x-axis
10. Specify the next coordinate point 6 as 2 in the command bar towards +ve x-axis
11. Specify the next coordinate point 6 as 5 in the command bar towards +ve x-axis
12. Specify the next coordinate point 6 as 2 in the command bar towards +ve x-axis
13. Click 'Close or C enter' in command bar
14. Select the circle command enter CIRCLE command in the command
15. specify the points of circle as 5,4.
16. spacify the radius of circle 2

FINAL RESULT :

P12

Using Relative Rectangular coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as @(1,1) in the command bar
3. Specify the next coordinate point 2 as @(4,0) in the command bar
4. Specify the next coordinate point 3 as @(3.536,3.536) in the command bar
5. Specify the next coordinate point 4 as @(3.536,-3.536) in the command bar
6. Specify the next coordinate point 5 as @(0,-4) in the command bar
7. Specify the next coordinate point 6 as @(4.536,5) in the command bar
8. Specify the next coordinate point 7 as @(-2.536,1) in the command bar
9. Specify the next coordinate point 8 as @(0,-1) in the command bar
10. Specify the next coordinate point 8 as @(4.536,5) in the command bar
11. Specify the next coordinate point 8 as @(2.536,1) in the command bar
12. Specify the next coordinate point 8 as @(0,-4) in the command bar
13. Specify the next coordinate point 8 as @(0,-1) in the command bar
14. Click 'Close or C enter' in command bar
15. select line tool angain by entering the line in command bar
16. join the 3,6 and esc line command

FINAL RESULT :

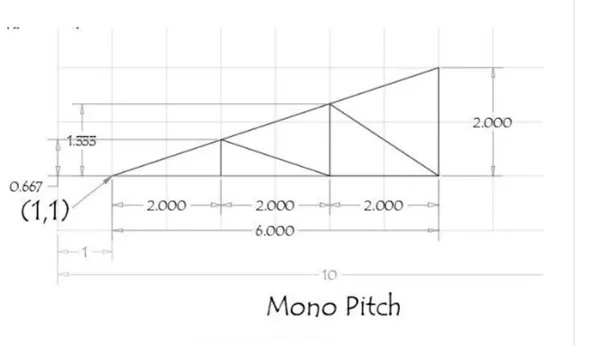

P13

Using absolute coordinate system:

1. Select the line tool by entering 'line' in command bar .
2. Specify the starting coordinate point 1 as (1,1) in the command bar
3. Specify the next coordinate point 4 as (6,3) in the command bar
4. Specify the next coordinate point 5 as (7,1) in the command bar
5. Specify the next coordinate point 6 as (7,3) in the command bar
6. Specify the next coordinate point 7 as (3,1) in the command bar
7. Specify the next coordinate point 8 as (3,1.887) in the command bar
8. Specify the next coordinate point 8 as (5,1) in the command bar
9. Specify the next coordinate point 8 as (5,2.333) in the command bar
10. Specify the next coordinate point 8 as (17,) in the command bar
11. Click 'Close or C enter' in command bar

FINAL RESULT :
