Creation of Column Schedule and Drawing Template using AutoCad

1)

AIM:

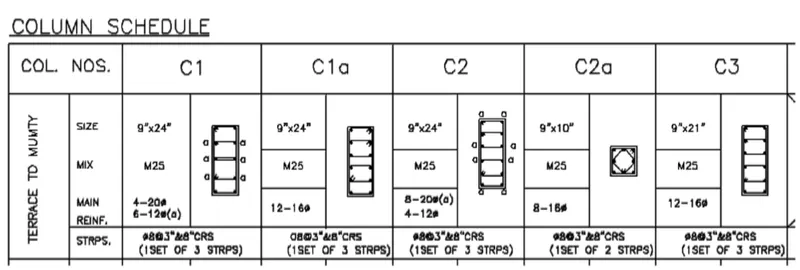

To Create a column schedule as shown in the figure:

PROCEDURE:

STEP1

• In the command prompt type line to create tables
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing
• In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.

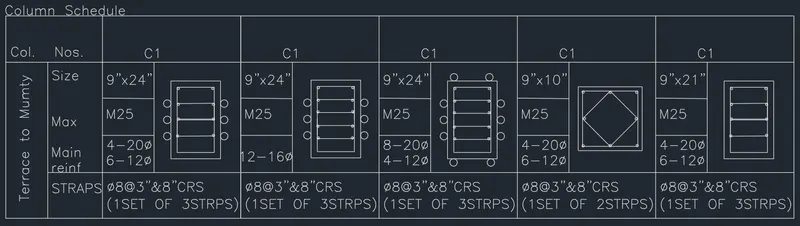

RESULT:

2)

AIM:

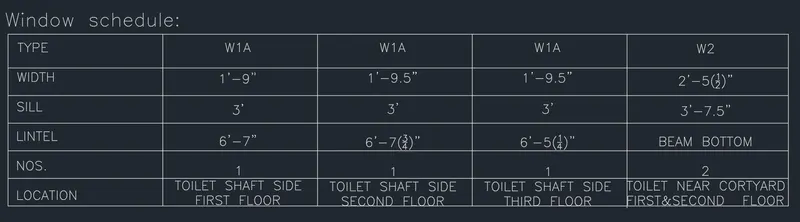

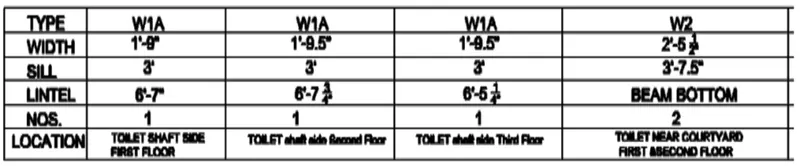

To Create a window schedule as shown in the figure:

PROCEDURE:

STEP 1:

• In the command prompt type line to create tables
• In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
• In the command prompt type text to text the given text in the drawing

RESULT:

3)

AIM:

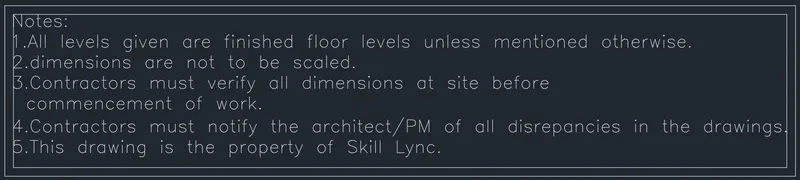

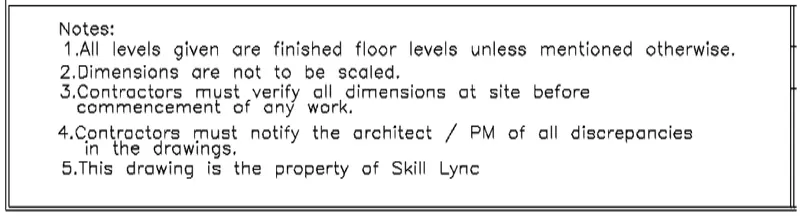

To Create the drawing template as shown in the figure:

PROCEDURE:

• In the command prompt type line to create tables .
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
• In the command prompt type text to text the given text in the drawing .

RESULT:

4)

AIM:

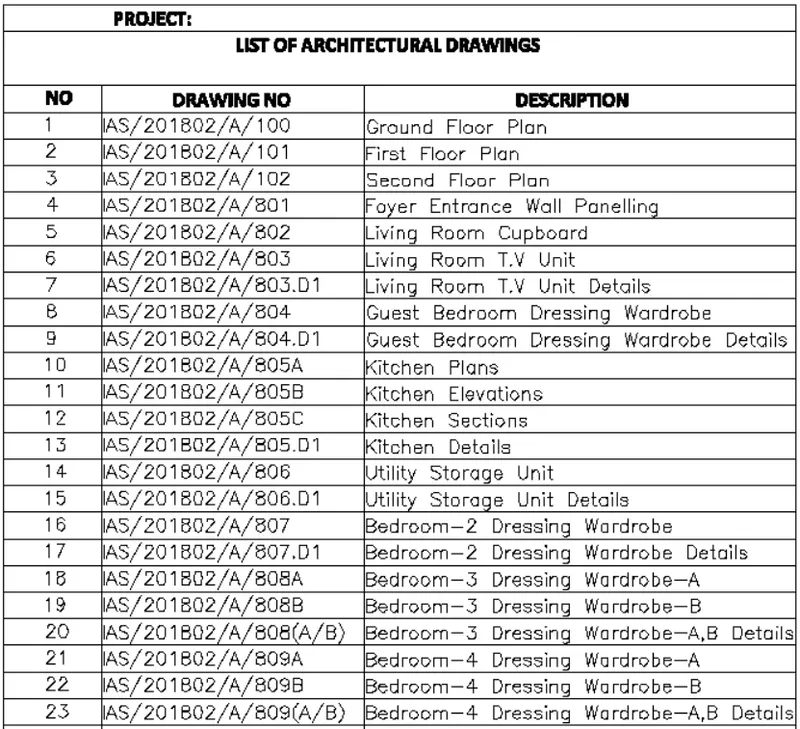

To Create the list of drawing schedule as shown in the figure:

PROCEDURE:

• In the command prompt type line to create tables .
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
• In the command prompt type text to text the given text in the drawing .

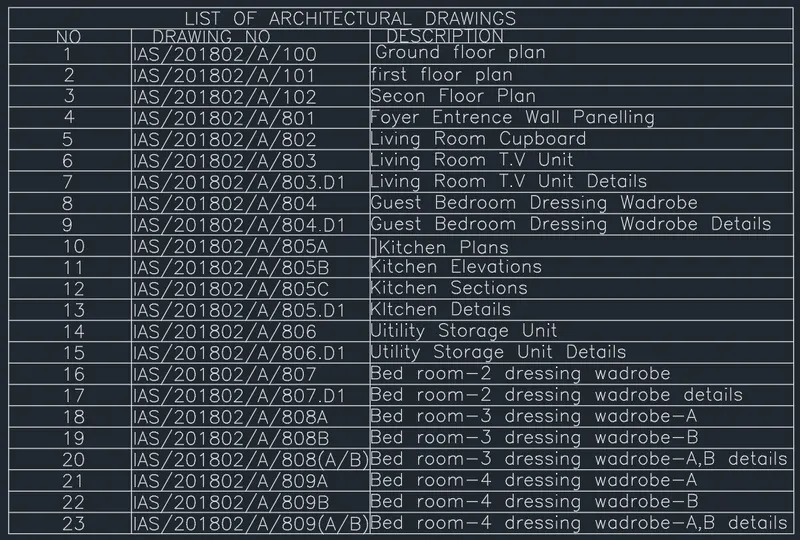

RESULT:

5)

AIM:

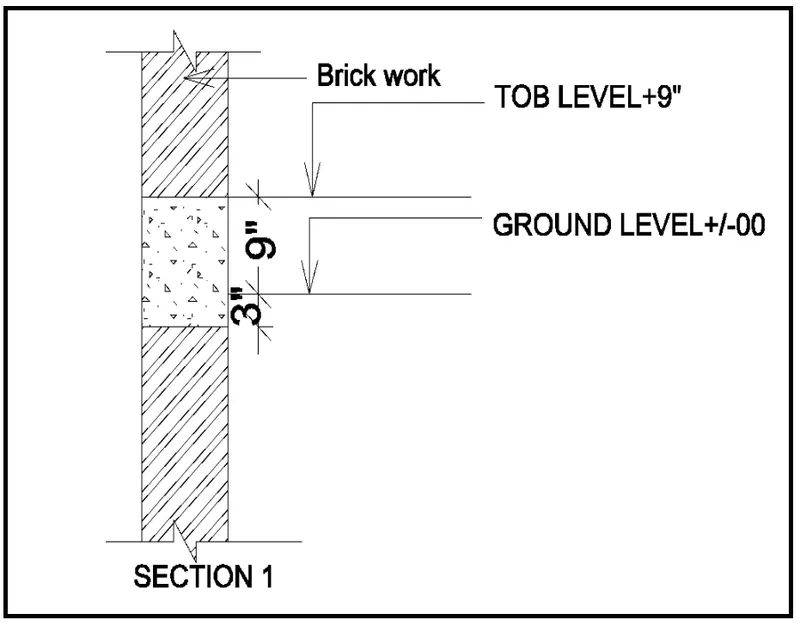

To Create the beam detail as shown in the figure:

PROCEDURE:

STEP 1:

• In the command prompt type UNITS > Engineering> Inches .

STEP 2:

• In the command prompt type Line (to create the column) .
• In the command prompt type Text to text the given drawings .
• In the command prompt type HATCH to hatch the given drawings .

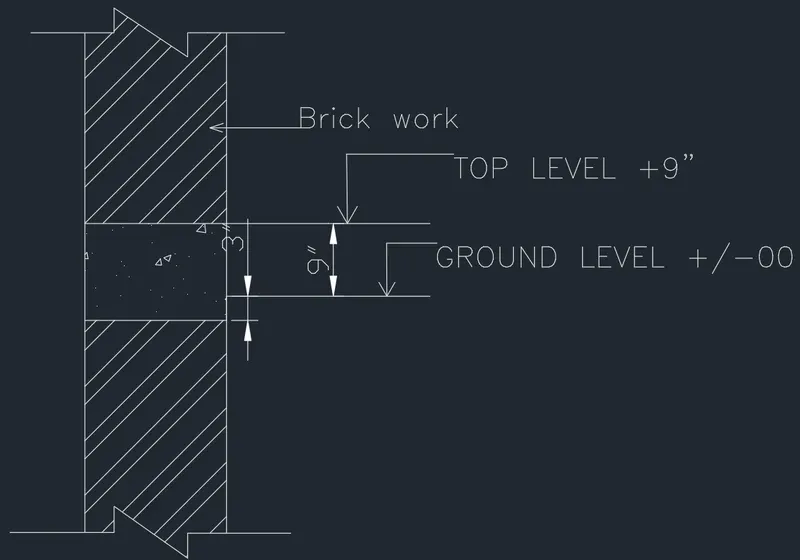

RESULT:
