Creation of Column Schedule and Drawing Template using AutoCad

Q1

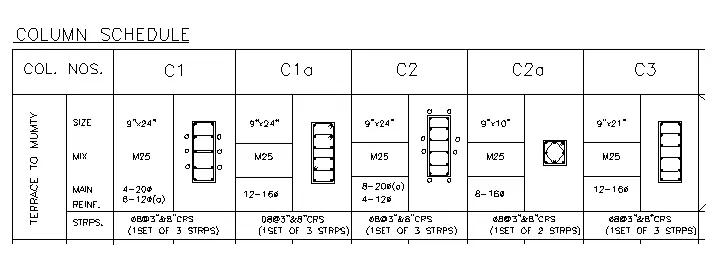

AIM: Create a column schedule as shown in the figure.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

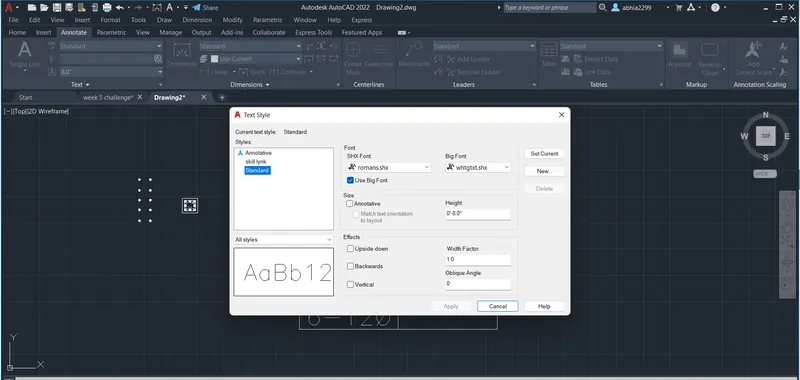

Hint: Use font name: romans.shx; Height: 8”, Justify: Left

PROCEDURE:

To draw the columns

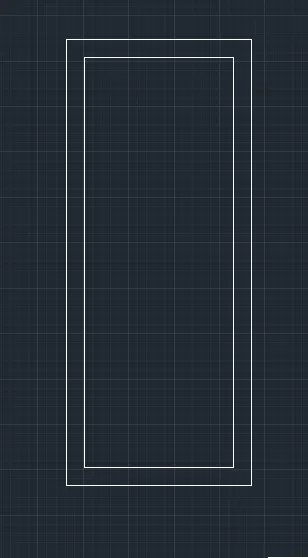

Type Rec or Rectangle in the command line and press Enter.

Specify the first corner of the rectangle.

Specify the other corner.

Type O or offset on the command line and press Enter.

Specify the value of offset distance

Select the rectangle to offset and click inside it.

Turn on ortho mode.

Draw a line connecting the centre of rectangles

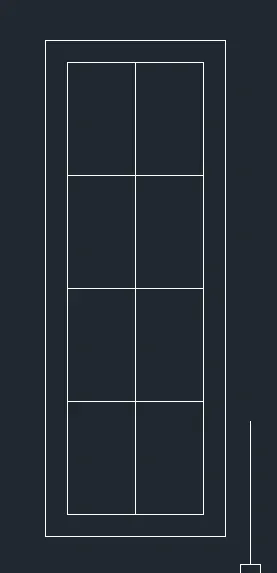

Type DIV and press enter

Select the centre line drawn

Specify the number of segemnts as 4 and press enter

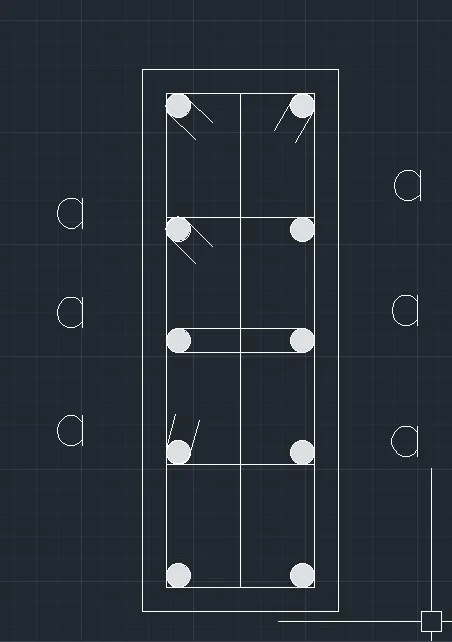

Now draw the circles as given in the plan

and by using the HATCH command hatch at the circles

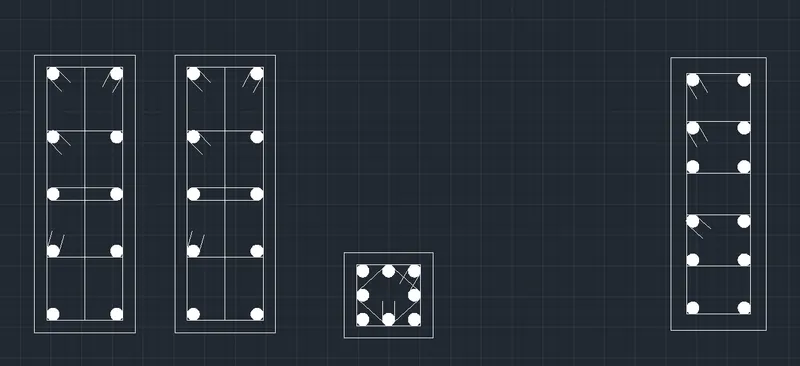

In the similar way other columns are created. The basic steps remains the same as above and there is only change in dimensions

Now using the line command draw the table as in the plan

and use the MTEXT command for the text and heigt as 8" style as roman shx

Now the above column is copied and placed 4 times and make the changes in text by using TEXTEDIT command

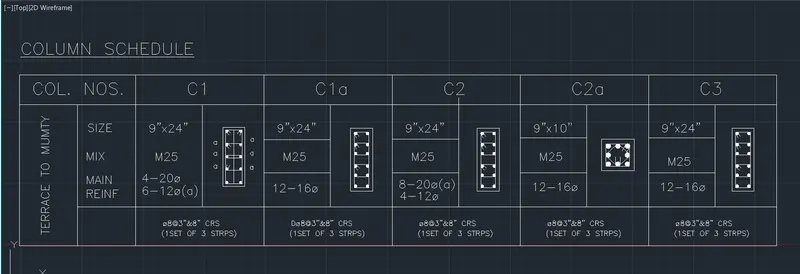

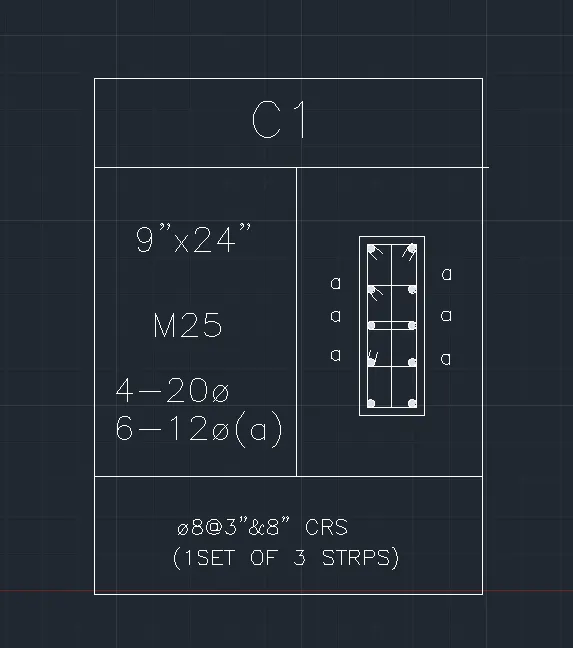

RESULT:Column shedule is completed

Q2:

PROCEDURE:

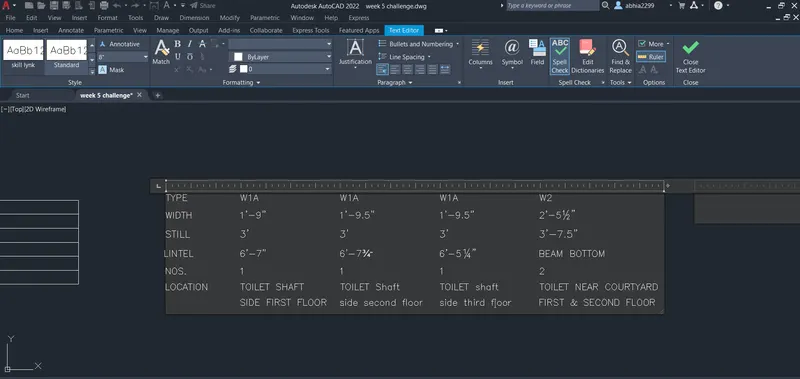

Now using the multiline text command form a table as shown in below

Now using the line command boundaries are given to the above window schedule.

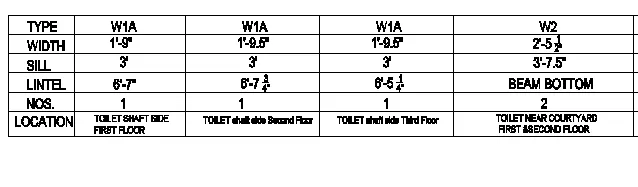

Result - The final resultant of window schedule which was created using multi line text and line is as shown

Q3

PROCEDURE:

Now using the multiline text command form a table as shown in below

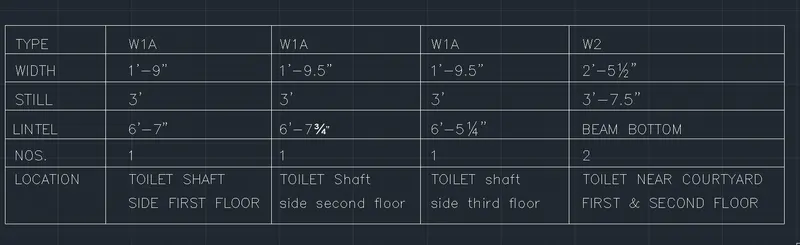

Now using the line command boundaries are given to the above window schedule.

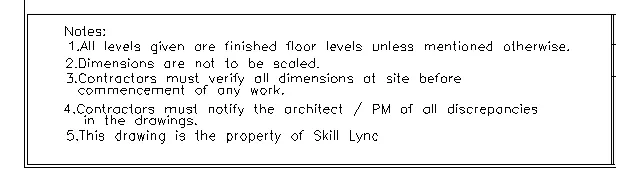

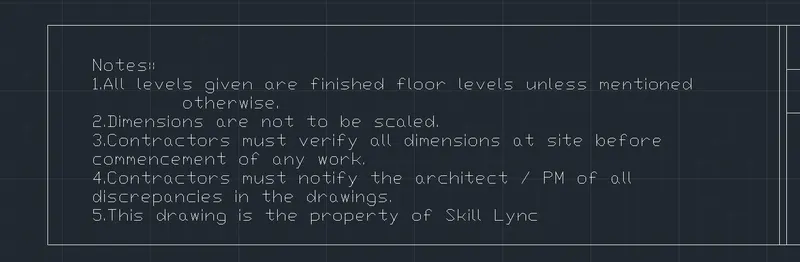

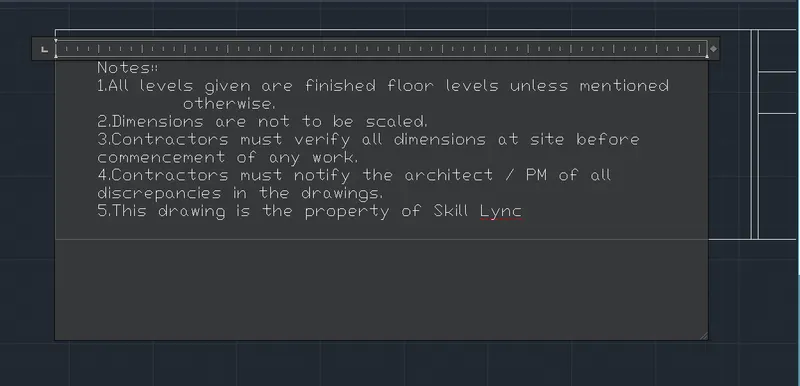

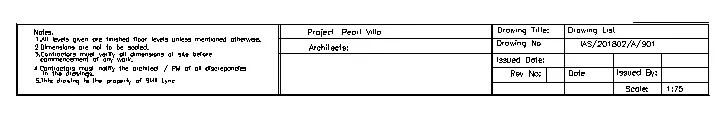

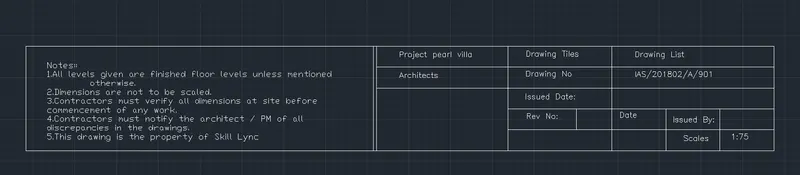

RESULT:Created the drawing template as shown in the figure:< Use the Notes as in the figure>

Q4:

PROCEDURE:

Procedure -

Using the line and rectangle command the table was created according to the dimensions

Type DTEXT and press enter

Specify the location to type text

Select rotation angle to o degree and start typing

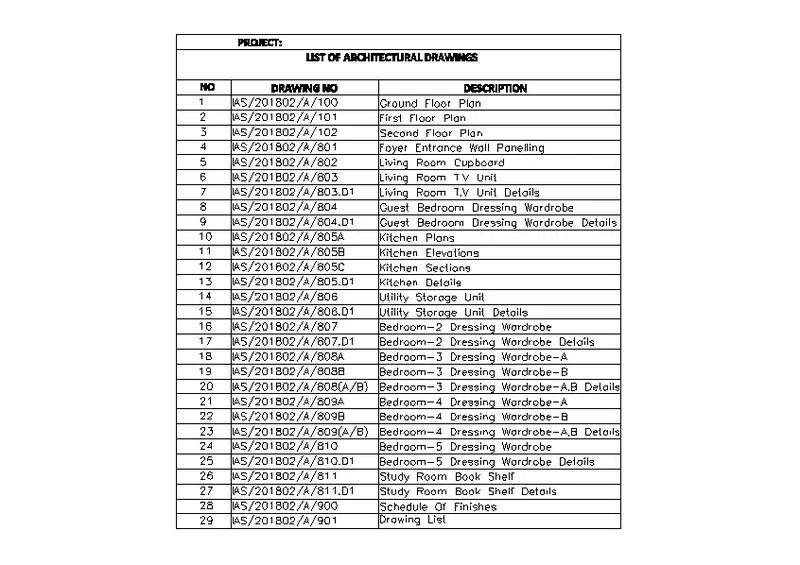

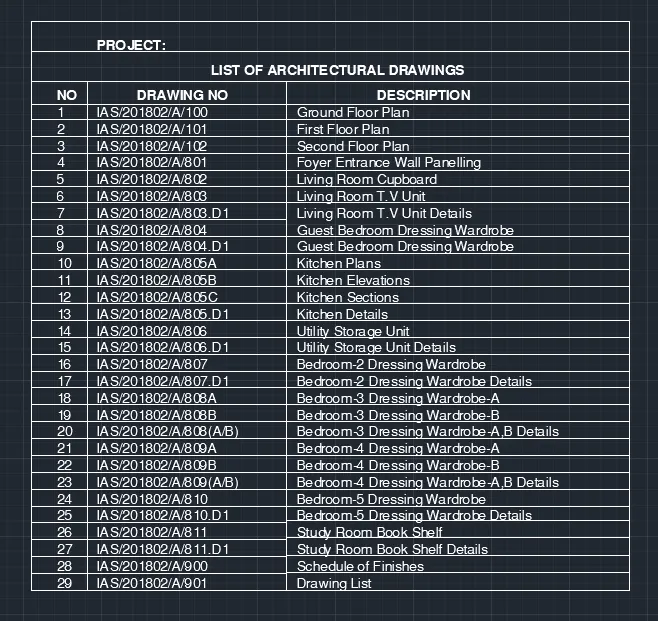

Result - list of drawing schedule as shown in the figure are completed.

Q5

PROCEDURE:

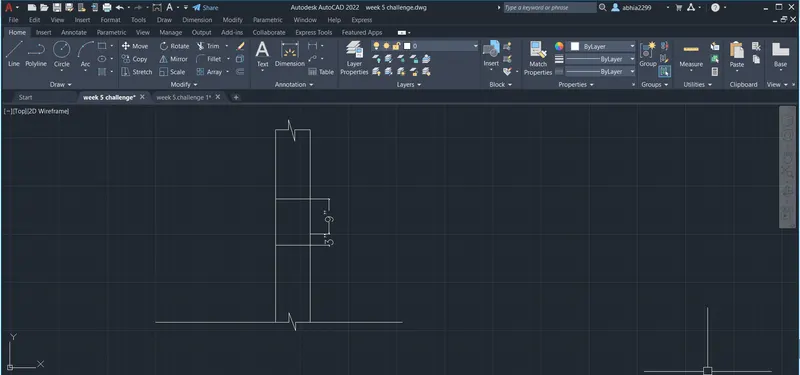

By using the line and offset command draw the brick wall

and mention dimentions to the brick wall

By using the HATCH command hatch the brick wall

by using the TEXT command text mentioned points

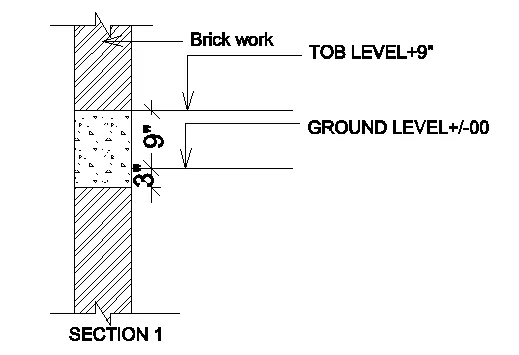

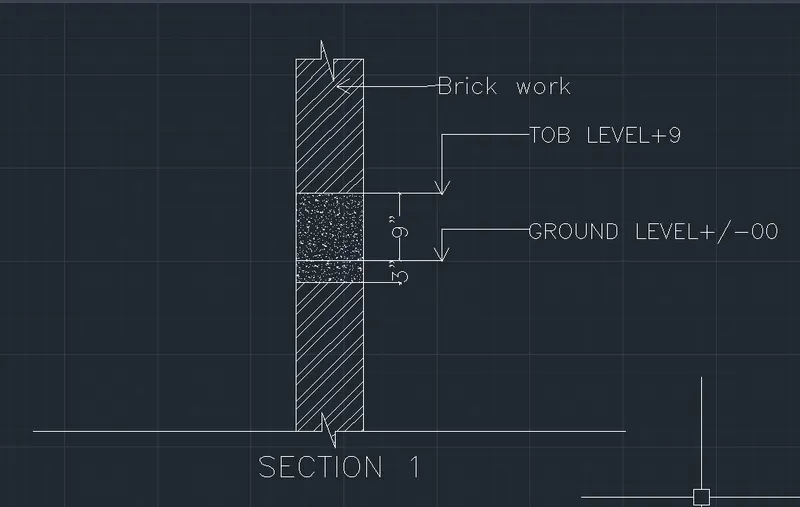

RESULT:The Beam detail as shown in the figure and provide text are completed
