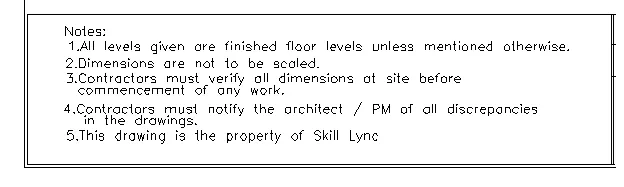

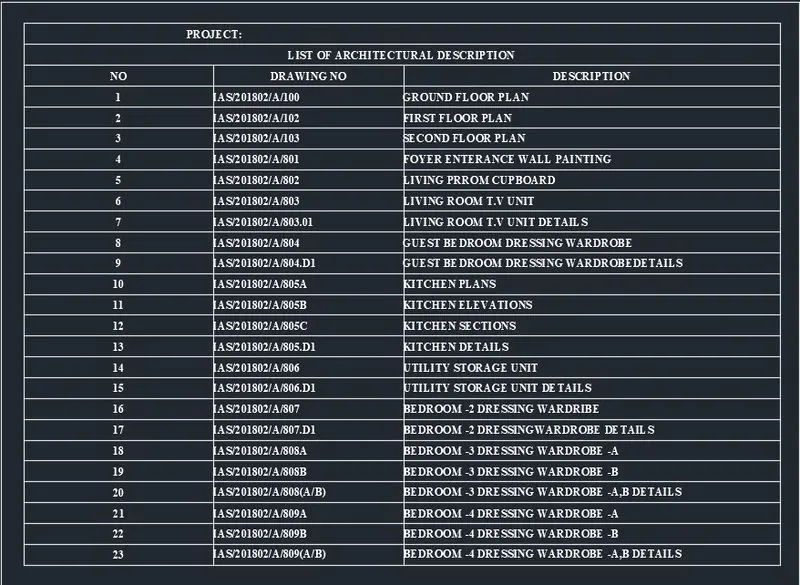

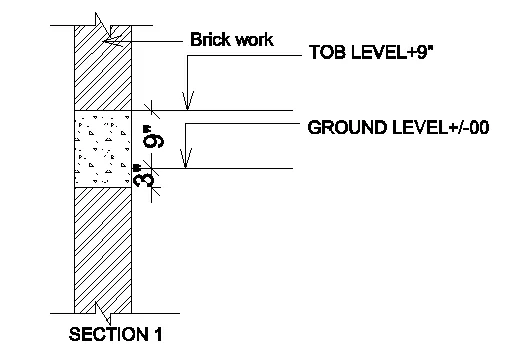

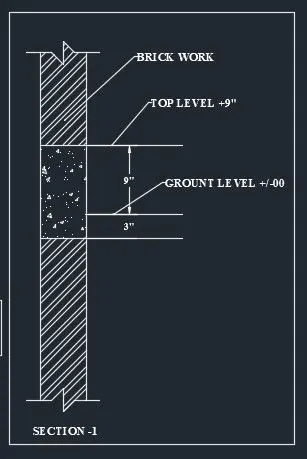

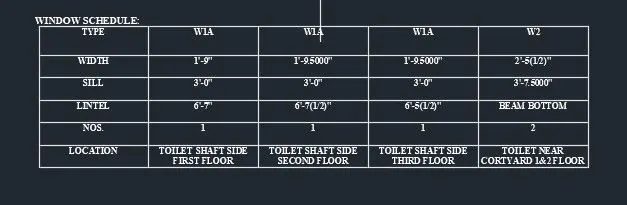

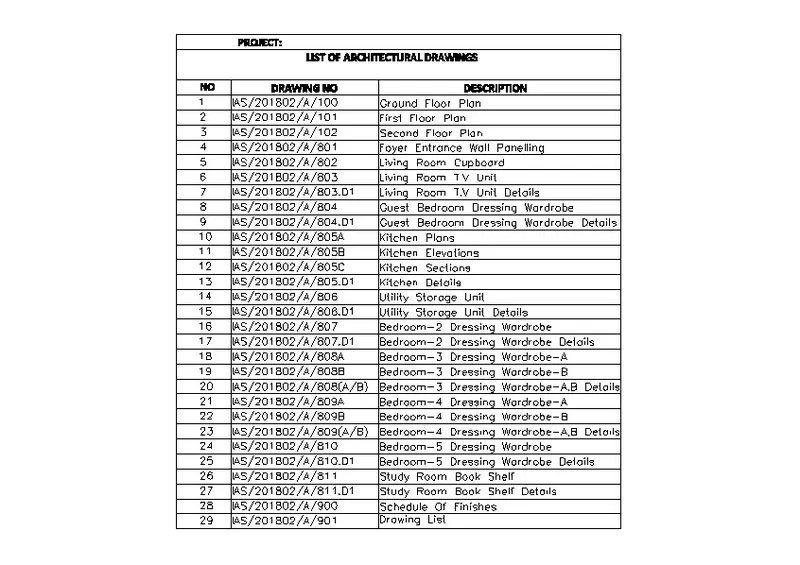

Creation of Column Schedule and Drawing Template using AutoCad

Q-1 Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level ? AIM:-  To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION:- The creation of Ceilings within Revit is…

PROJECT- 2 Q1.Create a 3 dimensional model of the residential building with a rendered view. AIM OF THE PROJECT: CREATING A 3D RENDERED MODEL FOR A RESODENTIAL BUILDING IN AUTO CAD. INTRODUCTION: COMMANDS USED FOR DRAWING THE 3D RENDERED VIEW OF BUILDING ARE AS FOLLOWS. - Extrude- Location: Draw > Modeling > Extrude.…

Q1. Create a 3D Isometric View of the building with plan and elevation given. AIM: To create a 3D isometric view of the given building with plan and elevation. INTRODUCTION: An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface. One of the defining characteristics…

Q1.Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing. AIM: To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW: The process of creating a mathematical representation of any surface of an object in three dimensions by using special software.…

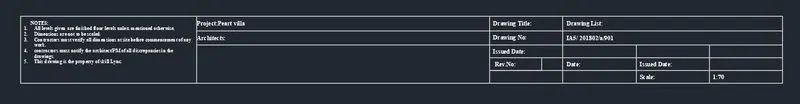

Q1.Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…

Q1.Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.   AIM: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension…

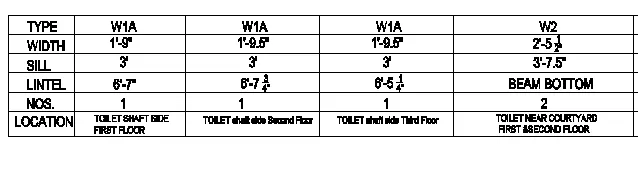

AIM: To create ,templete,inserting text and atteributes. Doors of warehouse and placing in the blocks. Electrical legend and making it blocks. Different types of door for residential project. Drawing bars,making it as block and making it as a table as bars bending schedule. COMMANDS: Block Insert Field Rectangle Line Text…

SUMITED BY,                     HEMALATHA VEERASAMY. Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m) b. Orientation- Facing East c. Develop the following:…

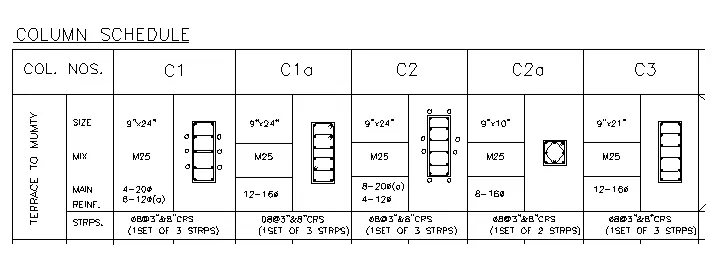

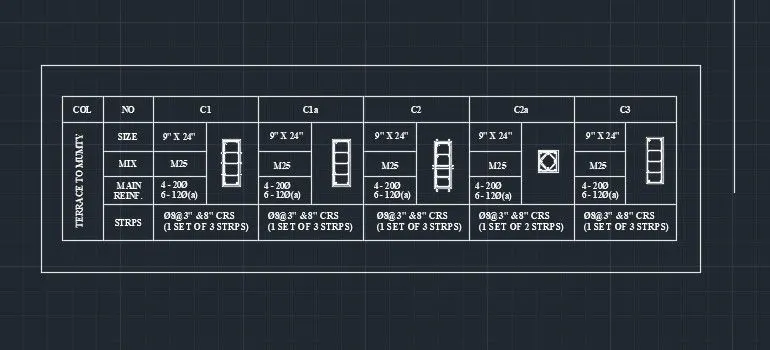

1. Create a column schedule as shown in the figure INTRODUCTION Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars. Column C2 is provided with 8 bars of 20 mm dia and 4 bars of 12 mm dia. The…

1. Residence Plan: Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors. AIM: To draw the given residential plan with the…

AIM: To draw the given sketches in autocad. INTRODUCTION: Autocad offers various tools like rotate,chamfer,fillet,move,offset etc to ease thr sketching process. PROCEDURE: DRAWING 1: Open new file and set decimal and precision to 0.00. Command line: From random point draw 3.00 m line and @2.12<45, @2.83<135 then…

2D Models: AIM:  Creating a Floor Plan, Footing Detail and Isometric View of Steps and Gable wall im AutoCAD. Introduction: AutoCAD is a drafting software which is used to draft the drawings in present case we are using autocad to create various drawings using different tools in autocad software like line, rectangle,…

AIM: 1.Create the geometries from P1 to P2 using all the coordinates system methods. And we need to use line tool, and find the missing dimensions. 2.Civil related problems- Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references. Introduction: Before going to the drawing…

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members…

MIX DESIGN FOR M35 GRADE CONCRETE (WITH FLY ASH)   AIM: Mix design for m35 grade concrete with fly ash. PROCEDURE: STEP 1:  STIPULATION FOR PROPORTIONING Grade designation:M35 Type of cement:OPC 43 grade conforming to IS 8112 Type of mineral admixture: Fly ash conforming to IS 3812(PART-1) Maximum nominal size…
