Creation of Column Schedule and Drawing Template using AutoCad

PROBLEM 1-

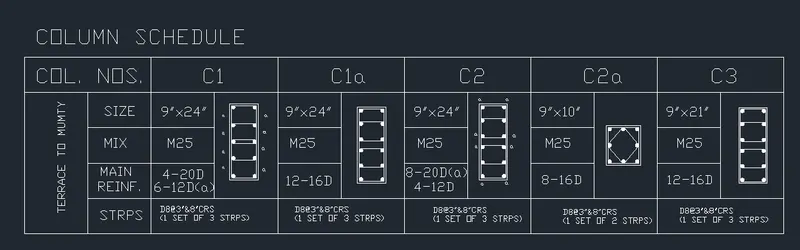

AIM - to Create a column schedule as shown in the figure.

• Steps

1. Open Auto cad and enter UN (units command) in command box and select type as engineering and precision as 0’-0.000’’
2. Select line command and draw a line of 84’ in X direction and a line of 21’ in Y-direction and complete bigger rectangle.
3. Then select the offset command and enter offset as 7’ in X direction. Give offsets 11 time in the X direction as 7’
4. Again, select the offset command and from top line give offset of 4’ in the Y Direction, and again offsets of 3’ from the bottom line of the table.
5. Select the text command from the ribbon and select single line test, specify the text height as 8’’ and angle o test as 90 degrees and enter the text as terrace to mumty. The text will appear in the desired angle.
6. Again, select the text command ow select multiline text drag the cursor in each of the row and column. And enter all the text in the table.

• Steps for drawing the columns-

1. The size of column is C1 is 9’’X24’’, create a rectangle of size 9’’ X 24’’ that is 2’.
2. Select offset command and enter the value of offset as 0.5 a smaller rectangle in the original rectangle will be drawn.
3. Now divide the line in 4 parts by divide tool by entering DIV in the command box and divide the line.
4. Draw the lines of division in the inside rectangle.
5. Now select the circle command and in that select tan tan radius and by selecting both corner lines enter the value of radius as 0.5.
6. Draw all the circles in the 4 corners of the inner rectangle.
7. Now select the fillet command an fillet the edges as radius and enter the radius as 0.5.
8. Now again select the circle command and select the two-point circle and draw the circle where the geometry is divided in parts.
9. Select the hatch command from the ribbon and select solid and color white, fill the circles with white color that is the reinforcement bar.
10. Draw the columns C1a, C2, C2a, C3 in the same manner.

RESULT -

PROBLEM 2 -

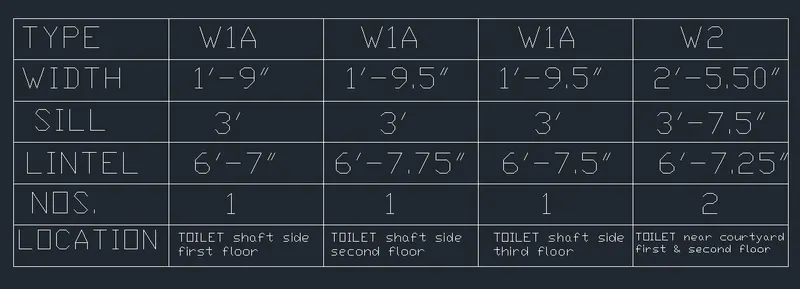

AIM- To create a Window schedule.

• Steps for drawing the schedule

1. Open Auto cad and enter UN (units command) in command box and select type as engineering and precision as 0’-0.000’’
2. Select line command and draw a line of 75’’ (6’-3’’) in X direction and a line of 24’’(2’) in Y-direction and complete bigger rectangle.
3. Then select the offset command and enter offset as 15’’(1’-3’’) in X direction. Give offsets 4 time in he X direction as 15’’.
4. Again, select the offset command and from line give offset of 4’ in the Y Direction, give such 4 offsets in the Y Direction.
5. Now select the Text command and in the text select the option as multiline text and drag it in each of the row and column and enter the text.
6. In this way fill the entire table by using Multiline text option.
7. Keep the size of text in between 1.5’’ to 3’’ that is the height of the text.

RESULT -

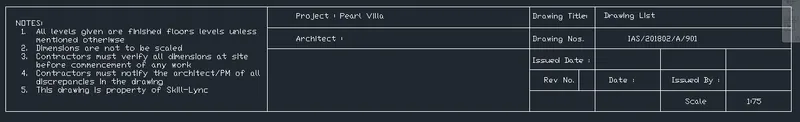

PROBLEM 3 -

AIM- To create a line template.

• Steps

1. Open Auto cad and enter UN (units command) in command box and select type as engineering and precision as 0’-0.000’’
2. Select line command and draw a line of 150’ in X direction and a line of 20’ in Y-direction and complete bigger rectangle.
3. Then select the offset command and enter offset as 50’ in X direction. Give offsets 2 time in he X direction as 50’.
4. Again, select the offset command and from line give offset of 4’ in the Y Direction, give such 4 offsets in the Y Direction.
5. Ener the offset command and in the right most art of the table enter an offset of 12’-6’’. Give such 3 offsets.
6. Now select the Text command and in the text select the option as multiline text and drag it in each of the row and column and enter the text.
7. Keep the size of text in between 8.5’’ to 11.5’’ that is the height of the text.
8. In this way fill the entire table by using Multiline text option.

RESULT -

PROBLEM 4 -

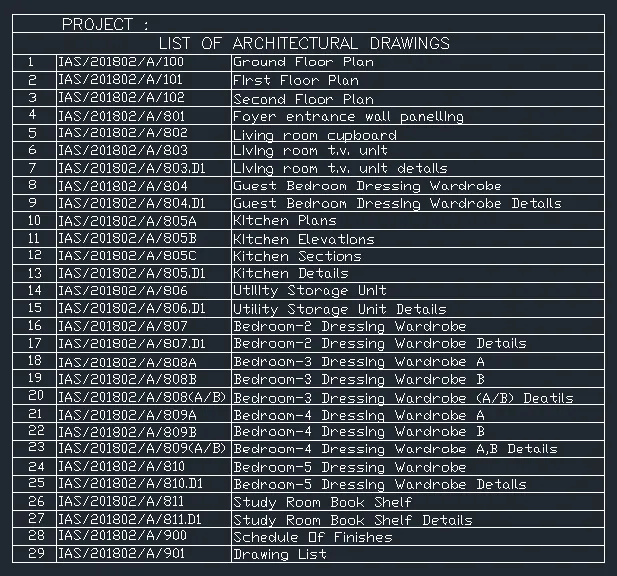

AIM- To create the list of drawing schedule table.

• Steps

1. Open Auto cad and enter UN (units command) in command box and select type as engineering and precision as 0’-0.000’’
2. Select line command and draw a line of 135’’(11’3’’) in X direction and draw x line of in Y-direction.
3. Then select the offset command and enter offset as 10’’ , then 40’’(3’4’’) , then 85’’(7’-1’’) in X direction.
4. Again, select the offset command and from line give offset of 4’’ , 5’’ , 4’’ in the Y Direction, give such 28 offsets in the Y Direction.
5. Trim the unwanted lines and draw the table as required.
6. Now select the Text command and in the text select the option as multiline text and drag it in each of the row and column and enter the text.
7. Keep the size of text in between 1.5’’ to 2.5’’ that is the height of the text.
8. In this way fill the entire table by using Multiline text option.

RESULT -

PROBLEM 5 -

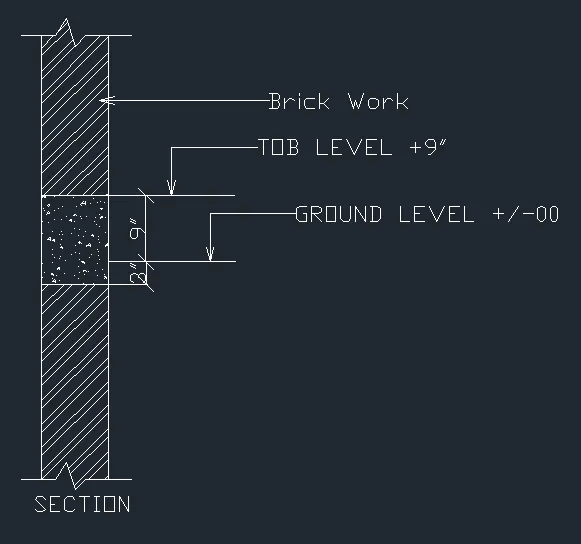

AIM- To create a Beam detail.

• Steps -

1. Open Auto cad and enter UN (units command) in command box and select type as engineering and precision as 0’-0.000’’
2. Select line command and draw a line of 9’’ in X direction and a line of 5’ in Y-direction.
3. Then select the offset command and enter offset as 2’-2.4’’ in X direction from bottom line of the beam cross section.
4. Again enter an offset of 12’’ from the below line in the upward direction,
5. Enter hatch in command box and go to settings in that select pattern and choose pattern as ANSI32.
6. Choose the scale of hatch as 0.35 and hatch the upper and lower part of beam cross section.
7. Again by selecting hatch command and choose as type ISO and choose air conc type and hatch the middle part of the beam as concrete.
8. By using the dimension tool give the dimensions to the beam section.
9. Select text and multiline text and drag the text where required to the desired scale according to the size of the drawing required.

RESULT -
