Creation of Column Schedule and Drawing Template using AutoCad
AIM:Creation of Column Schedule and Drawing Template using AutoCad.

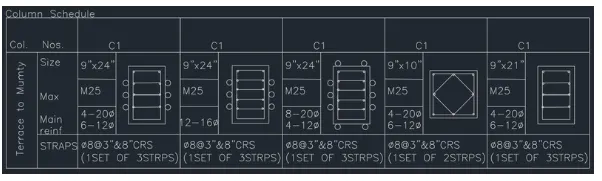

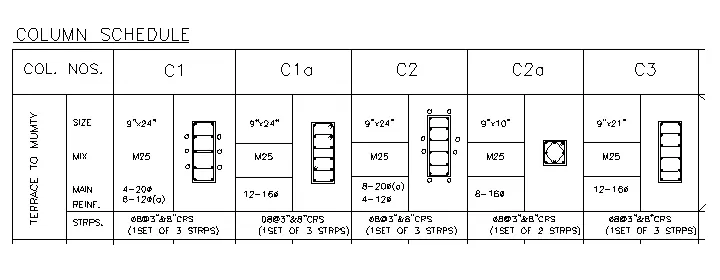

1) To Create a column schedule as shown in the figure:
PROCEDURE:
In the command prompt type line to create tables
a) In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
b) In the command prompt type text to text the given text in the drawing
c) In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.
RESULT:

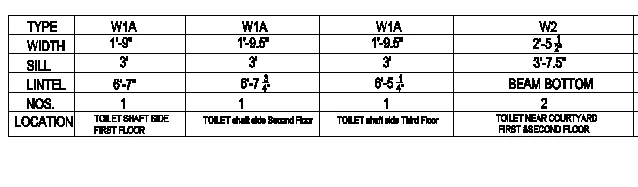

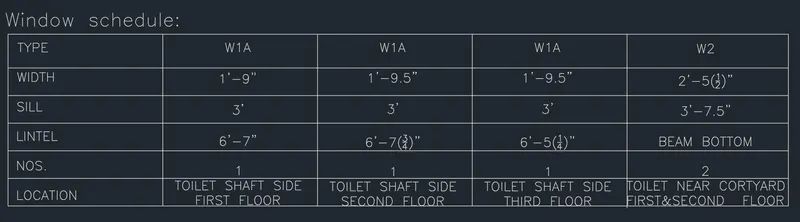

2) To Create a window schedule as shown in the figure:
PROCEDURE:
a) In the command prompt type line to create tables
b) In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
c) In the command prompt type text to text the given text in the drawing
RESULT:

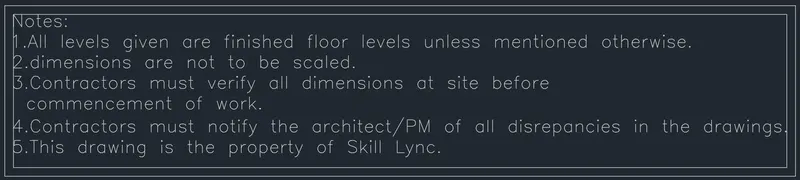

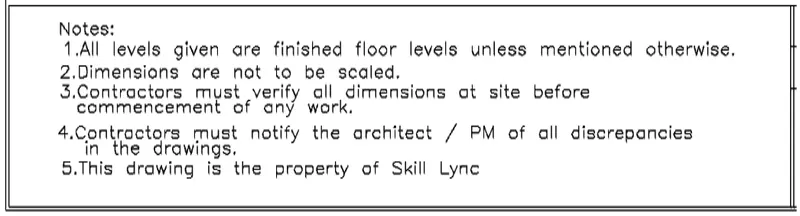

3) To Create the drawing template as shown in the figure:
PROCEDURE:
a) In the command prompt type line to create tables .
b) In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
c) In the command prompt type text to text the given text in the drawing
RESULTS:

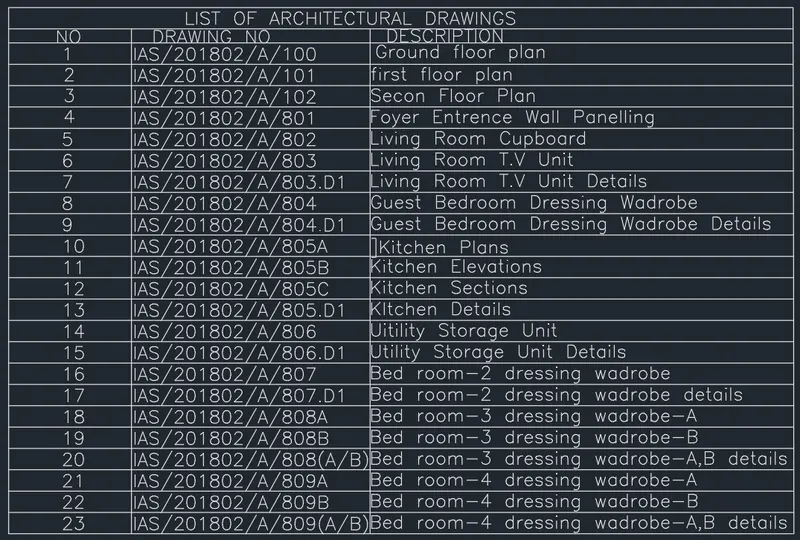

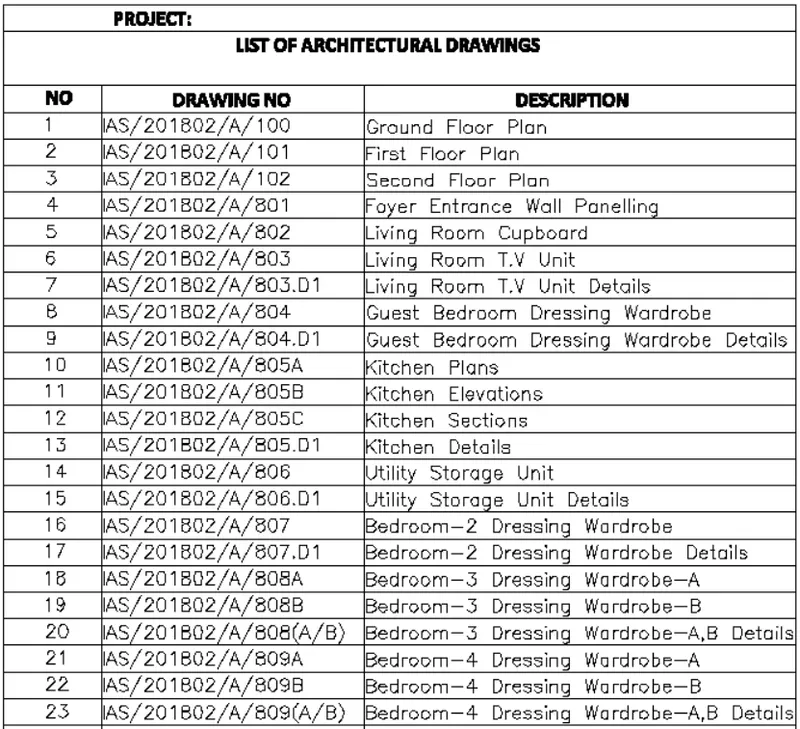

4) To Create the list of drawing schedule as shown in the figure:
PROCEDURE:
a) In the command prompt type line to create tables .
b) In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
c) In the command prompt type text to text the given text in the drawing .
RESULT:

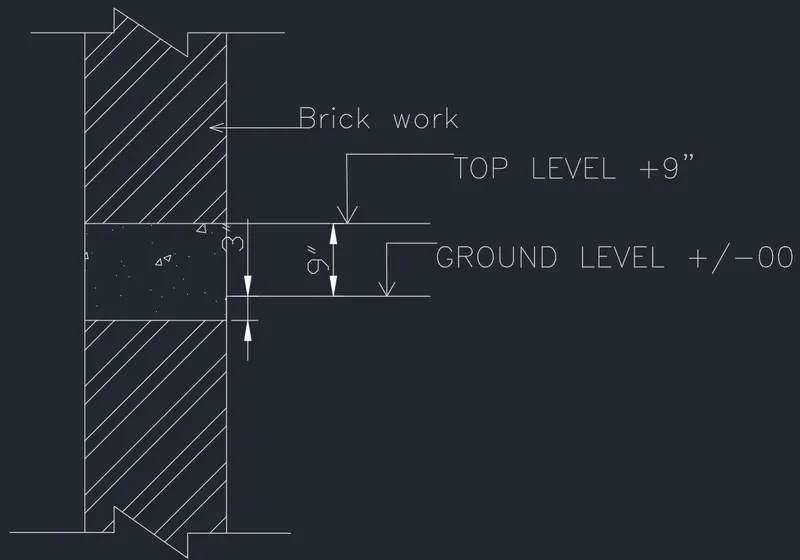

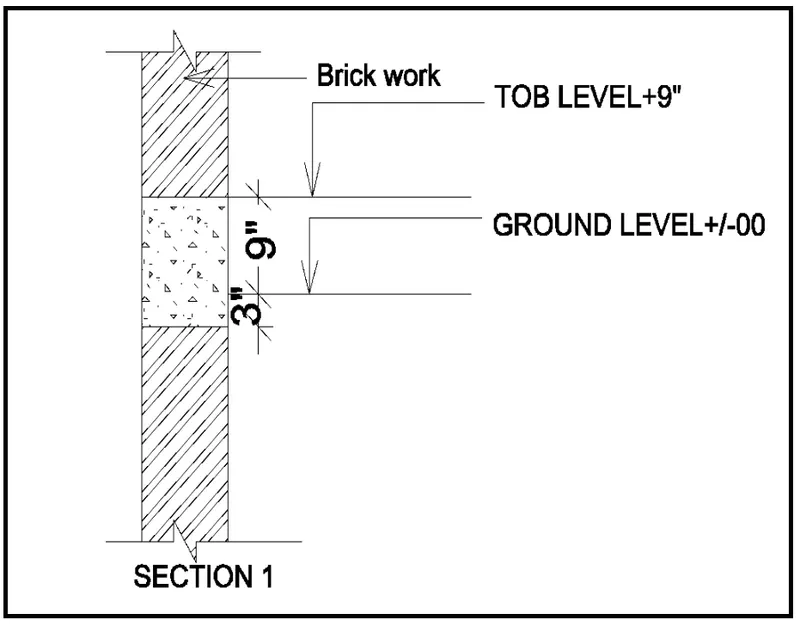

5) To Create the beam detail as shown in the figure:
PROCEDURE:
a) In the command prompt type UNITS > Engineering> Inches .
b) In the command prompt type Line (to create the column) .
c) In the command prompt type Text to text the given drawings .
d) In the command prompt type HATCH to hatch the given drawings .
RESULT:
