Creation of Column Schedule and Drawing Template using AutoCad
1.

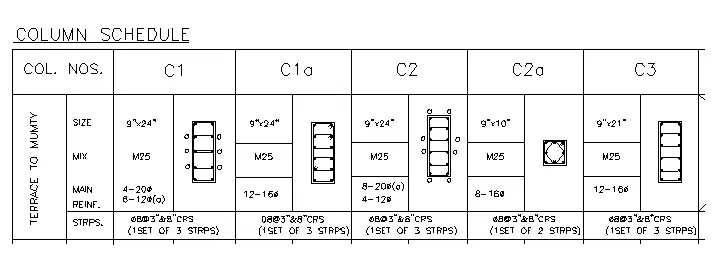

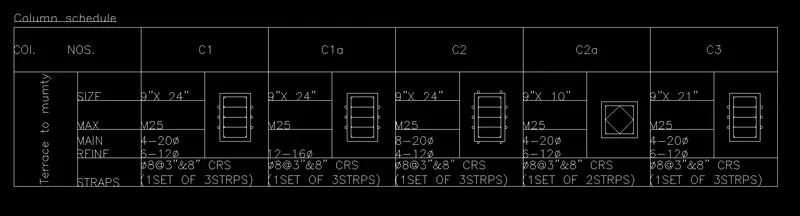

AIM: To Create a column schedule as shown in the figure.
Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.
Hint: Use font name: romans.shx; Height: 8”, Justify: Left
PROCEDURE:
- In the command prompt type line to create tables.
- In the command prompt type ST (text style)> Romans.shx(font name) > 8" (height) > left (justify)
- In the command prompt type text to text the given text in the drawing.
- In the command prompt type Mtext (multiline text)> symbols> to get diameter symbol.
RESULT:
2.

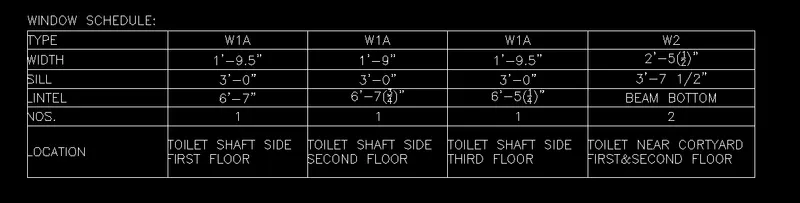

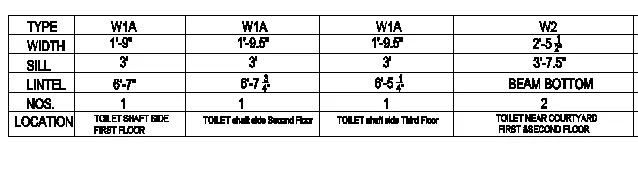

AIM : To Create a window schedule as shown in the figures:
Window Schedule:
PROCEDURE:
- In the command prompt type line to create tables.
- In the command prompt type ST (text style)> Romans.shx(font name) > 8" (height) > centre (justify)
- In the command prompt type text to text the given text in the drawing.
RESULT:
3.

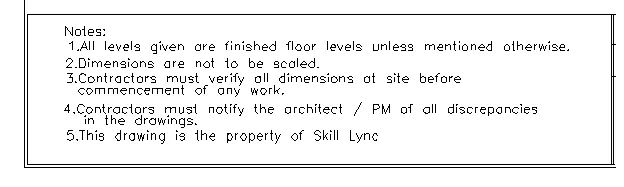

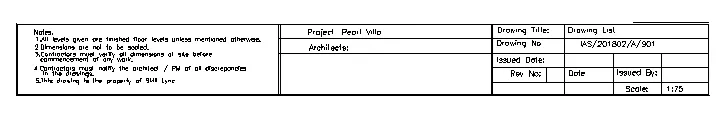

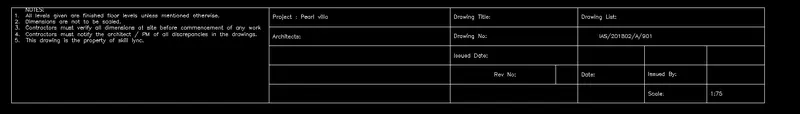

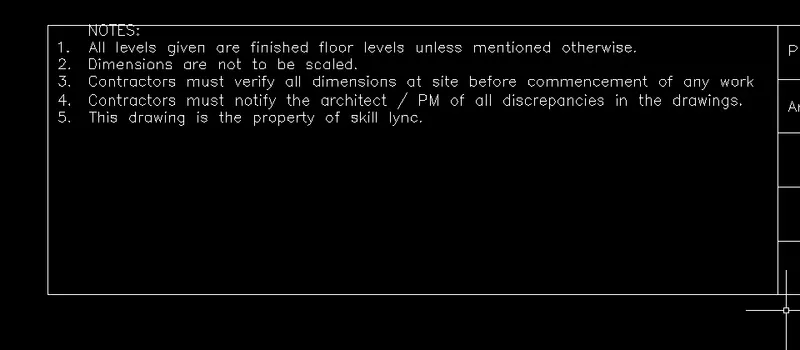

AIM: To Create the drawing template as shown in the figure:< Use the Notes as in the figure>
PROCEDURE:
- In the command prompt type line to create tables.
- In the command prompt type ST (text style)> Romans.shx(font name) > 8" (height) > left (justify)
- In the command prompt type text to text the given text in the drawing.
RESULT:

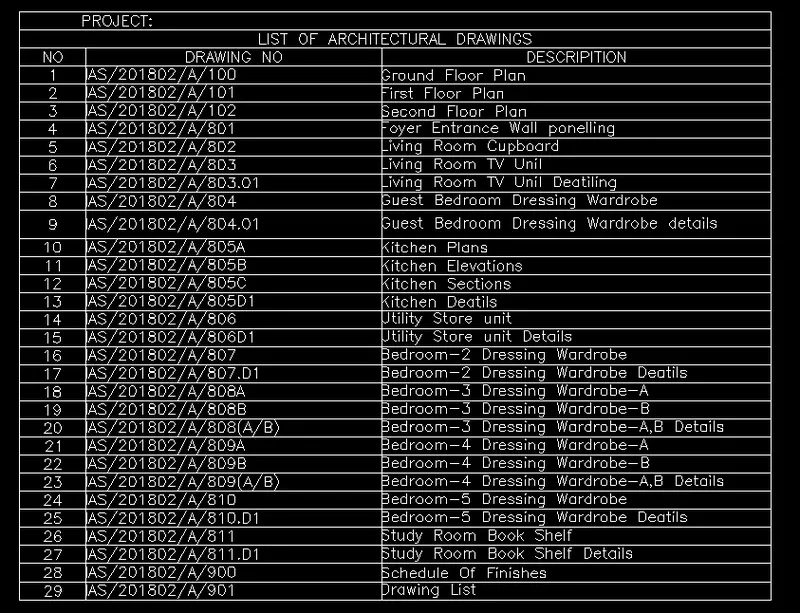

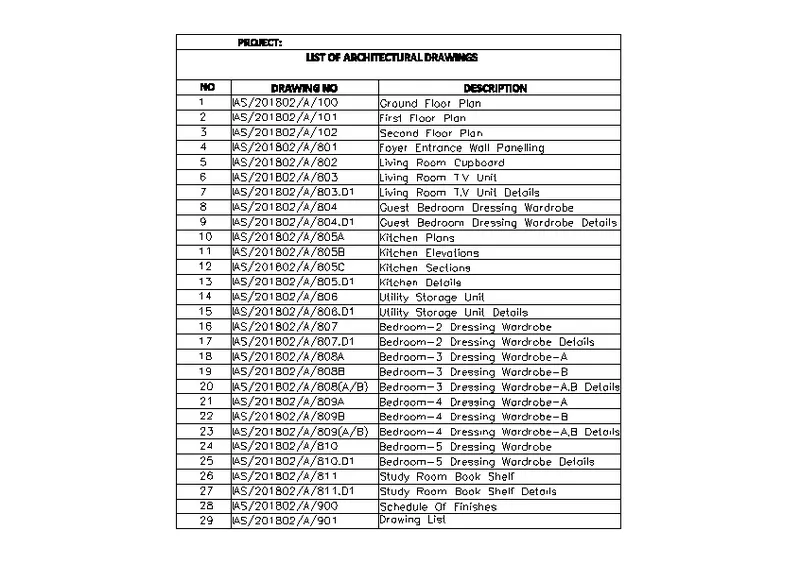

4. Create the list of drawing schedule as shown in the figure:
PROCEDURE:
- In the command prompt type line to create tables.
- In the command prompt type ST (text style)> Romans.shx(font name) > 8" (height) > left (justify)
- In the command prompt type text to text the given text in the drawing.
RESULT:
5.

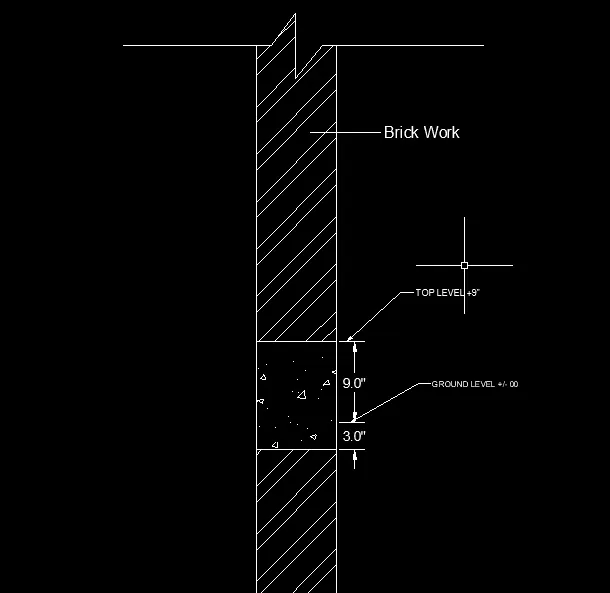

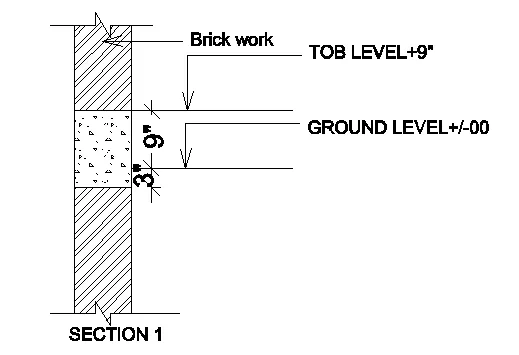

AIM: To Create the Beam detail as shown in the figure and provide text wherever given.
PROCEDURE:
STEP1:
- In the command prompt type UNITS> ENGINNERING > Inches.
STEP2:
- In the command prompt type line (to create column)
- In the command prompt type text to text the given text in the drawing.
- In the command prompt type HATCH to hatch the given drawings.
RESULT:
