Creation of Column Schedule and Drawing Template using AutoCad

1)

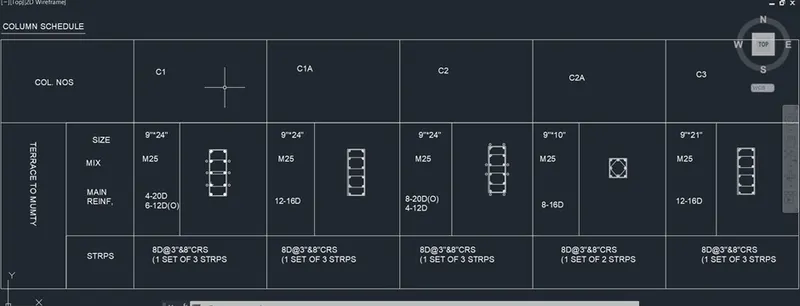

aim: main aim of this challenge is to make column sheduling using the notes given in problem

introduction: in this i am gonna use the line and necessary commands need to draw and make column schedule

procedure:

• starting the new drawing
• taking the units as engineering and with precision of 0'-0"
• setting the text, size and justification of text as mentioned in problem
• taking the rectangle, line, circle, mirror, copy and move commands to make column scheduling as given in problem.

result:

by using the above procedure i got the result as shown below

2)

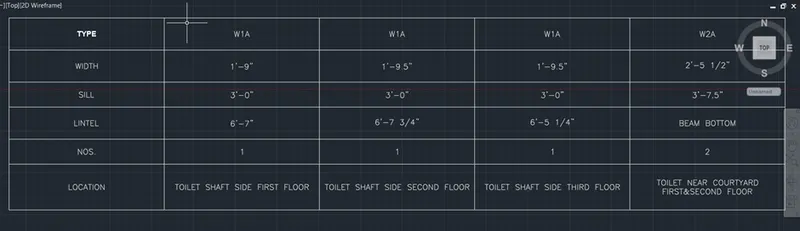

aim: the main aim of this challenge is to make window schedule as given in problem

introduction:in this, i am gonna use the rectangle,line and text commands to complete the window schedule

procedure:

• starting the new drawing
• taking the units as decimals with precision of 0.0mm
• taking the table having row-6 and column-5
• using the text command table is filled with the details of window details

result:

the result of the above procedure is given below

3)

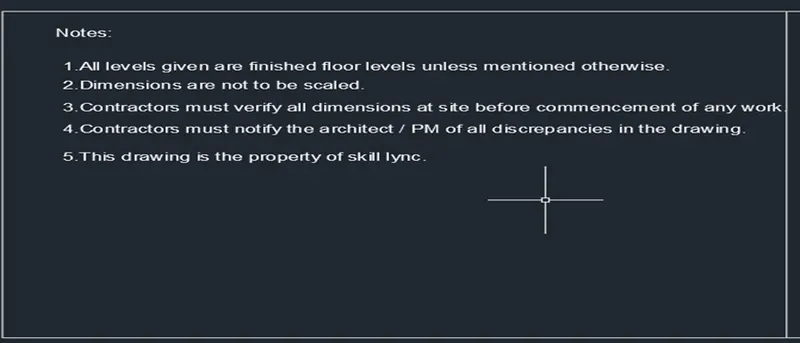

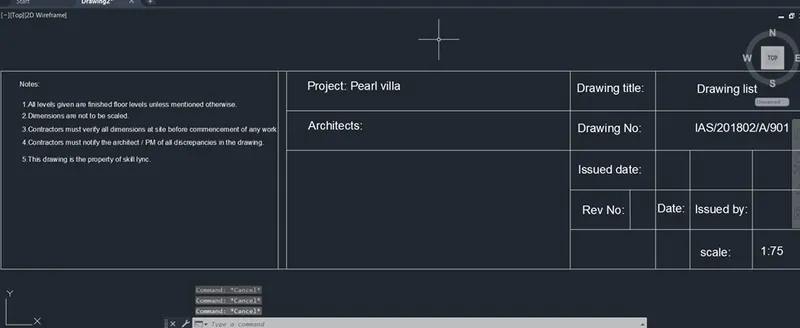

aim: The main aim of the this challenge is to make drawing template

introduction: In this, i am gonna use the line, rectangle, trim, offset etc,. commands which are discussed upto now in the module of autoCAD

procedure:

• starting the new drawing
• setting up the units as decimals with precision of 0.0mm
• taking the rectangle, line etc, commands to make the drawing template
• taking the text command to fill the drawing template

result:

the result of the above procedure is given below

4)

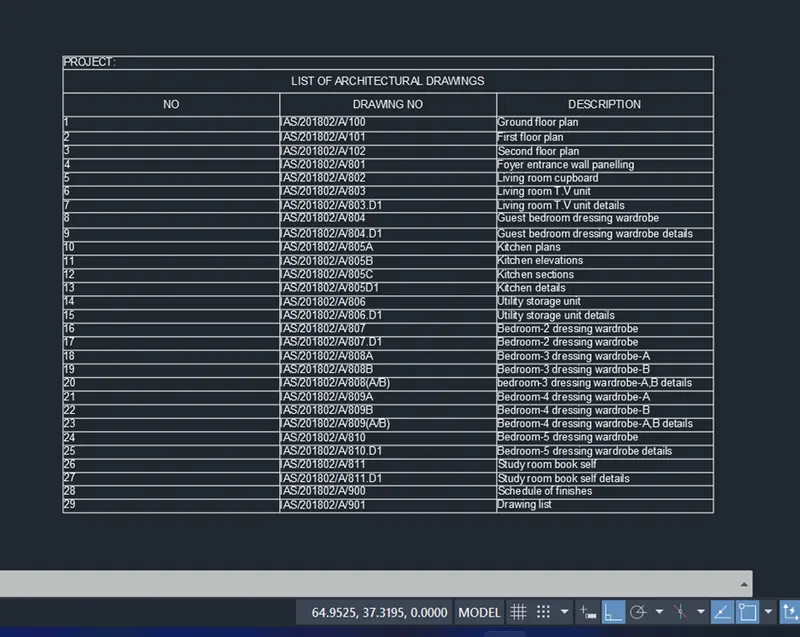

aim: The main aim of this challenge is to make drawing details

introduction: In this, i am gonna use the table and text commands to make the drawing details

procedure:

• starting the new drawing
• taking the units as decimals with precision of 0.0mm
• taking the table command with required rows and columns as given in problem
• taking the text command to complete the drawing details

result:

the result of the above procedure is shown below

5)

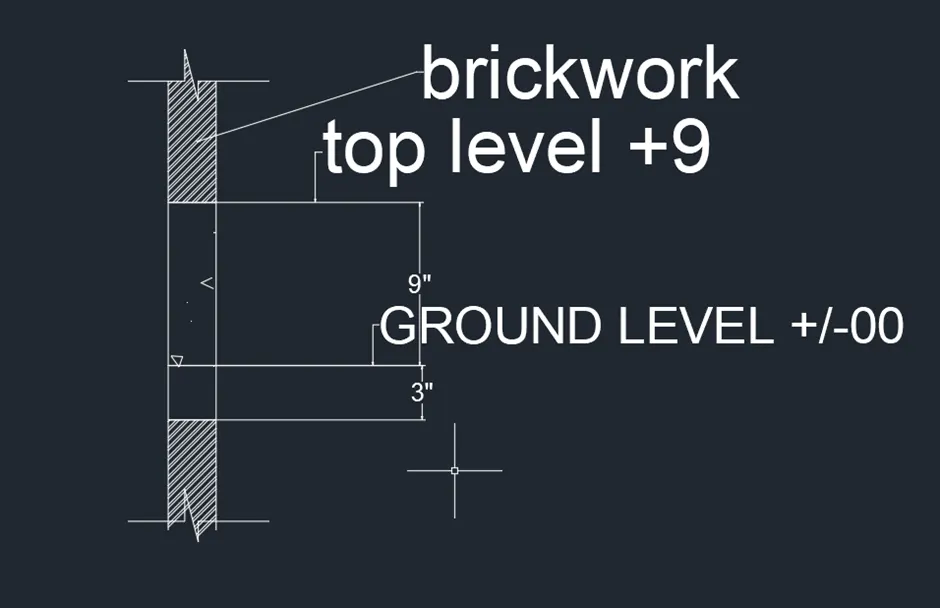

aim: The main aim of this challenge is to make the beam detail as given in the problem

introduction: In this, i am gonna use the line and hatch command to complete the given challenge

procedure:

• starting the new drawing
• setting up the units as engineering with precision of 0'-0.0"
• taking the line command to complete the beam detail
• taking dimensions and leader command to indicate the details as given in the problem

result:

the result of the above procedure is shown below
