Creating Walls, Partition walls and Floors for a residential layout using REVIT

AIM : TO SHOW THE STRUCTURES AS SAID ABOVE FOLLWING

PROCEDURE

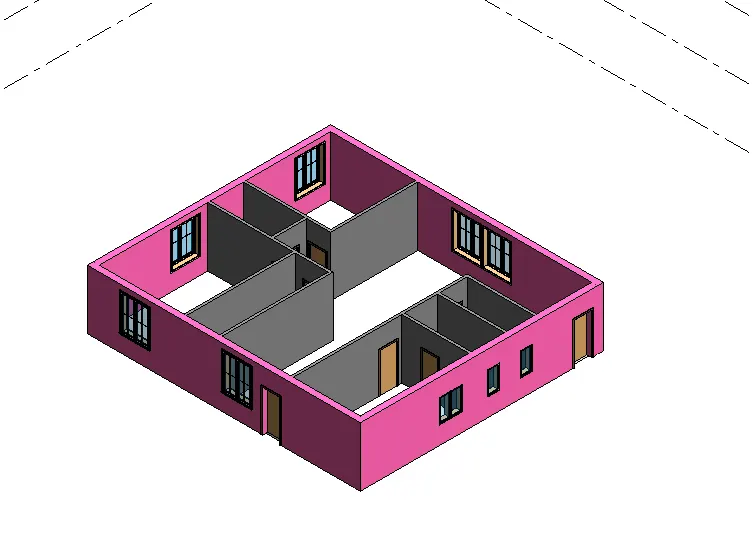

CLICK ON ARCHITECTURE AND SELECT WALL AND DRAW THE MAIN WALLS AND INTER WALL ALSO BY TAKING MEASERMENTS AND GIVE COLOUR BY TYPE

CLICK ON ARCHITECTURE AND SELECT FLOOR AND SELCT ALL BOUNDARES OF WALLS OR DRAW AROUND THE EXTIRER WALLS

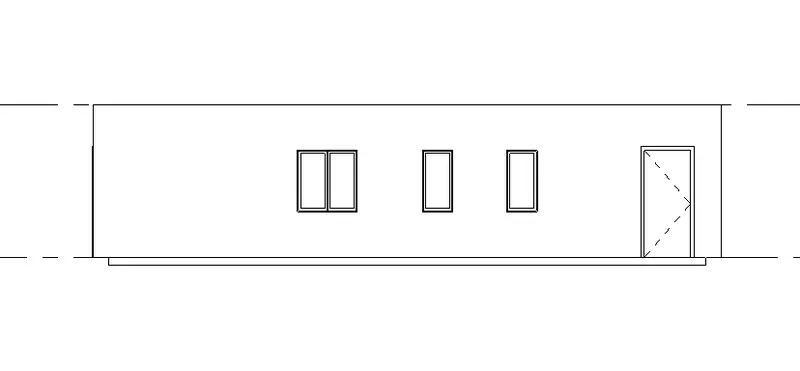

SIDE ELEVATION

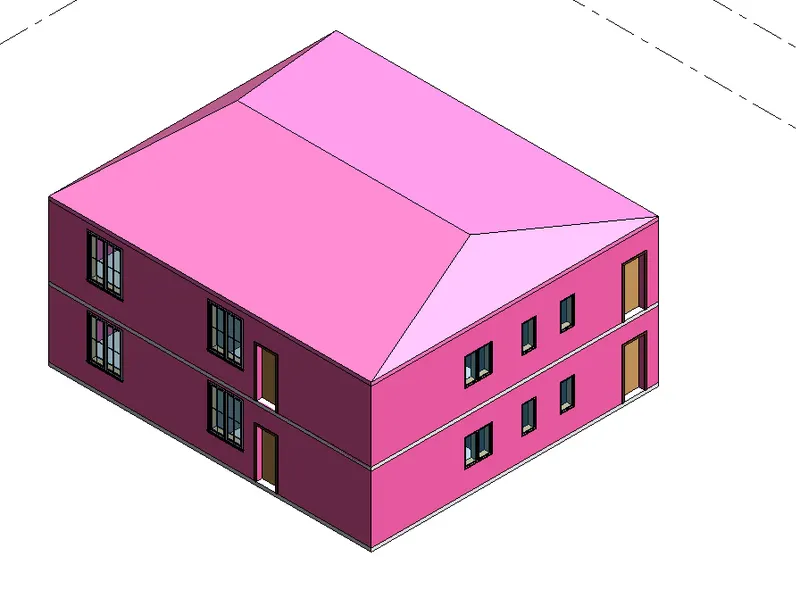

COPY THE GF TO FIRST FLOOR AS SAID ABOVE COPY , CLICK ON CLIP BOARD , AND PASTE ON SLECTED LAYER AND ALSO PRODE ROOF AS SAME AS FLLORING BY SELECTING THE ROOF OPTION FROM ARCHITECTURE

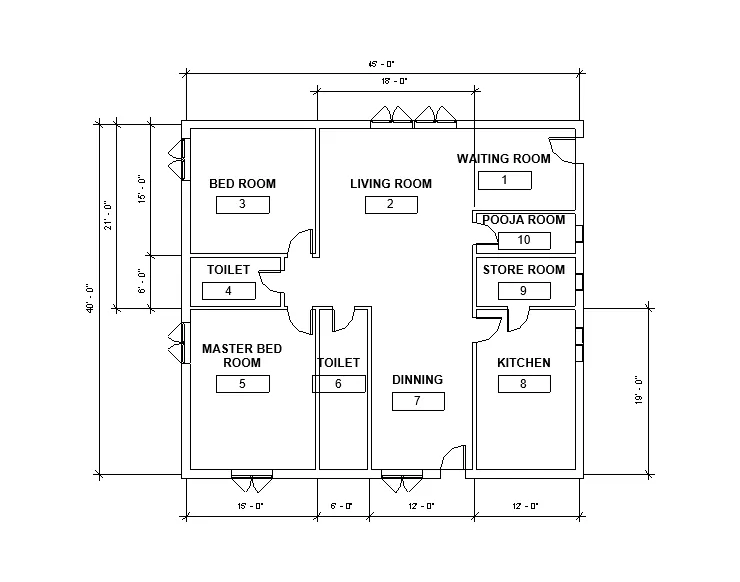

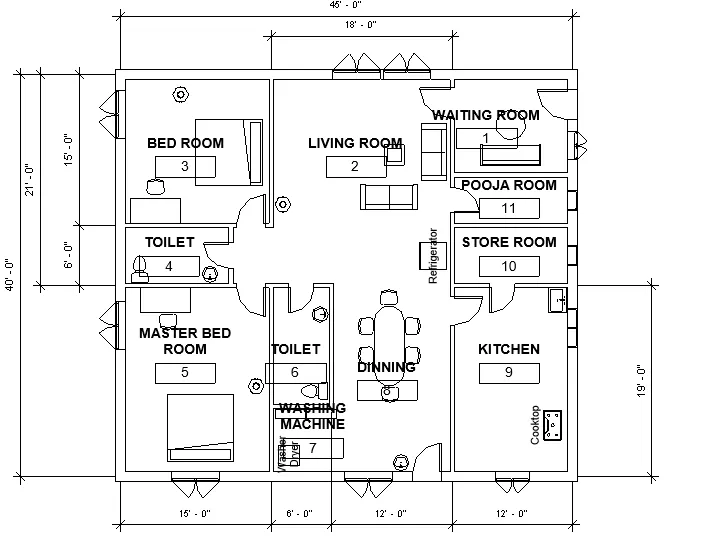

DIMESION OF PLAN

GO TO INSERT AND LOAD FAMILY AND LOAD THE ITEMS REQUIRED LIKE FURNITURE,LIGHTING,SPECIAL EQIPMENT, ETC....

NOW GO TO PROJECT BROWSER AND SELECT ITEM WHICH WE ARE LOADED AND PLACE IT IN PLAN AT REQUIRED PLACES IN REQIRED ROOMS

CHANGE THE VIEW TO TO 3D, REALISTIC

AND CLICK ON VIEW 3D , CAMERA , PLACE THE CEMERA AT REQUIRED POINTS TO SHE HOW IT IS AND NAME WITH THEM ROOMS

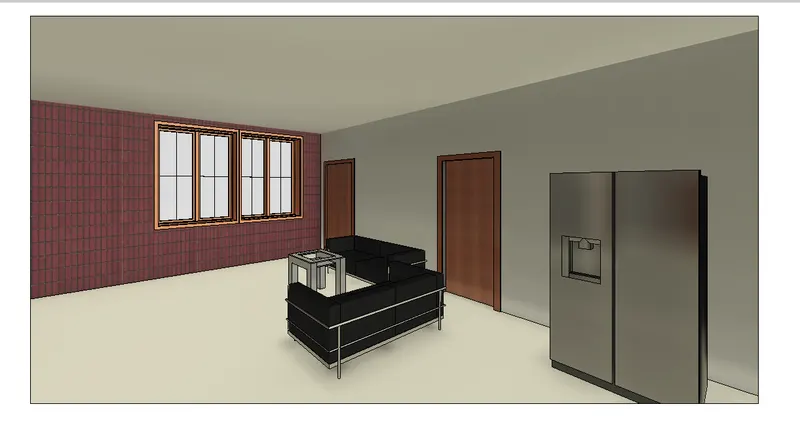

LIVING ROOM

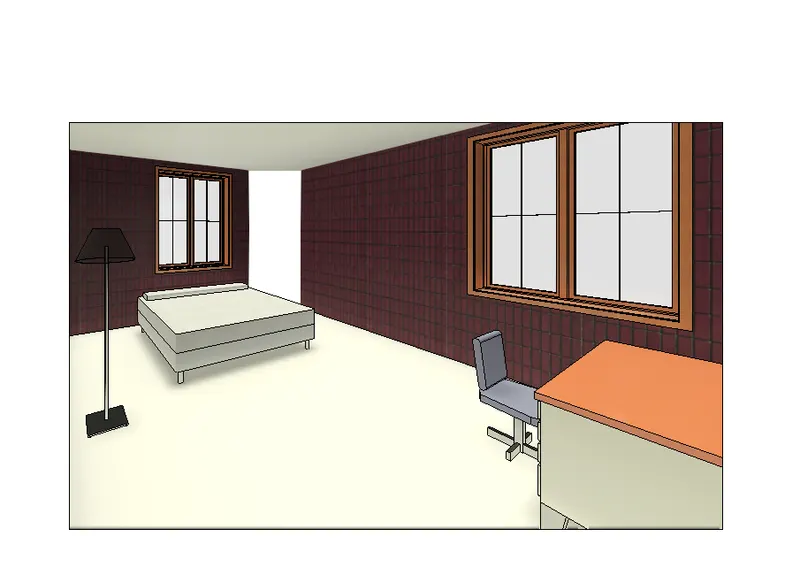

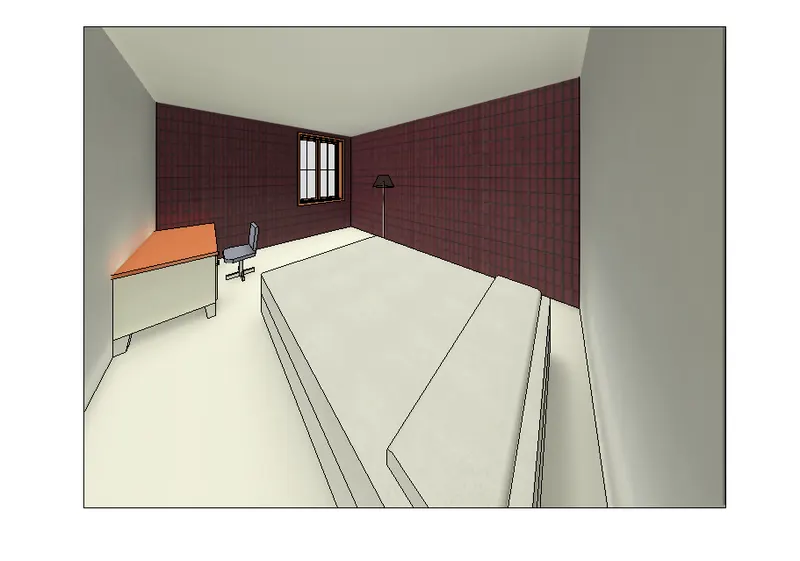

BED ROOMS

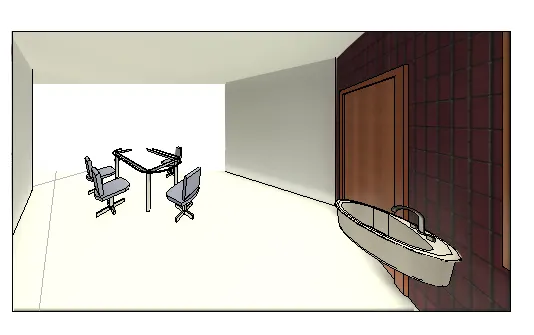

DINNING

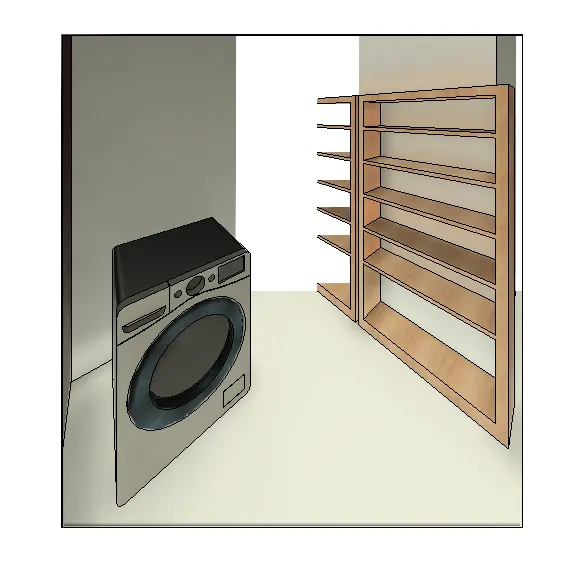

WASHING ROOM

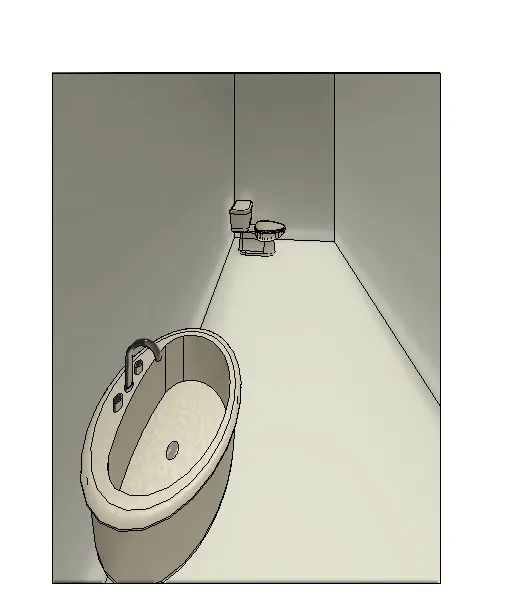

TOILET

PALN HOW IT LOOKS
