Creating Walls, Partition walls and Floors for a residential layout using REVIT
1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
Answer:

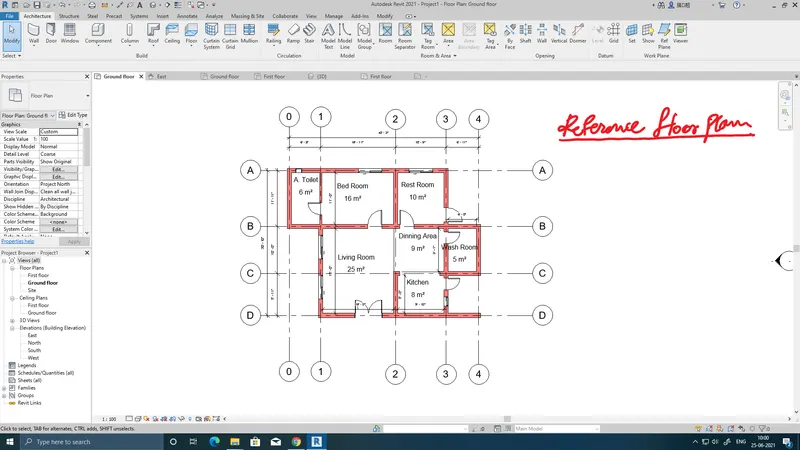

Above is the referance wall layout used to create an architectural floor.

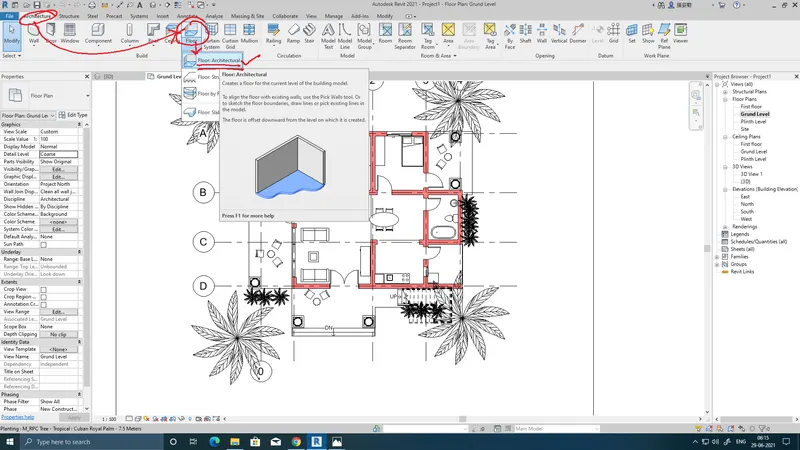

step1: Using floor tool under architecture tab, floor with appropriate material and thickness using the property browser was create.
step 2: Under the modify tab, appropriate material and thickness was created by duplicating the existing material.

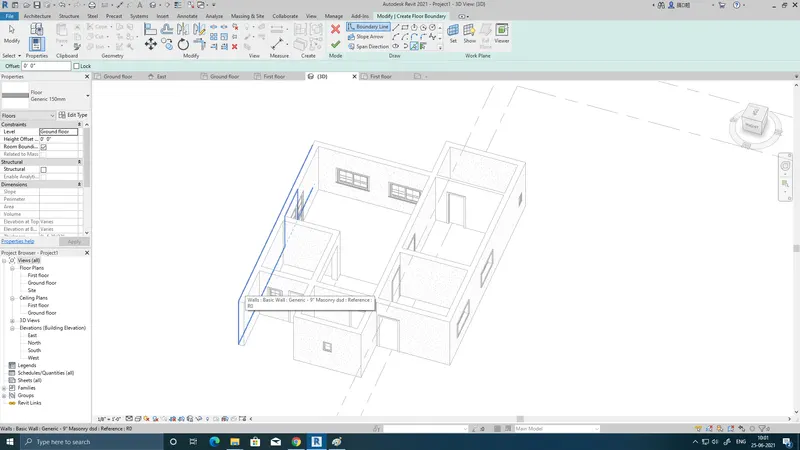

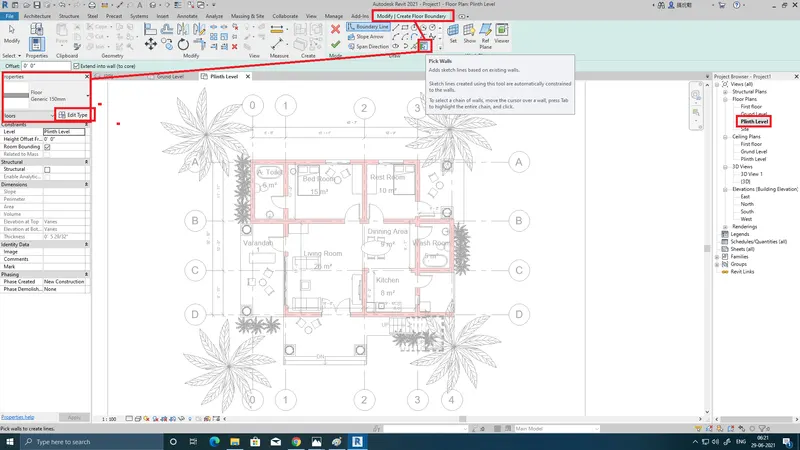

Step 3: by drawing a layout over the walls or by selecting the edge of walls, a loop was created to generate an architectural floor as desired level.

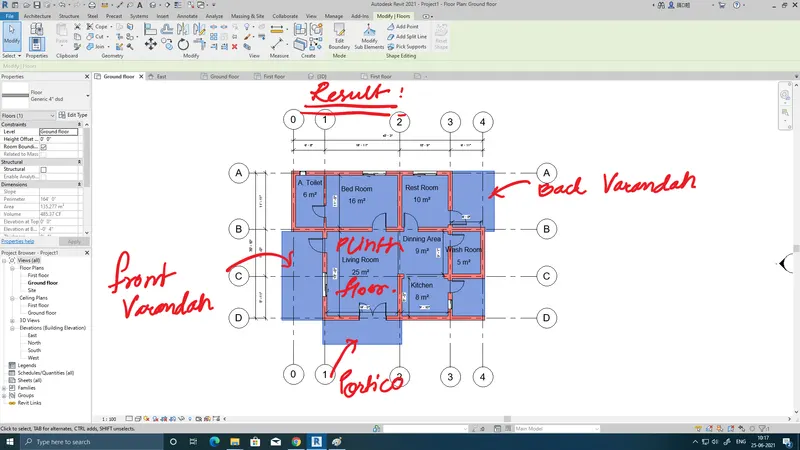

Result : Thus an architectural floor of desired thickness was created.
----------------------------------------------------------------------------------------------------------------------------------------------------------
2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
Answer:
step 1

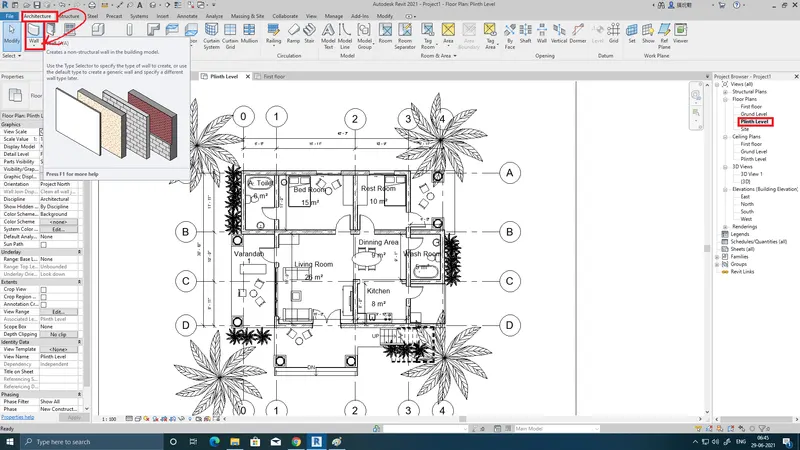

Under the architectural tab, at designated level, a desired wall type was created.
Step 2:

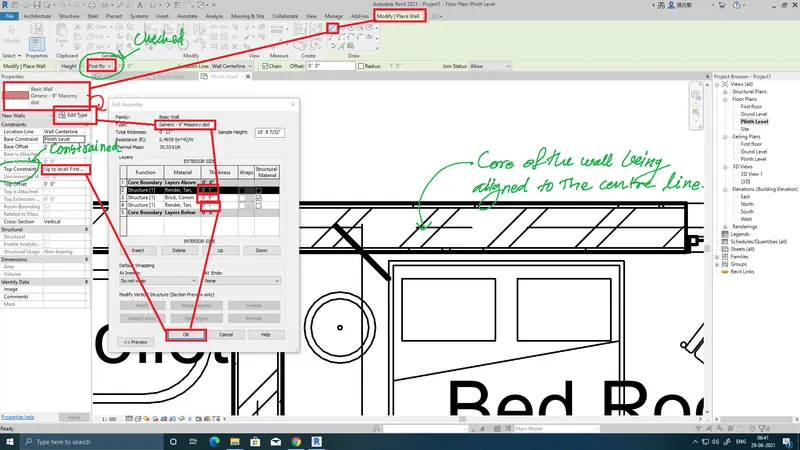

Result: Property browser was select to create appropriate material and thickness for walls, also the wall creating the wall, it was checket for its top and bottom constraint.
----------------------------------------------------------------------------------------------------------------------------------------------------------
3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align elements to a different level.
Answer: In order to create typical floor plan, the following procidure was adopted:

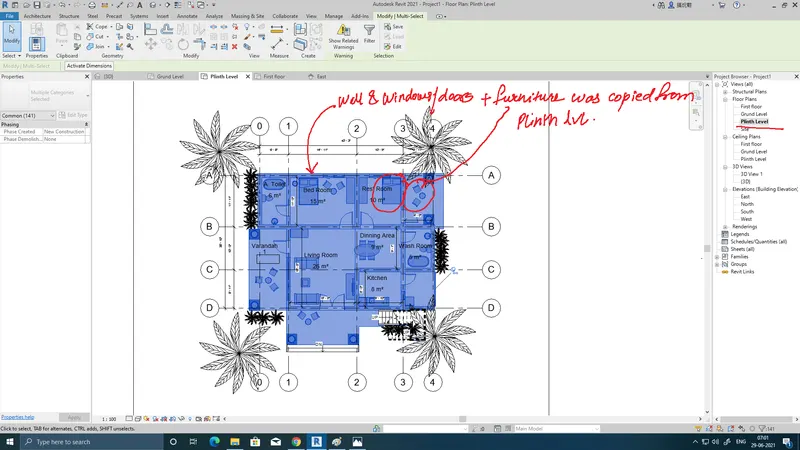

step 1: Use modify tab, the highlited elements were copied from ground floor level.
Step2:

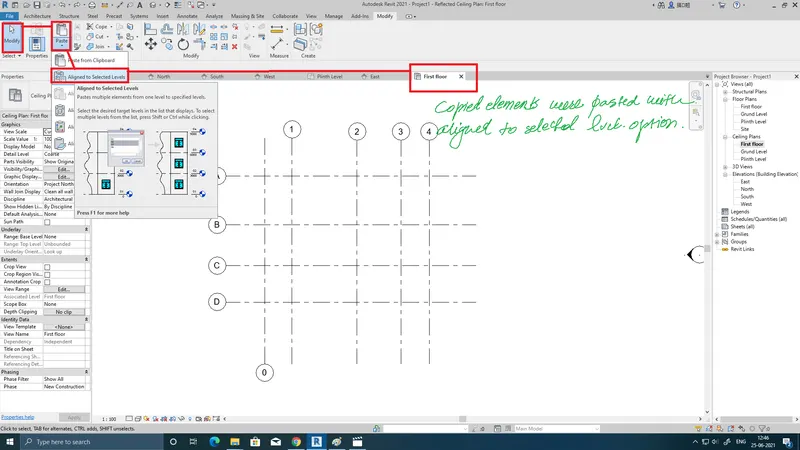

under paste tab, aligned to selected level option was used to create typical layout.
Result:-

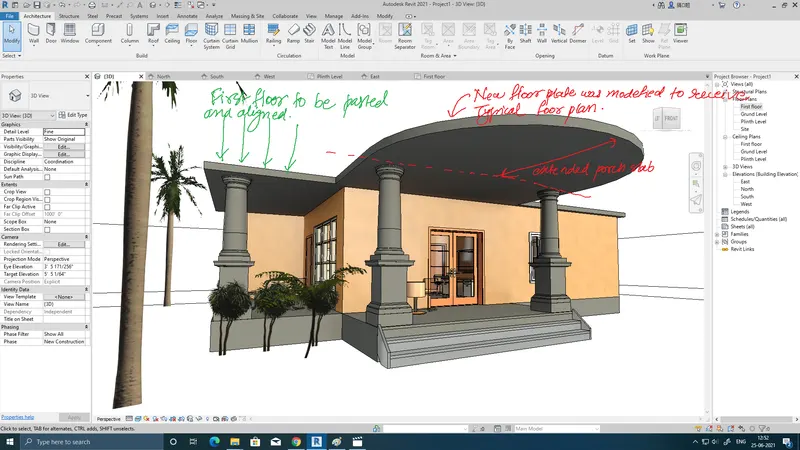

before pasting.

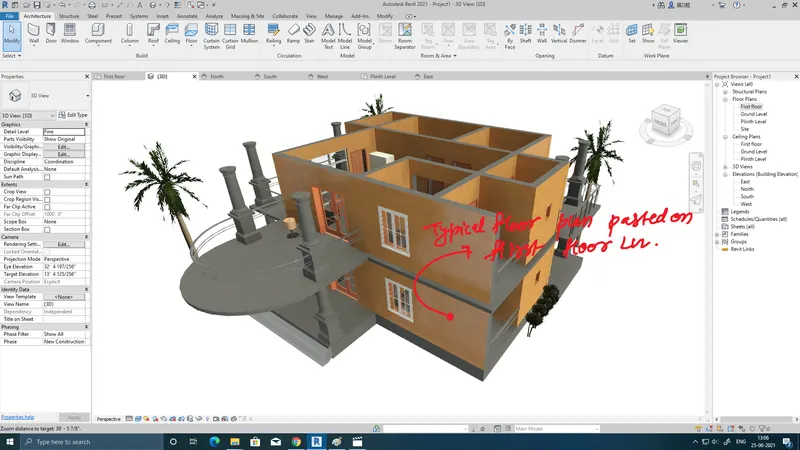

after paisting the copied elements, first floor was perfectly aligned with the ground floor.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

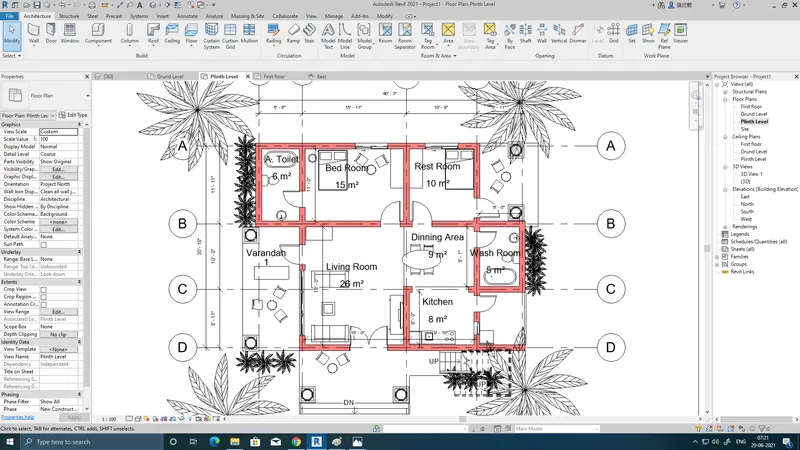

Answer: All the required spaces given in the above table are created using partition walls. Over and above the requirement, ancilary spaces such as parking porch, entrance varandah, guest rooms, common toilets, attached toilets, side and back varandah are created.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

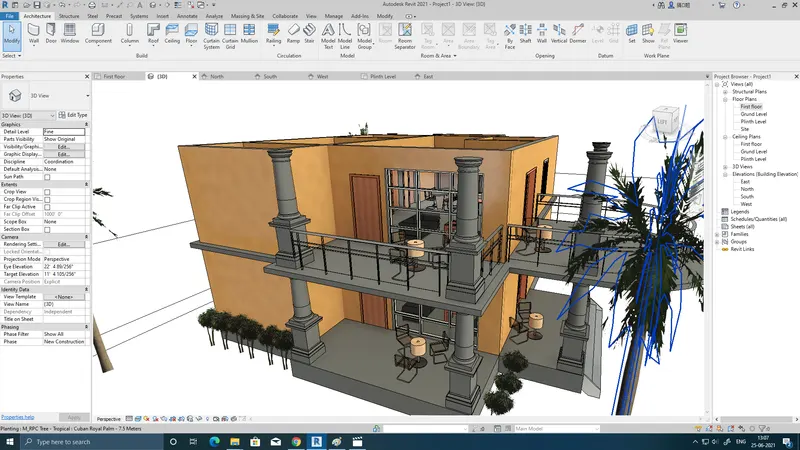

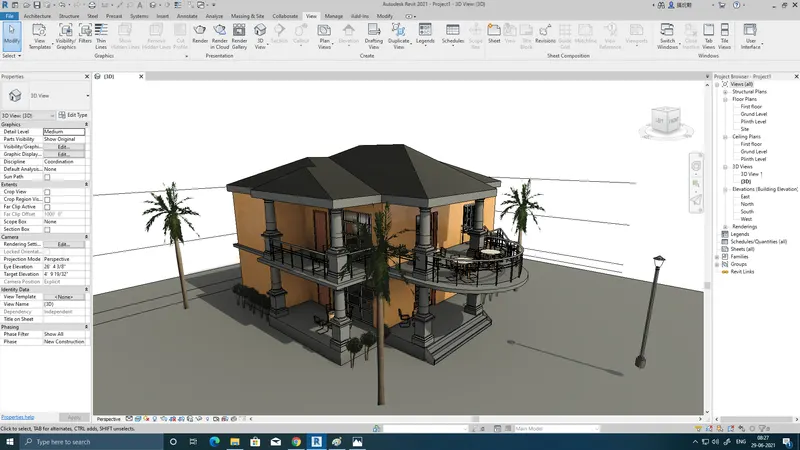

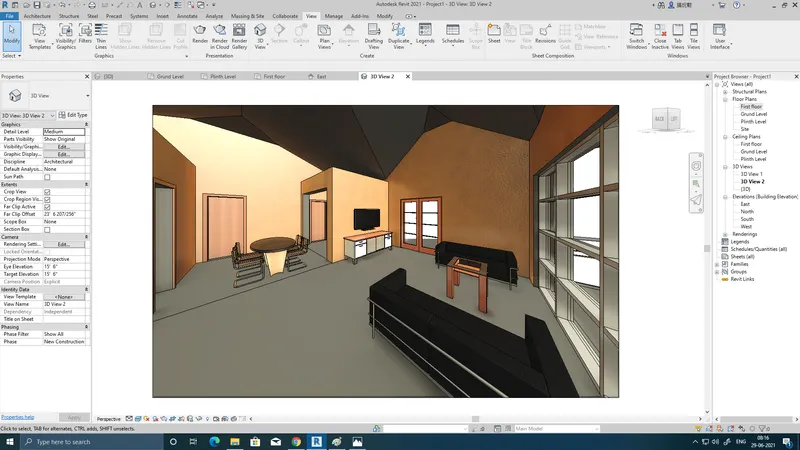

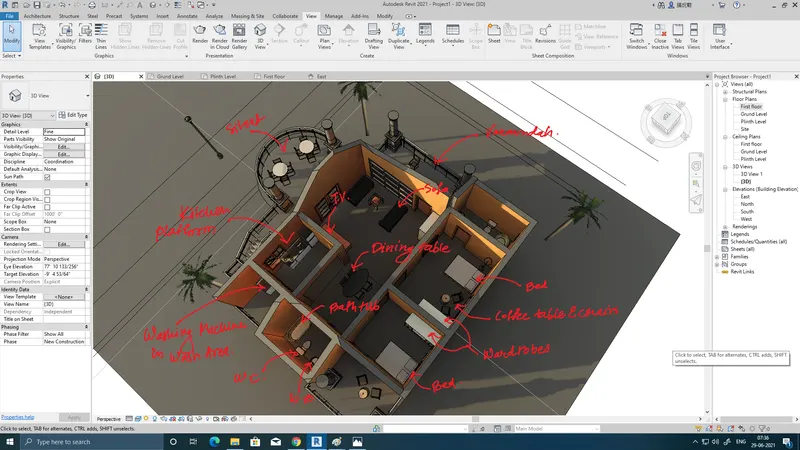

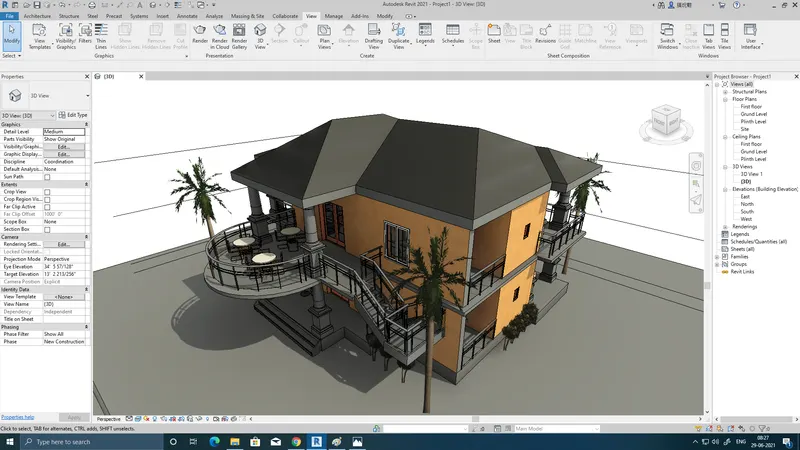

Answer: All the components enlisted above are been deployed in their respective spaces as shown in below image-
-----------------------------------------------------------------------------------------------------------------------------------------------------------
