Creating Walls, Partition walls and Floors for a residential layout using REVIT

AIM : TO USE MODELLING TOOLS AND COMMANDS FOR MAKING THE RESIDENTIAL PLAN REALISTIC AS MUCH AS POSSIBLE.

INTRODUCTION : MODIFICATION IS DONE TO PREVIOUS ASSIGMENT PLAN BY ADDING FLOOR, ROOF, MORE ELEMENTS,UNIQUE CREATIVE PLAN.

RESULTS :

1. ADDITION OF FLOOR :

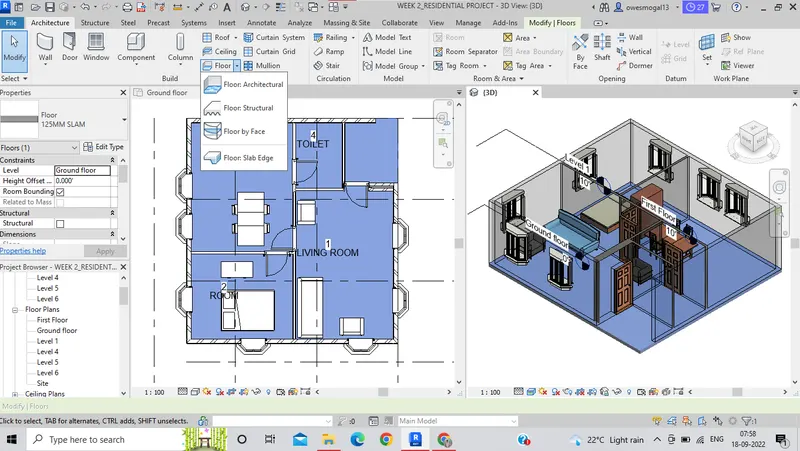

Steps : Architecture section > Floor Command ,Architectural > Boundary line + pick line of exterior wall.

• In above as we can see the floor is added and also the modification were done to the floor
• The thickness is 5" an concrete material is givenand wooden finish as

• Realistic view

------------------------------------------------------------------------------------------------------------------------------

2. Wall

The wall were drawn with wall command in architectural section with boundary lines

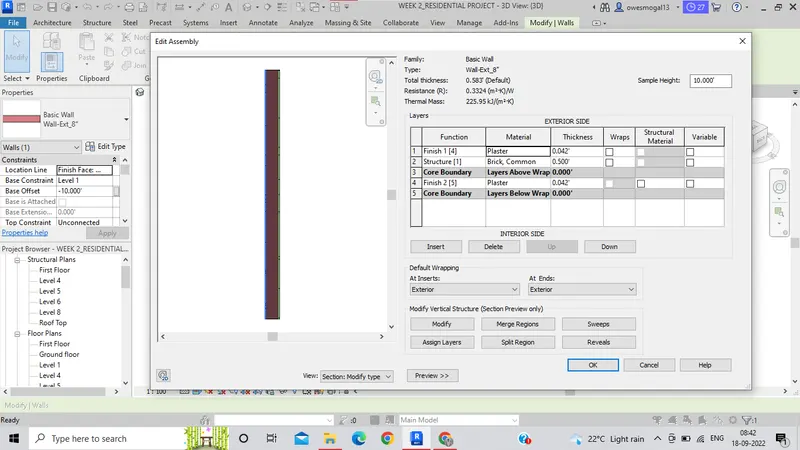

• The custom assembly of wall is made
• Plaster if 1" is provides inerior and exterior surface with brick masonry of 5" inside

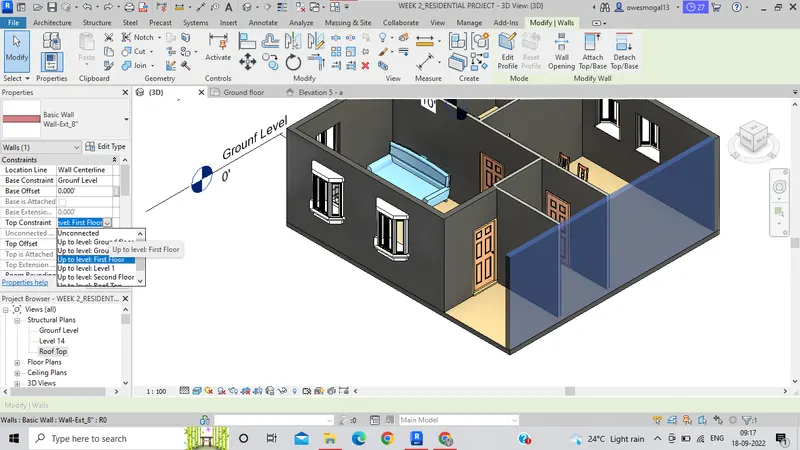

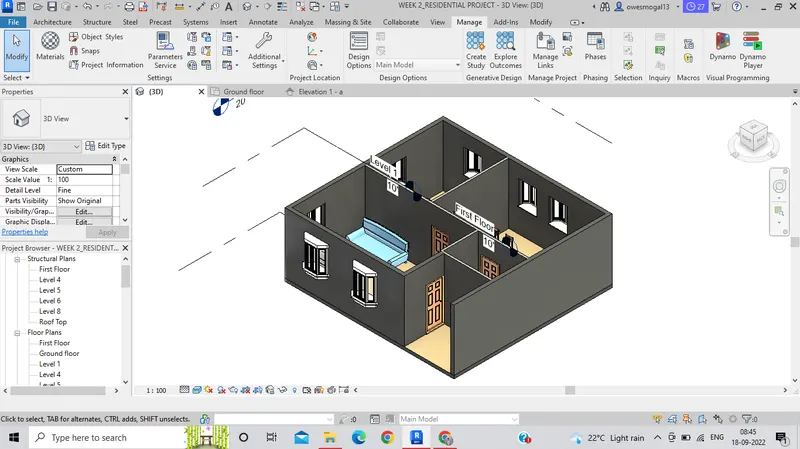

• Also the wall to is constrained to First Floor and Base is constraind to Ground level.

-------------------------------------------------------------------------------------------------------------------------------------

3. Adding Floor :

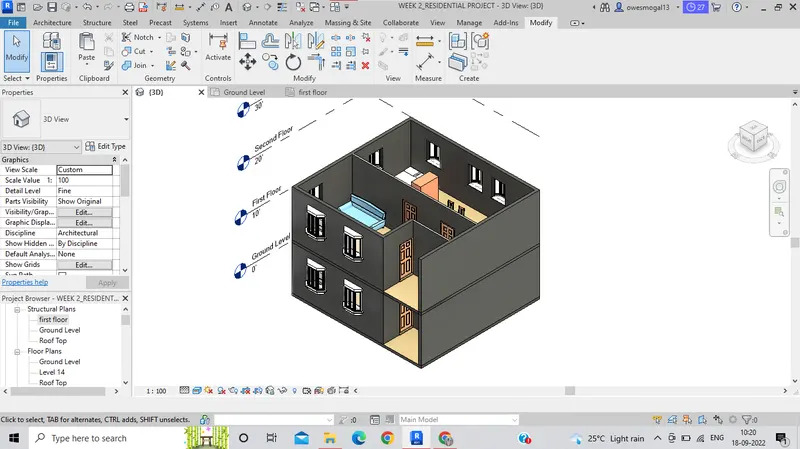

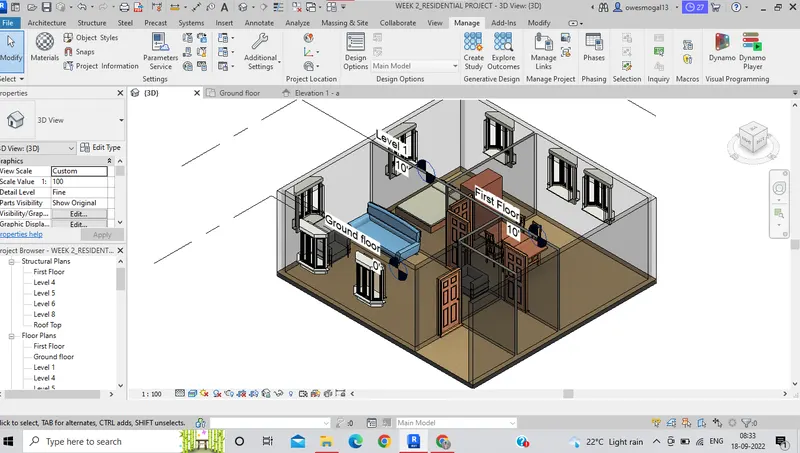

• Similar floor is increased by copy the floor

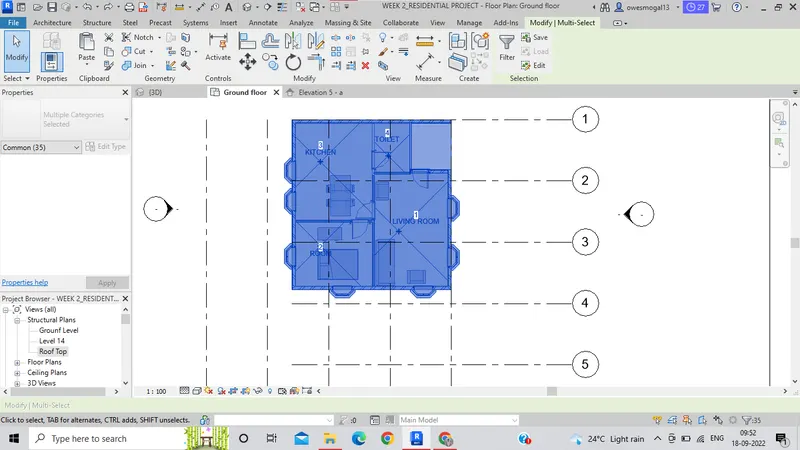

Steps : Select The plan > Modify Section >In Clipboard Section, Select Copy to Clipboard.

• Then In Modify section select Paste from Clipboard option and select edge of the fisrt floor plan

---------------------------------------------------------------------------------------------------------------------------------

4. Residential plan-002

Steps :

1. Architectural template is used to draw this project
2. levels drawn at offset of 10' with levels command in Atrchitecture Section
3. Floor was drawn from architecture section.
4. Then Walls are projected Upto First Floor level with Wall command
5. Exterior wall of 8" is customized by duplicating the wall present in library
6. Interior partition wall is used Interior walls

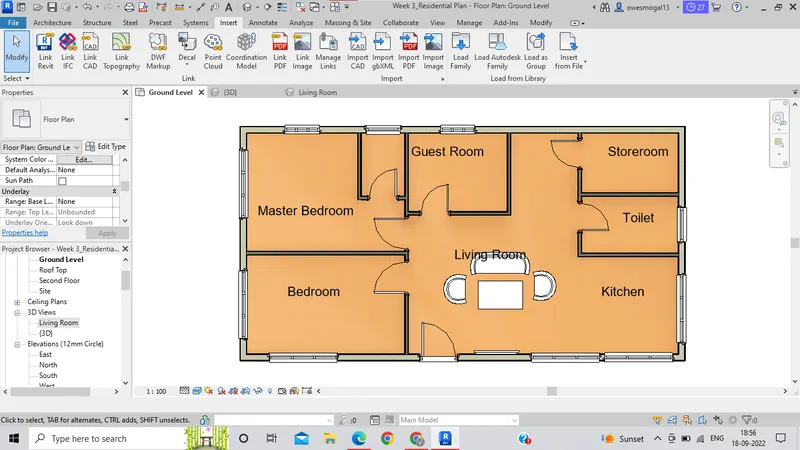

• Plan :

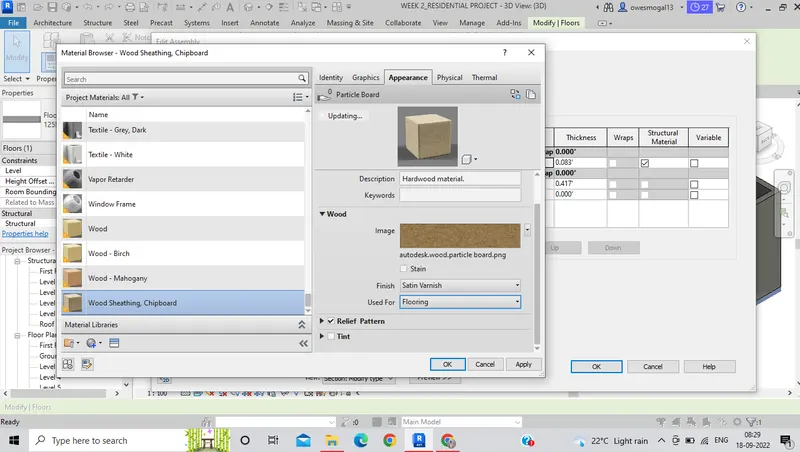

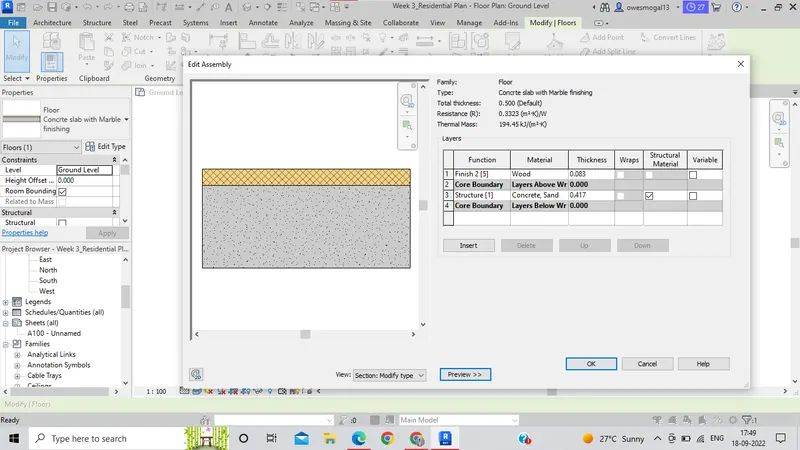

• Floor Customization

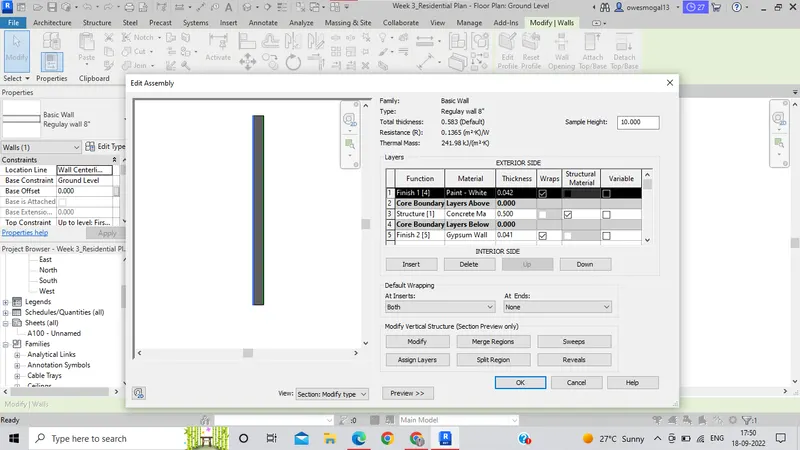

• Wall Assembly Customization

--------------------------------------------------------------------------------------------------------------------------------------

5. Insertion of elements and 3d views of each units

Steps :

1. In Insert section from load autodesk families , the Doors, Windows, Furniture etc were Loaded.

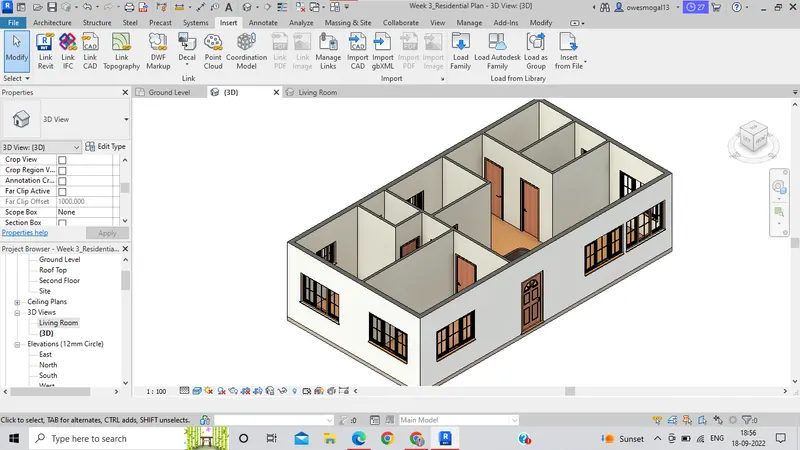

• Realistic View after placing Doors and Windows

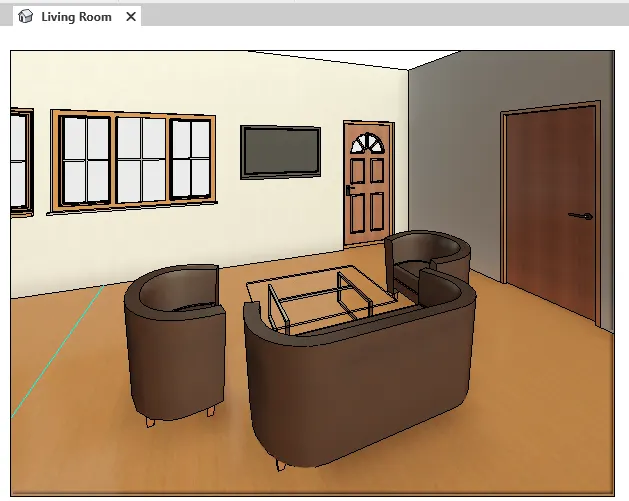

• LIVING ROOM 3D VIEW

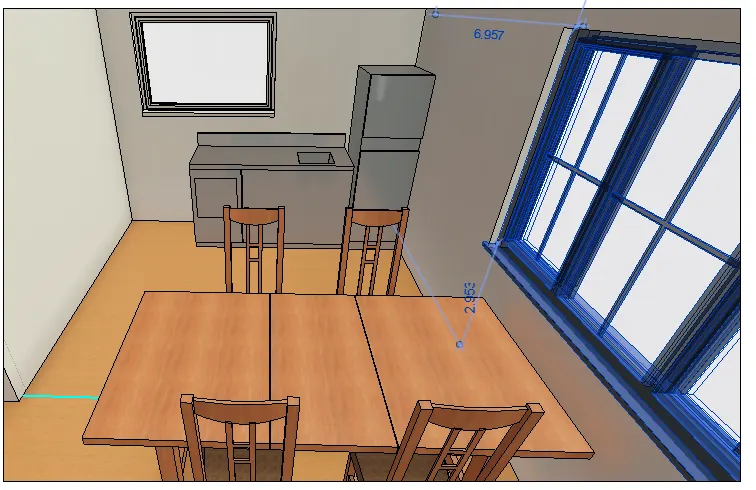

• Kitchen with Dining with fridge ,basin and gas stove

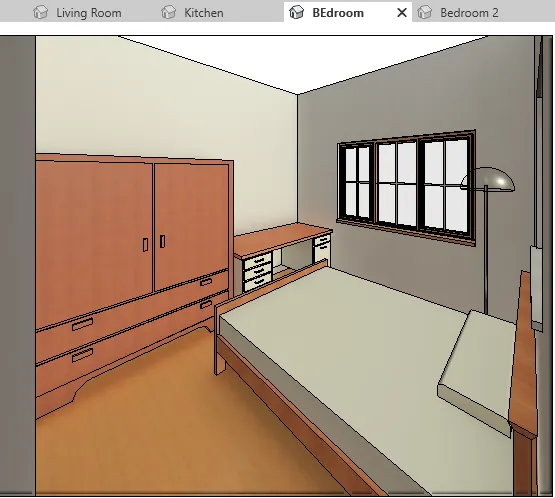

• Bedroom 1 with wardrobe, Lighting Lamp, Study desk

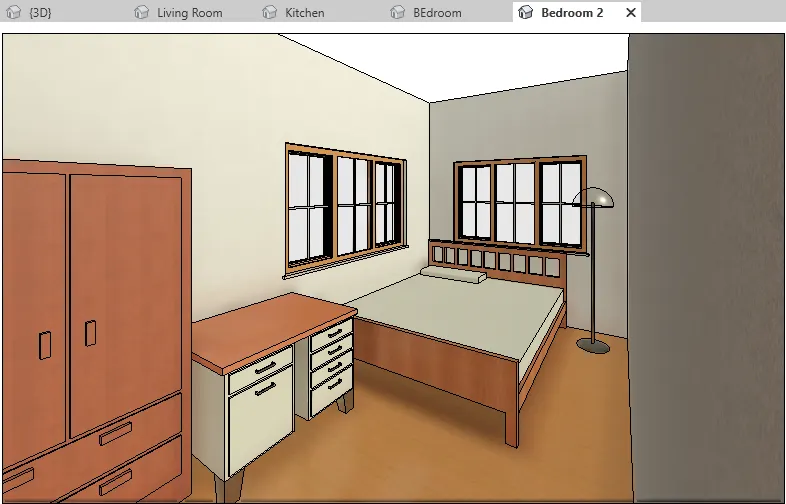

• Bedroom 2 with wardrobe, Lighting Lamp, Study desk

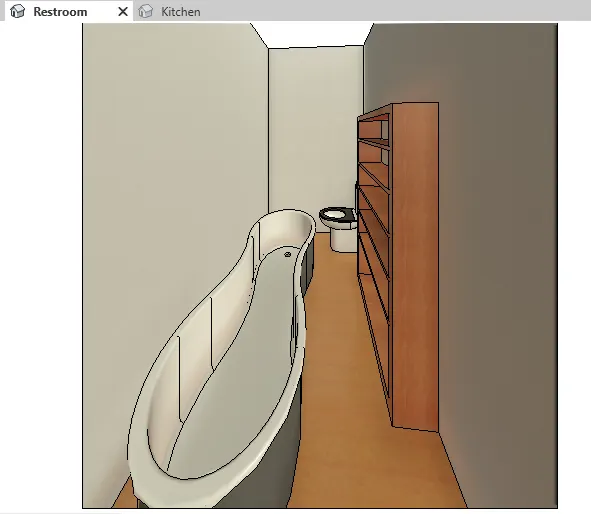

• Restroom with bathtub, water closet, and shevling to keep clothes

----------------------------------------------------------------------------------------------------------------

RESULT :

• While Modification or adding elements I got to know that their can be a huge difference made in intial design or placements of door and windows ,Revit is very convenient to understand and make those changes simultaneously and with very much effective speed
• Their can be number of trials done while design and achitecting the Structure

------------------------------------------------------------------------------------------------------------------
