Creating Walls, Partition walls and Floors for a residential layout using REVIT
1)
Aim :-
Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2.
Procedure :-
* Open the revit software.
* Next we select model-new project.
* Template file select as Architectural template.
* Next click on OK.
* In top left corner click on file menu it showing save or shortcut key as control+s.
* We click on save,type the project name click the save option.
* Next we can create the recidential layout of wall option under the achitecture tab.
* Unit set as feet.
* In Architectural tab, we select floor option it shows various options to draw floor.
* Here i will choose pick line option.
* Then pick the lines to draw a floor.
* Then select edit option to edit a floor thickness and apply materials.
Result :-
Complete to use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2.

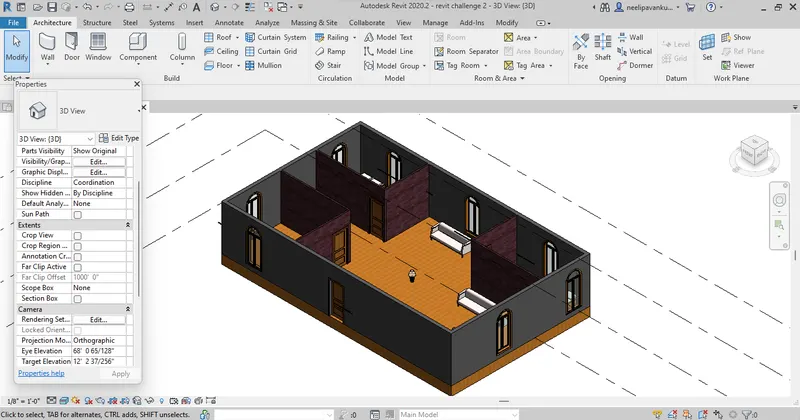

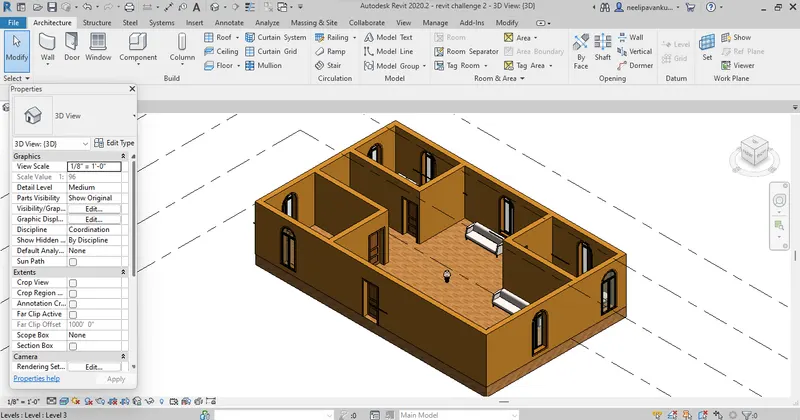

2)
Aim :-
Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
Procedure :-
* Open the revit software.
* Next we select model-new project.
* Template file select as Architectural template.
* Next click on OK.
* In top left corner click on file menu it showing save or shortcut key as control+s.
* We click on save,type the project name click the save option.
* Next we can create the recidential layout of wall option under the achitecture tab.
* Unit set as feet.
* Select the wall goto edit option click on materials to select materials and assign to wall.
* Then edit wall thickness.
Result :-
Complete to add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

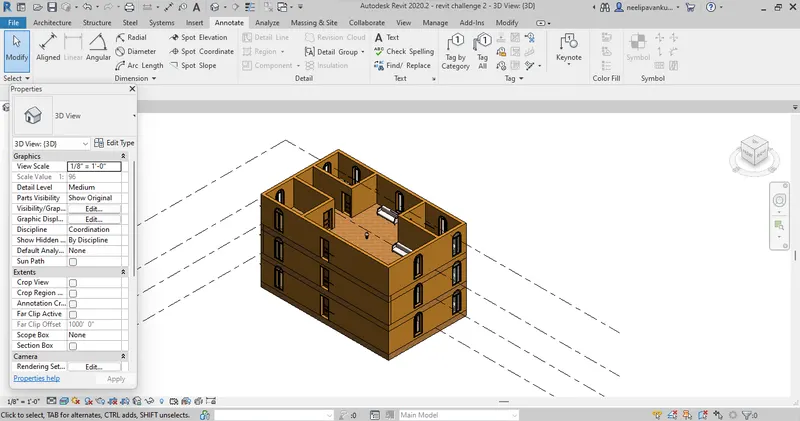

3)
Aim :-
Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level.
Procedure :-
* Open the revit software.
* Next we select model-new project.
* Template file select as Architectural template.
* Next click on OK.
* In top left corner click on file menu it showing save or shortcut key as control+s.
* We click on save,type the project name click the save option.
* Next we can create the recidential layout of wall option under the achitecture tab.
* Unit set as feet.
* Put on the top view.
* We select Plan.
* We select the option copy to clip board.
* Then drop down the option paste shows aligned to selected levels.
* Select aligned to selected levels then it apply model elements to first floor.
Result :-
Complete to copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align elements to a different level.

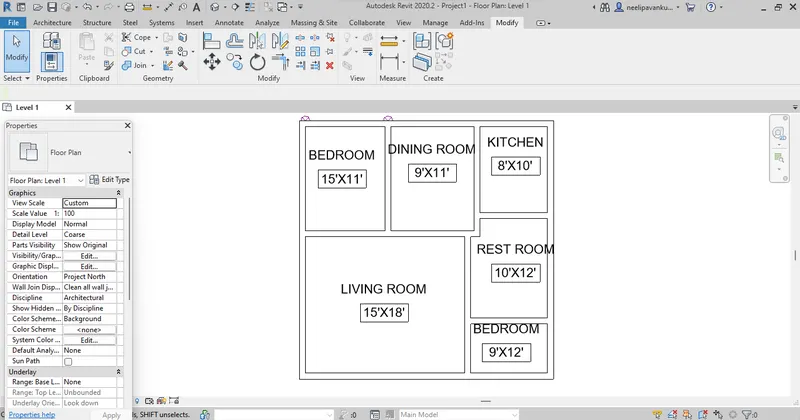

4)
Aim :-
Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
Procedure :-
* Open the revit software.
* Next we select model-new project.
* Template file select as Architectural template.
* Next click on OK.
* In top left corner click on file menu it showing save or shortcut key as control+s.
* We click on save,type the project name click the save option.
* Next we can create the recidential layoutby using the given dimensions of wall option under the achitecture tab.
* Unit set as feet.
Result :-
Complete to use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

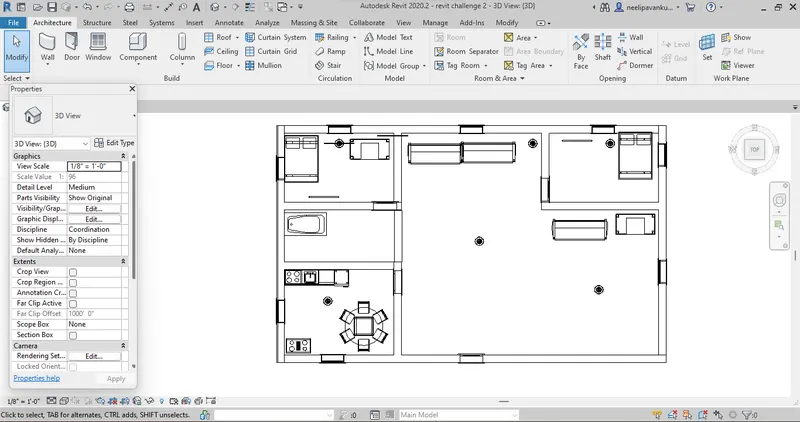

4)
Aim :-
Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model.
Procedure :-
* Open the revit software.
* Next we select model-new project.
* Template file select as Architectural template.
* Next click on OK.
* In top left corner click on file menu it showing save or shortcut key as control+s.
* We click on save,type the project name click the save option.
* Next we can create the residential plan layout of wall option under the achitecture tab.
* Unit set as feet.
* In the architecture tab click on component then select place on component.
* After click on place on component then click load family.
* After click on load family then insert
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
Result :-
Complete to based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model.
