Creating Walls, Partition walls and Floors for a residential layout using REVIT

1 ans:-

aim and introduction ;- to create the floor for week 2 plan layout

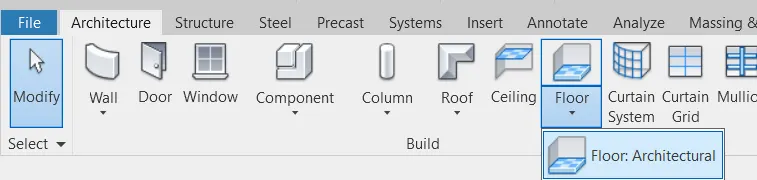

go to the roof tab under the architectural

select the floor architecture

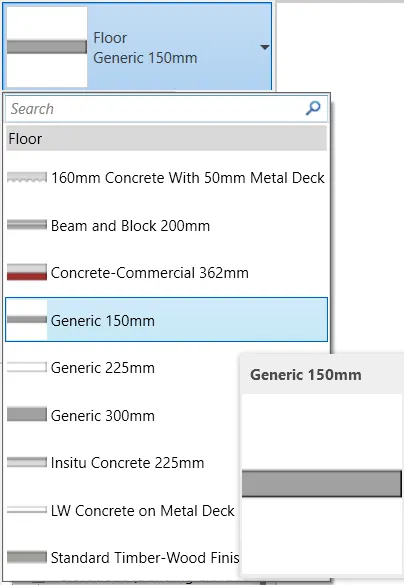

then from the propety browser select required structure and length

select the outside line for the flooring and apply it

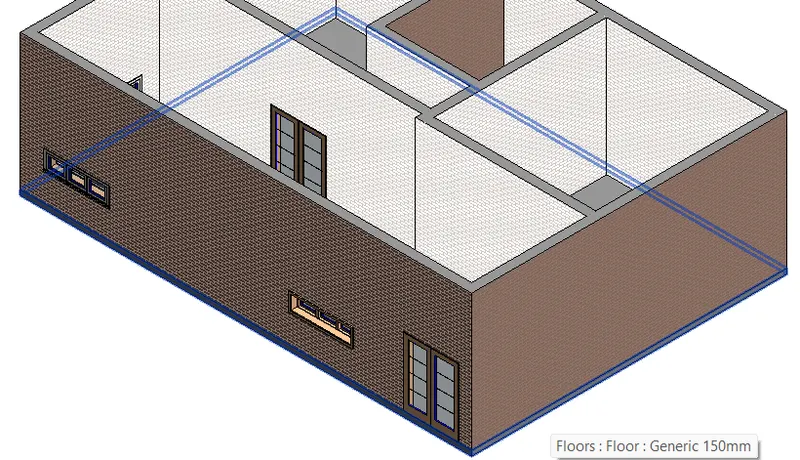

result :- created the flooring at ground level

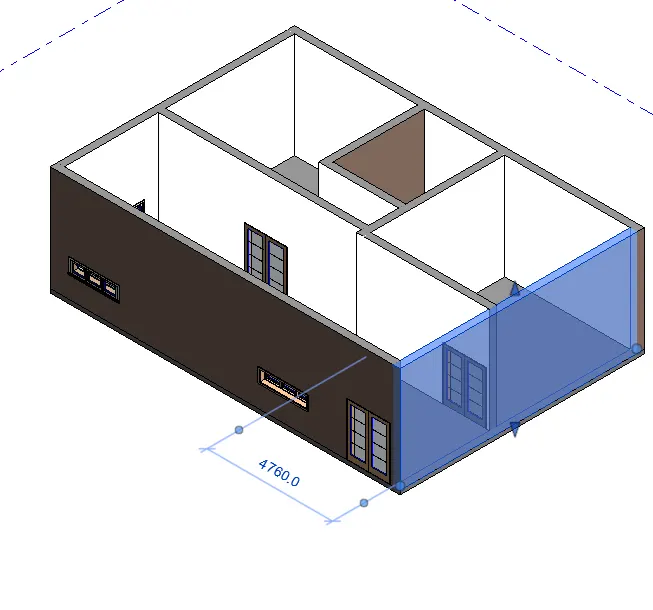

2 ans :- aim :- to create the wall thickness and applying material to the walls

to create the wall under the property browser menu selecting the required material

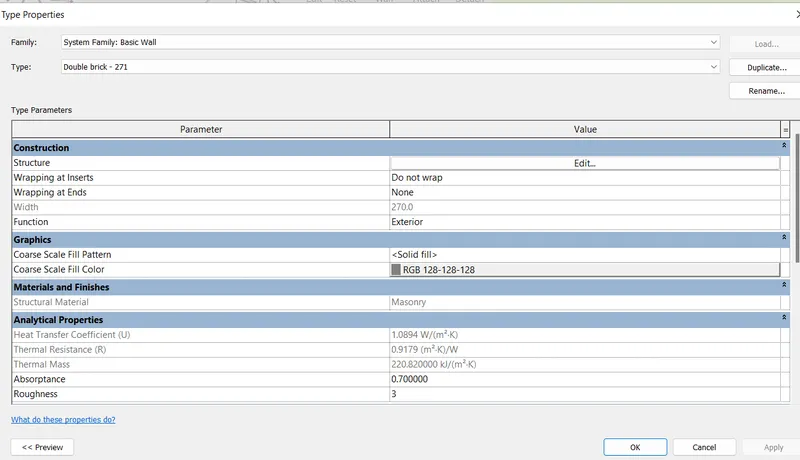

to apply by using edit type in property browser

selecting the structure by going in to edit type in it

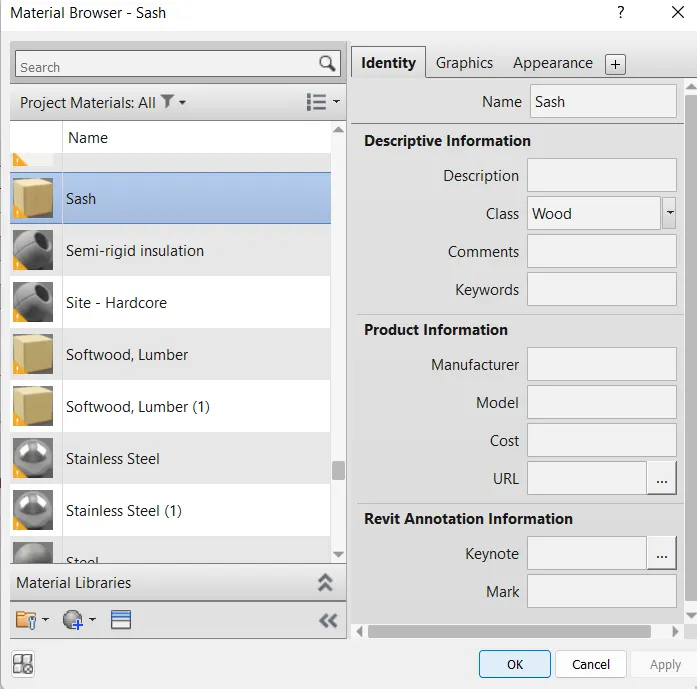

chooseing material

result thickness and required material applied to walls

b . depth convinient for modelling walls

3 ans :-

aim :- to create the model ground floor and pasteing it in first floor

first select the ground floor then the tab appears or changes

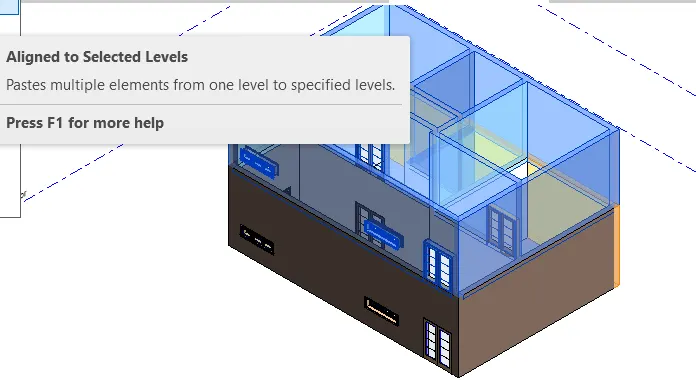

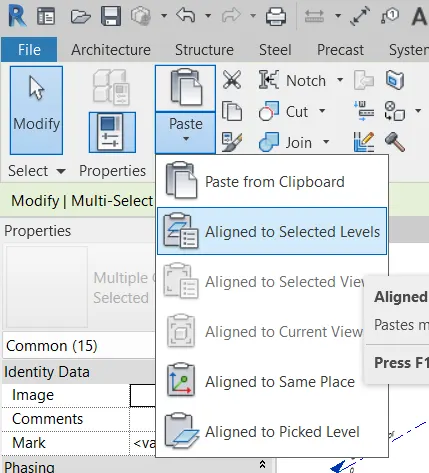

go on click copy and then click on paste

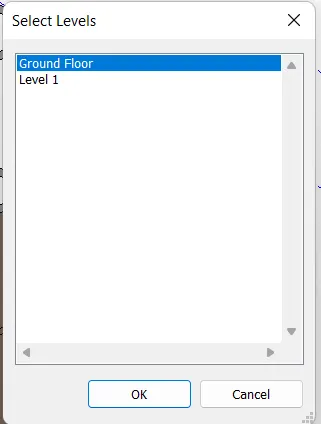

it asks the leveles to select to apply

then click on level 1 to apply

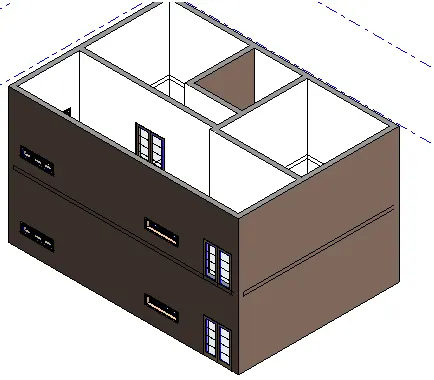

result :- the ground floor portion including the flooring applied to the level 1

4 ans :-

aim:- to create a residential model by given details

here useing the metric system so the feet sysrem are converted into mm

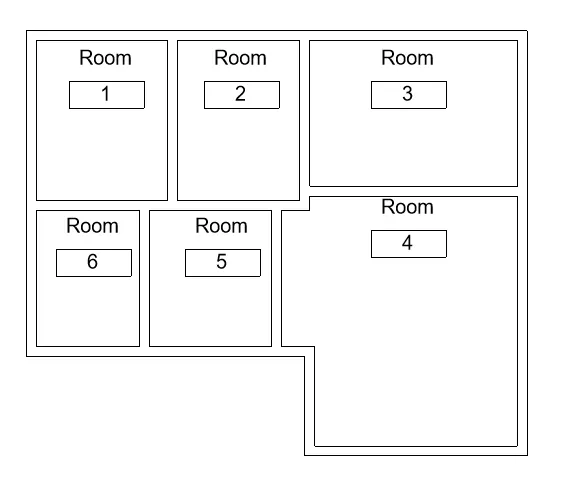

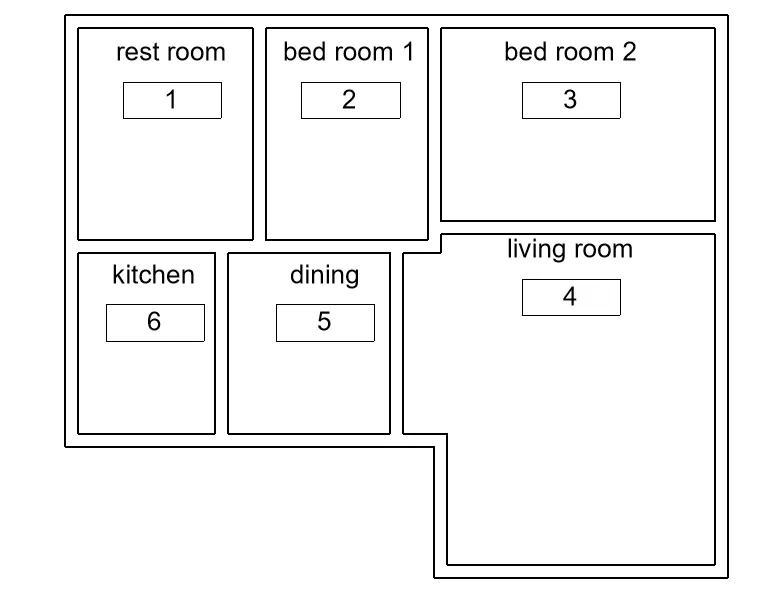

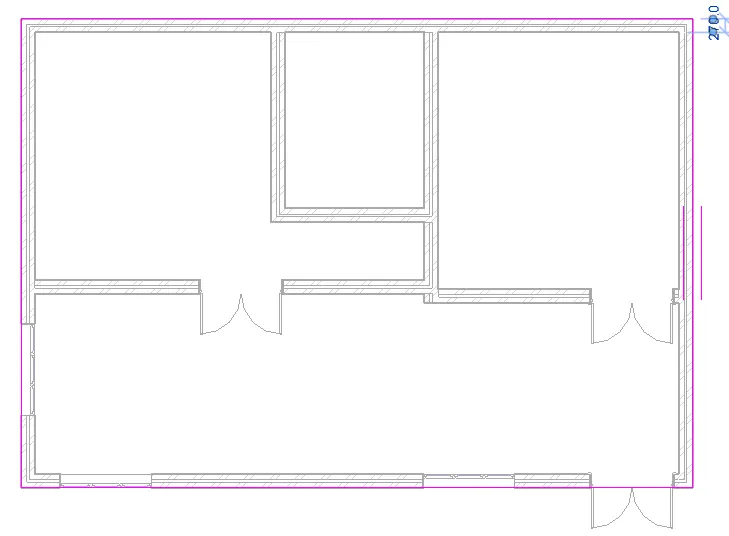

creating the layout as in given dimensions

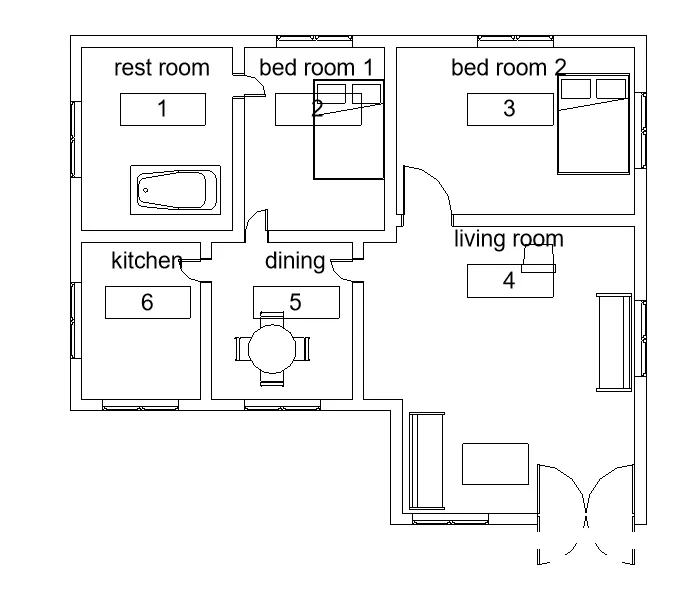

applying the tab and renameing the rooms

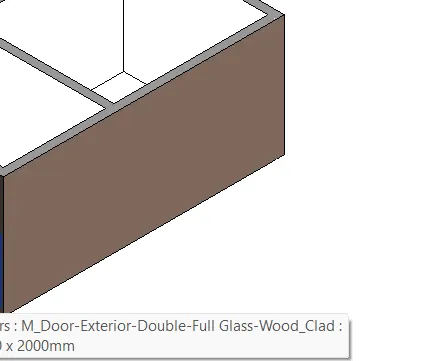

creating the doors and walls and insertion of the components in bed room

rest room and kitchen and living room the beds are applied in bed room useing the libraries

and same as follows are inserted in different rooms .

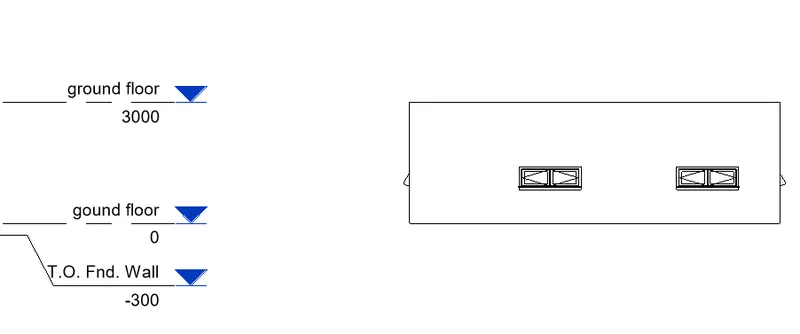

the elevation in eat facing details

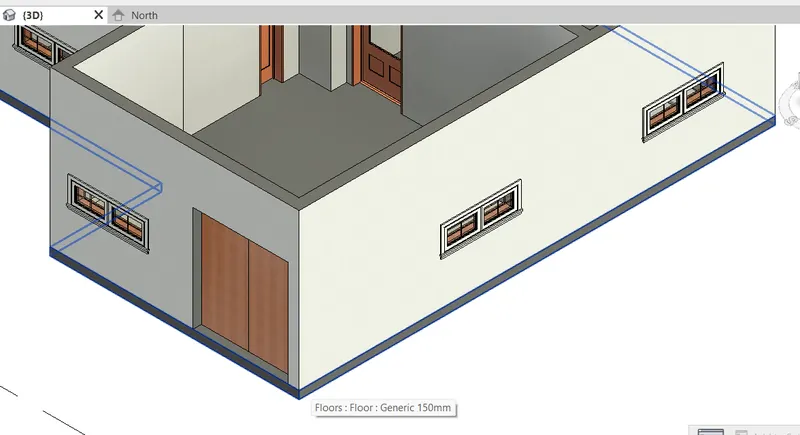

model of created layout

result:-

5ans :- aim and introduction

creating the layout and insertion components for week 2 plan

inserting the components from library by given details in 5 q
