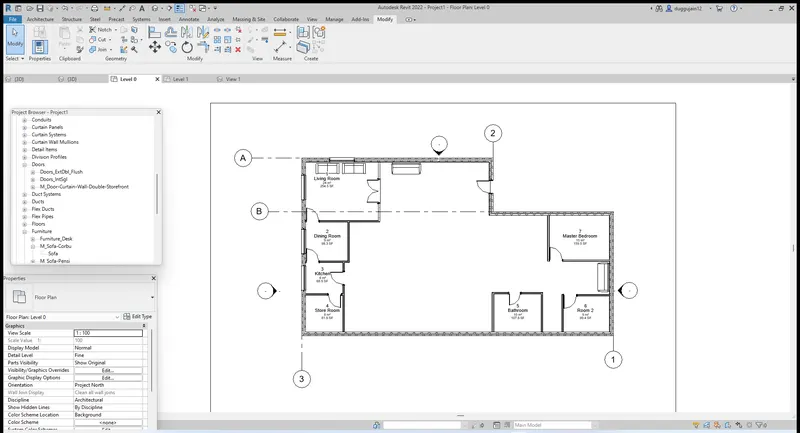

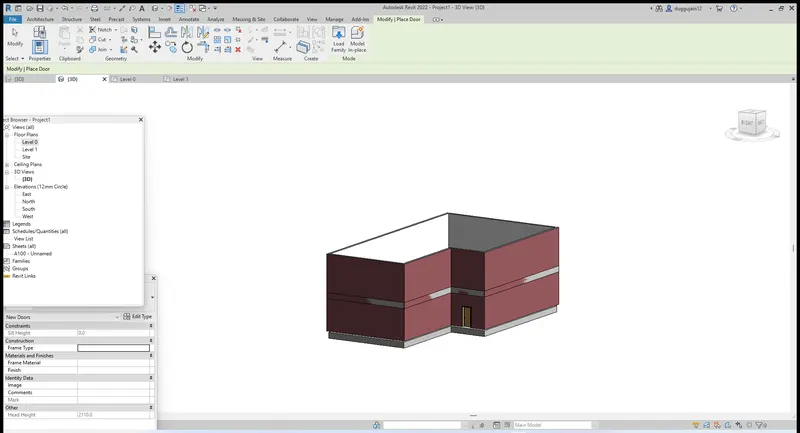

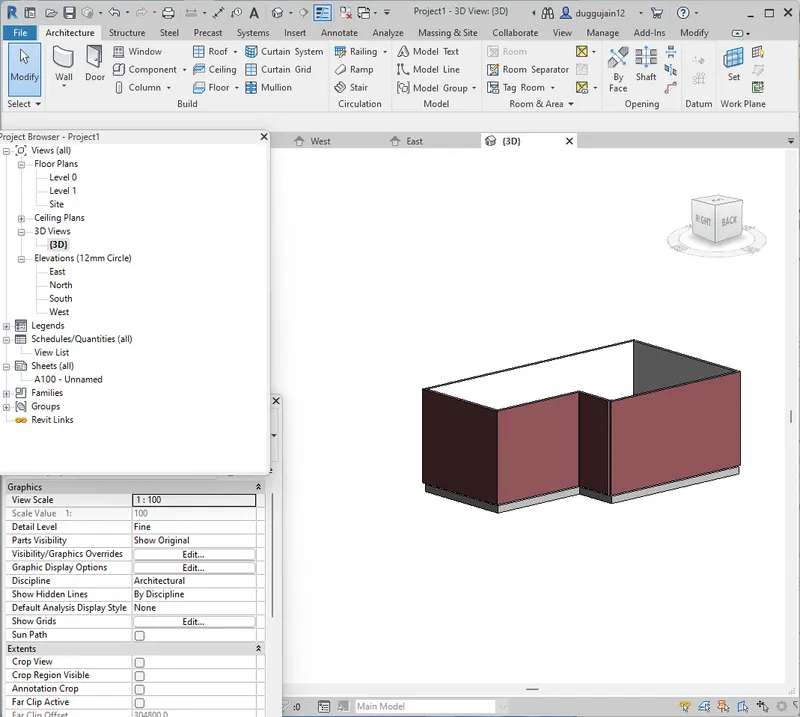

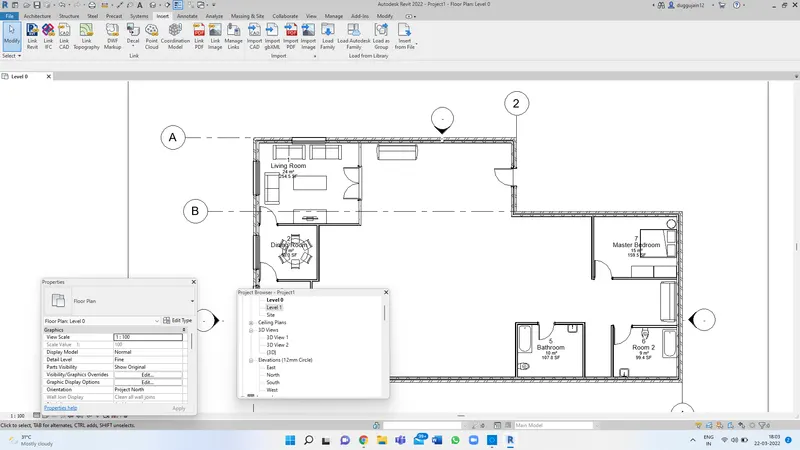

Creating Walls, Partition walls and Floors for a residential layout using REVIT

1. Floor Thickness: 6"

Material Used: Concrete

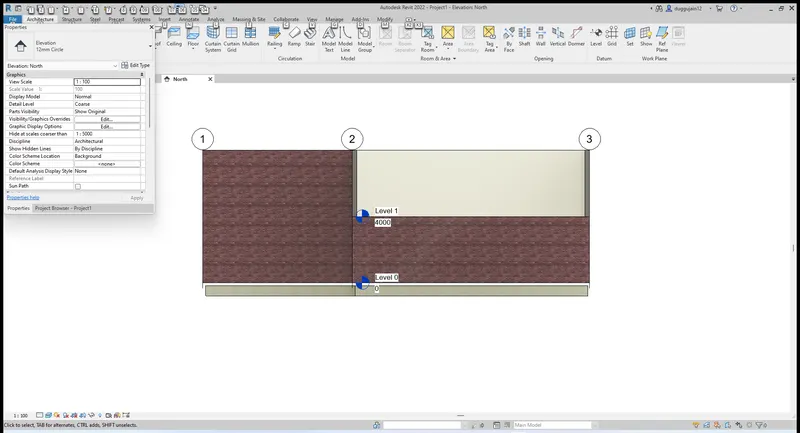

2a. The walls between grid lines 1and 2 are having unconnected constraints where as the wall between grid lines 2 and 3 have a constraint of being connected to level 1

2b. Modelling with the help of height is much more easier as we can edit the height as per our convenience.

3.

4.

5.
