Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

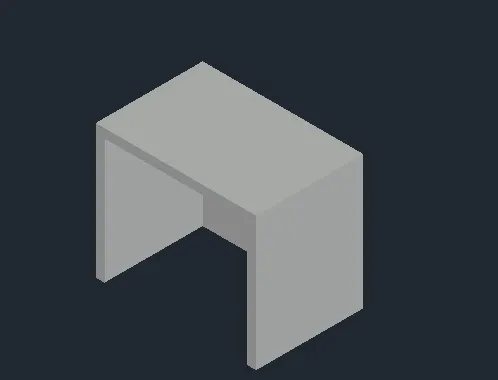

AIM:

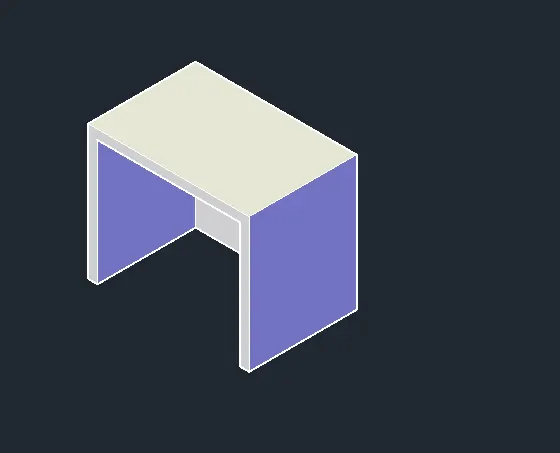

TO CREATE A 3D FURNITURE IN AUTOCAD.
PROCEDURE:
SWITCH THE WORK SPACE TO 3D MOELLING AND SET THE VIEW OF S-W ISOMETRIC.
SET THE UNIT AS ENGINERRING.
USE THE LINE TOOL SPECIFY THE FIRST POINT 0,0,0.AND THEN USE RELATIVE CORDINATE.
ENTER THE POINT @0,0,2'6",@0,-3',0,@0,0,-2'6",@0,-2",0,@0,0,2'4",@0,2'8",0,@0,0,-2'4",@0,2",0.
THEN USE THE REGION COMMAND TO CREATE THE SURFACE OF THE OBJECT.
THEN CHANGE THE STYLE TO CONCEPTUAL.
TEN EXTRUDE COMMAND IS USE AND EXTRUDE THE SURFACE DISTANCE OF 2'
THEN CHANGE THE VIEW S-E ISOMETRIC.
THEN CREATE A RECTANGLE SIZE 2'8"*2" AT THE BASE.THEN MAKE A SURFACE BY USING REGION COMMAND.
THEN EXTRUDE SURFACE OF RECTANGLE ITS HEIGHT IS 2'4"
THEN THE CHANGE THE VISUAL STYLE TO HIDDEN.
RESULT:

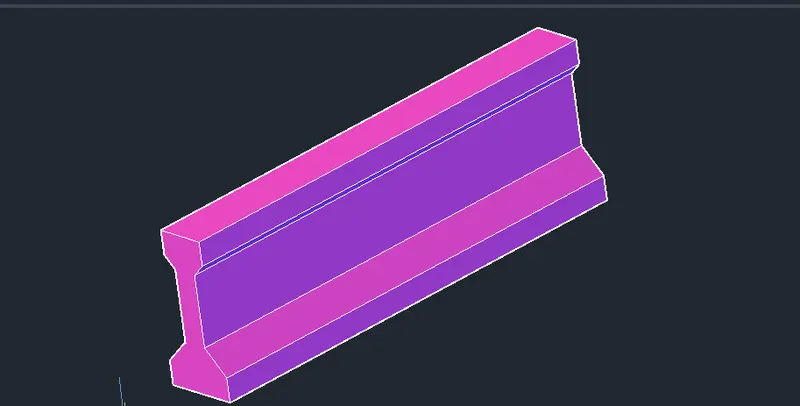

AIM:
TO CREATE A 3D VIEW OF AASHTO TYPE GIRDER.
PROCEDURE
SWITCH THE WORK SPACE TO 3D MOELLING AND SET THE VIEW OF S-W ISOMETRIC.
SET THE UNIT AS ENGINERRING.

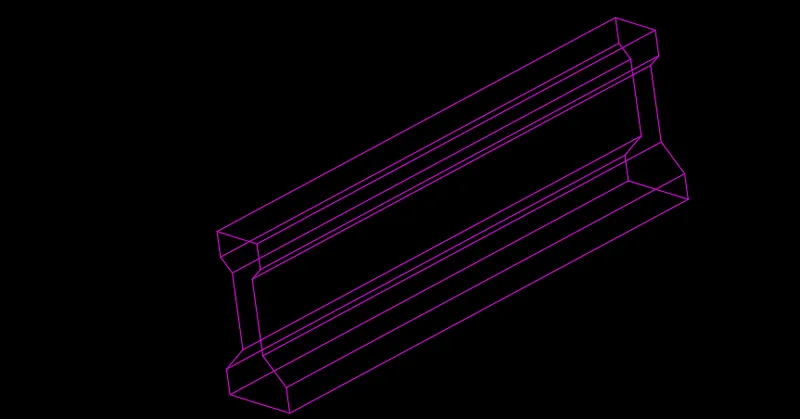

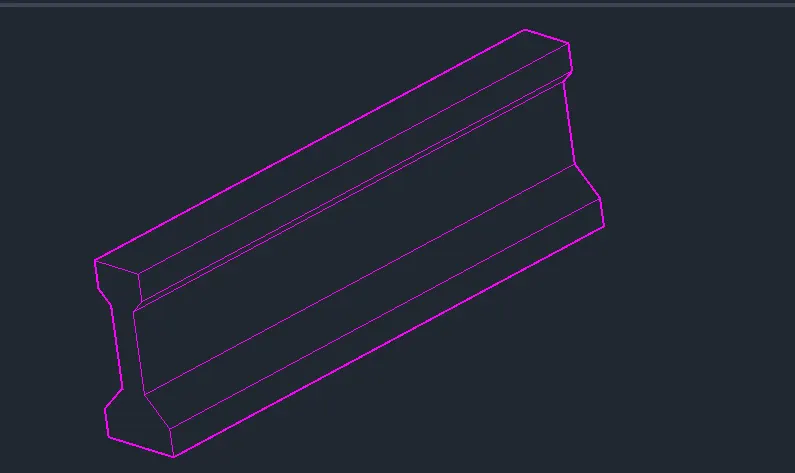

USE THE LINE TOOL SPECIFY THE FIRST POINT 0,0,0.AND THEN USE RELATIVE CORDINATE.
THEN NEXT POINT @0,0,6,@6<0,6AND @0,0,1'3"
THEN CHANGE THE UCS TYPE AND SELECT THE Z AXIS.
THEN CREATE LINE SPECIFY THE FIRST POINT AT THE LAST POINT AND THE NEXT POINT @3<0,-3.
THEN CHANGE THE UCS INTO THE UCS WORLD.
THEN LINE POINT IS @0,0,6",@1',0,0,@0,0,-6"
THEN CHANCE THE UCS AND SELECT THE Z AXIS.
THEN CREATE LINE SPECIFY THE FIRST POINT AT THE LAST POINT AND THE NEXT POINT @3<0,3.
THEN CHANGE THE UCS INTO THE UCS WORLD.
THEN CREATE LINE SPECIFY THE FIRST POINT AT THE LAST POINT AND THE NEXT POINT @0,0,-1'3".
THEN CHANGE THE USE AND SELECT THE X AND ENTER THE ROTATION AT 90 ANGLE.
CONTINUE CREATING LINE AND NEXT POINT @6"<0,6".
THEN CHANGE THE UCS INTO THE UCS WORLD.
CONTINUE CREATING LINE AND NEXT POINT @0,0,6",@-1'6",0,0.
THEN MAKE A SURFACE BY USING REGION COMMAND.

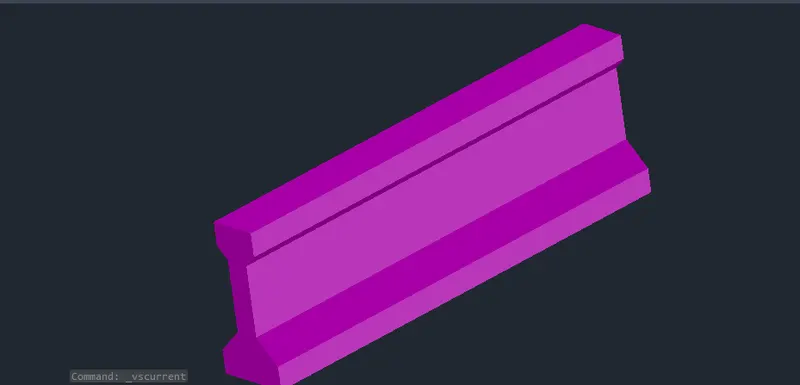

CHANGE THE VISUAL STYLE AS CONCEPTUAL.

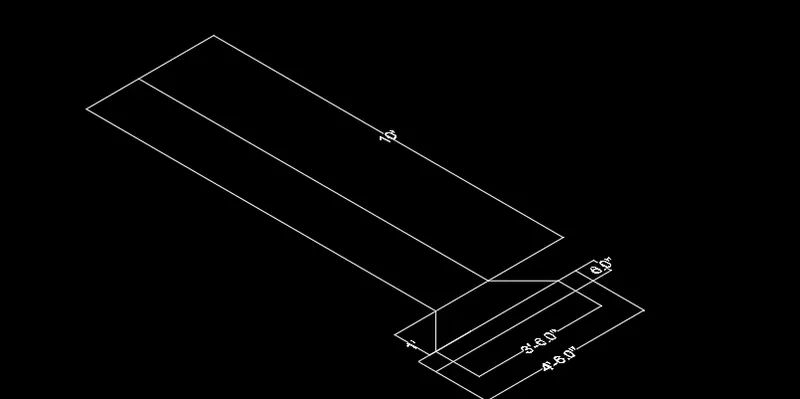

THEN EXTRUDE THE SURFACE AT DISTANCE 10'
THEN THE CHANGE THE VISUAL STYLE TO HIDDEN.
RESULT:
AIM:

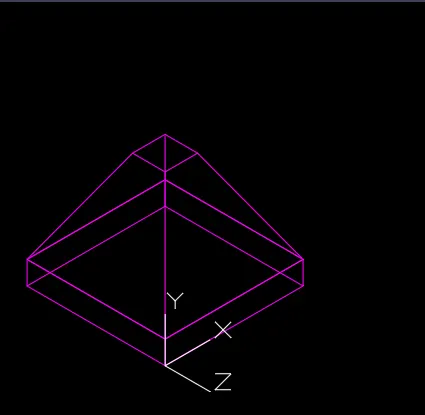

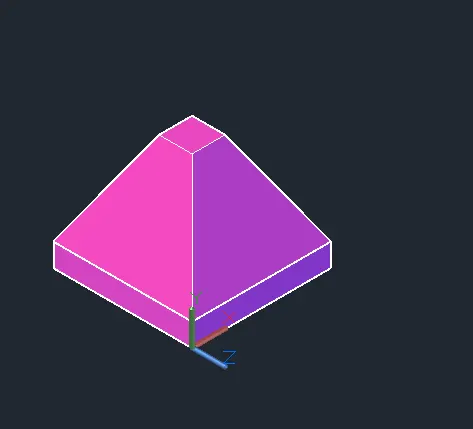

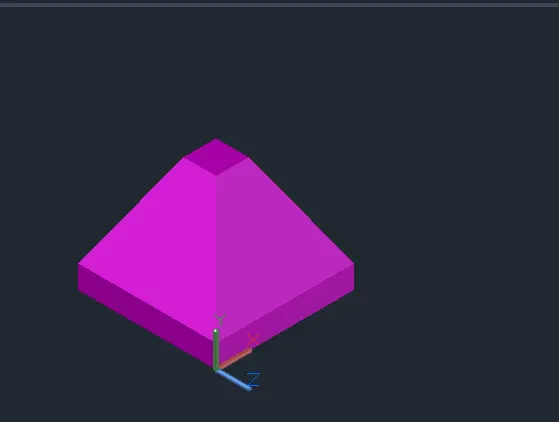

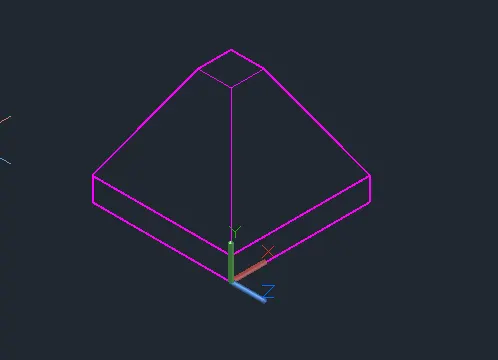

TO CREATE THE 3D MODEL OF ISOLATED FOOTING IN AUTOCAD.
PROCEDURE:
SWITCH THE WORK SPACE TO 3D MOELLING AND SET THE VIEW OF S-W ISOMETRIC.
SET THE UNIT AS ENGINERRING.
CRAETE A BOX COMMAND AND SPECIFY FIRST CORNER POINT IS 0,0,0 AND THEN OTHER CORNER POINT @3',3',0 AND SPECIFY HEIGHT IS 6".
THEN UCS PYRMID COMMAND AND CREATE PYRMID AT THE TOP OF THE BOX.
SPECIFY POINT AS FIRST AND SECOND CORNER OF THE TOP OF THE BOX.
THEN SELECT THE TOP REDIUS AS 6" AND SPECIFY HEIGHT AS 2'
THEN MAKE A SURFACE BY USING REGION COMMAND.
CHANGE THE VISUAL STYLE AS CONCEPTUAL.
THEN THE CHANGE THE VISUAL STYLE TO HIDDEN.
RESULT:

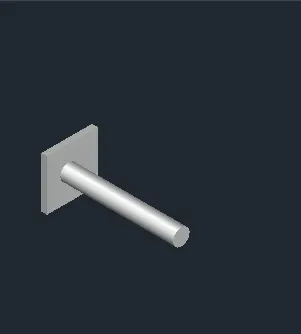

AIM:

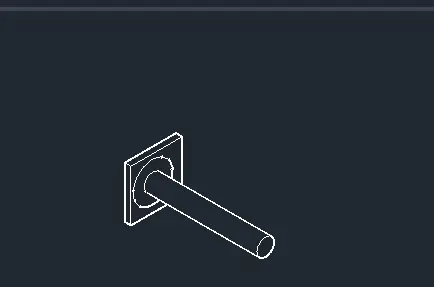

TO CREATE THE 3D MODEL OF THE DROP COLUMN WITH PANNEL IN SECTION AND ISOMETRIC VIEW IN AUTOCAD.
PROCEDURE:
SWITCH THE WORK SPACE TO 3D MOELLING AND SET THE VIEW OF S-W ISOMETRIC.
SET THE UNIT AS ENGINERRING.

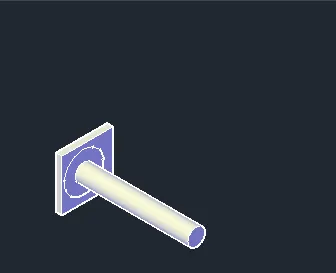

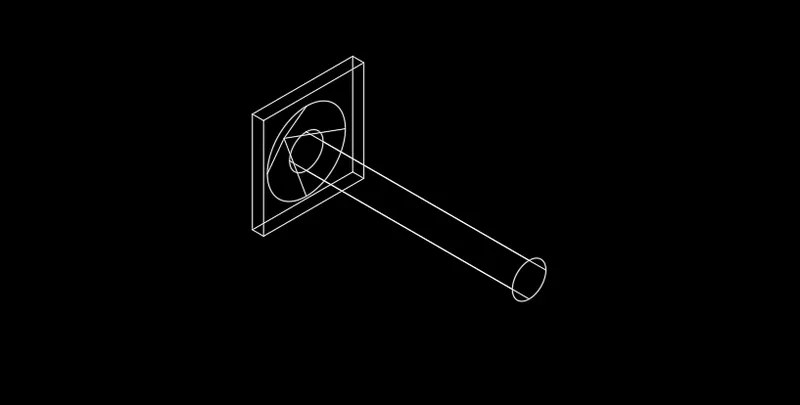

CREATE A CYLINDER AND SPECIFY THE CENTER POINT AT 0,0,0 AND REDIUS AS 9" AND HEIGHT AS 10'
THEN CREATE CONE ON TOP OF CYLINDER AND SPECIFY THE BASE REDIUS IS 9"
THEN CHOOSE THE TOP REDIUS AS 1'9" AND HEIGHT AS 1'
THEN CRETAE A RECTANGLE SPECIFY POINT AT TOP CENTER OF THE CONE.
AND OTHER POINT AS @4,6",4'6",0 THEN CREATE A SUREFACE USE THE REGION.
THEN EXTRUDE RECTANGLE AT HEIGHT OF 6"
CHANGE THE FRONT VIEW.
THEN CHANGE THE VISUAL STYLE AS CONCEPTUAL.
THEN THE CHANGE THE VISUAL STYLE TO HIDDEN.
RESULT:

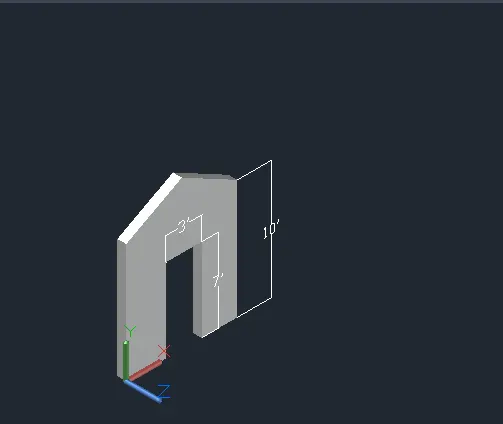

AIM:

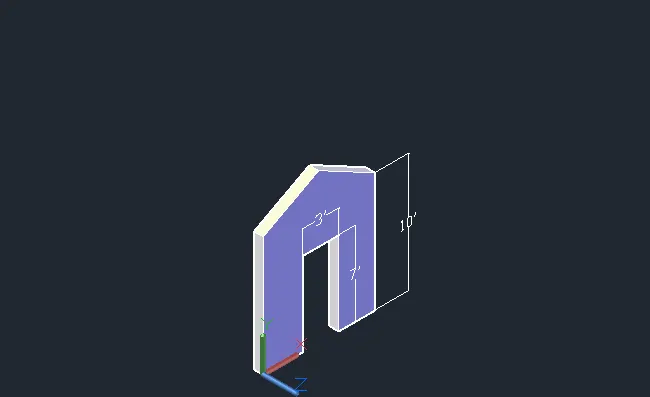

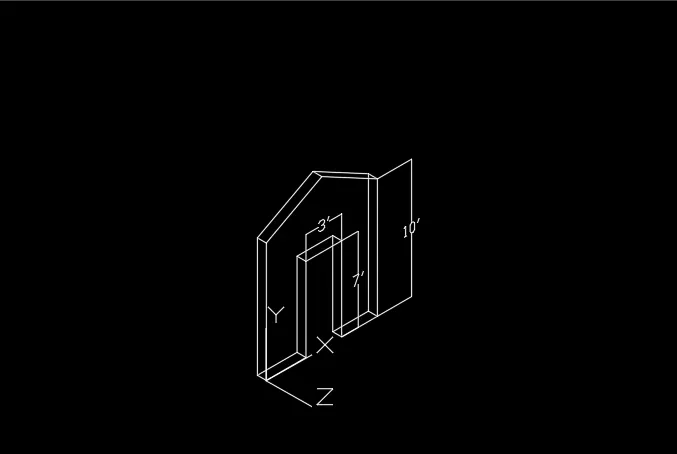

TO CREATE THE 3D MODEL OF A WALL IN AUTOCAD.
PROCEDURE:

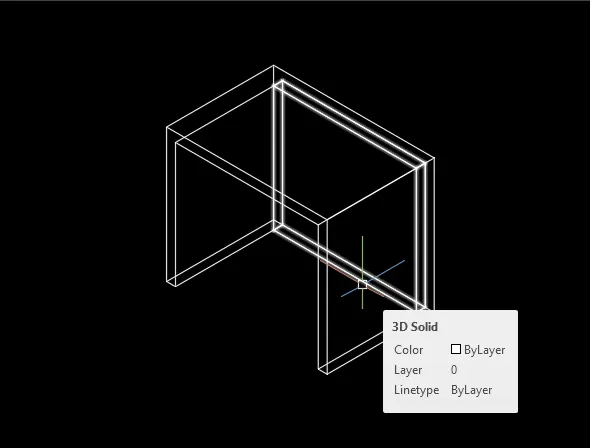

SWITCH THE WORK SPACE TO 3D MOELLING AND SET THE VIEW OF S-W ISOMETRIC.
SET THE UNIT AS ENGINERRING.

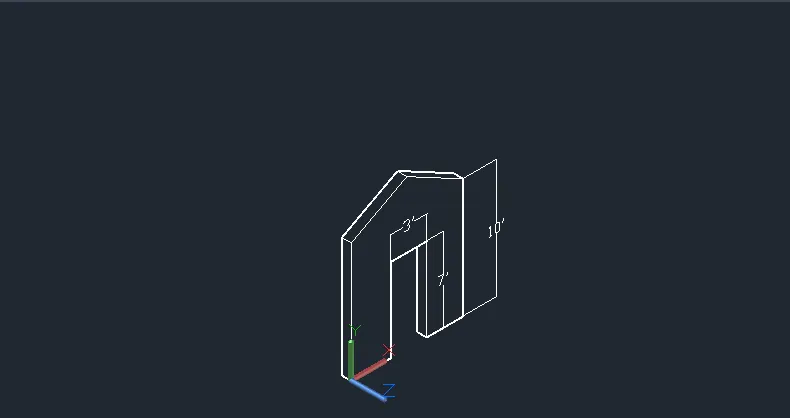

USE THE LINE TOOL SPECIFY THE FIRST POINT 0,0,0 ENTER THE NEXT POINT OF THE LINE @3'4",0,0
THEN THE POINT IS @0,0,7',@3',0,0,@0,0,-7',@3'0,0,@0,0,10'
THEN CREATE A REFERANCE LINE TO JOINT THE TWO TOP END POINT AS THE PROFILE.
THEN CREATE A REFRANCE LINE AT A DISTANCE OF 2'6" THIS IS ALSO THE REFRANCE LINE. THEN TO JOIN THE END POINT OF THE REFRANCE LINE.
THEN ERASE THE TWO REFRANCE LINE.
THEN MAKE A SURFACE BY USING REGION COMMAND.
CHANGE THE VISUAL STYLE AS CONCEPTUAL.
THEN EXTRUDE THE SURFACE AT A DISTANCE OF 9".
THEN THE CHANGE THE VISUAL STYLE TO HIDDEN.
RESULT:
