Challenge

Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

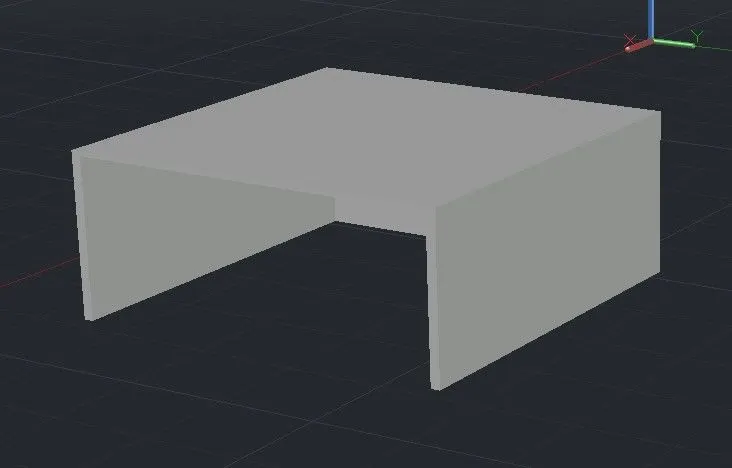

1.AIM

To create a 3d furniture elements using the various commands in the autocad.

Introduction by 3d view

the process of creatting a mathematical representation of any surface of an object in three dimensions by using special software
a 3d model can even be represented as atwo dimensional image by using the 3d rendering process
it enables the professional creation and edtion of 2d geometry and 3d models.

procedure

result

the dia of 3d furniture elemnts is drawn as per dimensions using this softeware of auto.

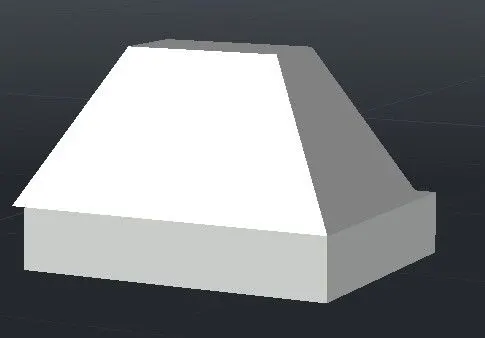

2. aim :to create a 3d model of an isolated footing using the various commands in the autocad

procedure:

To create a new sheet from application of Auto CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type UN to set the units of current format of measure.
Type LIMITS to set the maximum dimension limits on the particular page.
First we take the top view of the page.
Type REC to create a rectangle with a given dimensions.
And then we take to a 3D custom view.
The footing dimension is 4’0” x 4’0”.
The depth of footing is 6” and reduced to the depth of 2” and width is 1’0”.
COPY – this commands is used to selected objects from a given square to destination.
MOVE – moves the objects to the destination place from the source place.
And then to join the all lines .
Type 3D ORBIT to view a 3D orbit viewport in the current viewport
Type 3D FACE for allows to generate 3D faces by identifying.
To save the diagram to particular file.

result:

the diagram of 3d model of an isolated footing is drawn as per dimensions using the softeware.

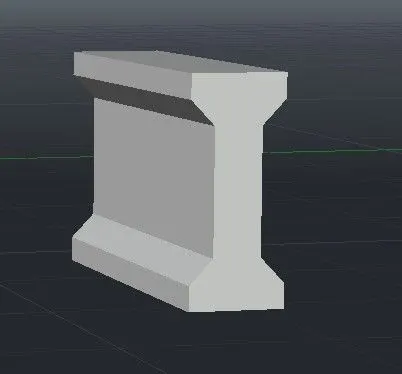

3. aim : to craete a 3d view of the aasto type grider using the various commands in software.

procedure:

To create a new sheet from application of Auto CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type UN to set the units of current format of measure.
Type LIMITS to set the maximum dimension limits on the particular page.
First we take the top view of the page.
To take L to create a line to draw the I section AASTHO Girder.
The origin point is 0,0,0.
The next point is (@1’6”,0,0)
The next point is (@0,0,6”).
The next point is (@6”<0<135) and to follow the all given dimensions to draw the Section.
Type 3D ORBIT’ to view a 3D orbit viewport in the current viewport
Type 3D FACE for allows to generate 3D faces by identifying.
Type REGION to converts objects that encloses an area into a 2D region objects.
Type EXTRUDE to create a surface or solid of a 2D surface or a 3D curve.
The extruded length of the section Girder is 10 feet.
Then, we have to change the view of 2D Wire, Shaded, Conceptional,,etc.
To save the diagram to particular file.

result:

the dia of 3d type of aastho girder type is drawn as per dimensions using the software of the autocad.

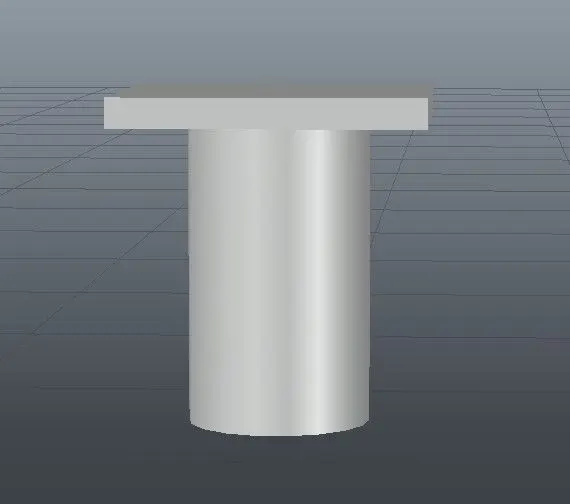

4.AIM

To create a 3d model of a drop coloumn with panel using the various commands in autocad .

procedure:

To create a new sheet from application of Auto CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type UN to set the units of current format of measure.( feet and inches).
Type LIMITS to set the maximum dimension limits on the particular page.
First we take the top view of the page.
Type REC to create a rectangle with a given dimensions.
And then we take to a 3D custom view.
To choose the Top view of page.
The rectangular size is 4’6”.
Type C to create a circle options.
The column cap height id 1 feet.
The column head thickness is 6 inch,
The height of the column is 10 feet.
COPY – this commands is used to selected objects from a given square to destination, learning a copy at the originally selected location.
MOVE – moves the objects to the destination place from the source place.
After completed the copy of rectangle to make the box like structure of column head.
After we take to draw a circle of diameter of 1’6”.
Type EXTRUDE to create a surface or solid of a 2D surface or a 3D curve.
The extruded length of the circular column with a negative direction of Z is 10 feet.
Type 3D ORBIT to view a 3D orbit viewport in the current viewport
Type 3D FACE for allows to generate 3D faces by identifying.
Type REGION to converts objects that encloses an area into a 2D region objects.
To save the diagram to particular file

result:

the diagram of 3d model of a coloumn with drop panel is drawn as per dimensions using the software of autocad.

diagram:

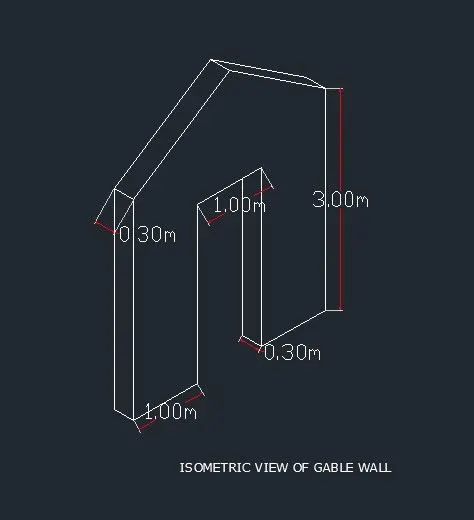

5. Aim:

to create a 3d model of a wall using the various commands in autocad.

Procedure:

To create a new sheet from application of Auto CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type UN to set the units of current format of measure.
Type LIMITS to set the maximum dimension limits on the particular page.
First we take the top view of the page.
Before we start the 3D work to create a plan of wall at 2D .
To make the wall thickness of 250mm.
To fix the door and wall opening from wherever we need.
Type REGION to converts objects that encloses an area into a 2D region objects.
After creating perfect plan to do next work of 3D solid works.
Type EXTRUDE to create a surface or solid of a 2D surface or a 3D curve.
The extruded of wall height id 10 feet from the base.
And then to draw the rectangle of wherever having the doors and windows.
This comes after to follow the extruded of door opening height of 7 feet.
Type 3D ORBIT to view a 3D orbit viewport in the current viewport
Type 3D FACE for allows to generate 3D faces by identifying.
Type REGION to converts objects that encloses.
Type SUBTRACT’ to remove the open required places of doors and windows.
To save the diagram to particular file.

results:

the diagram of 3d model of a wall is drawn as per dimensions using the software of autocad
