Creating Levels, Grids, Layout and model elements for a residential unit using REVIT

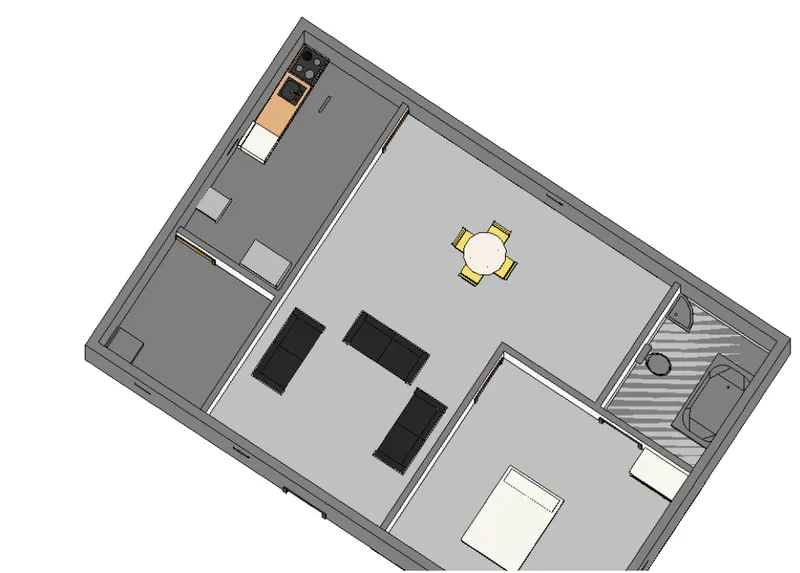

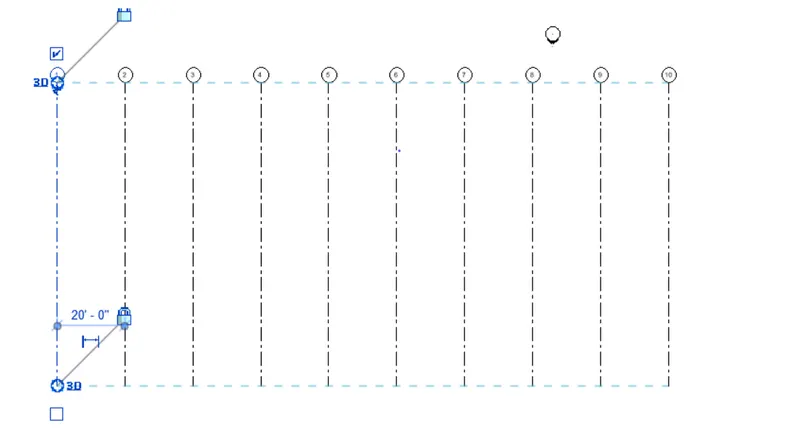

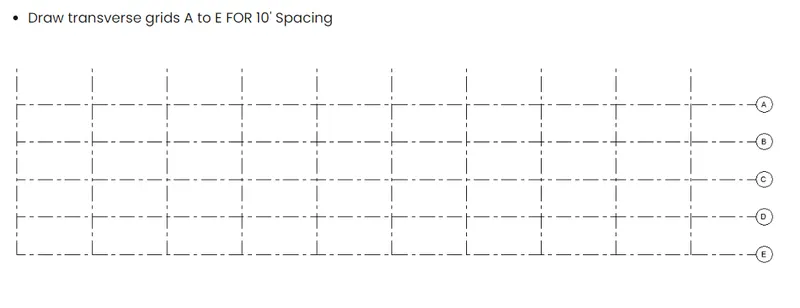

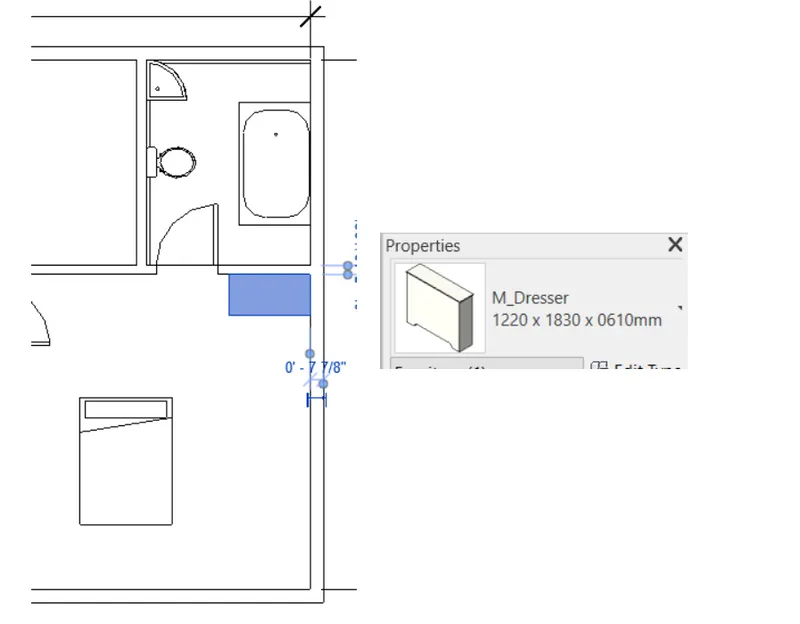

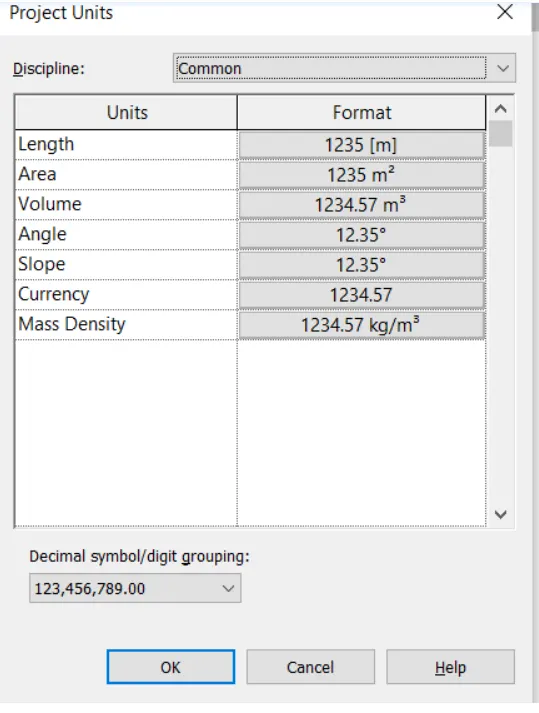

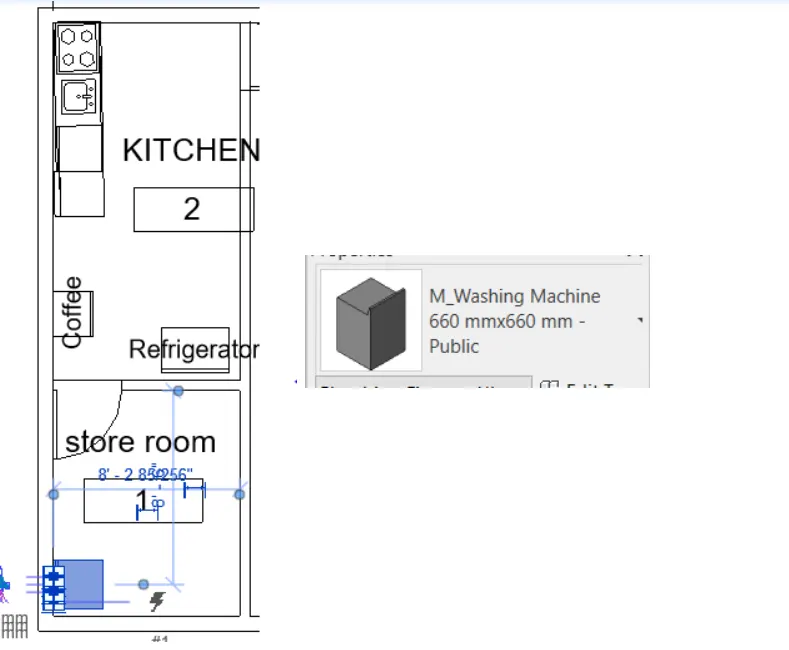

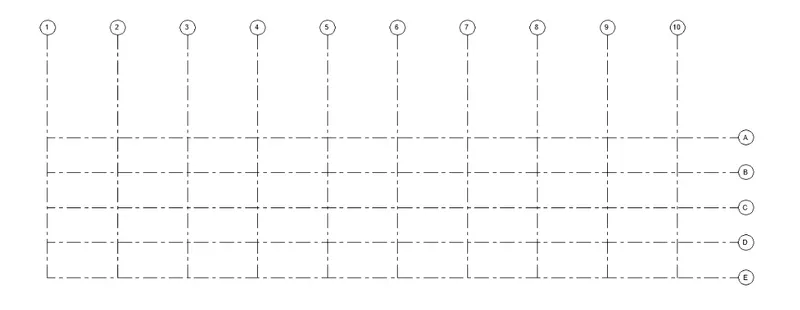

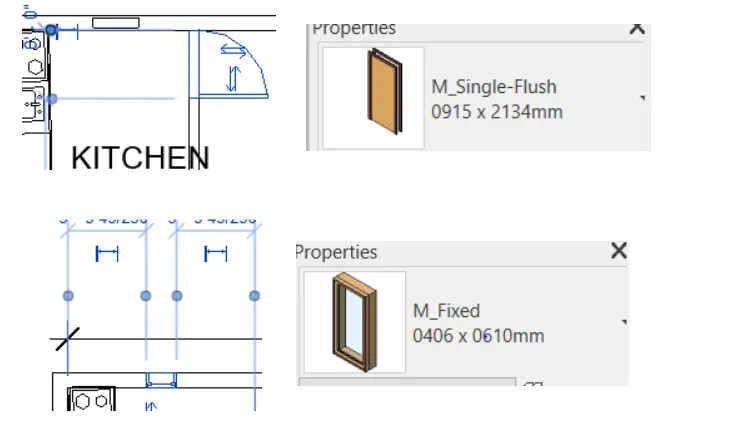

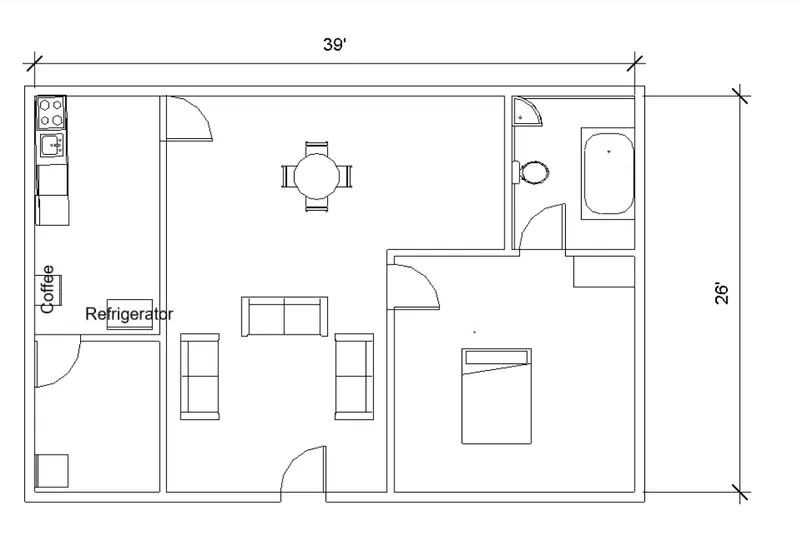

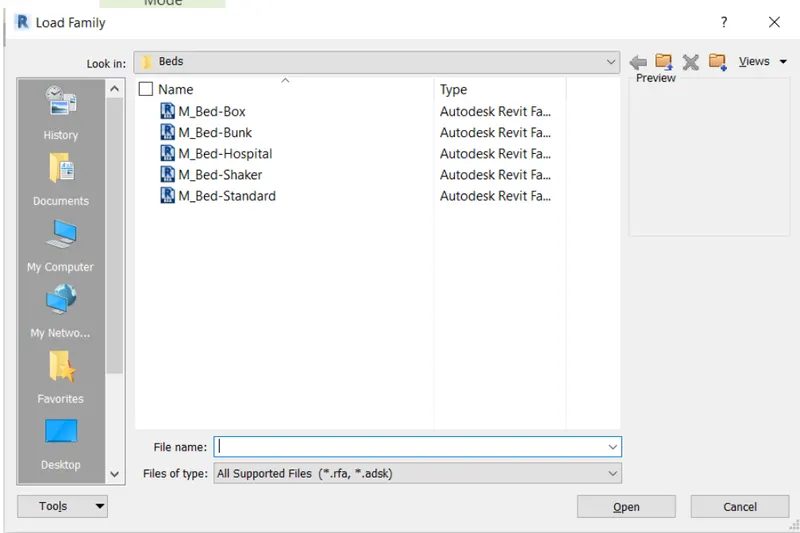

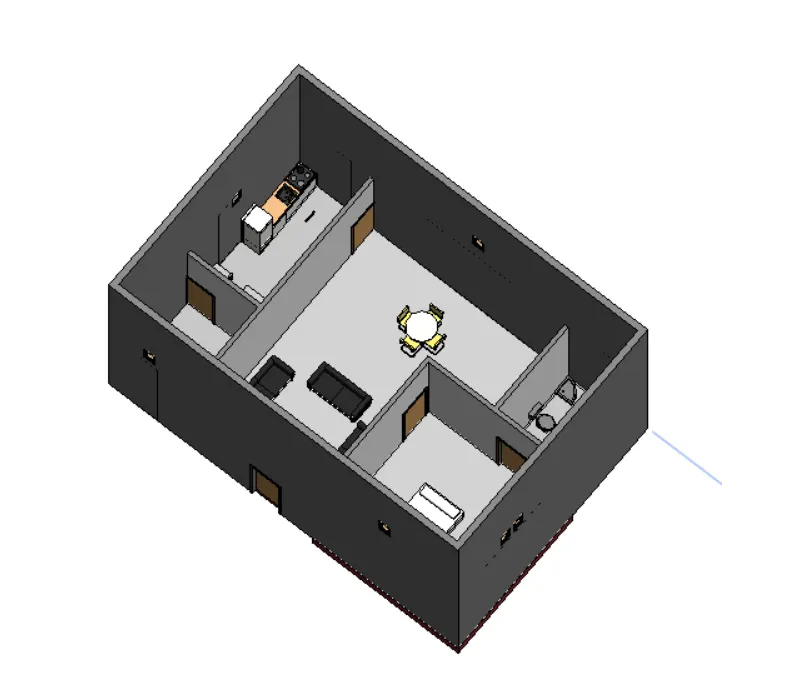

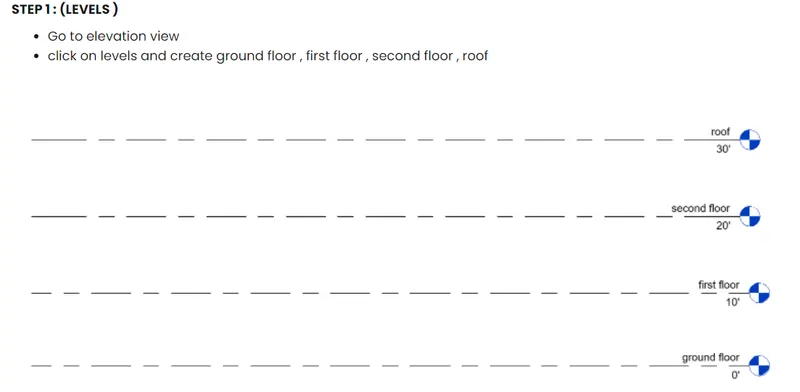

Aim: To identify the type of failure from the above figures. a) Failure due to the improper nominal cover to the beam, Buckling of reinforcement provided in the bottom of the beam and crushing of concrete at the beam- column junction. This type of failure happens if the nominal cover for the beam is inappropriate…

1) Aim: Use the Architecture/ structure Project file developed by you in Week 6 to 8. Introduction: Use Navisworks project review software to improve BIM (Building Information Modelling) coordination. Combine design and construction data into a single model.ldentity and resolve clash and interference problems before construction.Aggregate…

1) Aim: To create a set of sinusoidal points and create a curve and create a surface out of the curve Introduction: Dynamo is an open-source visudl programming language for Revit written by designers and constructionprofessionals. It is a programming language that allows you to type lines of code, while also creating an…

1) Short Cut Keys in Revit 1. BX (Section Box) Open Project 2 of Week 7 Click on one of the staircases Press Right click and click on select all instances visible in view Press BX to open section box around all stairs Adjust the box as per requirement 2. Cs (Create Similar) Select one of the trees in front of the school…

1) QHVAC systems are very important during the architectural design of a building for the following redsons: The Success of an HVAC system is directly related to the building's comfort levels. HVAC systems require substantial floor space for housing the unit/units as well as the distribution equipment Commercial HVAC systems…

1) AIM: Select the type of structure you want to build from one of the three beloW:a. Multi-Unit Residential Apartmentb. office Buildings C. School. ANS) OFFICE BUILDING Q2) AIM : Assume reasonable assumptions for geographic and location details for your project modeling. Based onassumptions and type of structure selected…

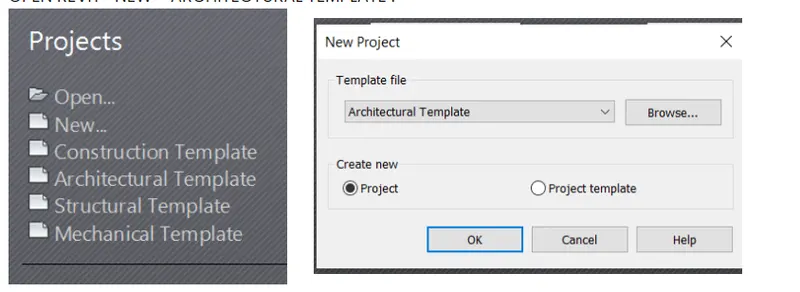

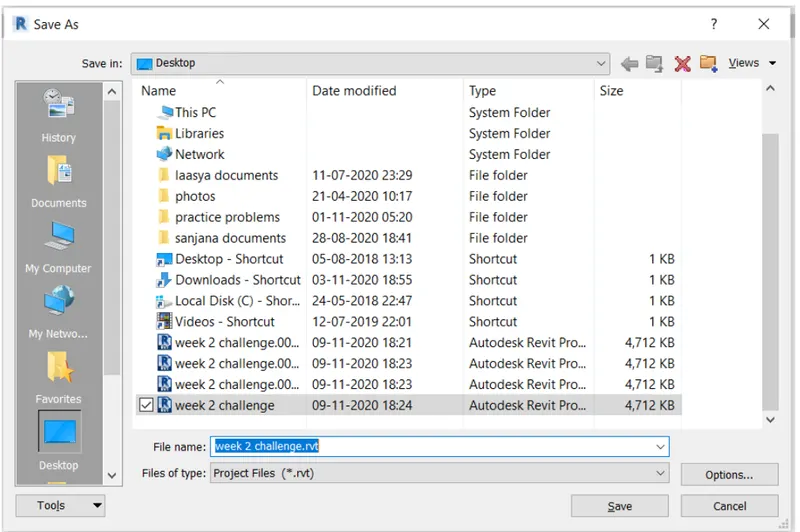

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project AIM: TO set project base point and project shared coordinates for the project PROCEDURE: STEP 1: Open REVIT software and in that open Architectural template Save the file by giving appropriate name…

1)Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit? Answer A model building code organization is a set of building codes that are developed and maintained by a standards organizaton. This standards organization operates independently of the jurisdiction or area in which the…

1) INTRODUCTION Inorder to create the ceiling and roof for a building using revit software following steps can be followed: Ceiling: Open revit software àArchitecture tab a Roof: Open revit softwear á Architecture tab a Architecture plan, structural plan, sectional view and elevation view can be developed…

1) AIM: To Create floor layout From week 2 project PROCEDURE STEP 1: Open week 2 project STEP 2 : Go to carchitecture tab > floor boundary lines pick lines STEP 3: Property browser edit type change the floor click on structural material to change the material select the desired floor material click on duplicate…

1)What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. building information modeling(BIM) IS an intelligent 3D model-based process that gives architecture,engieer and construction(AEC) Professionals the insight and tools to more efficiently plan, design, construct ong mengge bulings and…

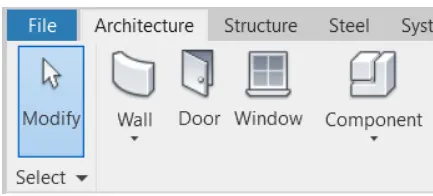

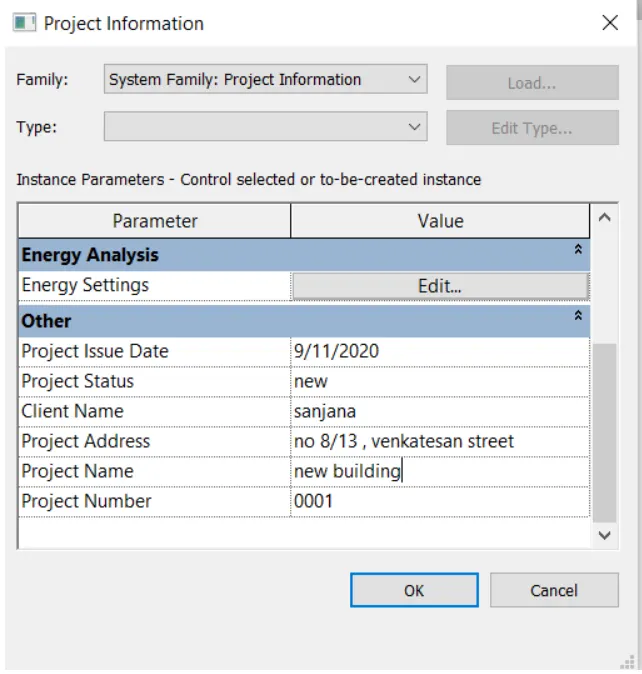

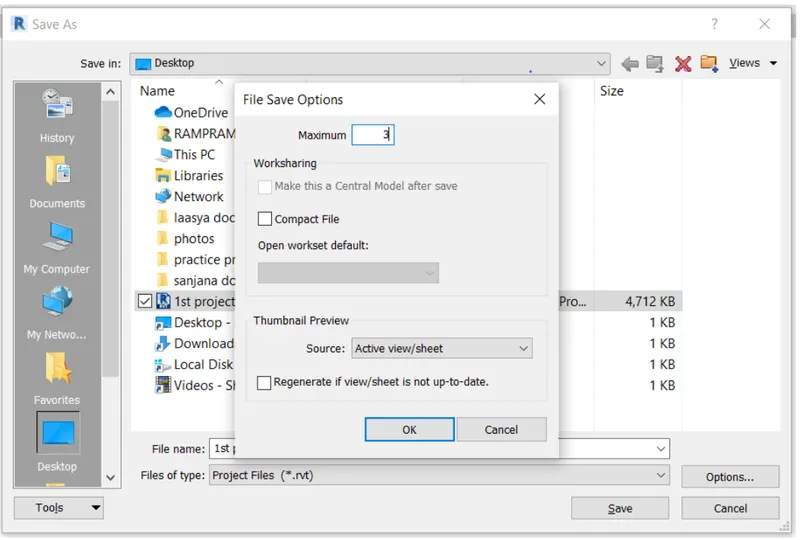

1)TO create a new project and name the project appropriately from the menu TOOLS/COMMANDS USED Mouse Whee Properties polette File Menu Open PROCEDURE STEP 1: First open revit software STEP2: NOw click on file option which is at top lett corner STEP-3:Next select on new option STEP 4:Now select project Option STEP 5:After…

1) Aim: To Create d 3d inmensinalmodel of the residential building with a rendered view Procedure: in the command prompt type units >0'-0''>engineering >inches In the command prompt tyPe linmax >100,100, in the command prompt type limits 0,0 In the command prompt type z>a In the command prompt typelto draft…

1) AIM: To Create a 3D isometric view of the the building with plan and elevation using Autocad PROCEDURE: In the command prompt type units >engineering>0-0 In the command prompt type limmax 100,100 In the command prompt type limits 0,0 In the command prompt type zoom a Go to the top vieW in the command prompt type…

1)AIM: oreate 3D Furniture elements using AutoCAD software PROCEDURE Open autocad 3D modelling in the command prompt units engineering inches0-0 in the command prompt type limax100,100 in the command prompt type linmits 0,0 In the command Prompt typelto give the lines of dimensions 2,3 and 2-6 In the command prompt type…

Aim : creating drawing with auto cad consider D1 = 4' x7', D = 2'6''X7, W=5' X4', column Size= 1' X1' beam= 9''x9'' foundation size = 4'x4'x5' Slab thickness =5'', wall thickness = 9'', tread=10'' riser= 6'' .open autocad and open new file unit command and set decimal and precision 0.00 and unit millimeter. d(dimension…

Aim :creating drawings using auto cad step :1 Open auto cad and open drawing-file type.dwt and select Tutorial M-arch.dwt file. unit command and set decimal and precision 0.00 and unit millimeter. dimension style manager) command and set decimal and precision 0.00 Using ineamm and dimension command, copy command, trim…

Aim : creating drawings using auto cad 1) steps: open autocad and open new fille unit command and set decimal and predision 0.00 d(dimension style manager) command and set pretcision decimal and 0.00.assume door size 1052.53 x 2100 mm using line command, circle command, multiline text command dimension command, trim command,…

AIM:   To draw the given drawing using AutoCAD software  PROCEDUE : STEP 1 : In the command prompt type Units >type> engineering  > precesion >  0.0 STEP 2:  In the command prompt type line > distance > 1''-3" In the menu bar > circle > centre , radius the centre is the…

AIM : creating a Floor plan and section of 3 story building Intraduction: in first snap showing a creation of floor plan in detail with the daimention and crosection of alinement also in second snap showing a elvation of building and final snap showing the side view of the building Procedure: step 1: slecting line by entering…

` AIM:   To draw the given drawing using AutoCAD software  PROCEDUE : STEP 1 : In the command prompt type Units >type> engineering  > precesion >  0.0 STEP 2:  In the command prompt type line > distance > 1''-3" In the menu bar > circle > centre , radius the centre is the…

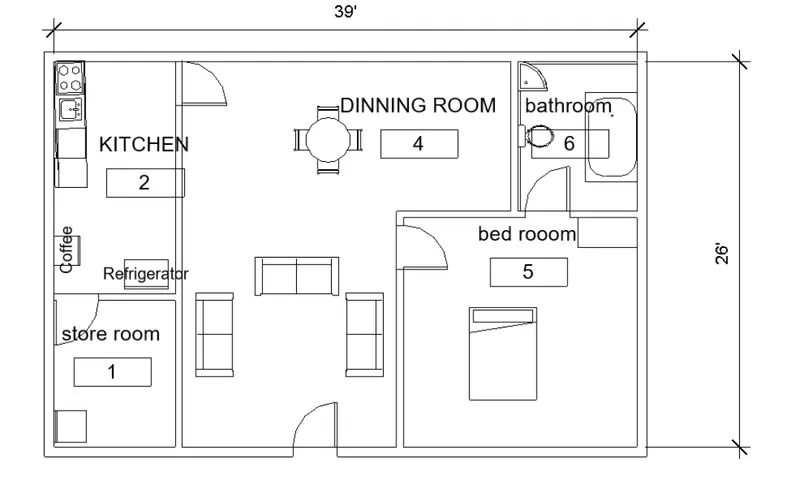

Aim: 1.Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors.  Sketch the seating plan for an outdoor canopy. Assume the…

aim:Drafting of various geometries using Chamfer, Fillet tool in AutoCad procedure :  using fillet option we can join the two line and also joind the line with curve using offset  using chamfer tools,circles, square,and line geometries make a drawings Click Home tab > Draw panel > Line. Find. Specify the…

AIM : creating a floor plan, footing detail and isometric view using Autocad  step by step procedure used to draft the image Click Home tab > Draw panel > Line. Find. Specify the start point and end point of the line segment by clicking in the drawing area. Continue specifying additional line segments. ... Press…

coordinates system methods 1)P1 2) P2 3) P3 4)P4 5) P5 6) P6 7) P7 8) P8 9) P9 10) P10 Civil Related Problems 1) 2) 3)

1) Concrete Mix Design for M35 grade concrete with fly ash  I. Stipulations for proportioning:  a) Grade designation : M35  b) Type of cement: OPC 43 grade conforming to IS 8112  c) Type of mineral admixture : Fly ash conforming to IS 3812 (Part 1)  d) Maximum nominal size of aggregate: 20…

 G+1 floor residential plan, according to Vaastu Shastra structural drawings of beams structural drawings of columns floor plan
